SM-07M 7” video door phone

Thank you for the

choice of our equipment

User manual

UNIQUE

DIRECT

SERIES

{ Design. Uniqueness. Innovation }

1 2

Rev. 1.0

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Package ......................................................................................................................................................................................... 3

2. Specication................................................................................................................................................................................ 3

3. Description................................................................................................................................................................................... 4

4. Installation.................................................................................................................................................................................... 5

4.1 Cable requirements.................................................................................................................................................... 5

4.2 Schematic diagrams................................................................................................................................................... 6

4.3 Unit mount .................................................................................................................................................................... 7

5. Operation...................................................................................................................................................................................... 8

5.1 Incoming call ................................................................................................................................................................8

5.2 Door panel and camera image monitoring....................................................................................................... 9

5.3 Incoming call redirection ......................................................................................................................................... 10

5.4 Intercom ......................................................................................................................................................................... 11

6. Monitor settings......................................................................................................................................................................... 11

6.1 Melody settings ........................................................................................................................................................... 12

6.2 Image settings.............................................................................................................................................................. 12

6.3 Date and time settings.............................................................................................................................................. 12

6.4 System settings............................................................................................................................................................ 13

6.5 Record settings ............................................................................................................................................................ 13

7. Limited Warranty........................................................................................................................................................................ 14

UNIQUE

DIRECT

SERIES

{ Design. Uniqueness. Innovation }

3 4

123 mm

193 mm 18

UNIQUE

DIRECT

SERIES

1. Package

SM-07M door monitor − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires − 6 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

Screen

Resolution

Video system

Audio type

Call time

Internal memory

Memory extension slot

Standby mode power consumption

Working mode power consumption

Power supply

Mounting type

Dimensions

Working temperature

7”, color TFT (16:9)

800×480 pixels

PAL/NTSC

Half duplex

120 seconds

100 snapshots

MicroSD, up to 32 GB

3 W

6 W

Built-in power supply, ~100–240 V

Surface mount

193×123×18 mm

−10...+55 ˚C

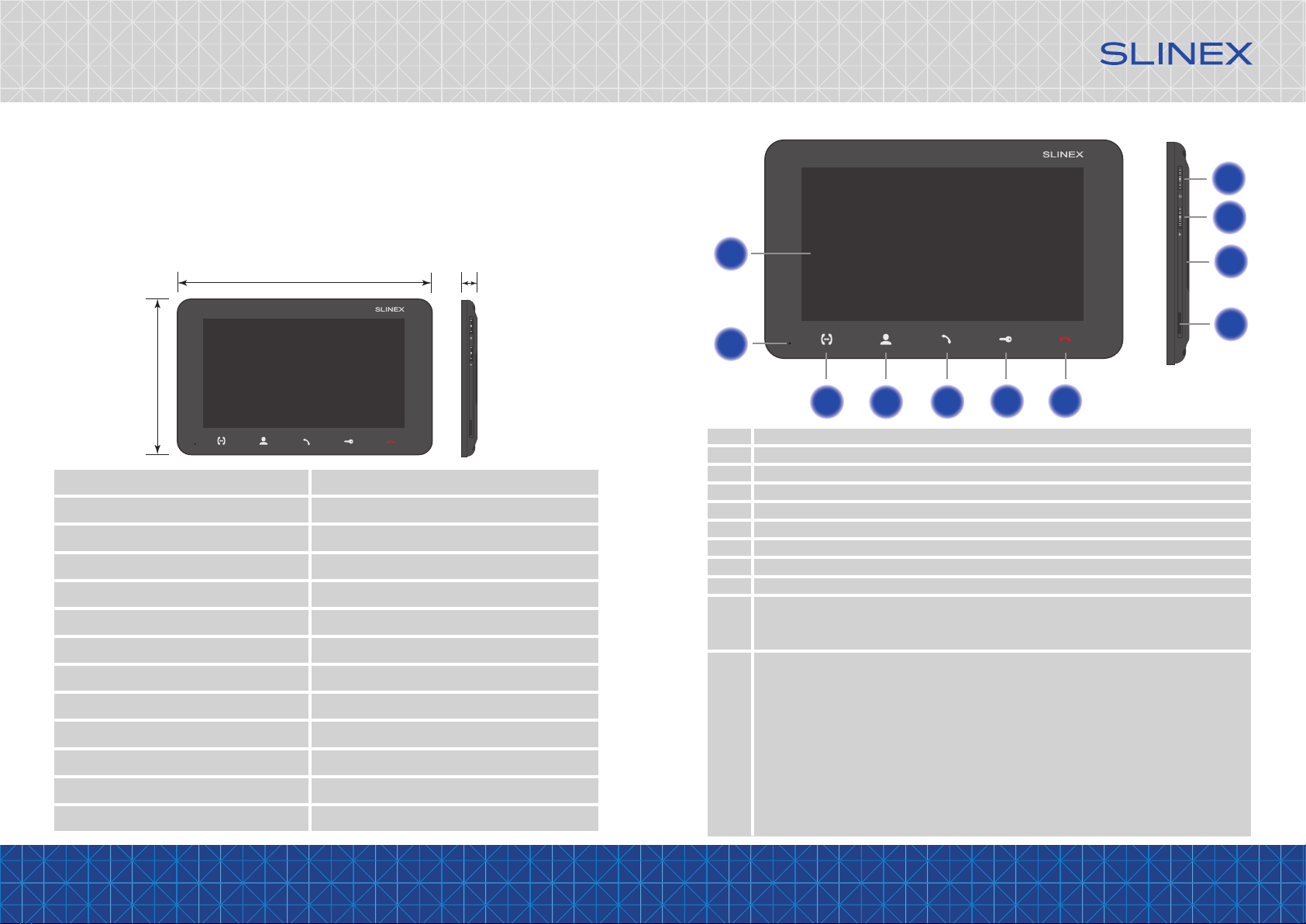

3. Description

Display

Microphone

«Intercom» button – call another monitor or incoming call redirection

«Monitor» button – door panel or camera image monitoring

«Answer» button – incoming call answer and start conversation with the visitor

«Unlock» button – door unlocking

«Hang Up» button – stop conversation with the visitor / settings menu exit

MicroSD card slot

Speaker

Volume joystick:

• move the joystick up or down during intercom or conversation to increase or decrease

monitor speaker volume;

Settings joystick:

• move the joystick up while monitoring or conversation to save a photo or start video

recording (depends on record settings). Move the joystick down to stop video

recording;

• push the joystick in standby mode to enter settings menu;

• move joystick up or down to move through the settings menu (next/previous

parameter);

• push the joystick on any parameter to change its value. Change the value of current

parameter by moving joystick up or down and then push the joystick again to save

current parameter.

{ Design. Uniqueness. Innovation }

5 6

UNIQUE

DIRECT

SERIES

SM-07M (Master)

Door 1

Door 2

Input

Output

PowerCCTV1/2

Door 1

Door 2

Input

Output

PowerCCTV1/2

GND

+13,5 V

SM-07M (Slave)

CCTV 2

CCTV 1

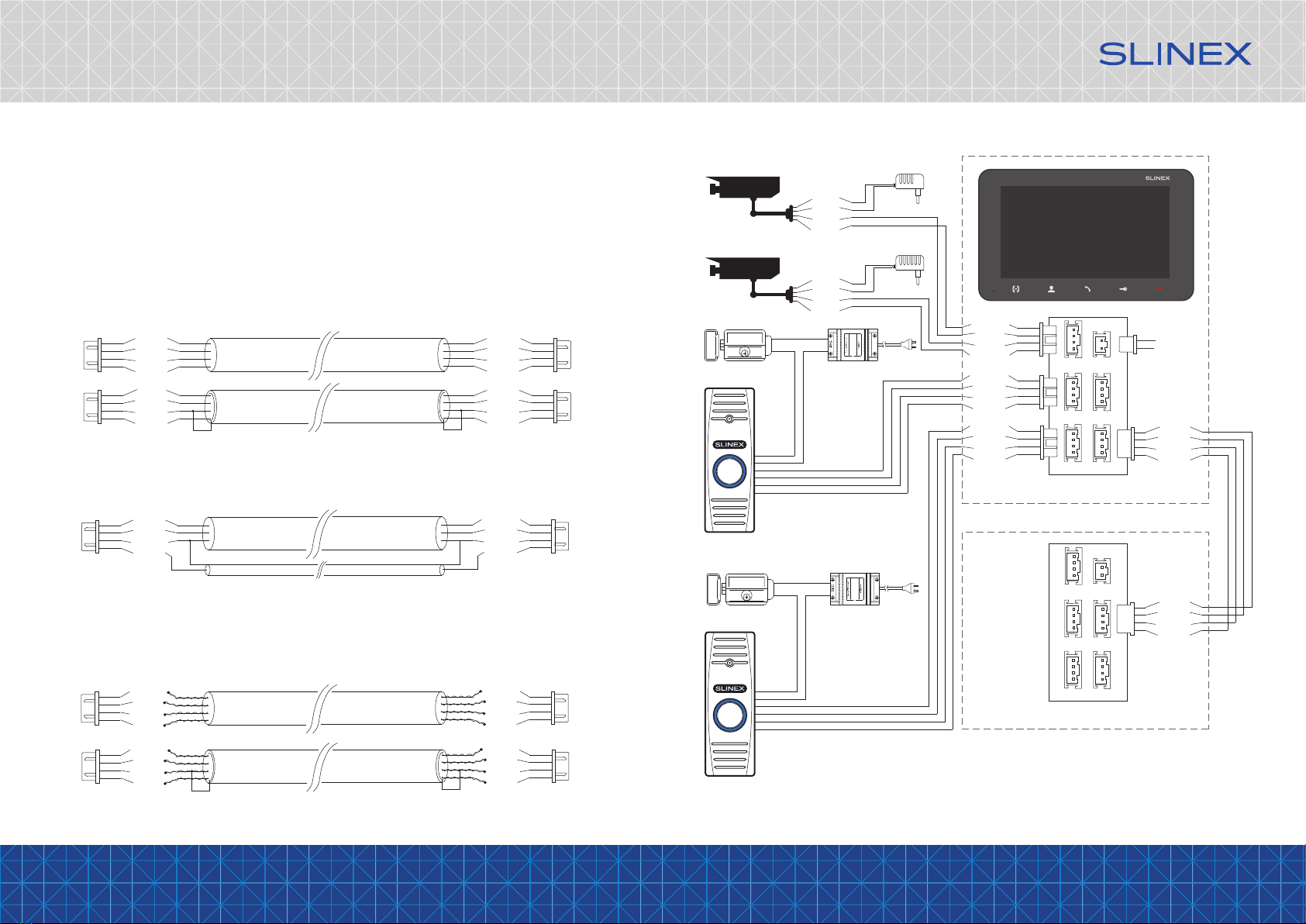

4.2 Schematic diagrams

SM-07M door panels, cameras and locks connection.

4. Installation

4.1 Cable requirements

Disconnect all power cables before device installation.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters use a cable with 0,22 mm square of one wire;

• distance 25 to 50 meters use a cable with 0,41 mm square of one wire;

• distance 50 to 100 meters use a cable with 0,75 mm square of one wire.

b) If the distance between door monitor and door panel is between 80 and 100 meters then use a 3-wire

cable with 0,75 mm square of one wire and RG-59 or RG-6 coaxial cable for the video signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters non-shielded twisted pair can be used;

• distance 25 to 50 meters shielded twisted pair should be used.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80-100 m

RG-59 or RG-6

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

Lock

Door

panel 1

Lock power

supply

CCTV power

supply

CCTV power

supply

Lock

Door

panel 2

Lock power

supply

+12 V

GND

Video

+12 V

GND

Video

Video 1

GND

Video 2

Power

Audio

GND

Video

Power

Audio

GND

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Notes:

* Use «Power»plug to connect external power supply +13,5 V. While using external power

supply please keep main power cord ~100-240 V disconnected from the outlet, otherwise it

can damage monitor circuits.

** Door panels, cameras, power supplys and locks, described on the diagram are optional

devices and are not included into monitor kit.

7 8

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

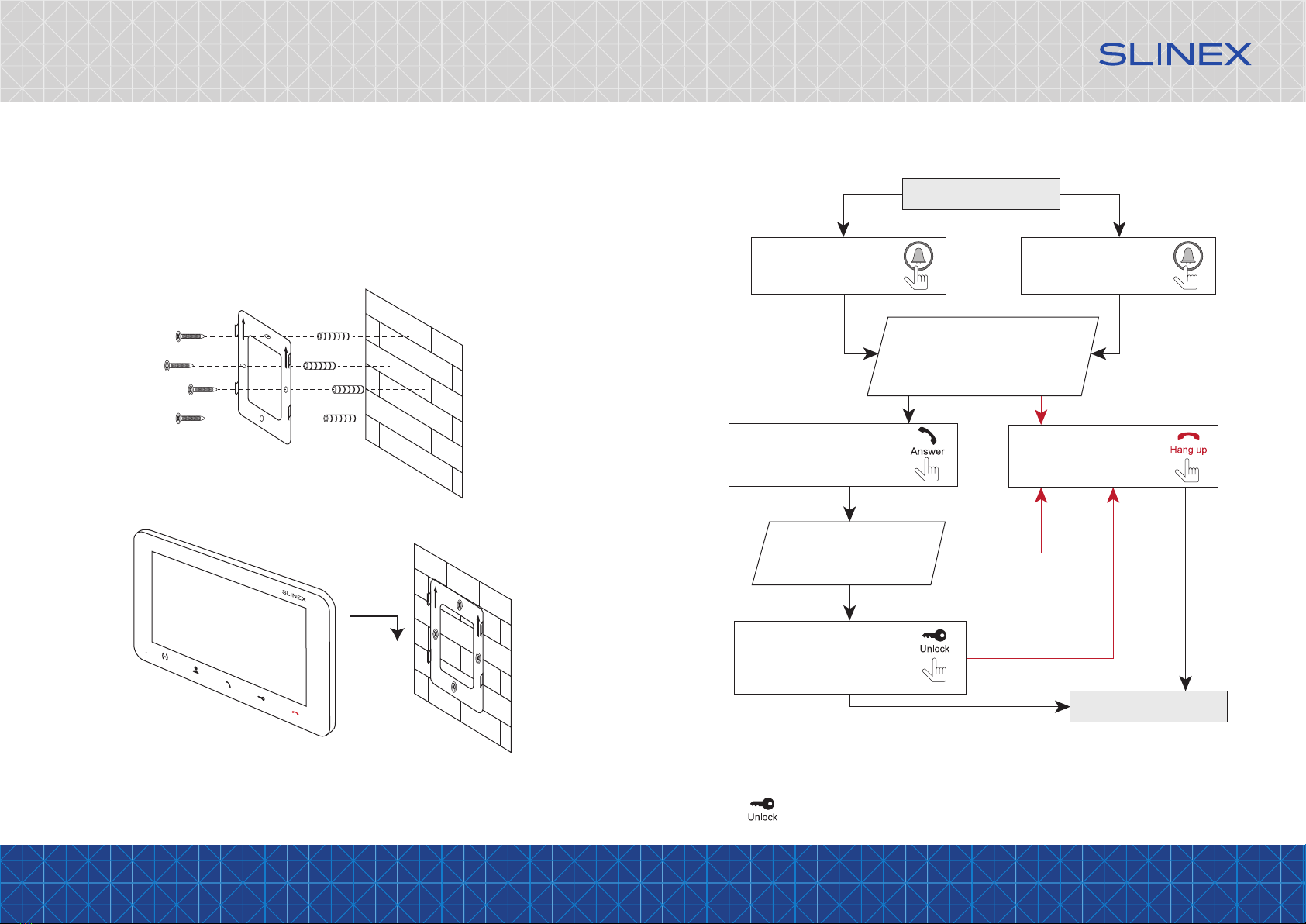

4.3 Unit mount

1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line.

2) Mark and drill four halls in the wall.

3) Take four nuts from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the monitor on the surface mount bracket.

5. Operation

5.1 Incoming call

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button

on the rst door panel

Visitor presses call button

on the second door panel

Press «Answer» button to start

conversation with the visitor

Melody stops ringing and

conversation starts,

talking time is 120 seconds

Press «Hang up» button to

stop conversation or

incoming call

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 60 seconds;

2) Image and sound from the door panel will be active during 20 seconds after the moment user presses

button. It let the user know if the visitor passed through the door.

20 seconds

{ Design. Uniqueness. Innovation }

9 10

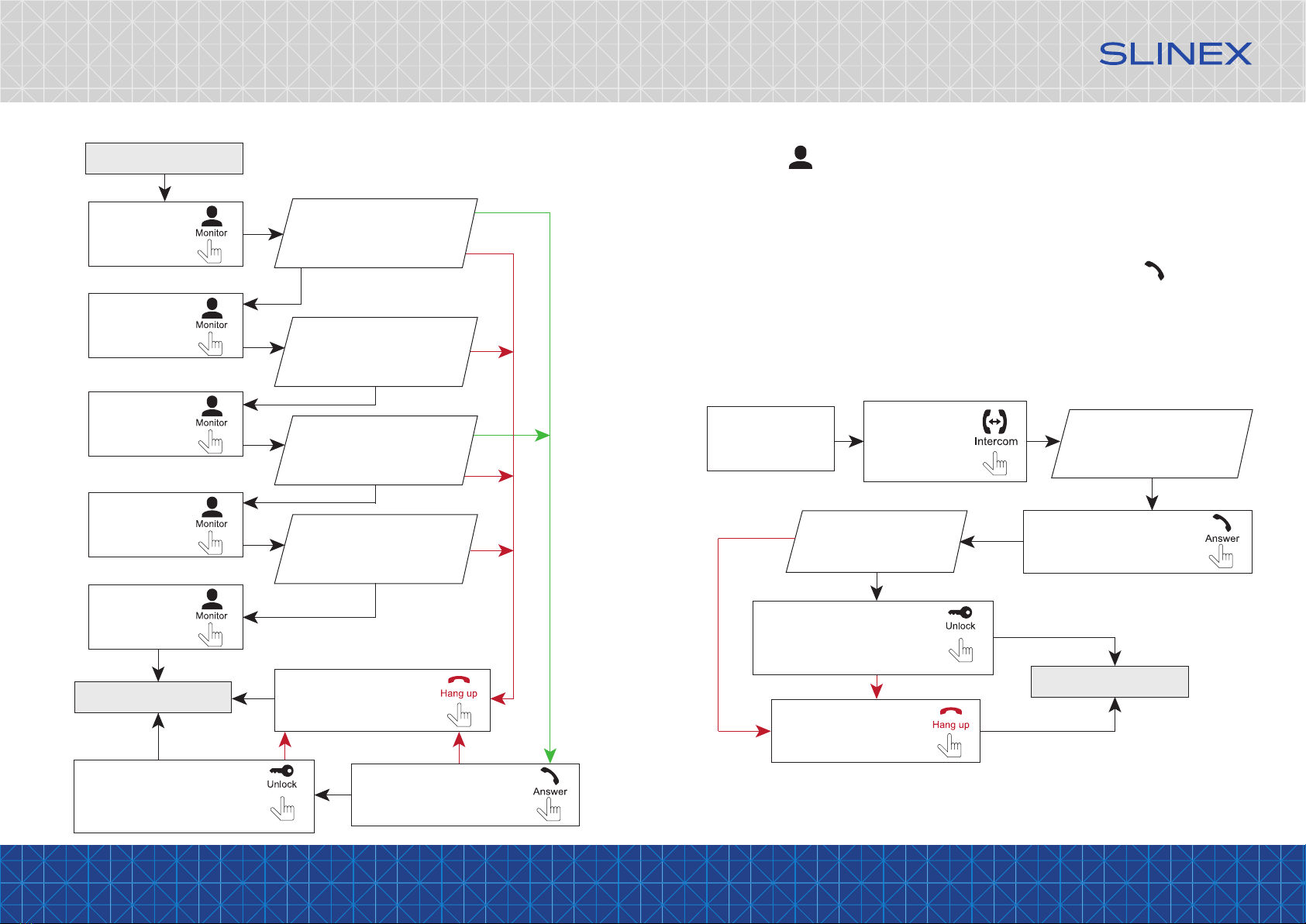

5.2 Door panel and camera image view

Standby mode

Monitor will display

the image from the

rst door panel

(monitoring time – 60 seconds)

Monitor will display

the image from the

second door panel

(monitoring time – 60 seconds)

Press «Monitor»

button on the

monitor

20 seconds

Standby mode

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Monitor will display

the image from the

rst CCTV camera

(monitoring time is unlimited)

Monitor will display

the image from the

second CCTV camera

(monitoring time is unlimited)

Press «Hang up» button to

stop monitoring or

conversation

Press «Answer» button to start

conversation with the visitor

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

UNIQUE

DIRECT

SERIES

5.3 Incoming call redirection

Two monitors connected into one system are used.

Notes:

1) If only one door panel connected to the monitor then you can escape monitoring mode by pressing

«Monitor» button one more time. (all other sources of video signal should be disabled in the monitor

settings).

2) If several monitors connected into one system, the user can view the image from door panels and

cameras on any monitor inside this system. The image will be transferred from the «Master» monitor door

panels and cameras to the «Slave» monitors.

3) If someone press call button on the door panel while monitoring is active then the image from this door

panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation.

Note:

If incoming call was successfully redirected to the other monitor then current monitor will enter standby

mode.

Melody starts ringing on

the other monitor inside

the system and visitor image

appears on the monitor screen

Conversation with the

visitor on the other

monitor begins

Incoming call from the

door panel and the

user starts conversation

Press «Intercom»

button to start

call redirection

20 seconds

Press «Answer» button on the

other monitor to start

conversation with the visitor

Standby mode

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Press «Hang up» button to

stop conversation or

incoming call

{ Design. Uniqueness. Innovation }

11 12

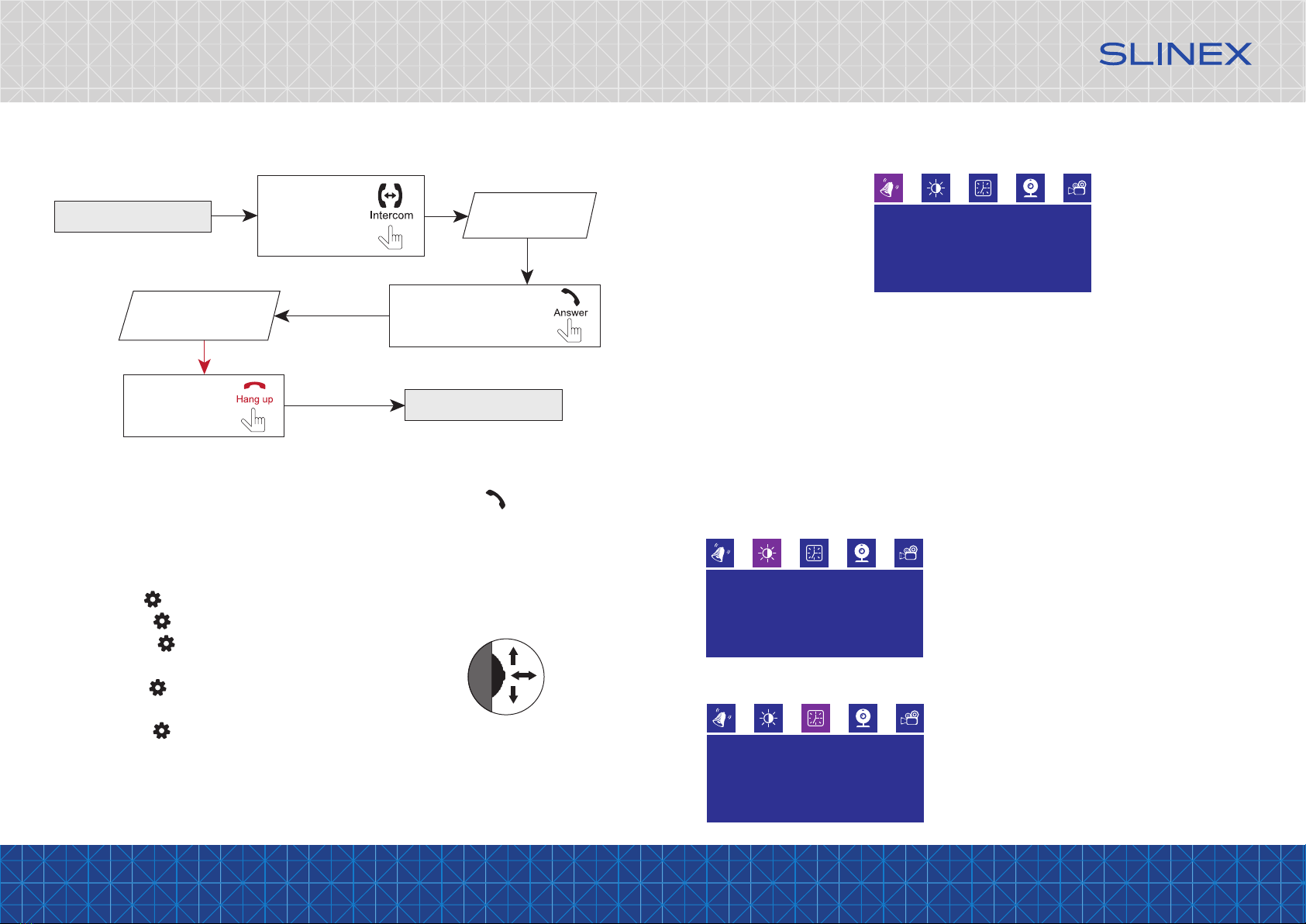

6.1 Melody settings

Enter monitor settings in the way like it described on the previous page:

Ring select − ring melody selection (16 melodies are available);

Ring time − melody ringing time in seconds;

Ring vol 1 − melody ringing volume for the rst time zone;

Ring vol 2 − melody ringing volume for the second time zone;

Ring vol 3 − melody ringing volume for the third time zone;

Exit − monitor settings exit.

Note:

If there is some time interval between time zones then maximum volume will be applied during this time

interval.

6.2 Image settings

English − interface language selection;

Brightness − image brightness level tuning;

Chroma − image chroma level tuning;

Contrast − image contrast level tuning;

Exit − monitor settings exit.

6.3 Date and time settings

Time − date and time settings;

Key tone − touch button sounds enable (On) or disable (O);

Reboot − reboot the monitor;

Version − current software version and release date;

Exit − monitor settings exit.

Ring select

Ring time

Ring vol 1 08:00 - 12:00

Ring vol 2 12:00 - 18:00

Ring vol 3 18:00 - 08:00

Exit

30s

English

Brightness

Chroma

Contrast

Exit

050

Time

Key tone

Reboot

Version

Exit

2015-06-08 15:49

Off

1-0-8 2017-05-01

5.4 Intercom

Two monitors connected into one system are used.

Melody starts

ringing

Standby mode

Note:

If somebody presses call button on the door panel while intercom is active then the image from the door

panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation with the visitor.

6. Monitor settings

Settings joystick situated on the right side of the monitor case. It has several functions:

• push the joystick in stanby mode to enter monitor settings;

• move the joystick up or down to change current parameter

of the monitor settings;

• push the joystick again to choose current parameter and move

it up or down to change current parameter value;

• push the joystick one more time to save current parameter

value.

Standby mode

Press «Intercom»

button to start

intercom

conversation

Conversation with the

other monitor starts

Press «Answer» button on

the other monitor to start

conversation

Press «Hang up»

button to stop

conversation

UNIQUE

DIRECT

SERIES

Move down

Move up

Push

{ Design. Uniqueness. Innovation }

13 14

6.4 System settings

Unlock time − lock relay activation time;

Mode − select «Master» if all door panels and cameras connected to this monitor, otherwise select «Slave»

if this monitor connected as a secondary in the system;

Door 2 − include (On) or exclude (O) Door 2 from the monitoring list;

Cam 1 − include (On) or exclude (O) Camera 1 from the monitoring list;

Cam 2 − include (On) or exclude (O) Camera 2 from the monitoring list;

Exit − monitor settings exit.

6.5 Record settings

Record − monitor record mode: «O» − snapshots recording;

«On» − video recording;

Play − snapshots or video playing. Move joystick up or down to go to the next/previous file playing;

Backup − snapshots backup from internal memory to microSD card;

Format − internal memory and microSD card formatting;

SD upgrade −monitor software upgrade. Copy upgrade les to microSD card root folder, then insert

microSD card with upgrade les into monitor slot and select «SD upgrade» → «Yes». Wait until monitor will

be rebooted;

Exit − monitor settings exit.

Unlock time

Mode

Door 2

Cam 1

Cam 2

Exit

03s

Master

Record

Play

Backup

Format

SD upgrade

Exit

Off

7. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

UNIQUE

DIRECT

SERIES

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Slinex Sistema di interfono

Slinex

Slinex SL-07N Cloud Manuale utente

Slinex

Slinex Tabo Manuale utente

Slinex

Slinex Design Direct Series Manuale utente

Slinex

Slinex ML-16HR Manuale utente

Slinex

Slinex Innovation Direct Series Manuale utente

Slinex

Slinex SL-07MHD Manuale utente

Slinex

Slinex Innovation Direct Series Manuale utente

Slinex

Slinex SL-10N Cloud Manuale utente

Slinex

Slinex IP DIRECT Series Manuale utente

Slinex

Slinex UNIQUE DIRECT IP Series Manuale

Slinex

Slinex Shan Manuale utente

Slinex

Slinex SQ-07MTHD Manuale utente

Slinex

Slinex ML-20TLHD Manuale utente

Slinex

Slinex MA-02 Manuale utente

Slinex

Slinex SL-07M Manuale utente

Slinex

Slinex XR-30IP Manuale utente

Slinex

Slinex RD-30 Manuale utente

Slinex

Slinex SM-07N Cloud Manuale utente

Slinex

Slinex ML-30CR Manuale utente

Slinex

Slinex Design Direct SL-07IP Manuale utente

Slinex

Slinex ML-17HD Manuale utente

Slinex

Slinex SL-10IP Manuale utente

Slinex

Slinex ML-15HR Manuale utente

Slinex

Slinex SL-10IPT HD Manuale utente

Manuali Sistema di interfono popolari di altre marche

Bticino

Bticino LINEA 3000 Manuale utente

MSI

MSI MSI-140 Manuale utente

golmar

golmar Stadio Plus Manuale utente

CyberData

CyberData 011211 series Manuale

Vidos

Vidos duo M1021 Manuale utente

Vimar

Vimar ELVOX 7539/E Manuale utente

SSS Siedle

SSS Siedle BTSV 850-03 Manuale utente

Dahua

Dahua VTO Series Manuale utente

Elvox

Elvox 5651 Manuale utente

Videx

Videx VIDEOKIT Series Manuale utente

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuale utente

Viking

Viking E-35-EWP Manuale utente

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuale utente

SSS Siedle

SSS Siedle BFCV 850 Series Manuale utente

GRD

GRD MAX V2 Manuale utente

Alecto

Alecto ADI-250 Manuale utente

Aiphone

Aiphone IE-8MD Manuale utente

Perel

Perel EDB4 Manuale utente
