Smart-IR Smartbell Manuale utente

Smart Wireless Doorbell

User Manual

Version 1

Designed & Engineered

in the United Kingdom

smartbell

Contents

Precautions .............................................................................................. 3

1. Product Overview ................................................................................ 4

1.1. Product Features .................................................................... 4

1.2. Contents ................................................................................. 4

2. Installation ........................................................................................... 5

2.1. DIY Installation ....................................................................... 5

2.2. Professional Installation ......................................................... 6

2.3. Smartbell Overview ................................................................ 8

3. App Setup ........................................................................................... 9

3.1. Installing Smartbell App .......................................................... 9

3.2. Connecting to View Remotely ................................................. 11

4. Software Use ....................................................................................... 13

4.1. Settings ................................................................................... 13

4.2. Software Settings .................................................................... 13

4.2.1 Search for Screenshot .............................................. 13

4.2.2 Video ......................................................................... 14

4.2.3 Unlock the Door ........................................................ 14

4.3. Device Settings ...................................................................... 14

4.3.1 Favourite ................................................................... 15

4.3.2 Change Device Info .................................................. 15

4.3.3 Move Detection ........................................................ 15

4.3.4 Change Device Network ........................................... 15

4.3.5 About Device ............................................................. 16

4.3.6 Alarm ......................................................................... 16

4.3.7 Security Settings ....................................................... 16

4.3.8 SD Formatting ........................................................... 16

4.3.9 Turn Off ..................................................................... 17

5. Ringer ................................................................................................... 18

6. Specifications ...................................................................................... 19

Thank you for purchasing the smartbell smart wireless doorbell.

Before installing your new system, please read the instructions carefully.

1. Please install your system according to this manual to avoid any malfunctions or damage.

2. Never open the smartbell, please contact your installer or place of purchase in the event of product

malfunction.

3. Keep the smartbell away from extreme heat sources and water.

4. Never use any cleaning chemicals or wet cloth to clean the unit. Only use a dry, clean and soft

cloth/micro fibre coth.

5. Do not use the product in places where there are explosive hazards

6. Do not drop the unit or submit to heavy shaking

7. Keep chargers and power supplies away from liquids

8. Use your unit in temperature between -20 and 60° C

9. Storage temperature must be between -10 and 60° C

Safety Instructions

Precautions

1.1 Product Features

1. Product Overview

See & speak to callers from anywhere in the world

PIR/Conference/Tamper Function (Not supported on

all models, please check with your supplier)

Motion Detection

Weatherproof - IP55

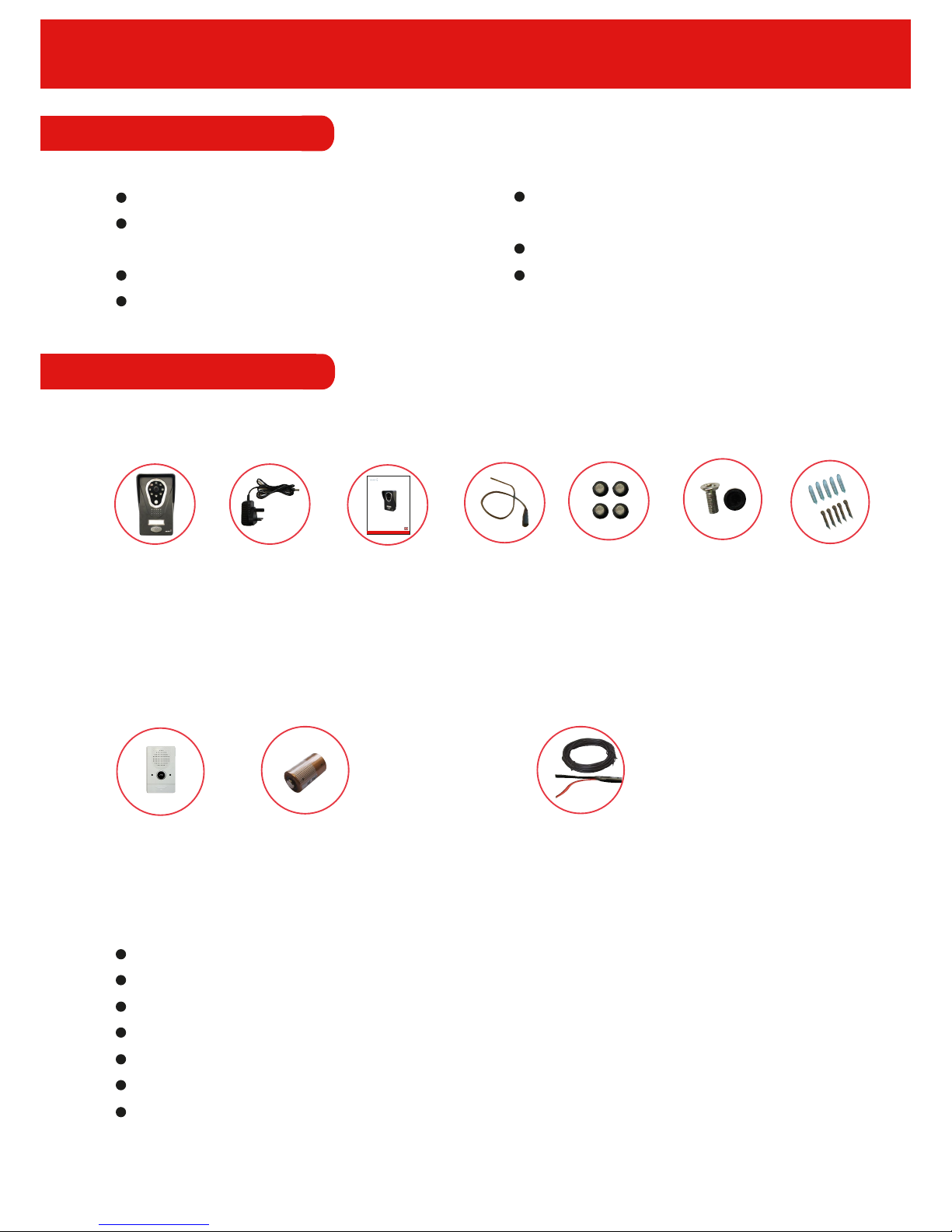

1.2 Contents

1x Power Cable 1x Permanent

Power Lead

5x Screws

5x Wall Plugs

1x User Manual1x Wireless

Outdoor Camera

1x Wireless Doorbell 1x Battery for Wireless

Doorbell

Standard Version:

As well as the standard version, the plus ringer

version includes the following:

Plus Ringer Version:

SmartWireless Doorbell

User Manual

Version1

Designed&Engineered

intheUnitedKingdom

smartbell

4x Screw Plug

Covers

1x Safety Screw &

Cover for Bracket

Electric Door Release Feature Supported (Lock not

supplied)

Visitor Memory

IR LEDs - For low light viewing

As well as the standard version, the Pro version

includes the following:

Pro Version

1x 20m Extension Cable

To complete installation, you will need the following:

Philips Head Screw Driver

Drill (Depending on install location)

Small Flat Head Screw Driver

Patch Ethernet Cable (Length depending on install location from router/home plug/switch)

Terminal Block (Pro Install)

Micro SD Card (For Recording images & video)

Router wifi SSID and Password for Remote Access

Pre Requisites

2. Installation

2.1 DIY Installation

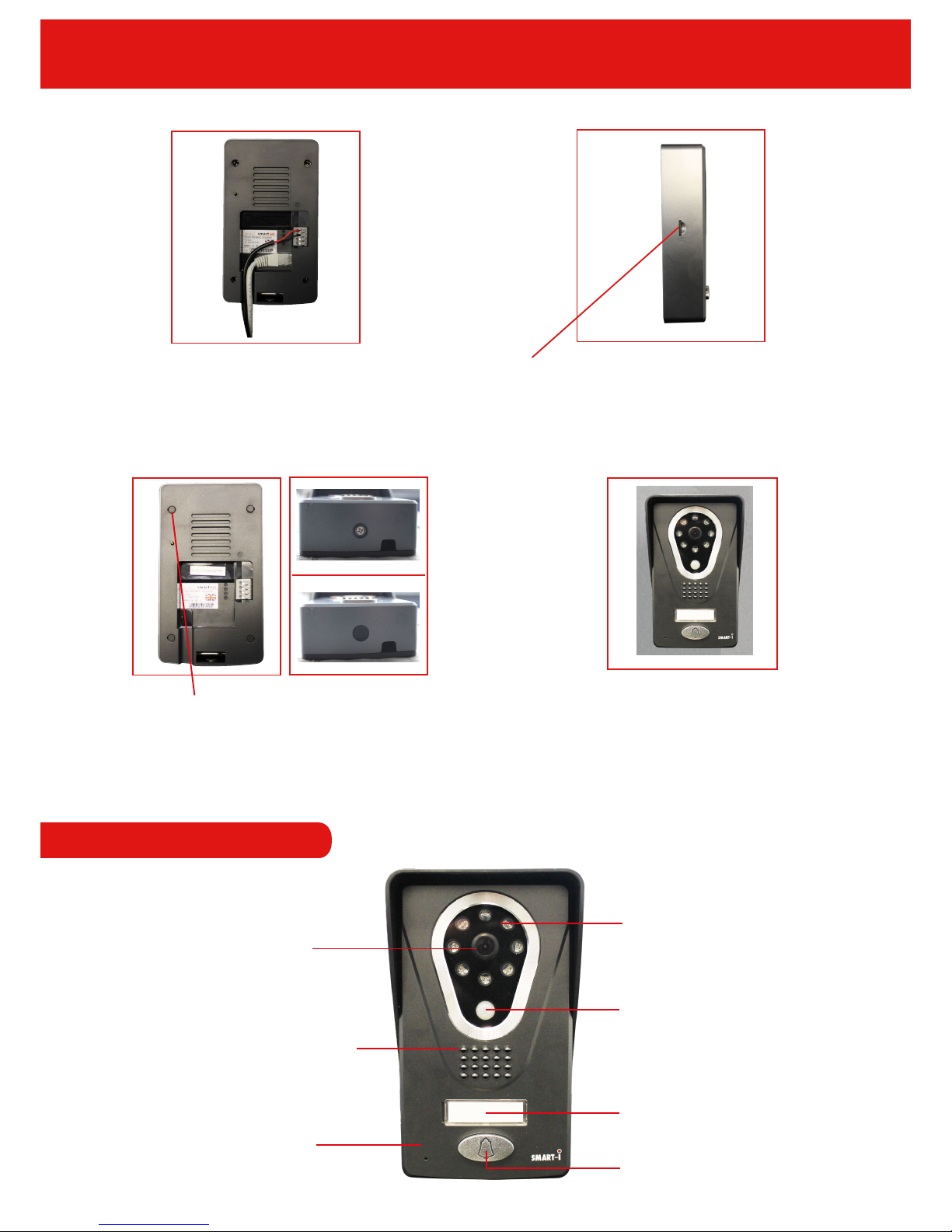

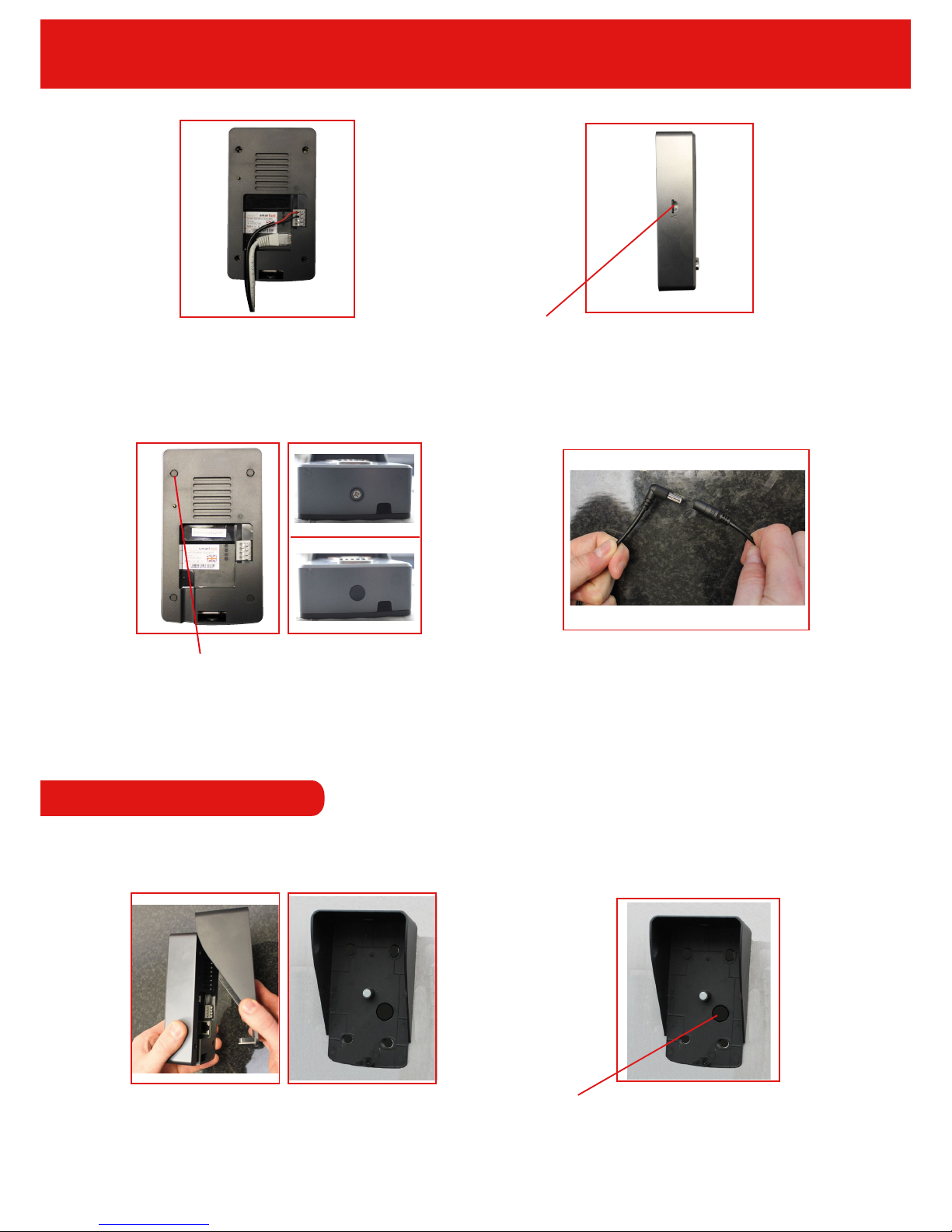

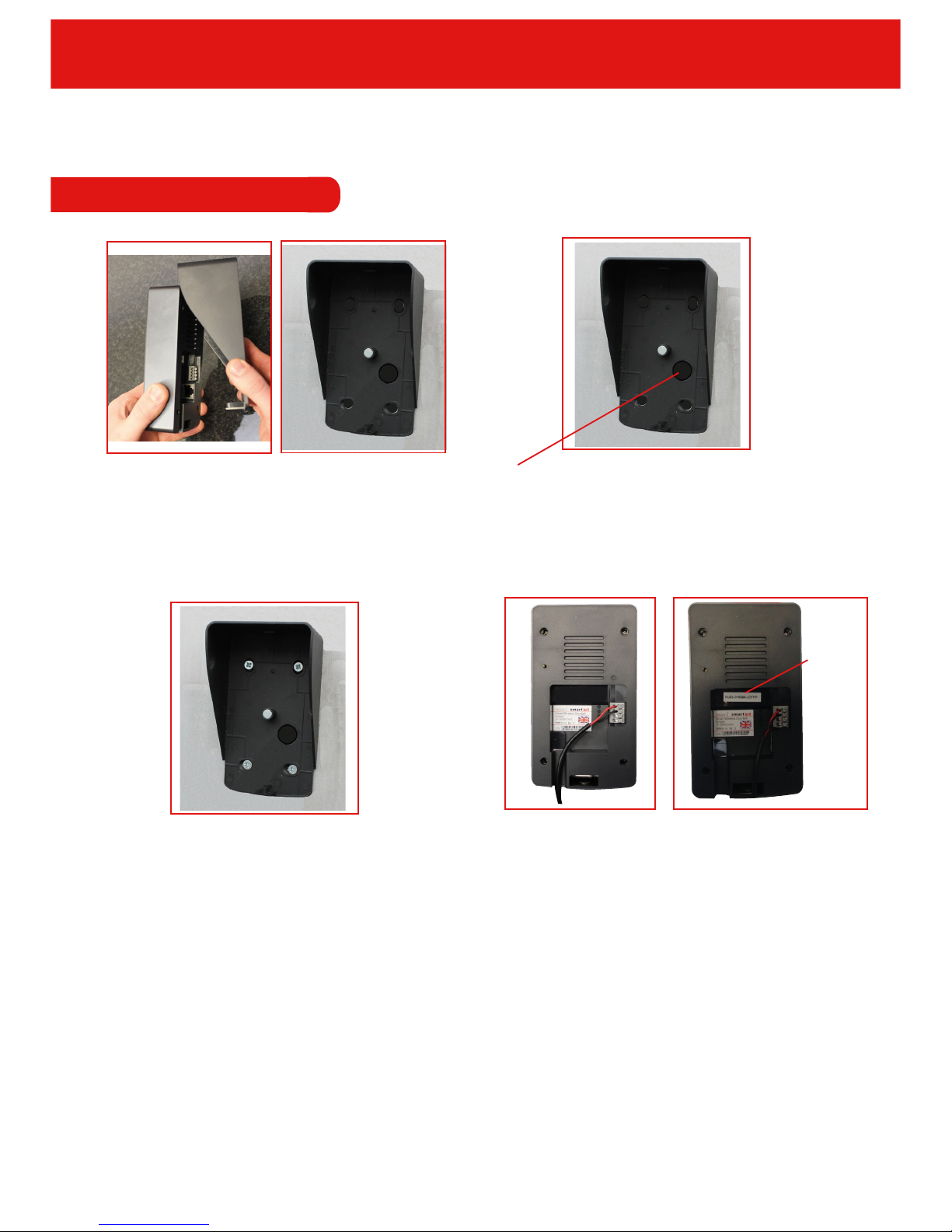

1. Remove the smartbell from the bracket. Use the

bracket as a stencil and place where you wish to install

the smartbell. Then, mark out the screw holes to

secure the bracket.

2. Mark a hole for the power and ethernet cable to

run through. Remove the bracket, and then drill the

holes. We recommend any holes you drill in your

walls are sealed water tight after your cables are

thread through.

3. Attach the bracket to the wall using the wall plugs

and screws included.

4. Push the red/black cables of the permanent power

lead through the hole in the wall and connect to the back

of the smartbell. The red wire into the number 1 slot and

black into the number 2 slot. To do this, push and hold

the grey clip in while pushing in the red//black cables.

When pushed in, release the clip to secure the wire.

At this point, please make a note of the unit’s

Access point (AP) name. This can be found on the

sticker at the back of the unit (shown above, right).

You will need this number later.

Name

If you are a professional installer, please go to Section 2.2 on page 6

6. Insert your Micro SD Card (if you have purchased

one) to enable recording.

8. Connect the end of the permanent power lead to

the power supply provided and plug the power supply

into a power source. Your DIY install is complete, for

the next step, go to Section 3 ‘App Set Up’.

2.2 Professional Installation

If there is no power source locally, you can use the optional 20m DC extension lead accessory (see page 4). To use the

additional cable, follow the instructions below.

5. If you will using a wired connection to your router,

run your ethernet cable through the hole and connect

to the back of the smartbell. Attach as shown above.

If you are connecting wireless, skip to step 6.

5. If you choose a wired connection to your router/home

plug/switch, run your ethernet cable through the hole

and connect to the back of the smartbell. Attach as

shown above. If you choose a wireless connection skip

this step and proceed to step 6.

1. Remove the smartbell from the bracket. Use the

bracket as a stencil and place where you wish to install

the smartbell. Then, mark out the screw holes to secure

the bracket.

7. Put the screw cap covers in place over the screws at

the back of the smartbell. Attach the smartbell to the

bracket. Secure the unit to the bracket using the provided

screw and place at the bottom of the unit. Then use the

cap to cover (shown above, right).

2. Mark a hole for the power and ethernet cable to

run through. Remove the bracket, and then drill the

holes. We recommend any holes you drill in your

walls are sealed water tight. After threading the

cables through.

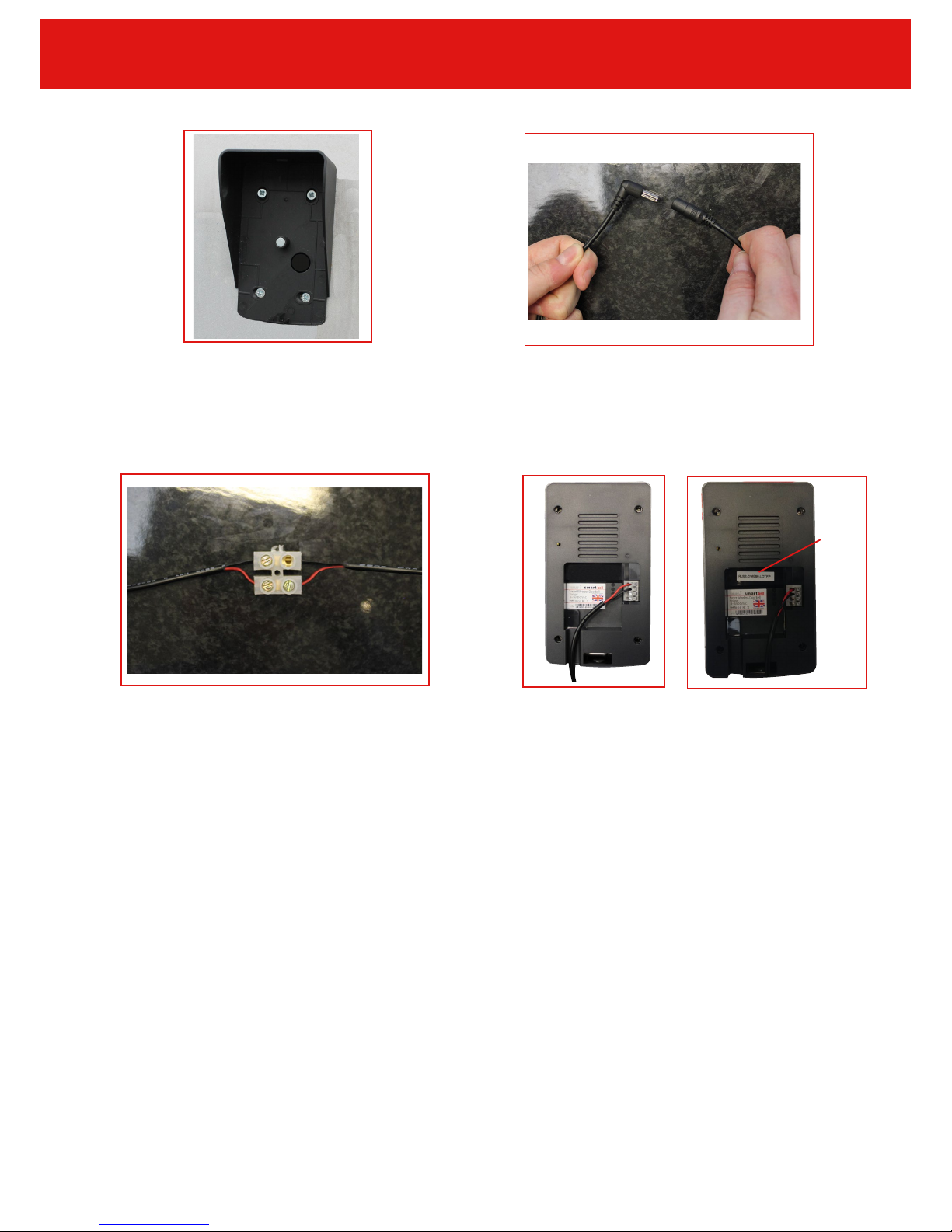

4. Take the permanent power lead and plug it into the

DC plug on the power supply provided. Please DO

NOT plug the power supply into your power source at

this point.

5. Connect the red/black end of the permanent

power lead to a terminal block and the optional

20m extension lead. Put the same colours from the

20m extension into the matching connections on

the terminal block.

3. Attach the bracket to the wall using the wall plugs

and screws included.

6. Push the red/black cables of the permanent power

lead through the hole in the wall and connect to the back

of the smartbell. The red wire into the number 1 slot and

black into the number 2 slot. To do this, push and hold

the grey clip in while pushing in the red//black cables.

When pushed in, release the clip to secure the wire.

At this point, please make a note of the unit’s

Access point (AP) name. This can be found on the

sticker at the back of the unit (shown above, right).

You will need this number later.

Name

2.3 Smartbell Overview

1. Camera

2. Speaker

3. Microphone

4. IR LEDs

7. Doorbell

5. If you will using a wired connection to your router,

run your ethernet cable through the hole and connect

to the back of the smartbell. Attach as shown above.

If you are connecting wireless, skip to step 6.

10. Now, plug the power supply into a power source.

Your smartbell is now ready to configure using the

smartbell app. Proceed to Section 3 ‘App Setup’.

8. Insert your Micro SD Card (if you have purchased

one) to enable recording.

9. Put the screw cap covers in place over the screws at

the back of the smartbell. Attach the smartbell to the

bracket. Secure the unit to the bracket using the provided

screw and place at the bottom of the unit. Then use the

cap to cover (shown above, right).

7. If you choose a wired connection to your router/home

plug/switch, run your ethernet cable through the hole

and connect to the back of the smartbell. Attach as

shown above. If you choose a wireless connection skip

this step and proceed to step 6.

6. Name Tag

5. PIR Sensor

3. App Setup

3.1 Installing Smart-i Bell App

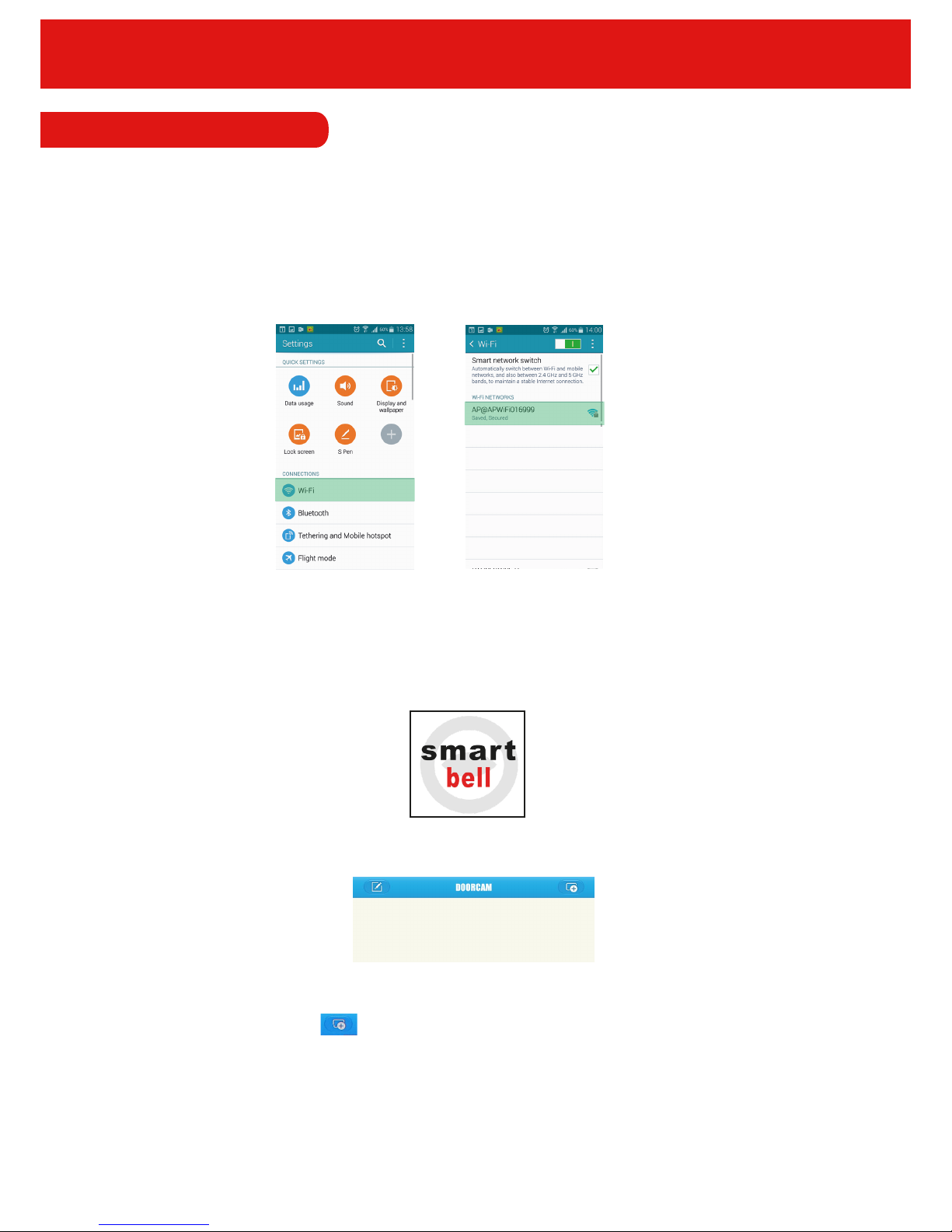

Please follow the steps below to install the Smart-i Bell app. The screen shots shown in the examples are taken

from a Samsung Galaxy Note 4, so these may vary depending on which model of Smartphone/Tablet you use.

1. Turn on the wireless on your Smartphone or Tablet by going to your settings and selecting the wifi option

shown below (right).

3. Go to the your App/Google Play store and download the ‘smart-i bell app’.

2. Select the smartbell wifi from the search list. When selected, type in the password (default password is

12345678).

4. Once installed, the app will then appear on your homescreen. Click the icon to open the App.

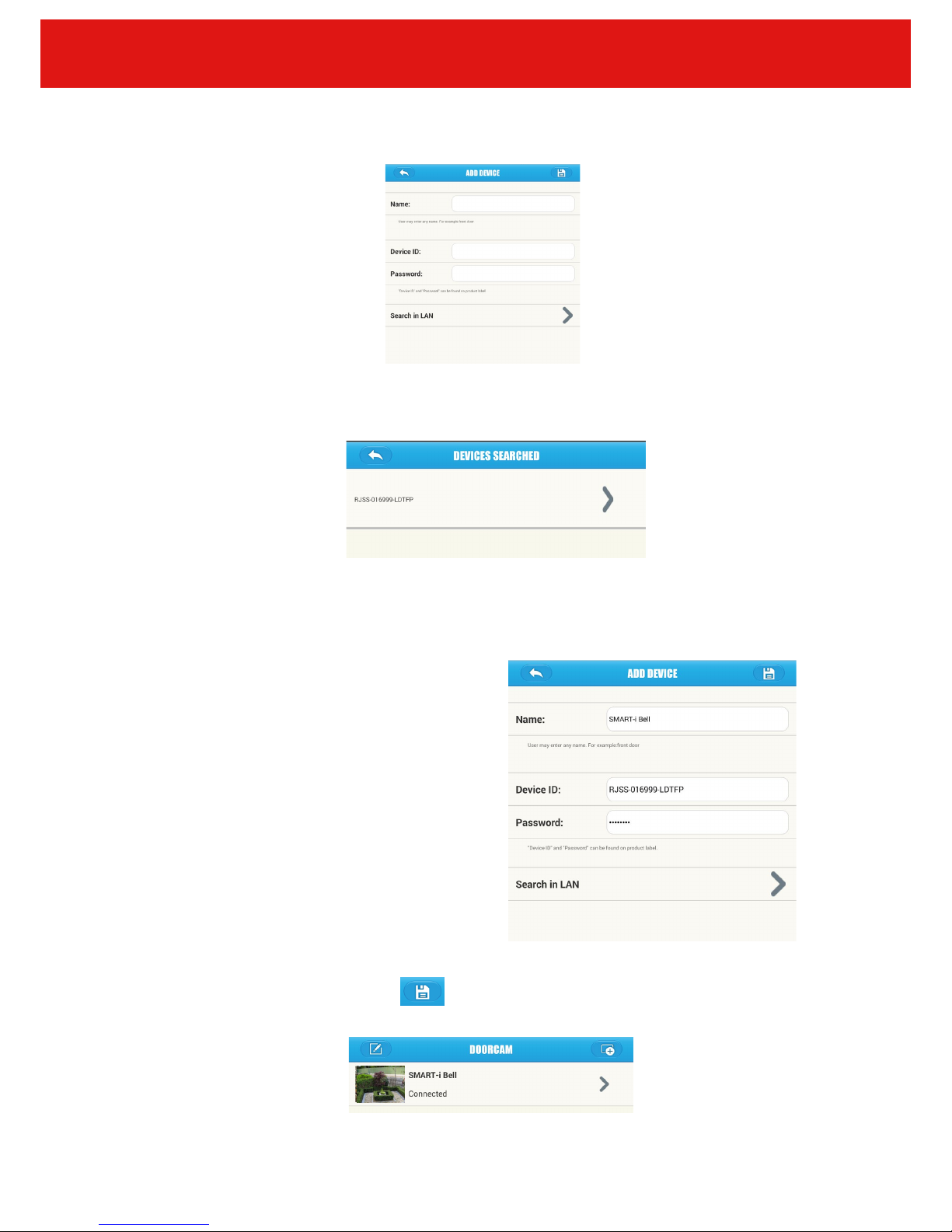

5. Press on the ‘Add device’ icon.

6. Press the Search in LAN option.

7. The device number shown on screen should match with the sticker on the back of the unit.

8. Select the correct device and fill in the details for the smartbell. The default password for this is 88888888.

9.When all the details are entered, press the icon on the top right of the screen. You will be re-directed to

the homesscreen (below).

Home WIFI

Name: Enter any username, for example Smart-i Bell.

Device ID: This is unique to the smartbell you are

adding.

Password: Enter the password of the device you are

trying to add. The default password is 88888888.

Indice
