Smart-M DVS4P Manuale utente
© Copyright 2009 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties
of merchantability and fitness for any particular
purpose.
Smart-AVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced or translated into another language
with
out prior written consent from Smart-AVI.
The DVI-I 4 port splitter allows you to use
a single PC/MAC to display
identical images on multiple monitors.
DVS4P
www.smartavi.com
User Manual
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1T.M.D.S Data 2- 16 Hot Plug Detect
2T.M.D.S Data 2+ 17 T.M.D.S Data 0-
3T.M.D.S Data 2/4 Shield 18 T.M.D.S Data 0+
4T.M.D.S Data 4- 19 T.M.D.S Data 0/5 Shield
5T.M.D.S Data 4+ 20 T.M.D.S Data 5-
6DDC Clock 21 T.M.D.S Data 5+
7DDC Data 22 T.M.D.S Clock Shield
8Analog Vert. Sync 23 T.M.D.S Clock+
9T.M.D.S Data 1- 24 T.M.D.S Clock -
10 T.M.D.S Data 1+
11 T.M.D.S Data 1/3 Shield C1 Analog Red
12 T.M.D.S Data 3- C2 Analog Green
13 T.M.D.S Data 3+ C3 Analog Blue
14 +5V Power C4 Analog Horz Sync
15 GND C5 Analog Ground
Video Input 1 DVI Female
Video Output 4 DVI Female
Max. Resolution 1920 x 1200 60 @ Hz
Cable Distance to Monitor 10 m (max)
Signal Type Standard DVI Signal
Power Adapter (min) 5VDC 1A
Housing Metal
Weight .65lb (.29kg)
Dimensions (LxWxH) 7.93” x 3.56” x 1.56” m_DVS4P-012709
Specifications
Introduction
The DVS4P splitter allows you to use a single PC to
display identical images on multiple monitors.
DVI Splitter is ideal for:
Test bench facilities
Data Center
Help Desks
Features
Use PanelLink digital technology
Supports high-resolution dislplay up to UXGA
(25-165MHz)
Can be cascaded
Compliant with the specification of DVI 1.0
Resolution up to 1920 x 1080
No degradation of video quality
External pwer supply
Automatic EDID learning fo the support of
any DVI monitor.
DVI and VGA
Package Contents
1 DVS4P 4Port DVI splitter
1 User Manual
1 Power Adapter 5VDC 1A
Installation
1. Turn off computer and monitor.
2. Connect DVI male extension cable between the
PC and the “video in” port of splitter.
3. Connect the DVI male/female extension cables
between the monitors and the “DVI out” ports
of splitter.
4. Connect the power cord and turn on the
splitter.
5. Turn on PC and monitors.
Operation for Cascade
1. The function to display identical images on
more monitors, is an attachment of another
splitter.
2. Connect the DVI male/female extendion cable
between the former splitter of the “DVI out 1”
port and the latter splitter of the “video in” port.
Note:
Even though you are allowed to cascade the splitter
with varied ports, the image might become unstable
if you cascade too many tiers of splitters.

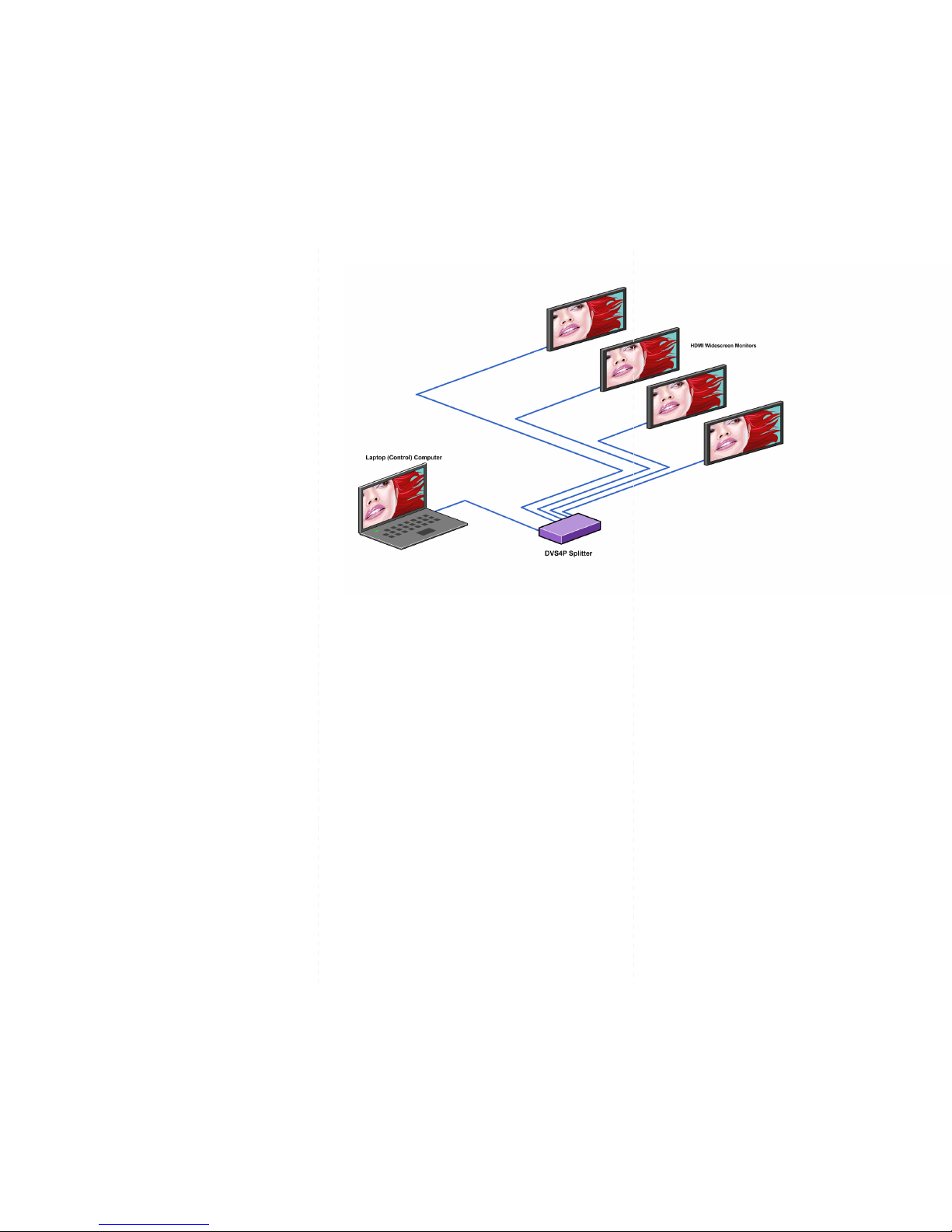

Installation Diagram
EDID Learning
The Display Data Channel (DDC) is a digital
connection between a computer display and
a graphics adapter that allows the display to
communicate its specifications to the adapter.
The Extended Display Identification Data (EDID) is a
data structure provided by a computer display over
the DDC to describe its capabilities to a graphics
card.
The DVS4P does not continue the DDC across the
CAT6 STP links and contains its own EDID at the
video source input. Therefore, the EDID on the
DVS4P is used in place of the actual monitors EDID.
In order for the computer to output at the correct
resolution and refresh rates for a specific monitor,
the DVS4P must be loaded with the monitors EDID.
On power-up the DVS4P reads and stores the EDID
of the DVI monitor connected to the local loopback
port. IF the local loopback port is disconnected
during power-up, the stored EDID will not be
modified.
