INTRODUCTION
Your new Smart Temp 44-800 “Apollo” touch screen thermostat has been manufactured
using the highest quality components and design currently available. As a result, when
properly installed and configured by a professional heating and air conditioning contractor,
the 44-800 “Apollo” will provide many years of trouble-free operation.
The 44-800 has been designed to be an attractive, highly reliable and easy-to-use
thermostat. By taking time to read and understand this User Manual, you can take
advantage of the many features offered in this premium product.
Great care has been taken in the preparation of this manual. Smart Temp Australia P/L
takes no responsibility for errors or omissions contained in this document. It is the
responsibility of the user to ensure that this thermostat, or equipment connected to it is
operating to their respective specifications and in a safe manner.
Due to ongoing product improvements, Smart Temp Australia P/L reserves the right to
change the specification of the 44-800 thermostat (or its components) without notice.
All right reserved © Smart Temp Australia Pty Ltd
Intellectual rights apply.
3
BASIC FUNCTIONS
4

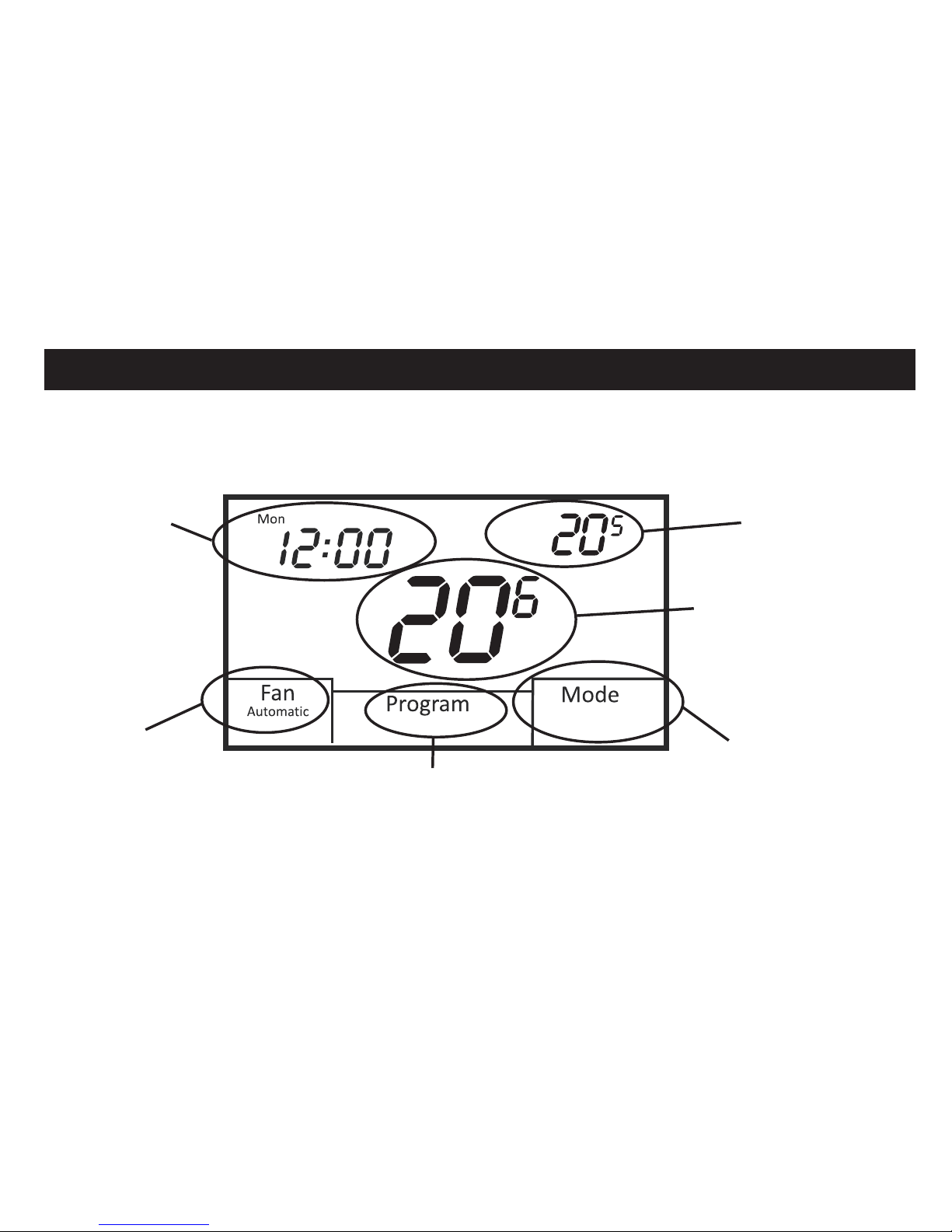

Heat
Heat Set
PM
Day
Time and Day
(only shown in
programmable mode)
Touch to set day and time
Space temperature
(always displayed)
Set temperature
(displayed or hidden based on
thermostat configuration)
Mode
Touch to select
Heat, Cool, Auto,
Off or E. Heat
Fan
Touch to select
Automatic or
Always On
operation
Program
(only shown in
programmable mode)
To simplify use, the 44-800 only displays information relevant to the current mode of
operation. When adjustments are required, the thermostat will display additional functions.
BASIC FUNCTIONS
5
Heat
Heat Set
Day
Some symbols and display functions are normally hidden from view until needed or may
not appear based on the thermostat configuration. Make sure your contractor configures
the 44-800 to suit your specific needs.
Clean
Screen
Locked
Clean Screen
Touching this button
when shown will lock
out all thermostat functions
for 30 seconds to
permit cleaning
the display screen Up and Down Arrows
Used to set temperature,
time, day of week
and other values
Lock
Padlock symbol
indicates that the selected
function is prohibited or
the setpoint limit
has been reached
Battery
Shown when battery
needs to be replaced
Flt (Filter)
Optional filter reminder
alternates with
the current time
RESIDENTIAL 5-2 DAY PROGRAMMING MODE
6
Setting the clock

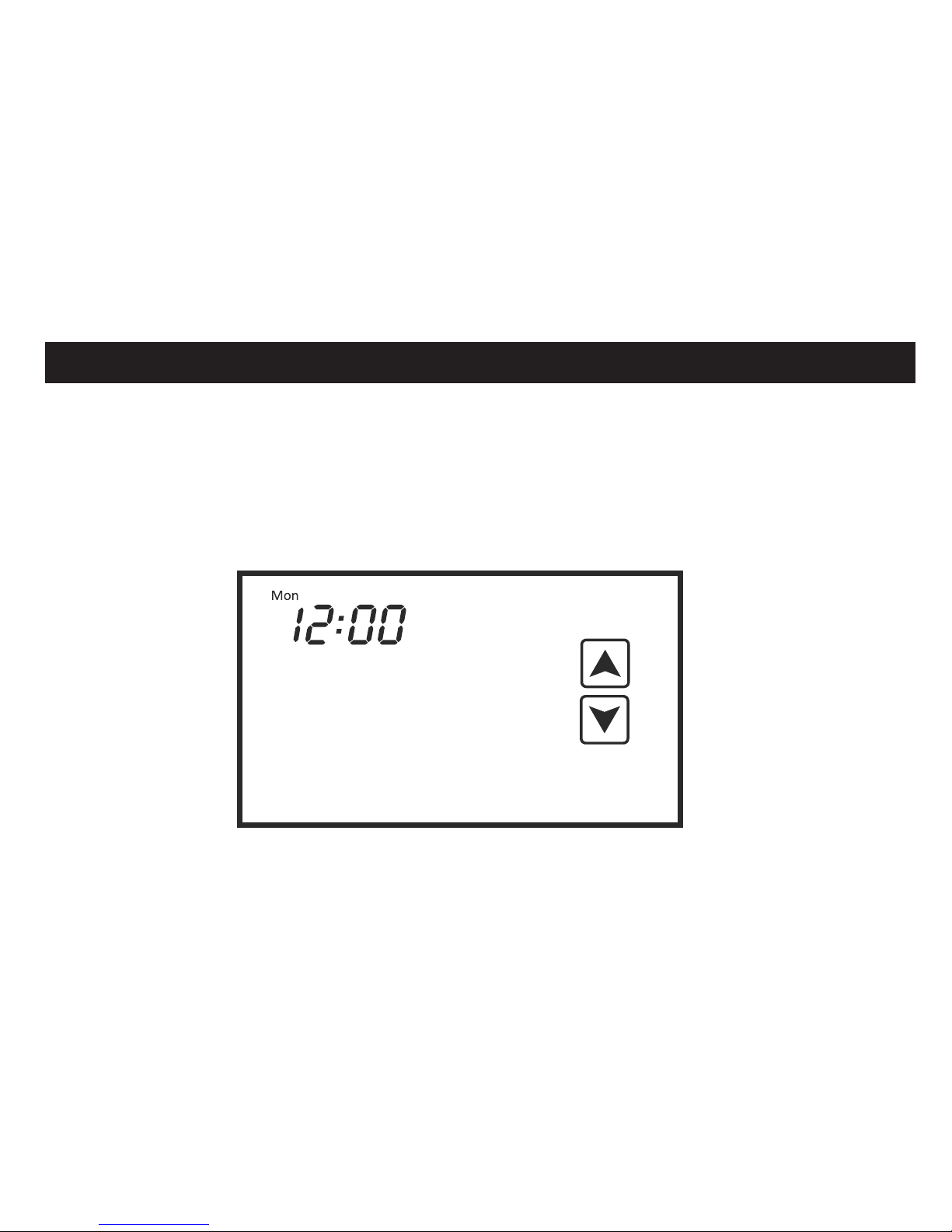

Touch the clock on the display. The day of the week will flash. Use the UP and DOWN
arrows to adjust the day. Touch the clock again. The hour will flash. Use the UP and DOWN
arrows to adjust the hour. If the time is PM, adjust the hour until the PM symbol appears.
Touch the clock again. The minutes will flash. Use the UP and DOWN arrows to adjust the
minutes. Touch the clock again and the thermostat will resume normal operation.
E
E
RESIDENTIAL 5-2 DAY PROGRAMMING MODE
7
Mode selection
The 44-800 can control both heating and cooling. Touch the Mode box to cycle through and
select available modes. Based on equipment and thermostat configuration, mode selection
can be as follows:
Off - Thermostat will not call for heating
or cooling.
Heat - Thermostat only controls heating.
When heating system is running, Heat
flashes.
Cool - Thermostat only controls cooling.
When cooling system is running, Cool
flashes.
Auto - Thermostat controls both heating
and cooling. Heat or Cool will flash when
equipment is running.
E. Heat - Emergency heat for heat pump
systems should the compressor fail.
Heat
Heat Set
PM
Day
E
RESIDENTIAL 5-2 DAY PROGRAMMING MODE
8
Fan selection

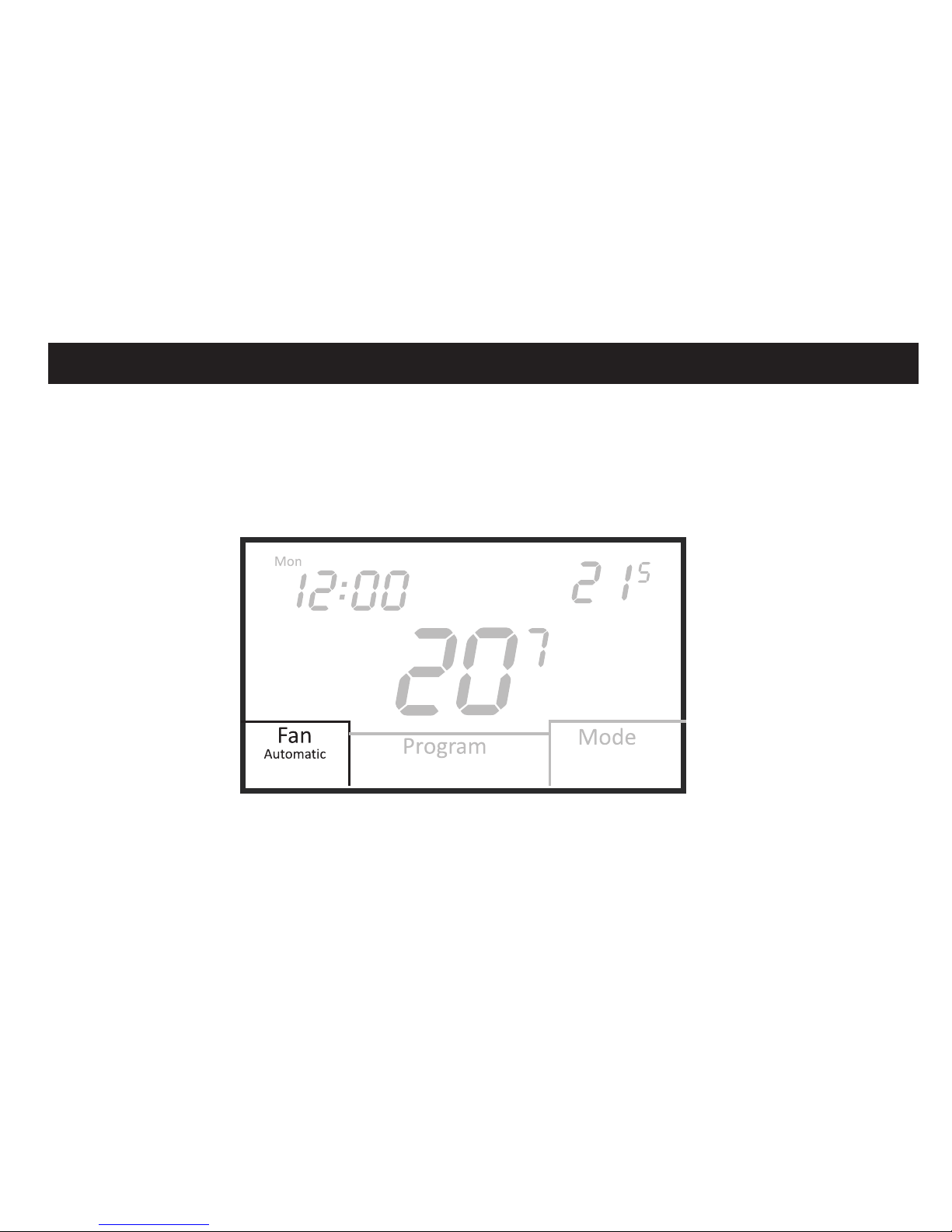

Touch the Fan box to select Automatic or Always On fan mode. In Automatic mode, the
fan operates with a heating or cooling call. If set to Always On, the fan will run continuously.
If the thermostat is turned Off while the fan is set to Always On, the fan will switch to
Automatic mode but can be set back to Always On for constant ventilation when the
thermostat is Off.
Heat
Heat Set
PM
Day
E
RESIDENTIAL 5-2 DAYPROGRAMMING MODE
9
Programming 4 daily events (5-2 schedule)

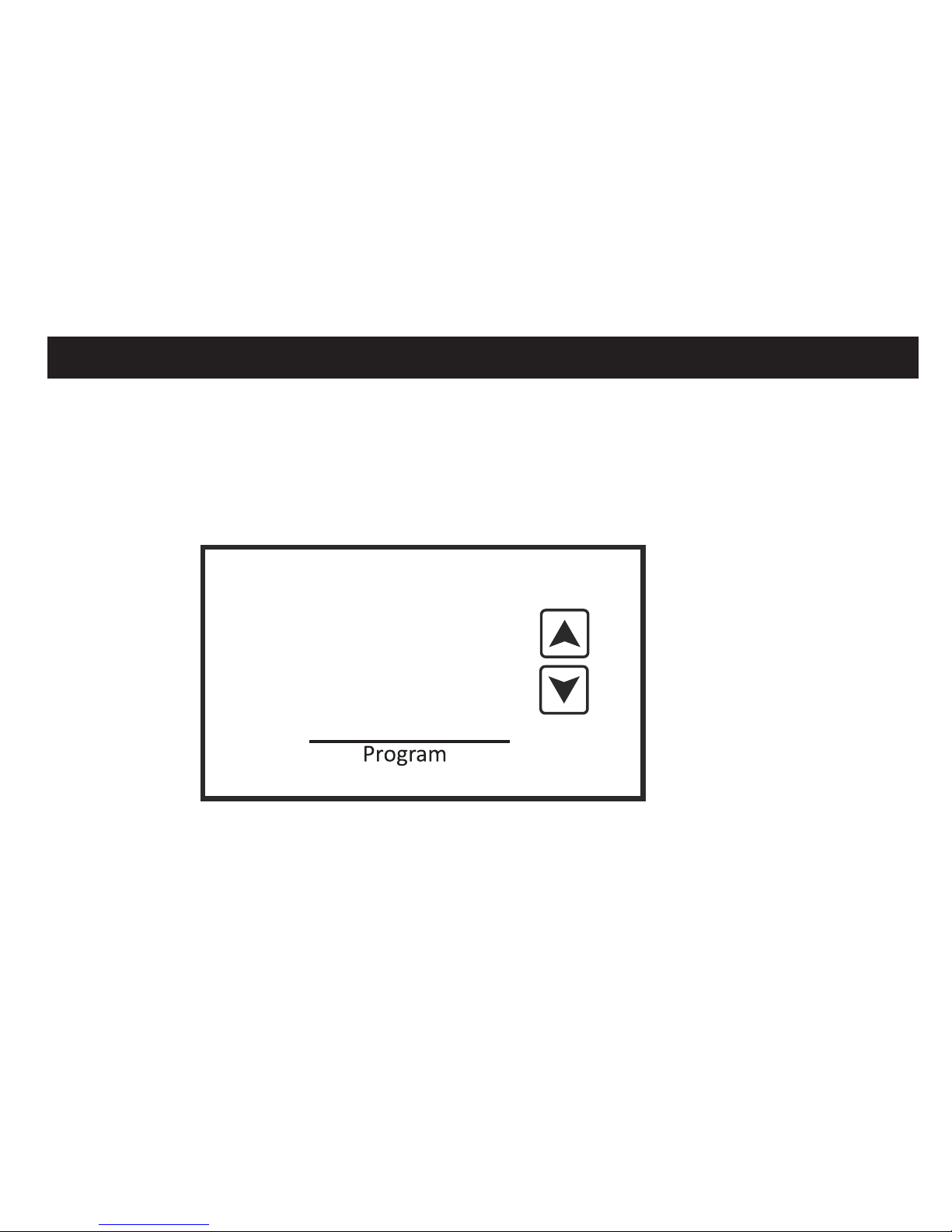

Touch and hold the Program box until the UP and DOWN arrows along with the flashing
days of the week appear. The program format starts with Monday through Friday. You will
now be able to program four schedules per day with individual heating and cooling
setpoints for all five days of the week. If the Programmable Fan option is ON, you may also
program the fan operation for each scheduled event.
E
Mon Tue Wed Thu Fri
