Smart Witness smart-i Manuale utente
User Manual
Thank you for purchasing SMART-I, the new way to view & record your world!
Please read this user manual before using your SMART-I.
Contents:
2 Turning on SMART-I
3 Connecting to SMART-I
6 View SMART-I on a PC or Mac
8 View SMART-I on an iPhone or iPad
10 View SMART-I on an Android
12 Record SMART-I on a PC or Mac
14 Record SMART-I on an iPhone or
iPad
16 Record SMART-I on an Android
18 Conguring the SMART-I’s WiFi
20 Accessing SMART-I over the
Internet

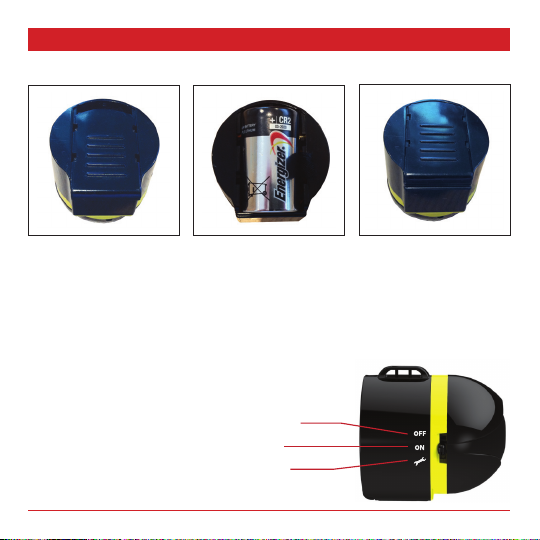

STEP 1 > TURN ON
Installing the battery in your SMART-I
Insert the battery
(making sure that ‘+’is
facing the top of your
SMART-I)
Slide the battery cover
part of the way (as
shown), and lift o
to reveal the battery
compartment
Position the
cover back on to your
SMART-I and slide up
to close
Operating SMART-I
To opearate your SMART-I move the switch to
the desired function:
Switches OFF your SMART-I
Turns ON your SMART-I
Turns on your SMART-I and
puts it in to SETUP mode
2
STEP 2 > CONNECT
Connecting directly to your SMART-I using a Windows PC or Mac
Switch on your SMART-I (ON is the middle position, be careful not to
select SETUP, the lowest position, by mistake)
Wait 1 minute, then on your Mac or PC go to Wireless Networks and
connect to the SMART-I WiFi network:

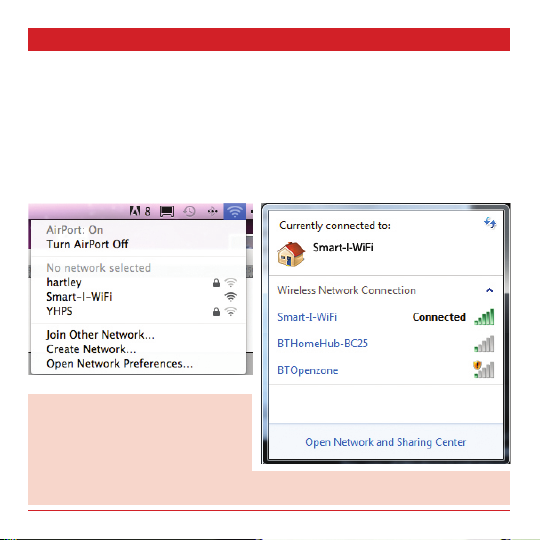

Mac Screenshot: Windows Screenshot:
The SMART-I has a transmission range
of 20 metres (this can reduce due to
external factors), your device must be
in range to connect to your SMART-I.
To connect over longer distances or via the Internet, you can connect SMART-I
to your WiFi network. See the ADVANCED CONFIGURATION section for details.
3

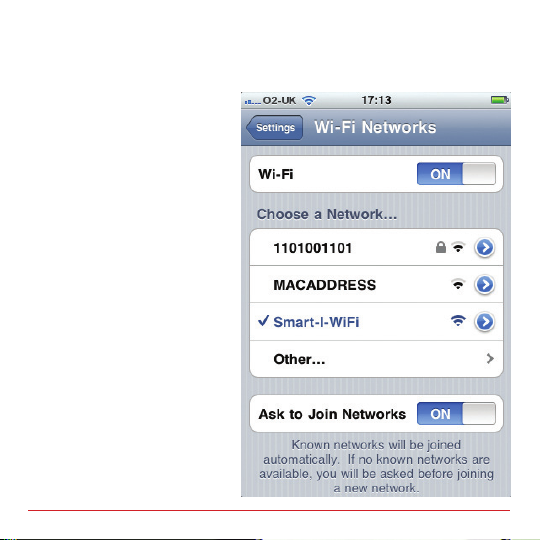

Connecting directly to your SMART-I using an iPhone or iPad
Switch on your SMART-I
(ON is the middle position,
be careful not to select
SETUP, the lowest position, by
mistake)
Wait 1 minute
On your iPhone (or iPad),
go to:
SETTINGS > Wi-Fi
Select and connect to the
SMART-I-WiFi network
Once connected you will see
a TICK next to the SMART-I-
WiFi network name
4
Connecting directly to your SMART-I using an Android device
Switch on your SMART-I
(ON is the middle position,
be careful not to select
SETUP, the lowest position, by
mistake)
Wait 1 minute
On your Android device, go
to:
SETTINGS > WIRELESS AND
NETWORK > Wi-Fi SETTINGS
Select and connect to the
SMART-I-WiFi network
Once connected you will see
under Wi-Fi, Connected to
SMART-I-WiFi
5
STEP 3 > VIEW

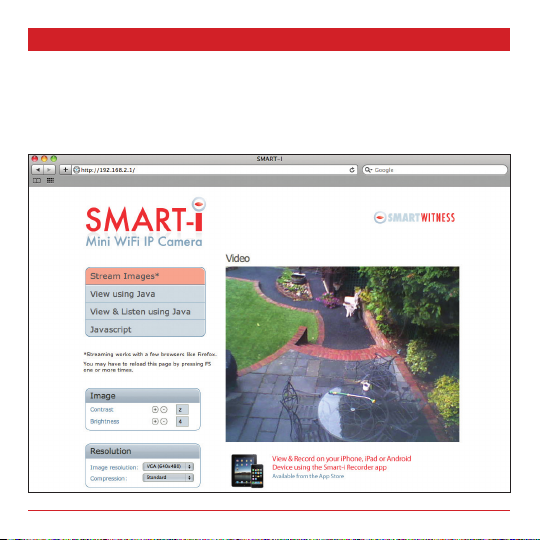

View your SMART-I using a Windows PC or Mac
Open your browser and browse to: http://192.168.2.1
You will then see the screen below:
6
To view your SMART-I, select a stream type:
Stream Images Streams Video to your browser using MJPEG
View using Java Streams Video to your browser using Java
View & Listen using Java Streams Video and Audio to your browser using Java
Javascript Streams Video to your browser using Javascript
Not all stream types will work with all browsers.
The SMART-I is compatible with Microsoft Internet Explorer, Google
Chrome, Mozilla Firefox & Apple Safari.
To adjust video attributes, press the +or -next to Contrast & Brightness.
To change the Image Resolution and Compression type, select from the
dropdowns.
Reducing the image resolution from VGA to QVGA or QQVGA and increasing the
compression from Standard to High, will increase the frame rate in low bandwidth
conditions, but will also reduce the image quality.
7

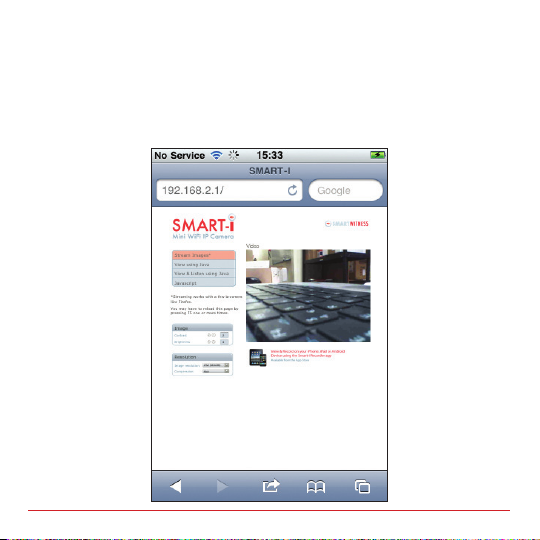

View your SMART-I using an iPhone or iPad
Open the Safari app on your device and browse to: 192.168.2.1
You will then see the screen below:
8
To view your SMART-I, select one of the following stream types:
Stream Images Streams Video to your browser using MJPEG
Javascript Streams Video to your browser using Javascript
To adjust video attributes, press the +or -next to Contrast & Brightness.
Audio monitoring & Resolution adjustments are not possible when using the Safari
app to connect to the SMART-I.
For the best streaming performance on your iPhone or iPad, as well as Audio
monitoring and Recording of your SMART-I, we recommend using the SMART-I
app, available from the App Store.
9

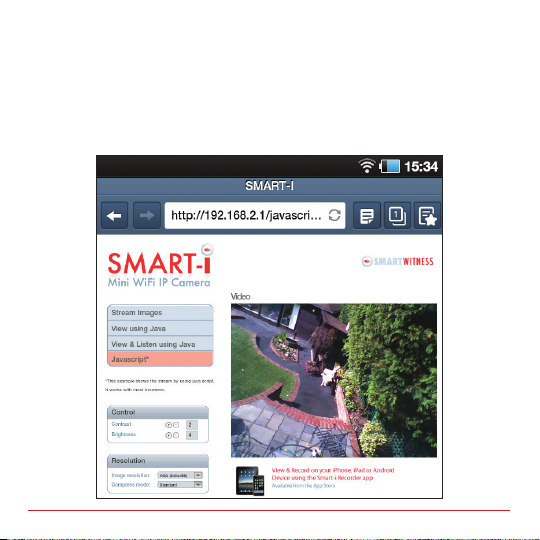

View your SMART-I using an Android device
Open the Browser app on your device and browse to: 192.168.2.1
You will then see the screen below:
10
