MN600 Cinema STEREOCHECK

Dual 6 Channel Active Cinema Booth Monitor

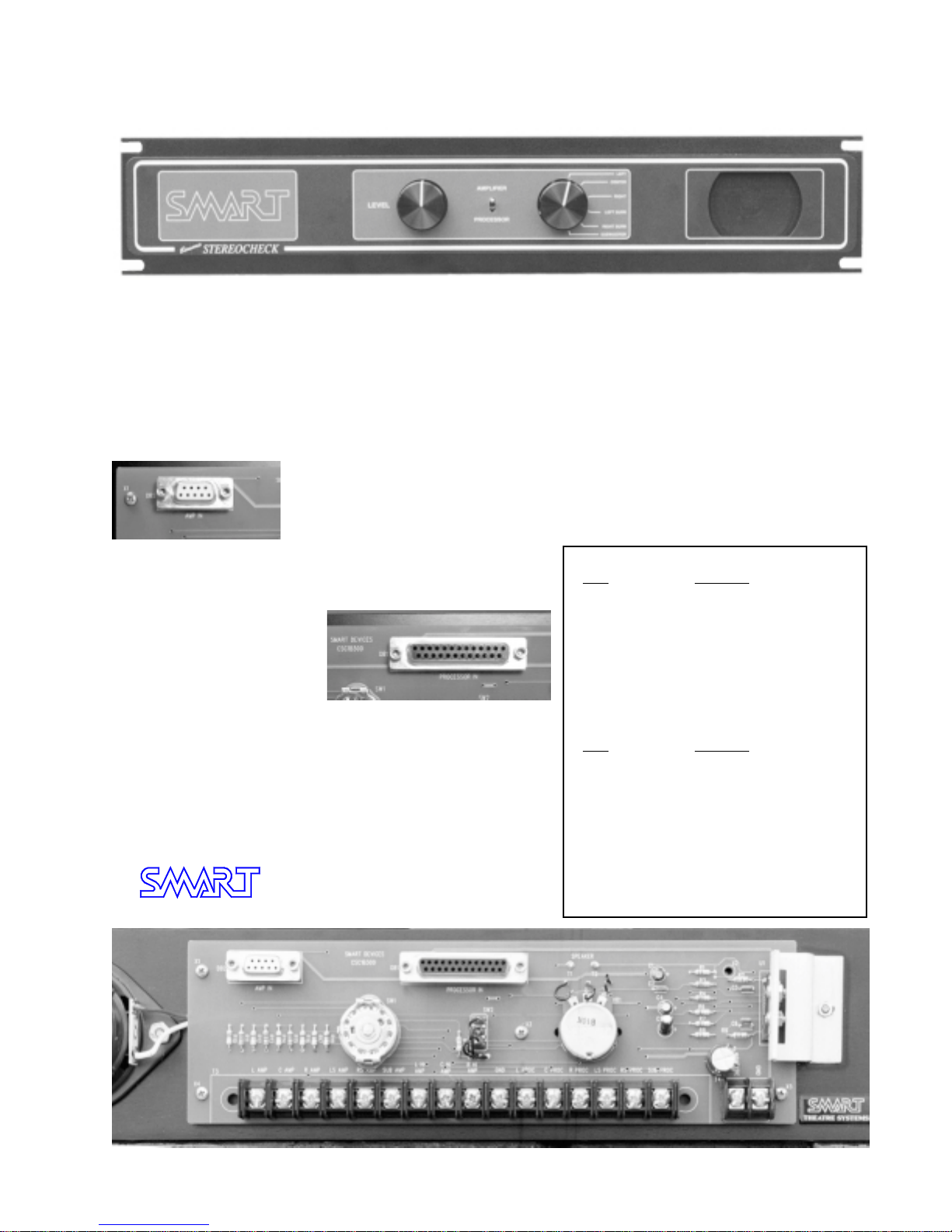

The MN600 Cinema STEREOCHECK is a new booth monitor designed to complement the MODVI

stereo processor in both form and function. This monitor employs a solid state mono bridged ampli-

fier and a high efficiency 2.5 inch speaker mounted on a 3.5 inch high rack mount panel. The MN600

can monitor any of six channels (LEFT, CENTER, RIGHT, LEFT SURROUND, RIGHT SURROUND, and

SUBWOOFER) on both amplifier and processor outputs. Bi-amped LEFT, CENTER, and RIGHT ampli-

fier signals can be monitored through terminal strip hookups.

Connections. The MN600 provides a variety of interfaces on the rear panel for easy connection to any

processor and amplifier combination. A 9 pin D-type subminiature connector

(shown at the left) is provided for connection through a standard cable to

SMART’sTA6300 Six Channel Amplifier. The 25 pin D-type shown below

allows for connection to the MODVI’s Digital Smart Port using a standard 25

pin cable. Additionally, a 16

position terminal strip provides redundant signal connec-

tions for nonstandard cable hookups. The inputs are

clearly labeled on the back

of the MN600, with all the

amplifier inputs suffixed by

“AMP” and all the proces-

sor inputs suffixed by

“PROC.”

Power. The MN600 is powered by the power supply

provided with the MODVI. The PROCESSOR IN port

receives a 15Volt supply through pin 12. For applications

not using the PROCESSOR IN port, the two position termi-

nal strip labeled “+15VDC” and “GND” may be used with

a 15VDC, 500mA power supply.

AMP IN - DB9 Input

PIN SIGNAL

1 LEFT

2 CENTER

3 RIGHT

4 LEFT SURROUND

5 RIGHT SURROUND

6 SUBWOOFER

7-9 GROUND

PROCESSOR IN - DB25 Input

PIN SIGNAL

12 +15VDC

15 SUBWOOFER

17 RIGHT SURROUND

19 LEFT SURROUND

21 RIGHT

23 CENTER

25 LEFT

16,18,20,22,24 GROUND

Devices, Inc. (800) 45-SMART

(770) 449-6698
