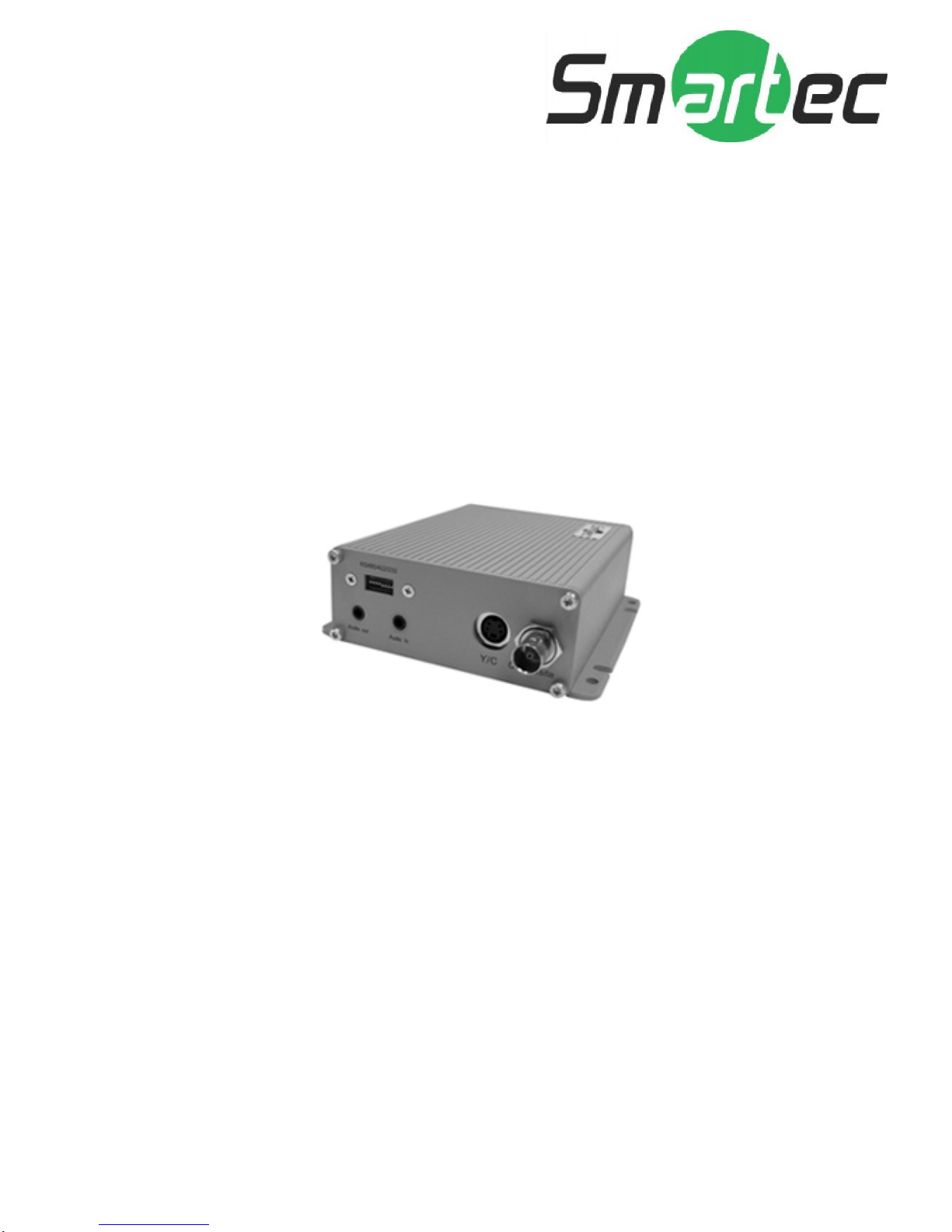

Smartec – 1-Channel Video Decoder
STS-IPD160
Firmware User manual
i
Table of Contents
INTRODUCTION ____________________________________________________1
1.1 Minimum system requirements ______________________________________ 1
1.2 Preparation before setup ___________________________________________ 2
1.2.1 Setup your PC network ___________________________________________________2
1.3 Configuring the video Decoder ______________________________________ 6
1.3.1 Host Setting ____________________________________________________________8
1.3.2 WAN Setting __________________________________________________________12
1.3.3 Connection Setting _____________________________________________________15
1.3.4 User Account Management _______________________________________________17
1.3.5 Port Setting____________________________________________________________18
1.3.6 System Info ___________________________________________________________19
1.3.7 Firmware Upgrade______________________________________________________20
1.3.8 Factory Default ________________________________________________________23
1.3.9 Save Reboot___________________________________________________________24
1.3.10 Logout _______________________________________________________________25
1
INTRODUCTION
1.1 Minimum system requirements
CPU
Pentinum 4 2.4GHz and above
Hard Disk 40 GB or above
Memory 256 MB or above
Operating System Windows XP / Windows 2000 with SP4 or above
Required Utilities FFDShow, DirectX 9.0b or later hardware acceleration
Video Resolution SVGA or XGA with 1024x768 resolution, 32-bit color
1
2
1.2 Preparation before setup
To configure the video Decoder, you have to use the Internet Explorer to
login the video Decoder. Before that, your PC’s networks settings and the
video Decoder’s IP address must be setup. Make sure all the connections
are connected correctly, and then follow the procedures below to setup.
1. Setup your PC network
You have to match your PC’s TCP/IP setting with the video Decoder’s
default settings before you can use IE browser to login it. This section
tells you how to setup your PC’s TCP/IP settings.
2. Setup video Decoder’s IP address
This video Decoder’s IP address can be setup manually or
automatically by network service (DHCP).
1.2.1 Setup your PC network
To set up the network of video Decoder via a PC, you have to change the
TCP/IP settings of the PC.
The following are the default network settings of video Decoder.
IP Address: 192.168.0.200
Subnet Mask: 255.255.255.0
To access the video Decoder, the IP address of the PC should match the
address below.
IP Address: 192.168.0.xxx
Subnet Mask: 255.255.255.0
The procedures below is the setup procedure of a PC using Windows XP as
its OS. When running an OS other than Windows XP, please refer to the
manual included with the OS.
zSTEP1
NOTE: xxx should be a number from 1 to 254, but 200 is excepted.
3
Start up your PC.
zSTEP2

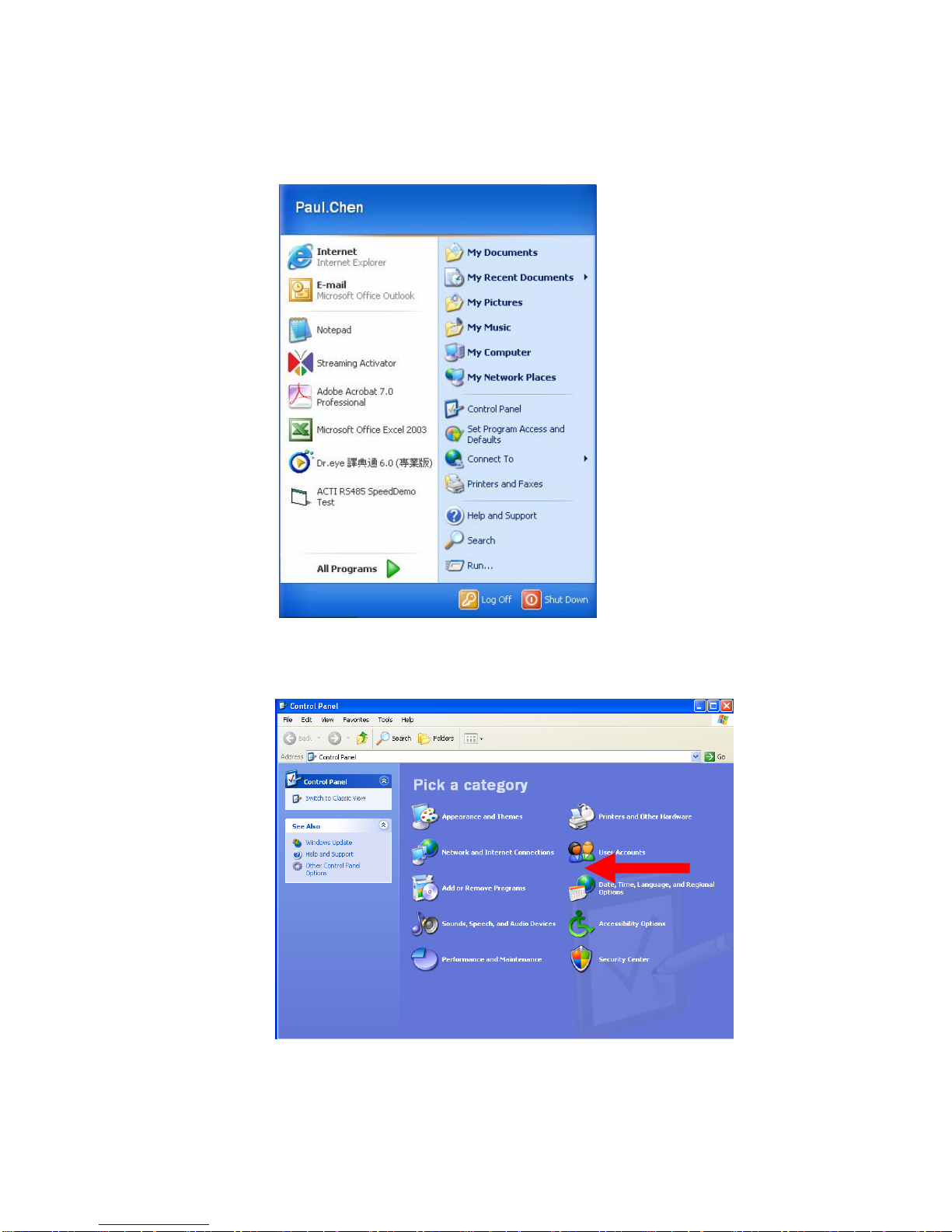

Click the [Start] and select the "Control Panel"
zSTEP3

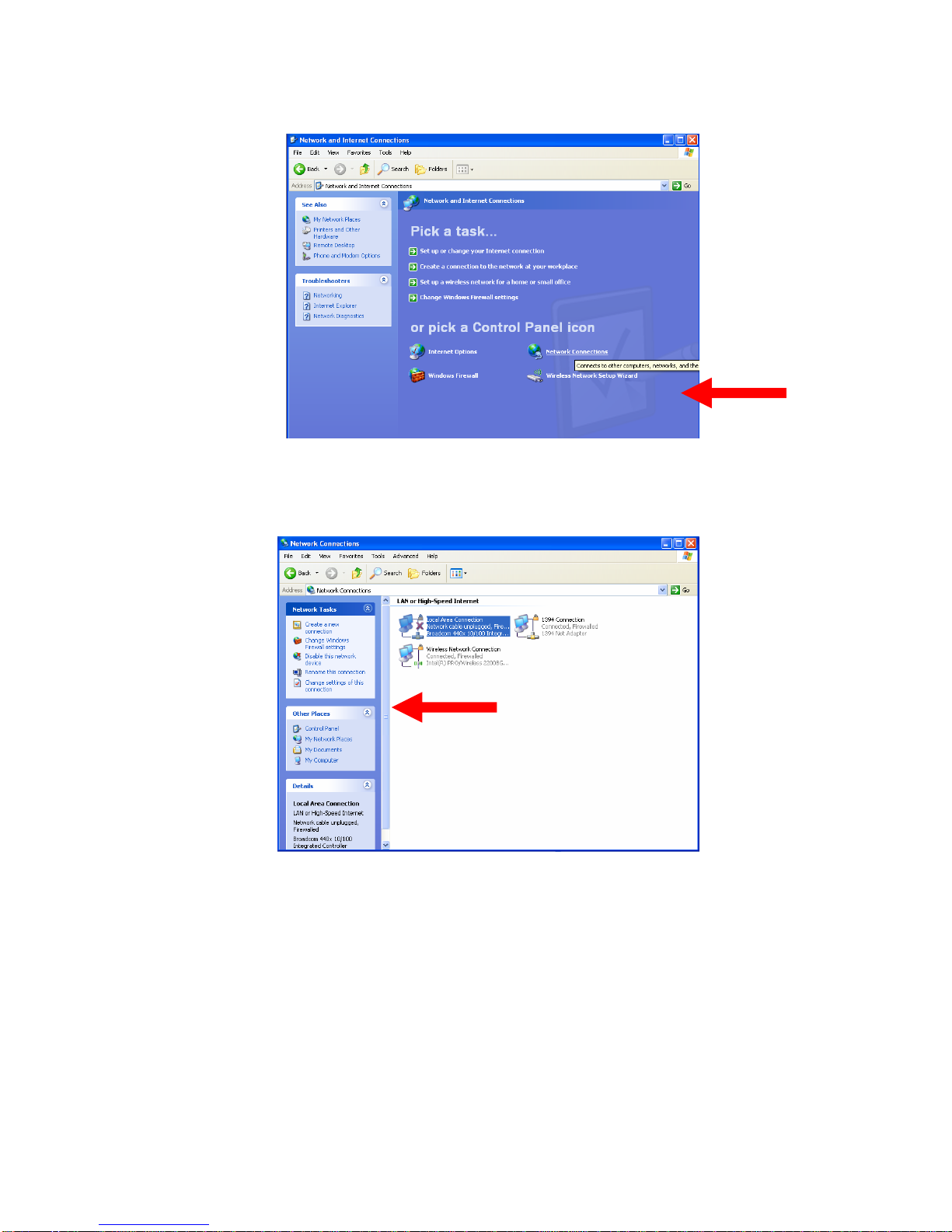

Double-click the "Network and Internet connections" icon.
zSTEP4
4
Double-click the "Network connections" icon
zSTEP5
Click “Local Area Connections”, and then click “Change settings of
this connection” in the network Task menu.
zSTEP6

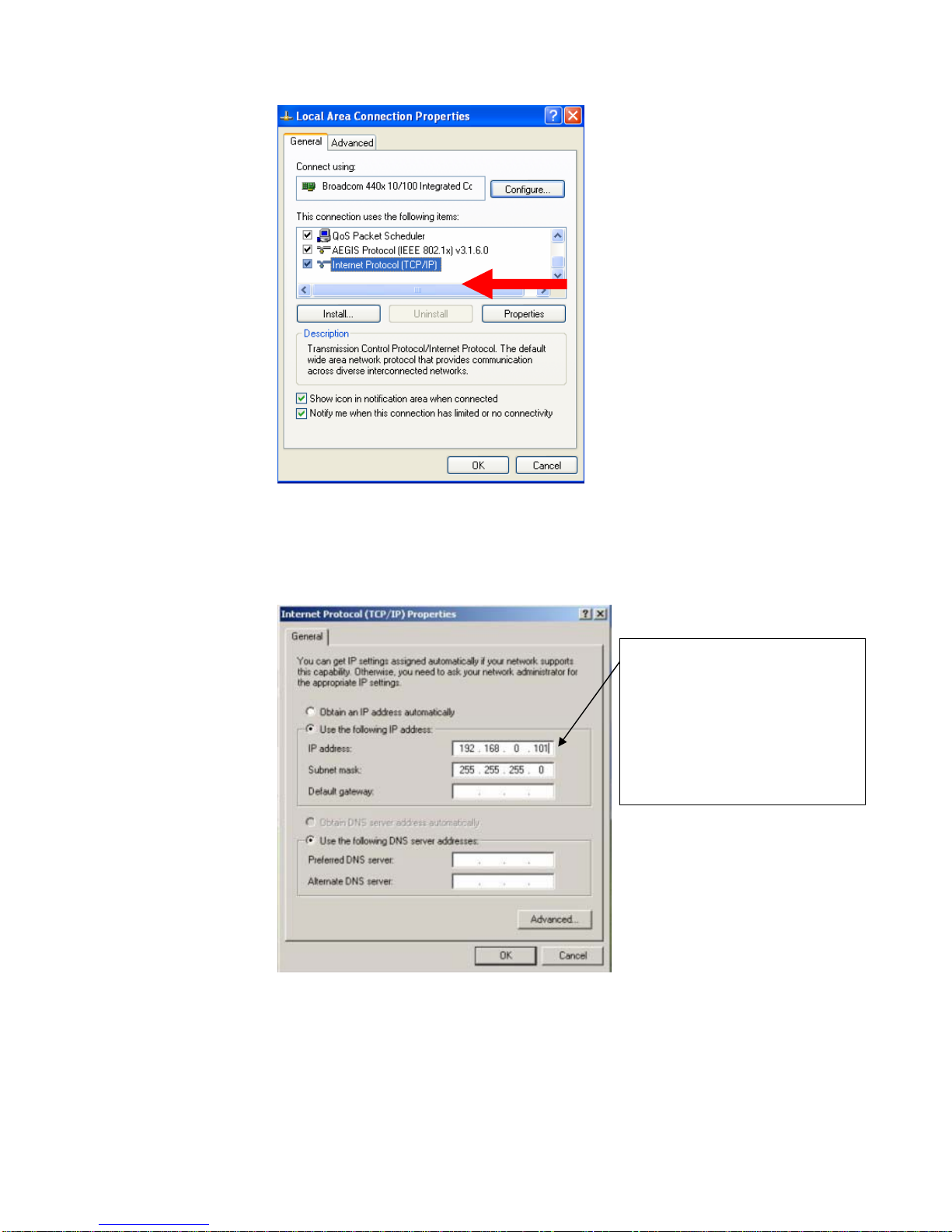

Click “Internet Protocol (TCP/IP)”, and then click the [Properties]
button.
5
zSTEP7
Click the “Use the following IP address” radio button and enter the IP
address and the subnet mask.
zSTEP8
Click the [OK] button and the window dialog box closes.
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 200 is
excepted.)
6
1.3 Configuring the video Decoder
This section describes how to configure the video Decoder. The product
administrator has unlimited access to all setup windows and normal users
can only watch the live image. The video Decoder is configured under a
standard browser (Microsoft Internet Explorer 6.0 or above).
Follow the procedures below to configure the video Decoder.
zSTEP1: Open a browser
zSTEP2: Enter the IP address of the video trasncoder.
The default IP address is “192.168.0.200”

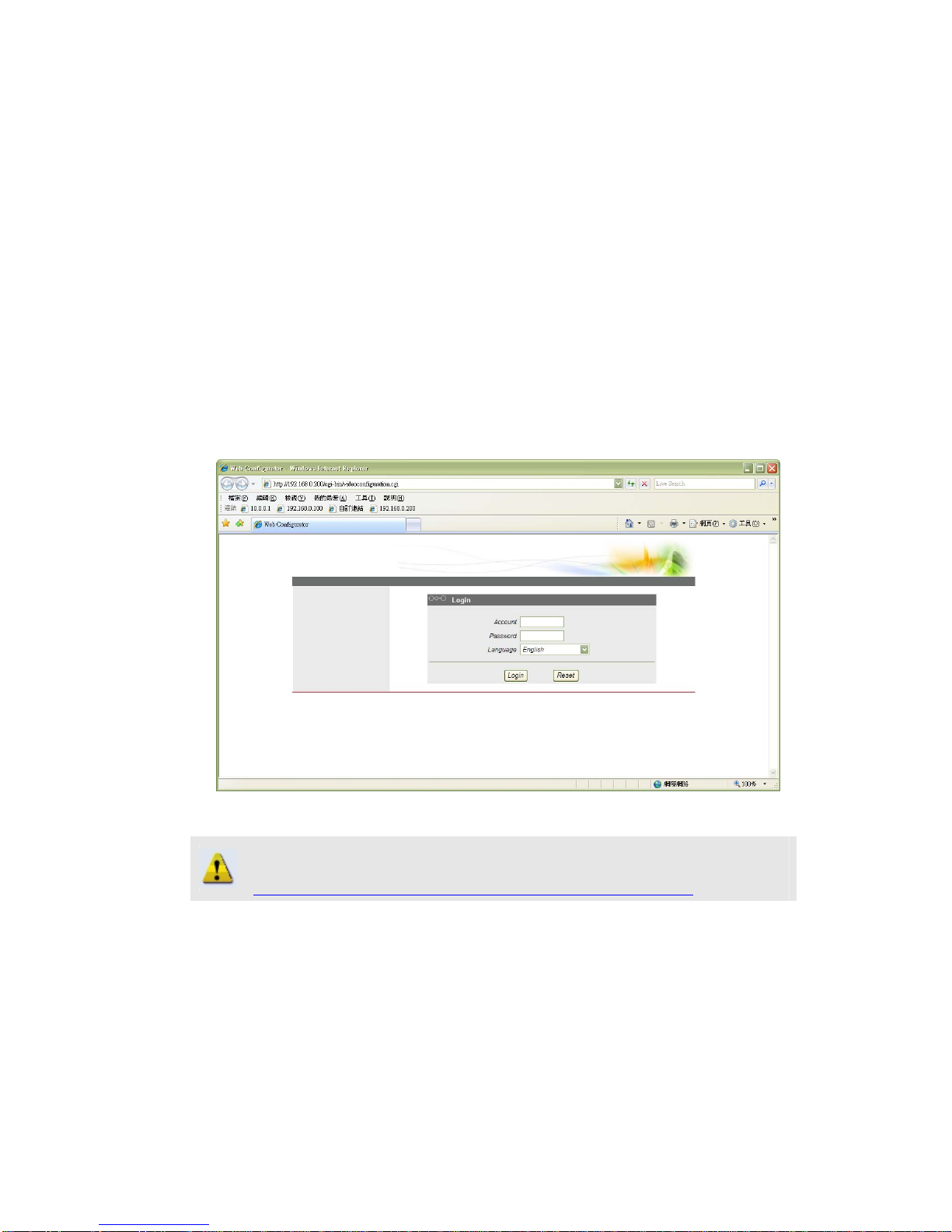

The “Login Page” is now displayed as below.
zSTEP3: Enter the Account name (factory default: Admin) and the
Password (factory default: 123456).
zSTEP4: Select the language of the video Decoder user interface. You
can select from English, Traditional Chinese, Simplified Chinese,
Japanese and Spanish, Italian, German, Portuguese and French. This
user interface setting will disappear once you log out, if you want to
NOTE: Internet Explorer of 6.0 or above is highly recommended. If you
don’t have the it, please download it from
http://www.microsoft.com/windows/ie/downloads/default.mspx
7
change the default user interface language.

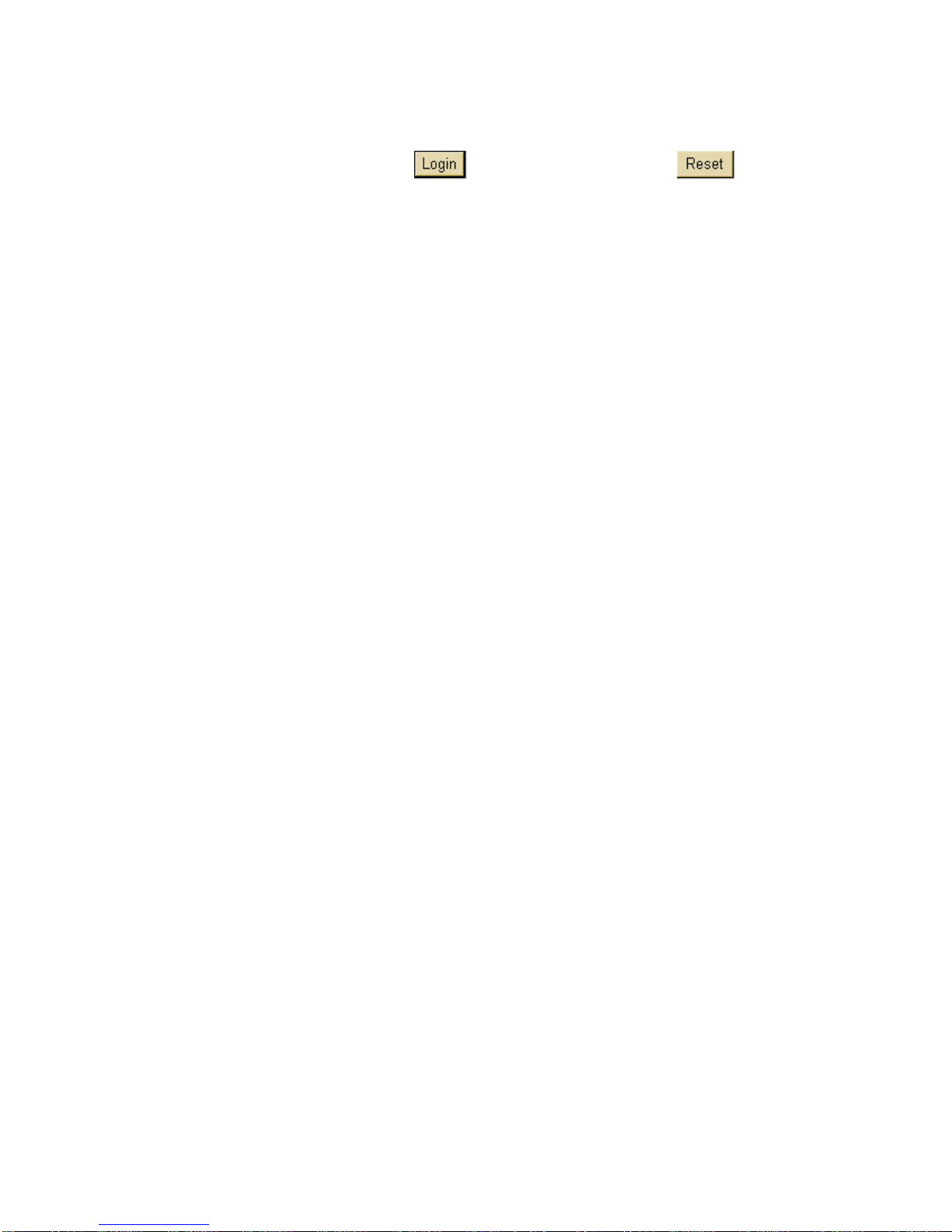

zSTEP5: Click the button to login or click the button
to re-enter again.
8
1.3.1 Host Setting
This section tells you how to setup video Decoder’s host settings and LAN
settings.
zSTEP1: Click the [Host Setting] on the “Main Setup page”.
The “Host setting page” is displayed as below.
