1 OVERVIEW

BAC150CAN is a kind of battery charger with intelligent multi-functions, which is specially

designed for genset lead-acid battery to meet the charging characteristics. It is suitable for 12V/24V

battery with maximum10A output current.

2 PERFORMANCE AND CHARACTERISTICS

BAC150CAN has the following characteristics:

1) Switch power supply structure, wide high voltage input, small size, light weight, high efficiency;

2) It can work automatically by the method of two-stage or three-stage as required. The two

methods both are designed according to battery charging characteristics, and can prevent

lead-acid battery overcharging, which extremely improves the battery life span;

3) Built-in PFC is designed, so when the output terminal is connected reversely, it shall be AC power

supply, which can effectively protect the charger. When the reverse connection is removed, it

shall recover the output automatically;

4) Multi-function output port is designed, and it can be configured on PC. Low output level is active.

5) Multi-function input port is designed, and it can be configured on PC. Low input level is active.

6) Temperature sensor port is designed, which can monitor the battery temperature of current time;

and it also has temperature compensation function, which can effectively prevent over high

battery temperature;

7) Standard RS485 serial communication interface, CAN communication interface, and USB

communication interface are designed;

8) LED display: Charging status indicator, and alarm indicator.

BAC150CAN Battery Charger User Manual

BAC150CAN Battery Charger Version 1.0 2019-03-05 Page 5 of 13

3 CHARGING PRINCIPLE

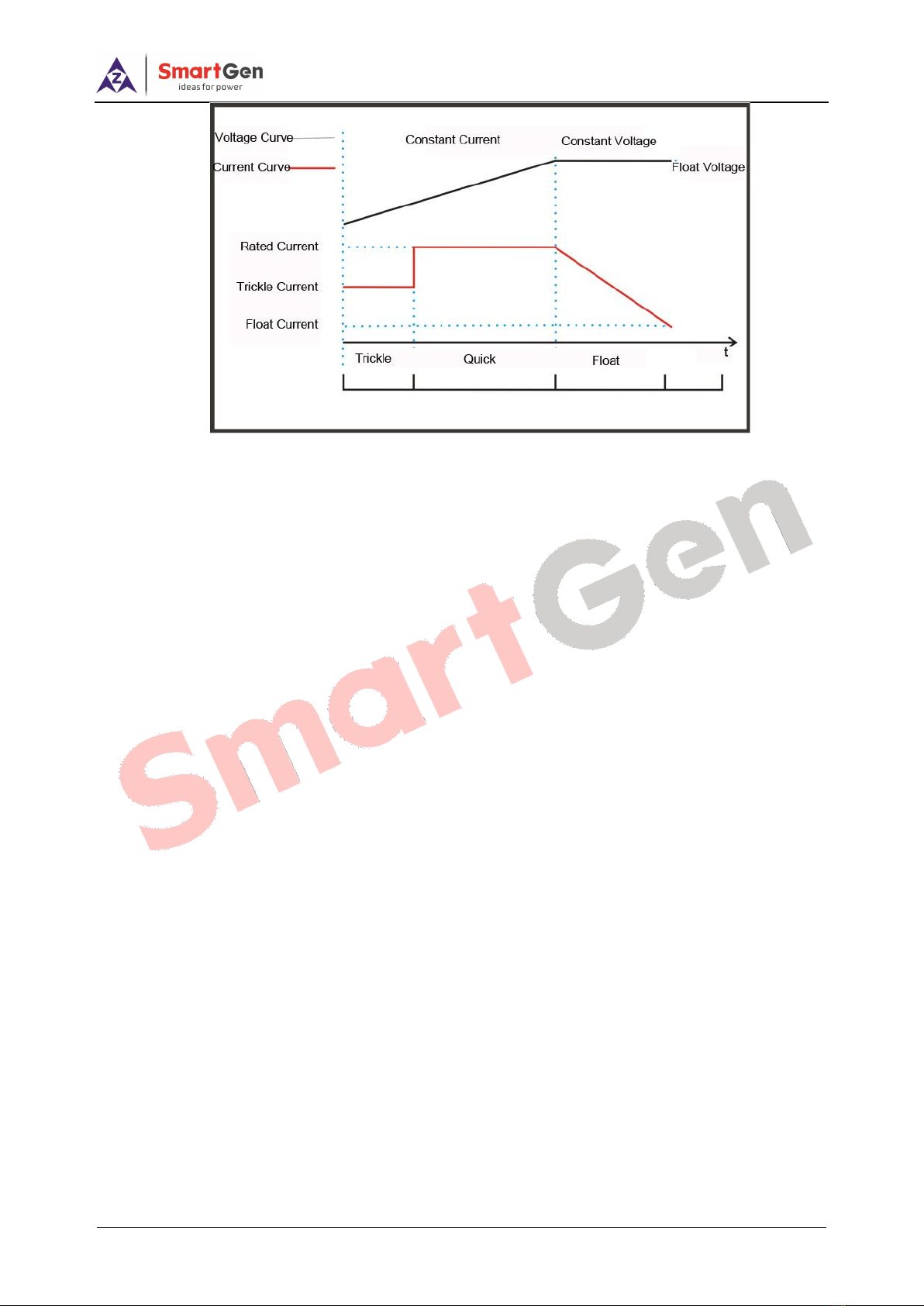

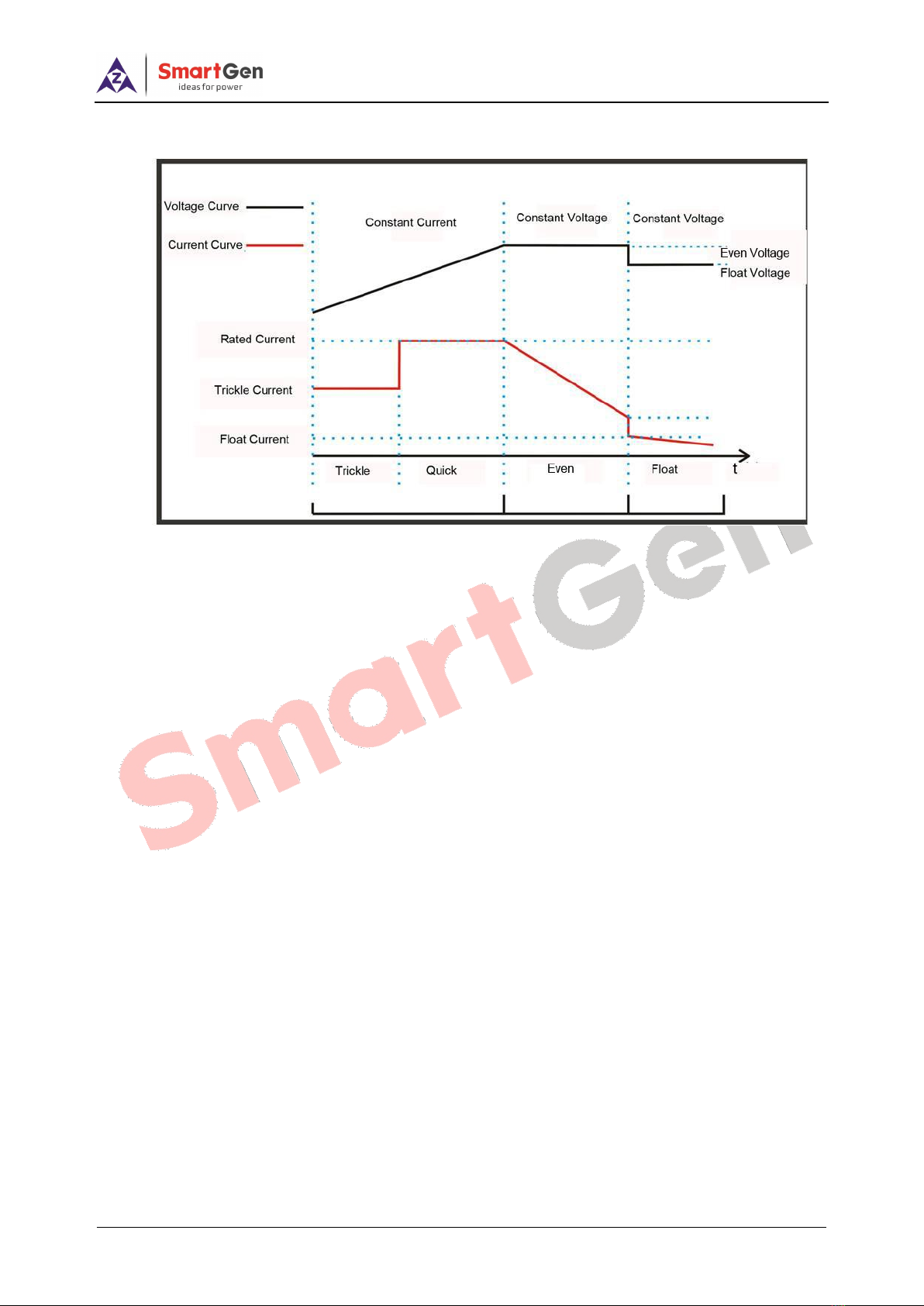

Fig. 1 3-Stage Charging Curve Gragh

Three-stage charging method is applied for the charger to work according to the battery charging

characteristics.

1) The first stage is ‘Constant Current’ mode. When the terminal voltage is comparatively low, the

charging current is small, which effectively prevents the battery from damaging because of high

temperature, calling ‘low voltage trickle charging’. When the terminal voltage gets high, the

charging current changes to rated current, which makes the battery electricity increasing rapidly.

This process is ‘quick charging’.

2) The second stage is ‘Even Charging’mode. After constant current mode, the voltage gets up to

the even voltage value, and at this time the charger keeps constant voltage output. The charging

current slows down, and the terminal voltage also slowly keeps at the value of even voltage.

3) The third stage is ‘Float Charging’mode. After the above two stages, the charging is basically

completed and output voltage of the charger switches to float voltage automatically. Charging

current also drops to float current. All white LED indicators are illuminated always. Afterwards the

charging current only offsets the battery self-discharge and longtime charging is unharmful for the

battery.

BAC150CAN Battery Charger User Manual

BAC150CAN Battery Charger Version 1.0 2019-03-05 Page 6 of 13

Fig. 2 2-Stage Charging Curve Graph

Two-stage charging method is applied for the charger to work according to the battery charging

characteristics.

1) The first stage is ‘Constant Current’ mode. When the terminal voltage is comparatively low, the

charging current is small, which effectively prevents the battery from damaging because of high

temperature. This process is called ‘low voltage trickle charging’. When the terminal voltage gets

high, the charging current changes to rated current, which makes the battery electricity increasing

rapidly. This process is ‘quick charging’.

2) The second stage is ‘Float Charging’mode. As the electricity gets higher and higher, the charging

current is getting smaller. When the current is below 0.5A, the battery is fully charged. Then the

charging current offsets the battery self-discharge and longtime charging is unharmful for the

battery.

BAC150CAN Battery Charger User Manual

BAC150CAN Battery Charger Version 1.0 2019-03-05 Page 7 of 13

4 PARAMETERS SPECIFICATION

Table 2 Product Parameters

Type

Item

Parameters

12V

24V

Input

Characteristics

Nominal AC

Voltage

AC (100~277)V

Max. AC

Voltage

AC (90~305)V

Max. Current

1.8A

3.5A

No-load Power

Consumption

<3W

AC Frequency

50Hz/60Hz

Efficiency

85%

Output

Characteristics

No-load

Output Voltage

13.5V, Error ±0.2V

27.0V, Error ±0.2V

Rated

Charging

Current

5A, Error ±0.2A

Max. Power

80W

135W

Min. Voltage

3.5V

Insulating

Property

Insulation

Resistance

Between input and output, input and PE, output and PE all are:

RL≥500 MΩ

Insulation

Voltage

Between input and output, input and PE both are: AC3kV 50Hz

1min; leakage current: IL ≦3.5mA

Between output and PE is: AC500V 50Hz 1min; leakage

current: IL ≦3.5mA

Working

Condition

Working

Temperature

(-30~+55)°C

Storage

Temperature

(-40~+85)°C

Working

Humidity

20%RH~93%RH(No condensation)

Storage

Humidity

10%RH~95%RH(No condensation)

Shape Structure

Weight

0.58kg

Dimension

171mm×119.5mm×65.5mm (length*width*height)

BAC150CAN Battery Charger User Manual

BAC150CAN Battery Charger Version 1.0 2019-03-05 Page 8 of 13

5 PARAMETERS CONFIGURATION

Table 3 Parameter Configuration

Items

Default

Adjustable Range

Description

12V

24V

12V

24V

Battery Selection

(0~2)

0: 12V

1: 24V

2: Self-adjusted

Charging Method

(2~3)

2: Two-stage;

3: Three-stage

Max. Rated Current

5.0A

Maximum charging current

Rated Current

100%

(0~100)%

Maximum rated charging current

percentage

Even Charging

Voltage

14.1V

28.2V

(10~16)V

(20~30)V

The charging voltage of “Constant

Voltage”

Even Charging

Enable

(0~1)

0: Disable; 1: Enable

Even Charging

Time Setting

1.0h

(0.1~100)h

The charging time of Constant

Voltage

Even Charging

Completion Current

(0~1)

0: Disable; 1: Enable

Completion Current

Setting

0.50A

(0.20~3.00)A

The transition current from Even

Charging to Float Chargeing

Float Charge

Voltage

13.5V

27.0V

(10~16)V

(20~30)V

The voltage of “Float Charge”

AUTO BOOST

Voltage

12V

24V

(10~16)V

(20~30)V

When the charger is in Float Mode,

it enters Quick Charge if the battery

voltage has fallen below this value.

AUTO BOOST

Voltage Delay

20s

(0~3600)s

When the battery voltage is below

this value for the delay time, it gets

into BOOST status.

Trickle Charge

(0~1)

0: Disable; 1: Enable

Trickle Charge

Voltage

11.0V

22.0V

(10~16)V

(20~30)V

The voltage of Trickle Charge

Trickle Charge

Current

50%

(0~100)%

Maximum rated charging current

percentage

Battery Under

Voltage Warn

(0~1)

0: Disable; 1: Enable

Under Voltage Set

Value

11.5V

23.0V

(8~15)V

(16~30)V

Under voltage alarm will be

initiated if the battery voltage has

fallen below the set value.

Under Voltage

Delay

120s

(0~3600)s

Under voltage alarm will be

initiated if the battery voltage has

fallen below the set value and the

delay timer has expired.

BAC150CAN Battery Charger User Manual

BAC150CAN Battery Charger Version 1.0 2019-03-05 Page 9 of 13

Items

Default

Adjustable Range

Description

12V

24V

12V

24V

Under Voltage

Return Value

12.5V

25.0V

(8~15)V

(16~30)V

The transition voltage from ‘under

voltage’ to ‘normal voltage’

Under Voltage

Return Delay

10s

(0~3600)s

Under voltage alarm will be

removed if the battery voltage has

exceeded the return value and the

delay time has expired.

Battery Over

Voltage Warn

(0~1)

0: Disable; 1: Enable

Over Voltage Set

Value

16V

32V

(8~16)V

(16~32)V

Over voltage alarm will be initiated

if the battery voltage is above the

set value.

Over Voltage Delay

(0~3600)s

Over voltage alarm will be initiated

if the battery voltage is above the

set value and the delay time has

expired.

Over Voltage

Return Value

15.8V

31.6V

(8~16)V

(16~32)V

The transition voltage from ‘over

voltage’ to ‘normal voltage’

Over Voltage

Return Delay

10s

(0~3600)s

Over voltage alarm will be

removed if the battery voltage is

below the return value and the

delay time has expired.

Temperature

Sensor

(0~1)

0: Disable; 1: Enable

Temperature

Compensation

(0~1)

0: Disable; 1: Enable

Temperature

Compensation Set

Value

0.018V/℃

0.036V/℃

(0.010~0.

030)V/℃

(0.020~0.

060)V/℃

The Compensation of every 1℃

change on 20℃basis.

High Temp. Warn

(0~1)

0: Disable; 1: Enable

High Temp. Set

Value

55℃

(0~80)℃

High Temp. alarm will be initiated

if the battery temperature has

exceeded the set value.

High Temp. Delay

0.5s

(0~60.0)s

High Temp. alarm will be

initiated if the battery

temperature has exceeded the

set value and the delay time

has expired.

High Temp. Return

Value

50℃

(0~80)℃

The transition temperature from

High Temp. to Normal Temp.

High Temp. Return

Delay

1.0s

(0.0~60.0)s

High Temp. alarm will be

removed if the battery

temperature has fallen below

the return value and the delay

time has expired.

BAC150CAN Battery Charger User Manual

BAC150CAN Battery Charger Version 1.0 2019-03-05 Page 10 of 13

Items

Default

Adjustable Range

Description

12V

24V

12V

24V

Auxiliary Input Port

(0~5)

0: Not Used;

1: Shutdown; The battery

charger enters Standby Status

if the input is active.

2: Reserved;

3: Manual BOOST:

The battery charger enters

BOOST if the input is active.

4: Return to Float Mode:

The charger enters Float Mode

if the input is active.

5: Rated Voltage Output:

Charger shall output rated

voltage if the input is active.

Auxiliary Input Port

Delay

2.0s

(1.0~60.0)s

The corresponding action will

be active if the input is active

and the delay time has expired.

Auxiliary Output

Port Setting

Charging Failure

Waring

Mains Failure

Warning

Multiple choices are

available.

Not Used;

Output over voltage warning;

Output under voltage warning;

External temp. sensor

short-circuit warning;

Charging failure warning’;

Mains failure warning;

Auxiliary Output

Port Delay

2.0s

(1.0~60.0)s

Output port is active after the

delay time.

Communication

Address

1~254

RS485 communication address

RS485 Baud Rate

(0~2)

1: stop bit;

0: 9600bps;

1: 19200bps;

2: 38400bps;

CAN Baud Rate

(0~2)

0:125kbps;

1: 250kbps;

2: 500kbps;

Battery Type

(0~4)

0: Lead-acid;

1: Li Battery;

2: Calcium-Calcium;

3: Power;

4: Users-defined;

Indice

Altri manuali Smartgen Caricabatterie per batterie

Smartgen

Smartgen BAC2410 Manuale utente

Smartgen

Smartgen BAC06S Manuale utente

Smartgen

Smartgen BAC1205N Manuale utente

Smartgen

Smartgen BACM2420 Manuale utente

Smartgen

Smartgen BAC4812-KP Manuale utente

Smartgen

Smartgen BAC4812 Manuale utente

Smartgen

Smartgen BAC4812-KP Manuale utente

Smartgen

Smartgen BAC1203 Manuale utente

Smartgen

Smartgen BAC1203VL Manuale utente

Smartgen

Smartgen BACM2420 Manuale utente

Smartgen

Smartgen BAC06H Manuale utente

Smartgen

Smartgen BAC2405 Manuale utente

Smartgen

Smartgen BAC2410BST Manuale utente

Smartgen

Smartgen BACMXX06 Series Manuale utente

Smartgen

Smartgen BAC06A Manuale utente

Smartgen

Smartgen BAC06 Series Manuale utente

Smartgen

Smartgen BAC06AU Manuale utente

Smartgen

Smartgen BAC1203VE Manuale utente

Manuali Caricabatterie per batterie popolari di altre marche

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Manuale utente

Enelion

Enelion Vertica Manuale utente

RCA

RCA CHU6 Manuale utente

ANSMANN

ANSMANN ALCT 6/24-10 Manuale utente

Hitachi

Hitachi UC 18YRSL Guida alla risoluzione dei problemi

Olympus

Olympus B-20 LPC Manuale utente

Exibel

Exibel ZH1708143 Manuale utente

Lenmar

Lenmar Mach 1 Manuale utente

CTEK

CTEK MXS 5.0 Manuale utente

ABB

ABB HT842379 Manuale utente

Nitecore

Nitecore Superb Charger SC4 Manuale utente

Renogy

Renogy RBC2125DS-21W Manuale utente

Braun

Braun BWC02M Manuale utente

CTEK

CTEK MXS 3.6 Manuale utente

Black & Decker

Black & Decker BDV090 Manuale utente

Trinity

Trinity DPD Manuale utente

Hulkman

Hulkman Sigma 1 Manuale utente

IKEA

IKEA koppla Manuale utente
