SmartMetals 052.7440 Manuale utente

MOUNTING INSTRUCTIONS

052.7440/7445 Swing - Floor support

SmartMetals Mounting Solutions B.V. • Handelsweg 4 • 4231 EZ MEERKERK • The Netherlands

T +31 (0)88 70 60 100 • E [email protected] • W www.smartmetals.nl

2

SmartMetals Mounting Solutions B.V. • Handelsweg 4 • 4231 EZ MEERKERK • The Netherlands

T +31 (0)88 70 60 100 • E [email protected] • W www.smartmetals.eu

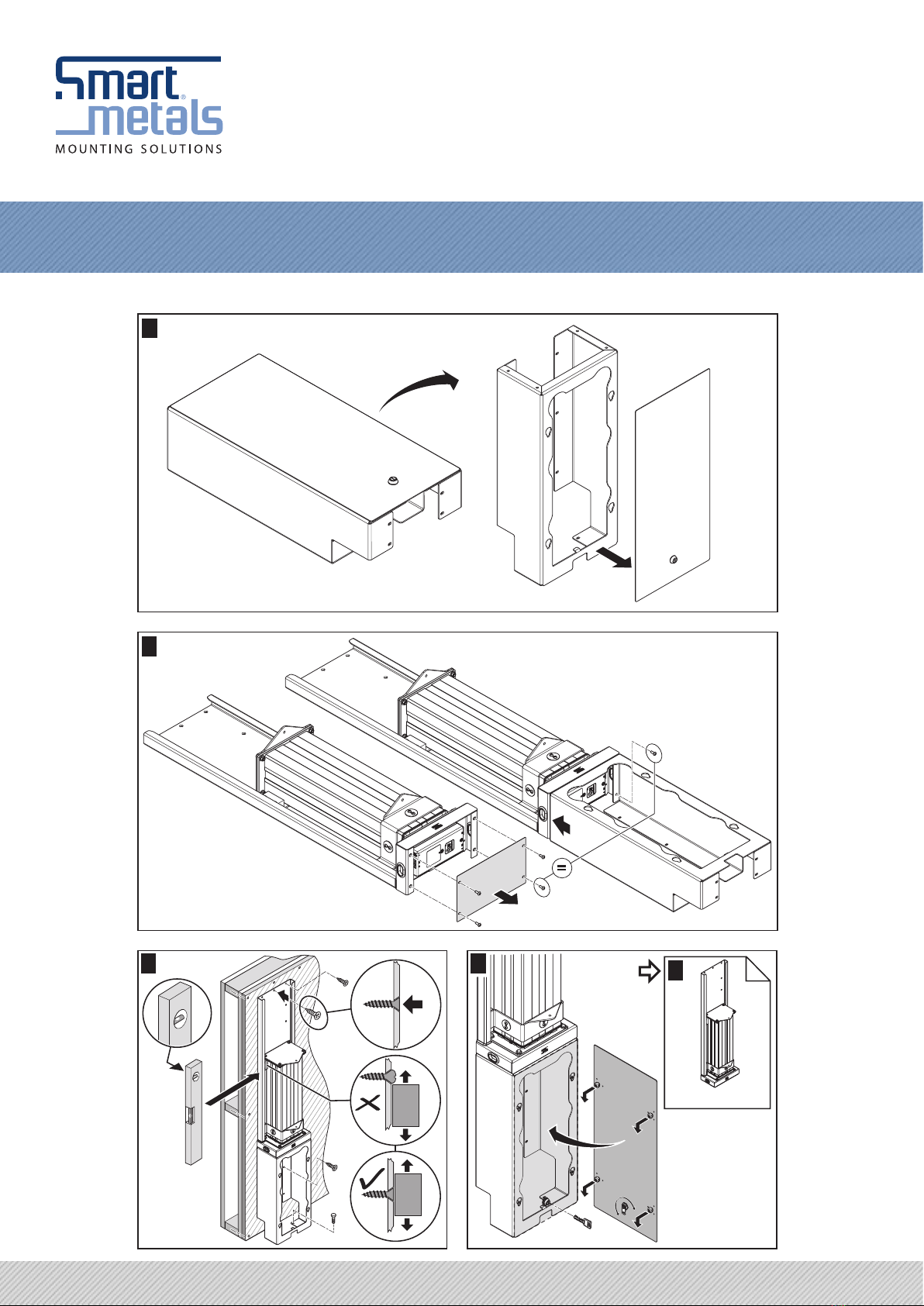

MOUNTING INSTRUCTIONS

4x

(12x)

(4x)

(6x)

052 .7400-84 /65

1

2

3 4 4

052.7440/7445 Swing - Floor support

Productnummer en omschrijving

3

SmartMetals Mounting Solutions B.V. • Handelsweg 4 • 4231 EZ MEERKERK • The Netherlands

T +31 (0)88 70 60 100 • E [email protected] • W www.smartmetals.nl

SmartMetals Mounting Solutions B.V. • Handelsweg 4 • 4231 EZ MEERKERK • The Netherlands

T +31 (0)88 70 60 100 • E [email protected] • W www.smartmetals.eu

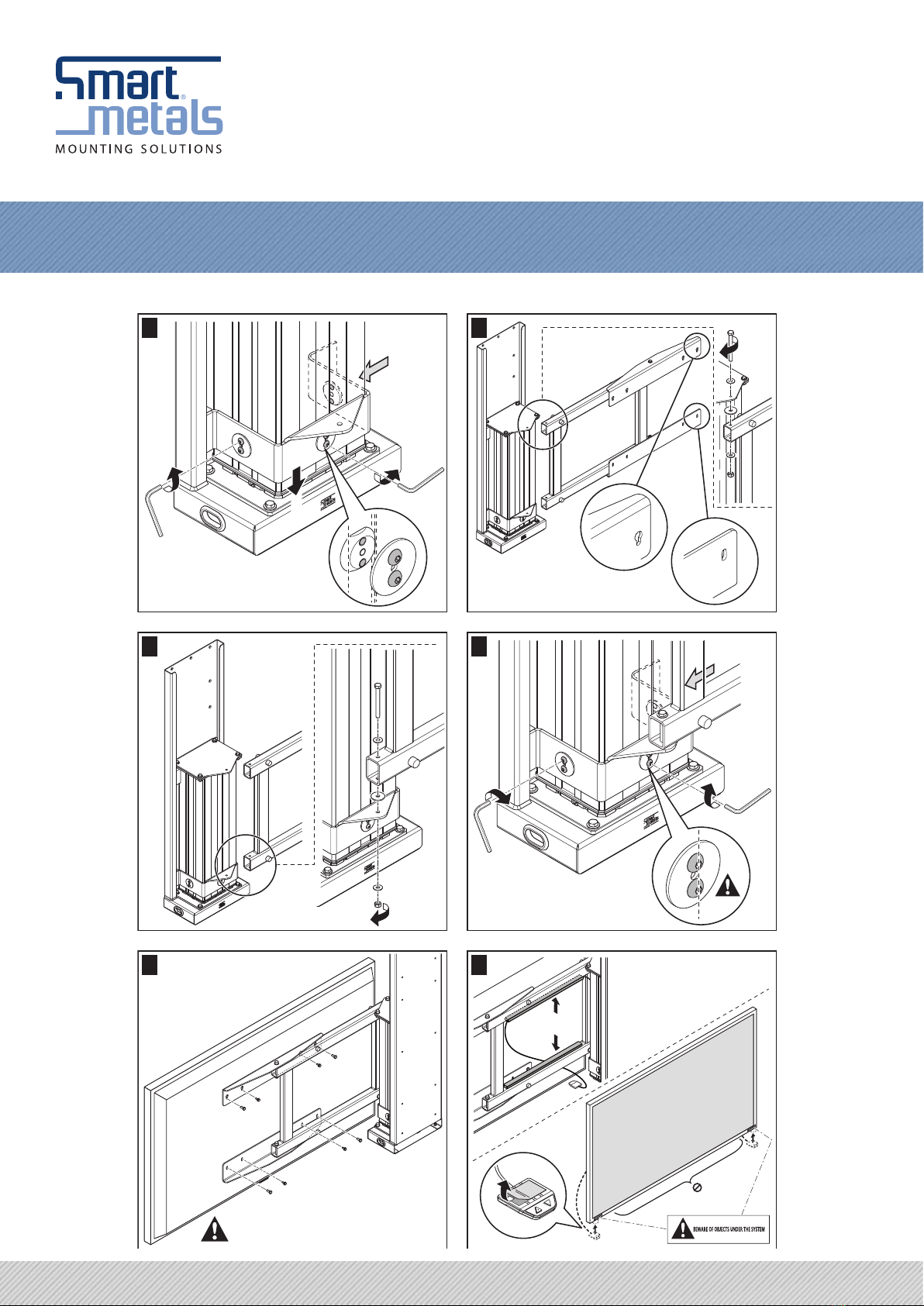

MOUNTING INSTRUCTIONS

E/F

E/F

E/F

E/F

MAX 100 KG

A

C

D

B

B

A

C

D

B

B

2

4 5

6 7

8

3

1

4

15 Nm

15 Nm

2

3

1

G

G

9

052.7440/7445 Swing - Floor support

INFO

4

When installing the Swing 052.7400-65 or 052.7400-85, please heed the following warnings:

Beware of electrical shock hazard: make sure the Swing is disconnected from the

mains when installing the Swing or when performing maintenance.

Beware of moving parts: to avoid entanglement and injury, keep hands and other

body parts out of the way of moving parts of the Swing.

When installing with the oor support (052.7440 or 052.7445): due to the loads in-

volved (see table below), the Swing will topple if not properly secured to the wall.

Technical specications:

Weight

Swing 7400-65 (arm incl.): 50,2 KG

Swing 7400-85 (arm incl.): 52,6 KG

Maximum load 100 KG

Electrical diagram:

The Swing 052.7400-65 and 052.7400-85 are compliant to the following directives:

- Machinery Directive 2006/42/EG

- EMC Directive 2014/30/EU

References to the relevant harmonised standards used or references to the specications in relation to

which conformity is declared:

NEN EN IEC 60204-1: Safety of machinery - Electrical equipment of machines - Part 1: General requirements

NEN EN 60335-1: Household and similar electrical appliances - Safety - Part 1: General requirements

NEN-EN 614-1: Safety of machinery - Ergonomic design principles - Part 1: Terminology and general principles

230 VAC

50 Hz Control box Swing motor

Remote control

SmartMetals Mounting Solutions B.V. • Handelsweg 4 • 4231 EZ Meerkerk • The Netherlands

T +31 (0)88 70 60 100 • E [email protected] • W www.smartmetals.eu
