SmartPID M5 Mini Manuale utente
SmartPID M5 mini Concept
The basic idea behind SmartPID m5 mini controller is to separate the control unit from the power relays. This
provides great flexibility, reduces wirings complexity.
SmartPID M5 can run all the control process (temperature and humidity control) autonomously and drives
wirelessly a smart relay that is connected to load and can be locate in a different place.
At the same time SmarPID m5 is cloud connected via wifi and can be fully controlled from remote web app.
Despite the compact size, SmartPID m5 is feature rich with different control mode and algorithms, support of
different sensor types, brilliant display with simple GUI and easy setup.
Main Characteristics
● Temperature and Humidity control
● 3 Control mode
○ heating/cooling/thermostatic
○ humidify/dehumidify/igrostatic
● 3 working mode
○ Monitor
○ ON/OFF control with hysteresis
○ Profile (10 ramp/soak points)
● Selectable sensor type
○ DS18B20 (digital temperature probe)
○ DHT12 (combined temp./humidity)
○ SHT30 (combined temp./humidity)
○bluetooth wireless temperature
● Configurable Hysteresis
● Fridge delay protection
● Probe calibration
● Celsius/Fahrenheit
● Brilliant OLED display and GUI
● 3 buttons operations
● Simple set up and menu config
● USB-C power supply
● Status led indication
● 4 pin port for sensor
● WiFi connection to Cloud server
○ remote control web app
● WiFi connection to smart relay
○ Shelly 2.5 relay connection
○ Dual channel 10A relay
○ Power monitor
● OTA FW upgrade
● Real Time Clock
● BackUp internal battery

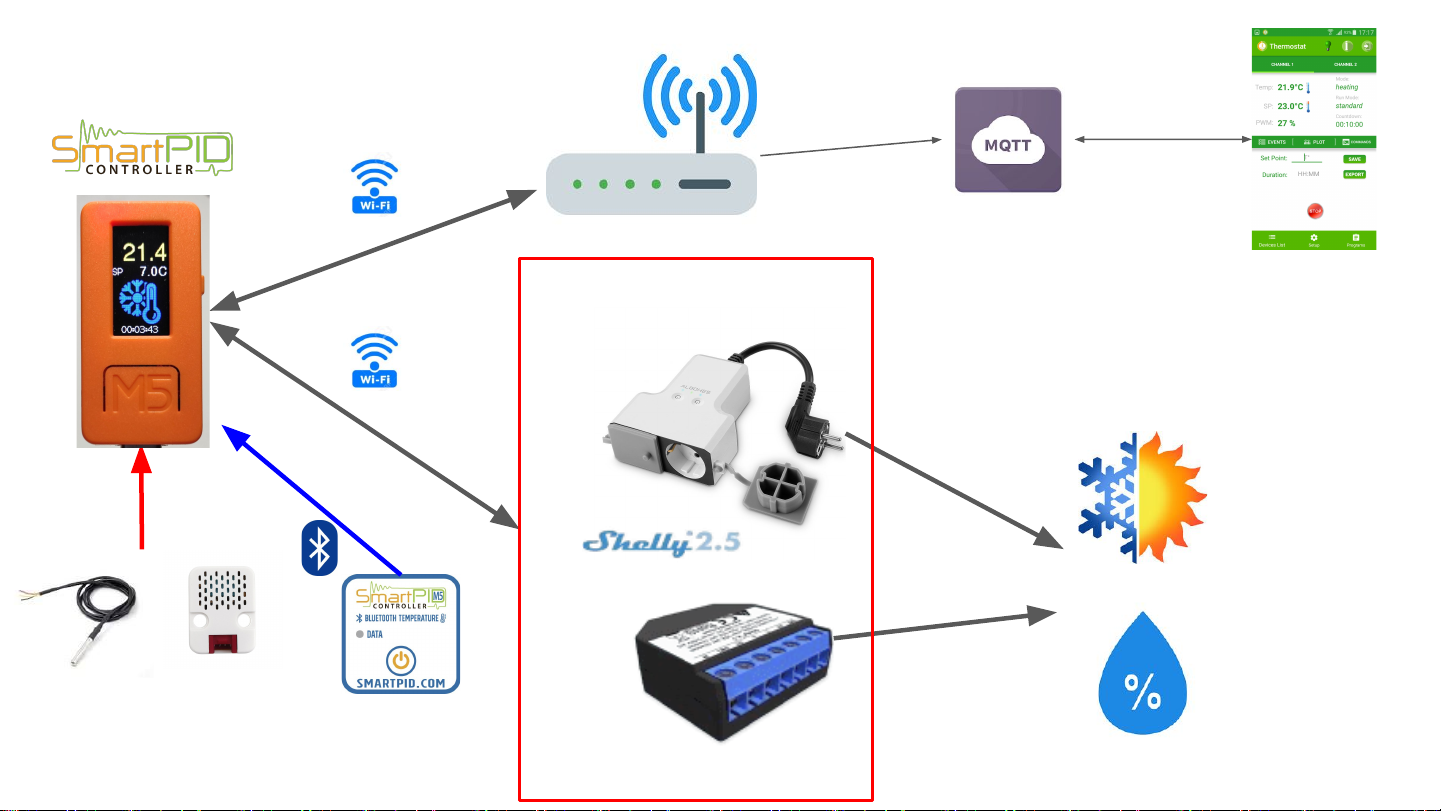

Logical Architecture
temperature
humidity
DS18B20
Smart Socket
Smart Relay
Heating
Cooling
remote
control
cloud
server
DHT12
STH30
Humidify
Dehumidify
temperature
DIRECT
BT sensor
temperature

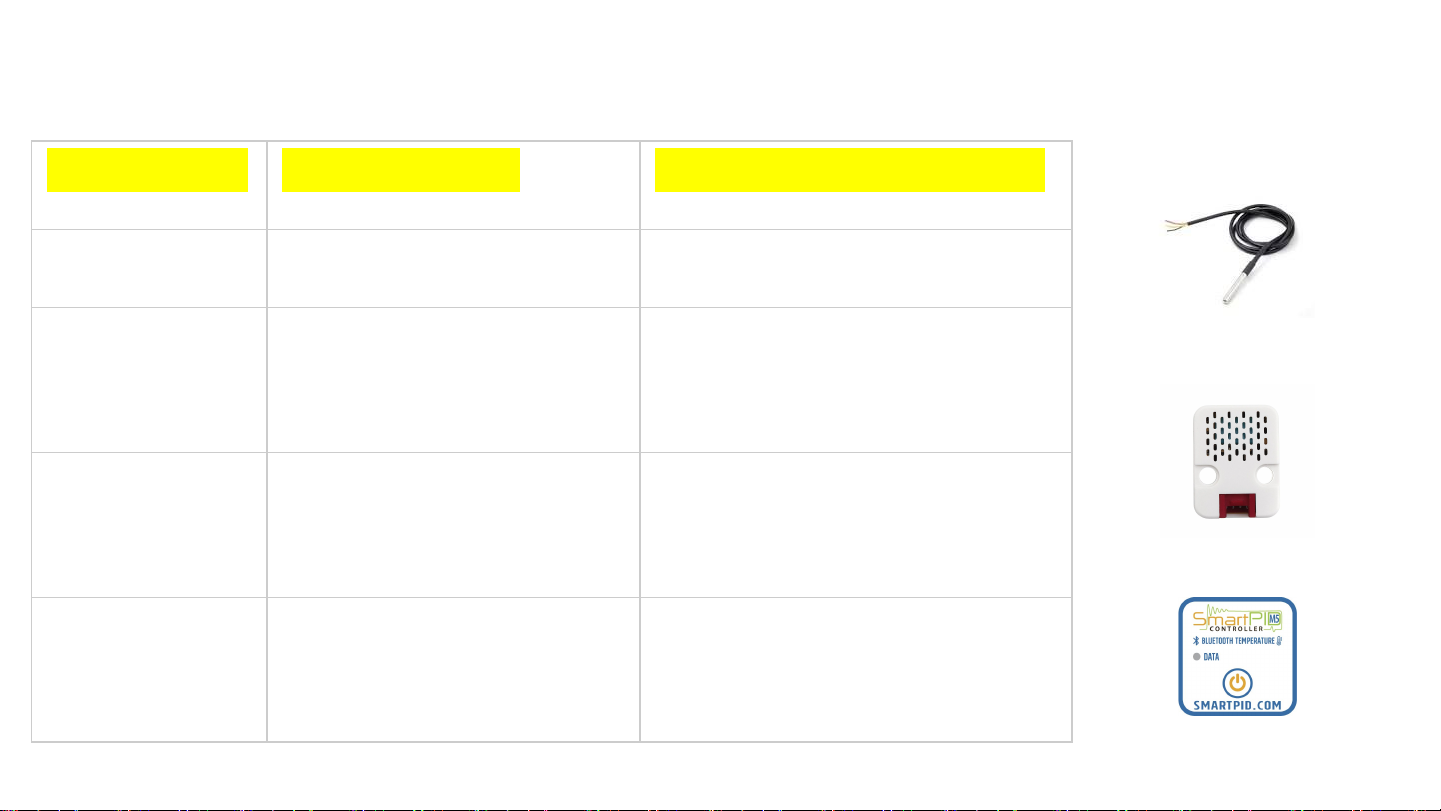

Probe types support
Sensor Type Measurements Technical characteristics
DS18B20 temperature -55°C to +125°C ±0.5°C
DHT12 temperature
humidity
-20 ~ 60 ℃ / ±0.2℃
20 ~ 95 %RH / ±0.1%
SHT30 temperature
humidity
-40 ~ 120 ℃ / ±0.2℃
10 ~ 90 %RH / ±2%
BT-05 bluetooth temperature
sensor
-20℃~+60℃ ±0.5℃
12 months battery

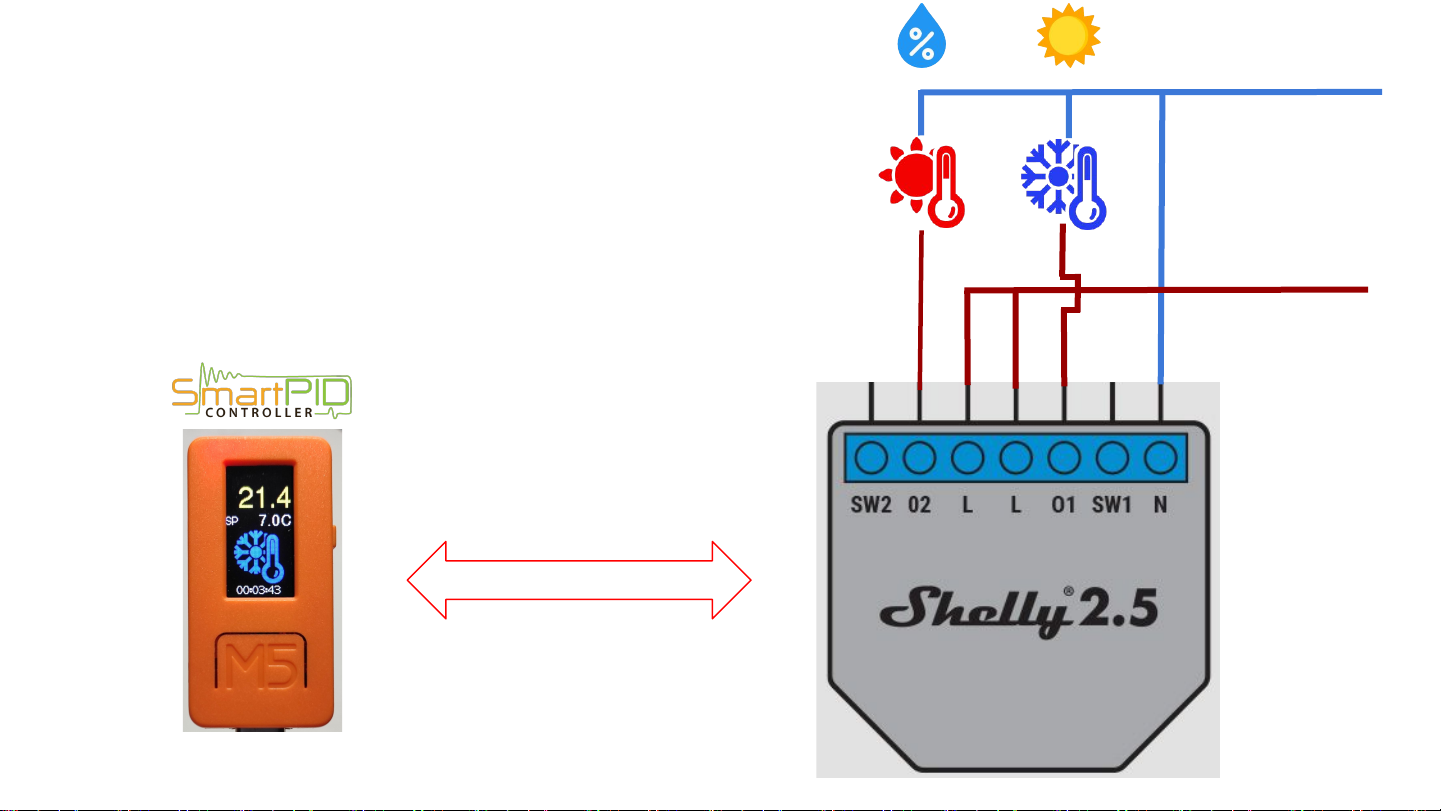

Relay Connection
Dual channel 10A relay with power monitor
Possibility to add manual switch
110-240v AC
Line
Neutral
Rest API (Http) for
wireless local control
Easy Pairing !

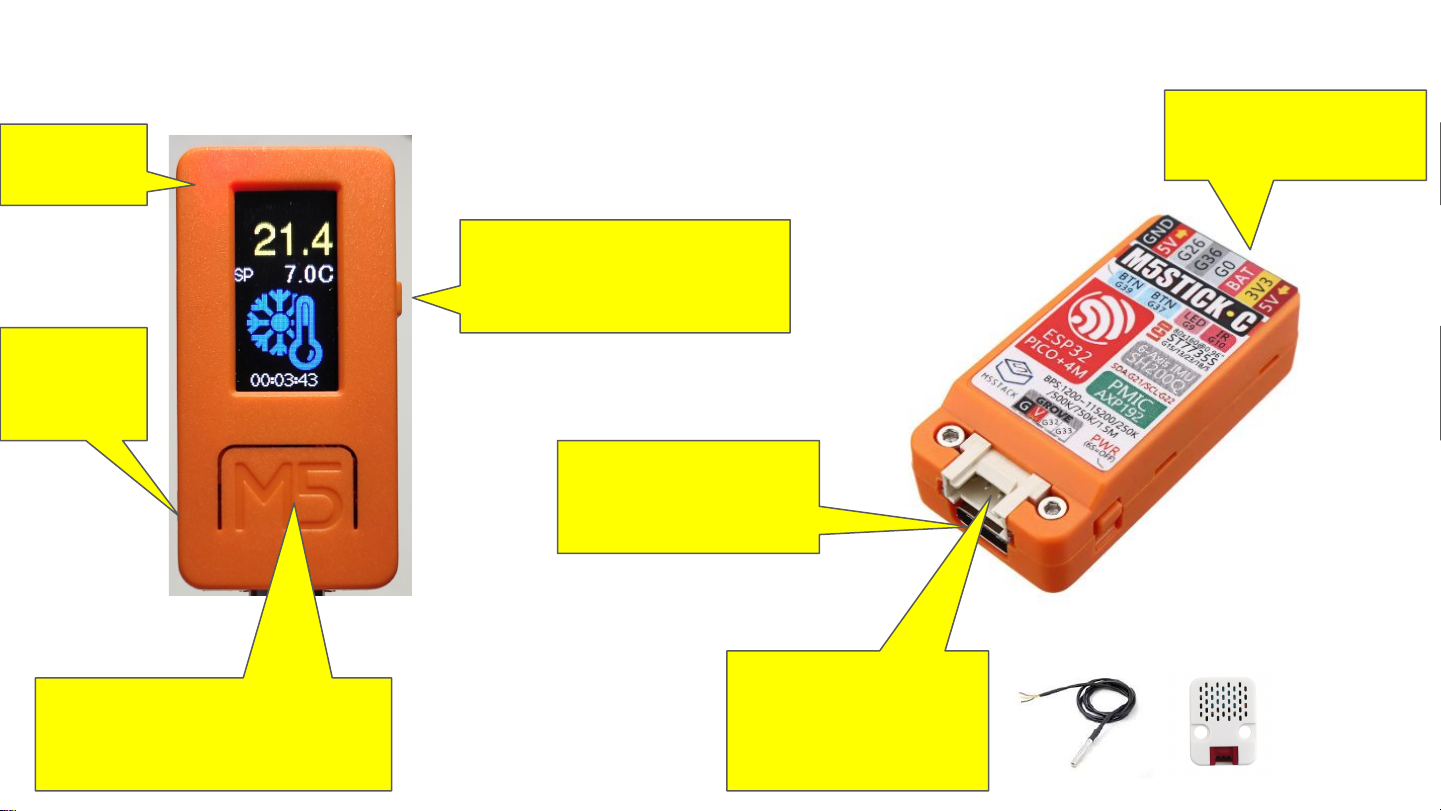

SmartPID M5 operations and connections
ON/OFF
button
Menu selection
Long press→ menu back
Pause/Resume
Menu navigation
Parameter modification
Set Point modification
USB Type C port
power supply
Sensor Port
DS18B20
DHT12
SHT30
Environment Hat
port
Satus
Led

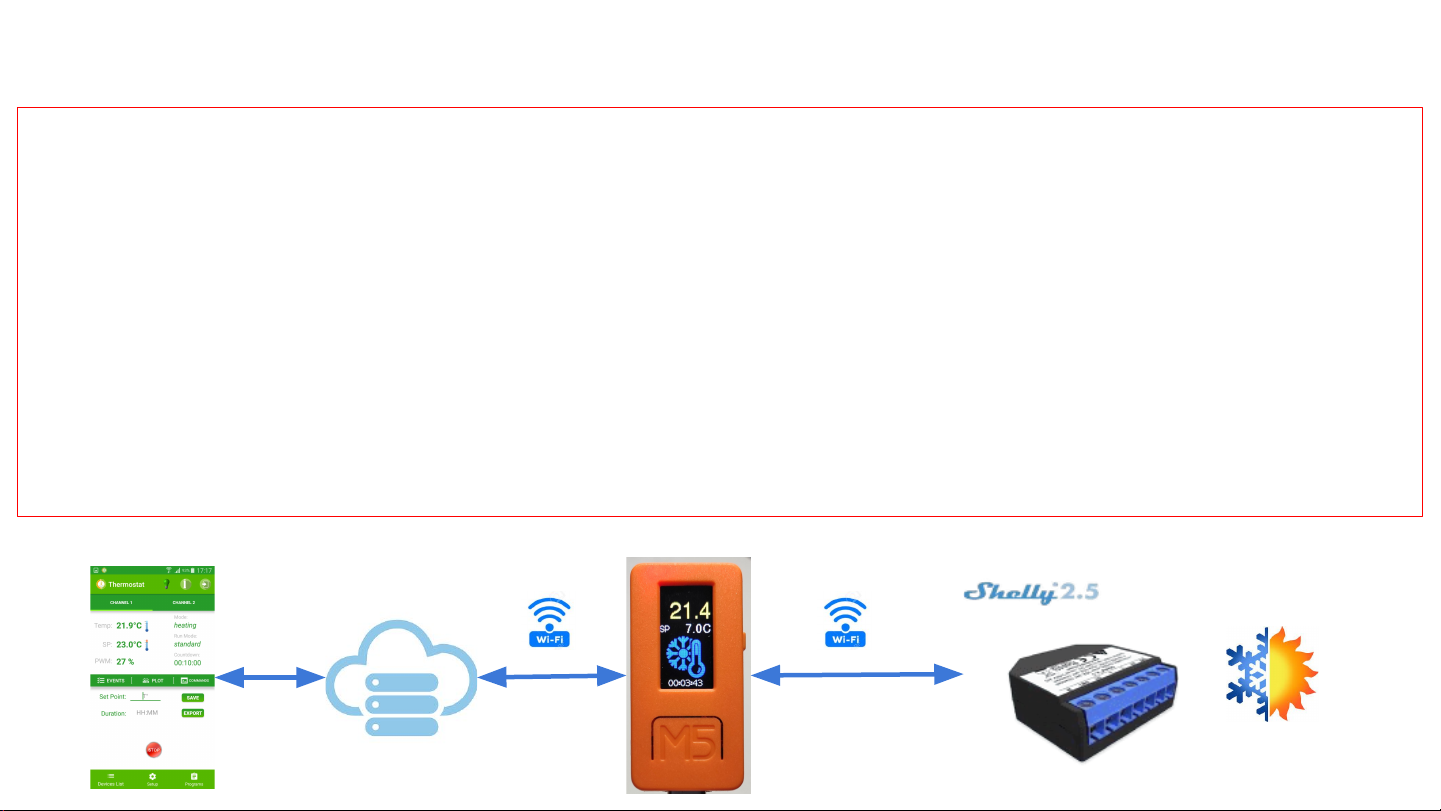

Network Architecture

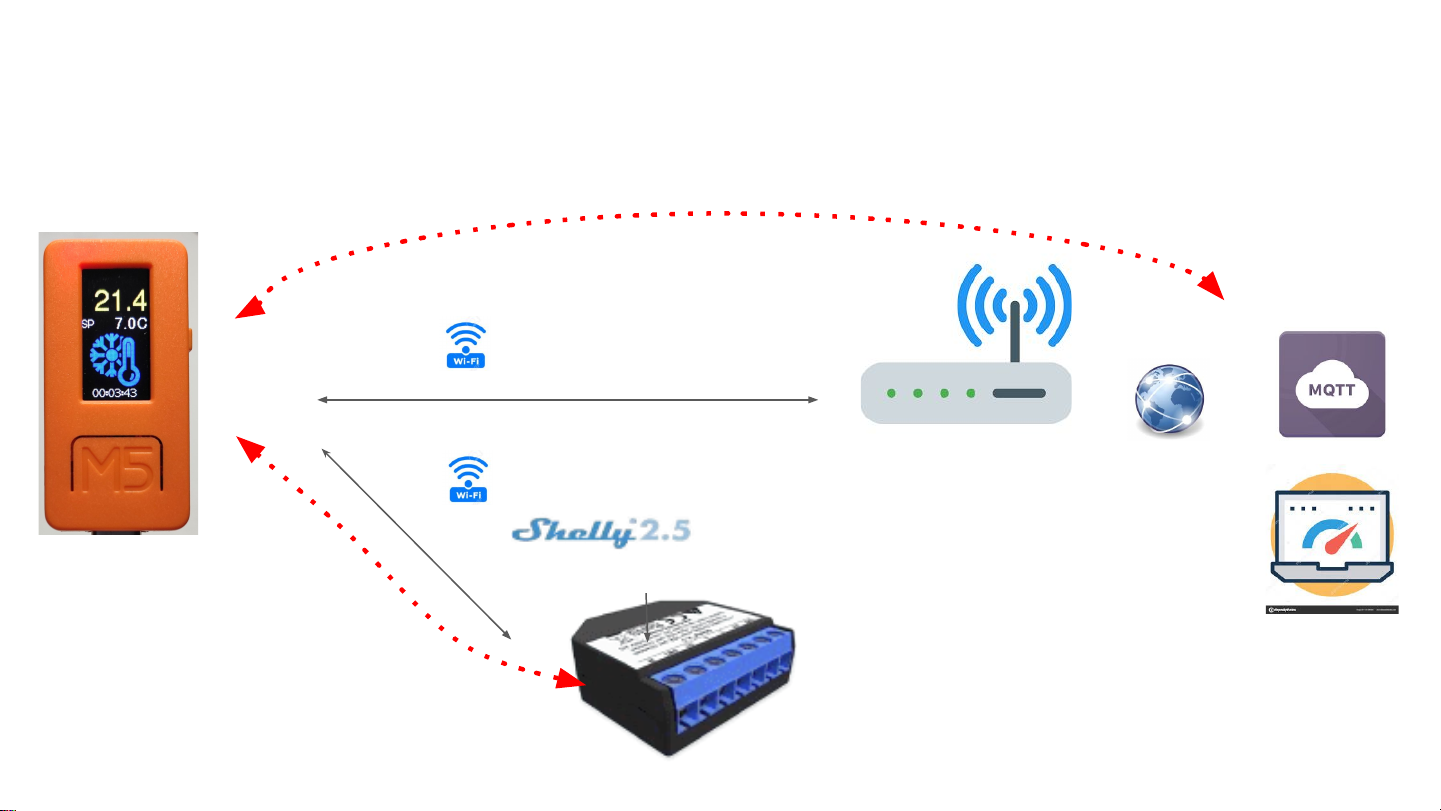

Shelly 2.5 connects directly to the SmartPID M5 mini via WiFi.
SmartPID M5 mini connects to router and sends MQTT notification to cloud.
WiFi cloud
connection
REST API
HTTP
MQTT
Provisioning and initial
config via captive portal
● WiFI SSID and PWD
● Cloud server credentials Easy Pairing mechanism
STA
AP
remote
control
WIFI
● Check wifi connection status
● Select WiFi connection mode
(AP/client/Auto)
● Check WiFi parameters (SSID/PWD/IP)
● Check Server parameters (MQTT
address/credentials
Pair
start pairing procedure with Shelly 2.5 relay
Start Bluetooth temperature sensor pairing
Profile
● add/edit/delete temperature profiles
● up to 10 different profiles with up to 10
ramp/soak valued
Info
● display SW version
● start SW upgrade over the air (OTA)
● display serial number
● display status of various components
(wifi,cloud server, relay)
Start
select temperature or humidity set point and start the
control process
Monitor
temperature or humidity are monitored. With left
button is possible to activate the output or relay
(heating/cooling) manually
Setup
● select control mode
(heating/cooling/thermostatic/Humidify/Dehumi
dify/igrostatic)
● select sensor type
● select sensor port (external / env hat)
● configure default set point(temp&humidity)
● configure hysteresis
● configure fridge delay timer
● configure sample time
● configure probe calibration
● configure temperature unit (celsius/fahrenheit)
● clock set
SmartPID M5 mini menu

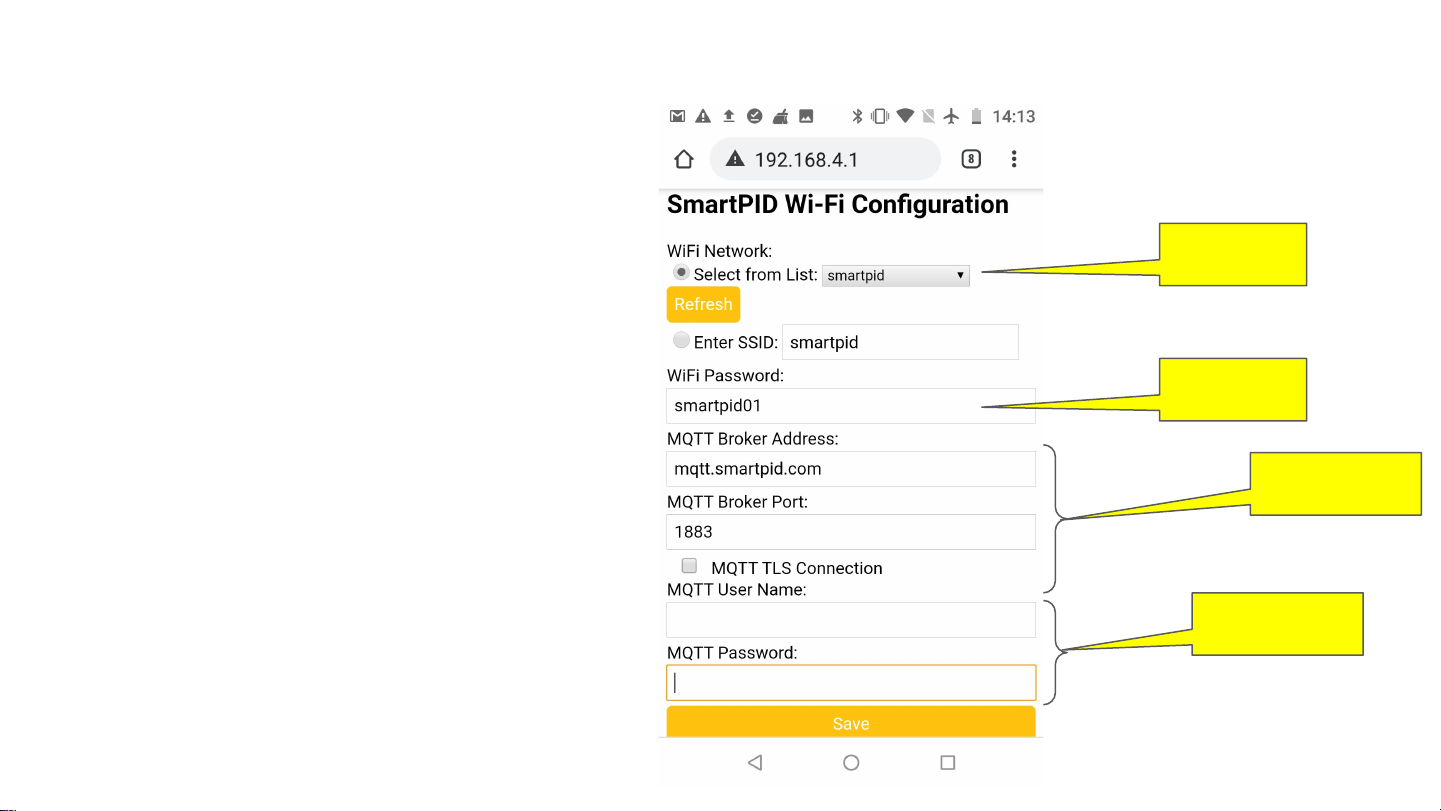

WiFi Configuration
WiFi network
selection
WiFi network
password
Cloud server
credentials
Cloud server
address
Scan available WiFi network with smartphone
or laptop PC.
Connect to WiFi network smartpid_xxxxxxx
with password smartpid!
Open in the browser any page and you will be
redirected to the input form (in case of problem
open directly the page 192.168.4.1).
Fill the form with relevant data and press save.
SmartPID m5 mini will reboot and connect to
your home WiFi and cloud server.
Check WiFi and server status in the info or
WiFi menu.
