SMARTPOINT SPSDISCLT Manuale utente
For more products please visit www.smartpointco.com
FCC ID: 2AYDM-C3-1B
SmartSolar
Outdoor Light
USER MANUAL
For more products please visit www.smartpointco.com
FCC Statement:
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
2. This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between
the radiator and any part of your body.
For more products please visit www.smartpointco.com
SPECIFICATIONS
Model: SPSDISCLT
Lamp Power: 0.5V
Lamp Current: 15-20mA
Lamp Color: RGBW
Battery Capacity: 1200mAh(Li-)
Battery Voltage: 3.7V
Protocol: Bluetooth Mesh
Solar Panel Voltage: 6V
Solar Panel Output Current: 130mA
Control Distance: 20M
IP Rating: IP65
Operating Temperature: 14°F ~ 140°F
WARRANTY INFORMATION
One Year Limited Warranty.
©Smartpoint LLC,
250 Liberty Street, Suite 1A
Metuchen, NJ 08840
Manufactured, marketed and distributed by Smartpoint LLC, under license.
Google and Google Play are trademarks of Google LLC.
App Store
®
is a registered trademark of Apple, Inc.
All trademarks and registered trademarks are property of their respective owners.
Made in China
FEATURES
• Bluetooth remote controlled
• Changes to any color or white
• Dimmable
• Syncs with music
• Light Sensor - automatically turns on when dark
and turns off when light
• Rechargeable battery that recharges from
the solar panel
• Removable stake
• Can be floated in pool or pond
• Weatherproof
PRODUCT CONFIGURATION
Solar Panel/Light Sensor
Light Ring
Detachable Stake
Rubber feet
Power/Reset Button
Stake Bracket
DOWNLOAD APP
1. Android™: download “Smartpoint Home” app
on Google Play.
2. iPhone: download “Smartpoint Home” app
from the App Store.
Smartpoint Home

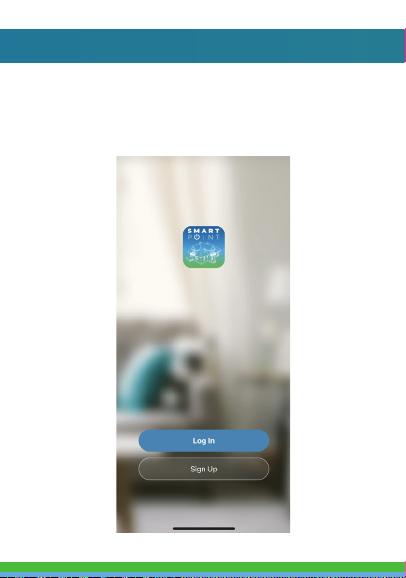

REGISTRATION AND LOGIN
1. Run the “Smartpoint Home” app from your
smart phone.
2. Sign up and login.
*Screenshots may slightly differ from actual app.
*
ADD DEVICE
1. Make sure Bluetooth is turned on in your
phone’s settings.
2. Press the power button on the bottom to
turn light on. Wait 1-2 seconds and then
press to turn light off, wait 1-2 seconds, then
press to turn light on . Do this 3-4 times.
Once the white light starts blinking or
breathing bright to dim the light is in set up
mode.(If light does not turn on it may need
to be charged. Place in sunlight to charge.
Light takes about 6-8 hours of sunlight to
fully charge) (You can turn the light on and
off 3 times to reset the device if you have
trouble connecting to it.)
3. When in set up mode before connecting to
your phone make sure to cover the solar
panel/light sensor with something or turn
the light upside down on a flat surface to
cover solar panel.

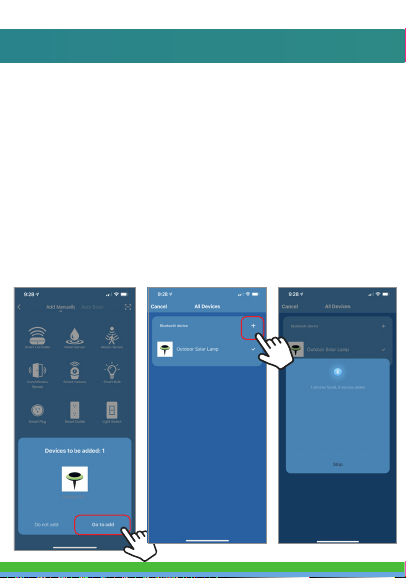

4. Then press the (+) symbol in the top right
hand corner. When device window pops up
with the light to add, press “Go to add”
(see pic on next page).
5. On the next screen press the (+) symbol to
begin adding the Solar Light.
6. Connecting process will begin. Do not turn
off Solar Light while connecting. Wait for
connection process to complete. (It may
help to be about 4-6 feet away from light
when connecting.)

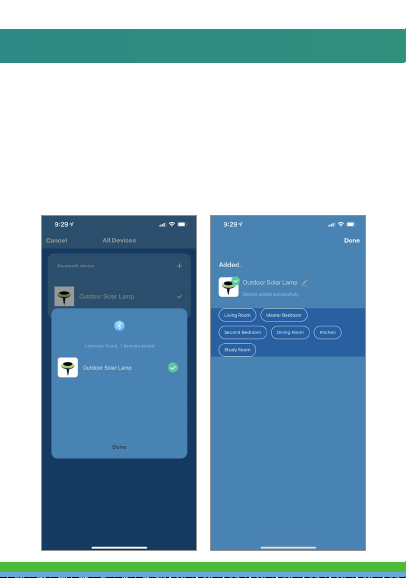

7. Once device has been successfully added you
can begin using it.
