SmarTrike 680 Manuale utente
USA: 1-855-SMTRKUS
(1-855-768-7587)
UK: 0845 5046410
9:30am – 5:00pm Monday to Friday
Not Bank Holidays or weekends.
for assistance and advice.
Thank you for buying smarTrike,
If you have any assembly issues or are missing
a part, please call us for assistance. Our
smarTrike® assembly experts will assist you.
DO NOT RETURN TO THE STORE
If you are experiencing problems with this
product, please call our HELP LINE.
680
LOOK US UP ON YOUTUBE:
www.youtube.com/user/SmartTrikeOcial
www.smarTrike.com
-1-
20010020680
A B
20010004620
C
20010007680
FG
20010009680
H
20010014680
JKL
20010010680
I
20010012680
20010006680
E
20010005680
D
20010001680(X2)
20010002680(X3)
B1
B2 B3
1
2
20010008680
20010001630
20010016680
NM O
20010015680(X2)
P
20010013680
20010011680
BAN
X2
1a
1b
1c
B1 B2
2
1
Step 1 Parts needed to complete this section
Place the washer (N)
on the axle (as shown)
Connect each back
wheel (B) to back axle
-2-
Pull out plastic tabs from
each rear wheel (B2) until
the wheel cover(B1) opens.
Take out white plugs+
screws (B3).
Step 2 Parts needed to complete this section
OB
B3
B1
B1
X2 X2
CLICK!
CLICK!
CLICK!
Firmly insert white
plugs (B3) into axle
opening, as shown.
Align spring lock
with dropout hole
in axle and push
firmly into position,
until piece "clicks"
into place.
Re-attach wheel
cover by aligning
small cover
protrusions with
small wheel rim
holes, "click" into
place all 3 positions
until the hub is
firmly secured.
2a
2c
By using the
Phillips screwdriv-
er (O), screw part
B3 into part B and
tighten clockwise.
2b
-3-
Step 3 Parts needed to complete this section
EDC
Insert part E into part
C all the way through
the hole (as shown)
Insert part D into the
body all the way,
until the ball meets
the retaining head.
3a 3b
-4-
CLICK!
CLICK!

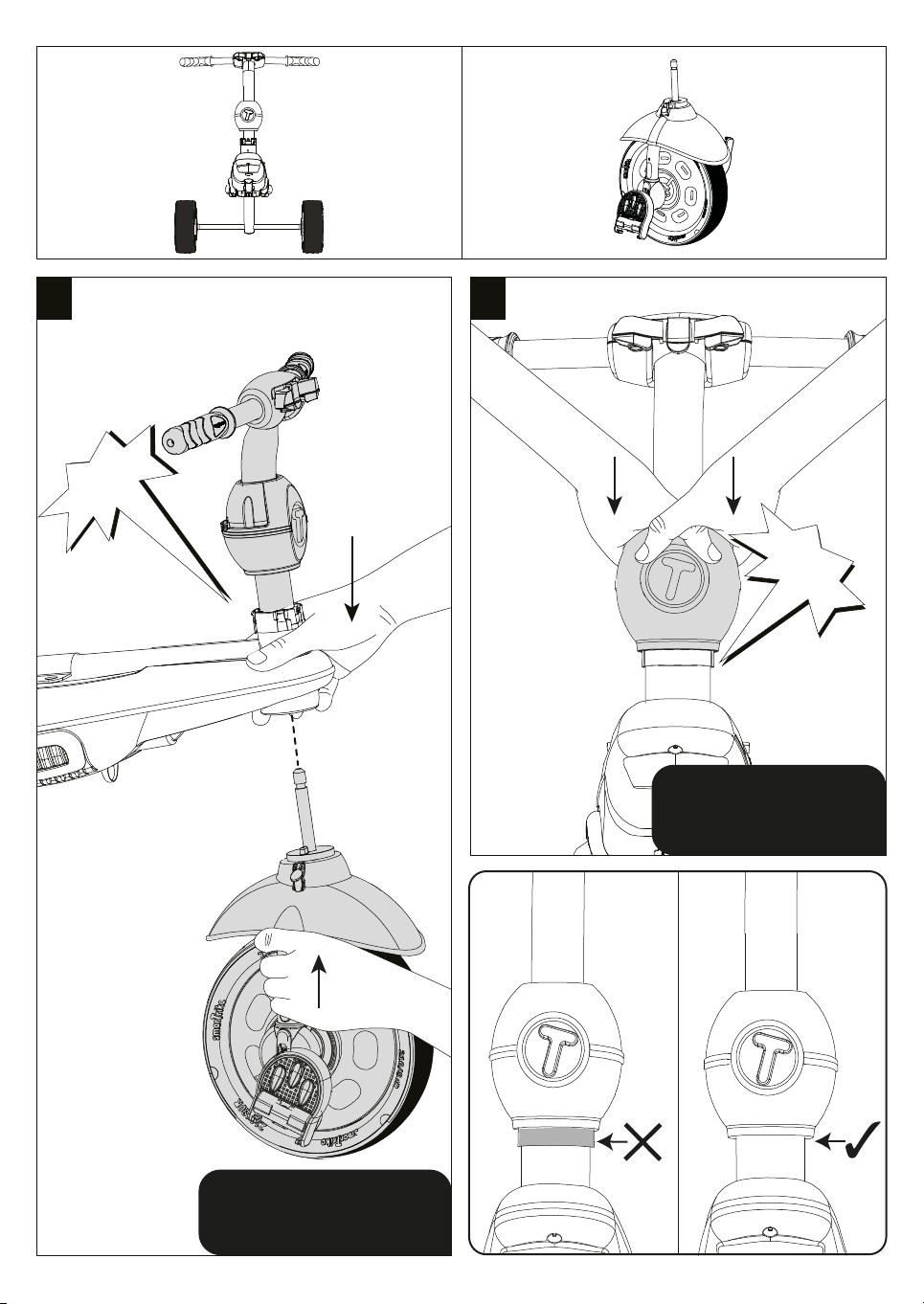

Step 4 Parts needed to complete this section
Insert the wheel into the body of the
trike all the way through in until the
bolt meets the retaining head.
4a 4b
Push the apple firmly down to
insert, slightly turn until you
hear a "click". Make sure white
connector is not visible.
-5-
Step 5 Parts needed to complete this section
1
2
O
By using the "Allen"
key (O), remove
screw by turning
counter clockwise.
5a
5c
5b
Suitable for 10 Months
WARNING: It may be dangerous to leave your
child unattended. Use a safety belt as soon
as your child can sit unaided. This seat is not suitable
for children under 10 months. Any load attached to the
handle aects the stability of the product. This product
is not suitable for running or skating.
GF
Take the reclining seat (F), lift
bottom seat cover and push the
screws through the seat's
bottom holes. Screw tip into the
most rear facing hole and firmly
tighten with the Allen key (O).
-6-
CLICK!
CLICK!
With little force, push part G's protrusions
into reclining seat slots (located on both
sides of the seat) until you hear a "click".

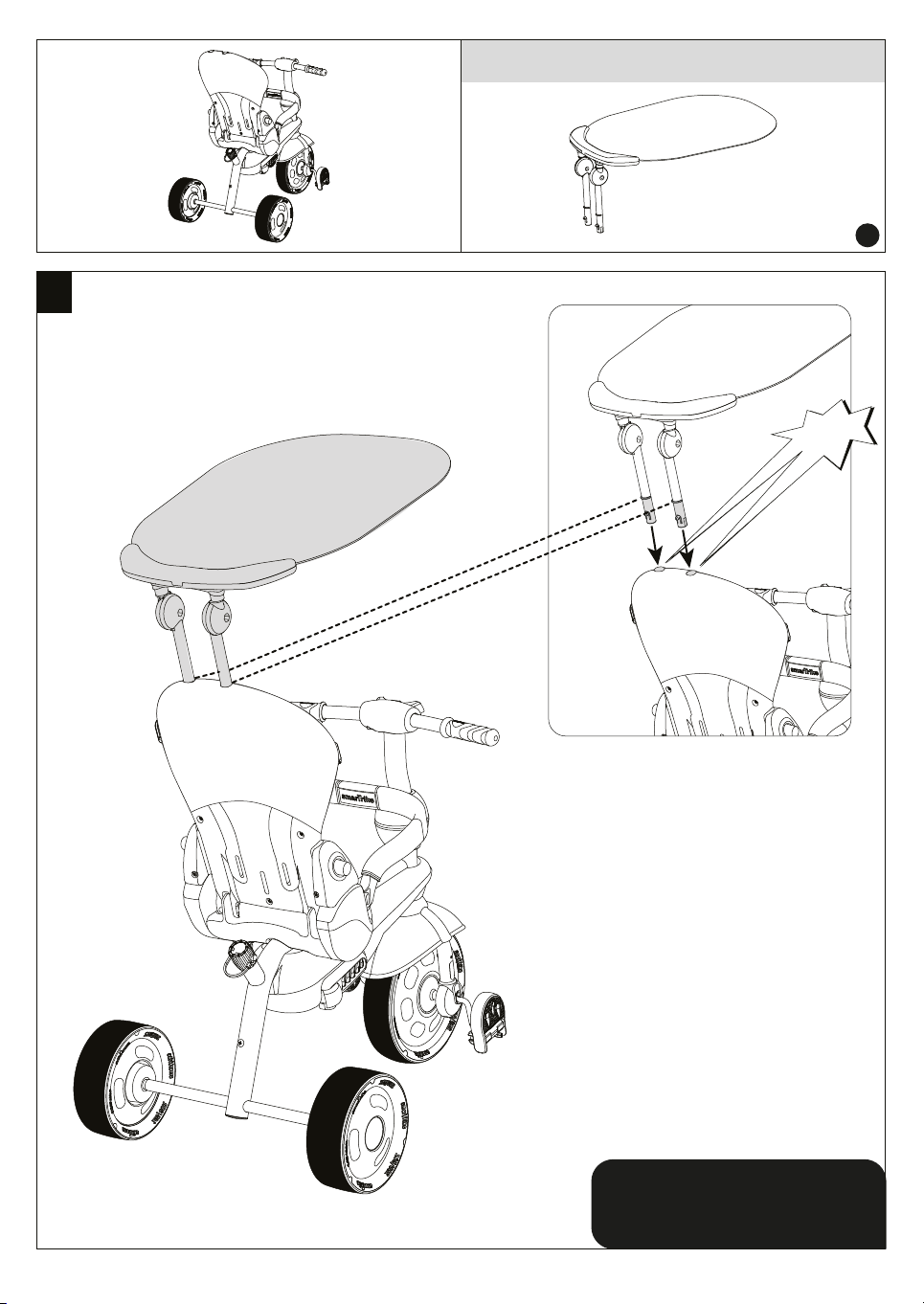

Step 6 Parts needed to complete this section
H
Attach both sides of the canopy (H)
into designated slots on the seat (as
shown), until you hear a "click".
6a
CLICK!
-7-
1
2
Step 7 Parts needed to complete this section
OI
7a
7c
7b
Attach basket firmly to
vertical frame (as shown),
use removed screw and turn
clockwise until secured.
By using the Phillips screwdriver
(O), remove screw by turning
counter clockwise.
Push basket (I) firmly on to
rear axle until it "clicks"
into position (see 1 & 2)
CLICK!
CLICK!
-8-

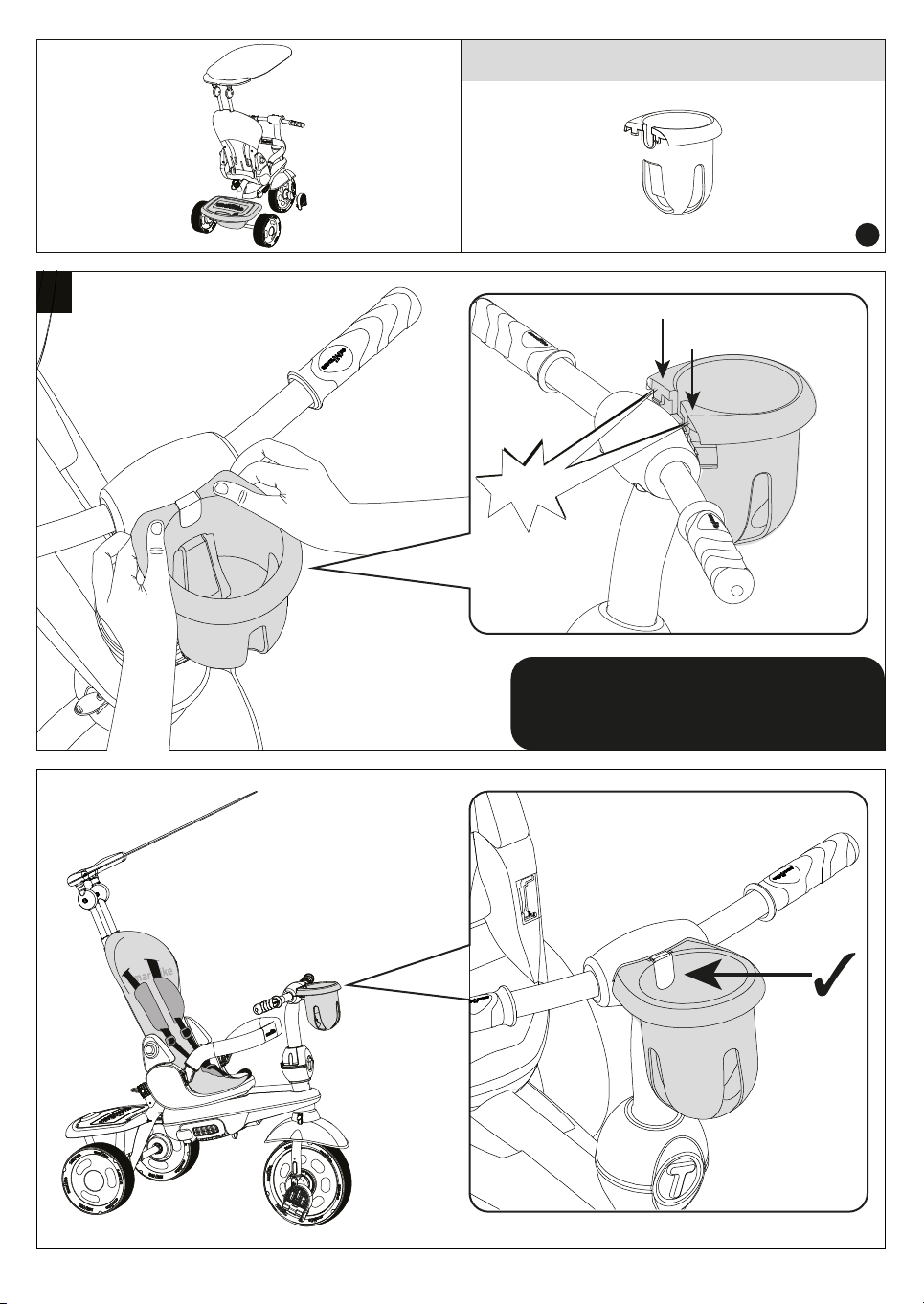

Step 8 Parts needed to complete this section
J
8a
Align part J into the designated holes
in the center of the handlebar and
push down firmly until it "clicks".
CLICK!
-9-
Step 9 Parts needed to complete this section
O
9a
9b
9c
LK
-10-
Keep the nut in place, remove the screw
from part K by turning counter clockwise.
Insert part L into part K. Align the hole
of part K with the correct hole in part L.
Use Phillips screwdriver (O) to attach
the screw to the nut.
WARNING
: Nut must be inserted
correctly and secured.
Before assembly,
ensure parent bag
faces upwards and storge
bag hook faces downwards.
