Soft Starter Startup Manual Sprecher + Schuh

Document History

Date

Version

Summary of Changes

January 30, 2021

1.0

Initial Submittal

Soft Starter Startup Manual Sprecher + Schuh

Page intentionally left blank

 Soft Starter Startup Manual Sprecher + Schuh


January 30, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page iii
Table of Contents
Sprecher + Schuh Soft Starter..................................................................................1
Equipment/Settings Verification..............................................................................1
Grounding Requirements ........................................................................................2
Wiring .....................................................................................................................2
Power .................................................................................................................................... 2
Valves Board........................................................................................................................... 3
Motor/Soft Starter.................................................................................................................. 3
Construction ...........................................................................................................5
Powering Up ...........................................................................................................6
Final Setup ..............................................................................................................7
Operation................................................................................................................8
No Faults ................................................................................................................................ 8
Proper Direction ..................................................................................................................... 8
At Speed ................................................................................................................................. 8
Under Control......................................................................................................................... 9
Troubleshooting......................................................................................................9
Soft Starter Fault..................................................................................................................... 9
Wrong Direction ..................................................................................................................... 9
Car Not Moving or Too Slow.................................................................................................... 9
No Control .............................................................................................................................. 9
Appendix 1 Sprecher + Schuh Troubleshooting Chart............................................10
Appendix 2 Sprecher + Schuh PCE Soft Start DIP Switch Settings...........................12
Start Time..............................................................................................................................12
Start Mode.............................................................................................................................12
Current Limit/Initial Torque Level...........................................................................................13
Soft Start Time.......................................................................................................................13
Phase Rotation.......................................................................................................................13
Phase Imbalance....................................................................................................................14
Overload Trip Class ................................................................................................................14
Overload Reset ......................................................................................................................14

Soft Starter Startup Manual Sprecher + Schuh

AUX#1 Setting........................................................................................................................15

Motor Connection Type .........................................................................................................15

Stop Delay .............................................................................................................................15

Appendix 3 Terminal Locations..............................................................................16

 Soft Starter Startup Manual Sprecher + Schuh


January 30, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page v
List of Figures
Figure 1: Sprecher + Schuh Soft Starter.........................................................................................................................1
Figure 2: Example of Parameter Table ..........................................................................................................................1
Figure 3: Ground Bus Terminal......................................................................................................................................2
Figure 4: 6-Lead Delta Wiring Configuration .................................................................................................................3
Figure 5: 3-Lead Line Wiring Configuration ...................................................................................................................4
Figure 6: Example of Construction Wiring.....................................................................................................................6
Figure 7: Breakers..........................................................................................................................................................7
Figure 8: MAIN MENU –Setup ......................................................................................................................................7
Figure 9: SETUP Menu –Miscellaneous.........................................................................................................................7
Figure 10: MISCELLANEOUS Menu –Bypass Term Limits..............................................................................................8
Figure 11: Bypass Term Limits Menu.............................................................................................................................8
Figure 12: Terminal Locations......................................................................................................................................16


Soft Starter Startup Manual Sprecher + Schuh


Page vi © 2021 Smartrise Engineering, Inc. All Rights Reserved January 30, 2021
List of Tables
Table 1: 6/12-Lead Delta Wiring....................................................................................................................................4
Table 2: 3/9-Lead Line Wiring........................................................................................................................................4
Table 3: Troubleshooting Solutions.............................................................................................................................10
Table 4: Start Time.......................................................................................................................................................12
Table 5: Start Mode .....................................................................................................................................................12
Table 6: Current Limit/Initial Torque Level..................................................................................................................13
Table 7: Soft Start Time ...............................................................................................................................................13
Table 8: Phase Rotation...............................................................................................................................................13
Table 9: Phase Imbalance ............................................................................................................................................14
Table 10: Overload Trip Class ......................................................................................................................................14
Table 11: Overload Reset.............................................................................................................................................14
Table 12: Aux#1 Setting ...............................................................................................................................................15
Table 13: Motor Connection Type...............................................................................................................................15
Table 14: Stop Delay....................................................................................................................................................15



Soft Starter Startup Manual Sprecher + Schuh Hydraulic Installation

Sprecher + Schuh Soft Starter

The Sprecher + Schuh soft starter is used on hydraulic controllers.

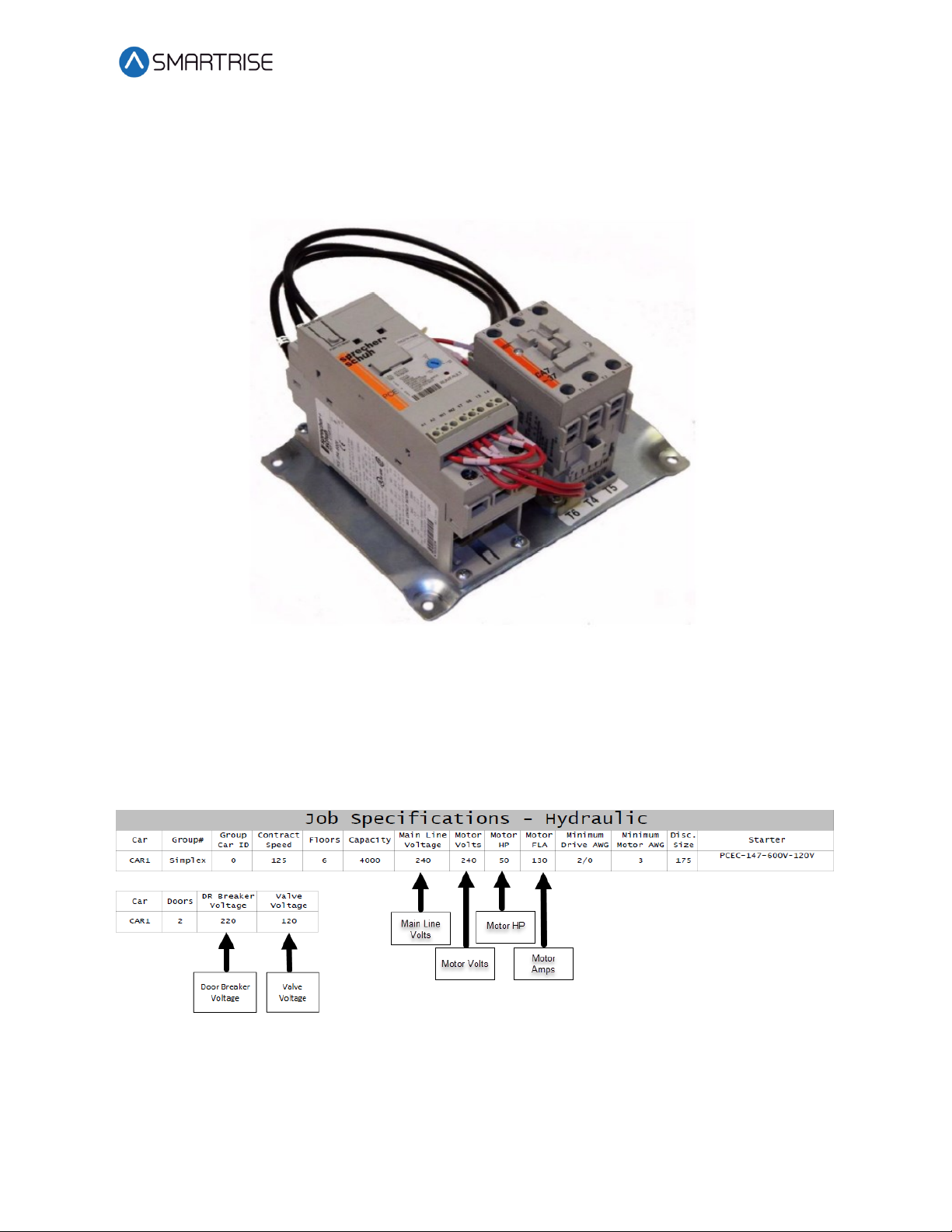

Figure 1: Sprecher + Schuh Soft Starter

Equipment/Settings Verification

Set and verify the equipment matches the job specific parameters for proper operation. See

Hydro:Evolved sheet 3 Table for more information.

Figure 2: Example of Parameter Table

Soft Starter Startup Manual Sprecher + Schuh Hydraulic Installation

Grounding Requirements

NOTE: A proper and effective building ground connection is required for the safe and successful

operation of the controller.

Examples of a proper building-to-controller ground are as follows:

1. Attach the ground wire to the street side of a water main.

2. Attach the ground wire to a grounding rod in the pit.

The controller has a common ground bus terminal connection.

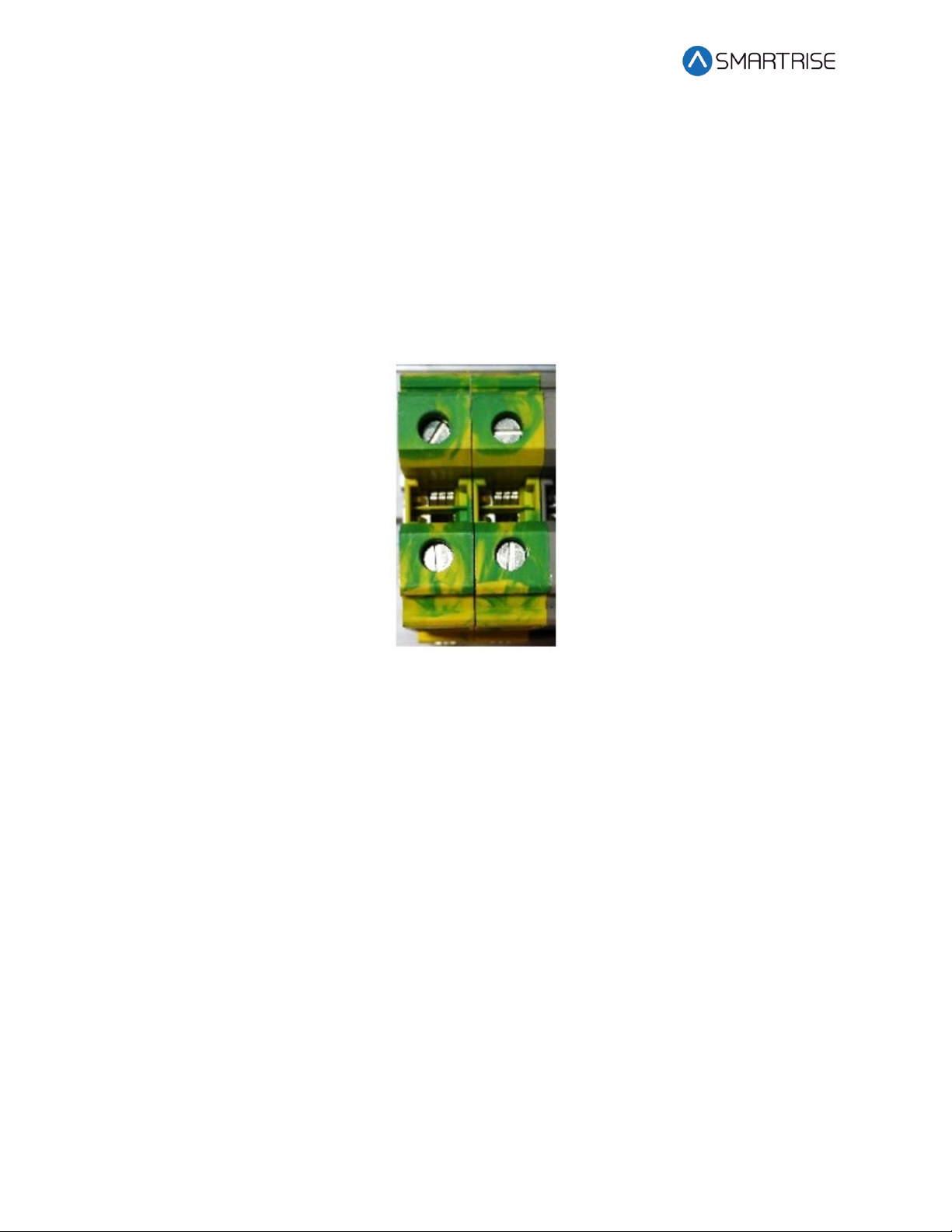

Figure 3: Ground Bus Terminal

•The building, motor, transformer, and filter(s) must all share a common ground. This

removes ground loops, limits impedance, and routes noise into the ground.

Wiring

A checklist must be completed during the soft starter wiring process. See Appendix 3 for

terminal location.

Power

Perform the following to connect power. See Set and verify the equipment matches the job

specific parameters for proper operation. See the Hydro:Evolved sheet 7 for job specific

information.

•Connect main line power L1/L2/L3 to soft starter.

•Connect the ground wire to the green terminal screw on the soft starter mounting plate

or ground bus terminal.
