Smartwares CMS-30300 Manuale utente
CMS-30300
Wireless Camera Set
Table of Contents
English ..................................................................................................................... 3
Nederlands .............................................................................................................. 19
Deutsch.................................................................................................................... 35
Français.................................................................................................................... 51
Parts Description | 1
CMS-30300_IM 3
1 Parts Description
What’s in the box
Camera (4x)
NVR recorder
12V DC adapter (for NVR)
Small 12V DC adapter (for cameras)(4x)
Mouse
1 meter UTP cable for NVR
Quick start guide
Parts description - Camera
Illustration1: Parts description camera
Camera (4X)
1. Antenna
2. DC port (12V 1A)
3. Reset button
4. LED indicator
1 | Parts Description
4 CMS-30300_IM
Parts description - NVR
11
23
4
5
6
Illustration2: Parts description NVR
NVR
1. Antenna (2x)
2. AC adapter input
3. USB port
4. LAN port
5. HDMI port
6. VGA port
Frequency: 2.4GHz
Maximum transmission power: 17.63dBm
Installation | 2
CMS-30300_IM 5
2 Installation
a) Connect the UTP cable to the NVR.
NOTE: for installation the NVR needs to be connected with a cable, Wi-Fi does not
work for installation.
b) Connect the NVR to a monitor. You can use any monitor with a HDMI cable or VGA
cable connection.
c) Connect the mouse to the NVR by using the USB port to operate the system.
d) Connect the NVR to the power supply by inserting AC adapter.
ðNOTE: Do not mount the camera to the wall yet. First pair the camera to the
monitor.

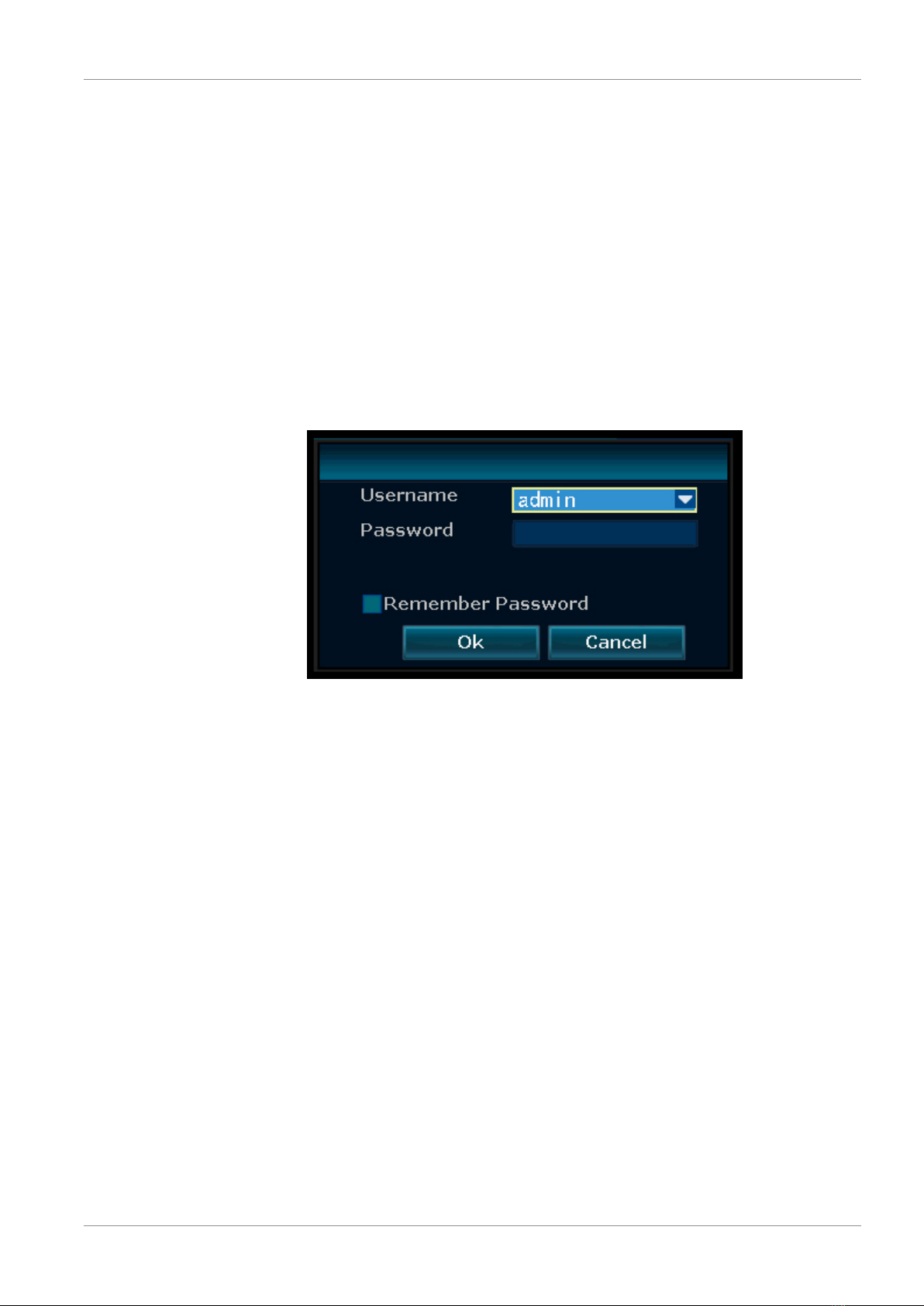

Log in
e) Enter default ID: admin
f) At default you don’t have to enter a password: click ‘log in’.
Illustration3: Log in
3 | Setting up your device
6 CMS-30300_IM
3 Setting up your device
The recorder can pair up to 4 cameras.
To pair the camera with the recorder, make sure it is within a 1m range.
a) Install the antennas onto the four cameras.
b) Connect the camera to the AC adapter.
c) Right click the mouse.
d) Press ‘Wireless add’; the NVR will now search the camera automatically.
e) Press the reset button on the camera for 5 seconds, it will match with the NVR
automatically.
f) After matching click ‘exit’ on the screen, matching is now complete.
NOTE: default valid time is within 10 minutes after the camera starts. If matching
exceeds this time, it will exit matching mode automatically. Press the reset button
on the camera for 10 seconds and go back to step A.
ðRepeat above steps for all four cameras.

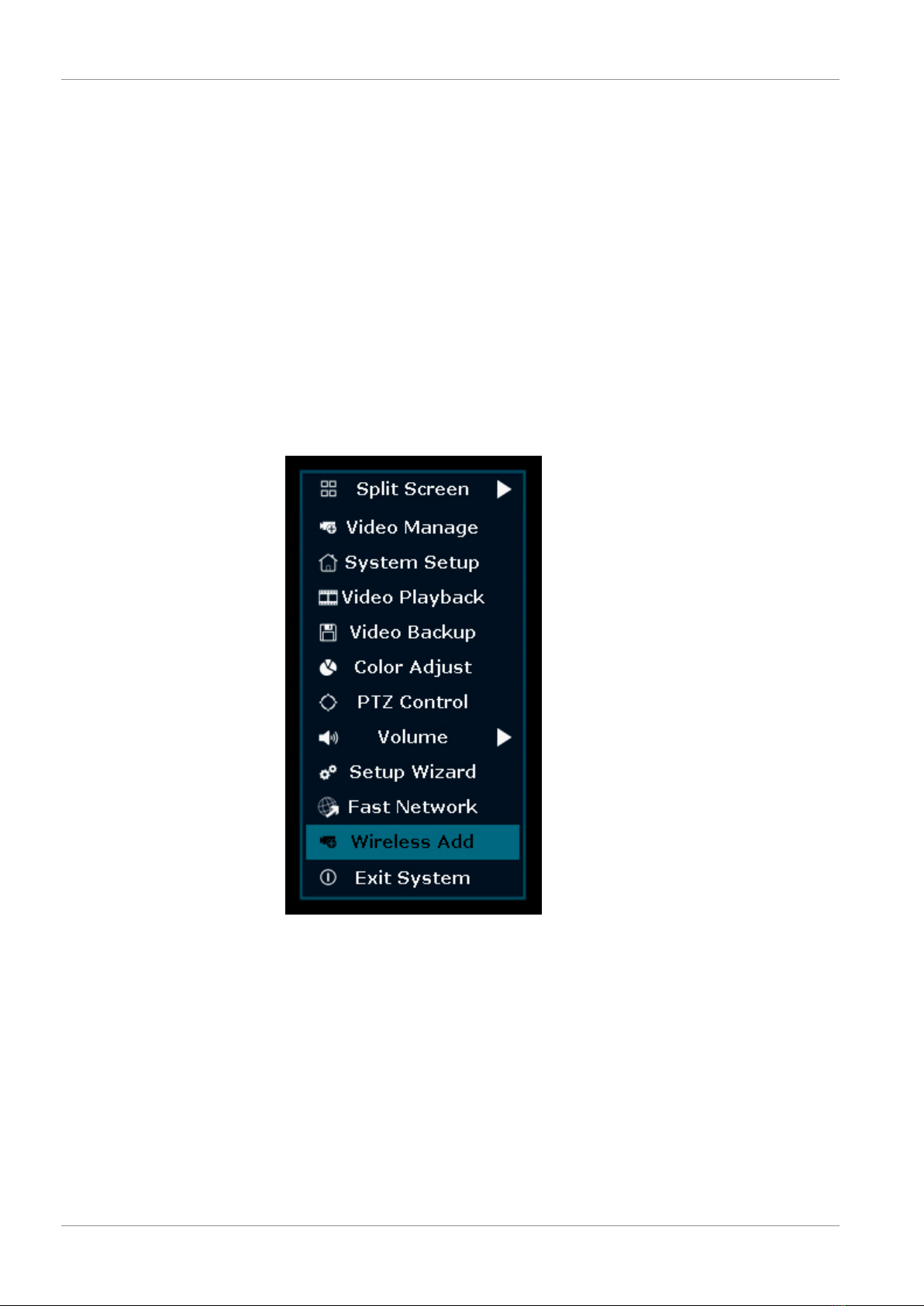

Illustration4: Menu overview- Wireless add
Setting up your device | 3
CMS-30300_IM 7
Illustration5: Menu - Wireless Add
3.1 Wireless Internet
Follow the procedure below to enable the wireless internet connection.
Make sure that you have an internet connected WIFI router, your password and router
name (SSID) available.
a) Right click the mouse and select “System Setup”.
b) Select “Wireless Internet access” in the lower left corner.
c) Select your wireless network.
d) Fill in your password.
e) Click the ‘Apply” button
ðYou can now use the mobile app for remote monitoring.
f) Download the “SW360” app.
g) Open the app, register as a new user and follow the instructions given in the app.
3 | Setting up your device
8 CMS-30300_IM
Illustration6: Menu - Network setup Wireless internet
To add the NVR to the SW360 app:
h) In the SW360 app press ‘+’ in the upper right corner.
i) Press ‘scan’
j) On the monitor, right click and select ‘Fast Network’. A QR code appears.
k) Scan the QR code with your phone in the SW360 app.
l) Your mobile device is now paired to the NVR.
Setting up your device | 3
CMS-30300_IM 9
Illustration7: Menu - Set up Wizard - Fast Network
4 | Setting up the mobile app
10 CMS-30300_IM
4 Setting up the mobile app
The system supports the mobile app “SW360”. The app can be used as an additional
monitor on your mobile device. To set up the mobile app, do the procedure below.
a) Connect the monitor to a wifi network. (See section “Wireless Internet”.)
b) Connect your mobile device to the same network.
c) Download the “SW360” app.
d) Open the app, register as a new user and follow the instructions given in the app.
e) Log in to the app.
f) Select the (+) icon to add a new device.
g) Select the monitor in the device list.
h) Select the device that appears in the list (normally a 10 digit number).
Note: Your device should now be added. To learn more about SW360, see the app
manual.
