SMC Networks 2531W-B - annexe 1 Manuale utente

SMC2531W-B EU

EliteConnect™2.4GHz 802.11b

High Power Wireless PC Card

User Guide

From SMC's EZ Connect™ line of small office, home office

networking products

March 2004

TABLE OF CONTENTS

System Requirements . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Driver Installation - Option 1 (Recommended)

. . . . 7

Other Setup Processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Driver Installation - Option 2 . . . . . . . . . . . . . . . . 11

Windows 98SE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Driver Verification . . . . . . . . . . . . . . . . . . . . . . . . . 15

Windows 98/Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Utility Installation . . . . . . . . . . . . . . . . . . . . . . . . . 17

Windows 98SE/Me/2000/XP . . . . . . . . . . . . . . . . . . . . . . . . . .17

Utility Configuration . . . . . . . . . . . . . . . . . . . . . . . 21

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Link Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

IP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Site Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Version Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Disable Wireless Zero Configuration

in Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table of Contents

Maximum Distance Table . . . . . . . . . . . . . . . . . . .31

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .33

Technical Specifications . . . . . . . . . . . . . . . . . . . .37

Frequently Asked Questions . . . . . . . . . . . . . . . .41

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Legal Information and Contacts . . . . . . . . . . . . . . iii

SYSTEM REQUIREMENTS

•An available PCMCIA Type II slot.

•Windows 98SE/Me/2000/XP.

•A minimum of 32MB RAM and 300 MHz CPU.

•A minimum of 1 MB available hard disk space for utility

and driver installation.

•

Another IEEE 802.11b compliant device installed in your network,

such as the SMC2804WBRP-G Barricade™ g 2.4GHz 54 Mbps

Wireless Cable/DSL Broadband Router with USB Print Server,

or another PC with a wireless adapter, such as the SMC2662W

EZ Connect™ 2.4GHz 11 Mbps Wireless USB Adapter.

PACKAGE CONTENTS

After unpacking the EliteConnect™ 2.4GHz 802.11b High Power

Wireless PC Card, check the contents of the box to be sure you

have received the following components:

•1 SMC2531W-B EU High Power Wireless PC Card.

•1 EZ Installation Wizard and Documentation CD.

•Quick Installation Guide.

Immediately inform your dealer in the event of any incorrect,

missing or damaged parts. If possible, please retain the carton

and original packing materials in case there is a need to return

the product.

Please register this product and upgrade the product warranty

at SMC's Web site: www.smc.com or www.smc-europe.com.

GETTING STARTED

Warning:

Network cards are sensitive to static electricity.

To protect the card, avoid touching its electrical

components and always touch the metal chassis

of your computer before handling the card.

1. Turn on your computer and insert the EZ Installation Wizard

and Documentation CD. Run the utility software and then shut

down your machine when complete.

2. Find an available Type II or Type III PCMCIA slot in your

computer.

3. With the PC Card's 68-pin connector facing the PCMCIA slot

and the "EliteConnect™ Wireless PC Card" label facing up,

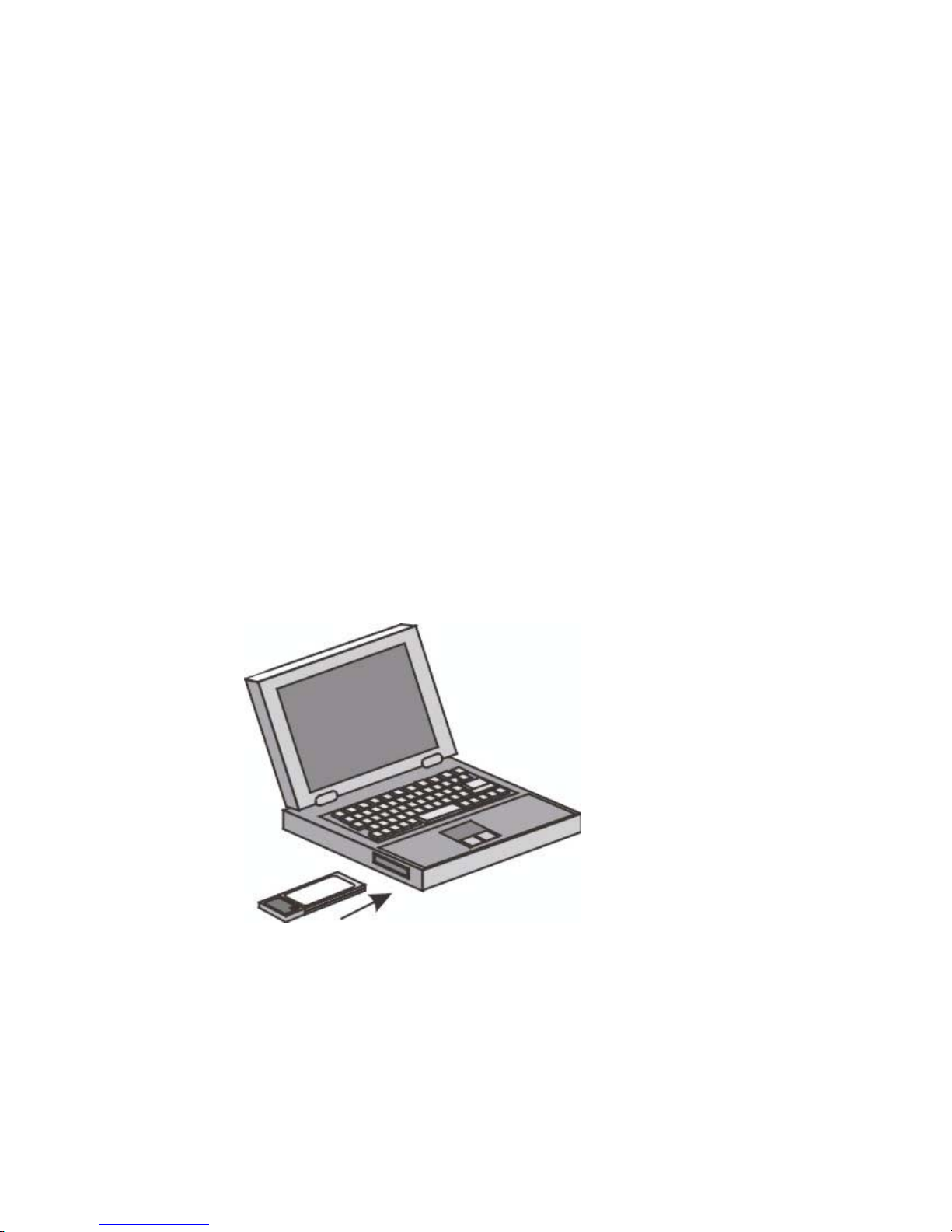

slide the card completely into the PCMCIA slot as shown below.

4. For Windows 98SE/Me/2000, PCMCIA card and socket

services compliant with revision 2.10 of the PCMCIA

specification are required. Please check the documents

of your PCMCIA driver for confirmation.

Getting Started

The card will be automatically installed during the Operating

System's boot-up process. Once complete, you may take

advantage of the wireless functionality this adapter has

to offer.

Note:

The PCMCIA slot allows you to hot swap PC Cards

any time, even when your computer is on.

RIVER

NSTALLATION

PTION

1 (R

ECOMMENDED

)

Note: Installation processes will require the use of your

original, licensed copy of Windows. Please have

your Windows CD available BEFORE proceeding

with the installation.

This installation method makes the process as simple and

Plug-and-Play as possible. Simply run the EZ Installation Wizard,

reboot your machine and insert your EliteConnect™ 2.4GHz

802.11b High Power Wireless PC Card. It's as easy as 1-2-3.

Step 1: Insert the EZ Installation Wizard and Documentation CD.

Step 2: Click the [Install Driver/Utility] button.

Driver Installation - Option 1 (Recommended)

Step 3: The installation wizard will begin. Click [Next].

Step 4: You will be given the option to choose the location where

the Configuration Utility will be installed. It is recommended to

leave this at the default value. Click [Next] to continue.
