DESCRIPTION OF HARDWARE

The SMC7003-PCI is a cost effective, controller less ADSL solution that

requires minimal external components. (Only one external line driver is needed in the

analog front-end circuit). The SMC7003-PCI achieves transmission rates of up to

8Mbps downstream and 768Kbps upstream over existing copper wire. This rate is more

than 140 times faster than a 56K analog modem. The SMC7003-PCI designed to meet

ANSI T1.413 Issue 2, ITU G.dmt and G.lite requirements with both splitter and

splitterless operations. In addition, the SMC7003-PCI is interoperable with all major

“central office” DSLAMs. It’s software offers maximum implementation flexibility,

management and diagnosis capabilities.

Features

lCompliant with ANSI T1.413 i2, ITU G.992.1 (G.dmt) and G.992.2

(G.lite) and G.994.1 (G.hs) in ADSL layer.

lSupports PPP RFC2364 (PPPoA), RFC2516, IP RFC1483 and IP

RFC1577 over ATM.

lData rates up to 8Mbps downstream and 768Kbps upstream.

lCompliant with Microsoft WHQL Specification.

lSupports Win 95, 98, 2000, Millennium and NT4.0.

lStandard Windows Wizard driver installation.

DESCRIPTION OFHARDWARE

Connector Pin-out

The SMC7003-PCI is equipped with a RJ-11 jack for connection to the ADSL data

port. The center two pins, pins 2 and 3, are used for ADSL data. For the card to make

a proper ADSL connection, the installed ADSL data port should also use pins 2 and 3

for data. If the ADSL data port installation uses pins 1 and 4 for data, then a wiring

converter will be required. Do not alter or remove the wiring converter if present.

Consult with your ADSL provider before attempting any wiring changes.

Jumper Pin Configuration Guide

ATTENTION!! Before Installing the SMC7003-PCI:

It is important to verify that the ADSL data port RJ-11 jack is configured so that the

center two pins, pins 2 and 3, are used for ADSL data, otherwise the SMC7003-PCI

will not make a proper connection. Your SMC7003-PCI features pin jumpers that

enable the user to set the configuration to make the proper connection. The default

setting of the SMC7003-PCI is set to 2 and 3. If the ADSL data port installation uses

pins 1 and 4 for data, then the jumper settings on your board will need to be

reconfigured. To do this, orient your board per the diagram below (the RJ-11

connector should be facing towards you) and simply lift the jumper off of the pin

setting for 2 and 3, and place it onto the pin setting for 1 and 2, which your ADSL

modem utilizes.

1. The standard jumper configuration utilizes center pins 2and 3 as shown

above:

2. If the alternative configuration for outer pins 1 and 4 is required, simply

move the jumper pins to the right, as shown below:

INSTALLING THE SMC7003-PCI

STEP 1 –KNOW YOUR PC’S OPERATING SYSTEM

You will need to know the exact version of Microsoft Windows installed in your computer. If you do not know or

are unsure, please proceed as follows to determine your version of the Microsoft Operating System.

On your desktop, right-click My Computer. Then select Properties. The version number of the Microsoft

Windows Operating System installed in your computer will be displayed on the General tab. Refer to the

following table for more detailed information.

WindowsOS System Properties Description Release (Microsoft Web)

Win 95A 4.00.950A Windows 95 OSR1

Win 95B 4.00.950B Windows 95 OSR2

Win98 4.10.1998 Window 98

Win 98SE 4.10.2222A 2nd Edition Windows 98 2nd Edition

Win 2000 5.00.2195 Windows 2000

Win NT 4.00.1381 Windows NT 4.0

If you have questions regarding your PC system and the Microsoft Windows Operating System, please contact

your original PC manufacturer or Microsoft for assistance.

Before installing the SMC7003-PCI, it is important to verify that the ADSL data port RJ -11 jack is configured so that the center

two pins, pins 3 and 4, are used for ADSL data, otherwise the SMC7003-PCI will not make a proper connection. If the ADSL

data port installation uses pins 2 and 5 for data, then a wiring converter will be required. Do not alter or remove a wiring

converter if present. Consult with your ADSL service provider regarding a wiring converter or before attempting any wiring

changes.

INSTALLING THESMC7003-PCI

Step 2 –Determine your Connection settings

You need to know your PC systems WindowsOS and Internet Protocol supplied by your ADSL service provider.

Refer to the following chart for your ADSL Driver.

Protocol Selection

RFC1483 ðBridged Ethernet over ATM

RFC2364 ðPoint-to-Point Protocol over ATM

RFC1577 ðClassical Internet Protocol over ATM

RFC2516 ðPoint-to-Point Protocol over Ethernet

ADSL Driver Selection

RFC1483 RFC2364 RFC1577 RFC2516

Win 95A & 95B 1483w95 2364w95 1577w95 See Note@

Win 98 & 98SE 1483w98 2364w98 1577w98 See Note@

Win NT 4.0 1483nt4 2364nt4 1577nt4 See Note@

Win 2000 1483w2k 2364w2k 1577w2k See Note@

Win Me 1483wMe 2364wMe 1577wMe See Note@

Note@: RFC2516 (Point-to-Point Protocol over Ethernet) is supported by third party developers. See the

PPPoE driver supplement for detailed information and installation instructions.

Having determined the ADSL Driver you will be installing, you now need to gather the connection information

supplied by your ADSL service provider.

VPI VALUE:_________

VCIvalue:_________

Framing:qVC/MUX qLLC/SNAP

Mode: qANSI T1.413 qITU G.lite qITU G.dmt

ForRFC 1483 or 2516 ForRFC 2364 or 1577

Host: UserName:

Domain: Password:

Gateway: Host or IP Address:

IPAddress:

Subnet Mask:

DNS or server address:

INSTALLING THE SMC7003-PCI

STEP 3 –INSTALL THE SMC7003-PCI

Caution: To avoid possible damage to your SMC7003-PCI, touch the metal chassis of your PC system to remove

static charge from your person, and then remove your SMC7003-PCI from the protective anti-static bag.

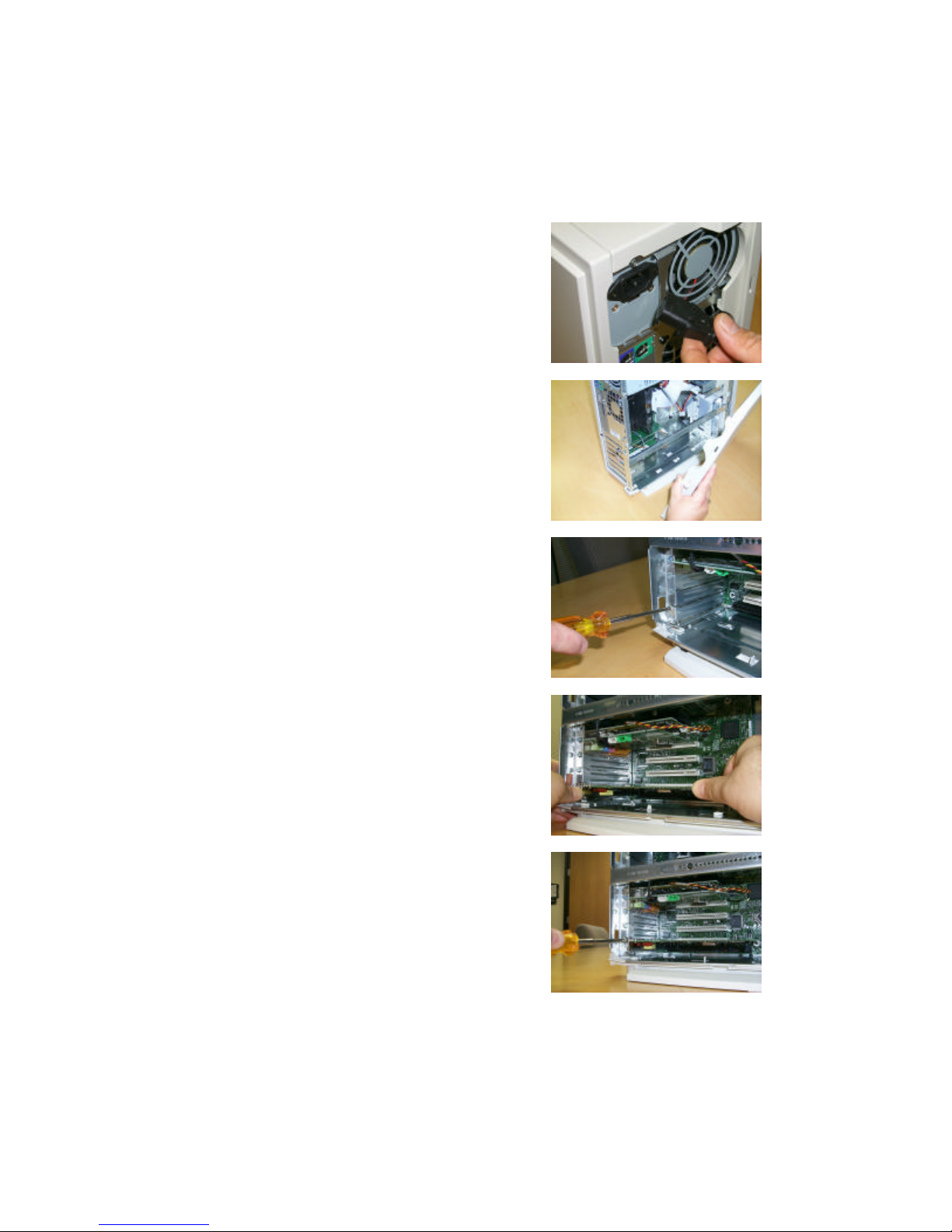

1. Shut down your computer and switch the power off.

2. Unplug the power cord for your computer from the electrical

outlet.

4. Unscrew “slot cover bracket” from an unused PCI (usually

white in color) slot.

6. Make sure the card is firmly seated, and then

secure the card with the bracket screw.

3. Remove the cover from your systems

chassis (see your PC manufacturer’s

manual).

5. Gently and evenly insert the PCI

modem card into your empty PCI slot.

7. Replace the coverof your computer system.

8. Connect the ADSL/phone line to the connector

port on the modem card and plug the other end of

the cable intoyour ADSL/phone service.

INSTALLING THE SMC7003-PCI

Step 4 –Install the drivers and make a connection

You will be installing drivers and then proceeding to make an Internet connection. This process requires you to

enter in information as prompted by the Microsoft Installation Wizard.

NOTE: You may need the Microsoft Windows Operating System installation files (CAB files) to complete the

installation. The CAB files are contained in the Microsoft’s system CD-ROM. Some systems may have already

installed the CAB files to the hard drive, but you should have the Microsoft Windows CD-ROM handy just in case.

Proceed now to the installation procedure for the Windows Operating System installed in your

computer.

Windows 95A---------------------------------------------------------------------------Page 7

Windows 95B---------------------------------------------------------------------------Page 9

Windows 98/98SE----------------------------------------------------------------------Page11

Windows 2000 --------------------------------------------------------------------------Page 18

WindowsNT -RFC 1483 or RFC 1577--------------------------------------------Page 24

WindowsNT -RFC 2364--------------------------------------------------------------Page 27

Windows Me-----------------------------------------------------------------------------Page 31

INSTALLING THE SMC7003-PCI

Windows 95A

After installing the SMC7003-PCI, plug the power cable back into the PC system and turn the power on.

Before you proceed to install drivers you will need to upgrade your Dial-Up Networking (DUN) application

to version 1.3 or above.The Microsoft DUN is conveniently contained on your ADSL Driver CD -ROM.

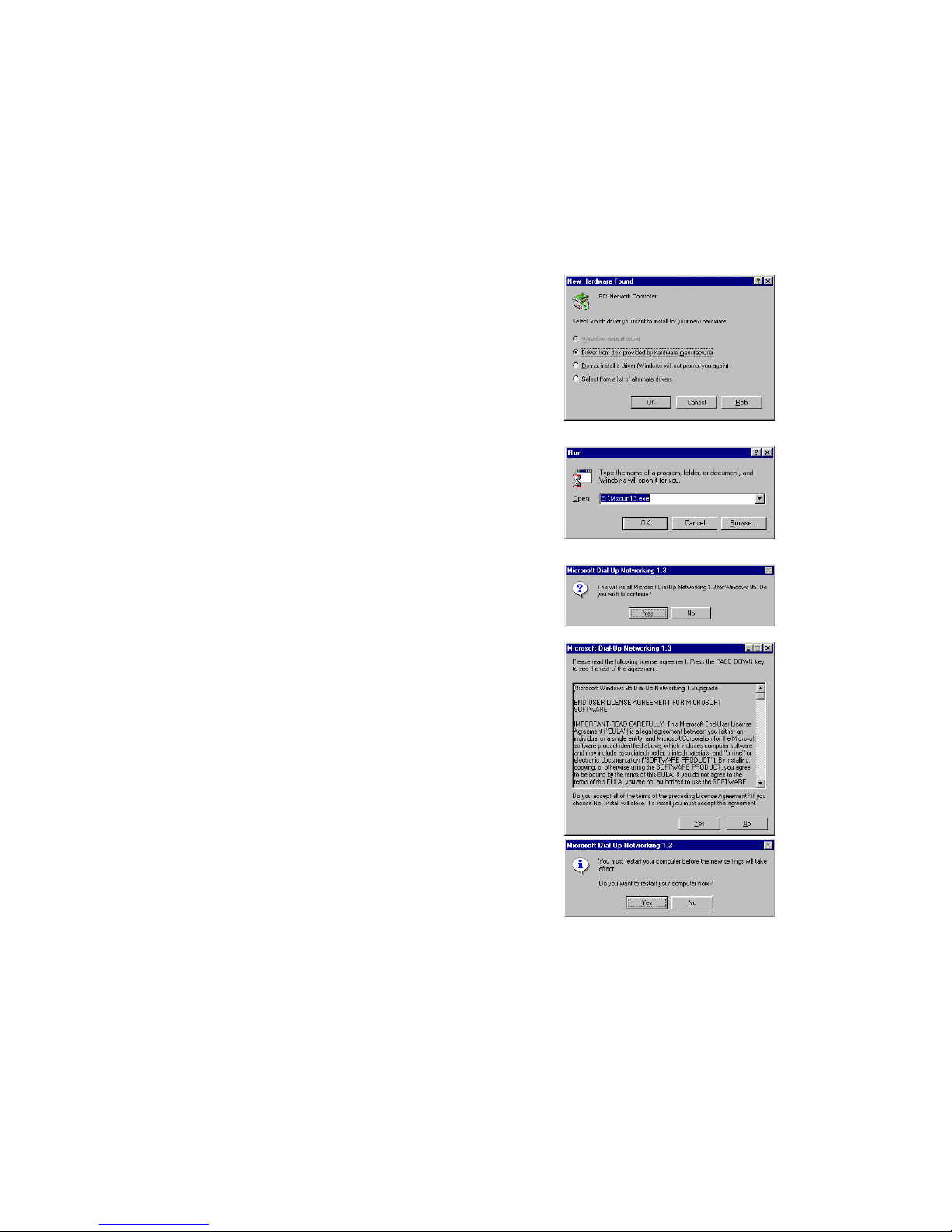

1. After restart, the Update Device Driver Wizard will detect the

ADSL modem as a PCI Network Controller. CANCEL the New

hardware found window.

2. At your desktop, click Start, and then select Run.

3. The Run window appears. Insert the SMC Universal CD,then

click on Browse and proceed to locate the ADSL Driver 95

CD-ROM. Then locate and select the Msdun13.exe file. The

Msdun13.exe appears in the Open box. Click OK.

4. The Microsoft Dial-Up Networking 1.3window appears with the

message This will install Microsoft Dial-Up Networking 1.3 for

Windows 95. Do you wish to continue? Click Yes.

5. An End-User License Agreement will appear. To accept, click

Yes.

6. Back in the Microsoft Dial-Up Networking 1.3 window.

You will be asked: Do you want to restart your computer

now? Click Yes.

NOTE: You may need the Microsoft Windows Operating System installation files (CAB files) to

complete the installation. The CAB files are contained in the Microsoft’s system CD-ROM. Some

systems may have already installed the CAB files to the hard drive, but you should have the CD-ROM

handy just in case.

INSTALLING THE SMC7003-PCI

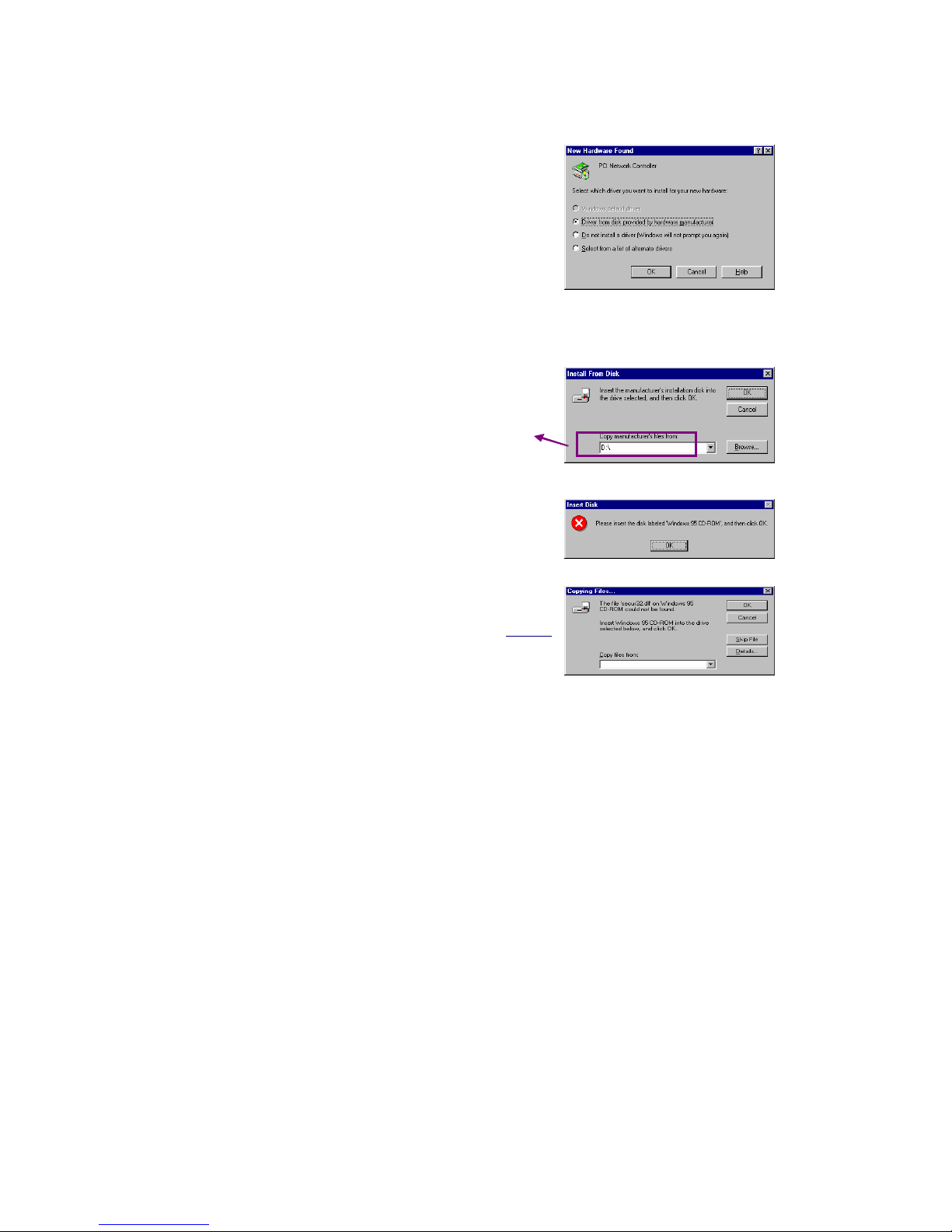

7. After your computer reboots, the New Hardware Found window

will detect the SMC7003-PCI as a PCI Network Controller.

Select the Driver from disk provided by hardware

manufacturer option. Click OK.

8. Insert the SMCUniversalCD into your systems CD drive.

9. The Install From Disk window appears. Click Browse to locate

the driver on your CD-ROM for the protocol supported by your

ADSL provider: 1483w95, 2364w95, or 1577w95 (The example

uses “D” as the CD-ROM drive letter. Drive letters may vary.)

Then click OK.

NOTE:During the installation process you may be asked to insert

your Windows 95 CD. Insert the Windows 95 CD into the CD

drive and click OK.

NOTE: If during the file copying process a file is reported as “not

found” enter the path with the CD Drive letter and :\Win95

(ex:D:/Win95).

10. You must now set the ADSL configuration. Go to page 13.

INSTALLING THE SMC7003-PCI

WINDOWS 95B

After installing the SMC7003-PCI, plug the power cable back into the PC system and turn the power on.

Before you proceed to install drivers you will need to upgrade your Dial-Up Networking (DUN) application to

version 1.3 or above. The Microsoft DUN is conveniently contained on your ADSL Driver CD-ROM.

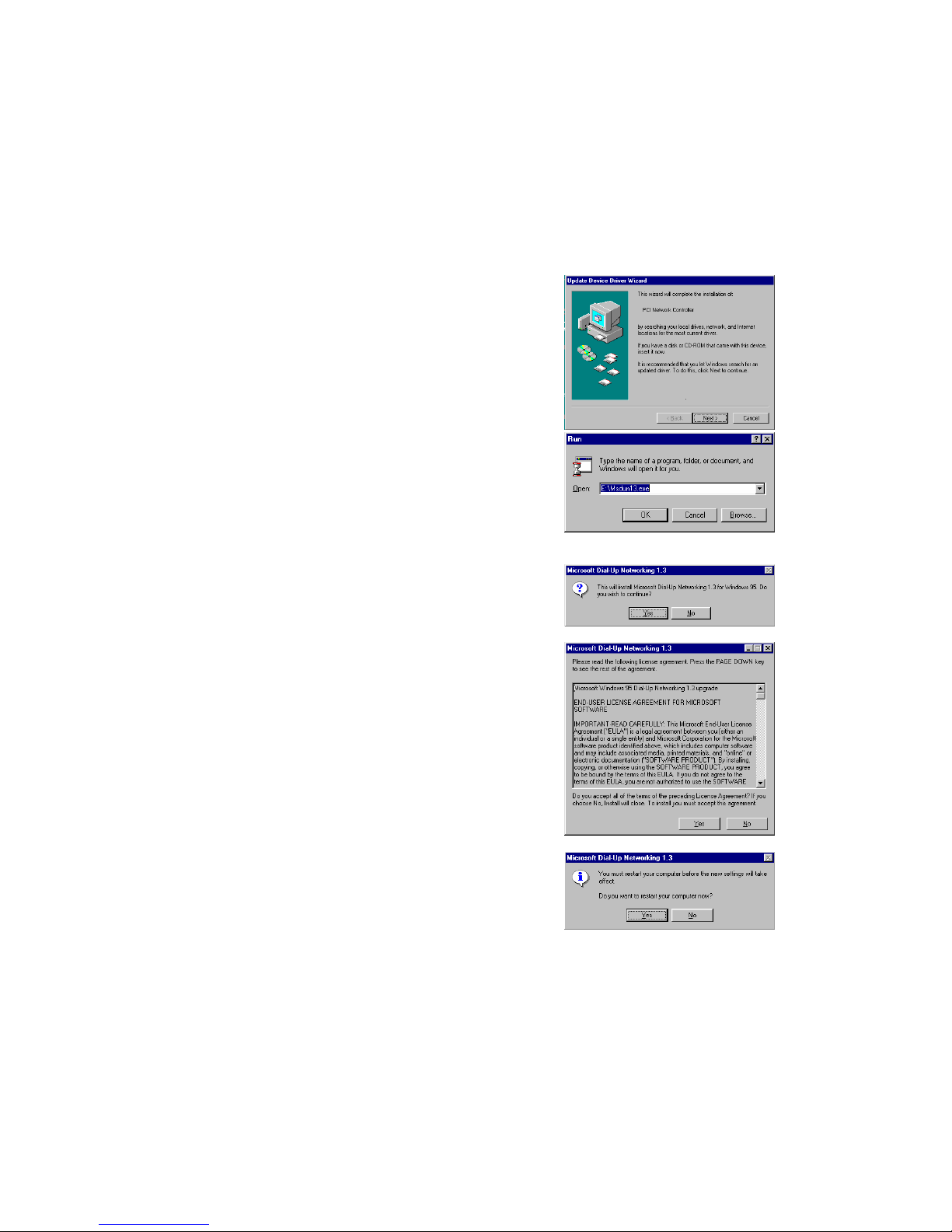

1. After restart, the Update Device Driver Wizard will detect the

SMC7003-PCI as aPCI Network Controller.CANCEL the New

hardware found window.

2. At your desktop, click Start, and then select Run.

3. The Run window appears. Insert the SMC Universal CD, then

click on Browse and proceed to locate the ADSL Driver 95

CD-ROM. Then locate and select the Msdun13.exe file. The

Msdun13.exe appears in the Open box. Click OK.

4. The Microsoft Dial-Up Networking 1.3 window appears with the

message This will install Microsoft Dial-Up Networking 1.3 for

Windows 95. Do you wish to continue? Click Yes.

5. An End-User License Agreement will appear. To accept, click

Yes.

6. Back in the Microsoft Dial-Up Networking 1.3 window.

You will be asked Do you want to restart your computer

now? Click Yes.

You may need the Microsoft Windows Operating System installation files (CAB files) to complete the

installation. The CAB files are contained in the Microsoft’s system CD-ROM. Some systems may

have already installed the CAB files to the hard drive, but you should have the CD-ROM handy just in

case.

INSTALLING THE SMC7003-PCI

7. After your computer reboots, the Update Device Driver Wizard

will detect the SMC7003-PCI as a PCI Network Controller, click

Next.

8. Insert the SMCUniversalCDinto you systems CD drive.

9. The Update Device Driver Wizard will appear and indicate that

“Windows was unable to locate a driver for this device”. Click

OtherLocations.

10. The Select Other Location window appears. Click Browse to

locate the driver on your CD-ROM for the protocol supported by

your ADSL provider: 1483w95, 2364w95 or1577w95

(The example uses “E” as the CD-ROM drive letter. Your drive

may have a different letter.) Then click OK.

11. The Update Device Driver Wizard will then find the SMCADSL

PCI NIC. Click Finish.

NOTE: During the installation process you may be asked

to insert your Windows 95 CD-ROM. Insert the Windows 95

CD into the drive and click OK.NOTE: During the installation

process you may be asked to insert your Windows 95 CD-ROM.

Insert the Win95CDinto the drive. Click OK. NOTE: If during

thefile copying process a file is reported as “not found” enter the

path (CD Drive letter) and :\Win95 (ex. D:\Win95)

12.

You must now set the ADSL configuration.

Go to page 13.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali SMC Networks Modem

SMC Networks

SMC Networks SMC8004CM Manuale utente

SMC Networks

SMC Networks 7804WBRB - annexe 1 Manuale utente

SMC Networks

SMC Networks EZ Networking SMC8013WG Manuale utente

SMC Networks

SMC Networks EZ Connect SMC3056IM V5 Manuale utente

SMC Networks

SMC Networks EZ Connect SMC8014WG-SI Manuale utente

SMC Networks

SMC Networks Barricade SMC7904BRA2 Manuale utente

SMC Networks

SMC Networks EZ Connect SMC8004CM Manuale utente

SMC Networks

SMC Networks D3CM1604 Manuale utente

SMC Networks

SMC Networks D3CM1604 Manuale per l'uso e la cura

SMC Networks

SMC Networks EZ Connect SMC8414-2P-SIP Manuale utente

SMC Networks

SMC Networks WBR14S-3GN Manuale utente

SMC Networks

SMC Networks 7901BRA - FICHE TECHNIQUE Scheda informativa del prodotto

SMC Networks

SMC Networks EZ Connect SMC8014 Manuale utente

SMC Networks

SMC Networks EZ Modem SMC3056EM Manuale utente

SMC Networks

SMC Networks EZ Connect SMC2642W Manuale utente

SMC Networks

SMC Networks WBR11S-3GN Manuale utente

SMC Networks

SMC Networks SMCD3GN-RRR Manuale utente

SMC Networks

SMC Networks EZ Connect SMC7003-USB Manuale utente

SMC Networks

SMC Networks EZ Connect SMC8014W-G Manuale utente

SMC Networks

SMC Networks EZ Networking SMC8013WG Manuale utente

SMC Networks

SMC Networks EZ Connect SMC8011CM Manuale utente

SMC Networks

SMC Networks EZ Connect SMC8002CM Manuale utente

SMC Networks

SMC Networks EZ Connect SMC7003-USB Manuale utente

SMC Networks

SMC Networks SMC8511 Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente

Zoom

Zoom 1070 Series Manuale utente
