SMC Networks 7004BR Manuale utente

SMC Barricade

™

Routers

User Guide

SMC7004BR

V1.0

Congratulations on your purchase of the SMC Barricade™.

The SMC Barricade is a Broadband Router designed to share

Internet Access, provide security, and to network multiple devices

for a variety of users. The Barricade’s simple installation setup can

be used by the least experienced of users, while providing

networking professionals with easy to configure advanced features.

Please read the User Guide for advanced features of this product.

Thank you for purchasing an SMC product, we know you will enjoy

the many features of the SMC Barricade.

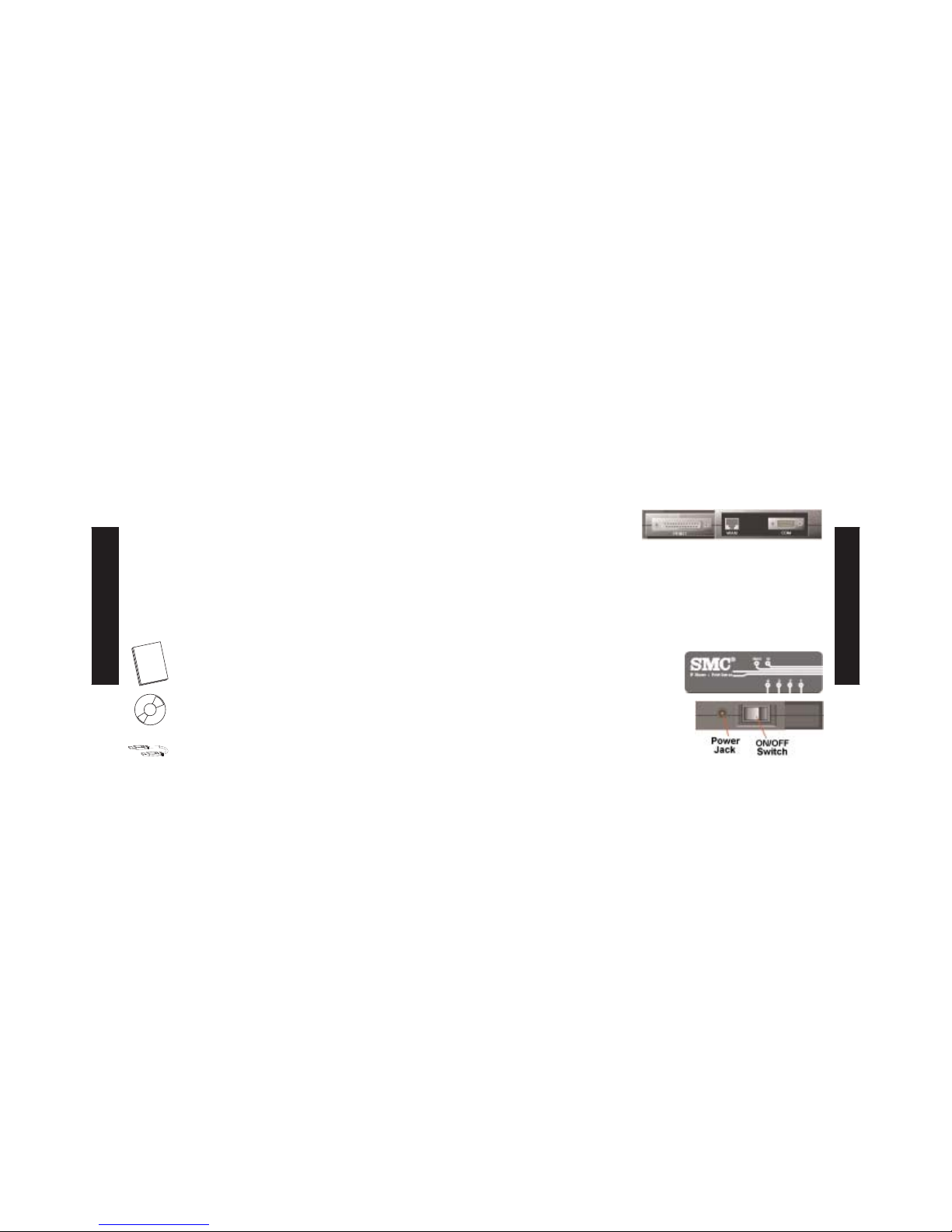

This Package Contains

One SMC Barricade

One Power Adapter

This Quick Installation Guide

One Installation CD

One Category 5 Fast Ethernet Cable

Hardware Setup

1. Connecting Computers: Connect all of your

computers to the Barricade on ports 1-4,1-7,

or 1-15, depending on which Barricade you

purchased. If you have more computers than

ports, connect a hub or a switch (using its

uplink port) and connect additional computers

to that device.

2. Connecting Cable Modems

and DSL Modems:

Connect your Cable or

DSL modem to the

WAN port.

3. Connecting a Dial-up Modem: Connect your external dial-up

modem or ISDN modem to the COM port.

4. Connecting Printer (optional): Connect your printer to the

PRINT port using a standard paralell printer cable.

5. Power: Plug in the power adapter

and turn on the Barricade with

the ON/OFF switch. After the

self-test, the M1 light will flash

once every second, indicating

normal operation.

English

4. Select the “IP Address” tab.

Click “Obtain an IP address

automatically.”

5. Click the “Gateway” tab. If there

are any “Installed Gateways”

listed, highlight each one

and click “Remove.”

6. Click the “DNS Configuration” tab,

and then select “Disable DNS.”

Click the “OK” button.

English

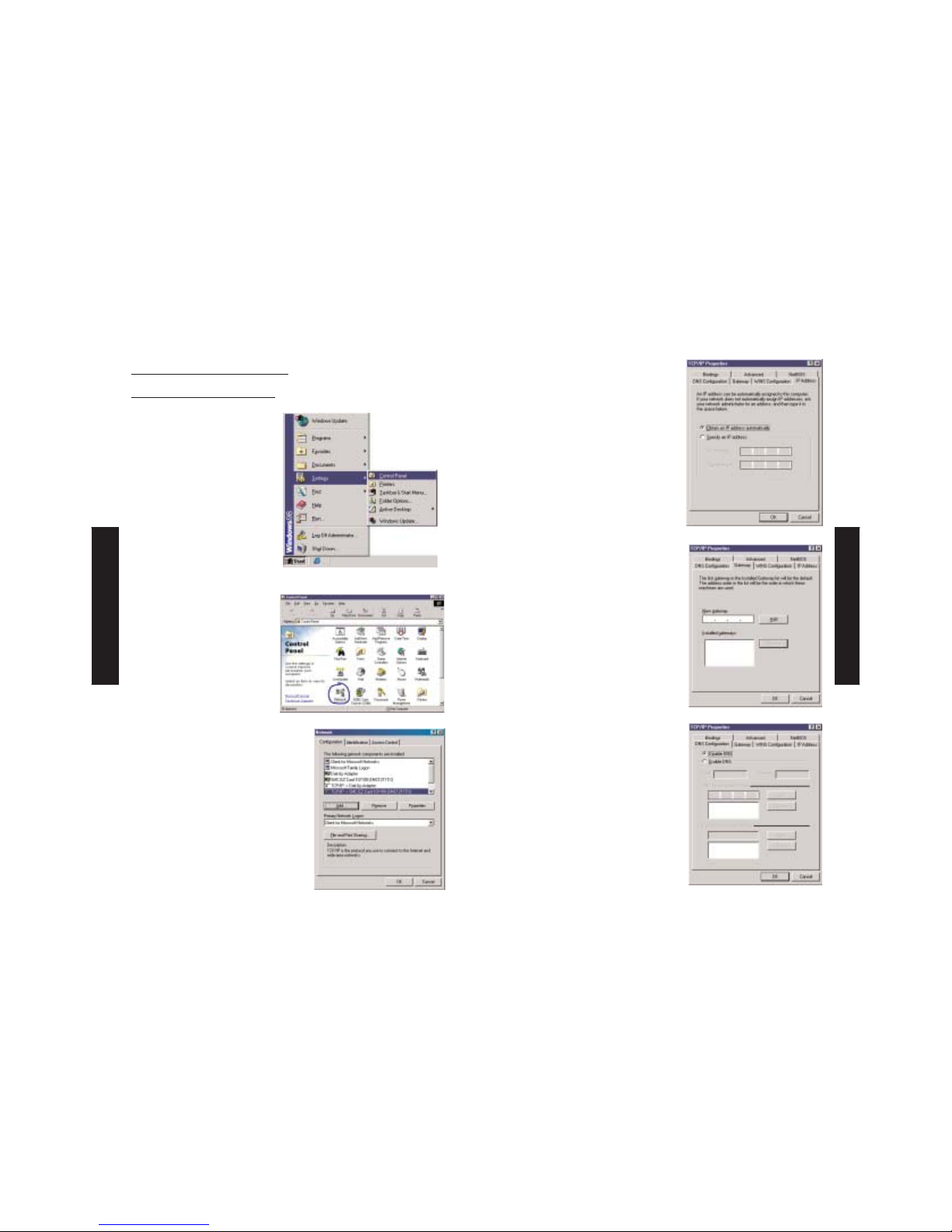

Configuring Your Computer

with Windows 95/98/ME

1. From the Windows desktop,

click the “Start” button.

Choose “Settings”, then

“Control Panel.”

2. From “Control Panel”

Double-click the

“Network” icon.

3. In the “Network” window,

under the “Configuration” tab,

double-click the “TCP/IP” that is

listed with your network card.

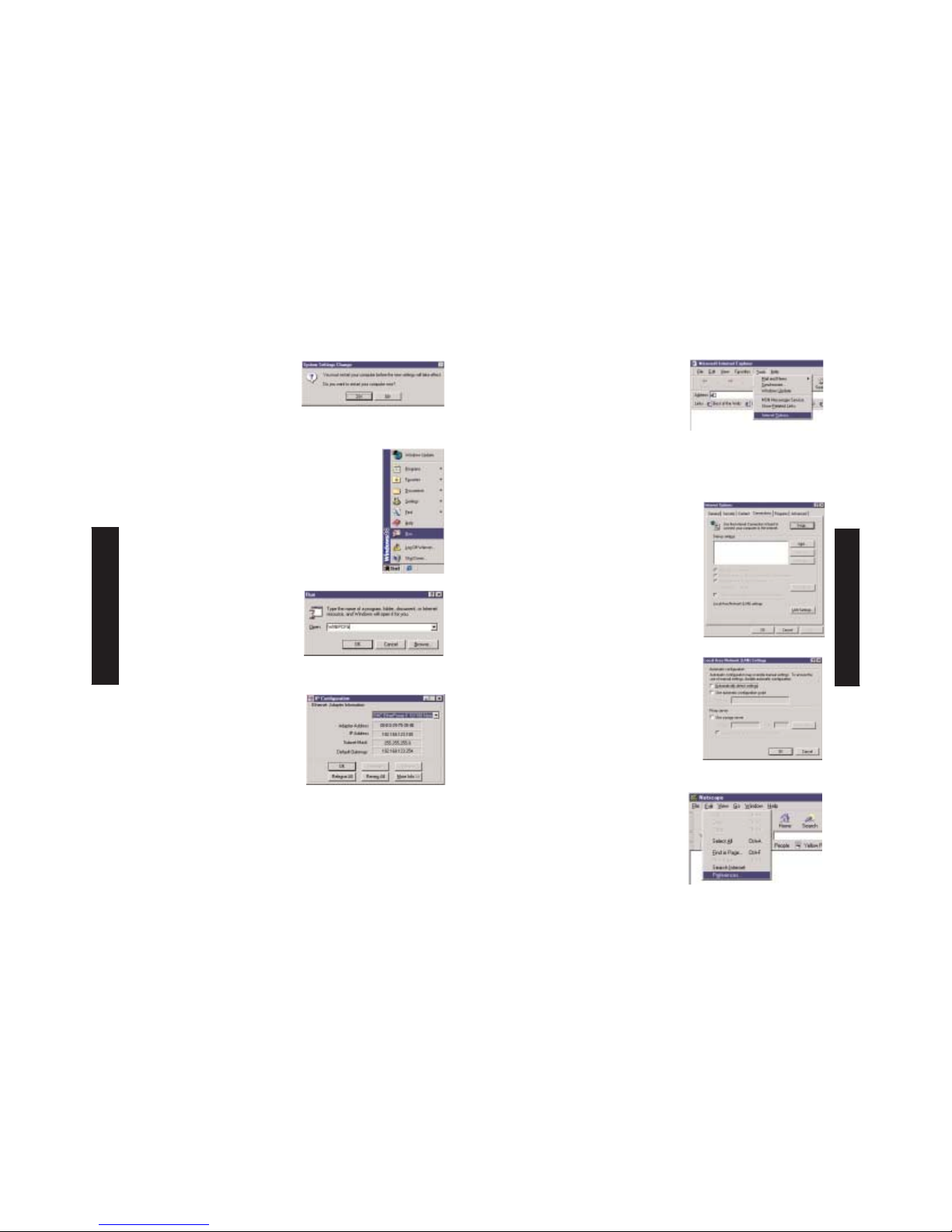

7. Click the “OK” button in the

“Network” window. Windows

may copy some files, then will

prompt you to restart your

system. Click “Yes” and your

computer will shut down

and restart.

8. Once your computer has restarted,

click “Start”, and then “Run…”

9. Type “WINIPCFG” and click “OK.”

It may take a minute or two for

the “IP Configuration” window

to appear

10.From the drop-down menu,

select your network card.

Click “Release” and then

“Renew.” Your “IP Address”

should now be similar to the

Barricade (i.e. 192.168.123.xxx).

Click “OK” to close the “IP

Configuration” window.

11.Open your web browser

(i.e. Internet Explorer or Netscape Navigator).

English

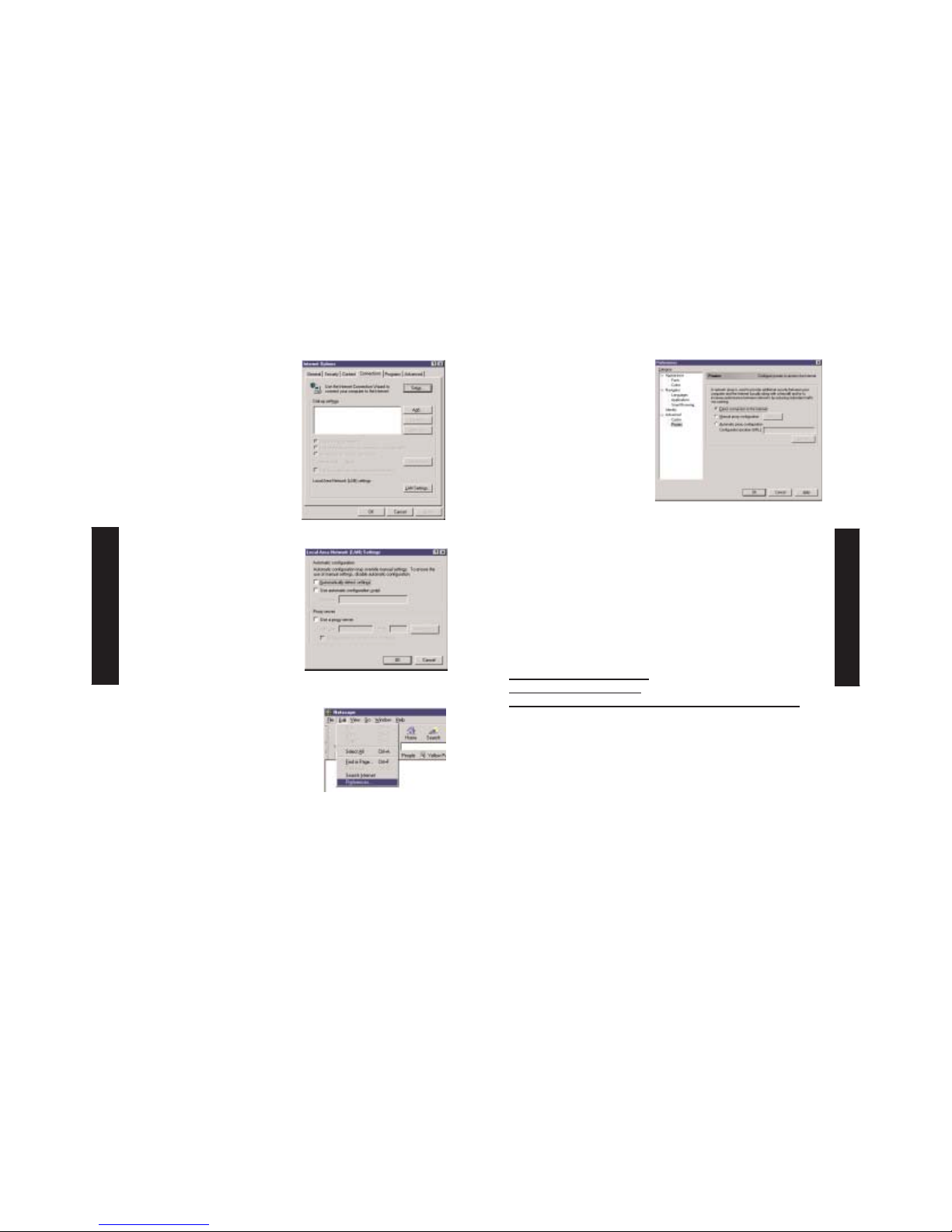

12.Clear all proxy settings:

a. For Internet Explorer:

i. Click “Tools”, then

“Internet Options.”

ii.In the “Internet Options” window

click the “Connections” tab.

Next, click the “LAN

Settings…” button.

iii. Clear all the checkboxes.

iv. Click “OK”, and then click

“OK” again to close the

“Internet Options” window.

b. For Netscape Navigator:

i. Click “Edit”, then click

“Preferences…”

ii. In the “Preferences”

window, under

“Category” double-click

“Advanced”, then click

“Proxies”. Select

“Direct connection

to the internet.”

Click “OK”

13.Repeat these steps for

each Windows 95/98/Me computer connected to your Barricade

Configuring Your Barricade

If you connect to the Internet using a:

Cable Modem, turn to page 13

DSL Modem, turn to page 15

DSL Modem via PPP over Ethernet, turn to page 17

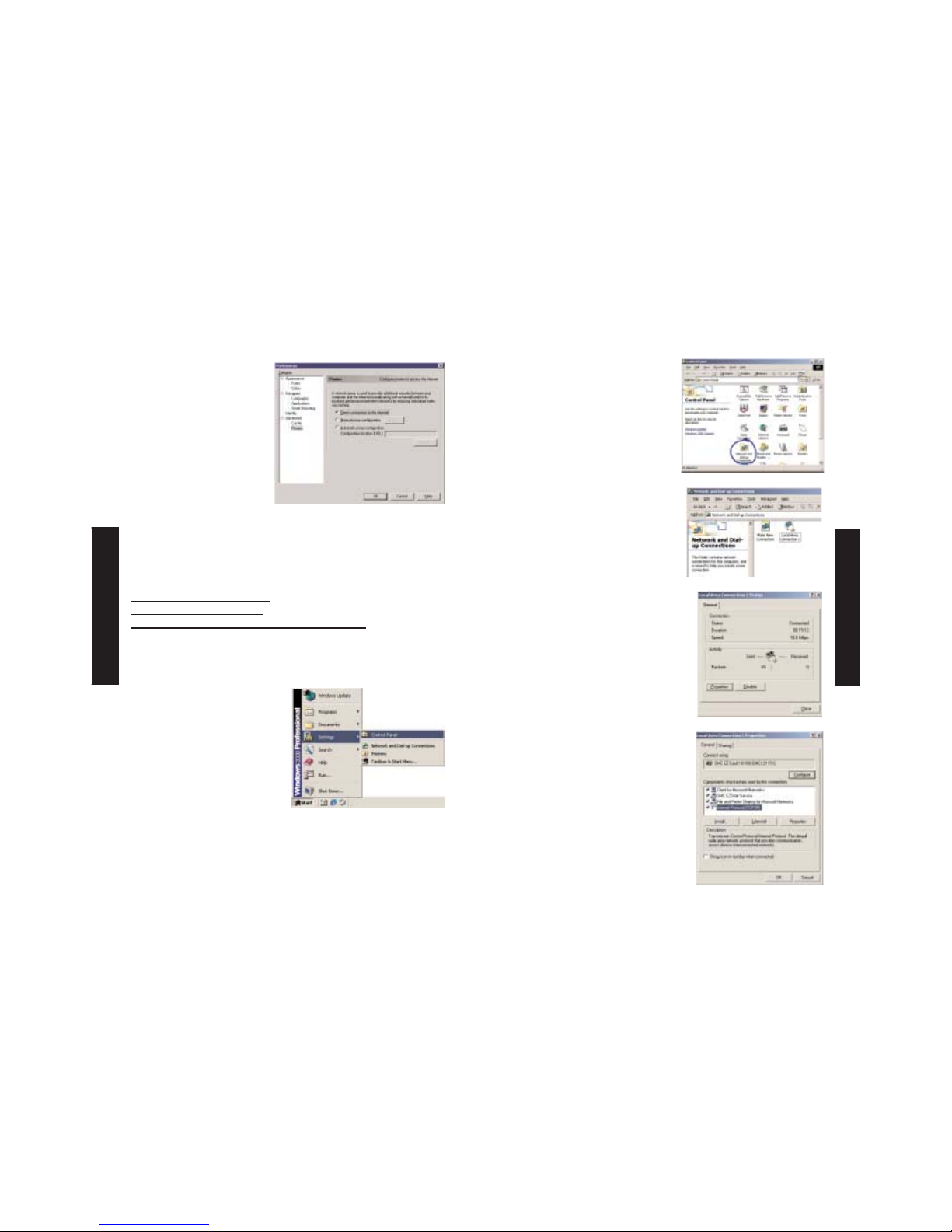

Configuring Your Computer with Windows 2000

1. From the Windows desktop,

click the “Start” button.

Choose “Settings”, then

“Control Panel.”

2. Double-click the “Network &

Dial-Up Connections” icon.

3. Double-click the icon that

corresponds to the connection to

your Barricade

4. Click “Properties.”

5. Double-click “Internet Protocol

(TCP/IP).”

English

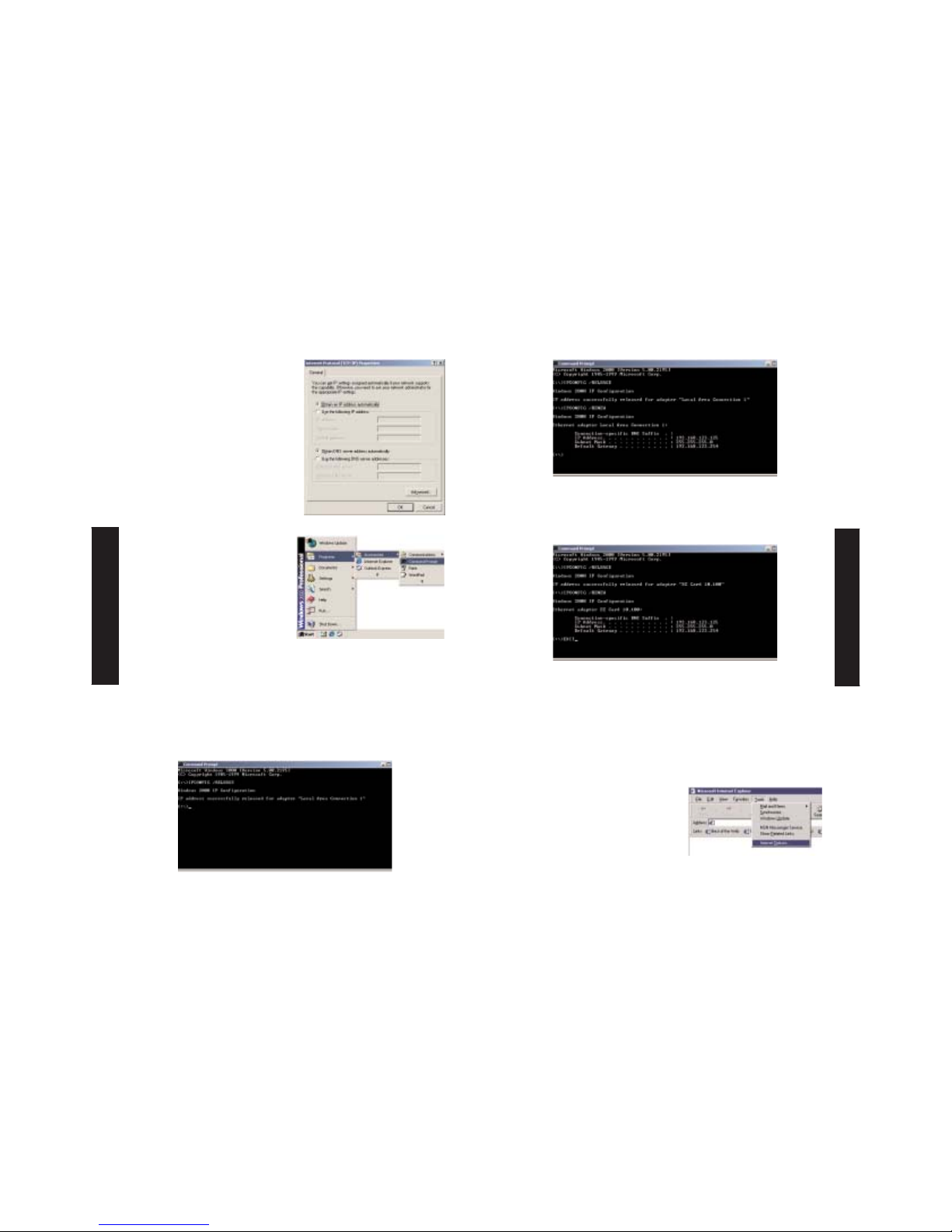

6. Select “Obtain an IP address

automatically” and then select

“Obtain DNS server address

automatically.” Then click “OK.”

Click “OK” or “Close” to close

each window.

7. From the Windows desktop,

click the “Start” button,

then “Programs”, then

“Accessories”, and then

click “Command Prompt.”

8. In the “Command Prompt” window, type “IPCONFIG /RELEASE”

and press the <ENTER> key.

9.Type “IPCONFIG /RENEW” and press the <ENTER> key.

Your “IP Address” should now be similar to the Barricade

(i.e. 192.168.123.xxx).

10.Type “EXIT” and press <ENTER> to close the “Command Prompt”

window.

11.Open your web browser (i.e. Internet Explorer or Netscape

Navigator).

12.Clear all proxy settings:

a. For Internet Explorer:

i. Click “Tools”, then “Internet

Options.”

English

ii. In the “Internet Options”

window click the

“Connections” tab. Next,

click the “LAN Settings…”

button.

iii. Clear all the checkboxes

and click “OK.” Click “OK”

again to close the “Internet

Options” window.

b. For Netscape Navigator:

i. Click “Edit”, then click

“Preferences…”

ii. In the “Preferences”

window, under

“Category” double-click

“Advanced”, then click

“Proxies”. Select

“Direct connection

to the internet.”

Click “OK.”

13.Repeat these steps for each computer connected

to your Barricade.

Configuring Your Barricade

If you connect to the Internet using a:

Cable Modem, turn to page 13

DSL Modem, turn to page 15

DSL Modem with a Log In name and Password, turn to page 17

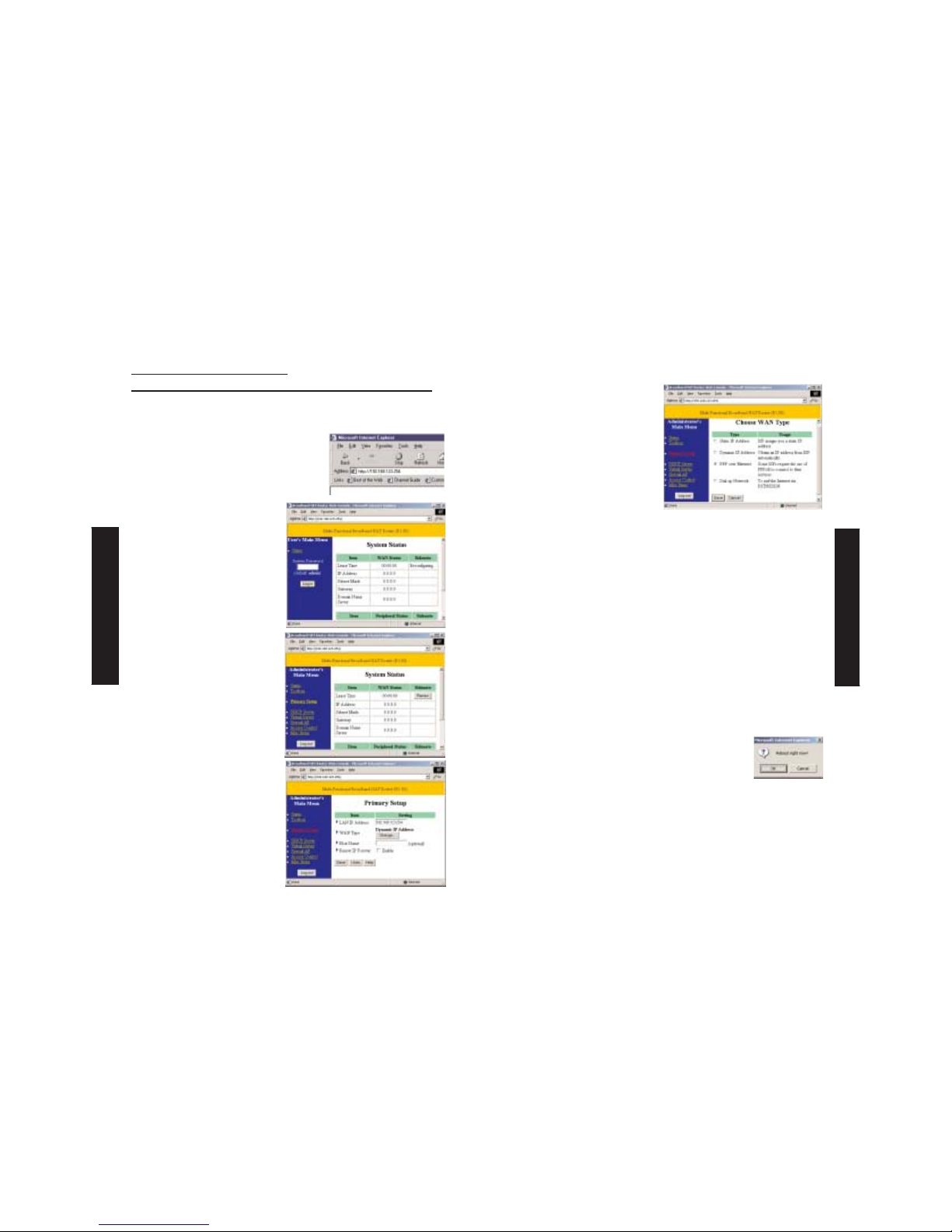

Configuring Your Barricade

for a Cable Modem

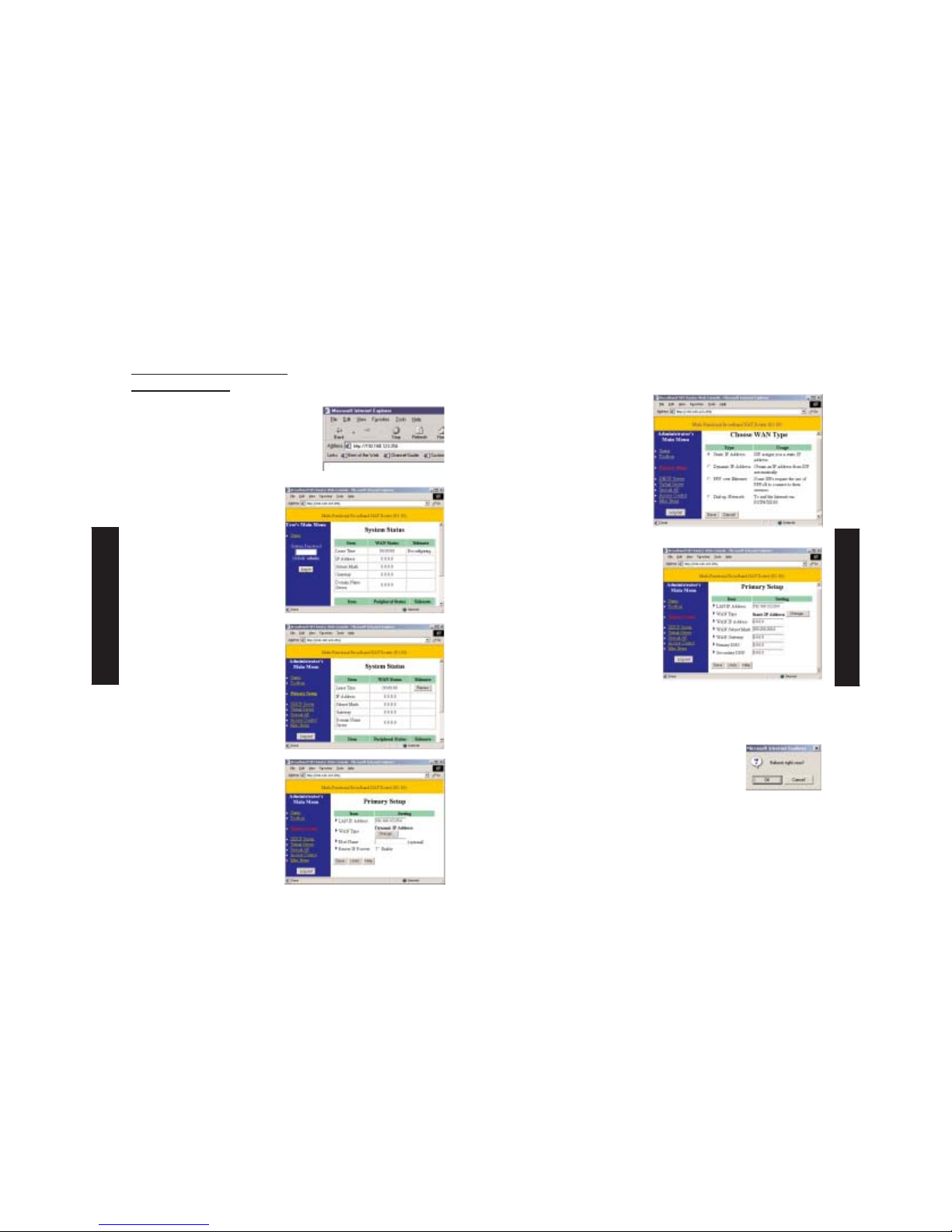

1. Open your web browser

(i.e. Internet Explorer or

Netscape Navigator).

2. In the “Location”

field (for Netscape)

or “Address” field

(for Internet Explorer),

type “http://192.168.123.254”

and press <ENTER>.

3. In the ”System Status”

page of the Barricade

web console, type your

password in the

“System Password” field

(default is “admin”)

and click the

“Log In” button.

4. Click “Primary Setup”

5. Under “WAN Type”

Click the “Change…”

button.

6. Select “Dynamic IP

Address” and click the

“Save” button.

7. Key in your “Host Name”

if your Internet Service

Provider has given you

one (i.e. CX123456-A).

8. Click “Save”, and then

click the “Reboot” button.

9. When prompted to reboot

now, click “OK.”

10.Once the Barricade is

rebooted, you can surf the Internet

as you normally would from all

computers connected to it.

English

6. Select “Static IP Address”

and click the

“Save” button.

7. In the spaces provided, key

in the values provided to

you by your ISP. (Note:

Enter the IP Address given

to you in the “WAN IP

Address” field, not the

“LAN IP Address” field.)

8. Click “Save”, and then click the “Reboot” button.

9. When prompted to reboot now, click “OK.”

10. Once the Barricade is rebooted,

you can surf the Internet as you normally

would from all computers connected to it.

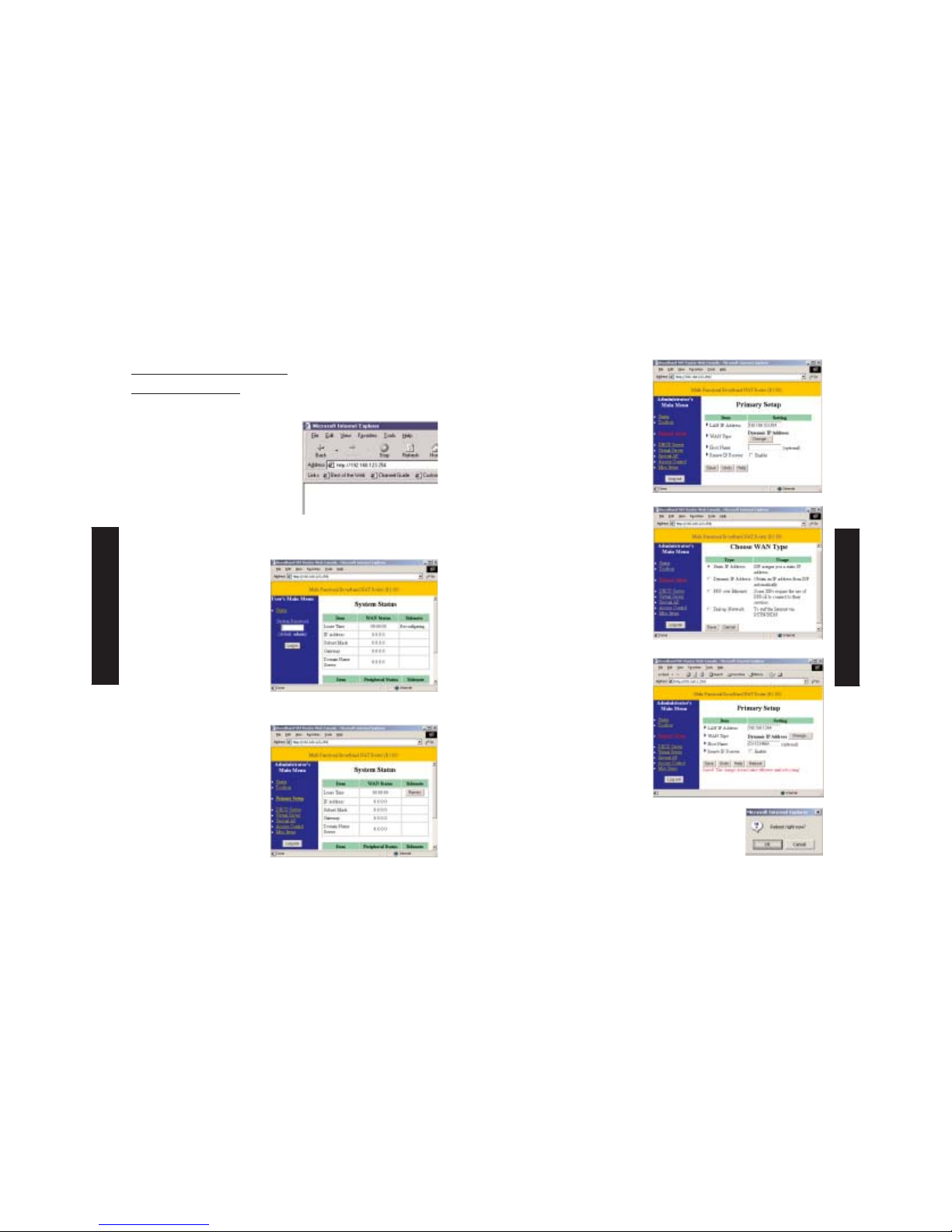

Configuring Your Barricade

for a DSL Modem

1. Open your web browser (i.e.

Internet Explorer or Netscape

Navigator).

2. In the “Location” field

(for Netscape) or

“Address” field (for Internet

Explorer), type

“http://192.168.123.254”

and press <ENTER>.

3. In the ”System Status” page

of the Barricade web console,

type your password in the

“System Password” field

(default is “admin”) and

click the “Log In” button.

4. Click “Primary Setup”

5. Under “WAN Type” Click the

“Change…” button.

English

6. Select “PPP over Ethernet”

and click the “Save” button.

7. Key in your Account Name

and Password in the

appropriate fields. If your

ISP has supplied you with a

Service Name, enter it in the

“Service Name” field;

otherwise, leave it blank.

8. Click “Save”, and then click the “Reboot” button.

9. When prompted to reboot now, click “OK.”

10.Once the Barricade is rebooted, you can surf the Internet as

you normally would from all computers connected to it.

Configuring Your Barricade

for a DSL Modem with a Log-In Name and Password

1. Open your web browser (i.e. Internet Explorer

or Netscape Navigator).

2. In the “Location” field (for Netscape)

or “Address” field (for Internet

Explorer), type

“http://192.168.123.254”

and press <ENTER>.

3. In the ”System Status”

page of the Barricade web

console, type your password

in the “System Password”

field (default is “admin”) and

click the “Log In” button.

4. Click “Primary Setup”

5. Under “WAN Type” Click the

“Change…” button.

English
