SMC Networks Barricade SMCBR14UP Manuale utente

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no

responsibility is assumed by SMC for its use, or for any infringements of patents or other rights of third

parties which may result from its use. No license is granted by implication or otherwise under any patent or

patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

The products and programs described in this User Guide are licensed products of SMC. This User Guide

contains proprietary information protected by copyright, and this User Guide and all accompanying

hardware and documentation are copyrighted.

SMC does not warrant that the hardware will work properly in all environments and applications, and

makes no warranty and representation, either implied or expressed, with respect to the quality,

performance, merchantability, or fitness for a particular purpose.

Information in this User Guide is subject to change without notice and does not represent a commitment on

the part of SMC. SMC assumes no responsibility for any inaccuracies that may be contained in this User

Guide.

SMC makes no commitment to update or keep current the information in this User Guide, and reserves the

right to make changes to this User Guide and/or product without notice.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, recording, or information storage and retrieval systems, for any

purpose other than the purchaser's personal use, without the express written permission of SMC.

SMC Networks, Inc.

38 Tesla

Irvine, California 92618

Trademarks

SMC® is a registered trademark; and EZ-Stream, EZ Connect, Barricade and EZ Hub are trademarks of

SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their

respective holders.

Compliances

FCC - Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with instructions, may cause harmful interference to

radio communications. However, there is no guarantee that the interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: To assure continued compliance, (for example - use only shielded interface cables when

connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

CAUTION STATEMENT:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 5 centimeters between the

radiator and your body. This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter. Note: In order to maintain compliance with the limits of a Class B digital device,

SMC requires that you use a quality interface cable when connecting to this device. Changes or

modifications not expressly approved by SMC could void the user’s authority to operate this equipment.

Attach unshielded twisted-pair cable (UTP) to the RJ-45 port and shielded USB cable to the USB port.

iii

EC Conformance Declaration – Class B

SMC contact for these products in Europe is:

SMC Networks Europe,

Edificio Conata II

Calle Fructuos Gelabert 6-8, 2o, 4a

08970 – Sant Joan Despi

Barcelona, Spain

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1

Class B, and EN 50082-1. This meets the essential protection requirements of the European Council

Directive 89/336/EEC on the approximation of the laws of the member states relation to electromagnetic

compatibility.

Important Safety Notices

•Unplug this product from the AC power before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a dry cloth for cleaning.

•Route the power supply cords so that they are not likely to be walked on or pinched by items

placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles,

and the point where they exit from the product.

•Situate the product away from heat sources such as radiators, heat registers, stoves, and other

products that produce heat.

•To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do not allow water or

any foreign objects to enter the interior. This may cause a fire or electric shock. In the event that

water or other foreign objects get into the product, immediately unplug the AC adapter from the

electrical outlet and contact Customer Service for inspection and/or repair/replacement options.

•Do not take apart the equipment. This may cause fire, electric shock or other injuries.

•Do not overload wall outlets and extension cords as this can result in a fire or electric shock.

•This product is for use with the AC adapter that comes with it. Use with any other AC power is

strongly discouraged as it may cause fire, electric shock, or damage to the equipment.

TABLE OF CONTENTS

1 | SYSTEM REQUIREMENTS 8

2 | EQUIPMENT CHECKLIST 8

3 | FUNCTIONS AND FEATURES 9

4 | PANEL LAYOUT 10

5 | HARDWARE INSTALLATION 11

6 | NETWORK SETTINGS AND SOFTWARE INSTALLATION 12

6.1 | Installing TCP/IP 12

6.2 | Setting up TCP/IP 12

6.3 | Obtaining an IP Address 13

6.4 | Configuring a Macintosh Computer 13

6.5 | Verifying Your TCP/IP Connection 14

7 | CONFIGURING YOUR BROADBAND ROUTER 15

7.1 | Browser Configuration 15

7.2 | Web Management 15

7.3 | Setup Wizard 16

7.3.1 | Time Zone 16

7.3.2 | Broadband Type 16

7.3.4 | Cable Modem 17

7.3.5 | Fixed-IP xDSL 17

7.3.6 | PPPoE xDSL 18

7.3.7 | PPTP 19

7.3.8 | BigPond 19

7.3.9 | L2TP 20

7.4 | Advanced Setup – SYSTEM 21

7.4.1 | Time Zone 21

7.4.2 | Password Settings 22

7.4.3 | Remote Management 22

7.4.4 | Syslog Server 23

7.5 | Advanced Setup - WAN 24

7.5.1 | Dynamic IP 24

7.5.2 | PPPoE 25

7.5.3 | PPTP 26

7.5.4 | Static IP 27

7.5.6 | BigPond 27

7.5.7 | L2TP 28

7.6 | Advanced Setup - LAN 29

7.7 | Advanced Setup - NAT 30

7.7.1 | Virtual Server 30

7.7.2 | Special Applications 31

7.8 | Advanced Setup - FIREWALL 32

7.8.1 | Network Filters 32

7.8.2 | URL Blocking 33

7.8.3 | MAC Filter 34

7.8.4 | Schedule Rule 35

7.8.5 | Advanced 36

7.8.6 | DMZ 37

7.9 | Advanced Setup - SNMP 37

7.10 | Advanced Setup - ROUTING 38

7.11 | Advanced Setup - MISCELLANEOUS 39

7.12 | Advanced Setup – DISPLAY STATUS 40

7.13 | DDNS (Dynamic DNS) 40

7.14 | UPnP (Universal Plug-and-Play) 41

7.15 | Tools 41

7.16 | Status 42

8 | LPR PRINTING GUIDE 43

8.1 | Installing a LPR Print Server on Windows XP and Windows 2000 43

8.2 | Installing the Printe Server Monitor for Windows XP, 2000, NT 49

8.3 | Installing the Printer Server on Windows 98/SE/ME 53

8.4 | Installing an LPR Print Server on Linux 58

8.5 | Installing an LPR Print Server on Mac OS 9 62

8.6 | Installing an LPR Print Server on Mac OS X 10.3 64

9 | TROUBLESHOOTING 66

10 | TERMINOLOGY 68

11 | TECHNICAL SPECIFICATIONS 72

12 | COMPLIANCES 73

13 | LEGAL INFORMATION AND CONTACTS 75

vii

1 | System Requirements

• Internet access from your local telephone company or Internet Service Provider (ISP) using

a DSL modem, cable modem, Dial-Up modem, or ISDN modem

• A PC using a fixed IP address or dynamic IP address assigned via DHCP, as well as a

Gateway server address and DNS server address from your service provider

• A computer equipped with a 10 Mbps, 100 Mbps, or 10/100 Mbps Fast Ethernet card, or a

USB-to-Ethernet converter

• TCP/IP network protocol installed on each PC that needs to access the internet

• A Java-enabled web browser, such as Microsoft Internet Explorer 5.0 or above, or Netscape

Communicator 4.0 or above installed on one PC at your site for configuring the router.

2 | Equipment Checklist

After unpacking the Barricade™ Cable/DSL Broadband Router, check the contents of the box to be sure

you have received the following components:

• 1 Barricade™ Cable/DSL Broadband Router

• 1 EZ Installation Wizard and Documentation CD

• 1 Ethernet (CAT5-UTP/Straight-Through) Cable

• 1 Power Adapter

• 1 Quick Installation Guide

Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If possible, please

retain the carton and original packing materials in case there is a need to return the product.

Please register this product and upgrade the product warranty at SMC's Web site:

http://www.smc.com

3 | Functions and Features

Broadband Modem and NAT Router Connects multiple computers to a broadband (cable or DSL)

modem, and/or Ethernet router to access the Internet.

10/100 Mbps Ethernet Interface Provides a 10/100 Base-TX interface to connect to a DSL or cable

modem for broadband Internet access.

Auto-sensing Ethernet Switch Equipped with a 4-port auto-sensing Ethernet switch.

Printer sharing

Embedded a print server to allow all of the networked computers

to share one printer.

Built-in USB(parallel) host to connect to USB (parallel)printer for

printer sharing

WAN type supported

The router supports some WAN types, Static ,Dynamic, PPPOE

,PPTP , Dynamic IP with Road Runner.

Firewall All unwanted packets from outside sources are blocked to protect

your intranet.

DHCP Server Supported All networked computers can retrieve TCP/IP settings

automatically from this device.

Web-based Configuration Configurable by any networked computer’s Web browser using

Netscape or Internet Explorer.

Network Filter Supported The Packet Filter lets you control access to a network by analyzing

the incoming and outgoing packets; this lets you pass or halt

packets based on the IP address or the source and destination.

Universal Plug and Play (UPnP)

Supported

Enables devices such as PCs, routers and printers to be plugged

into a network and ensure automatic recognition.

Virtual Server Supported Lets you make your Website, FTP site, and other services on your

LAN accessible to Internet users.

User Defined Application Sensing

Tunnel

Lets you define the attributes to support special applications that

require multiple connections like Internet gaming, video

conferencing, Internet telephony, and so on. This device can sense

the application type and opens a multi-port tunnel for it.

DMZ Host Supported Enables a computer to be fully accessible to the Internet. This

function is used when the special application sensing tunnel

feature is insufficient to allow an application to function correctly.

SNMP Supported SNMP (Simple Network Management Protocol) is a protocol that

lets users remotely manage a computer network by polling and

setting terminal values, and monitoring network events.

System Time Supported Lets you synchronize system time with the network time server.

Virtual Computers Supported The virtual computer lets you use the original NAT feature, which

lets you setup the one-to-one mapping of multiple global and local

IP addresses.

URL Blocking Supported Lets you block hundreds of Website connections by simply

entering a keyword.

Schedule Rule Lets you set a time schedule for different services.

Routing Table Supported Allows you to determine which physical interface address to use

for outgoing IP data grams. If you have more than one router and

subnet, enable the routing table to allow packets to find the proper

routing path and the different subnets to communicate with each

other.

4 | Panel Layout

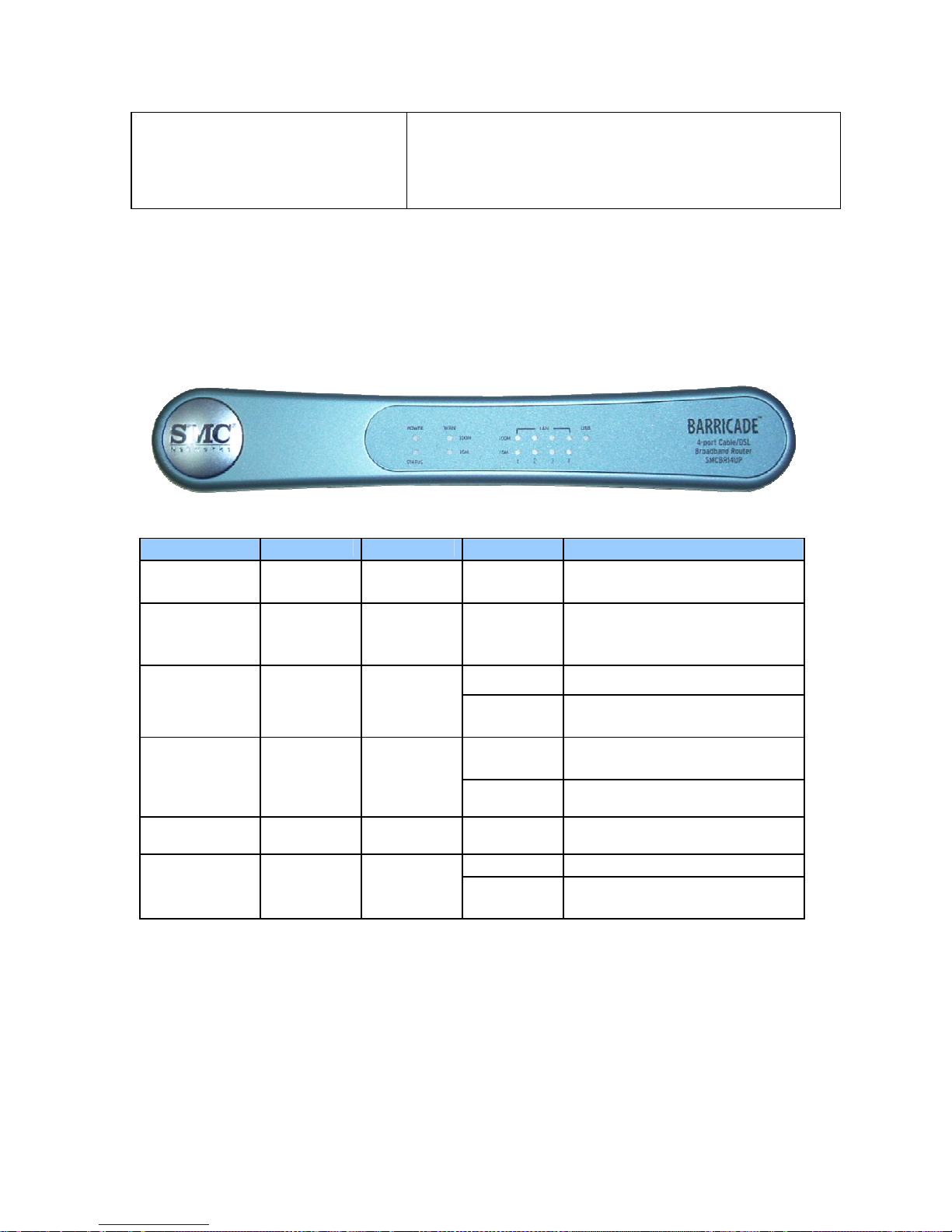

The following figure shows the front panel layout, which is followed by a table describing in detail the

status and function of each LED.

SMCBR14UP

LED Function Color Status Description

Power Power

indicator Green Steady Power is being applied to this

device

M1 System

status

indicator

Orange Blinking M1 is flashing once every

second to indicate that the

system has power

Steady The WAN port is connectedWAN Wan port

activity Green

Blinking The WAN port is sending or

receiving data

Steady An active station is connected to

the LAN port

Link/Act. 1–4 Link status Green

Blinking The corresponding LAN port is

sending of receiving data

Speed 10/100 Data rate Green Steady Data is transmitted at 100 Mbps

On The USB port is linked.

USB USB port

activity Green

Blinking The USB port is sending or

receiving data.

SMCBR14UP Rear Panel: 4 LAN, 1 WAN, 1 USB, 1 PRINTER

Altri manuali per Barricade SMCBR14UP

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali SMC Networks Router wireless

SMC Networks

SMC Networks Barricade g SMC7804WBRA Manuale utente

SMC Networks

SMC Networks barricade SMCWBR14-G2 Manuale utente

SMC Networks

SMC Networks Barricade SMC7904WBRA Manuale utente

SMC Networks

SMC Networks SMC Barricade N Draft 11n Wireless 4-port Broadband Router... Guida all'installazione

SMC Networks

SMC Networks Barricade SMC7004AWBR Manuale utente

SMC Networks

SMC Networks THE BARRICADE SMCWBR14S-N4 Manuale utente

SMC Networks

SMC Networks Barricade SMC7004ABR V.2 Manuale utente

SMC Networks

SMC Networks Barricade SMC2404WBR Manuale utente

SMC Networks

SMC Networks SMCWBR14-GM Barricade Manuale utente

SMC Networks

SMC Networks BR14VPN - annexe 1 Manuale utente

SMC Networks

SMC Networks BARRICADETM SMCWGBR14-N2 Manuale utente

SMC Networks

SMC Networks WBR11S-N Manuale utente

SMC Networks

SMC Networks WBR14S-N4 - annexe 1 Manuale utente

SMC Networks

SMC Networks Barricade SMCWBR14T-G Manuale utente

SMC Networks

SMC Networks Barricade SMC7904BRA Manuale utente

SMC Networks

SMC Networks Barricade SMCWBR14-G Manuale utente

SMC Networks

SMC Networks Barricade SMC7901WBRA2 Manuale utente

SMC Networks

SMC Networks 7904WBRA2 Manuale utente

SMC Networks

SMC Networks Barricade SMC7908VoWBRA Manuale utente

SMC Networks

SMC Networks EZ-Stream SMC2304WBR-AG Manuale utente

SMC Networks

SMC Networks SMC Barricade g SMC7904WBRA2 Manuale utente

SMC Networks

SMC Networks Barricade SMCWBR14S-N3 Manuale utente

SMC Networks

SMC Networks Barricade SMCWBR14T-G Manuale utente

SMC Networks

SMC Networks 7901BRA4 - annexe 1 Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

Draytek

Draytek Vigor2120 Series Manuale utente
