INSTRUCTION MANUAL

GUIDE FOR USING THE DISHWASHER AND THE WASHING PROGRAMS

Contents

Description of the controls ________________________________2

Operating instructions___________________________________ 14

Cleaning and maintenance_______________________________ 27

Troubleshooting _______________________________________ 31

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

Recommendations are given for the correct use of the baskets, spray

arms, containers, filters, washing programs, and for operating the

controls.

Following the cleaning instructions provided here will keep your

dishwasher's performance at peak levels in the long term.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

USER INSTRUCTIONS: these consist of recommendations for using the

appliance, a description of its controls and of the correct cleaning and

maintenance procedures.

User instructions

1. Description of the controls

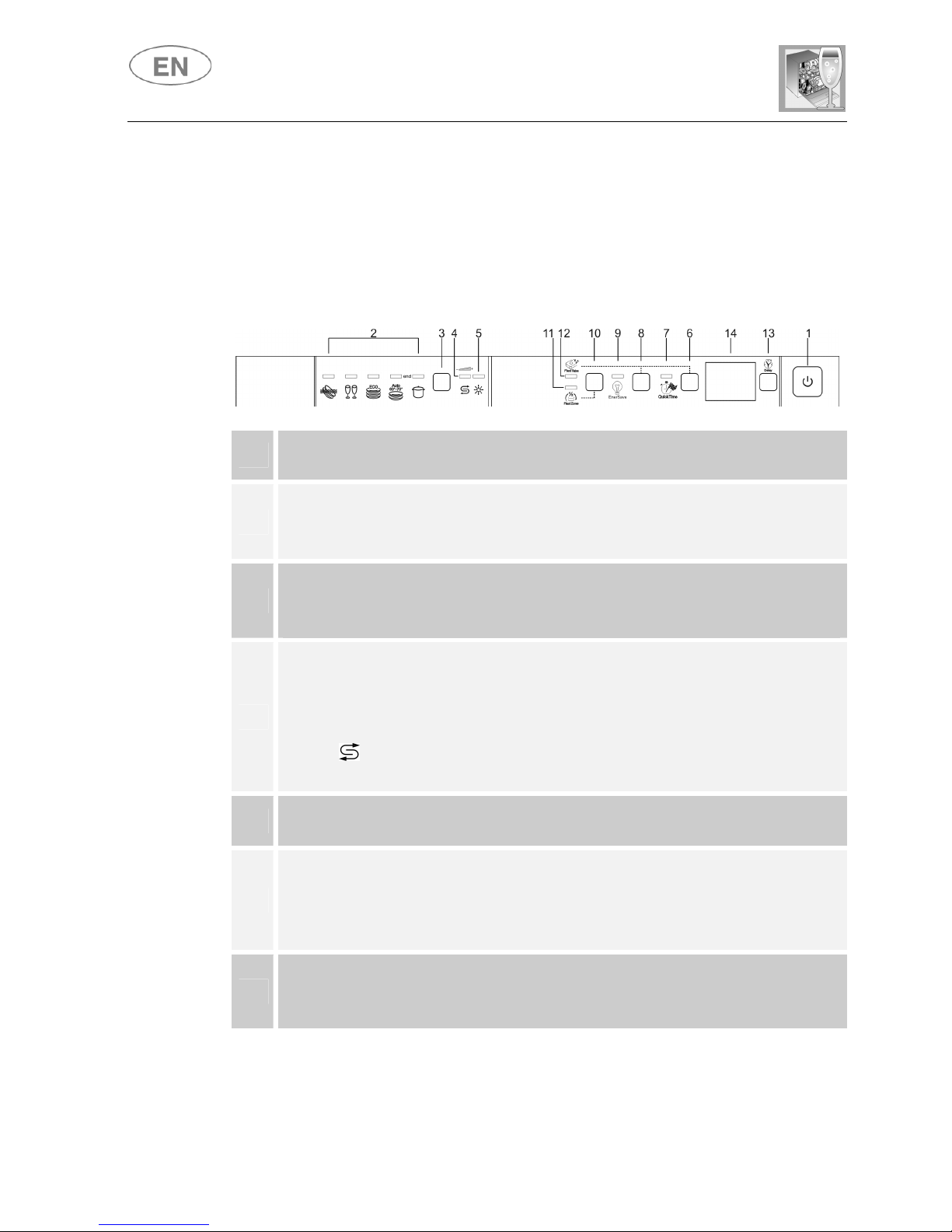

1.1 Upper panel

All the dishwasher controls are grouped on the upper panel. Switch-on,

programming, switch-off etc. procedures are only possible when the

door is open.

1 ON/OFF BUTTON

Pressing this button energises the appliance.

2 SELECTED PROGRAM INDICATOR LIGHTS

Illumination of this light denotes the program selected and the

occurrence of a fault (troubleshooting).

3 PROGRAM SELECTION BUTTON

By pressing this button in sequence it is possible to select the

desired program.

WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT

The light flashes to indicate that the appliance is in “water hardness

adjustment” mode.

SALT WARNIN LIGHT (on some models only)

If the symbol is present, illumination of this light denotes a

regenerating salt warning level.

5 RINSE AID WARNING LIGHT (on some models only)

Illumination of this light signals that rinse aid dispenser is empty.

QUICK TIME OPTION BUTTON + EXTRA OPTION BUTTON

(see “EXTRA OPTIONS” section)

The button controls selection of the quick time programs.

(see table).

7 QUICK TIME OPTION LIGHT

Illuminates to indicate that one of the extra programs (see table) is

going to be executed.

User instructions

8 ENERSAVE OPTION + EXTRA OPTION BUTTON

(see “EXTRA OPTIONS” section)

Press the button to enable/disable the option.

9 ENERSAVE OPTION LIGHT

Illuminates to indicate that the function is activated.

HALF LOAD BUTTON

Press this button to activate the half load wash option.

HALF LOAD LIGHT

Illuminates to indicate that the function is activated.

"3/1" OPTION (EXTRA OPTION) LIGHT

Illuminates to indicate that the function is activated.

PROGRAM DELAY BUTTON

Press this button to delay the start of the program.

INFORMATION DISPLAY

N.B.: symbols and styling are guideline and may vary depending on

the model or version of the dishwasher purchased.

Information displayed

Scheduled program duration yes

Remaining program time yes

Delayed start 1 - 24 hours

Error message

Err

User instructions

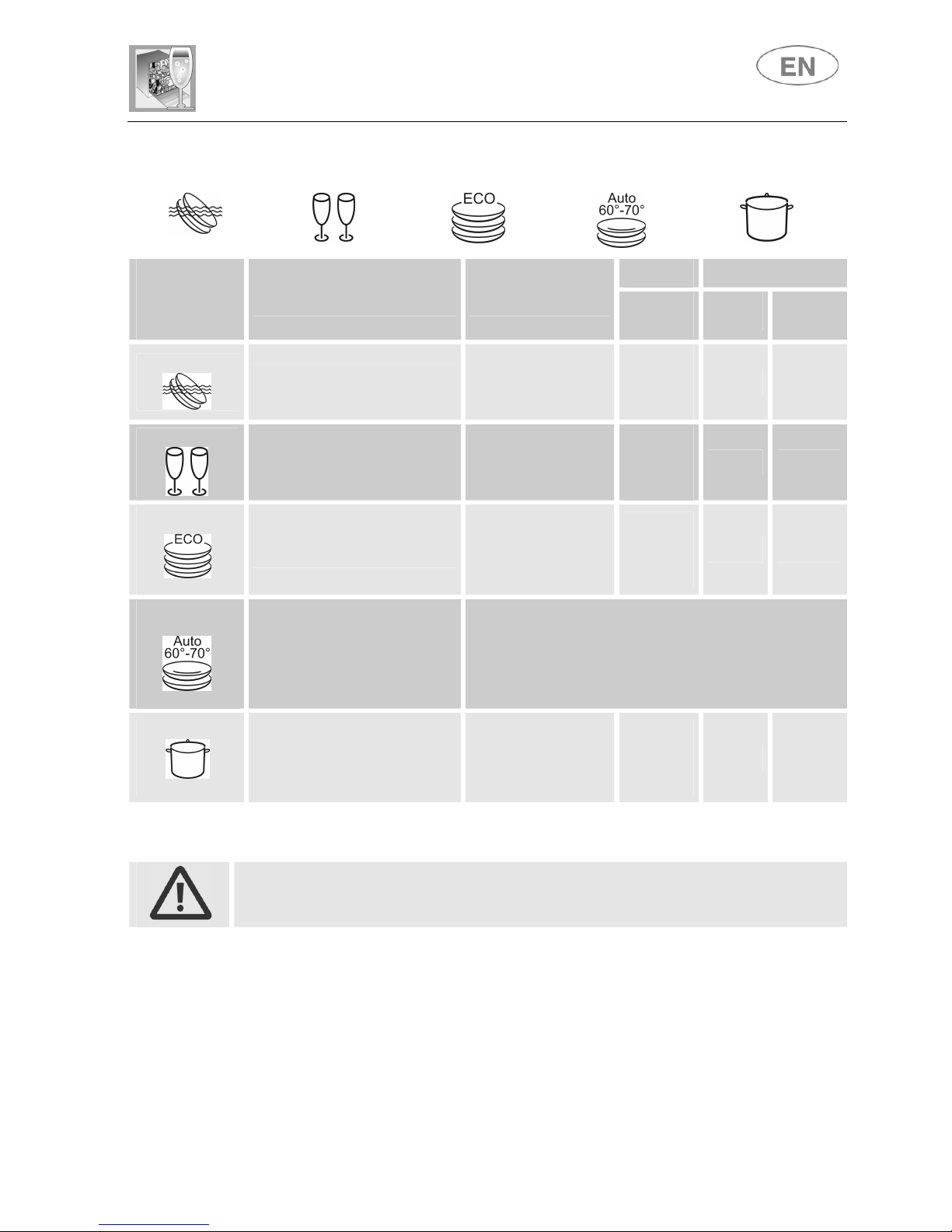

PROGRAMS TABLE

The manual contains the programs table for several models. To find the

table for your dishwasher, compare the program symbols at the top of the

table with those on your control panel.

SETTING THE WASHING PROGRAM AND

SWITCHING ON

After identifying the most suitable program with the aid of the programs

table:

•Press the ON/OFF button (1) and wait for the PROGRAM

INDICATOR LIGHT (2) to illuminate;

•Keep pressing the PROGRAM SELECTION button (3) until the

indicator light corresponding to the desired program illuminates;

•select the option required (if any and if the model provides options);

•close the door; after about 2" the program will start LIGHT will

flashing (indicating that the program is being executed).

User instructions

PROGRAMS TABLE

PROGRAMME,

NUMBER &

SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTES

(1)

WATER

LITRES

POWER

KWh (1)

SOAK

Pans and dishes awaiting

completion of the load. Cold prewash

3,5 0,02

2 GLASS

Glass, china and mixed

dishes with light dirt.

Wash at 45°C

Cold rinse

Rinse at 70°C

Dry

9,5 1,10

ECO (*)

EN 50242

Dishes with normal dirt, even

with dried-on residues.

Wash at 45°C

Cold rinse

Rinse at 55°C

Dry

** **

AUTO

60-70

IEC/DIN***

Pans and dishes with normal

dirt, even with dried-on

residues.

When the "

AUTO

" program is selected, the dishwasher

recognises the type of dirt and automatically adjusts the

washing parameters as appropriate.

SUPER

****

Very dirty pans and dishes,

even with dried-on residues.

Hot prewash

Wash at 70°C

Cold rinse (2)

Rinse at 70°C

Dry

135

15,5 1,60

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

User instructions

QUICK TIME PROGRAMS

(see relevant section for explanation of functioning modes)

PROGRAMME

NUMBER E

SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTI

(1)

WATER

LITRES

POWER

KWh (1)

RAPID 27’

Dishes with light dirt,

washed immediately after

use

Wash at 38°C

Rinse at 50°C

6,5 0,70

ECO

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 60°C

Cold rinse

Rinse at 70°C

12,5 1,25

NORMAL

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 70°C

Cold rinse

Rinse at 70°C

13 1,40

STRONG and

FAST

Mixed dishes with normal dirt

without dried-on residues.

Wash at 65°C

Cold rinse

Rinse at 70°C

55 9,5 1,35

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

User instructions

PROGRAMS TABLE

PROGRAMME

NUMBER

& SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTES

(1)

WATER

LITRES

POWER

KWh (1)

SOAK

Pans and dishes awaiting

completion of the load Cold prewash

15 3,5 0,02

2 GLASS

Glass, china and mixed

dishes with light dirt.

Wash at 45°C

Cold rinse

Rinse at 70°C

Dry

9,5 1,10

ECO (*)

EN 50242

Dishes with normal dirt,

even with dried-on

residues

Wash at 45°C

Cold rinse

Rinse at 55°C

Dry

** **

4 NORMAL

IEC/DIN***

Dishes with normal dirt,

even with dried-on

residues

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 70°C

Dry

105

13,5 1,35

ULTRA

CLEAN

****

Very dirty pans and

dishes, even with dried-on

residues.

Hot prewash

Wash at 70°C

Cold rinse (2)

Rinse at 70°C

Dry

155

15,5 1,70

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

The

ULTRA CLEAN

program terminate with an extra anti-bacteria rinse that ensures

a further reduction in the bacteria level. If the temperature falls during this stage of

the program (e.g. because the door is opened or due to a power blackout), the

program lights flash to warn that the anti-bacteria effect is not guaranteed.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

User instructions

QUICK TIME PROGRAMS

(see relevant section for explanation of functioning modes)

PROGRAMME

NUMBER E

SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTI

(1)

WATER

LITRES

POWER

KWh (1)

RAPID 27’

Dishes with light dirt,

washed immediately after

use

Wash at 38°C

Rinse at 50°C

6,5 0,70

ECO

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 60°C

Cold rinse

Rinse at 70°C

12,5 1,25

NORMAL

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 70°C

Cold rinse

Rinse at 70°C

13 1,40

STRONG

and FAST

Mixed dishes with normal

dirt without dried-on

residues.

Wash at 65°C

Cold rinse

Rinse at 70°C

9,5 1,35

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.
