Smeg LVS45ELM-N Manuale utente

INSTRUCTION MANUAL

Contents



1. Description of the controls________________________________14

2. Troubleshooting _______________________________________22

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



1. Description of the controls

1.1 Front panel

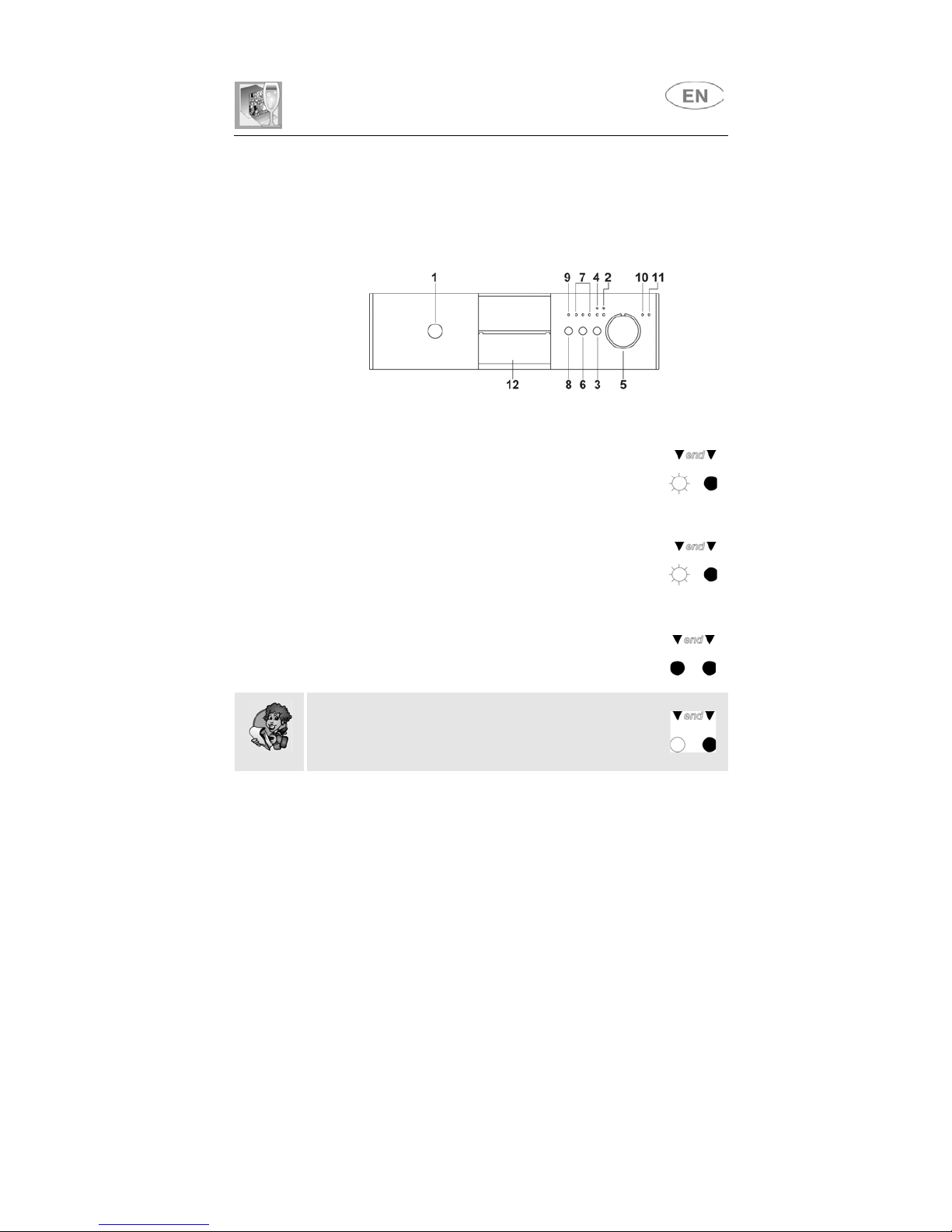

All the dishwasher control are grouped on the front panel. Programming

and option selection are only possible with the door closed.

1ON/OFF BUTTON

2ON/OFF LIGHT

3START/PAUSE BUTTON

4START/PAUSE LIGHT

5PROGRAMS SELECTOR

6DELAYED START BUTTON (on some models only)

7DELAYED START LIGHTS (on some models only)

8"3/1" OPTION BUTTON (on some models only)

9"3/1" OPTION LIGHT (on some models only)

10 NO SALT LIGHT (on some models only)

11 NO RINSE AID LIGHT (on some models only)

12 RECESSED DOOR HANDLE

On the pages which follow the operating status of the indicator lights will

appear as follows:

Light off Light on Light flashing

User instructions



PROGRAMS TABLE

DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 9'50,03

QUICK

DISHES NOT MUCH DIRTY

AND WITH "FRESH DIRT"

WITHOUT RESIDUAL DRY

Wash at 38°C

Cold rinse

Rinse at 58°C

45' 13 0,70

DELICATE DISHES

NOT VERY DIRTY

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

59' 12 0,90

ECO

(*)

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Wash at 55°C

Cold rinse

Rinse at 66°C

Dry

175' (AAA)

125' (AAB)

(**)

13 1,01

BIO PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

160' 161,05

AUTO 40-50

WASH IMMEDIATELY AFTER

USE FOR DISHES WITH

NORMAL DIRT

Cold prewash

Wash at 40°C

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

AUTO 60-70

NORMALLY

SOILED DISHES,

INCLUDING DRIED-ON

RESIDUE

Cold prewash

Wash at 50°C

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

SUPER

PANS AND DISHES

VERY DIRTY AND WITH

DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 68°C

Dry

105' 20 1,50

Only run the soak program with half loads.

The "3/1"option (8) is available for all programs except the soak program.

(*) Reference program as per EN 50242 standard.

(**) When the "AUTO 40-50" or "AUTO 60-70" program is selected, the dishwasher recognises

the type of dirt and automatically adjusts the washing parameters as appropriate.

(***) Depending on the models AAA-AAB (see energy label).

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

User instructions



TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program (*) Program ECO

Load 10 place-settings

Type of detergent B

Amount of detergent 25 g

Rinse aid setting 5/6

1.2 Washing programs

The dishwasher is equipped with a control panel, described in chapter

"1. Description of the controls", from which it is possible to carry out all

the power switch-on, switch-off and programming operations.

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

LIGHTING

When the ON/OFF button (1) is pressed, the dishwasher switches on.

The ON/OFF (2) and START/PAUSE (4) lights will indicate one of the

following states:

Program start

Dishwasher ready to execute a new program.

Program end

Door closed and washing program over.

Alarm

Alarm state (see chapter "Troubleshooting").

User instructions



PROGRAMMING

All programming operations are only possible with the door closed.

To select a new program, the dishwasher must be in the "Program

start" state described above. Turn the PROGRAM SELECTOR (5) to

the program of your choice (see "PROGRAMS TABLE").

START PROGRAM

Press the START/PAUSE button (3) for a few seconds, until

the START/PAUSE light (4) starts to flash. A beep confirms

the operation.

PROGRAM SEQUENCE

For the entire duration of the program, ON/OFF (2) indicator

light remains permanently on, whereas the START/PAUSE

(4) indicator light flashes.

END PROGRAM

To indicate the end of the program, a short beep sounds

and the ON/OFF (2) and START/PAUSE (4) lights

illuminate simultaneously.

Before a new washing cycle can be selected the dishwasher

must be in "Program start" state: press the START/PAUSE

button (3) until the configuration of indicator lights (2) and

(4) is as follows.

User instructions



INTERRUPTION OF A PROGRAM

Press the START/PAUSE button (3) for a few seconds, until

the configuration of the ON/OFF (2) and START/PAUSE (4)

lights is as follows.

You may now restart ("START PROGRAM") or change the program which

was interrupted.

TO CHANGE A PROGRAM

To change the running program it is necessary:

•to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);

•select the new program;

•to press again the START/PAUSE button (3) to make start the new

program.

ANNULLING A PROGRAM

To annul the program in progress, it must first be interrupted (see

“INTERRUPTION OF A PROGRAM”).

Turn the PROGRAM SELECTOR (5) to any point on the "empty" sector

(with no symbols) on the left of the selector and start the dishwasher.

After the water has discharged from the tank, the ON/OFF

(2) and START/PAUSE (4) lights will both remain on.

If the door is opened with the dishwasher in operation, the

appliance switches to "Pause" state, indicated by a series of

beeps and the following configuration of the ON/OFF (2)

and START/PAUSE (4) lights.

Once the door has been closed again, the "START PROGRAM" procedure

already described must be repeated. The washing cycle will restart from

the point where it was interrupted.

In case that the tub temperature is higher than 50°C the program

will start about 30 seconds later.

If the dishwasher door is not properly closed, the washing cycle will not

start.

User instructions



DELAYING THE PROGRAM (on some models only)

(available in all programs except the soak program)

The DELAYED START button (6) can be pressed to delay the start of

the washing program by 3,6or 9 hours.

Press the button (6) to set the delay you require (the relative light comes

on); then proceed to start the program (see "START PROGRAM").

The dishwasher prewashes the dishes, after which the selected delay

starts and the relative light starts to flash; it will go out when the program

starts.

"3/1" OPTION BUTTON (on some models only)

(available in all programs except the soak program)

By pressing the button (8) you activate the "3/1" option, confirmed when

the relative light comes on. This option has been studied for the use of

dishwashing powder or tablets with integrated substances in place of

regenerating salt or rinse-aid known on the market as “3 in 1” or “triple

action” products; in this case the dishwasher will use the product in an

optimal way avoiding salt and rinse-aid consumption, which could

already be found in the dishwasher.

Note: When selecting the "3/1" button, it is normal that the salt and

rinse-aid lights remain on, if their containers are empty.

User instructions



TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to

60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to

save on electricity, observe the following:

•separate the more delicate items from dishes that are more

resistant to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before

removing the dishes, to allow them to cool down. To prevent any water

droplets on the upper basket from falling on the dishes in the lower

basket, it is advisable to unload the lower basket first, and then the

upper basket.

User instructions



ADJUSTING THE WATER SOFTENING SYSTEM

The dishwasher is equipped with an device for the user to adjust the

water softening system according to the hardness of the water supply.

According to the machine model, the selector which acts on the

adjustment may be located:

•inside the plastic locking ring located on the right-hand side, inside

the dishwasher;

•inside the water softener, just below the cap.

Both allow for adjustment to 5settings.

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 15 8 - 25 Setting N. 1

16 - 23 26 - 40 Setting N. 2

24 - 31 41 - 60 Setting N. 3

32 - 47 61 - 80 Setting N. 4

48 - 58 81 - 100 Setting N. 5

Contact your local water board for information on the hardness of your

water supply.
