Smeg LVS60ELMN Manuale utente

INSTRUCTION MANUAL

Contents



1. Description of the controls________________________________14

2. Troubleshooting _______________________________________22

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



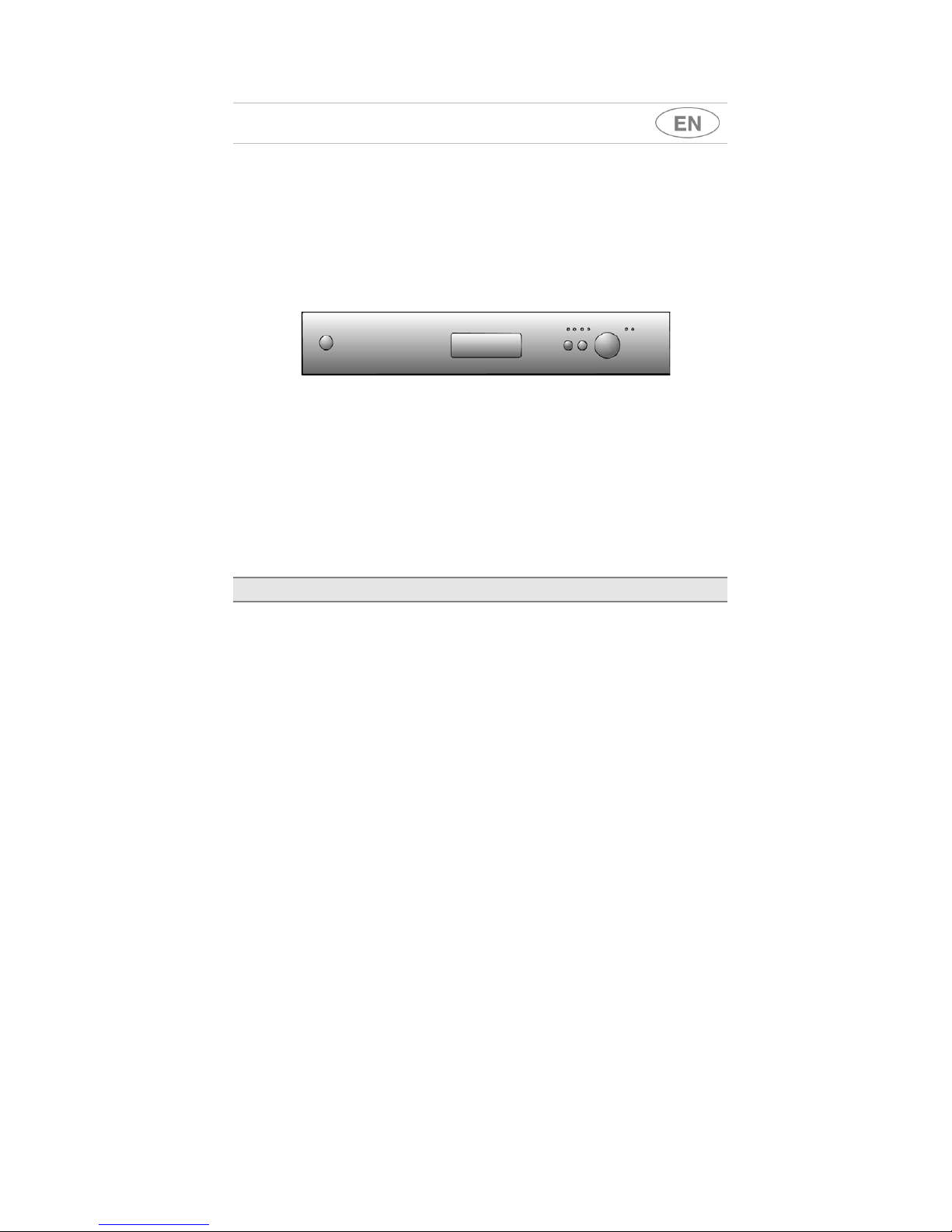

1. Description of the controls

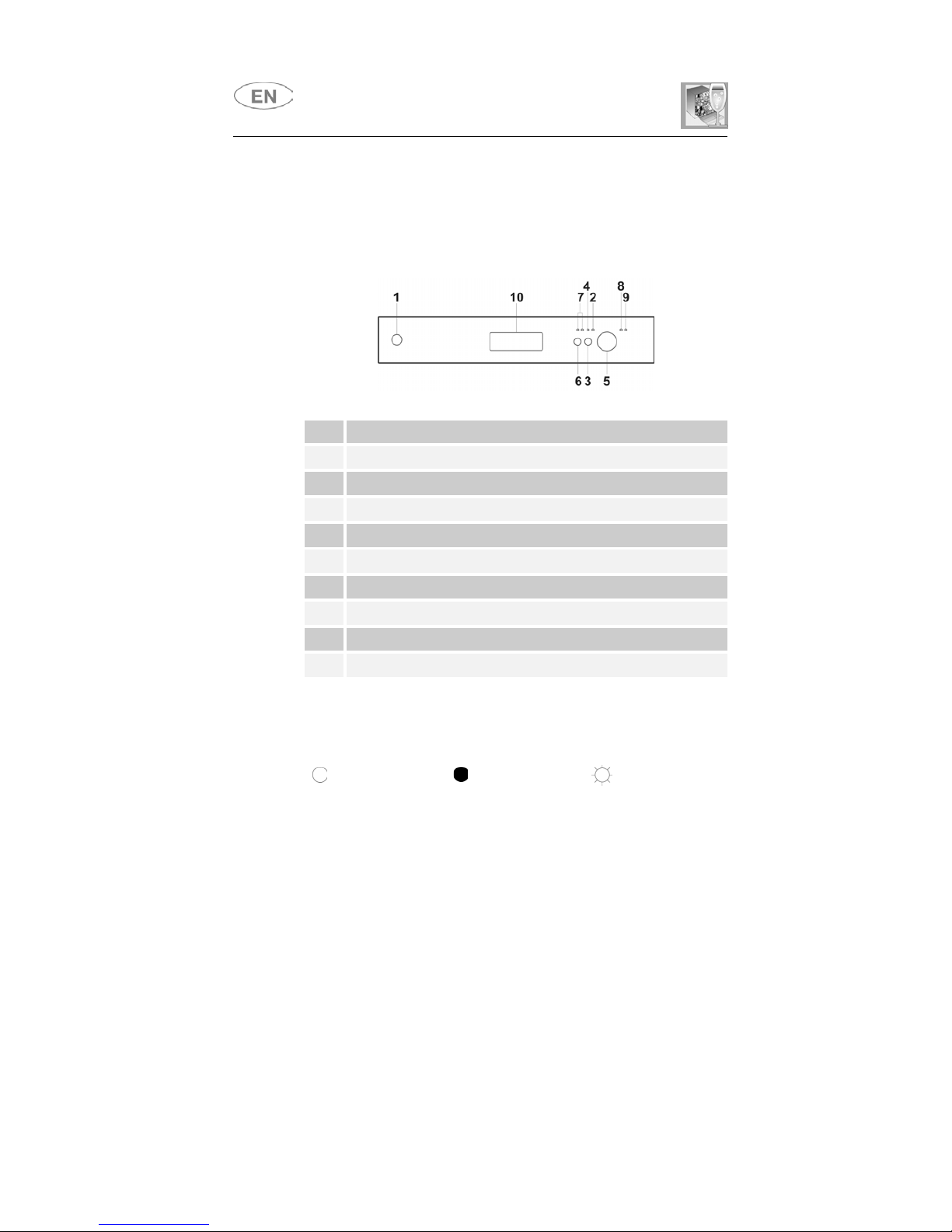

1.1 Front panel

All the dishwasher control are grouped on the front panel.

1ON/OFF BUTTON

2ON/OFF LIGHT

3START/PAUSE BUTTON

4START/PAUSE LIGHT

5PROGRAMS SELECTOR

6½ LOAD WASH BUTTON (on some models only)

7½ LOAD WASH LIGHTS (on some models only)

8NO SALT LIGHT (on some models only)

9NO RINSE AID LIGHT (on some models only)

10 RECESSED DOOR HANDLE

On the pages which follow the operating status of the indicator lights will

appear as follows:

Light off Light on Light flashing

User instructions



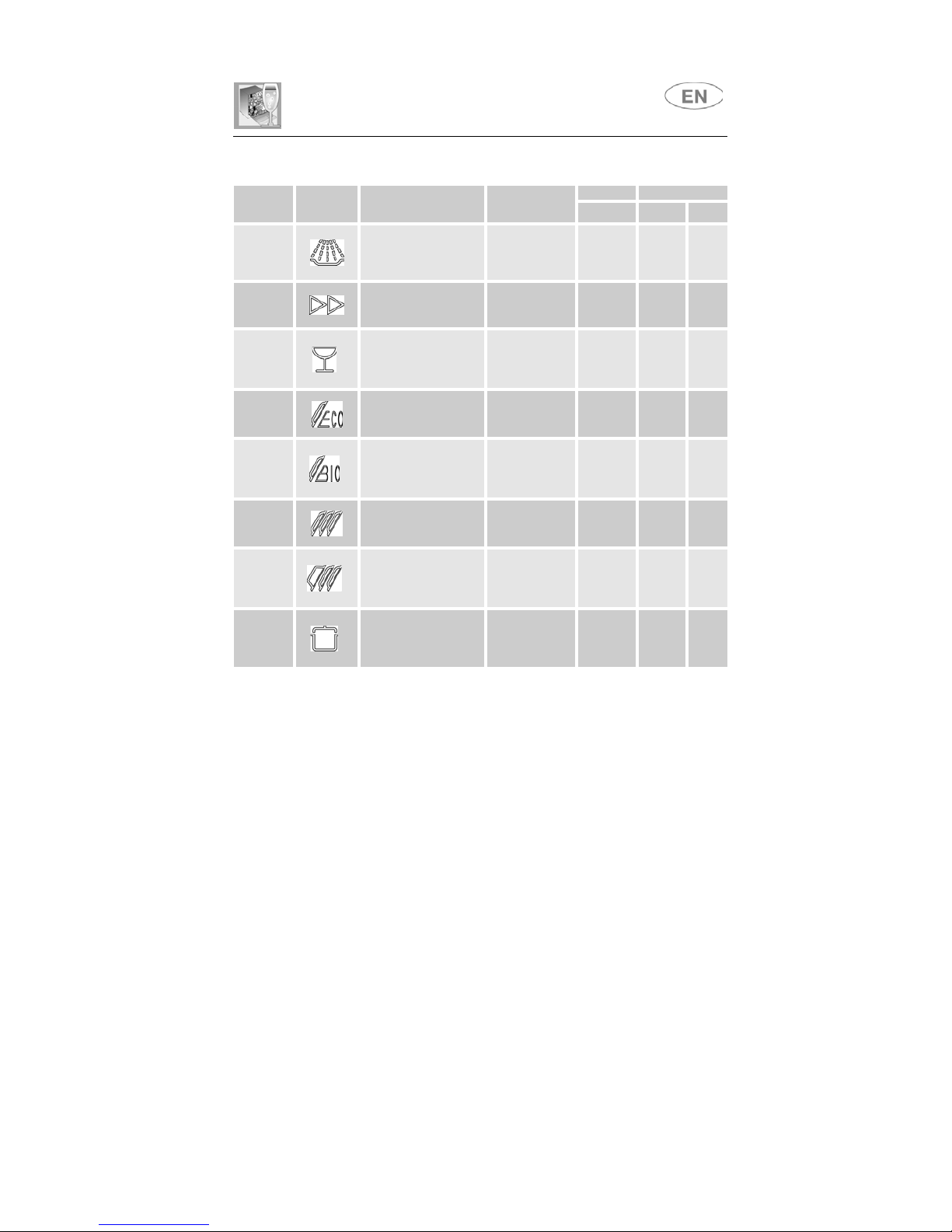

PROGRAMS TABLE

DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 15 60,03

QUICK

DISHES NOT MUCH DIRTY

AND WITH "FRESH DIRT"

WITHOUT RESIDUAL DRY

Wash at 38°C

Cold rinse

Rinse at 58°C

45 13 0,80

DELICATE DISHES

NOT VERY DIRTY

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

75 16 1,05

ECO

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

140 14 1,10

BIO

(*)

PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 55°C

Cold rinse

Rinse at 65°C

Dry

160 17 1,05

DAILY

PANS AND DISHES

WITH NORMAL DIRT,

WITHOUT DRY RESIDUAL

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

95 14 1,25

NORMAL PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

100 17 1,28

SUPER

PANS AND DISHES

VERY DIRTY AND WITH

DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 68°C

Dry

110 20 1,60

Only run the soak program with half loads.

The HALF LOAD option (6) is available for all programs except the soak program.

(*) Reference program as per EN 50242 standard.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

User instructions



TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program (*) Program BIO

Load 12 place-settings

Type of detergent B

Amount of detergent 30 g

Rinse aid setting 5/6

1.2 Washing programs

The dishwasher is equipped with a control panel, described in chapter

"1. Description of the controls", from which it is possible to carry out all

the power switch-on, switch-off and programming operations.

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

LIGHTING

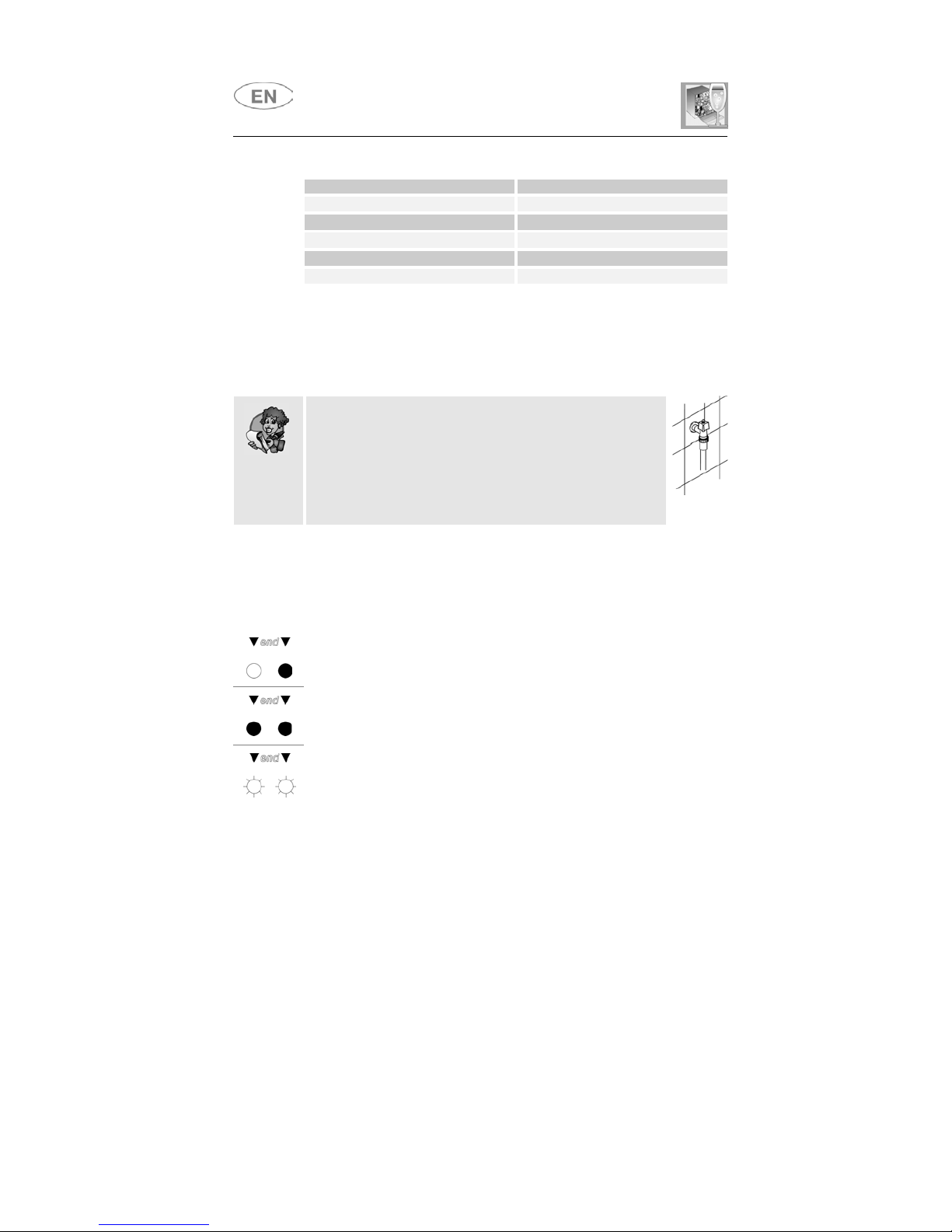

When the ON/OFF button (1) is pressed, the dishwasher switches on.

The ON/OFF (2) and START/PAUSE (4) lights will indicate one of the

following states:

Program start

Dishwasher ready to execute a new program.

Program end

Door closed and washing program over.

Alarm

Alarm state (see chapter "Troubleshooting").

User instructions



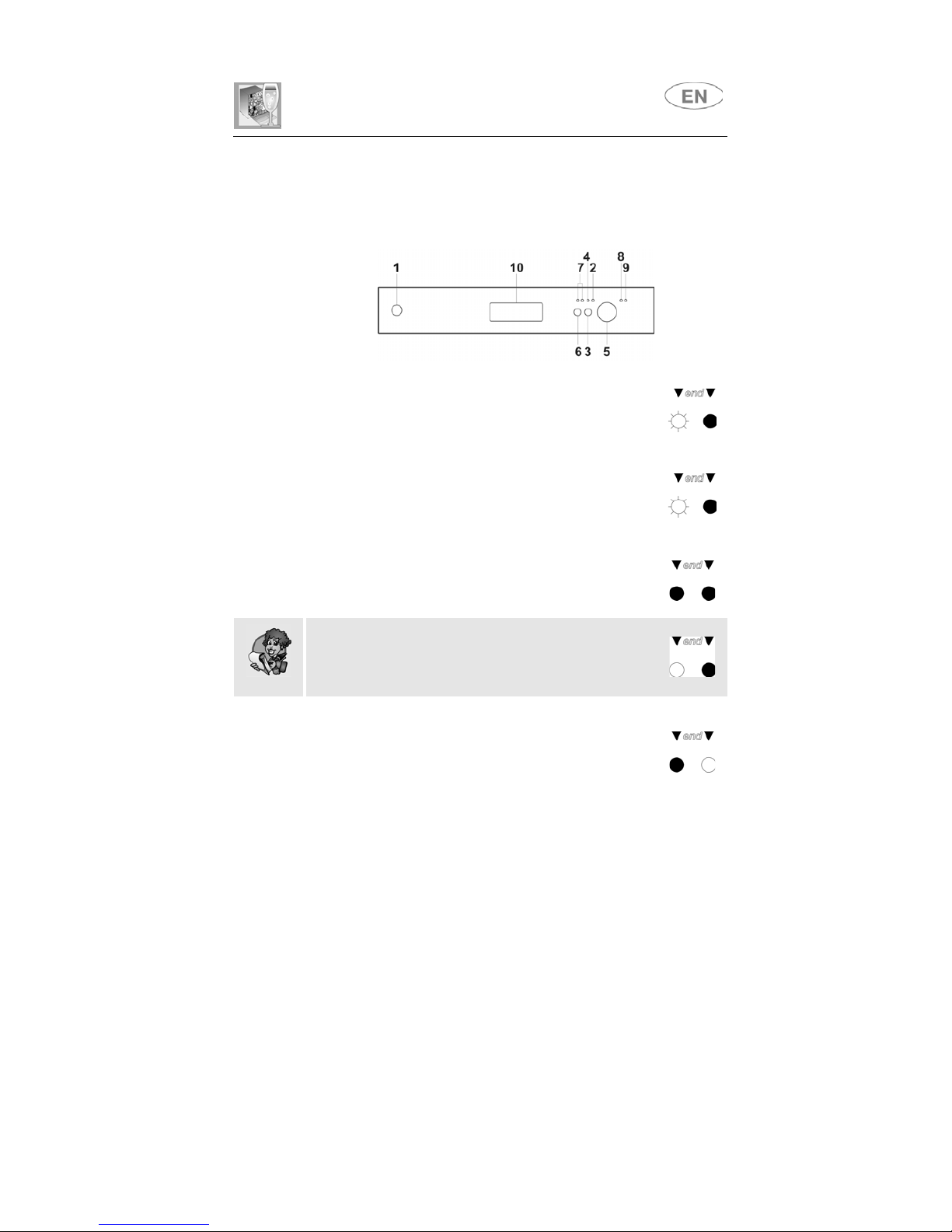

PROGRAMMING

All programming operations are only possible with the door closed.

To select a new program, the dishwasher must be in the "Program

start" state described above. Turn the PROGRAM SELECTOR (5) to

the program of your choice (see "PROGRAMS TABLE").

START PROGRAM

Press the START/PAUSE button (3) for a few seconds, until

the START/PAUSE light (4) starts to flash. A beep confirms

the operation.

PROGRAM SEQUENCE

For the entire duration of the program, ON/OFF (2) indicator

light remains permanently on, whereas the START/PAUSE

(4) indicator light flashes.

END PROGRAM

To indicate the end of the program, a short beep sounds

and the ON/OFF (2) and START/PAUSE (4) lights

illuminate simultaneously.

Before a new washing cycle can be selected the dishwasher

must be in "Program start" state: press the START/PAUSE

button (3) until the configuration of indicator lights (2) and

(4) is as follows.

INTERRUPTION OF A PROGRAM

Press the START/PAUSE button (3) for a few seconds, until

the configuration of the ON/OFF (2) and START/PAUSE (4)

lights is as follows.

You may now restart ("START PROGRAM") or change the program which

was interrupted.

User instructions



TO CHANGE A PROGRAM

To change the running program it is necessary:

•to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);

•select the new program;

•to press again the START/PAUSE button (3) to make start the new

program.

ANNULLING A PROGRAM

To annul the program in progress, it must first be interrupted (see

“INTERRUPTION OF A PROGRAM”).

Turn the PROGRAM SELECTOR (5) to any point on the "empty" sector

(with no symbols) on the left of the selector and start the dishwasher.

After the water has discharged from the tank, the ON/OFF

(2) and START/PAUSE (4) lights will both remain on.

If the door is opened with the dishwasher in operation, the

appliance switches to "Pause" state, indicated by a series of

beeps and the following configuration of the ON/OFF (2)

and START/PAUSE (4) lights.

Once the door has been closed again, the "START PROGRAM" procedure

already described must be repeated. The washing cycle will restart from

the point where it was interrupted.

In case that the tub temperature is higher than 50°C the program

will start about 30 seconds later.

If the dishwasher door is not properly closed, the washing cycle will not

start.

User instructions



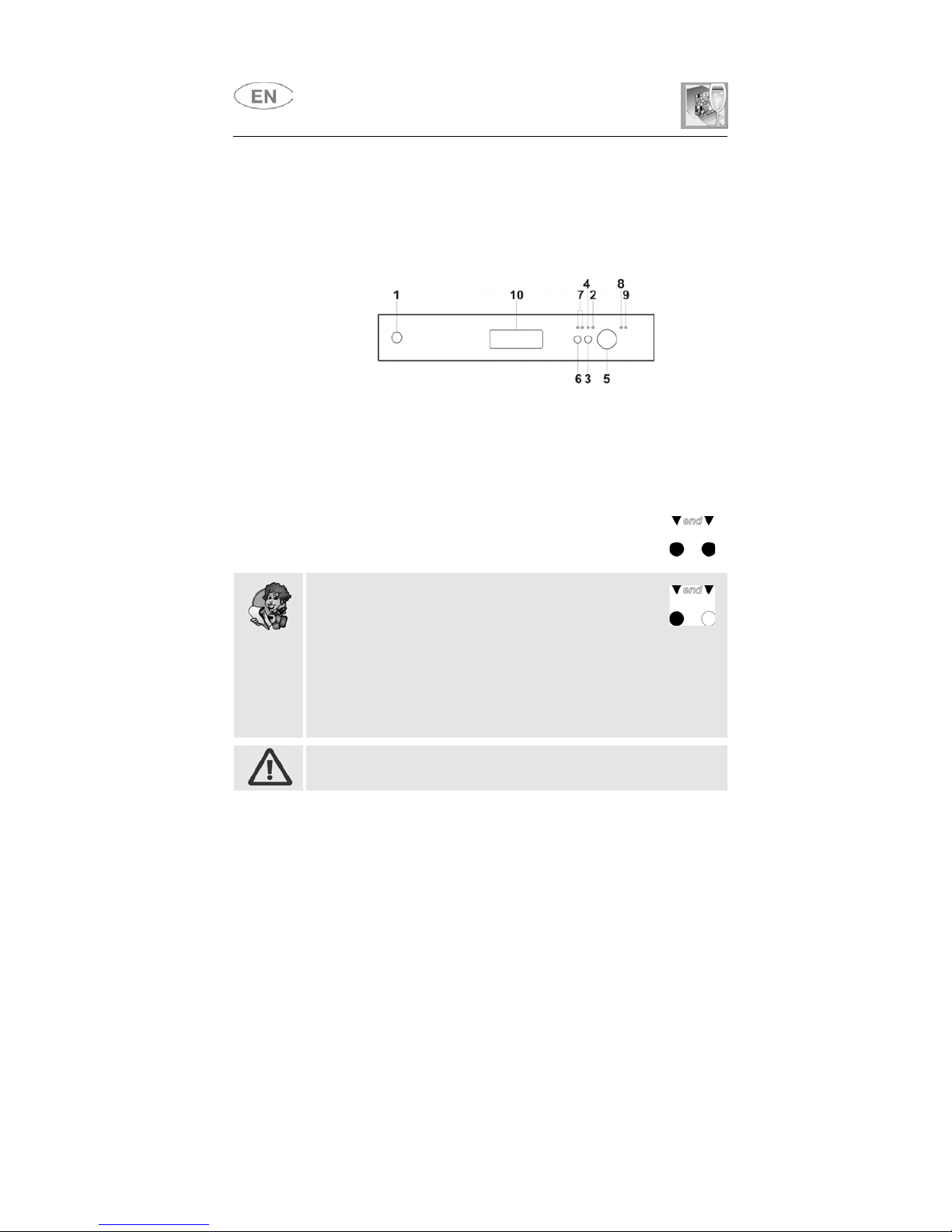

HALF LOAD WASH FUNCTION (on some models only)

Pressing button ½ LOAD WASH (6) selects washing on the top basket

only.

After selecting the program, proceed as follows:

•press the

½ LOAD WASH button (6) once to select washing in the

top basket only;

•press the button (6) again to select washing in the bottom basket

only.

•Press the button (6) a third time to return to the full load washing

mode (washing in both baskets).

The option is disabled at the end of the cycle.

One half of the cutlery basket can be placed in the ½ LOAD program

basket.

WARNING: dishes and cutlery placed in the basket not selected will

not be washed.

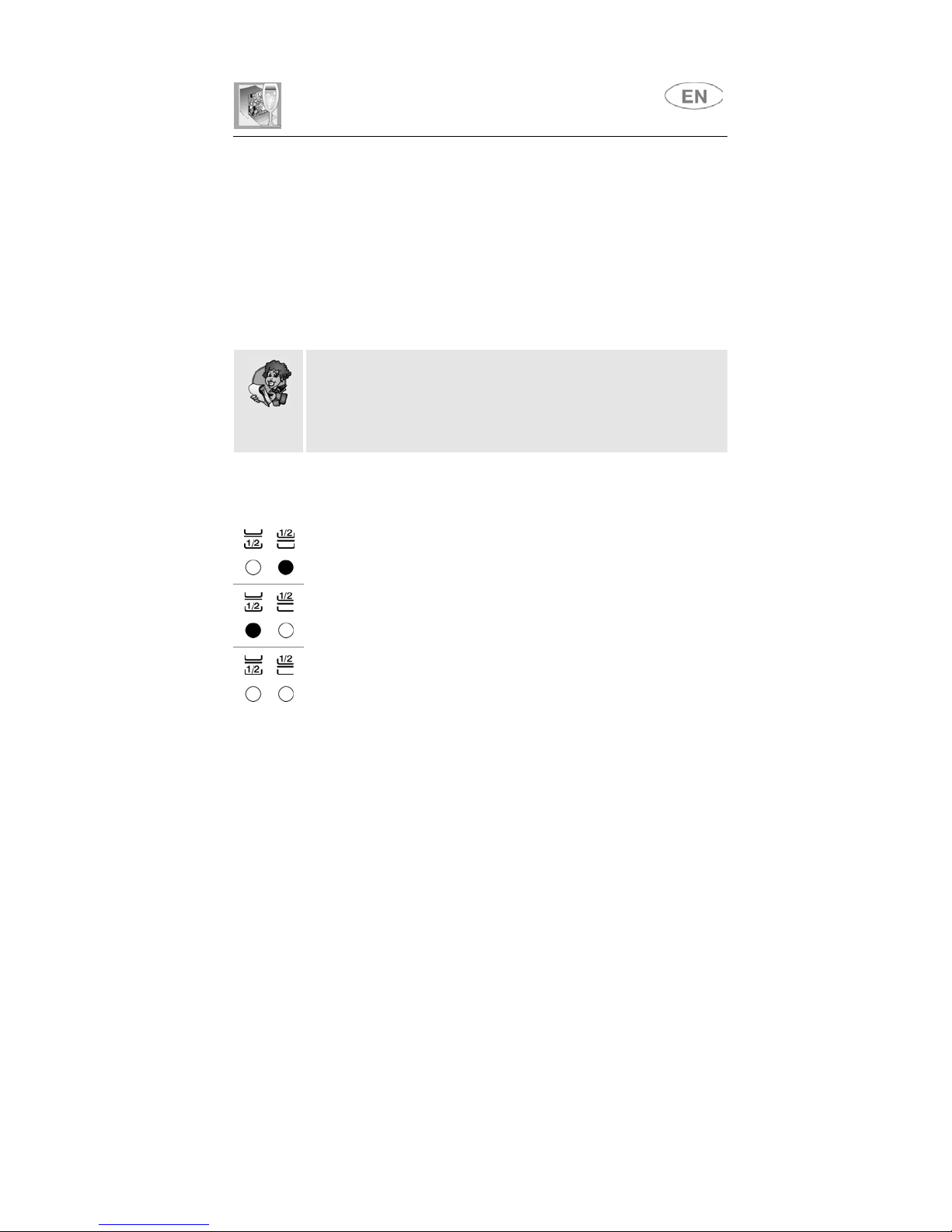

INDICATOR LIGHT CONFIGURATION FOR HALF-LOAD WASHING (7)

Washing in top basket only.

Washing in bottom basket only.

Washing in both baskets.

User instructions



TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to

60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to

save on electricity, observe the following:

•separate the more delicate items from dishes that are more

resistant to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before

removing the dishes, to allow them to cool down. To prevent any water

droplets on the upper basket from falling on the dishes in the lower

basket, it is advisable to unload the lower basket first, and then the

upper basket.

User instructions



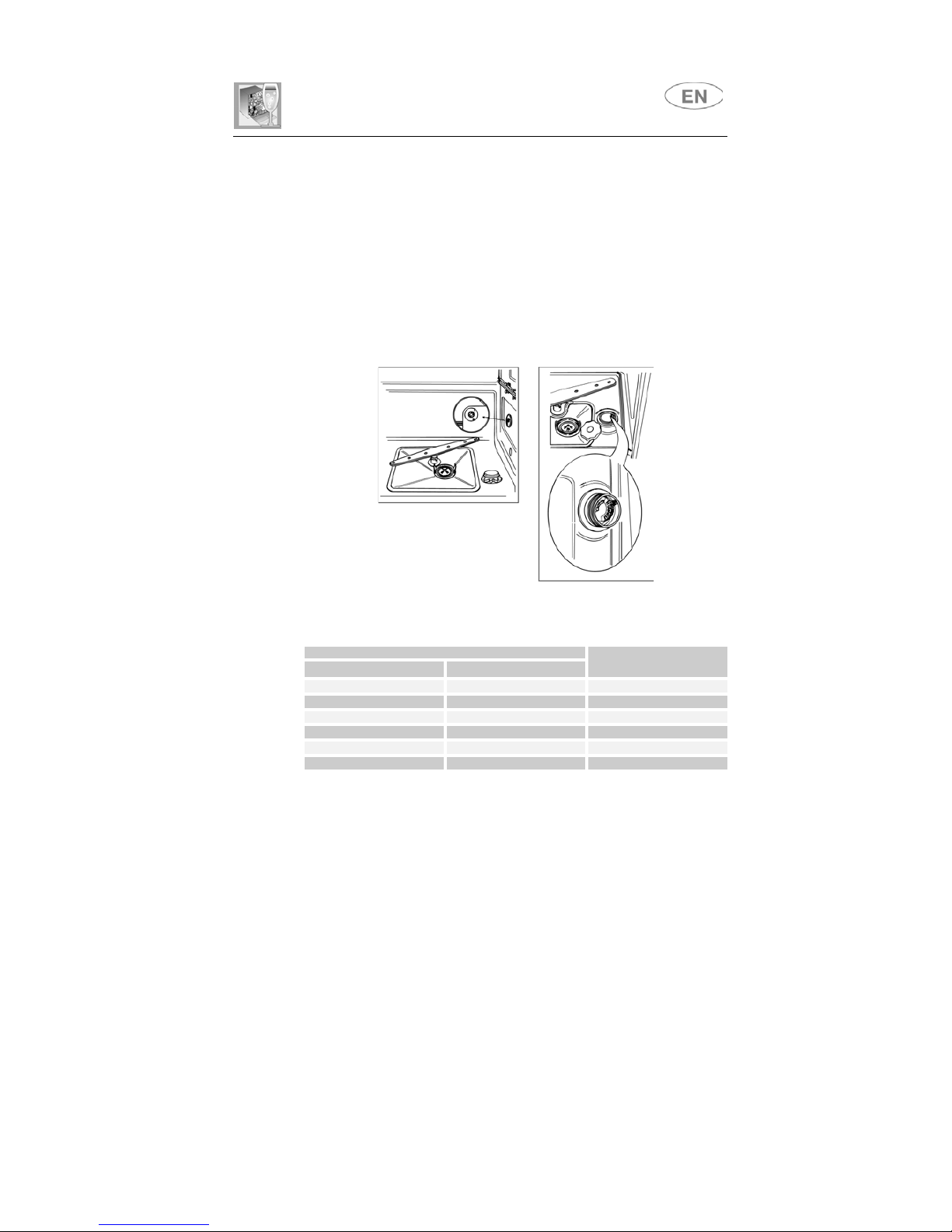

ADJUSTING THE WATER SOFTENING SYSTEM

The dishwasher is equipped with an device for the user to adjust the

water softening system according to the hardness of the water supply.

According to the machine model, the selector which acts on the

adjustment may be located:

•inside the plastic locking ring located on the right-hand side, inside

the dishwasher;

•inside the water softener, just below the cap.

Both allow for adjustment to 5settings:

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 15 8 - 25 Setting N. 1

16 - 23 26 - 40 Setting N. 2

24 - 31 41 - 60 Setting N. 3

32 - 47 61 - 80 Setting N. 4

48 - 58 81 - 100 Setting N. 5

Contact your local water board for information on the hardness of your

water supply.
