Smeg PL5222B Manuale utente

INSTRUCTION MANUAL

Contents

1. Description of the controls ________________________________ 2

2. Operating instructions___________________________________ 15

3. Cleaning and maintenance _______________________________ 30

4. Troubleshooting _______________________________________ 34

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need to use your dishwasher safely, correctly and in the

most satisfactory manner.

Following the cleaning instructions provided here will keep your

dishwasher's performance at peak levels in the long term.

USER INSTRUCTIONS: these consist of recommendations for using the

appliance, a description of its controls and of the correct cleaning and

maintenance procedures.

User instructions

1. Description of the controls

1.1 Front panel

All the dishwasher controls are grouped on the front panel.

1 ON/OFF BUTTON

2 SELECTION PROGRAM BUTTONS (P1…P5)

3 OPTION SELECTION BUTTON

4 CONFIRM OPTIONS BUTTON

5 DELAY PROGRAM BUTTON

6 START/PAUSE BUTTON

7 POWER ON LIGHT

8 PROGRAMS INDICATOR LIGHTS

9 INFORMATION DISPLAY

10 RECESSED DOOR HANDLE

N.B.: symbols and styling are guideline and may vary depending on

the model or version of the dishwasher purchased.

User instructions

1.2 Information display

The dishwasher is equipped with a practical DISPLAY which provides

information on the programmed dishwasher functions.

A 4-FIGURE DISPLAY

B RINSE AID WARNING LIGHT

C SALT WARNING LIGHT

D START/PAUSE BUTTON

E OPTIONS LIGHT

PROGRAMS TABLE

The manual contains the programs table for several models. To find the

table for your dishwasher, compare the program symbols at the top of the

table with those on your control panel.

User instructions

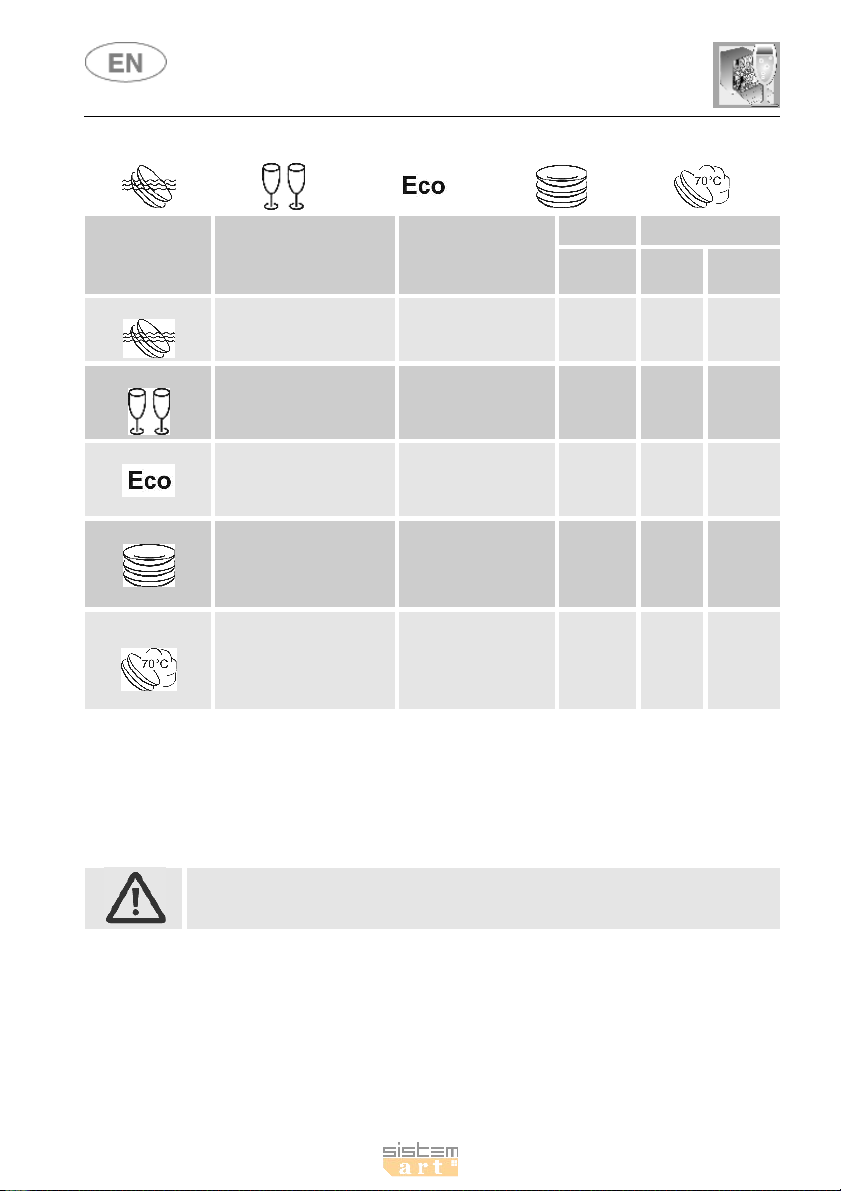

PROGRAMS TABLE

PROGRAMME

NUMBER

& SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTES

(1)

WATER

LITRES

POWER

KWh (1)

1SOAK

Pans and dishes awaiting

completion of the load Cold prewash 15 3,5 0,02

2 GLASS

Glass, china and mixed

dishes with light dirt.

Wash at 45°C

Cold rinse

Rinse at 70°C

Dry

9,5 1,10

3 ECO (*)

EN 50242

Dishes with normal dirt,

even with dried-on

residues

Wash at 45°C

Cold rinse

Rinse at 55°C

Dry

** **

4 NORMAL

IEC/DIN***

Dishes with normal dirt,

even with dried-on

residues

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 70°C

Dry

105

13,5 1,35

ULTRA

CLEAN

****

Very dirty pans and

dishes, even with dried-on

residues.

Hot prewash

Wash at 70°C

Cold rinse (2)

Rinse at 70°C

Dry

160

15,5 1,70

The

ULTRA CLEAN

program terminate with an extra anti-bacteria rinse that ensures

a further reduction in the bacteria level. If the temperature falls during this stage of

the program (e.g. because the door is opened or due to a power blackout), the

program lights flash to warn that the anti-bacteria effect is not guaranteed.

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

User instructions

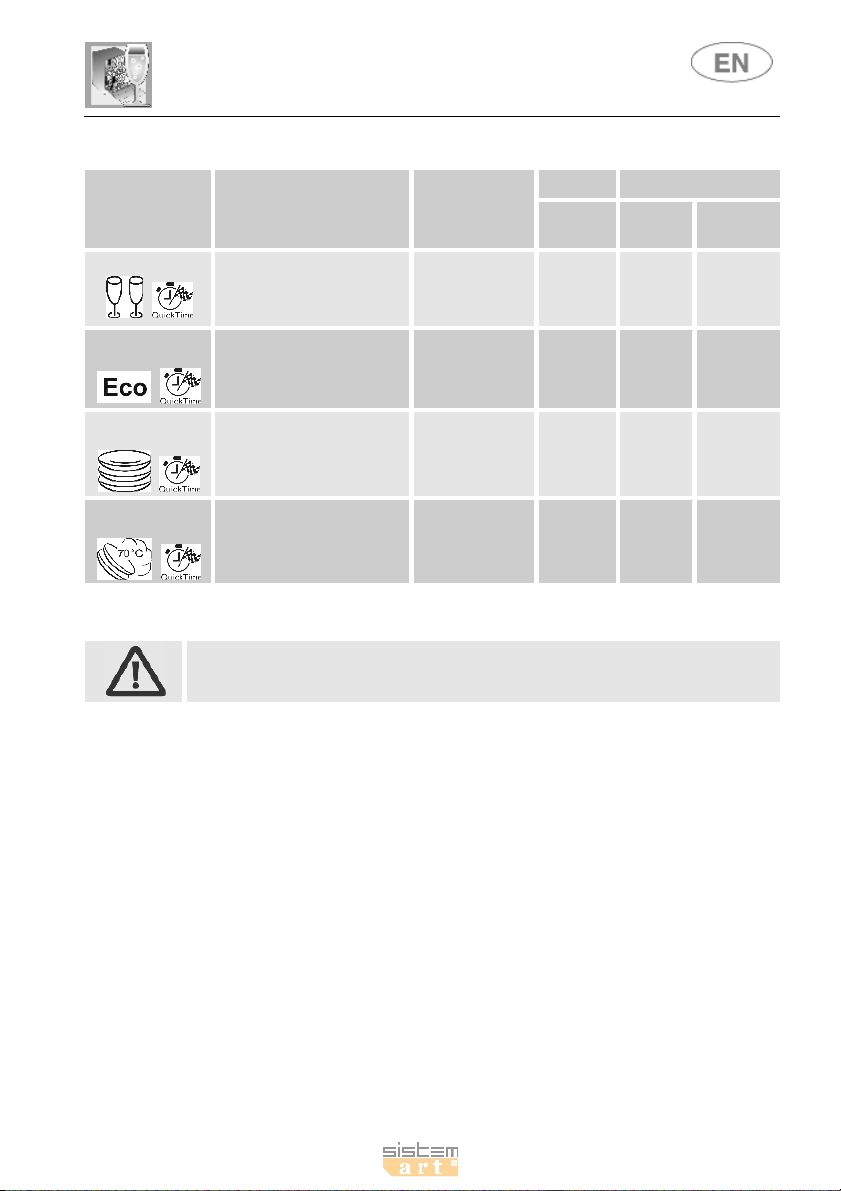

QUICK TIME PROGRAMS (see relevant section for explanation of functioning modes)

PROGRAMME

NUMBER E

SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTI

(1)

WATER

LITRES

POWER

KWh (1)

6 RAPID 27’

Dishes with light dirt,

washed immediately after

use

Wash at 38°C

Rinse at 50°C

6,5 0,70

7 ECO

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 60°C

Cold rinse

Rinse at 70°C

12,5 1,25

8 NORMAL

QUICK

Dishes with normal dirt,

washed immediately after

use

Cold prewash

Wash at 70°C

Cold rinse

Rinse at 70°C

11 1,25

9 STRONG

and FAST

Mixed dishes with normal

dirt without dried-on

residues.

Wash at 65°C

Cold rinse

Rinse at 70°C

9,5 1,35

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

User instructions

NOTES AND REFERENCES

Only

run the soak program with half loads.

Options cannot be used with the soak program.

The ENERSAVE option cannot be used with soak, ultra clean, or any programs

which do not include the final drying stage.

* Standard programme under

EN 50242

. The

ENERSAVE

option must

enabled.

** See information sheet provided

***

IEC/DIN

reference programme. The

ENERSAVE

option must

be enabled

**** Reference program for laboratories: Detergent:

20g

in the

dispenser

10g

the door or tablet. Configuration: see photo in “Using the baskets”.

(1) Program consumption and duration figures have been measured in

accordance with the EN 50242 standard. Values may vary depending on

intake water and room temperatures and the type and quantity of dishes

loaded.

(2) 1 or 2 cold rinses depending on the model.

REFERENCES for the ENERGY LABEL supplied with the dishwasher:

- Annual energy consumption is based on 280 standard wash cycles with cold

water and consumption of low-energy operating modes. Actual consumption

depends on the way in which the appliance is used.

- Water consumption is based on 280 standard wash cycles. Actual

consumption depends on the way in which the appliance is used.

- Information refers to the EN 50242 STANDARD programme (identified in the

programmes table), which is the most effective in terms of combined energy

and water consumption. The programme is recommended for dishes with a

normal level of dirt.

- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”

(maximum efficiency).

User instructions

1.3 Washing programs

The dishwasher is equipped with a control panel and an

INFORMATION

DISPLAY from which it is possible to carry out all the power switch-on,

switch-off and programming operations.

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

Warning:

during the initial phase of the washing program, the operation of

sprayers is not perceived because they start rotating about 5 minutes

after the start. This is the normal operation of the washing cycle.

LIGHTING

Pressing the ON/OFF button will start the dishwasher and will lit up the

dishwasher pilot light. After approximately 3 second from this operation

the DISPLAY will be turned on with a visualization that will depend upon

the state of the dishwasher.

PROGRAMMING

All the programming operations are possible only with closed door. With

open door, on the DISPLAY will appear - - : - -.

User instructions

SELECTION PROGRAM

The program selection is possible

through the relative buttons.

By pressing the relative button of desired program (see table) it will lid up

the relative pilot light to confirm that the operation did occurred on the

DISPLAY will appear a program duration forecasting (“h.mm”).

START PROGRAM

At this point, in order to start the machine, it is only enough to press the

START/PAUSE (6) for some seconds until the symbol START/PAUSE

(D) start to flash and confirmation “beep” is heard. From this moment the

cycle duration on the DISPLAY (9) starts to decrease.

This phase, that updates itself during the cycle, is “indicative” since it is

influenced by the washing conditions such as dishwasher type and

quantity, entry temperature etc. For this reason it is normal to see the

updating during a program (increment and decrease of minutes)

specially in the passage from one phase to the other (for example, from

washing to rinse).

END PROGRAM

The end of the program is indicated by a short signal acoustic and from

the “End” visual notification on DISPLAY. By pressing one of the

buttons, the “End” visual signal will vanish from the display and the

dishwasher is ready to continue a new cycle.

INTERRUPTING

PROGRAM

In order to interrupt a running program it is necessary:

•to press the START/PAUSE for some seconds until when the

symbol START/PAUSE remains lit on the display (confirmation

beep). At this point,it is possible to start the cycle again, otherwise:

•

User instructions

TO CHANGE A PROGRAM

To change the running program it is necessary:

•to interrupt the running program (see “INTERRUPTING A PROGRAM”);

•select the new program;

•to press again the START/PAUSE button to make start the new

program.

STOPPING A PROGRAM

To cancel a program which is running:

•Interrupt the program (see "INTERRUPTING A PROGRAM")

•Press the START/PAUSE button and hold it down; the

display will show "P0" and the dishwasher will immediately

switch to the end of the cycle and drain the tank (during this

process, the "START/PAUSE symbol will flash). When the

drain procedure ends, the end of cycle "End" message

appears on the display.

In case that the door is opened during the operation, to the next door

closing it is going to be necessary to start the program as shown in

paragraph “STARTING THE PROGRAM”. The program will resume from the

point in which it was interrupted.

In case that the tub temperature is higher than 50°C the program

will start about 60 seconds later.
