Instructions for Use
Tumble Dryer
129316
Thank you for your trust and for buying our tumble drier. We congratulate you
on your wise decision.
This appliance is designed for drying clothes for home use only.
The dryer enables quick drying of your laundry, leaving it soft and tender
without affecting its shape.
Our appliances are environmentally friendly: some of the materials are
recyclable while others are disposed of and destroyed. To protect the
environment, dispose of your appliance by delivering it to the authorized dealer.
The appliance is intended exclusively for use in households. If the appliance is
used for professional purposes, for profit, or for purposes beyond regular use
in a household, or if appliance is used by a person who is not a consumer, the
warranty period equals the shortest warranty period possible as stipulated by
the relevant legislation.
Appliance description ....................................... 3
Warnings ............................................................ 4
Installation and connection.............................. 6
Operation.......................................................... 10
Tips for drying and for economic use of the
dryer.................................................................. 15
Cleaning and maintenance............................. 16
Troubles............................................................ 19
Tables ............................................................... 21
2
129316
1. Front panel
2. Drying program button
3 Water container
4. Door
5. Condenser
6. Evacuation slots
7. Cooling air slot
8. Legs
Dimensions of the appliance (w x d x h):
600 mm x 600 mm x 850 mm
Weight (net):
evacuation dryer 34 kg, condensation dryer 42 kg
Nominal voltage: 230 V, 50 Hz
Connecting power: 2900 W
Max. load: 6 kg / 7 kg
Connection: power cord (230 V, 50 Hz, min 16 A)
Fuse: 16 A
Heater: 2600 W
Name plate with technical information for the appliance is located
under the door frame.
3
Appliance description
Technical data
(depending on model)
129316
•Use the dryer to dry only the laundry washed with water. Do not attempt to
dry the laundry, washed or cleaned with flammable detergents or solutions
(gasoline, trichloroethylene etc.), as it may cause explosion.
•Do not let the children play with the appliance. Prevent your children or pets to
enter the dryer drum.
•When discarding the old appliance remove the power cord and breka the lock,
so that the door can not be locked (safety precautions for children).
•After cleaning replace the condenser to the air channel. Operating the
appliance without the condenser or with a damaged condenser may cause
fire.
•Rear wall of the appliance may be hot (for condenser drier only) - danger of
burns.
•Clean filter after each drying. If you pulled the filter out, always reinsert it
before the next drying operation.
•After use always turn the appliance off (the program selection jog (A) should
be in position “0”) and unplug the power cord.
•Close the dryer door prior pulling out the water container.
•Leave all repairs to a qualified technician. Tampering with the appliance or
reparations by an unqualified person may cause accidents or failures. Call the
authorized service department (see list of authorized service departments).
•Name plate with technical information about the appliance is located under
the door frame.
•The room must be well aired, surrounding air must not contain dusty particles.
•Room where the appliance is located must be well aired to prevent back flow
of gasses, released by open fire gas appliances (fireplace).
•The warranty shall not apply to consumables (bulbs), minor discoloration or
deviations of color, increased noise level as a consequence of appliance age,
which does not affect appliance functionality, and aesthetical deficiencies
which do not affect appliance functionality or safety.
To reduce the fire hazard, always consider the following:
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of detergent before being dried
in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps, waterproof textiles,
rubber backed articles and clothes or pillows fitted with foam rubber pads
should not be dried in the tumble dryer.
•Fabric softeners, or similar products, should be used as specified by the fabric
4
Warnings
129316
Before connecting the appliance read
these instructions carefully. Repairing
the failure arising from inappropriate
connections or use of the appliance is not
covered by the guarantee.
The belt can be replaced by a servising
engineer only, who incorporates an
original spare part with the marking
OPTIBELT EPH 1906, code 104265,
OPTIBELT 8 EPH 1941, code 160165
(depending on model).
The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of
thisproduct. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or the
shop where you purchased the product.
Never stop a tumble dryer before the end
of the drying cycle unless all items are
quickly removed and spread out so that
the heat is dissipated.
softener instructions.
•The final part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will
not be damaged.
5
129316
•Packaging materials are environmentally friendly:
they can either be recycled, safely disposed of or
destroyed without any threat to the environment.
•To be able to do this effectively all materials are
marked accordingly.
Be careful not to damage cabinet of the
appliance with a sharp object when
removing the packaging.
Before connecting the appliance, let it
warm up to room temperature (wait for two
hours).
Ventilation slots and openings on the appliance
front and rear wall should not be obstructed.

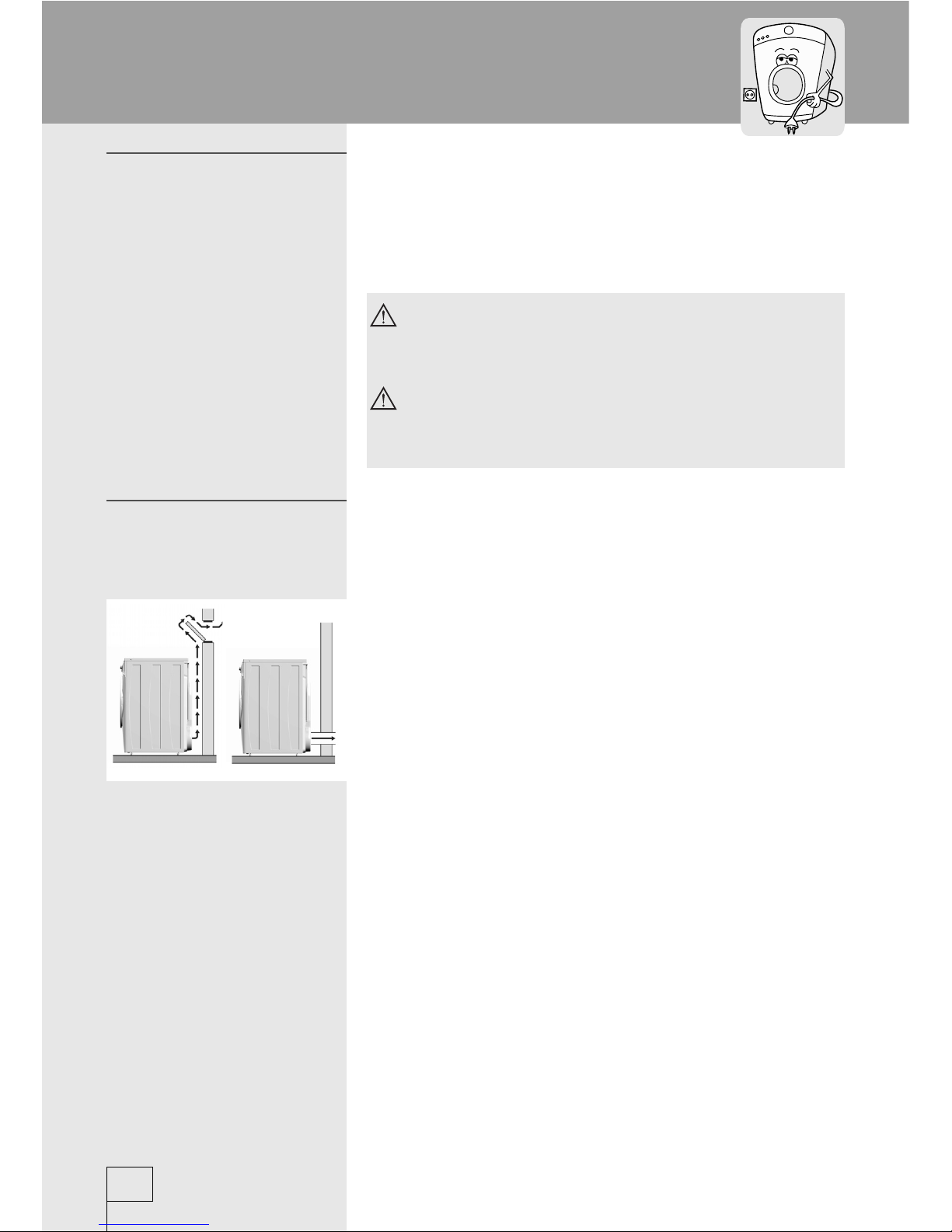

A - Evacuation dryer
•Place the appliance in a well ventilated room with
a window or a built-in fan.
•Connect the evacuation tube to the pre-prepared
opening.
•Evacuation must not be connected to air duct
used as a chimney for exhaust gasses of
appliances using other combustion material.
B - Condensation dryer
•Do not place the appliance in a room where there
is danger of freezing.
•Location should be adequately ventilated. Room
temperature should always be between 0°C and
25°C since frozen water in the condensation
container or in the pump may damage the dryer.
6
Installation and connection
Removing wrapping
Selecting the
appropriate location of
the appliance
129316
•Appliance can either stand on its own or can
be placed on top of a washing machine of the
same dimensions - minimum width 517 mm,
depth 476 mm. The surface for placing the dryer
must be clean and flat. Use supplied vacuum
feet to prevent sliding of the appliance. Washing
machine hardtop must be wooden or metallic. To
conceal the opening between the two appliances,
decorative plate is available on request against
payment.
Do not place the appliance behind lockable
door, sliding door, and door with hinges on
the opposite side of the appliance.
Place the appliance in the room in such
way to ensure free opening of the drier
door.
•Level the machine longitudinally and transversally
by rotating the adjustable feet, thus enabling the
leveling by +/- 1 cm.
Vibrations, moving of the appliance and
loud operation due to incorrect setting of
the adjustable feet shall not be covered by
this warranty.
The appliance should be placed on a
surface with concrete base; the surface
should be dry and clean in order to prevent
slipping. The adjustable feet should also
be cleaned before installation.
Do not place the dryer on a thick
carpet since this could obstruct the air
circulation.
7
Installation
129316
1 Lid
2 Evacuation tube
A - Evacuation dryer

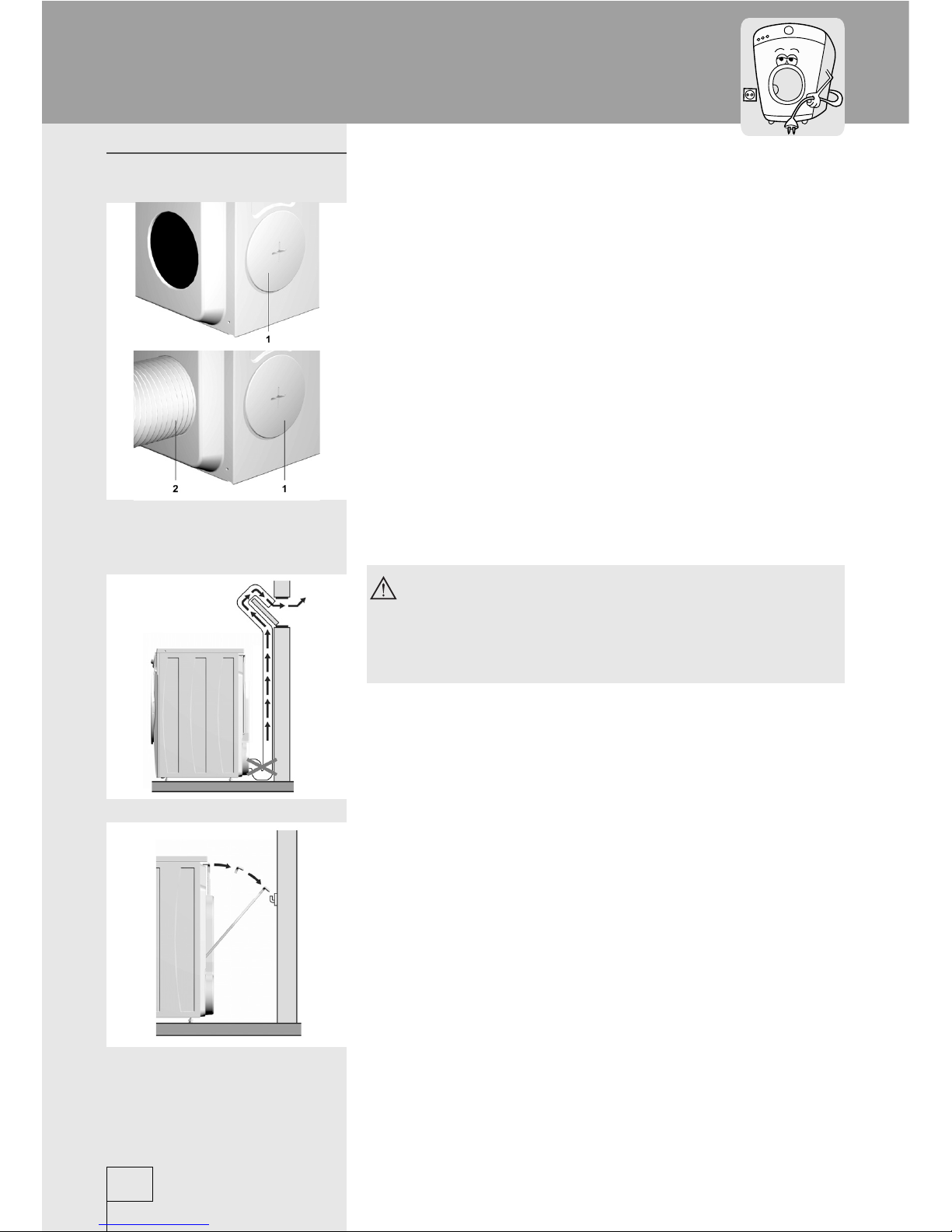

•There are two openings for the evacuation of
humid air. One of them should be closed with the
supplied lid, while the other should be connected
to the evacuation tube.
The distance between the dryer and the
moist air outlet (ventilation shaft, window)
should not exceed 2 meters, otherwise
water can accumulate in the tube.
B - Condensation dryer
•Moisture from laundry is extracted in the water
condensation device and is either collected in the
receptacle or discharged directly into the drain
(drain height should not exceed 800mm).
•The signal light indicates that the container is
full and should be emptied, preferably after each
drying cycle.
8
Moist air outlet
129316
•Use the power cord to connect the dryer to the
power supply via wall socket.
•Rated voltage and other characteristics are
indicated on the name plate, located under the
door frame of the appliance.
The wall socket should always be within
reach. It has to be earthed according to the
standing regulations.
If the supply cable is damaged it should
only be replaced by a qualified technician.
9
Power connection
129316
- Open the dryer door by pushing the left-hand
side of the door towards the appliance (make
sure the drum is empty).
- Sort the laundry according to the type of fabrics.
Do the buttons and zippers, tie the strings
and pull out the pockets.
Very delicate laundry should be put in a
special protective sack.
It is suggested to load the drum with items
of different sizes.
Do not load drip-wet laundry into the dryer
(min. 800 rpm).
Pay attention to the labels on the clothes,
indicating the recommending drying mode
(see table of textile treatment symbols on
the last page).
A - program selection jog
B - lower temperature button
C - heater off key
D - START/PAUSE button
E - ON/OFF LED
F - filter alarm/water container alarm LED
10
Operation
Drying procedure
