Thank you for your trust and for buying our tumble

dryer. We congratulate you on your wise decision.

This appliance is designed for drying clothes for

home use only.

It dries your laundry quickly, leaving it soft and

tender without affecting its shape.

Our appliances are environmentally friendly:

some of the materials are recyclable while

others are disposed of and destroyed. To protect

the environment, dispose of your appliance by

delivering it to the authorized dealer.

Appliance description....................................... 3

Warnings ............................................................ 4

Installation and connection.............................. 7

Operation ......................................................... 10

Tips for drying and for the economic

use of the dryer ............................................... 20

Cleaning and maintenance............................. 21

Troubles ........................................................... 24

Tables ............................................................... 26

129530

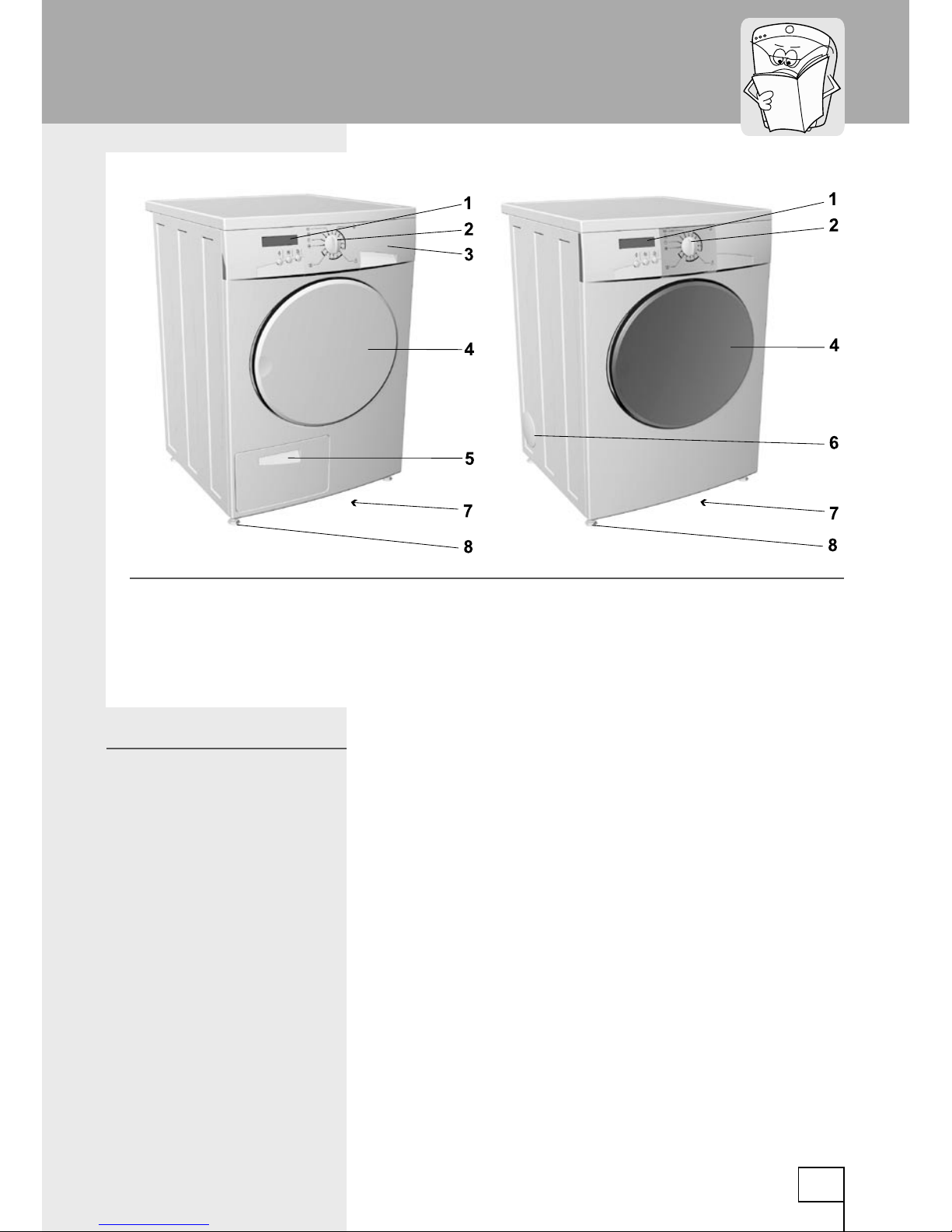

1. Front panel

2. Drying program button

3 Water container

4. Door

5. Condenser

6. Evacuation slots

7. Cooling air slot

8. Legs

Name plate with technical information for the appliance is located

under the door frame.

Dimensions of the appliance (w x d x h):

600 mm x 600 mm x 850 mm

Weight (net):

evacuation dryer 34 kg, condensation dryer 42 kg

Nominal voltage: 230 V, 50 Hz

Connecting power: 2900 W

Max. load: 6 kg

Connection: power cord (230 V, 50 Hz, min 16 A)

Fuse: 16 A

Heater: 2600 W

Appliance description

Technical data

129530

In case of condenser dryer it is not

recommended to reduce temperature

or switch off the heater, as the drying

time is thus extended because of poor

condensation of evaporated water.

• Use the dryer to dry only the laundry washed with

water. Do not attempt to dry the laundry, washed

or cleaned with ammable detergents or solutions

(gasoline, trichloroethylene etc.), as it may cause

explosion.

• Do not let the children play with the appliance.

Prevent your children or pets to enter the dryer

drum.

• When discarding the old appliance remove

the power cord and breka the lock, so that the

door can not be locked (safety precautions for

children).

• After cleaning replace the condenser to the air

channel. Operating the appliance without the

condenser or with a damaged condenser may

cause re.

• Rear wall of the appliance may be hot (for

condenser drier only) - danger of burns.

• Clean lter after each drying. If you pulled the

lter out, always reinsert it before the next drying

operation.

• After use always turn the appliance off (the

program selection jog should be in position “0”)

and unplug the power cord.

• Close the dryer door prior pulling out the water

container.

• Leave all repairs to a qualied technician.

Tampering with the appliance or reparations by

an unqualied person may cause accidents or

failures. Call the authorized service department

(see list of authorized service departments).

• Name plate with technical information about the

appliance is located under the door frame.

Warnings

129530

• The room must be well aired, surrounding air

must not contain dusty particles.

• Room where the appliance is located must be well

aired to prevent back ow of gasses, released by

open re gas appliances (replace).

To reduce the re hazard, always consider the

following:

• Never dry soiled clothes in the tumble dryer.

• Laundry soiled with substances like cooking oil,

acetone, alcohol, petrol, petroleum, stain remover,

turpentine, wax and waxes must be washed in hot

water and detergent prior drying in tumble dryer.

• Do not dry objects made of foam (latex), water

resistant fabrics, rubber lined fabrics, and clothes

lled with rubber foam in the dryer.

• During washing use laundry softeners as

instructed by their manufacturers.

• Last stage of drying is carried out without heating,

to allow laundry to cool down before extracting it

from the drum. If you take the laundry out before it

had cooled down, spread it to allow its cooling.

Before connecting the appliance read

these instructions carefully. Repairing

the failure arising from inappropriate

connections or use of the appliance is not

covered by the guarantee.

The belt can be replaced by a servising

engineer only, who incorporates an

original spare part with the marking

OPTIBELT EPH 1906, code 104265.

129530

The symbol on the product or on its

packaging indicates that this product

may not be treated as household

waste. Instead it shall be handed over

to the applicable collection point for the

recycling of electrical and electronic

equipment. By ensuring this product

is disposed of correctly, you will help

prevent potential negative consequences

for the environment and human health,

which could otherwise be caused

by inappropriate waste handling of

thisproduct. For more detailed information

about recycling of this product, please

contact your local city ofce, your

household waste disposal service or the

shop where you purchased the product.

129530

• Packaging materials are environmentally friendly:

they can either be recycled, safely disposed of or

destroyed without any threat to the environment.

• To be able to do this effectively all materials are

marked accordingly.

Be careful not to damage cabinet of the

appliance with a sharp object when

removing the packaging.

Ventilation slots and openings on the appliance

front and rear wall should not be obstructed.

A - Evacuation dryer

• Place the appliance in a well ventilated room with

a window or a built-in fan.

• Connect the evacuation tube to the pre-prepared

opening.

• Evacuation must not be connected to air duct

used as a chimney for exhaust gasses of

appliances using other combustion material.

B - Condenser dryer

• Do not place the appliance in a room where there

is danger of freezing.

• Location should be adequately ventilated. Room

temperature should always be between 0°C and

25°C since frozen water in the condensation

water receptacle or in the pump may damage the

dryer.

• Appliance can either stand on its own or can

be placed on top of a washing machine of the

same dimensions - minimum width 517 mm,

depth 476 mm. The surface for placing the dryer

must be clean and at. Use supplied vacuum

feet to prevent sliding of the appliance. Washing

machine hardtop must be wooden or metallic. To

conceal the opening between the two appliances,

decorative plate is available on request against

payment.

Installation and connection

Removing wrapping

Selecting the

appropriate location of

the appliance

Installation

129530

Do not place the appliance behind lockable

door, sliding door, and door with hinges on

the opposite side of the appliance.

Place the appliance in the room in such

way to ensure free opening of the drier

door.

• Level the machine longitudinally and transversally

by rotating the adjustable feet, thus enabling the

leveling by +/- 1 cm.

The surface beneath the appliance should

be kept dry and clean to prevent sliding of

the appliance.

Do not place the dryer on a thick

carpet since this could obstruct the air

circulation.

A - Evacuation dryer

• There are two openings for venting out humid air.

One of them should be closed with the supplied

lid, while the other should be connected to the

evacuation tube.

1 Lid

2 Evacuation tube

Moist air outlet

129530

The distance between the dryer and the

moist air outlet (vent shaft, window)

should not exceed 2 meters, otherwise

water can accumulate in the tube.

B - Condenser dryer

• Moisture from laundry is extracted in the water

condensation device and is either collected in the

receptacle or discharged directly into the drain

(drain height should not exceed 800mm).

• Display reads CONTAINER FULL and a beep is

heard when the water receptacle is full and should

be emptied, preferably after each drying cycle.

• Use the power cord to connect the dryer to the

power supply via wall socket.

• Rated voltage and other characteristics are

indicated on the name plate, located under the

door frame of the appliance.

The wall socket should always be within

reach. It has to be earthed according to the

standing regulations.

If the supply cable is damaged it should

only be replaced by a qualied technician.

Power connection

129530

Function keys

B key (MENU) - Scrolling within main menu.

C key (SELECTION) - Selecting sub-menu

categories.

D key (START /PAUSE) - Starting, interrupting and

restarting the program.

A - program selection jog

B - MENU key

C - SELECTION key

D - START/PAUSE key

E - display

Operation

Program selection jog Program symbols Moisture level

cotton very dry

synthetics dry for storage

delicate slightly damp

fast program iron dry

time setting damp for machine

ironing

wool

ventilation

mixed laundry
