Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 26

2. INSTALLATION _________________________________________ 28

3. DESCRIPTION OF CONTROLS ____________________________ 30

4. USE OF THE OVEN______________________________________ 35

5. AVAILABLE ACCESSORIES _______________________________ 36

6. COOKING HINTS________________________________________ 37

7. CLEANING AND MAINTENANCE ___________________________ 43

8. EXTRAORDINARY MAINTENANCE _________________________ 45

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE

CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS

THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED

OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE

REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC

USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE

APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING

FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES

ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT

BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE

COMPLYING WITH APPLICABLE REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL

SLITS.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD

THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND

CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

Introduction

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)

POSITION WHEN YOU FINISH USING THE OVEN.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY LIGHTED AND CAUSE FIRES.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.

THE PLATE MUST NOT BE REMOVED.

THE OVEN IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN

TO GO NEAR OR PLAY WITH IT.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE

2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF

RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND

PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION

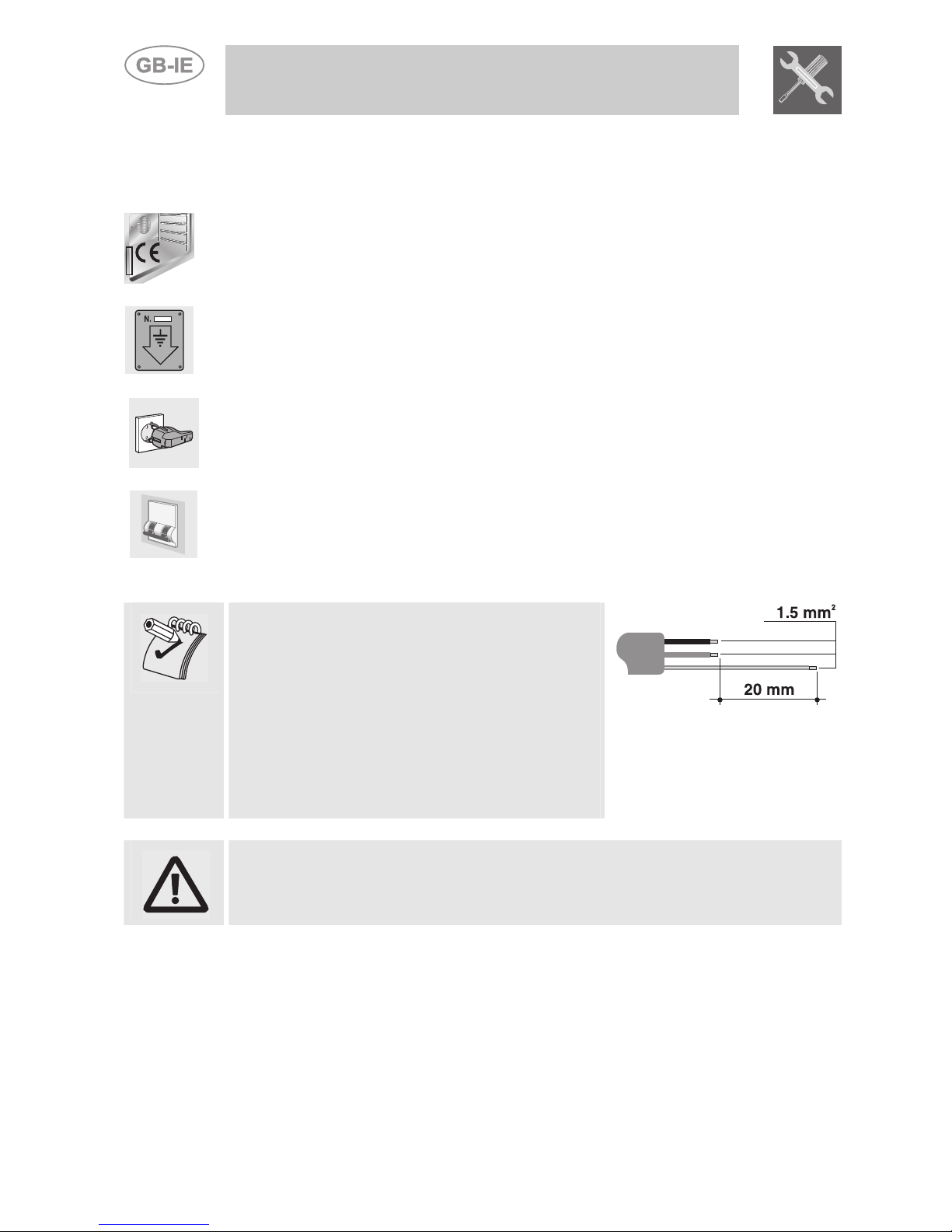

2.1 Electrical connection

Check that mains voltage and power cable ratings are as per the

indications provided on the label attached to the oven door frame.

This label must never be removed.

It is obligatory for the electrical system to be grounded according to the

methods required by safety rules.

If a plug and socket connection is being used make sure that the plug

and socket are compatible. Avoid use of adapters and shunts as these

could cause overheating and risk of burns.

If a fixed connection is being used fit power line with an omnipolar circuit

breaker with a contact opening gap equal to or greater than 3 mm in an

easily accessible position in proximity to the oven.

For operation on 230-240V

∼

:use an

H05RR-F / H05RN-F type three-core cable

(3 x 1.5 mm2).

The cable end to be connected to the

appliance must be provided with an ground

wire (yellow-green) at least 20 mm longer.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance.

Instructions for the installer

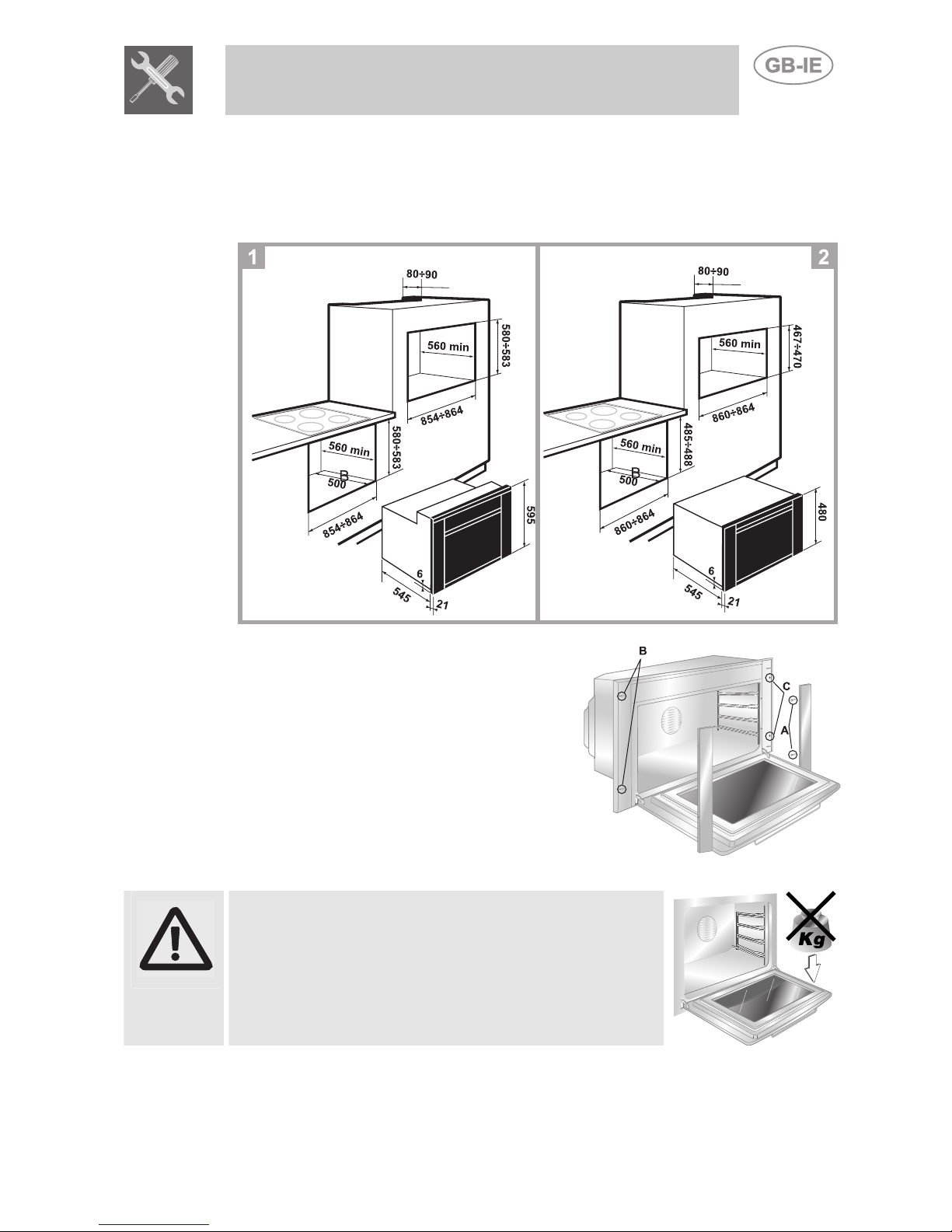

2.2 Mounting the oven

The oven is designed for mounting into any piece of furniture as long as

heat-resistant. Proceed according to the dimensions shown in Figures 1,

Fixing is carried out using 4 screws at

the corners "C" of the oven door

frame, after removing the side panels

secured by the screws "A" and the

supports "B" as shown in figure 3. To

replace the side panels, take care to

engage the pins inside them correctly

with the supports "B", then retighten

the screws "A". 3.

Never use the oven door to lever the oven into

place when fitting.

Avoid exerting too much pressure on the oven door

when open.

Instructions for the user

3. DESCRIPTION OF CONTROLS

3.1 Front control panel

All the oven controls are grouped together on the front panel.

FUNCTION SWITCH KNOB

Rotate the knob in either direction to

select desired function from the

following:

NO FUNCTION SET

UPPER AND LOWER

HEATING ELEMENT +

VENTILATION

OVEN LIGHT

VENTILATED HEATING

ELEMENT +

VENTILATION

UPPER AND LOWER

HEATING ELEMENT

LOWER HEATING

ELEMENT +

VENTILATED HEATING

ELEMENT

WIDE GRILL

ELEMENT

LOWER HEATING

ELEMENT +

VENTILATION

GRILL

ELEMENT

DEFROSTING

WIDE GRILL ELEMENT +

VENTILATION

Instructions for the user

THERMOSTAT KNOB

Cooking temperature is selected by

turning the knob clockwise to the

desired setting, between 50° and

250°C.

THERMOSTAT INDICATOR LIGHT

When this light comes on, the oven is heating up.

When this light goes out, the preset heating

temperature has been reached.

When the light flashes, the temperature inside the

oven is steady at the set temperature.

Instructions for the user

3.2 Electronic programmer

LIST OF FUNCTIONS

MINUTE-COUNTER KEY

COOKING TIME KEY

END-OF-COOKING KEY

MANUAL OPERATION KEY

TIME BACK KEY

TIME FORWARD KEY

3.2.1 Clock adjustment

When using the oven for the first time, or after a power failure, the display

flashes regularly and indicates . To stop flashing, press key on

the display. By pressing keys or each single press changes the

time by 1 minute either up or down.

Press one of the two keys until the right time appears.

Before setting the programmer activate the desired function and

temperature.

3.2.2 Semiautomatic cooking

Use this setting for automatic oven switch-off at the end of cooking time.

Instructions for the user

By pressing key ,the display lights up, showing ; keep the key

pressed and at the same time, press keys or to set the cooking

time.

Release key to start the programmed cooking time count. The display

will now show the right time together with symbols Aand .

3.2.3 Automatic cooking

Use this setting to automatically start and stop the oven.

By pressing key , the display lights up showing ; keep the key

pressed and at the same time, press keys or to set the cooking

time.

By pressing key the sum of the right time + cooking time will appear;

keep the key pressed and at the same time, press keys or to

regulate the end of cooking time.

Release key to start the programmed count and the display will show

the right time together with symbols AUTO and .

After setting, to see how much cooking time is left, press key ; to see

end of cooking time, press key .

3.2.4 End of cooking

When cooking is over, the oven will automatically switch off and, at the

same time, an intermittent alarm will sound. After switching off the alarm,

the display will once again show the right time together with the symbol

, indicating that the oven has returned to manual operation mode.

3.2.5 Adjusting alarm volume

The acoustic alarm has three different settings. These can be operated,

while the alarm is sounding, by pressing key .

Instructions for the user

3.2.6 Switching off the alarm

The alarm switches off automatically after seven minutes. It can be

manually turned off by pressing key .

3.2.7 Minute-counter

The programmer can also be used as a simple minute counter.

The use of the minute-counter will not interrupt oven operation at the end

of the set time.

By pressing key , the display shows ; keep the key pressed and

at the same time press keys or By releasing the key , the

programmed count starts and the symbols and appear on the

monitor.

After programming the minute-counter, the display will show the right

time. to display remaining time, press key .

Wrong settings are prevented logically (e.g., any conflict between end of

cooking time and a longer time will not be accepted by the programmer).

3.2.8 Cancellation of set data

Once the programme has been set, keep the key of the function to be

cancelled pressed, while at the same time is reached by means

of variation keys or Time cancellation will be considered as end-of-

cooking time by the programmer.

3.2.9 Changing the set data

The cooking data entered can be changed at any time by keeping the

function key pressed and at the same time adjusting the keys or .
