Smeg SC709XSA Manuale utente

Contents

INSTRUCTIONS FOR THE USER: these instructions contain user

recommendations, description of the commands and the correct

procedures for cleaning and maintenance of the appliance.

INSTRUCTIONS FOR THE INSTALLER: intended for the qualified

expert who must make the installation, perform start-up and

commissioning of the appliance

1 INSTRUCTIONS FOR SAFETY AND USE........................................ 34

2 INSTALLATION ................................................................................. 37

3 DESCRIPTION OF CONTROLS ....................................................... 39

4 USING THE OVEN ............................................................................ 46

5 AVAILABLE ACCESSORIES............................................................. 48

6 COOKING HINTS .............................................................................. 49

7 CLEANING AND MAINTENANCE ..................................................... 56

8 EXTRAORDINARY MAINTENANCE ................................................. 61

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning and

carry out an inspection test.

INSTRUCTIONS FOR THE USER: they provide recommendations for use,

a description of the controls and the correct operations of cleaning and

maintenance of the appliance.

Recommendations for safety and use

1. INSTRUCTIONS FOR SAFETY AND USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND MUST BE

KEPT INTACT AND ACCESSIBLE THROUGHOUT THE LIFE CYCLE OF THE

OVEN. WE RECOMMEND THAT YOU READ IT CAREFULLY AND STUDY ALL

THE INSTRUCTIONS IT CONTAINS BEFORE USING THE OVEN.

INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN

ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS

INTENDED FOR DOMESTIC USE AND CONFORMS TO THE EEC

DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT

TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-

UP OF FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT DISCARD PACKAGING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

DIFFERENTIATED WASTE COLLECTION CENTRE.

THE APPLIANCE MUST BE CONNECTED TO EARTH IN COMPLIANCE WITH

ELECTRICAL SYSTEM SAFETY REGULATIONS.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT

BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE

COMPLYING WITH APPLICABLE REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL

SLITS.

IMMEDIATELY AFTER INSTALLATION, TEST THE OVEN BRIEFLY IN

ACCORDANCE WITH THE INSTRUCTIONS HEREAFTER. SHOULD THE

APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE POWER SUPPLY

AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

Recommendations for safety and use

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE "ZERO" (OFF)

POSITION WHEN YOU FINISH USING THE OVEN.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULD

ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

THE I.D. PLATE WITH TECHNICAL DATA, SERIAL NUMBER AND BRAND

NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.

THE PLATE MUST NEVER BE REMOVED.

THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE

(INCLUDING CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY,

OR LACKING IN EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES,

UNLESS THEY ARE SUPERVISED OR INSTRUCTED BY ADULTS OR

PEOPLE RESPONSIBLE FOR THEIR SAFETY.

THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE

2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE).

THIS DIRECTIVE DEFINES THE STANDARDS FOR THE COLLECTION AND

RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

APPLICABLE THROUGHOUT THE EUROPEAN UNION.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL LABELS AND

PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

The manufacturer cannot be held liable for damage to persons or

things caused by failure to comply with the above requirements or by

tampering with any part of the appliance or by the use of non-original

spare parts.

Recommendations for safety and use

INFORMATION FOR USERS

Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC

relating to the reduction of the use of hazardous substances in electrical

and electronic appliances, as well as to the disposal of refuse. The

crossed out bin symbol on the appliance indicates that the product, at

the end of its useful life, must be collected separately from other refuse.

Therefore, the user must consign the product that has reached the end

of its working life to the appropriate selective collection centres for

electrical and electronic refuse, or deliver it back to the retailer when

purchasing an equivalent product, on a one for one basis. Adequate

selective collection for the subsequent forwarding of the

decommissioned product to recycling, treatment and ecologically

compatible disposal contributes to avoiding possible negative effects on

the environment and on health and promotes the recycling of the

materials of which the appliance consists. The illicit disposal of the

product by the user results in the application of administrative

sanctions.

Instructions for the installer

2. INSTALLATION

2.1 Electrical connection

Make sure the voltage and the cross-section of the power cord match

the specifications indicated on the identification plate positioned on the

frame of the oven door. Do not remove this plate for any reason.

The appliance must be connected to earth in compliance with electrical

system safety regulations.

If a plug and socket connection is being used, make sure that the plug

and socket are compatible. Do not use of adapters and shunts as these

could cause overheating and risk of burns.

If a fixed connection is being used, fit the power line with an omnipolar

circuit breaker with a contact opening gap equal to or greater than 3

mm, in an easily accessible position close to the appliance.

For operation on 220-240V

∼

:use an

H05RR-F / H05RN-F type three-core cable

(3 x 1.5 mm2).

The end to be connected to the appliance

must have an earth wire (yellow-green) at

least 20 mm longer than the others.

The manufacturer cannot be held liable for damage to persons or

things caused by failure to observe the above instructions or deriving

from tampering with any part of the appliance.

Instructions for the installer

2.2 Positioning the oven

The oven is designed for mounting into any piece of furniture as long as

it is heat-resistant. Proceed according to the dimensions shown in

Figures 1, 2and 3. For installing under a work top, follow the

dimensions given in Figure 1-3. For installing under a work top with

combined cooking hobs, ensure a minimum clearance from any side

walls of at least 110 mm as shown in Figure 1. When installing in tall

units, comply with the dimensions shown in figure 1-2, bearing in mind

that the top/rear of the unit must have an opening 80-90 mm deep.

Tighten the 4 screws Ainside the frame (fig. 1).

For installing beneath a countertop hob, allow for a rear and bottom

clearance as shown in figure 1(ref. B). See the relevant instructions for

fitting and securing the appliance.

Never use the oven door to lever the oven into

place when fitting.

Avoid exerting too much pressure on the oven door

when open.

Instructions for the user

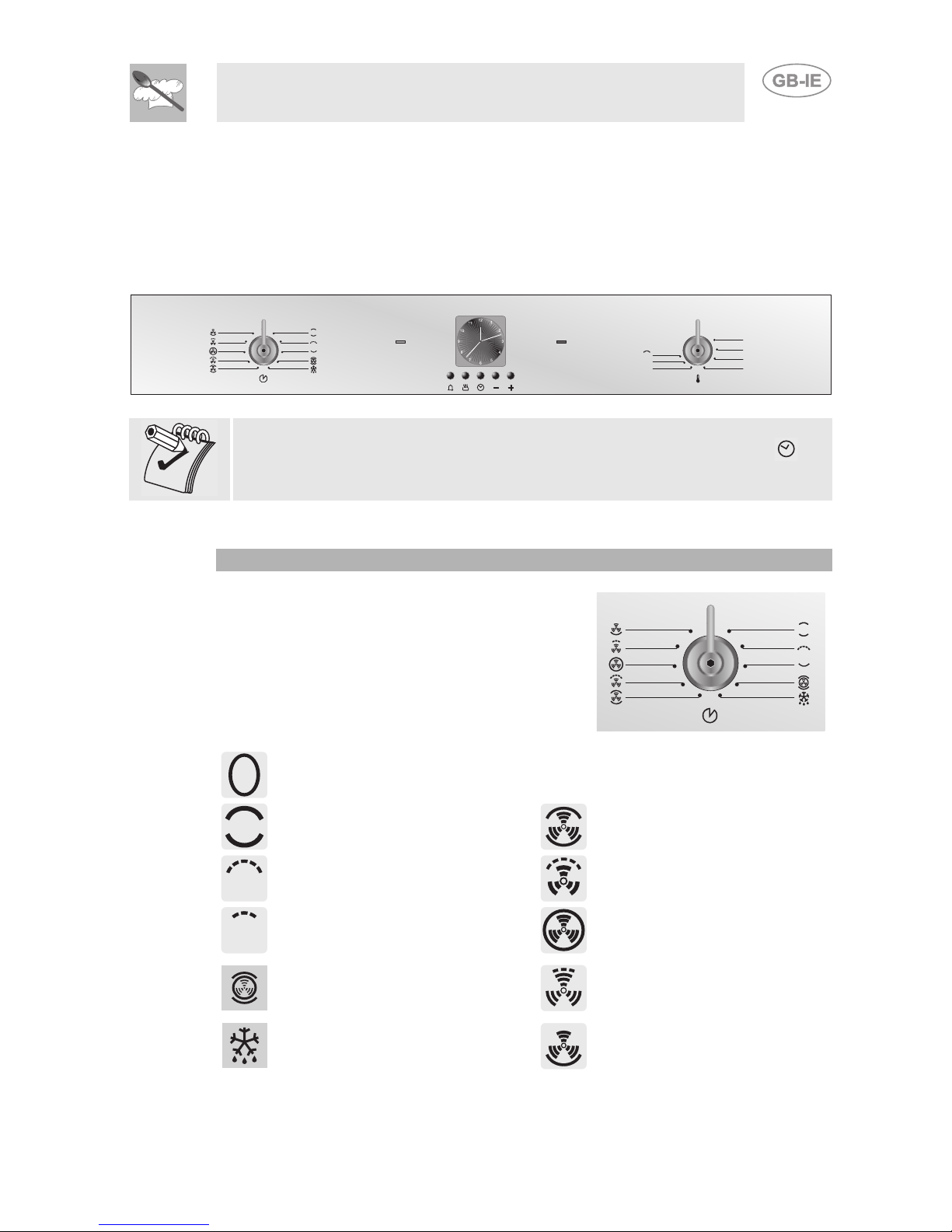

3. DESCRIPTION OF CONTROLS

3.1 The front panel

All the oven controls are grouped together on the front panel.

At first use or after a power outage, press the centre button for

1 / 2 seconds to enable the oven for cooking.

FUNCTION SELECTOR KNOB

Turn the knob in one of the two directions to

select one of the following functions:

NO FUNCTION SELECTED

HEATING ELEMENT

HEATING ELEMENTS

HEATING ELEMENT

HEATING ELEMENTS +

VENTILATION

WIDE GRILL ELEMENT WIDE GRILL ELEMENT +

VENTILATION

NARROW GRILL ELEMENT FAN-ASSISTED HEATING

ELEMENT

HEATING ELEMENT

UPPER AND LOWER +

VENTILATED HEATING

ELEMENT

NARROW GRILL ELEMENT +

VENTILATION

GRILL ELEMENT +

VENTILATION

HEATING ELEMENT

ELEMENT + VENTILATION

120

160

250

230

200

Instructions for the user

THERMOSTAT KNOB

The cooking temperature is selected by turning the knob

clockwise to the desired setting, between 50°C and 250°C.

THERMOSTAT INDICATOR LIGHT (ORANGE)

The light comes on to indicate that the oven is heating up. When

it goes out, the preset heating temperature has been reached.

When the light flashes regularly, it means that the temperature

inside the oven is kept steady on the set level.

INDICATOR LIGHT (GREEN)

This light comes on when any element of the oven is powered

on.

Instructions for the user

3.2 Analogue clock

FUNCTION KEY LIST

TIMER KEY

TIMED AND PROGRAMMED

COOKING KEY

TIME SETTING AND RESET

VALUE DECREASE KEY

VALUE INCREASE KEY

THE ELECTRONIC PROGRAMMER ONLY CONTROLS THE LARGE

OVEN AND HAS NO CONTROL OVER THE SMALL OVEN

The buzzer that sounds at the end of each programming will be made up of

10 buzzes repeated 3 times at intervals of about 1 minute. It can be

stopped at any time by pressing any key.

3.2.1 Setting the time

When the oven is used for the first time, or after an interruption in the

electricity supply, the display flashes at regular intervals.

To set the time proceed as follows:

• Press to stop the display from flashing.

• Press and hold key for 2 seconds, a flashing dot is displayed

between digits 2 and 3. The current time can now be set.

• Press the value modification keys or to increase or decrease

the setting by one minute for each pressure until reaching the required

time;

• Press key or wait for approx. 5 seconds to end setting the time.

Instructions for the user

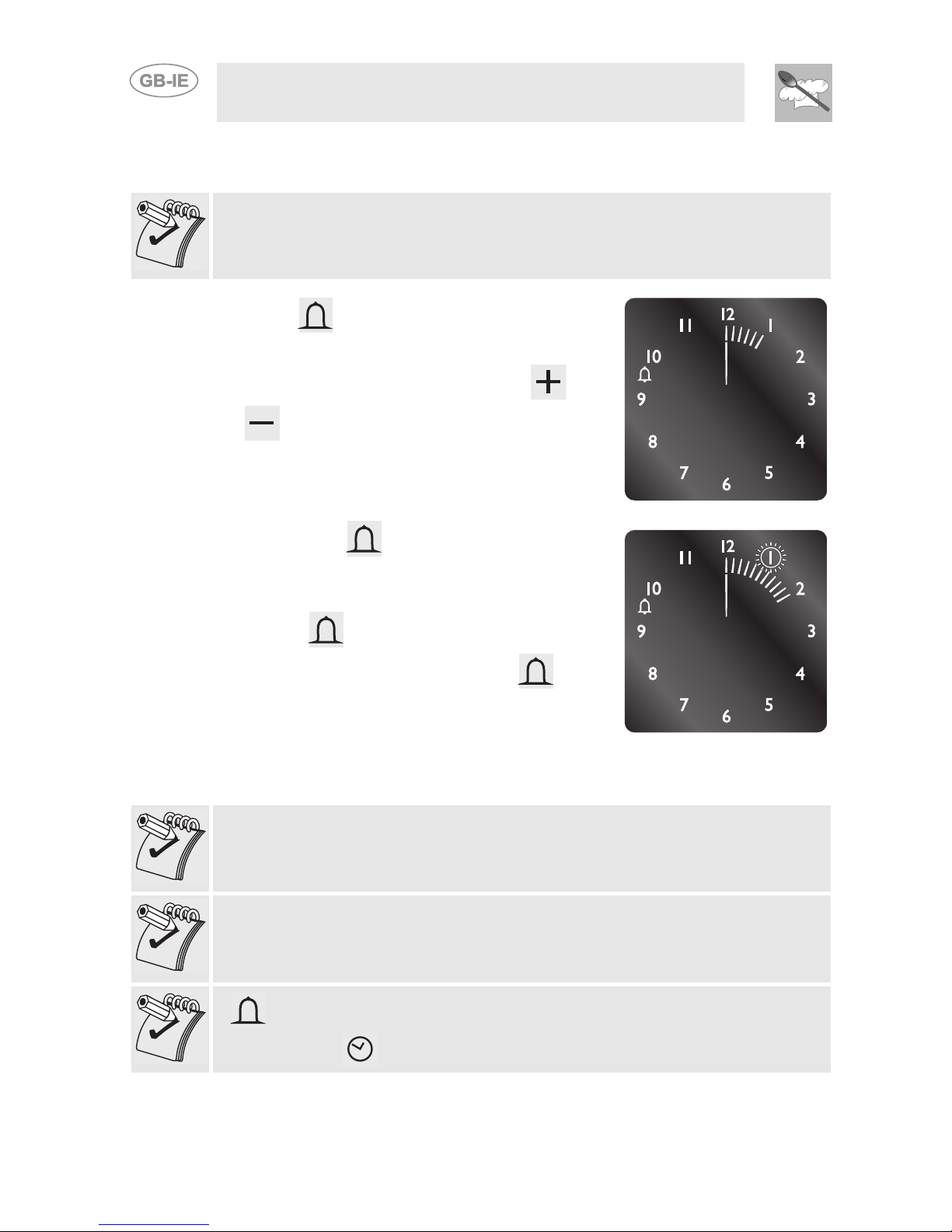

3.2.2 Timer

The timer does not stop the cooking operation. It only warns the user that

the preset number of minutes has passed.

• Press and the display will light up as

shown in figure 1;

• Press the value modification keys or

within 5 seconds to increase or

decrease the time by one minute for each

pressure until setting the required time

(figure 2 shows 1 hour and 10 minutes);

• Press key or wait for approx. 5

seconds to end setting the timer.

• The display shows the current time and

symbol between digits 9 and 10;

• To view the remaining time press and

press it again to go back to display the

current time;

• To silence the buzzer at the end of the time, press any key on the

programmer.

If the user wants to end cooking at the end of the time, the thermostat and

oven function knobs must be controlled manually.

It is not possible to set a cooking time of more than 4 hours.

If is pressed accidentally and you do not wish to set any cooking time,

press and hold for about 5 seconds to delete the setting.

Indice

Altri manuali Smeg Forno

Smeg

Smeg SA112-8 Manuale utente

Smeg

Smeg F88MF Manuale utente

Smeg

Smeg 3961I Istruzioni per il montaggio

Smeg

Smeg SOU3300TX Manuale utente

Smeg

Smeg LEV 31RU Istruzioni per il montaggio

Smeg

Smeg SC445MCX Manuale utente

Smeg

Smeg FMI425X Manuale utente

Smeg

Smeg Linear SAP112-8 Manuale utente

Smeg

Smeg SCU45VCS1 Manuale utente

Smeg

Smeg SE1055MF Manuale utente

Smeg

Smeg SFA304X Manuale utente

Smeg

Smeg Oven APL360XC Manuale utente

Smeg

Smeg Electric Multifunction Oven F170K Manuale utente

Smeg

Smeg SF9390X Manuale utente

Smeg

Smeg SFPA6309X Manuale utente

Smeg

Smeg SCP111BU2 Manuale utente

Smeg

Smeg Single Oven SCP111-1 Manuale utente

Smeg

Smeg SFP6603NRE Manuale utente

Smeg

Smeg SFPA6604NX Manuale utente

Smeg

Smeg DOSF44X Guida

Smeg

Smeg SA112-8 Manuale utente

Smeg

Smeg Single Oven SC170 Manuale utente

Smeg

Smeg SF140 Manuale di installazione e funzionamento

Smeg

Smeg sfp140 Manuale utente

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente

DeLonghi

DeLonghi XA660 Manuale
