KTS75/KTS75C

Installation of glass panels

EN

01

Glass removal

To remove the glass panels, follow the procedure in the reverse order.

EN

02

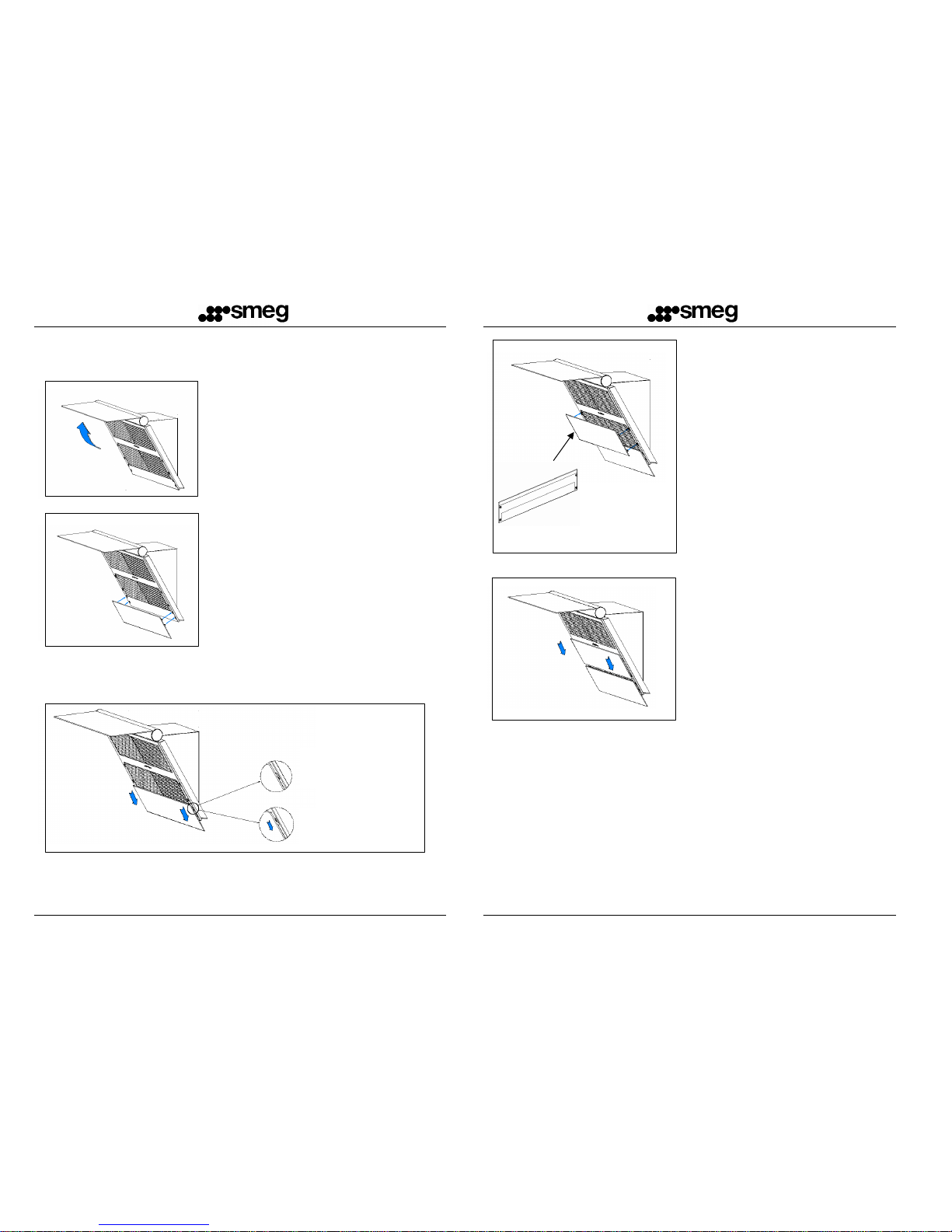

Take the two 200x750 hood glass panels out

of the box.

Remove them from the box with care.

Open the hood upper glass panel (Fig.1).

Take the glass panel with the SMEG

logo close to the hood and centre the

four hinges in their seats (Fig.2).

Fig.3.1 -Initial position

(Pins high)

Fig.3.2 -Final

position

(Pins down)

Fig.1

Fig.2

Fig.3

Let the glass panel slide downwards

along the pin guides (Fig.3.2).

Get the glass panel with no logo and

place it near the hood 2, centre the

four pins in the remaining four hood

seats (Fig.4).

(2) For proper positioning, check the position of

the metal frame on the back (Fig.4.1).

Let the glass panel slide along the

pin guides (Fig.5 and Fig.3.2)

Fig.4

Fig.5

Fig.4.1 –Rear

view.

Removal of filter panels

EN

03

NB.: To remove the upper panel pair, remove the glass panels as described on page 2 .

EN

04

Fig.5

To remove the filters, use the

key included in the supply

(Fig.5).

Insert the key prongs in the holes on

the upper central part of the panel

(Fig.7).

Fig.6

Fig.7

Place the key as shown in Fig.6.

Fig.8

Fig.9

Pull the panels up

to remove them

(Fig.9).

Turn the key downwards

and pull (Fig.8).

Installation of the filter panels

EN

05

Adjustment of glass-closed position

EN

06

Fig.10

Take the panels close to the hood.

Insert the filter pins in the seats as

shown in Fig.10

Rotate the panels and take them

close to the hood (Fig.11 and

Fig,12).

Fig.11

Fig.12

Adjust the glass closed position after installing the hood.

Adjust the closing position of the glass by loosening/tightening the

adjustment screws.

Adjust the LH and RH sides.

Use a size-3 Allen key for the adjustment (Fig.13).

Fig.13

Installation instructions

EN

07

a) Fix the hood in the center over the hob;

b) Maintain the distances shown at fig. 14 and fig. 15.

Fig.14 Fig.15

Height of the

holes for the

bracket

Reference

height for the

center of the

exhaust hole

Level of the

hob
