Smeg KV26 Manuale utente
ANGLED HOOD
Instructions booklet
1
2
Contents
3
EN
PRECAUTIONS
INSTALLATION - 4
USE - 6
MAINTENANCE - 7
CONFIGURATION - 8
INSTALLATION INSTRUCTIONS - 9
AIR CONNECTION SYSTEMS - 19
FILTER VERSION - 19
EXTRACTION VERSION - 20
INSTRUCTIONS FOR USE -22
CONTROL UNIT - 22
CLEANING AND MAINTENANCE -32
EXTERNAL CLEANING - 32
CLEANING METAL FILTERS - 32
REPLACING ODOUR FILTERS - 33
REPLACING THE LAMPS - 36
TREATMENT OF WEEE - 38
Installation
4
EN
WARNING!
Read this manual carefully before installing and/or using the hood.
•The manufacturer will not be held liable for damage resulting
from incorrect or improper installation.
•Installation and adjustments should be carried out by qualified
personnel.
•Check the integrity of the hood once it has been removed from
the packaging. If the product is damaged, do not use it. Contact
the SMEG assistance service.
•Before connecting the appliance, make sure that the mains
voltage is the same as the voltage indicated on the technical data
label inside the appliance.
•For Class I appliances, make sure that the domestic power supply
is suitably earthed.
•The minimum distance between the lower surface of the hood
and the hob must be at least 650 mm for gas appliances and 450
mm for electric or induction appliances.
•The air that is extracted must not be conveyed into a duct that is
used for extracting fumes from appliances powered by gas or
other fuels.
•Connect the air outlet from the hood to fume extraction ducts
that have an adequate internal diameter, not less than 120 mm.
•There must be adequate aeration in the room when the hood
and gas appliances are operating at the same time.
•If the power cable is damaged, it should be replaced by the
manufacturer or by his technical assistance service or anyway by
a similarly qualified person in order to prevent possible hazards.
Installation
5
WARNING!
Read this manual carefully before installing and/or using the hood.
•Comply with the legal requirements regarding the discharge of
extracted air when the hood is in operation.
•Caution: Failure to install the screws or fixing devices in
accordance with these instructions may result in electrical
hazards
•For Australia and New Zealand: Range hoods and other cooking
fume extractors may adversely affect the safe operation of
appliances burning gas or other fuels (including those in other
rooms) due to the back flow of combustion gases. These gases
can potentially result in carbon monoxide poisoning. After
installation of a range hood or other cooking fume extractor,
the operation of flued gas appliances should be tested by a
competent person to ensure that back flow of combustion
gases does not occur.
(AS/NZS 60335.2.31:2020)
EN
Use
6
•Do not cook or fry in a way that creates strong flames that may
be drawn by the hood while it is in operation and cause a fire.
•Do not flambé foods under the hood: Risk of fire.
•This appliance may be used by children under 8 years of age
and by persons with reduced physical, sensory or mental
abilities or who lack experience or the necessary knowledge if
they are supervised or after they have been given instructions
on the safe use of the appliance and understand the hazards
involved.
•Children should be supervised to make sure they do not play
with the appliance.
•The front panel should only be opened for carrying out
maintenance; it must remain closed during use.
CAUTION: accessible parts may become very hot when used with
cooking appliances.
EN
Maintenance
7
•Disconnect the appliance from the power supply before
carrying out cleaning or maintenance.
•Maintain the filters carefully and regularly according to the
schedule recommended by the manufacturer.
•Clean the surfaces of the hood using a damp cloth and a neutral
liquid detergent.
•There is a risk of fire if cleaning is not carried out according to
the instructions
•Cleaning and maintenance intended to be carried out by the
user must not be performed by children unless they are
supervised.
•Always wear work gloves when carrying out installation and
maintenance.
•The hood must NEVER be used as a support surface unless
specifically indicated.
•Do not use or leave the hood without the lamps correctly
installed due to the possible risk of electric shock.
THE MANUFACTURER DECLINES ANY LIABILITY IF THE ABOVE
INSTRUCTIONS ARE NOT FOLLOWED.
EN

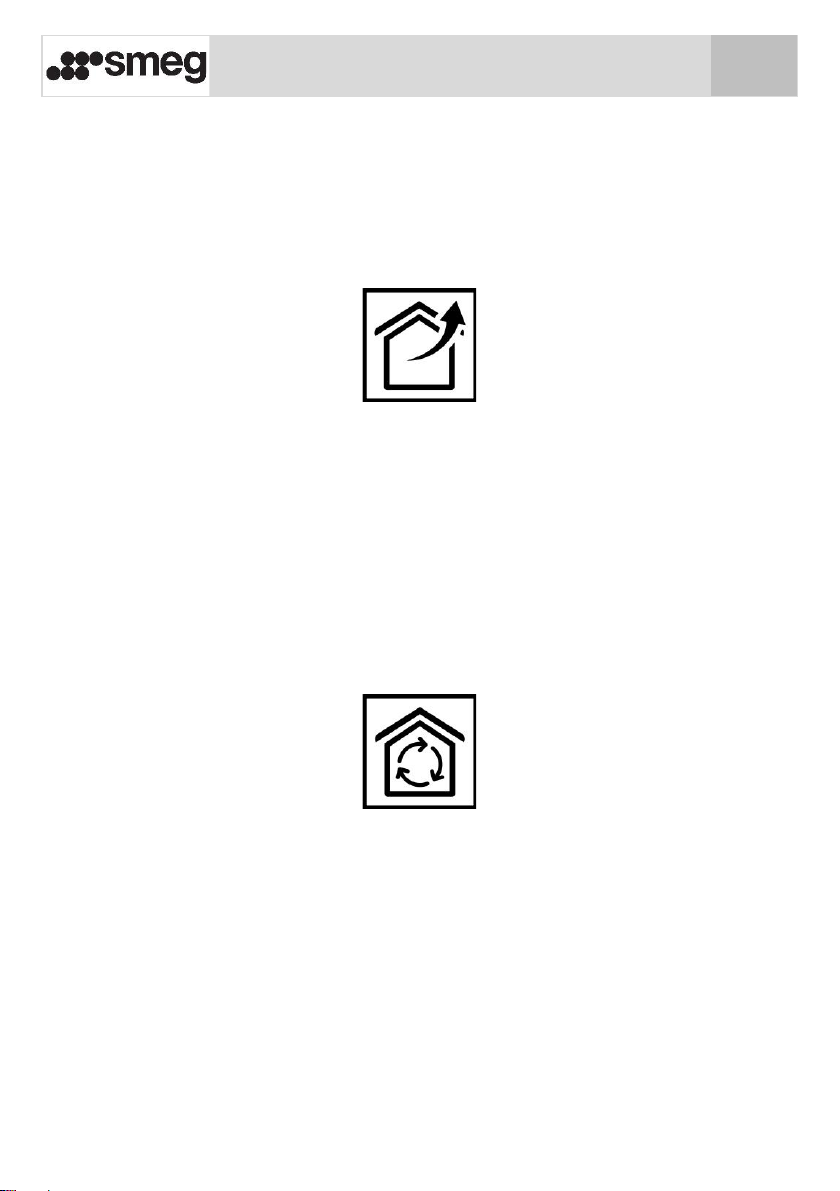

Configuration
8
This appliance has been designed to be used as an EXTRACTOR
hood (extraction of air to the outside) or as a FILTER hood (air is
recirculated indoors).
EXTRACTION VERSION
To configure the hood as the extraction version, connect the motor
outlet using a rigid or flexible pipe having an internal diameter of
not less than 120 mm, directly to the external steam and odour
extraction system.
Note Remove any activated carbon filters.
FILTER VERSION
If it is not possible to discharge the steam and odours to the
outside, the hood can be used as a filter. In this configuration, the
air and vapours are cleaned by the odour filters and recirculated
into the room via the ventilation grids on the side of the duct cover.
Note: using the hood in the filter version may increase the
perceived noise level.
EN

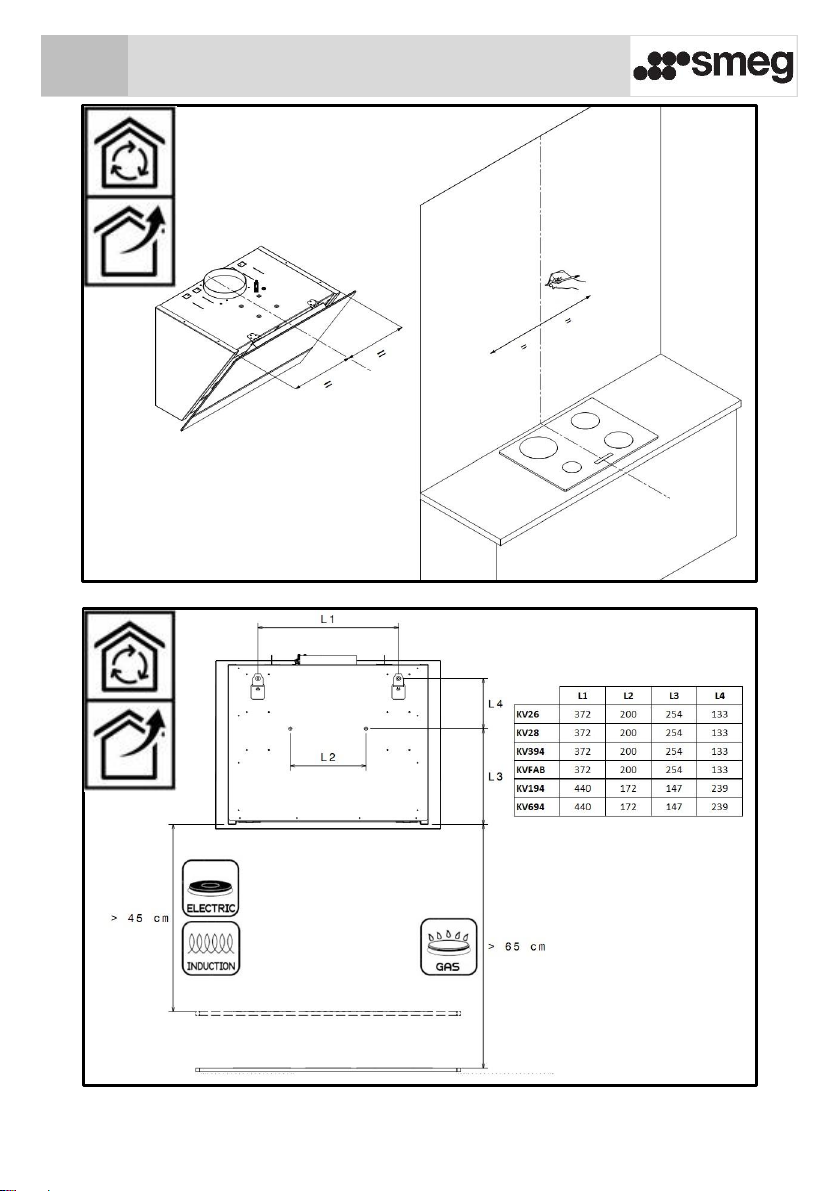

Installation instructions
9
EN

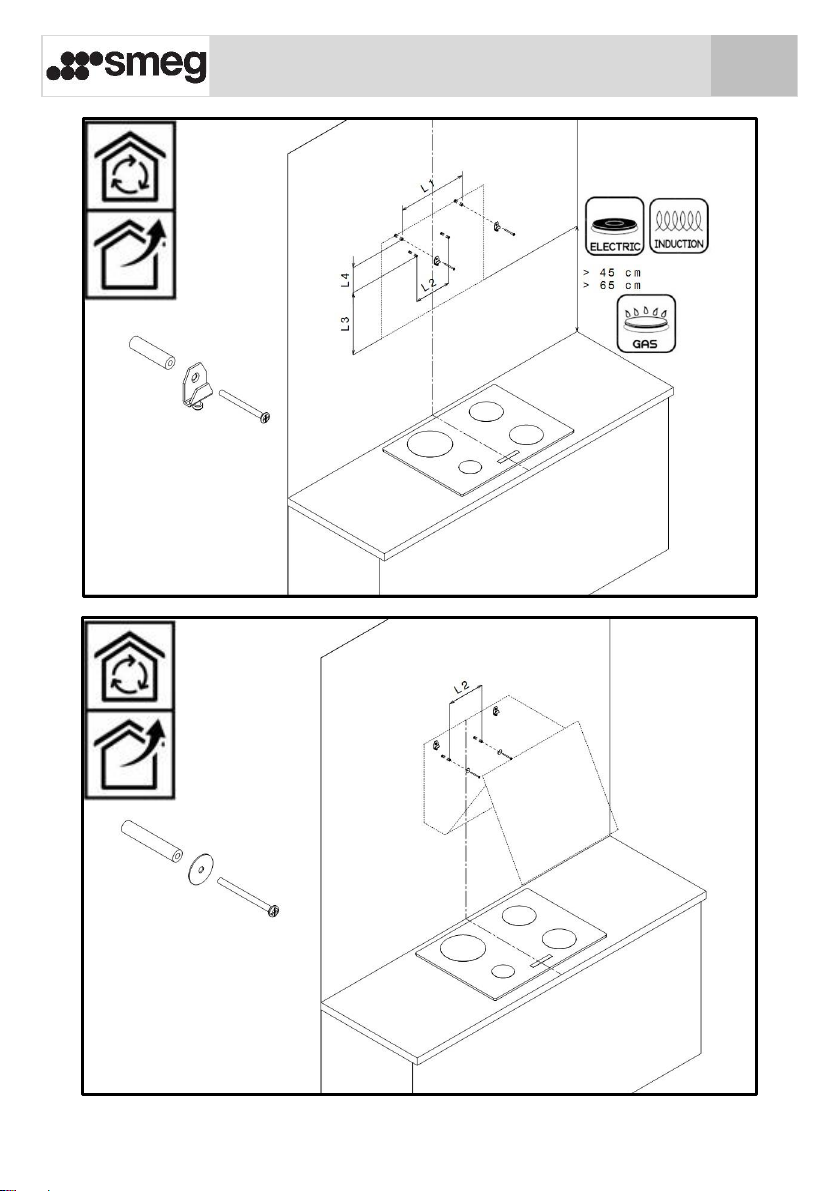

Installation instructions
10
EN
