STEP BY STEP INSTALLATION INSTRUCTIONS

Ceiling Mount

Double Rod Set

Metro Chic

Hardware

800.248.8888

1smithandnoble.com

A Smooth Set-Up

We want you to love your new hardware and that includes

having a smooth installation experience. We suggest saving

this guide. If you encounter any difculties or questions,

please reach out to us for help. It’s why we’re here. Call us at

800.248.8888 for more info on installation.

We recommend you hold on to all packaging until your

hardware is fully installed. Should something go wrong (we

strongly doubt it), we want any potential returns to be a

painless as possible.

Customer Service Hours

Monday — Friday: 6am — 6pm PT

Saturday — Sunday: 7am — 4pm PT

smithandnoble.com

Everything

You Need

Table of Contents

Step 1 -

Getting Started ..................................3

Overview - Ceiling Mount Double Rod Set ....................4

Step 2 - Marking Bracket Placement .................... 5 - 6

Step 3 - Attaching the Rod Connector......................7

Step 4 - Adding or Removing Carriers & End Stops ......8 - 10

Step 5 - Attaching Bracket to Front Rod ...................11

Step 6 - Attaching the Finials ............................12

Step 7 - Attaching Bracket to Ceiling..................13 - 14

Step 8 - Attaching Back Rod To Ceiling Bracket ............15

Step 9 - Attaching Drapery to Rod ........................16

Accessories - Baton/Wand ...................................17

Care & Cleaning ...........................................18

Warranty ..........................................Back Cover

smithandnoble.com 800.248.8888

STEP 1 - GETTING STARTED OVERVIEW

Before you begin, check the accompanying diagram to make sure you have all the parts you

need.

You’ll need to make sure the surface you intend to install your hardware is sturdy enough

to accommodate the brackets. If you’re screwing directly into a surface this means locating

wood studs that are strong enough to securely bond with the included screws. Otherwise,

you’ll need to use a secure fastener (as illustrated) but please note this piece is not included.

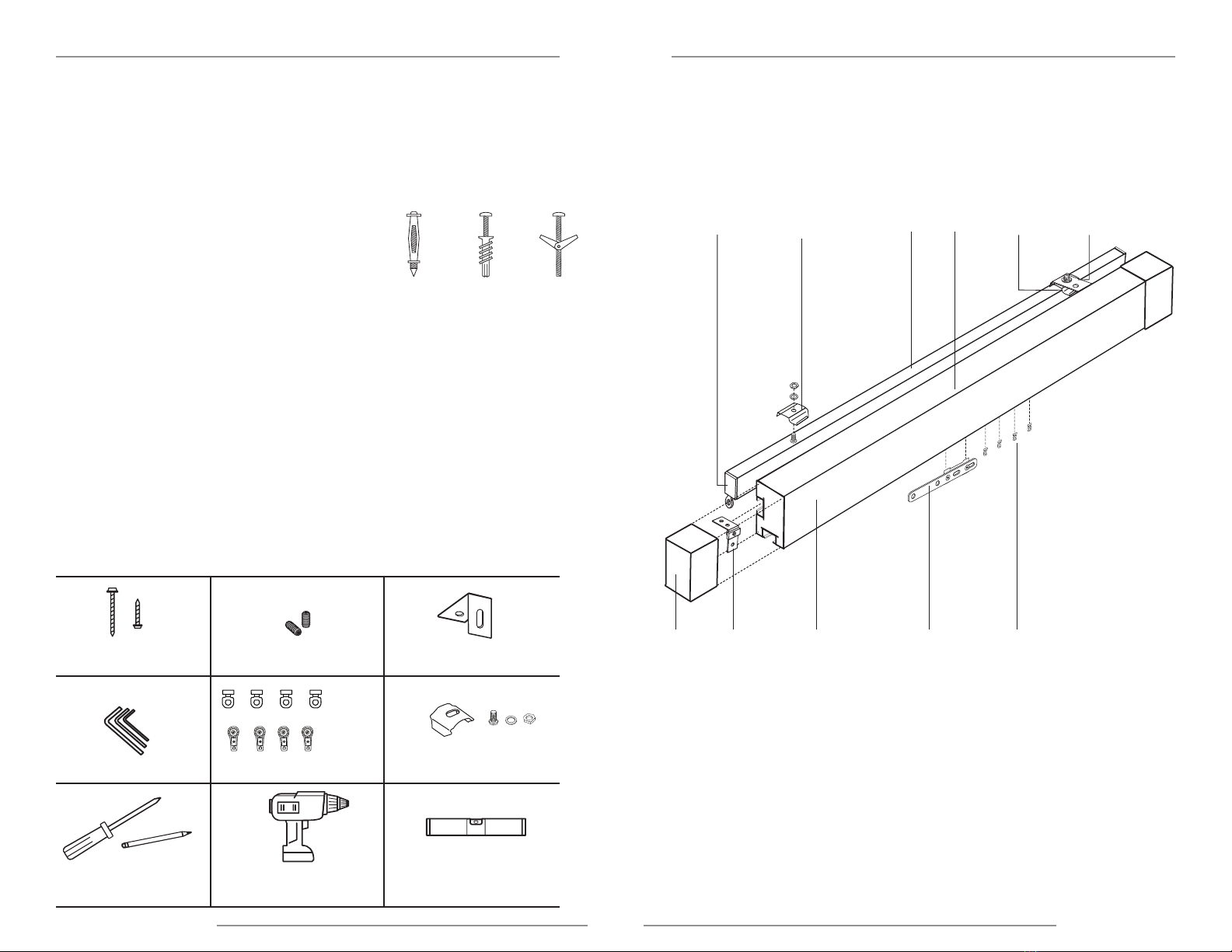

Tools & Parts Metro Chic Ceiling Mount Double Rod Set

WALLBOARD OR PLASTER:

Hollow wall applications: Use a secure fastener designed

speci cally for this purpose.

METAL:

Prepare by pre-drilling holes and then using the included screws.

CONCRETE, STONE, BRICK OR TILE:

Use a masonry drill and surface-speci c plugs, anchors, or screws. When selecting a fastener

be sure it’s designed to support the weight of the product being installed (if you’re not sure,

either give us a call or ask a professional at your local hardware store). Once obtained, follow

the fastener manufacturer’s instructions regarding proper installation.

TOOLS YOU WILL NEED TO INSTALL YOUR HARDWARE:

Pencil, screwdriver, ¼" nut driver, level, and a drill with a 7⁄64" drill bit.

Note: It’s important to monitor the amount of pressure you apply when using a drill. If the

screws are too tight this may cause the screw itself to break off in the wall or window frame.

MOLLY

BOLT

SELF DRILLING

ANCHOR

TOGGLE

BOLT

LEVEL

(NOT INCLUDED)

BACK ROD CEILING BRACKET

PENCIL & SCREWDRIVER

(NOT INCLUDED) POWER DRILL

(NOT INCLUDED)

SCREWS SET SCREWS

FRONT

ROD

BACK

ROD

ALLEN WRENCHES

CEILING MOUNT BRACKET

CARRIERS

CARRIERSMASTER

CARRIER

FRONT ROD

MOUNTING

BRACKET

FRONT

ROD

FINIAL

BACK ROD

END CAP BACK

ROD

BACK ROD

MOUNTING

CLIP

BACK ROD

MOUNTING

BRACKET

BACK ROD

MOUNTING

CLIP

FRONT

ROD

smithandnoble.com 800.248.8888

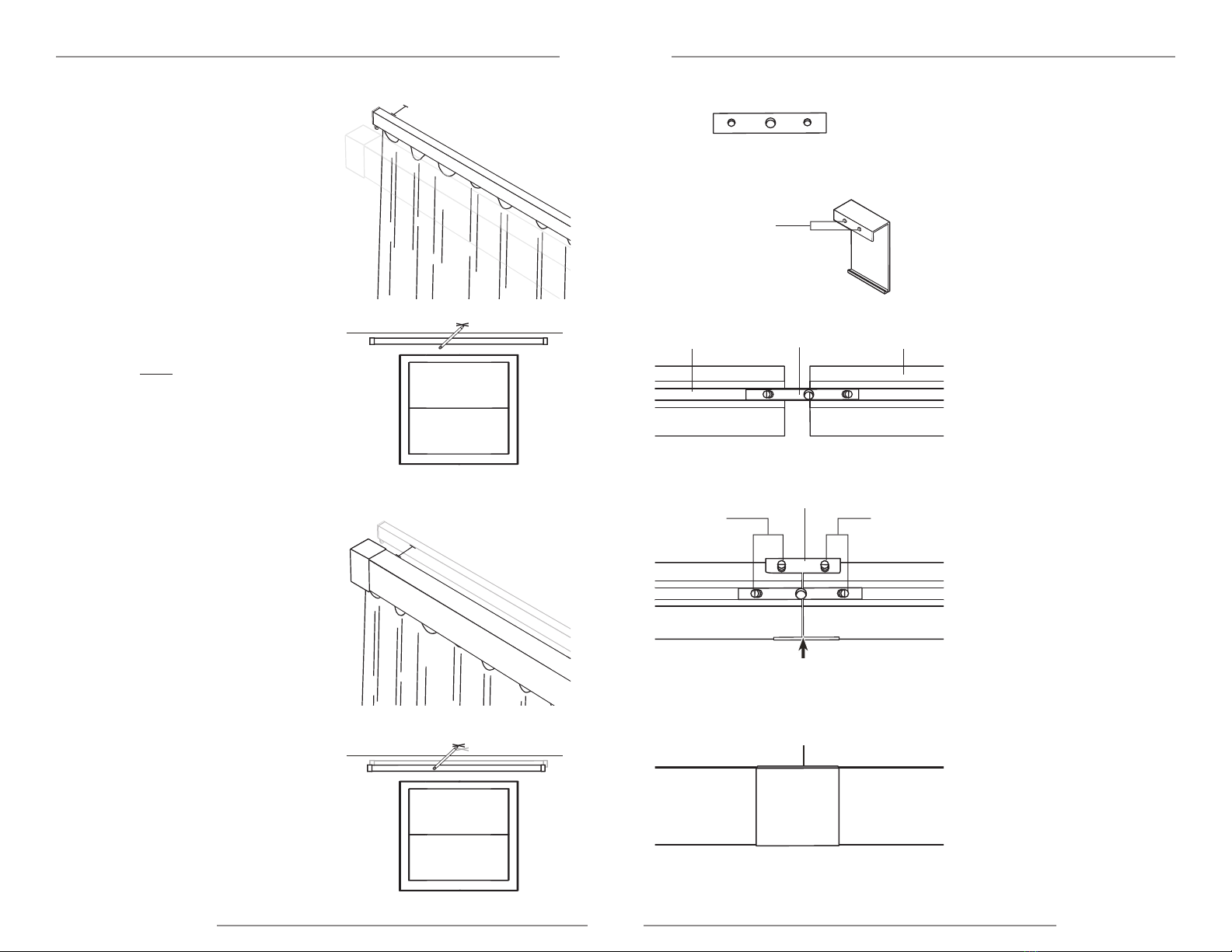

Back Rod

1. Place the back panel on the back rod.

Hold it up to the spot you wish to

install it making sure there is enough

spacing from wall to where the back

of drapery will hit. Usually about 2”

away from wall or window.

After you’ve located the ideal loca-

tion, use a pencil to mark the ceiling

where the center of the rod is resting.

Front Rod

2. Place the front panel on the front rod.

Hold it up to the spot you wish to

install it making sure there is enough

spacing from back rod to where the

back of drapery will hit. Usually about

2 1/2” away from back rod marking.

After you’ve located the ideal loca-

tion, use a pencil to mark the ceiling

where the back of the rod is resting.

STEP 2 - MARKING BRACKET PLACEMENT

Back rod 2" away from

wall or window.

Front rod 21⁄2" away

from back rod.

21⁄2"

Depending on your order, you may

have received a rod connector.

A rod connector is the short piece

of metal placed inside each end of

the rods in a multi-segment system

to join them together.

Join track sections together and fas-

ten securely with set screws.

Attach the splice cover

STEP 3 - ATTACHING THE ROD CONNECTOR

SPLICE COVER

SPLICE

2 SEGMENTS OF RODBACK VIEW

SPLICE COVER

ROD CONNECTOR

SET

SCREWS

SET

SCREWS

CHANNEL ROD

BACK VIEW

FRONT VIEW

SPLICE

COVER

ROD CONNECTOR

SET

SCREWS

smithandnoble.com

800.248.8888

Front Rod

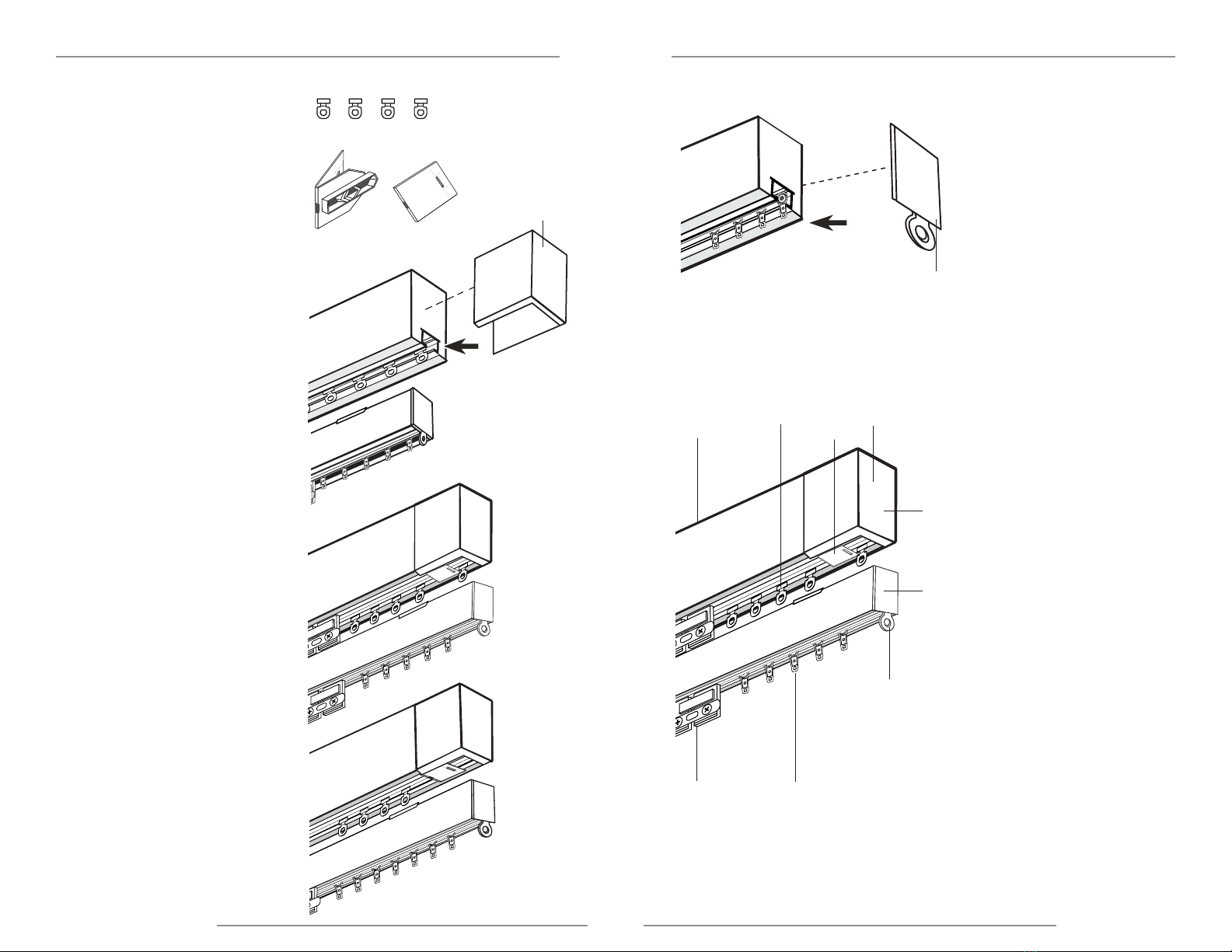

Your track rod will come with all master

carriers and regular carriers pre-installed.

If you need to add or take out some carri-

ers depending on your drapery, unscrew

the End Cap from the rod.

Remove the carrier & end stop and either

add or take out the Carriers needed.

SPLIT DRAPERY (A)

Once all carriers have been placed in

the track, for split drapery, place end

stop in between the rst carrier from

each end and the second carrier so

end of drape does not move when

drape is closed.

ONE WAY DRAW DRAPERY

For one way draw drapery, place end

stop in between the first carrier from

the end and the second carrier of the

side you won’t be opening it from so

the end of drape does not move when

drape is closed. (A)

Place another end stop right before

the beginning of the end cap to pre-

vent the master carrier from moving all

the way to the end.

STEP 4 - ADDING OR REMOVING CARRIERS STEP 4 - ADDING OR REMOVING CARRIERS

END STOP

CARRIERS

Back Rod

Your track rod will come with all master

carriers and regular carriers pre-installed.

If you need to take add or take out some

carriers depending on your drapery,

remove the end cap from rail and either

add or take out the Carriers needed and

then re-install end cap.

Take Carriers &

End Stop out here

FINIAL

Split Draw

End stop &

Carrier positions

(A)

One Way

Draw

End stop &

Carrier positions

(B)

Take Carriers &

End Stop out here

END

STOP

END

CAP

MASTER

CARRIER

MASTER

CARRIER

CARRIERS

BACK

ROD

FRONT

ROD

FINIAL

END

CAP

910

smithandnoble.com

800.248.8888

Back Rod

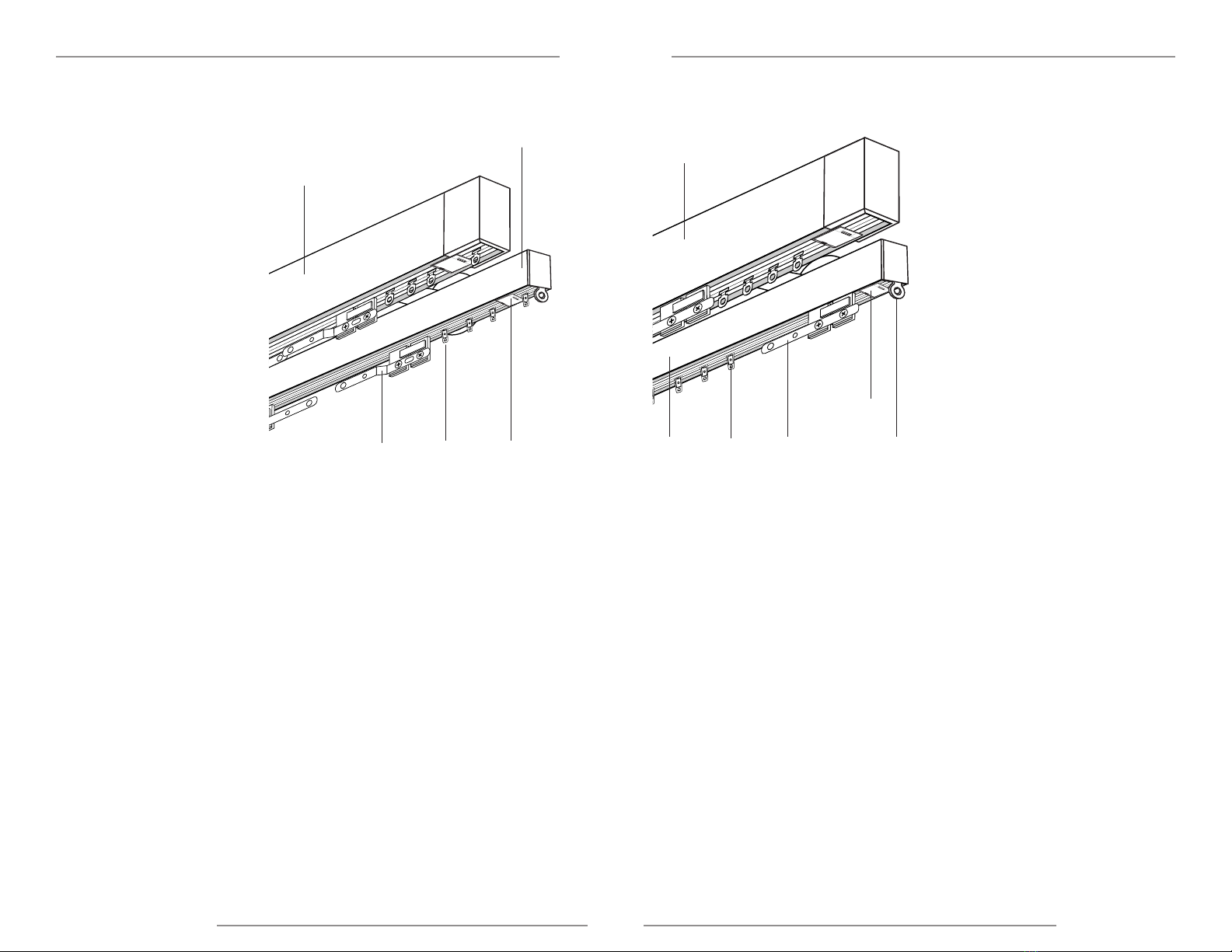

ONE WAY DRAW DRAPERY (B)

For one way draw drapery, place

end stop in between the first car-

rier from the end and the sec-

ond carrier of the side you won’t

be opening it from so the end of

drape does not move when drape

is closed.

Place another end stop right before

the beginning of the end cap to

prevent the master carrier from

moving all the way to the end.

Back Rod

SPLIT DRAPERY (A)

Once all carriers have been

placed in the track, for split dra-

pery, place end stop in between

the first carrier from each end

and the second carrier so end

of drape does not move when

drape is closed.

STEP 4 - ADDING OR REMOVING CARRIERS STEP 4 - ADDING OR REMOVING CARRIERS

CARRIERS END

STOP

MASTER

CARRIER

Split Draw

End stop & Carrier positions

(A)

One Way Draw

End stop & Carrier positions

MASTER

CARRIER

CARRIERS

END

STOP

END

CAP

FRONT

ROD

FRONT

ROD

(B)

BACK

ROD

BACK ROD

11 12

smithandnoble.com

800.248.8888

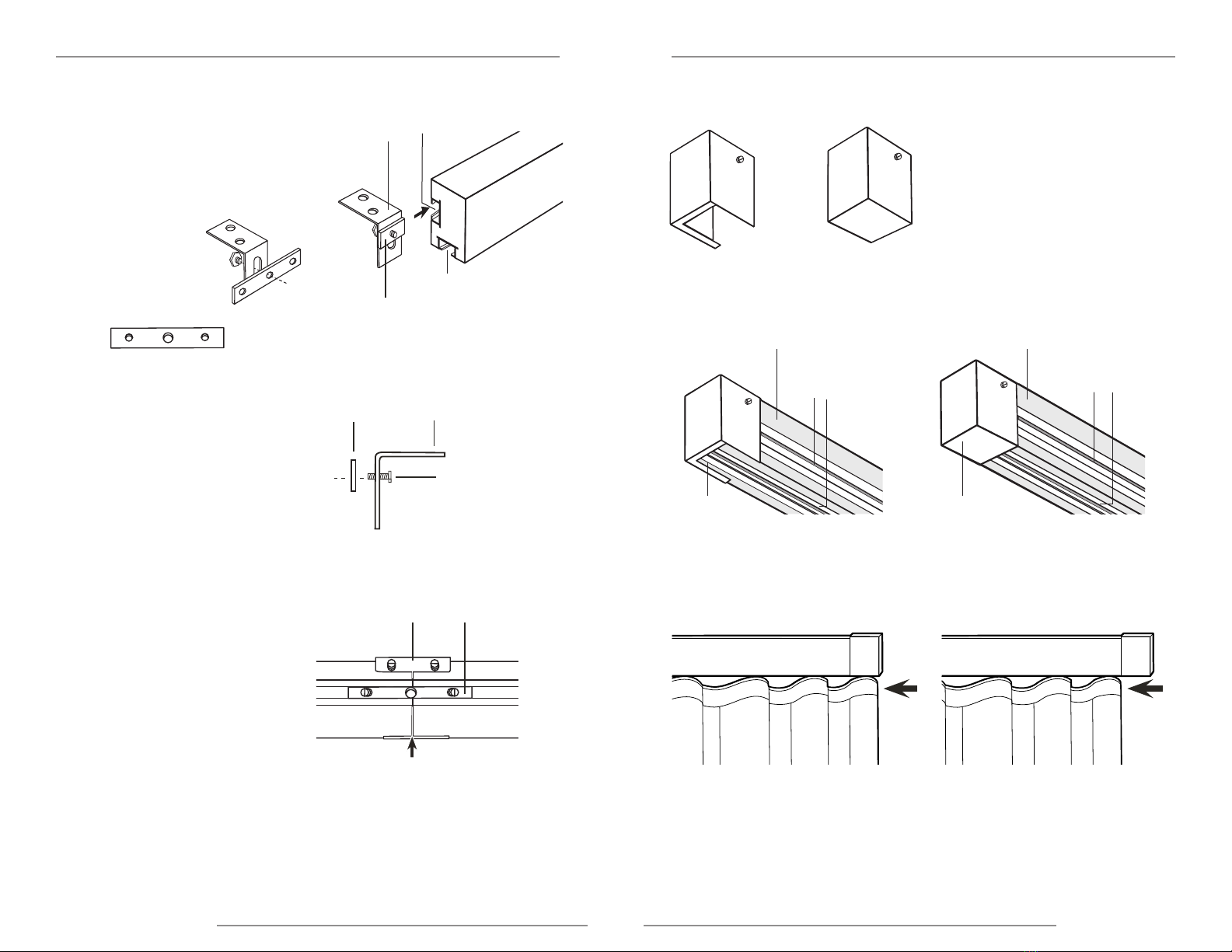

Slide in End Cap onto rod and tighten

set screw.

End Cap can be attached with the

opening at the bottom or top

depend-

ing on look you want to achieve.

If you want to get your drapery all the

way to the end of the rod, then place

opening of end cap at the bottom of

rod where track is.

If you want your draperies to stop

where the end cap starts, move the

open side of the end cap to the top of

track. The covered part of end cap will

be at the bottom where track is.

STEP 6 - ATTACHING FINIALSSTEP 5 - ATTACHING BRACKET TO FRONT ROD

Insert the ceiling brackets into the

channel in the back of the track. Do

not tighten at this time.

If your rod was spliced, attach the

center spliced bracket by taking off

the little metal plate and screwing

it in the middle hole of the splice

connector.

CHANNEL

CEILING

BRACKET

CHANNEL

SPLICE

COVER

SPLICE

CONNECTOR

SPLICE

CONNECTOR

Use splice connector

if rod is spliced.

SPLICE

HEX

SCREW

CEILING

BRACKET

MOUNTING

POST

OPEN

END CAP FINIAL

COVERED

END CAP FINIAL

BACK OF ROD

CHANNELS CHANNELS

END CAP FINIALS

OPEN COVERED

MOUNTING

POST

13 14

smithandnoble.com 800.248.8888

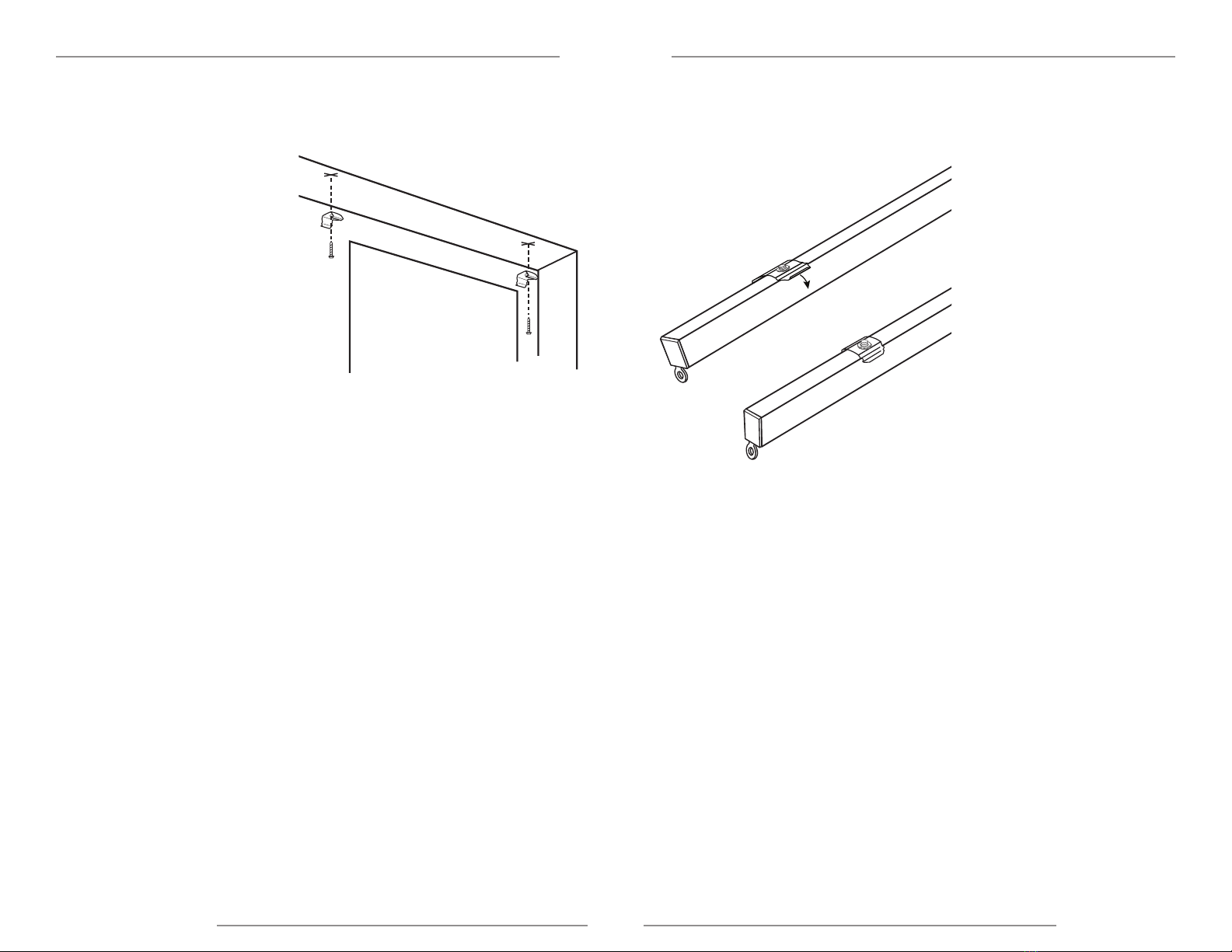

STEP 8 - ATTACHING BACK ROD TO CEILING BRACKET

Back Rod

Attach the ceiling bracket to the ceiling,

aligning the holes of the bracket with

the marks you made on ceiling on a

previous step.

Be sure and attach the bracket to the

ceiling with the appropriate mounting

hardware.

(It is always recommended to try and attach

to the ceiling joists found inside ceiling.

Where this is not possible please use an

anchor suitable to carry the weight of your

hardware selection as well as your draper-

ies and any accessories.)

STEP 7 - ATTACHING BRACKET TO CEILING

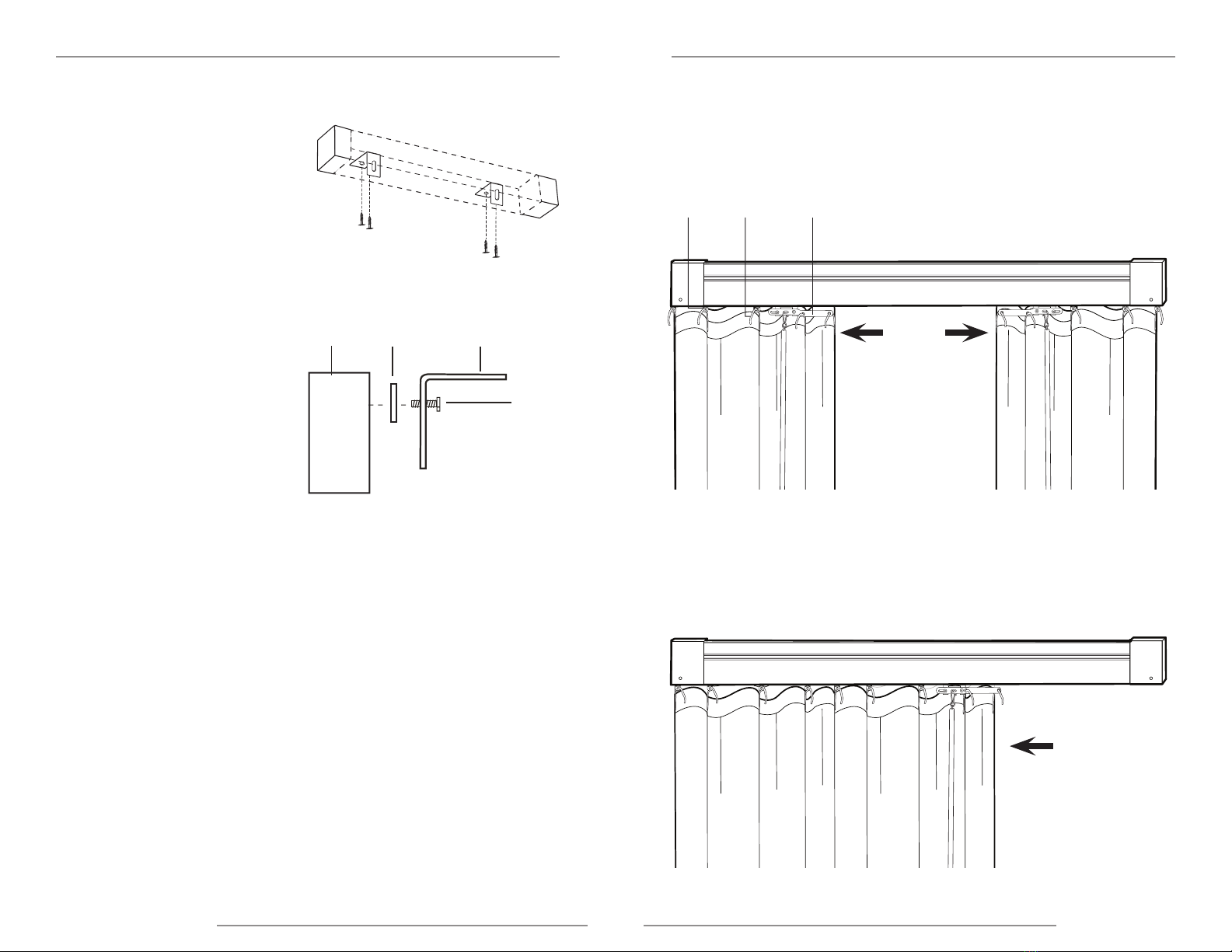

Place the front lip of the rod into the

front edge of the clip.

Rotate the back of the rod up into

the clips and snap into place.

15 16

smithandnoble.com 800.248.8888

STEP 10 - ATTACHING DRAPERY TO RODS

STEP 9 - ATTACHING BRACKET TO CEILING

Front Rod

Hold the rod up and attach the brack-

et to the ceiling, aligning the holes of

the bracket with the marks you made

on ceiling on a previous step.

Be sure and attach the bracket to the

ceiling with the appropriate mount-

ing hardware.

(It is always recommended to try and

attach to the ceiling joists found inside

ceiling. Where this is not possible

please use an anchor suitable to carry

the weight of your hardware selection

as well as your draperies and any acces-

sories.)

Tighten the hex screw on the back

of the ceiling bracket to make sure

the rod is attached strongly to the

bracket.

HEX

SCREW

CEILING

BRACKET

SPLICE

CONNECTOR

ROD

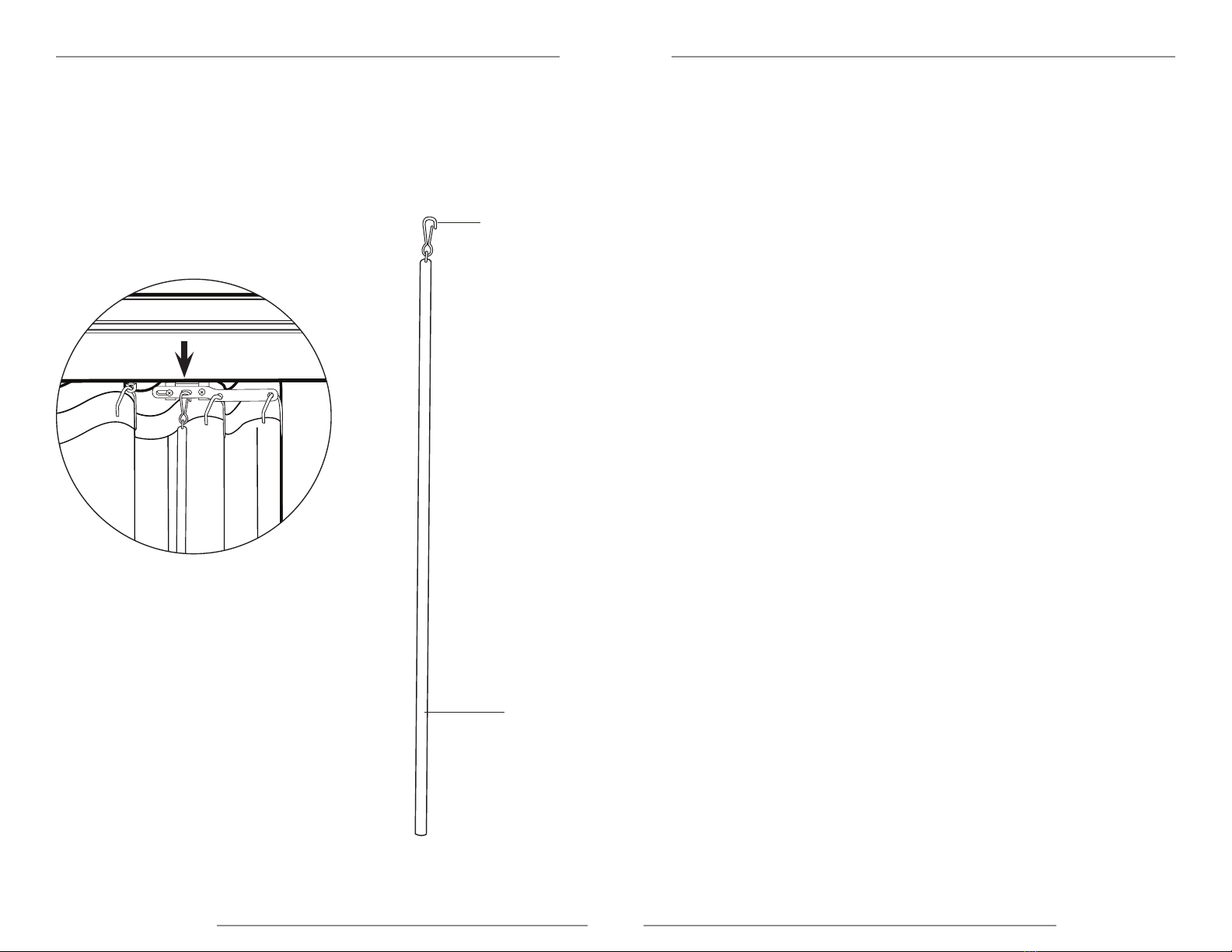

Insert drapery pin hooks into carriers

and master carriers.

Split Drapery

For Split drapery, start pining from the

center and go towards the ends.

Draw one side

For drapery opening from one side

only, start pining from the opening side

towards the end.

MASTER

CARRIER

DRAPERY

PINS

CARRIERS

BACK VIEW OF ROD

17 18

smithandnoble.com 800.248.8888

Minimal care and cleaning is needed to maintain the beauty of your Hardware.

To Vacuum: Use brush or dust head attachment.

To Dust: Use soft, clean cloth.

CARE & CLEANING

Baton/Wand (optional)

Baton/Wand will be pre-attached to

the master carrier(s).

CLIP

BATON/

WAND

ACCESSORIES

Altri manuali per Metro Chic Hardware

Indice

Altri manuali Smith & Noble Rack e supporto

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Chic Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Chic Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Chic Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Chic Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Chic Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Chic Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Smith & Noble

Smith & Noble Euro Track Basics Hardware-Heavy Duty Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuale utente

Smith & Noble

Smith & Noble Marrakesh Hardware Manuale utente

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente
