Installation Instructions
Roof Rack Tire Mount
Part #D8545/D8555
D8655/D8865/D8875
Part# D8545
Parts Included Qty
Parts Included Qty
Main Brkt 5x4.5” bolt patt.(D8545-1) 1 5/16” Lock Washers 24
Side Plates (D8545-2) 2 5/16” Nuts 12
Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2
Hardware Pack 3/8” Nut 2
5/16”x2” Bolt 4 3/8” Lock Washers 2
5/16”x3/4” Bolt 8 3/8” Flat Washers 4
5/16” Flat Washers 24 1/2" Lug Nut
3
Part# D8555
Parts Included Qty
Parts Included Qty
Main Brkt 5x5.5” bolt patt.(D8555-1) 1 5/16” Lock Washers 24
Side Plates (D8545-2) 2 5/16” Nuts 12
Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2
Hardware Pack 3/8” Nut 2
5/16”x2” Bolt 4 3/8” Lock Washers 2
5/16”x3/4” Bolt 8 3/8” Flat Washers 4
5/16” Flat Washers 24 1
/2" Lug Nut 3
Part# D8655
Parts Included Qty
Parts Included Qty
Main Brkt 6x5.5” bolt patt.(D8655-1) 1 5/16” Lock Washers 24
Side Plates (D8545-2) 2 5/16” Nuts 12
Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2
Hardware Pack 3/8” Nut 2
5/16”x2” Bolt 4 3/8” Lock Washers 2
5/16”x3/4” Bolt 8 3/8” Flat Washers 4
5/16” Flat Washers 24
1/2" Lug Nut 3
Please read instructions entirely before installing this product.
Installation Instructions
Roof Rack Tire Mount
Part #D8545/D8555
D8655/D8865/D8875
Part# D8865
Parts Included Qty
Parts Included Qty
Main Brkt 8x6.5” bolt patt.(D8865-1) 1 5/16” Lock Washers 24
Side Plates (D8545-2) 2 5/16” Nuts 12
Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2
Hardware Pack 3/8” Nut 2
5/16”x2” Bolt 4 3/8” Lock Washers 2
5/16”x3/4” Bolt 8 3/8” Flat Washers 4
5/16” Flat Washers 24
1/2" Lug Nut 3
Part# D8875
Parts Included Qty
Parts Included Qty
Main Brkt 8x170m bolt patt.(D8875-1) 1
5/16” Lock Washers 24
Side Plates (D8545-2) 2 5/16” Nuts 12
Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2
Hardware Pack 3/8” Nut 2
5/16”x2” Bolt 4 3/8” Lock Washers 2
5/16”x3/4” Bolt 8 3/8” Flat Washers 4
5/16” Flat Washers 24
1/2" Lug Nut 3
Notes: We recommend this installation be performed by a qualified technician. Always torque
all hardware to factory specifications and use red octite on all bolts. When removing
wheels, support vehicle with jack stands.
Grade 8 nut torque specifications
Standard
Metric
5/16” nuts 20 ft. lbs.
M6
9 ft. lbs.
3/8” nuts 35 ft. lbs.
M8 23 ft. lbs.
7/16”nuts 60 ft. lbs.
M10 45 ft. lbs.
1/2”
nuts 90 ft. lbs.
M12 75 ft. lbs.
9/16” nuts 160 ft. lbs.
M14 120 ft. lbs.
5/8” nuts
175 ft. lbs.
M16 165 ft. lbs.
Installation Instructions
Roof Rack Tire Mount
Part #D8545/D8555
D8655/D8865/D8875
Step 1: Put your tire on a flat surface, and then measure from the surface to the bottom of
the lug nut hole. You need this to determine the height of the tire mount.
Step 2: Once you have this measurement, mount the side plates to the tire mount, and adjust
the height of the top of the tire mount, so its ¼” less than the measurement you took
earlier.

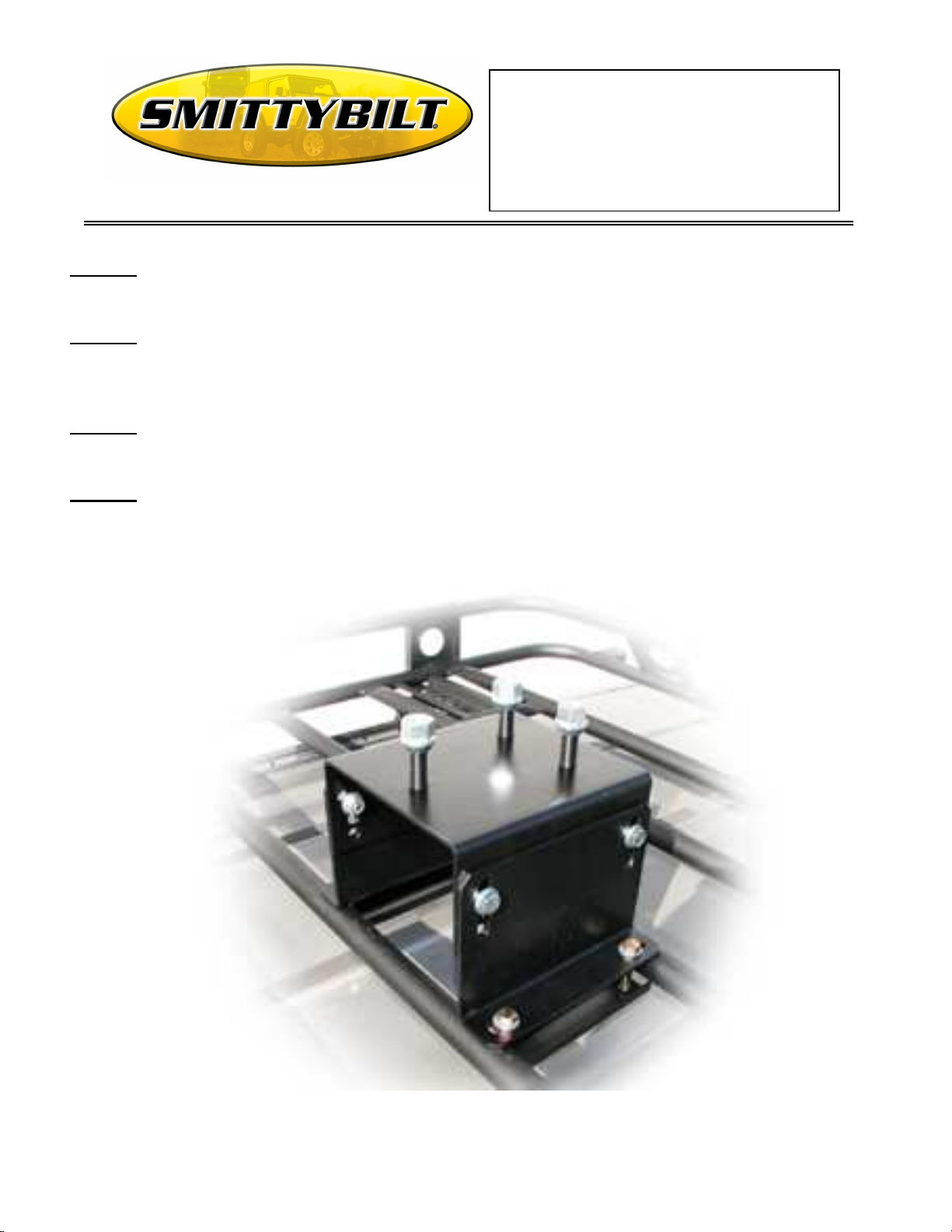

Step 3: Now mount the tire mount to flooring as shown in picture, making sure there is
enough room around it so the tire will fit flat on the flooring.
Step 4: Install tire. Make sure that there is not too much, so the tire compresses slightly,
without bending the flooring tubes, or the mount.
