OWNER’S MANUAL

COMMERCIAL AIR CLEANER

MODELS:

SE-40/VARIABLE SPEED

SE-50/ 3 SPEED

KNOW YOUR EQUIPMENT

READ THIS MANUAL FIRST.

Your SMOKEETER system should provide many years of trouble-free service. This manu-

al will help you understand the operation of your SMOKEETER unit. It will also help you

understand how to maintain it in order to achieve top performance. For quick future refer-

ence, fill in the system and filter information in the spaces below. Should you need assis-

tance, call the United Air Specialists, Inc. customer service number shown below. To expe-

dite your service, have the following information available when contacting UAS.

UNIT ORDER #: ________________________________________________________

UNIT MODEL #:_________________________________________________________

UNIT SERIAL #:_________________________________________________________

SYSTEM ACCESSORIES:

______________________________________________________________________

INSTALLATION DATE: ___________________________________________________

CUSTOMER SERVICE

1-800-237-9199

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, or injury when using the air cleaner, follow these basic precautions:

SAFETY PRECAUTIONS

We have provided many important safety messages in this manual and on the SMOKEETER Electronic Air Cleaner. Always

read and obey all safety messages.

• Use two or more people to move and install the

SMOKEETER system.

• The air cleaner must be properly grounded.

• Disconnect power before servicing.

• Replace all access panels before operating.

• Wear protective clothing and safety glasses when handling

collection components or servicing the air cleaner.

• Electrical connections should only be made by qualified

personnel and be in accordance with local and national

codes and regulations.

• Do not use in explosive atmospheres.

• Use nonflammable cleaners.

• Do not collect emissions which are explosive.

• Keep flammable materials and vapors, such as gasoline,

away from air cleaner.

• The unit should be inspected frequently and dirt removed

to prevent excessive accumulation which may result in

flash-over or fire damage.

• The SMOKEETER System should not be used for support

of personnel or material.

• Operate only in a safe and serviceable condition.

!DANGER

!WARNING

!CAUTION

CAUTION

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the

safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words mean:

Indicates a hazardous situation which, if not avoided, will result in death or

serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result

in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result

in minor or moderate injury.

CAUTION used without the safety alert symbol indicates a potentially

hazardous situation which, if not avoided, may result in property damage.

TABLE OF CONTENTS

1.0 IMPORTANT NOTICE......................................................................................3

2.0 INSPECTION OF EQUIPMENT.......................................................................3

3.0 HOW YOUR AIR CLEANER OPERATES .......................................................3

3.1 COMPONENTS THAT MAKE IT WORK ...................................................3

4.0 INSTALLATION ................................................................................................3

4.1 WALL MOUNTING.....................................................................................4

4.2 SUSPENSION ...........................................................................................5

5.0 OPERATION ....................................................................................................5

6.0 CLEANING.......................................................................................................5

6.1 HOW TO REMOVE COMPONENTS.........................................................5

6.2 CLEANING.................................................................................................6

7.0 PERIODIC MAINTENANCE AND TROUBLESHOOTING...............................7

7.1 COMPONENT FUNCTION ........................................................................7

7.2 HOW THE HIGH VOLTAGE IS SUPPLIED TO THE COMPONENTS......7

7.3 TOOLS REQUIRED FOR TROUBLESHOOTING .....................................7

7.4 HOW TO MEASURE HIGH VOLTAGE......................................................7

7.5 MEASURING HIGH VOLTAGE..................................................................7

7.6 IONIZER VOLTAGE...................................................................................7

7.7 CELL VOLTAGE.........................................................................................7

7.8 CHECKING THE POWER SUPPLY OUTPUT ..........................................8

7.9 CHECKING LAMP TERMINAL OUTPUT ..................................................8

7.10 CHECKING MOTOR CAPACITOR..........................................................9

8.0 PARTS ORDERING .........................................................................................9

9.0 TROUBLESHOOTING TABLE.......................................................................10

10.0 ILLUSTRATED PARTS .............................................................................11-22

11.0 WIRING DIAGRAM........................................................................................23

Revised 12/05

SMOKEETER®

Electronic Air Cleaner

SPECIFICATIONS

POWER REQUIREMENTS

115 VAC, 60 HZ

6.0 Amps (max.)

POWER CONSUMPTION

690 Watts (max.)

AIR HANDLING CAPACITY

Low - 450 to 950 CFM*

WEIGHT

Hanging …… 113 lbs. (51 kg)

Shipping

…… 120 lbs. (54 kg)

DIMENSIONS

Height Width Length

12 7/8" 21" 40"

(33 cm) (53 cm) (102 cm)

MODEL SE 40

*CFM is variable

POWER REQUIREMENTS

115 VAC, 60 HZ

8.4 Amps (max.)

POWER CONSUMPTION

900 Watts (max.)

AIR HANDLING CAPACITY

High speed tap - 1,500 CFM

Medium speed tap - 1,050 CFM

Low speed tap - 600 CFM

WEIGHT

Hanging …… 140 lbs. (63.5 kg)

Shipping

…… 151 lbs. (68.5 kg)

DIMENSIONS

Height Width Length

20" 191/2" 40"

(51 cm) (50 cm) (102 cm)

MODEL SE 50

Revised 12/05

SMOKEETER®

Electronic Air Cleaner

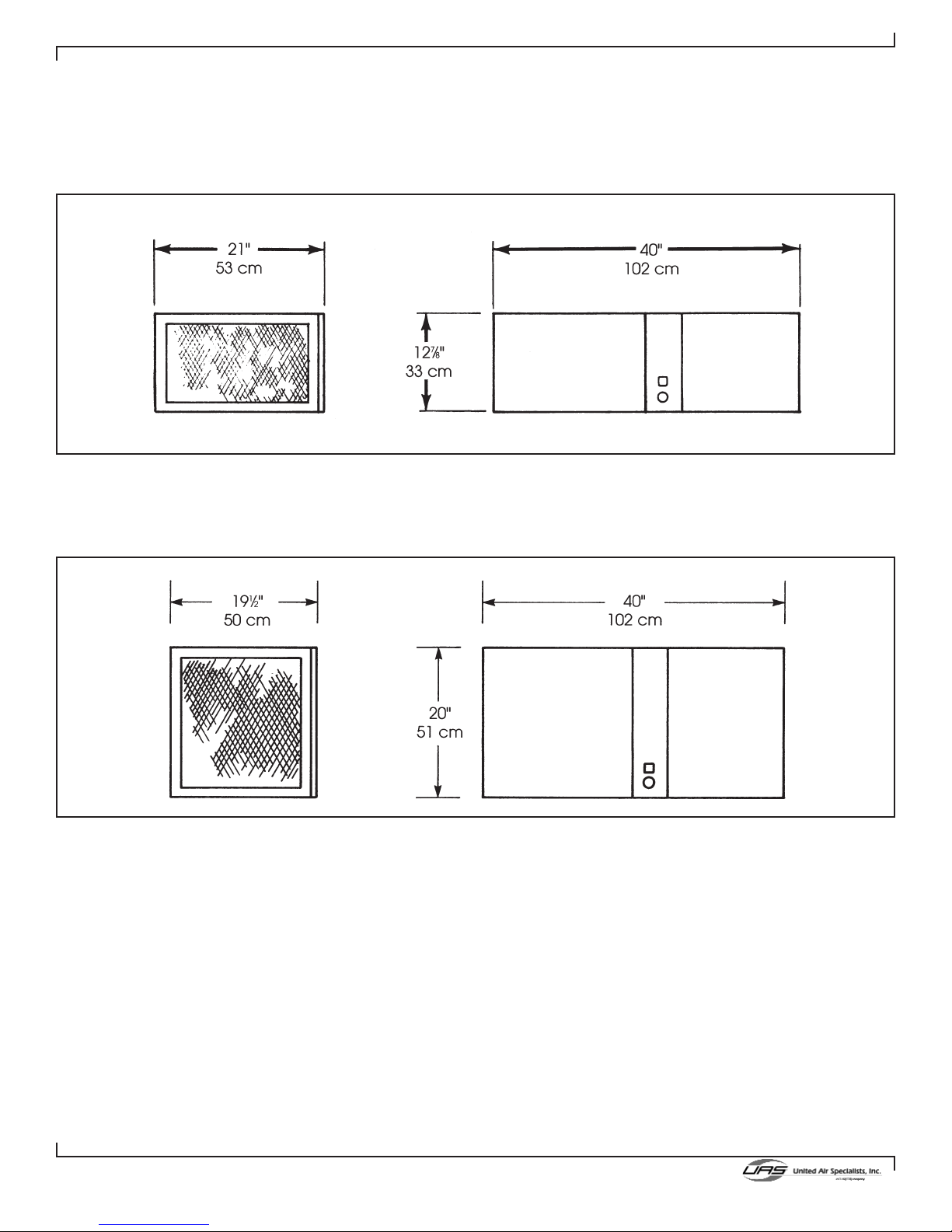

DIMENSIONS

SE 50

SE 40

Revised 12/05

SMOKEETER®

Electronic Air Cleaner

1.0 IMPORTANT NOTICE

This manual contains important safety information and

precautionary measures. Read this manual thoroughly

and comply with the instructions given. It is impossible

to list all potential hazards associated with every dust

collection system in each application. Proper use of the

equipment must be discussed with United Air

Specialists, Inc. (UAS) or your local representative.

Operating personnel must be aware of, and adhere to,

the most stringent safety procedures.

2.0 INSPECTION OF EQUIPMENT

Upon receipt of your unit, check for any shipping damage. A

damaged carton indicates that the equipment may have

received rough handling during shipping that may have

caused possible internal damage. Notify your delivery

carrier and enter a claim if any damage is found.

3.0 HOW YOUR AIR CLEANER

OPERATES

The motor/blower assembly draws air through an aluminum

mesh filter which removes the larger particles in the

contaminated air. As the particles pass through the ionizer

section, they are given an intense positive charge. These

charged particles are then collected on cell plates. The

clean air is redistributed into the room by adjustable outlet

diffusers.

3.1 COMPONENTS THAT MAKE IT WORK

PREFILTER traps the larger particles and evenly distributes

the air across the ionizing section to maximize efficiency.

IONIZER is made up of fine tungsten wires supported

between metal plates. When high voltage is applied to

these parts, a “corona” field is generated which imparts a

high-voltage charge on particles that pass through it.

COLLECTION CELL is made up of a series of convoluted

metal plates. These plates act like a magnet and attract the

charged particles removing them from the air. The plates

are alternately charged positive and ground. The positive

plates repel the particles while the ground plates attract

them, yielding a very high efficiency.

NOTE: The SE 40 contains an ionizer and collection cell

as a one piece assembly known as a unicell.

SPEED CONTROL SWITCH allows you to adjust the airflow

between 450 and 950 CFM on the SE 40. The switch on the

SE 50 allows you to select 3 of 5 motor speed taps. The SE

50 is shipped from the factory with the switch wired to the

low, medium and high speed motor taps. By repositioning

the wire connectors at the motor the medium-low or

medium-high taps can be used instead of the factory

selected low, medium or high.

MOTOR/BLOWER produces air movement by a low speed,

dynamically-balanced, forward-curved blower. The direct

drive motor is thermally protected.

4.0 INSTALLATIONS

NOTE: This product has been designed specifically for

commercial applications, such as offices, night

clubs, bowling centers and bingo halls. United

Air Specialists assumes no responsibility for

those applications unlike the aforementioned.

!CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS

EQUIPMENT HAS A GROUNDING-TYPE PLUG THAT

HAS A THIRD (GROUNDING) PIN. THIS PLUG WILL

ONLY FIT INTO A GROUNDING-TYPE POWER

OUTLET. IF THE PLUG DOES NOT FIT INTO THE

OUTLET, CONTACT QUALIFIED PERSONNEL TO

INSTALL THE PROPER OUTLET. DO NOT ALTER

THE PLUG IN ANY WAY.

SMOKEETER is designed to draw the contaminated air

through the unit and exhaust clean air back into the room.

The clean air is used to push contaminated air around the

room to the inlet of the unit. Directions of air patterns and

proper placement of the unit should be established by your

local SMOKEETER distributor or by United Air Specialists,

Inc.

The unit can be installed by mounting on a wall or

suspending from the ceiling joists/structure.

Revised 12/05

SMOKEETER®

Electronic Air Cleaner

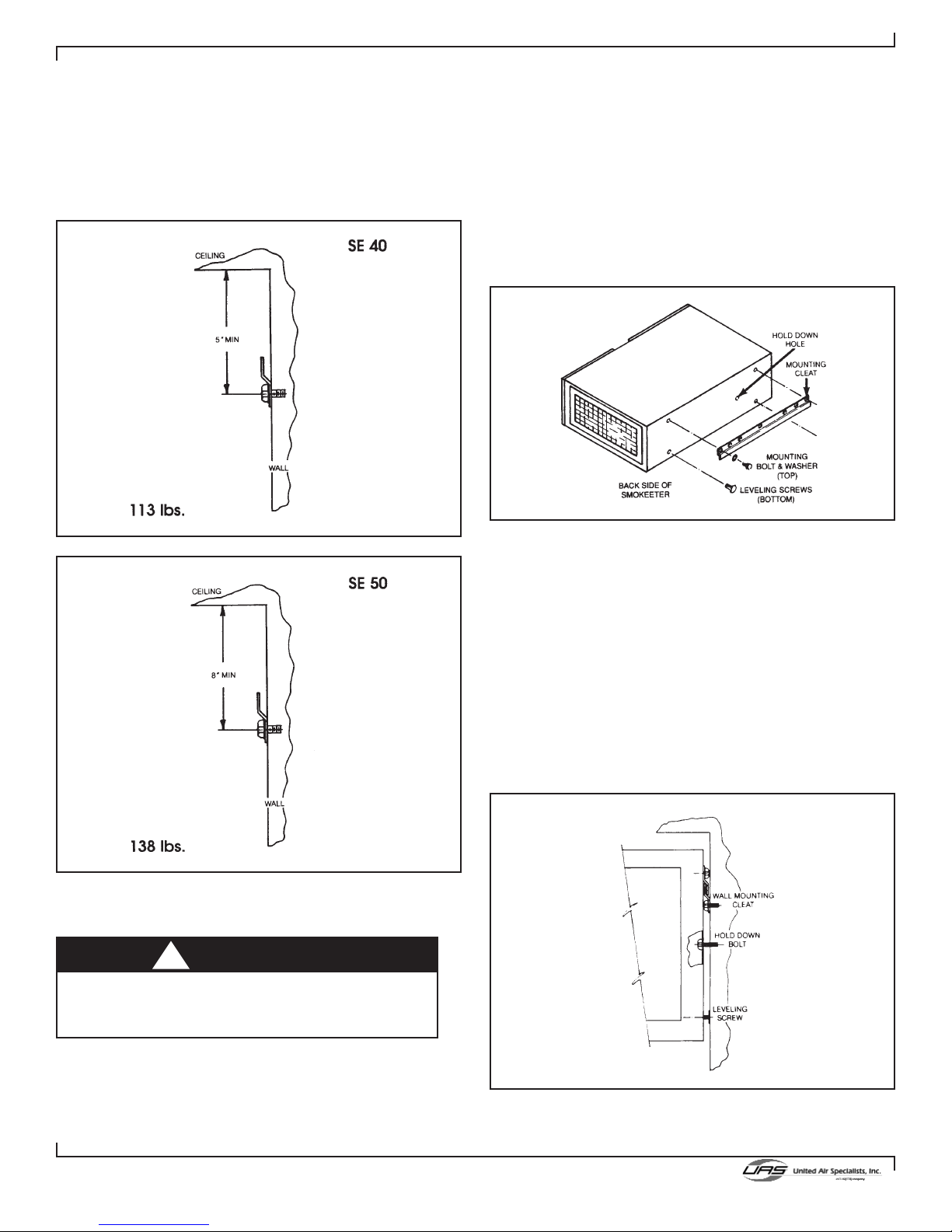

4.1 WALL MOUNTING

Level and securely attach the mounting cleat to the wall,

ensuring given dimension from ceiling to bolt centerline as

shown in Figure 1. The holes provided on the wall mounting

cleat are spaced 12", 16" or 24" on center mounting

patterns. Use fasteners and anchoring devices to ensure

support of the SMOKEETER.

FIGURE 1

FIGURE 2

FIGURE 3

!WARNING

ATTACH WALL MOUNT TO CLEAT TO WALL

AND TEST LOAD CAPACITY AS SHOWN IN

ILLUSTRATION.

Remove the components from the unit to lighten the weight

and facilitate handling.

Attach the mounting cleat to the top back edge of the unit

with two 3/8-16 x 3/4" hex head bolts and washers that are

provided. Install two 3/8-16 x 1-1/4" leveling screws in the

bottom outside holes. Refer to Figure 2.

Place the unit on a lifting device. Position the lifting device

under the wall mounting cleat. Raise the unit into position

and engage the wall mounting cleat with the cleat mounted

to the unit. Ensure engagement by visually checking from

the end.

Check level and adjust leveling screws as needed. Mark

location on hold-down fastener on the wall. The hole is

located behind the collection cell and marked with a label.

Remove the unit from mounting and prepare wall for hold-

down fastener.

Reinstall the unit as before and install hold-down fastener.

The fasteners should now be tested to support the weight

previously mentioned.

Completed installation should be as shown in Figure 3, with

mounting cleat fully engaged, leveling screw in position and

hold-down bolt in wall.

Revised 12/05

SMOKEETER®

Electronic Air Cleaner

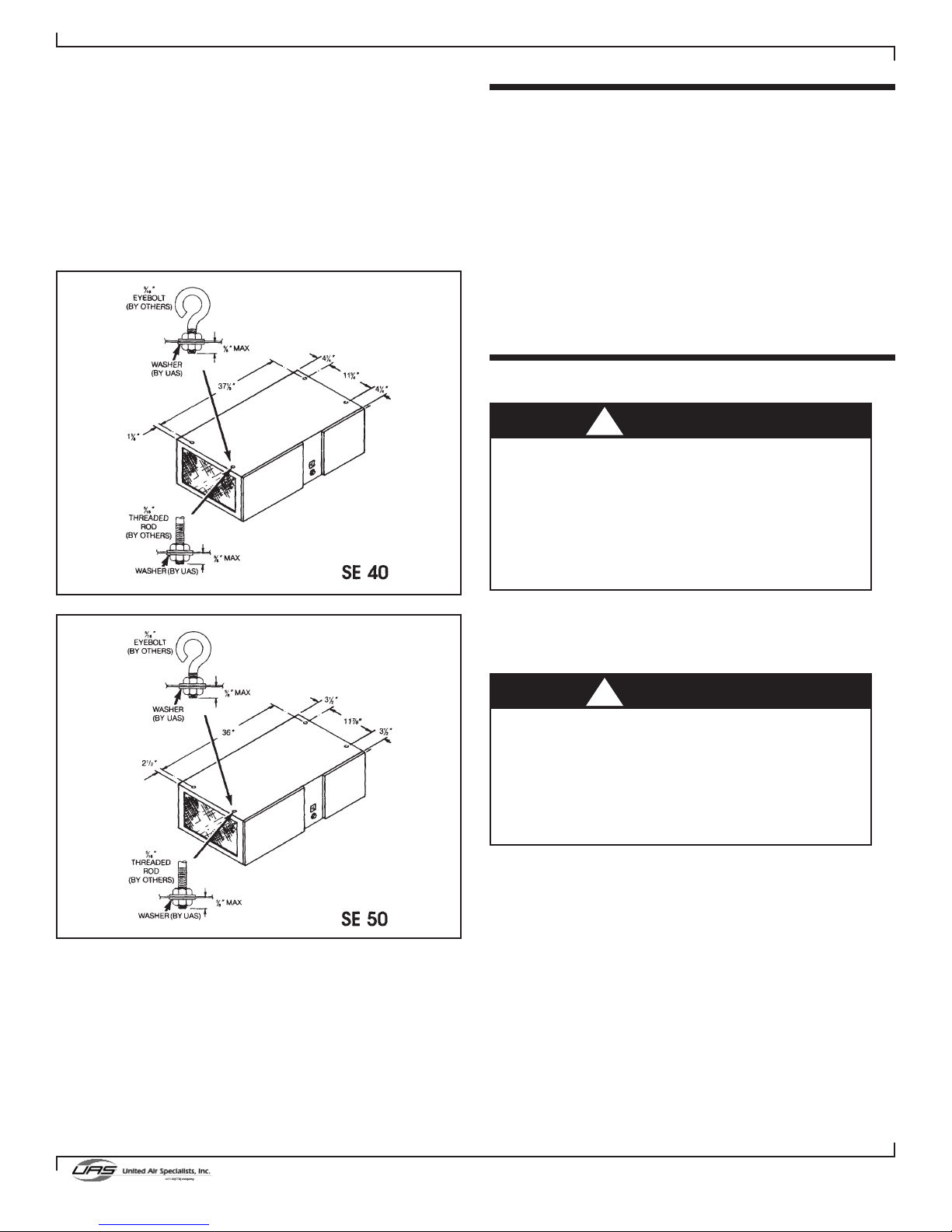

4.2 SUSPENSION

Threaded rod, wire or eyebolts and chain may be used for

hanging the unit. Four “knockouts”, located as shown in

Figure 4, must be removed.

It is recommended that a nut on the inside and outside of

the cabinet be used to lock the fastener in place.

Refer to Figure 4.

Test the unit for secure support.

5.0 OPERATION

For best results and to assure maximum air quality, your

SMOKEEETER unit should be started before the air

becomes contaminated. An indicator lamp indicates that

high voltage to the components is on. A variable or multi-

speed control switch allows you to adjust the blower speed.

If you notice a decrease of cleaning efficiency, increase the

blower speed to increase effectiveness of the unit.

FOR YOUR INFORMATION — The equipment has been

thoroughly tested prior to shipment from the factory. Even

so, there may be some initial arcing of the components at

start-up. The noise should cease after a few minutes of

operation.

6.0 CLEANING

This section is defined for cleaning and periodic

maintenance. The internal components must be removed

prior to cleaning.

6.1 HOW TO REMOVE COMPONENTS

1. Turn off the unit.

• Open the access door.

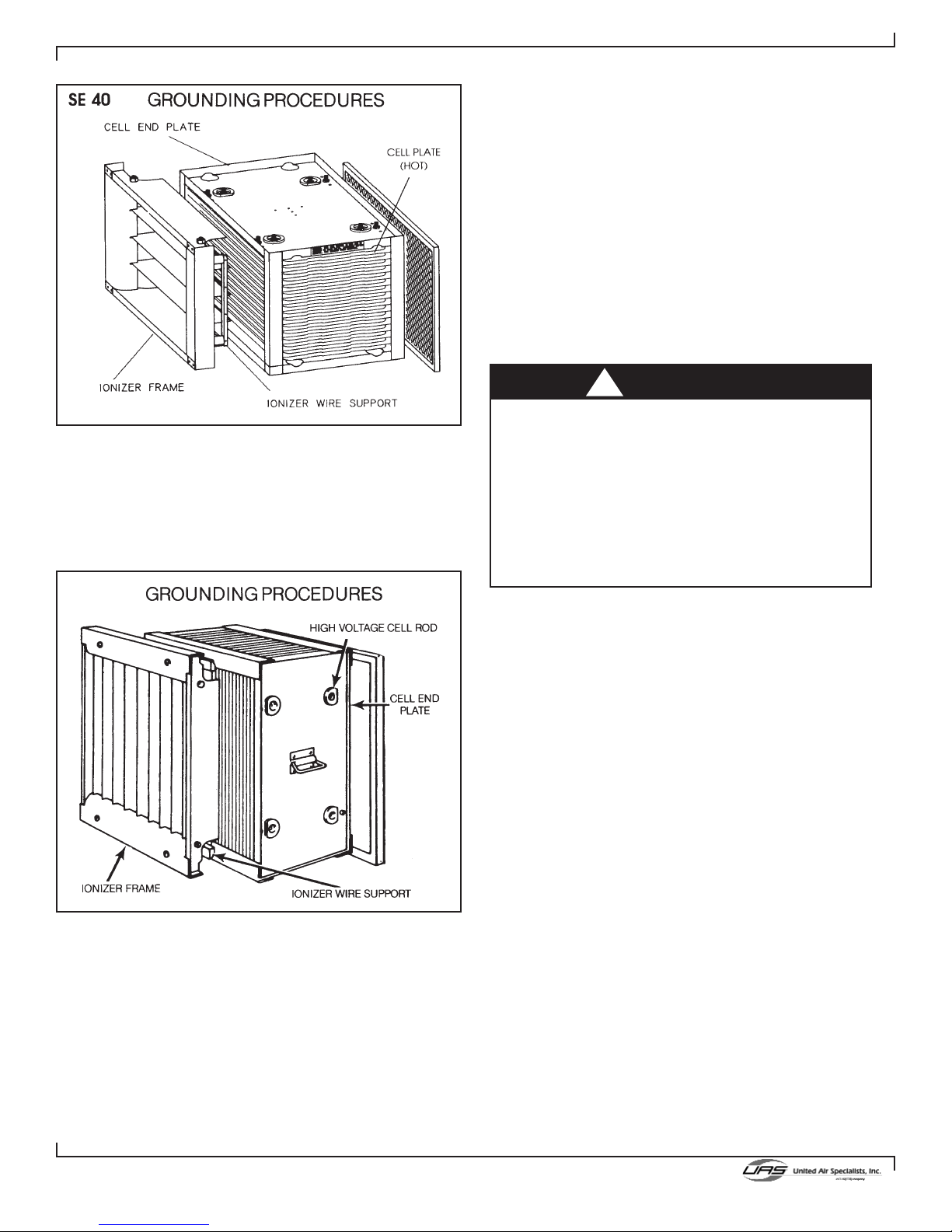

• For added safety, manually discharge the ionizer and

collection cell/unicell in the following manner. Place the

blade of a common screwdriver (with insulated handle)

across the ionizer wire support and then the ionizer

frame. Next, place the screwdriver blade across the cell

end plate and then across a cell “hot” plate. This will

remove any residual charge that may not have bled off.

Refer to figure 5.

2. Slide components from the cabinet.

FIGURE 4

!CAUTION

SERVICING THIS PRODUCT FOR PURPOSES

OTHER THAN ROUTINE CLEANING OF THE

COLLECTION COMPONENTS SHOULD BE

PERFORMED BY TRAINED AUTHORIZED

SERVICE PERSONNEL. ANY EFFORT TO

EXCEED THIS SERVICE (BY NON-QUALIFIED

PERSONNEL) MAY LEAD TO BODILY INJURY

AND/OR EQUIPMENT FAILURE.

!CAUTION

THE UNIT SHOULD BE INSPECTED

FREQUENTLY AND DIRT REMOVED TO

PREVENT EXCESSIVE ACCUMULATION WHICH

MAY RESULT IN FLASHOVER OR FIRE

DAMAGE. AN ELECTRICAL INTERLOCK IS

PROVIDED FOR PROTECTION — DO NOT

DEFEAT ITS PURPOSE.

Revised 12/05

SMOKEETER®

Electronic Air Cleaner

6.2 CLEANING

Major cleaning is confined to the prefilter, ionizer, collection

cell and the inside cabinet. These should be cleaned

periodically to assure continued efficiency. Cleaning may be

required from once a month to once every four months

depending on the air quality.

NOTE: The carbon filter cannot be cleaned and needs to

be replaced as required.

1. Disconnect power to unit and remove components.

2. The ionizer, collection cell/unicell and prefilter can be

cleaned by soaking in a hot solution of SMOKEETER

brand detergent for 30 to 60 minutes. If possible, agitate

the solution to aid in dirt removal. If agitation is not

possible, soaking time should be increased.

3. Remove the components from the detergent bath and

immediately flush away any residue and rinse thoroughly

with clear hot (less 160˚F) water. Shake off excess water

and let components dry for 30 to 60 minutes. Set the cell

so that its plates are in a vertical position for drainage.

4. Vacuum clean the interior of the cabinet and clean off all

electrical connections before reinstalling the components.

5. Reinstall the components into the cabinet.

6. Apply power to unit and confirm indicator light is

illuminated.

!CAUTION

DO NOT USE TEMPERATURE EXCEEDING

160˚F AND DO NOT STEAM CLEAN AS THIS

MAY CAUSE PERMANENT DAMAGE TO THE

COMPONENTS. IF DETERGENT OTHER THAN

SMOKEETER BRAND IS USED, CARE MUST

BE TAKEN TO ASSURE THAT IT CONTAINS

AN ALUMINUM INHIBITOR SO THAT IT DOES

NOT ATTACK THE ALUMINUM COMPONENTS.

BE SURE TO FOLLOW MANUFACTURER’S

CLEANING INSTRUCTIONS.

NOTE: The SE 40 contains an ionizer and col-

lection cell as a one piece assembly

known as a unicell.

FIGURE 5

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Smokeeter Purificatore d'aria

Smokeeter

Smokeeter SE 50 Manuale utente

Smokeeter

Smokeeter SE 20 Manuale utente

Smokeeter

Smokeeter CC Manuale utente

Smokeeter

Smokeeter SE 10 Manuale utente

Manuali Purificatore d'aria popolari di altre marche

IKEA

IKEA UPPÅTVIND Manuale utente

Nash

Nash AP-1 PureSmart Manuale utente

LG PH-U450 Series Manuale utente

DeLonghi

DeLonghi DDSX 220WFA Manuale utente

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuale utente

Sharp

Sharp FU-40SE Manuale utente

Philips

Philips AC2721 Manuale utente

Hitachi

Hitachi EP-A3000 Manuale utente

TruSens

TruSens Z-2000 Manuale utente

Motorola

Motorola MBP87SN Manuale utente

Beko

Beko ATP 7100I Manuale utente

Carrier

Carrier INFINITY 1620 Manuale utente

AtmosAir

AtmosAir P2002 Manuale utente

Winix

Winix NK300 Manuale utente

Friedrich

Friedrich C-90A Istruzioni per l'uso e l'installazione

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuale utente

Base aire

Base aire 555 Pro Manuale utente

Champion

Champion CP25 Manuale utente
