Smooth Fitness CE 2.1 Manuale utente

USER’S MANUAL

SMOOTH CE 2.1 ELLIPTICAL TRAINER

MODEL NUMBER: CE 2.1

USER WEIGHT LIMITATION: 300 lbs.

TOLL FREE CUSTOMER SERVICE NUMBER: 1.888.800.1167

SERIAL NUMBER (found on frame):

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

PREASSEMBLY

For future service or related questions:

Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your Smooth

Fitness Elliptical Trainer.

Name: ______________________________ Phone Number: ___________________ Receipt: ______________________

Open the boxes:

You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the

boxes. Check the Parts List for a full count of the number of parts included for this product to be assembled properly. If you

are missing any parts or have any assembly questions call your local dealer or contact us directly at 888-800-1167.

Gather your tools:

Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to

assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and

hassle-free.

Clear your work area:

Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free

from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable

amount of free area around the unit for unobstructed operation.

Invite a friend:

Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person

when assembling this product.

User Weight Limitation:

Please note that there is a weight limitation for this product. If you weigh more than 300lbs. it is not recommended that

you use this product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not

intended to support users whose weight exceeds this limit.

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

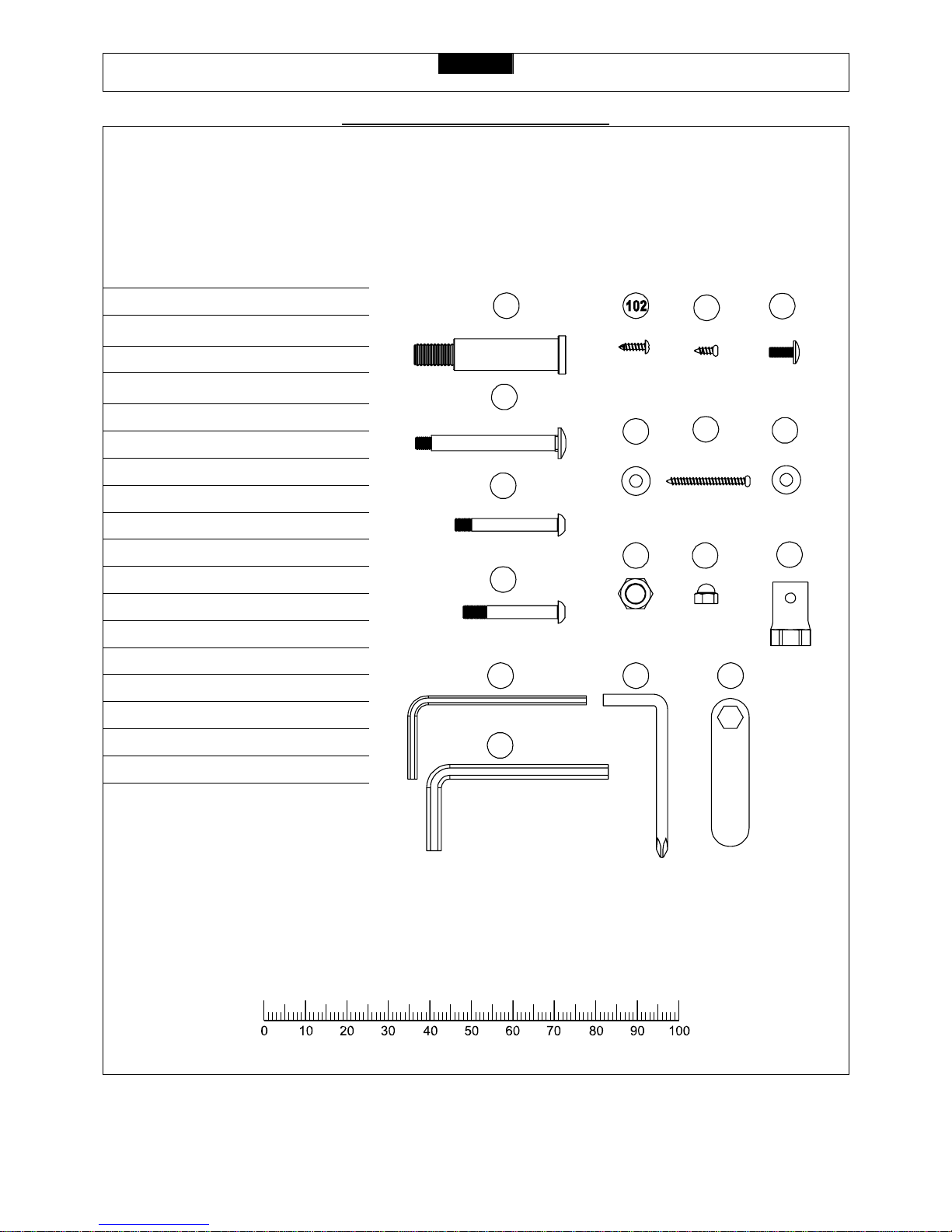

HARDWARE COMPARISON CHART

Hardware chart:

For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help

you identify those items that may be unfamiliar to you.

NO. DESCRIPTION QTY.

30 30 x 91 x M14 Bolt 2

77 M8 x 60mm Allen Head

Bolt 2

78 M10 x 90mm Bolt 2

79 M8 x 80mm Allen Head

Bolt 2

88 M14 Nut 2

91 ID 8mm Curve Washer 2

97 M4 x 12mm Screw 8

98 M10 Cap Nut 2

100 M4 x 50mm Bolt 1

101 ID 10mm Curve Washer 2

102 M4 x 15mm Screw 24

105 M6 x 20mm Bolt 4

A M14 Bushing Tool 1

B 5mm Allen Key 1

C 8mm Wrench 1

D Wrench for M10 Nut 1

E Wrench 1

30 97

100

101

88 98

105

MILLIMETERS

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

PARTS LIST

No. Description Qty. Order No. No. Description Qty. Order No.

1 Computer 1 CE2.1-001 30 20 x 91 x M14mm Bolt 2

CE2.1-030

2 Front Upright Frame 1 CE2.1-002 31 Bearing 6804zz 4 CE2.1-031

3 Side Upright Bottom Cover -

Left 1 CE2.1-003 32 Level Adjusters 2 CE2.1-032

4 Side Upright Bottom Cover -

1 CE2.1-004 33 Pedal Arm - Left 1 CE2.1-033

5 Left Upright 1 CE2.1-005 34 Pedal Arm - Right 1 CE2.1-034

6 Right Upright 1 CE2.1-006 35 C Clips 2 CE2.1-035

7 Side Upright Upper Cover - #1 2 CE2.1-007 36 Bearing 2202zz 2 CE2.1-036

8 Side Upright Upper Cover - #2 2 CE2.1-008 37 Pedal Arm Adjusters

Bushin

2 CE2.1-037

9 Rubber Cushion 2 CE2.1-009 38 Bearing 2 CE2.1-038

10 Handle Bar End Cap 2 CE2.1-010 39 Pedal Arm Rear Shaft 2 CE2.1-039

11 Handlebar Pivot Outside

hin

2 CE2.1-011 40 Pedal Arm Rear Shaft

hin

2 CE2.1-040

12 Handlebar Pivot Inside Bushing 2 CE2.1-012 41 Adjuster Motor 1 CE2.1-041

13 Handlebar Cover 2 CE2.1-013 42 Spiral Shaft 1 CE2.1-042

14 Handlebar Inside Cover 4 CE2.1-014 43 Motor Bracket 1 CE2.1-043

15 Bearing 6004zz 4 CE2.1-015 44 Volute Shaft 1 CE2.1-044

16 Handlebar - Left 1 CE2.1-016 45 Motor Control Board 1 CE2.1-045

17 Handlebar - Right 1 CE2.1-017 46 Magnet Bracket Shaft 1 CE2.1-046

18 Pedal Arm Front Pivot Cover -

4 CE2.1-018 47 Spring 1 CE2.1-047

19 Fixed Handle bar Foam Grips 2 CE2.1-019 48 Magnet Bracket Shaft 1 CE2.1-048

20 Action Handlebar Foam Grips 2 CE2.1-020 49 Crank Disk Support Cover 2 CE2.1-049

21 Hand Pulse Sensor 2 CE2.1-021 50 Crank 2 CE2.1-050

22 Pedal Soft Cushion 2 CE2.1-022 51 Crank Disk 2 CE2.1-051

23 Pedal 2 CE2.1-023 52 Belt 1 CE2.1-052

24 Pedal Support Base 2 CE2.1-024 53 M8 x 20mm CAP Bolt 1 CE2.1-053

25 Pedal Buffer Sets 2 CE2.1-025 54 Flywheel Assembly 1 CE2.1-054

26 Bearing 608zz 8 CE2.1-026 55 Bearing 6000zz 3 CE2.1-055

27 Bushing 8 x 12mm 4 CE2.1-027 56 Flywheel Axle 1 CE2.1-056

28 Pedal Fixing Base 2 CE2.1-028 57 Flywheel Shaft Fixing 1 CE2.1-057

29 Pedal Cover 2 CE2.1-029 58 Volute Bracket 1 CE2.1-058

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

PARTS LIST

No. Description Qty. Order No. No. Description Qty. Order No.

59 Front Frame Cover - Upper 1 CE2.1-059 89 M10 Nylon Nut 2 CE2.1-089

60 Front Frame Cover - Lower 1 CE2.1-060 90 M12 Nut 1 CE2.1-090

61 Crank Disk Axle 1 CE2.1-061 91 ID 8mm Curve Washer 4 CE2.1-091

62 Crank Disk Support Bushing 2 CE2.1-062 92 10 x 22 x 2mm Washer 2 CE2.1-092

63 Bearing 6005zz 2 CE2.1-063 93 10 x 15 x 1.5mm 2 CE2.1-093

64 Bearing 6400zz 4 CE2.1-064 94 M4 x 40mm CAP Screw 1 CE2.1-094

65 Strengthen Wheel Adjusters Set 1 CE2.1-065 95 M4 x 19mm Hard Screw 32 CE2.1-095

66 Rear Stabilizer Cap 2 CE2.1-066 96 M4 x 19mm Screw 5 CE2.1-096

67 Rear Stabilizer Cushion 2 CE2.1-067 97 M4 x 12mm Screw 8 CE2.1-097

68 Caster 2 CE2.1-068 98 M10 Cap Nut 2 CE2.1-098

69 Front Cover 1 CE2.1-069 99 Frame 1 CE2.1-099

70 Frame Outside Cover - Left 1 CE2.1-070 100 M4 x 50mm Bolt 1 CE2.1-100

71 Frame Inside Cover - Left 1 CE2.1-071 101 ID 10mm Curve Washer 2 CE2.1-101

72 Frame Inside Cover - Right 1 CE2.1-072 102 M4 x 15mm Screw 8 CE2.1-102

73 Frame Outside Cover - Right 1 CE2.1-073 103 Wire Harness - Middle 1 CE2.1-103

74 M8 x 15mm Allen Head Bolt 26 CE2.1-074 104 Wire Harness - Lower 1 CE2.1-104

75 M8 x 20mm CAP Screws 2 CE2.1-075 105 M6 x 20mm Bolt 4 CE2.1-105

76 M8 x 90mm Allen Head Bolt 4 CE2.1-076 106 Hand Pulse Wire - Lower 1 CE2.1-106

77 M8 x 60mm Allen Head Bolt 2 CE2.1-077 107 Fixed Handle Bar End Cap 2 CE2.1-107

78 M10 x 90mm Bolt 2 CE2.1-078 108 Hand Pulse Sensor Wire -

2 CE2.1-108

79 M8 x 80mm Allen Head Bolt 2 CE2.1-079 109 Wire Harness - Upper 1 CE2.1-109

80 M8 x 15mm Bolt 6 CE2.1-080 110 Hand Pulse Sensor Wire -

2 CE2.1-110

81 M10 x 45mm Allen Head Bolt 2 CE2.1-081 111 Keypad 1 CE2.1-111

82 M10 x 45mm Screw 2 CE2.1-082 112 Console Housing – Upper 1 CE2.1-112

83 M6 x 20mm Allen Head Bolt 8 CE2.1-083 113 Console Housing - Bottom 1 CE2.1-113

84 M6 x 15mm Screw 4 CE2.1-084

85 Fixing Inserts 12 CE2.1-085

86 M6 Nylon Nut 8 CE2.1-086

87 M8 Nylon Nut 5 CE2.1-087

88 M14 Nut 2 CE2.1-088

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

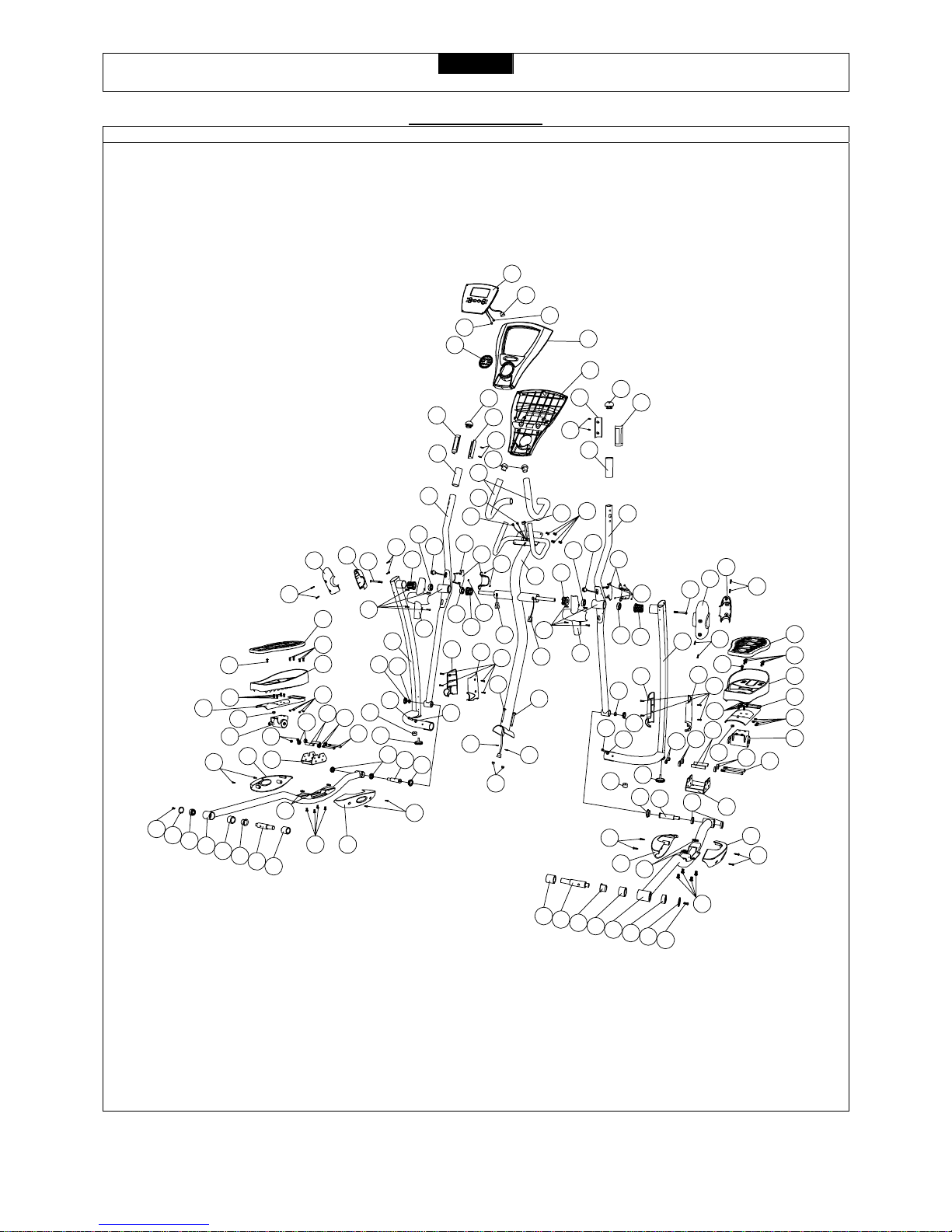

PARTS DIAGRAM

A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

78 24

74 77

39 34 36

35 84

33 37 38

84 36

2974

85 95

95 29

101

28 18

26 26

87 76

27 91

87 26

101 26

77 27

74 86

97 79

83 5

23 88

22 102 97

13 6

13 75

102 15

79 11

15 14

21 21

19107

102

108

103

110 110

109

111 112

113

108

105

106 106

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

PARTS DIAGRAM

A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

95 95

85 96

96 71

95 70 74

5049

50 49 74

80 56 57

85 73

68 95

81 66

66 63

74 84

62 63

65 93

94 99

55 51

100

87 41

110

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

ASSEMBLY

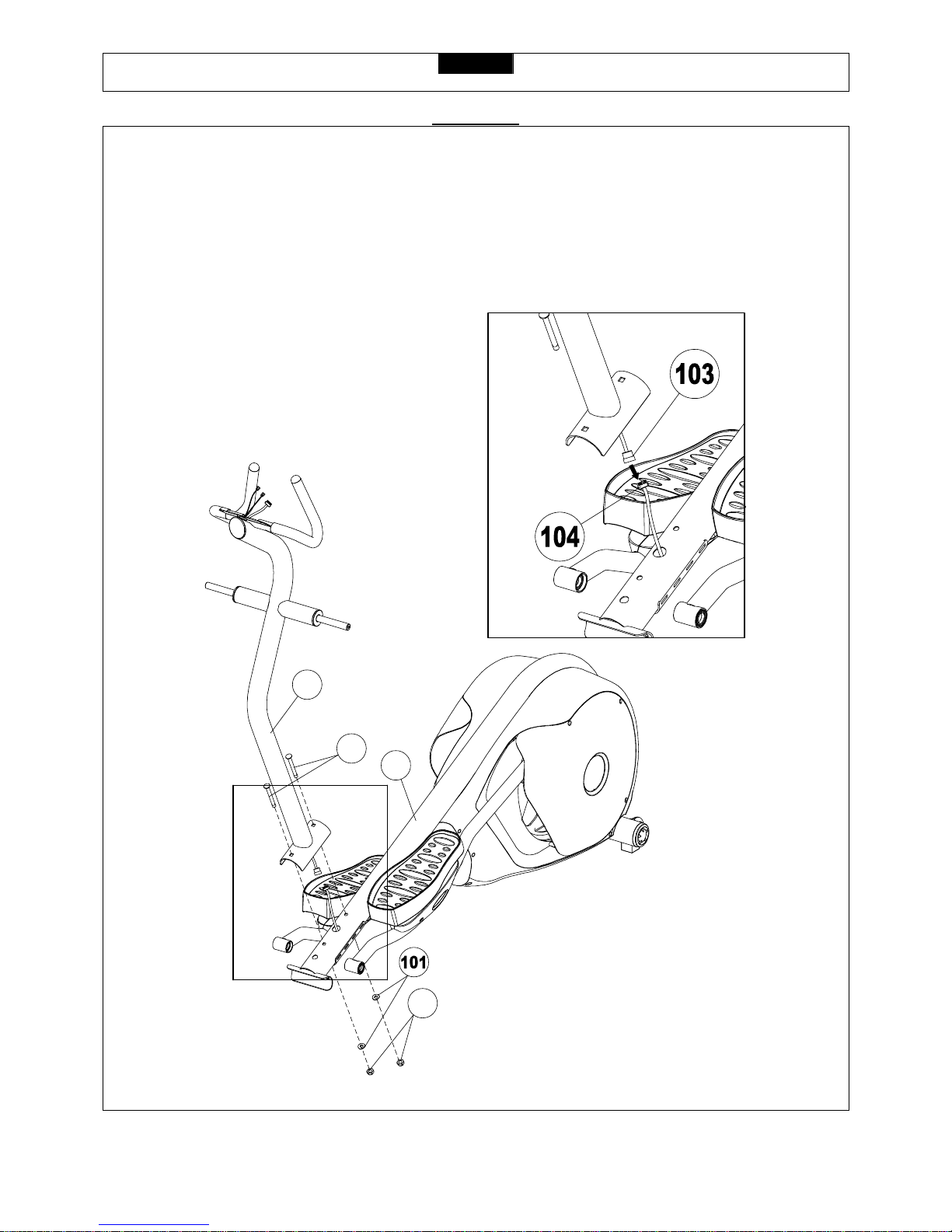

STEP 1:

First make sure to connect the Wire Harness – Middle (103) and Wire Harness – Lower (104) as shown below.

Attach the Front Upright Frame (2) to the Frame (99) and secure using two M10 x 90mm Bolts (78), two ID 10mm Curve

Washers (101) and two M10 Nuts (98).

NOTE: Make sure the wire is recessed into the frame, do not trap the wire.

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

ASSEMBLY

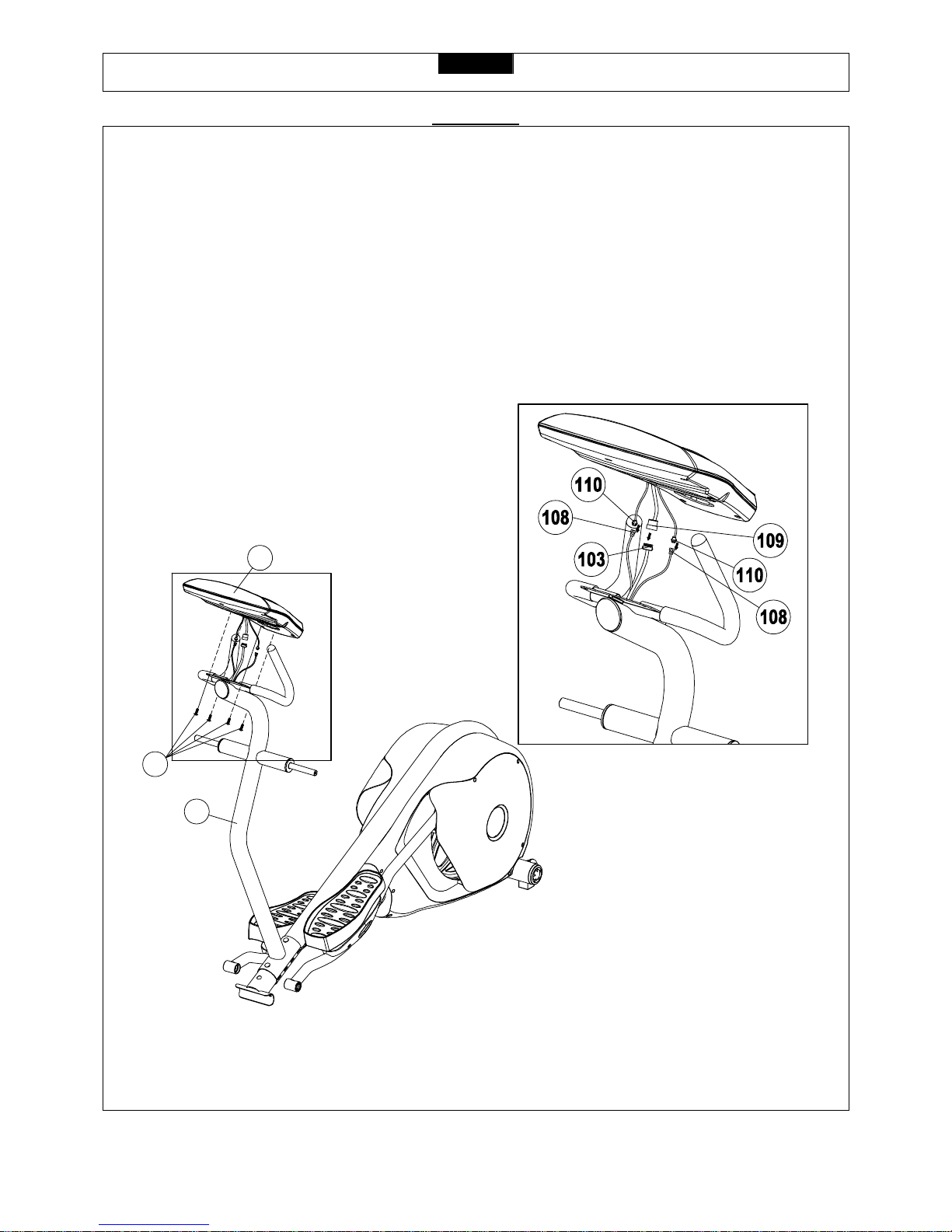

STEP 2:

First make sure to connect the Wire Harness - Upper (109) with Wire Harness - Middle (103) and Hand Pulse Sensor Wire –

Upper (110) with Hand Pulse Sensor Wire – Middle (108) as shown below.

Attach the Computer (1) to the Front Upright Frame (2) using four M6 x 20mm Bolts (105).

NOTE: Make sure all wires are recessed into the Console Housing, do not trap or pinch any of the wires.

105

CE 2.1 ELLIPTICAL TRAINER

Visit us at: www.smoothfitness.com

ASSEMBLY

STEP 3:

Slide the Handlebar – Left (16) and Handlebar – Right (17) onto the Front Upright Frame (2).

Connect the Hand Pulse Sensor Wire - Middle (108) with Hand Pulse Sensor Wire – Lower (106) as shown below.

106

108
