Snap-On TPMS4 Manuale utente

Tire Pressure Sensor System Tool Kit

TP S4

TPM diagnostic tool that tests tire pressure monitoring sensors, captures sensor

data and relearns tire pressure monitoring systems. Also programs aftermarket

sensors and prints sensor information. Perfect complement to a shop or technician

that owns a nap-on® diagnostic platform.

Contents

TP S4 User anual Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 1: What’s Included Features and Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 2: Basic Tool Operation and Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

A) Test Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

B) Adjust / Rotate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

C) Replace ensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

D) pecial Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

E) Relearn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

F) ettings / Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

G) ettings / (Update) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 3: PC Print Instuctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

TP S4 Warranty / Service and Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Federal Communication Commission Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety Signal Words

All safety messages contain a safety signal word that indicates the level of the hazard. An

icon, when present, gives a graphical description of the hazard. afety ignal words are:

Indicates an imminently hazardous situation which, if not avoided, will result in death or

serious injury to the operator or to bystanders.

Indicates a potentially hazardous situation which, if not avoided, could result in death or

serious injury to the operator or to bystanders.

Indicates a potentially hazardous situation which, if not avoided, may result in moderate or

minor injury to the operator or to bystanders.

Safety essage Conventions

afety messages are provided to help prevent personal injury and equipment damage. afety

messages communicate the hazard, hazard avoidance and possible consequences using

three different type styles:

• Normal type states the hazard.

• Bold type states how to avoid the hazard.

• Italic type states the possible consequences of not avoiding the hazard.

An icon, when present, gives a graphical description of the potential hazard.

Safety essage Example

Risk of unexpected vehicle movement.

• Block drive wheels before performing a test with engine running.

A moving vehicle can cause injury.

SAVE THESE INSTRUCTIONS

• Use of diagnostic equipment can cause electrical shock, fire and explosion.

Use caution and proper procedures when connecting

and disconnecting leads.

Diagnostic equipment

must be located 18" or more above floor level. Avoid

sparks and other sources of ignition.

Electrical sh ck, flames and expl si n can cause seri us injury.

• Improper use can cause hazardous conditions.

Read and follow all safety precautions accompanying the product. Wear safety

goggles.

Unexpected electrical, thermal r mechanical ccurrences can cause injury.

• Electromagnetic and electronically generated waves may interfere with

pacemakers.

Individuals with pacemakers should never use this product.

Using this pr duct with a pacemaker can result in seri us injury r death.

• Internal battery presents a risk of fire, explosion and electric shock.

Charge battery pack only with charger provided.

Do not store at temperatures above 120°F (49°C).

Do not discard used batteries; return them to a Snap-on repair center for

recycling. Follow all safety messages in user manual.

Fire r expl si n r electric sh ck can cause injury.

This device c mplies with Part 15 f the FCC Rules. Operati n is subject t the f ll wing tw c nditi ns:

(1) This device may n t cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired perati n.

SAFETY PRECAUTIONS

TPMS4 QTY: 1

Caution! Lithium-Ion Battery

For Emergencies only. Call CHEMTREC

1-800-424-9300 US and Canada

+1-703-741-5970 International

3.8V 20.0 Amps 11.59 Wh

FCC ID: 2ANR7-TPMS4

WARNING

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.-

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

------------------the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

Directional

Buttons

Test

Button

Antenna Power

(On/ Off)

Button

Enter

No / Cancel

Button

USB

USB Jack SD Card Slot

RJ45 Jack

RJ45

Chapter 1: Introduction

TPM diagnostic tool that tests tire pressure monitoring sensors, captures sensor data and

relearns tire pressure monitoring systems. Also programs aftermarket sensors and prints

sensor information.

Battery

Replacement

Screws*

Included Power Adaptors

Battery Replacement

Bottom View

Kit Contents

TP S4

Diagnostic Tool

TP S3-4

U B Cable

TP S4-7

AC/DC Power Adapter

TP S4-9

oft Carry Case

TP S4-10

TPM connect U B

Jump Drive

*Torque to 0.26 – 0.43 in-Lb

Nylon Soft Case

Chapter 2: Basic Tool Operation and Navigation

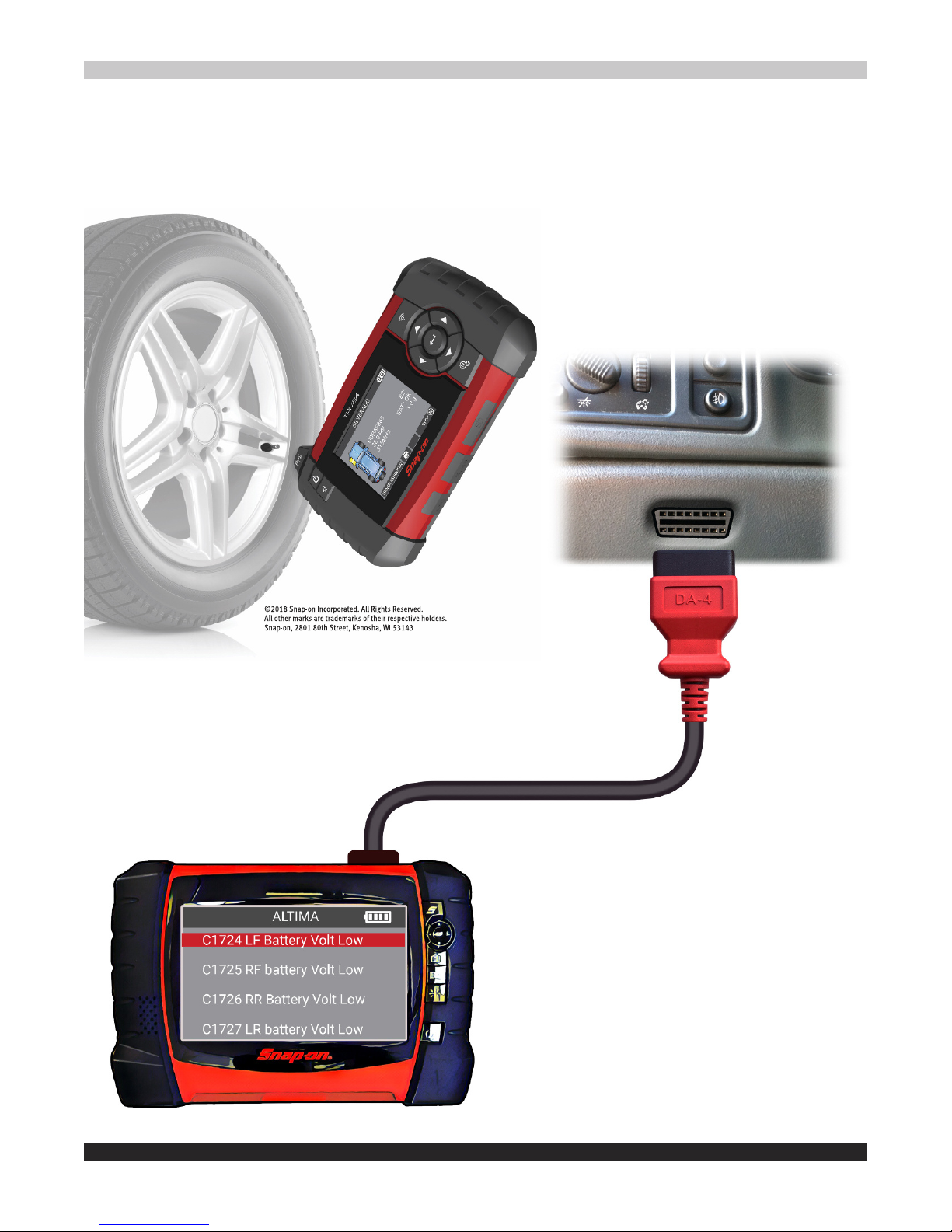

When testing sensor position TP S4 antenna on sidewall

near valve. Press TEST to trigger sensor.

On certain applications such as Asian

vehicles, a Snap-on diagnostic scan

tool is required to place the vehicle into

relearn mode. For these applications,

the TP S4 triggers the TP sensors in

order to register the sensor IDs to the

on-board vehicle computer.

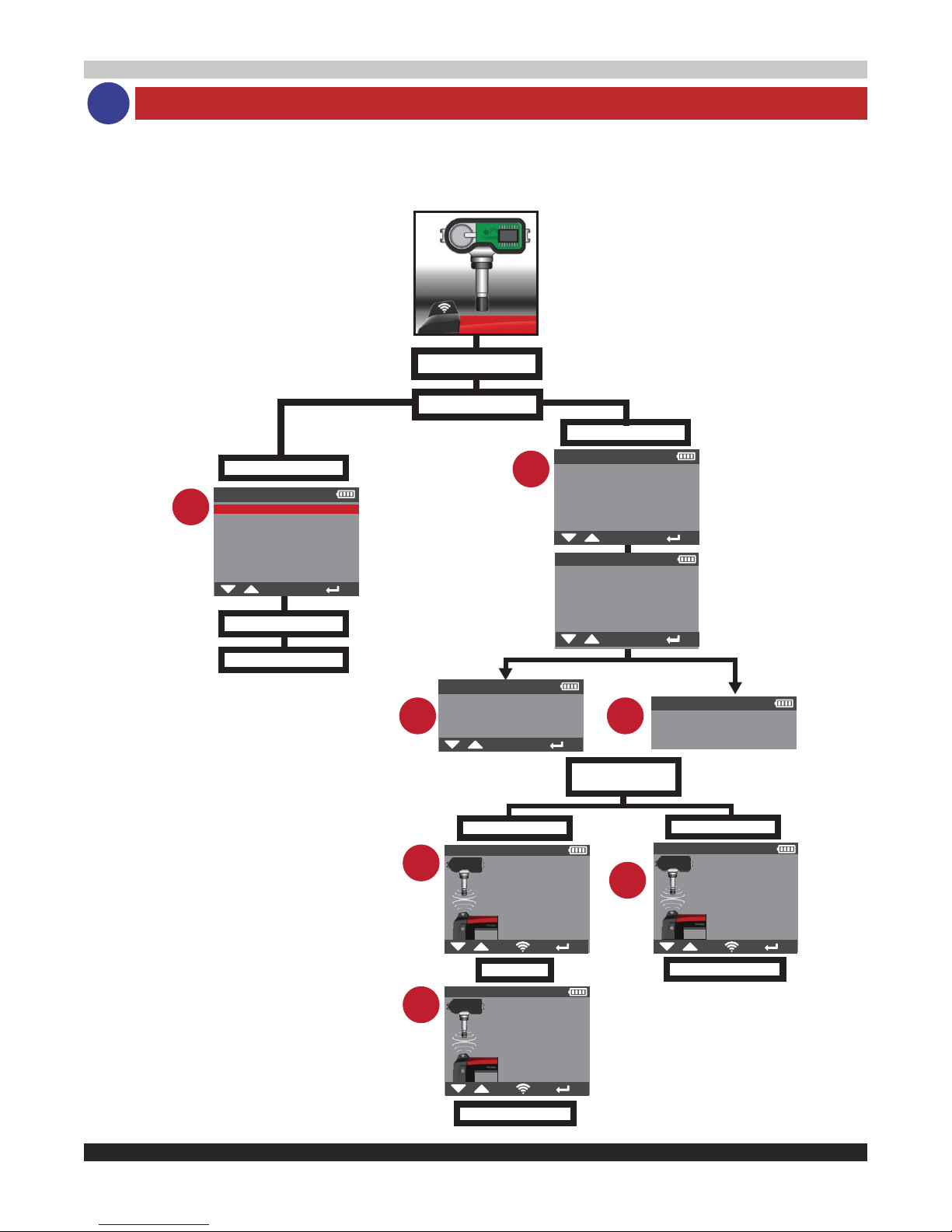

Test Pressure

MAKE / MODEL / YEAR

SILVERADO

TEST

2015

2016

2017

2004

2005 - 2006

2007 - CLAMP-IN

2007 - SNAP-IN

2008 - 2009 - SNAP-IN

CHEVROLET

TEST

EQUINOX

EXPRESS SERIES

HHR

IMPALA

MALIBU

MONTE CARLO

ORLANDO

SILVERADO

VEHICLE SELECTION

TEST

CADILLAC

CHEVROLET

CHRYSLER

CODA

DODGE

FERRARI

FIAT

FISKER

SELECT TIRE PRESS

OR USE ARROWS ON KEYPAD

TO TEST PRESS

SILVERADO

TROUBLESHOOTER STOP

SILVERADO

TROUBLESHOOTER END

SILVERADO

TROUBLESHOOTER END

ODBAF869

36.0 PSI

315MHz

TRIGGER PROCESSING

82º

BAT : OK

1.0 g

Perform this function to retrieve TPM sensor information,such as Unique sensor ID, Pressure,

Frequency,Temperature, Battery status (Note: Ford banded style-sensors requires the trigger-

ing to be performed 180 degree from valve stem).The following sensor information

insures that the TPM sensor is correct and that it is working as designed.

Adjust / Rotate

ROTATE

ADJUST

INCREASE OR DECREASE AIR PRESSURE

2010 GMC SIERRA

EXPANDS TPMS4 TOOL TO INCLUDE INFLATION

2 2

Tech Support #844.349.8767

help@tpms4.com

SN : B365-06685

VERSION : JALL2-07-02

BOOTLOADER : 02.000

DATABASE : JYA1-56

RELEARN : JZA1-56

SIERRA ALL

With Keyless Entry

With DIC Button

With Odometer Reset

Tech Support #844.349.8767

help@tpms4.com

SN : B365-06685

VERSION : JALL2-07-02

BOOTLOADER : 02.000

DATABASE : JYA1-56

RELEARN : JZA1-56

SIERRA ALL

Make sure TPMS MIL light is Solid

not flashing.

Adjust tire pressure to tire placard

value.

Use TPMS4 to check all sensors.

Press NEXT to trigger all

sensors in the tires.

SIERRA ALL

With Odometer Reset

1. Inflate all tires

2. Apply parking brake

3. Turn Ignition ON

4. Push and hold the trip odometer

reset stem on instrument panel

until PRESS ✓TO RELEARN TIRE

TEST NEXT

TEST

SELECT TIRE PRESS

OR USE ARROWS ON KEYPAD

TO TEST PRESS

SIERRA ALL

TROUBLESHOOTER STOP

Perform the TPM system reset of relearn procedure after tire service, such as a rotate or after

pressure adjustment.Note: Cold pressure adjustment is always recommended when adjusting

pressure to recommended placard specification.

PROGRAMMABLE

OE / OE STYLE

INSTALL SENSOR

SELECT SENSOR

2015 GMC ACADIA

CREATE NEW ID

READ OE SENSOR

COPY ID

CREATE SENSOR

OE RELEARN/RESET

COPY ID

Use black EZ-sensor

or 33500 EZ-sensor

GMC

ALLIGATOR SENS.IT

BWD STANDARD QWIK

DYNAMIC PRO SELECT

ECHLIN NAPA QWIK

HAMATON UPRO

HUF INTELLISENS

PROGRAMMABLE

ACADIA

ID : 586AC27C

SUCCESSFUL

INSTALL IN TIRE

4ACADIA

COPY ID

ACADIA

ID : 586AC27C

SUCCESSFUL

INSTALL IN TIRE

1OE

BWD STANDARD OE

DILL VDO REDI

DORMAN DIRECT

ECHLIN NAPA OE

OE / OE STYLE

PROGRAMMABLE

MAX TOTAL

ORANGE UNIVERSAL

PDQ

SCHRADER EZ

STEELMAN SELECT

TYC SENSOR

/TEST NEXT

/NEXT

Use 33500 (rubber valve),

33700 (alluminum valve), or

33000 EZ-sensor

OE / OE STYLE

/NEXT

/TEST NEXT

Adjust / RotateReplace Sensor

Perform vehicle sensor replacement for OE or aftermarket Programmable sensor brands. Follow

on screen instructions as well as relearn the TPM system after all sensors have been replaced.

Each specific relearn procedure is provided along with sensor programming instructions.

Indice

Altri manuali Snap-On Apparecchiature diagnostiche

Snap-On

Snap-On Zeus Manuale utente

Snap-On

Snap-On Zeus Manuale utente

Snap-On

Snap-On P1000 Manuale utente

Snap-On

Snap-On Triton D8 Manuale utente

Snap-On

Snap-On SVTSRAD272A Manuale utente

Snap-On

Snap-On PRO-LINK EEHD974002 Manuale utente

Snap-On

Snap-On TPMS5 Manuale utente

Snap-On

Snap-On Ethos-Tech Manuale utente

Snap-On

Snap-On MODIS Edge Manuale utente

Snap-On

Snap-On VERDICT D7 Manuale utente

Snap-On

Snap-On EEMS328 Manuale utente

Snap-On

Snap-On BK8500 Manuale utente

Snap-On

Snap-On ETHOS Edge Manuale utente

Snap-On

Snap-On BK7000 Manuale utente

Snap-On

Snap-On MODIS Series Manuale utente

Snap-On

Snap-On Solus Legend Manuale utente

Snap-On

Snap-On Thermal Laser Manuale utente

Snap-On

Snap-On BK7000 Manuale utente

Snap-On

Snap-On TRITON-D10 Manuale utente

Snap-On

Snap-On Ultra Manuale utente

Snap-On

Snap-On Triton D8 Manuale utente

Snap-On

Snap-On APOLLO D8 Manuale utente

Snap-On

Snap-On APOLLO D8 Manuale utente

Snap-On

Snap-On SOLUS Edge Manuale utente

Manuali Apparecchiature diagnostiche popolari di altre marche

Mindray

Mindray M7Vet Guida rapida

Autel

Autel MaxiProgrammer 201 Manuale utente

TEXA

TEXA TMD2 Manuale utente

Autel

Autel MaxiIM IM608 Manuale utente

Sealey

Sealey BT2012 Manuale utente

Diagnoptics

Diagnoptics Age Reader Manuale utente

LAUNCH TECH

LAUNCH TECH X-431 PRO5 Manuale utente

Hella Gutmann

Hella Gutmann Mega macs X Manuale utente

Foxwell

Foxwell I80TS Manuale utente

KaVo

KaVo 3D eXam Manuale utente

ATEQ

ATEQ VT46 Manuale utente

Hella Gutmann

Hella Gutmann mega macs X Manuale utente

Autel

Autel MaxiFlash VCMI Manuale utente

Qiagen

Qiagen QIAcube Connect MDx Manuale utente

Alber

Alber BDSU Manuale utente

St. Jude Medical

St. Jude Medical QUANTIEN Manuale utente

Bosch

Bosch DCU 100 Manuale utente

Launch

Launch CNC-602A Manuale utente
