Snapper 10287E Manuale utente

Parts Manual fo

Revision 2,

TWO STAGE LARGE FRAM

(

2005

)

SERIES

McDonough, GA, 30253 U.S.A.

TP 400-5044-2-LF-N

3/15/2007 Manual No. 7006079

SNOW THROWE

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

9247E

(

1694602

)

10287E

(

1694603

)

11327E

(

1694604

)

12387E

(

1694605

)

E9247

(

1694606

)

E10287

(

1694607

)

E11327

(

1694608

)

E12387

(

1694609

)

Table Of Content

TP 400-5044-2-LF-N

Manual No. 7006079TWO STAGE LARGE FRAME

(2005) SERIES 7 3

PAGE GROUP

4Handles and Controls Group

8Auger Housing and Chute Group - 24, 28 & 32"

12 Auger Housing and Chute Group - 38 inch

16 Auger Drive Group

20 Engine and Frame Group

24 Traction Drive Group

28 Wheel & Tires Group

30 Decal Group

32 Headlight Group

Handles and Controls Group

TP 400-5044-2-LF-N

Manual No. 7006079 TWO STAGE LARGE FRAME

(2005) SERIES 7

Handles and Controls Group

Footnotes:

TP 400-5044-2-LF-N

Manual No. 7006079TWO STAGE LARGE FRAME

(2005) SERIES 7 5

Part No Descri

tionItem Qt

Note

1 1726833 1 CABLE AND SPRING ASSEMBLY, R.H. Auger

2 1701996 1 SPRING, Torsion

3 1727087A 1 HANDLE, Tube, R.H.

4 7091908 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5 Was 1922127

5 7091540 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 Was 1921221

6 1960671 2 SCREW, Pan Head Torx, 1/4-20 x 3/4, Thread Cutting

7 1715654 2 SPACER, 1/4ID x 25/64OD x 11/64LG

8 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5

9 1722638 1 HANDLE, Clutch R.H.

10 1715655 2 SPACER

11 1923358 2 NUT, Hex Centerlock, 1/4-20

12 1726317 2 GRIP see Note 1

13 1723965 2 HAND GRIP, Heated 1” Diameter see Note 2

14 1726422 2 RIVET, Pop see Note 2

15 1923341 1 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 see Note 2

16 1724037 1 RESISTOR BLOCK, 2 Male Terminal see Note 2

17 1723967 1 SWITCH, Hand Warmer see Note 2

18 1725409 1 HARNESS, Wiring see Note 2

19 1715956 1 CLIP, Wire see Note 2

20 1726983A 1 DASH AND SUPPORT ASSEMBLY, Tubular

21 1667588 4 BUSHING, 47/125ID x 437/1000OD x 1/5LG see Note 1

22 1714084 1 KNOB, Spinner see Note 1

23 1960093 1 NUT, Push Pal, 3/8” Diameter Stud Capped see Note 1

24 1722633 1 ROD AND SPRING ASSEMBLY, w/Pin

25 1722690 1 SPRING, Complete

26 1960519 1 PUSH NUT, Stud Cap, 1/2

27 1722630 1 ROD, 4/25” Diameter, E-Coat

28 1722667 1 HANDLE, Clutch L.H.

29 1727086A 1 HANDLE, Tube, L.H.

30 1960662 1 CAPSCREW, Hex Head, 1/4-20 x 2 G5

31 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B

32 1921319 2 WASHER, 1/4

33 1933896 1 NUT, Hex Lock, 10-24

34 1722631A 1 LEVER, Pivot

35 1718791 1 CABLE AND HANDLE ASSEMBLY, Clutch

36 1725702 1 SCREW, Pan Head Torx, #10 x 1/2 Thread Cut

37 1726995 1 SPACER, 1-1/4 LG Beveled End

Note 2: Used on 12387E, E12387

Note 1: Used on all models exept 12387E, E12387

Handles and Controls Group

TP 400-5044-2-LF-N

Manual No. 7006079 TWO STAGE LARGE FRAME

(2005) SERIES 7

Handles and Controls Group

Footnotes:

TP 400-5044-2-LF-N

Manual No. 7006079TWO STAGE LARGE FRAME

(2005) SERIES 7 7

Part No Descri

tionItem Qt

Note

38 1726728 1 CLIP, Snow Stick

39 1960727 1 SCREW, Hex Flange Slot, #10-24 x 2-1/2

40 7075909 1 STICK, Snow Removal

41 1720452 2 CLAMP, Saddle Snow Handle E-Coat

42 1726727A 1 BRACKET, Clean Out Tool

43 1917356 4 LOCKWASHER, Spring, 5/16

44 1921978 2 CAPSCREW, Hex Head 5/16-18 x 2 G5

45 1930591 2 SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4

46 1726832 1 CABLE AND SPRING ASSEMBLY, L.H. Traction

47 1707452 1 SPRING, Extension

48 1727088 1 ROD, 3/8” Diameter, 26”LG, E-Coat see Note 1

49 1718793A 1 SUPPORT, Gear, Black see Note 1

50 1960518 2 NUT, Push for 1/4 Diameter Thread see Note 1

51 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5 see Note 1

52 1960294 2 NUT, Hex Flange, 1/4-20, Whiz Lock Small see Note 1

53 1611911 1 SUPPORT, Worm see Note 1

54 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5 see Note 1

55 1960684 1 NUT, Hex Keps, 5/16-18, Conical Washer

56 2916168 2 PIN, Spring 1/8 x 3/4 see Note 1

57 1668186 1 WORM, Chute, L.H. see Note 1

58 1725283 1 ROD, 3/8” Diameter, Chute Worm E-Coat see Note 1

59 1718593 2 GEAR, Powdered Metal, Metafusion see Note 1

60 1918452 1 PIN, Cotter 1/4 x 1 see Note 1

61 1722460 1 PIN, Quick

62 1666255 1 ROD, 3/4” Diameter

63 1960685 3 NUT, Hex KEPS, 1/4-20, Conical Washer 12387E and E12387 Uses

Quantity of 4

64 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5

65 1726304 1 ROD, 3/4” Diameter, Shift Upper E-Coat, 11-19/50LG

66 1726734 1 KNOB, Intermediate Thread, 3/8-16

67 1960705 1 SCREW, Hex Whiz Lock Flange, 1/4-20 x 2-1/4

68 1668523 1 ROD AND CLEVIS ASSEMBLY, Shift, Threaded

69 7091587 1 WASHER, 1/2 Was 1924361

70 1668524 2 BLOCK, Pivot, 3/4 x 3/4, Powdered Metal

71 1720240 1 ROD AND ARM ASSEMBLY, Pivot

72 1715123 1 SPRING, Torsion

73 1960074 1 CLIP, Hair Pin

74 1668185 2 BUSHING, 1/2ID x 3/4OD x 1/4LG

75 1960686 4 NUT, Hex Flange, 5/16-18 ESNA

Note 2: Used on 12387E, E12387

Note 1: Used on all models exept 12387E, E12387

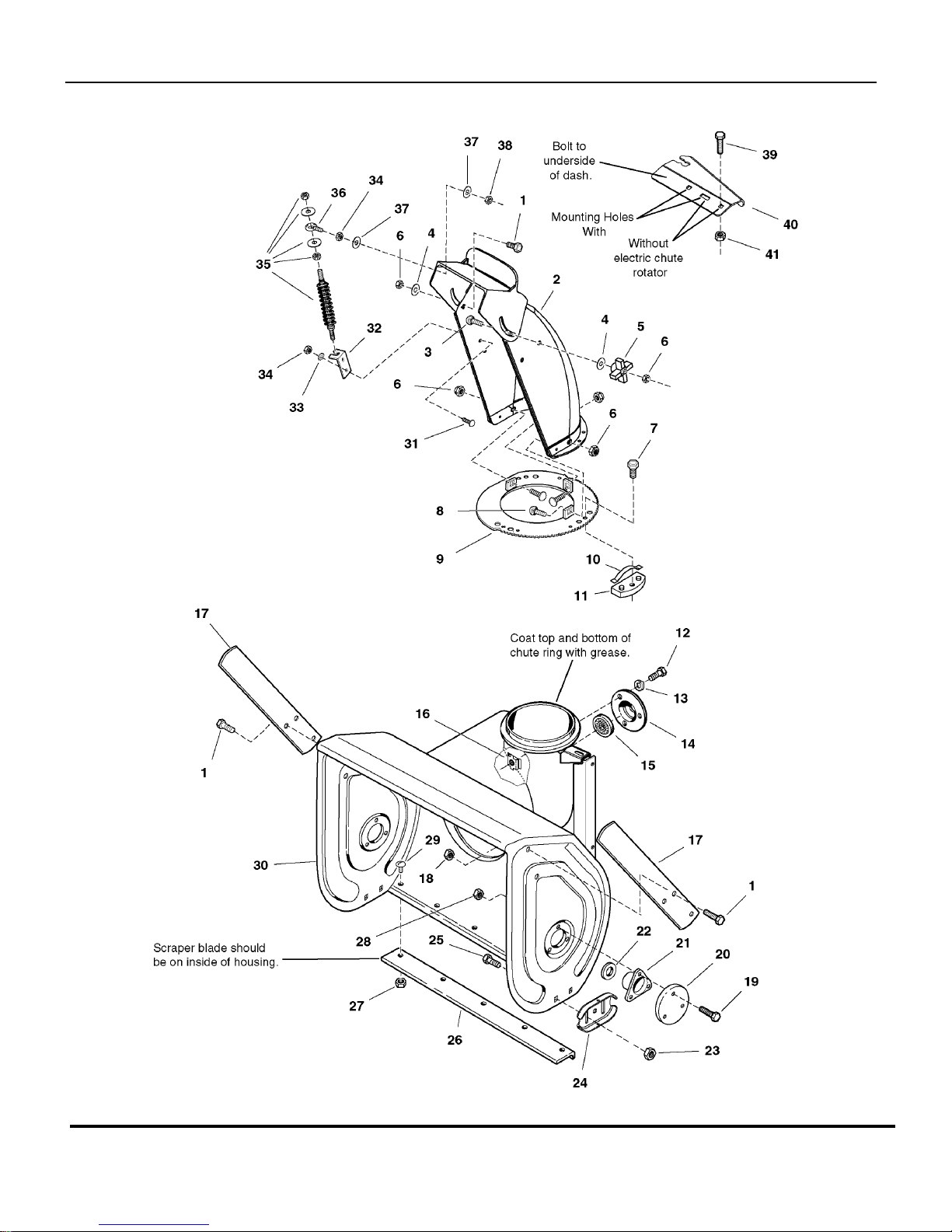

Auger Housing and Chute Group - 24, 28 & 32"

TP 400-5044-2-LF-N

Manual No. 7006079 TWO STAGE LARGE FRAME

(2005) SERIES 7

Auger Housing and Chute Group - 24, 28 & 32"

Footnotes:

TP 400-5044-2-LF-N

Manual No. 7006079TWO STAGE LARGE FRAME

(2005) SERIES 7 9

Part No Descri

tionItem Qt

Note

1 1921332 2 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 10287E and E10287 Used

Quatity of 5, 11327E and

E11327 Uses Quantity of 6

2 7072881 1 CHUTE AND DEFLECTOR ASSEMBLY, w/Remote

2 7072850 1 CHUTE AND DEFLECTOR ASSEMBLY, Manual

3 1931335 1 CARRIAGE BOLT, 5/16-18 x 1 G5

4 1919326 2 WASHER, 5/16

5 1670578 1 KNOB, Internal Thread, 5/16

6 1919438 4 NUT, Hex Lock ESNA Light, 5/16-18NC-3B 10287E, E10287, 11327E and

E11327 Used Quatity of 5

7 1960001 3 SCREW, Hex Washer Head Pastite, 10-14 x 5/8

8 1726958A 1 RING AND TABS ASSEMBLY, Gear

9 1960282 1 CARRIAGE BOLT, 5/16-18 x 3/4

10 1667865 3 SPRING, Flat

11 1666613 3 HOLD DOWN, Chute

12 7091138 3 CAPSCREW, Hex Head, 5/16-18 x 5/8 G5 Was 1925205

13 1917356 3 LOCKWASHER, Spring, 5/16

14 1665982A 1 RETAINER, Bearing

15 2108202 1 BEARING, Ball

16 1930659 3 NUT, Retainer Speed, 5/16-18

17 1715787D 2 CUTTER, Drift, 1/4" Thick, 20LG

18 1960684 4 NUT, Hex Keps, 5/16-18, Conical Washer

19 1923325 6 CAPSCREW, Hex Head 5/16-18 x 7/8 G5

20 1668639CD 2 CAP, Bearing, 3-3/4OD

21 1665980 2 BEARING, Flange

22 1663189 2 SPACER, Low

23 1960687 4 NUT, Hex Flange 3/8-16 ESNA

24 1726725 2 SKID SHOE, Reversible

25 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5

26 1709946A 1 BLADE, Scraper, 24"

26 1709947A 1 BLADE, Scraper, 28"

26 1709948A 1 BLADE, Scraper, 32"

27 1935048 5 NUT, Hex Flange, 5/16-18, Two-Way Lock GA 11327E and E11327 Uses

Quantity of 7

28 1923362 6 NUT, Hex Centerlock, 5/16-18

29 1960699 5 CARRIAGE BOLT, 5/16-18 x 5/8 G5 11327E and E11327 Uses

Quantity of 7

30 1612184D 1 HOUSING AND IMPELLER ASSEMBLY, 24", Red

30 1612185D 1 HOUSING AND IMPELLER ASSEMBLY, 28"

30 1612186D 1 HOUSING AND IMPELLER ASSEMBLY, 32", Red

31 1931315 2 CARRIAGE BOLT, 1/4-20 x 1/2 G5

32 7032813 1 MOUNT, Cable (See Only 986719)

Auger Housing and Chute Group - 24, 28 & 32"

TP 400-5044-2-LF-N

Manual No. 7006079 TWO STAGE LARGE FRAME

(2005) SERIES 7
