Home-Pro 3000 Series Polymer Moldboard Plow
7' Moldboard PN: 1SP7 ● 7-1/2' Moldboard PN: 1SP75HP
1 of 25
Assembly and Mounting Instructions - May 2010
2 of 25
Curtis Plows are simple by design. Our unit utilizes an A-Frame assembly for mounting the Electric/Hydraulic unit.
This exclusive Curtis feature eliminates the need for Hydraulic Quick-disconnects and also "Hides-Away"
our Power unit. Our A-Frame assembly takes the weight of the Power unit off the Lift Frame assembly and allows for
increased airow to the Radiator. Curtis uses State of the Art techniques for t and consistency such as an Automated
Conveyor System, Robotic Welding, High Denition Plasma and Hydraulic Press Brakes.
We feel these techniques are very important for overall quality and serviceability.
To help our customers understand the loads being imposed on their vehicles as well as the importance of ballast in
some applications, we also incorporate computer modeled weight distributions. Some vehicles may require "Helper
Springs", "Air Shocks" or similar devices to compensate for the added weight of the Plow equipment.
This information is available upon request. From all of us at Curtis, Thank you for choosing our products!
► Install any additional required equipment rst, such as Snow tires, Helper Springs, Lights, etc.
► Read and understand this manual before beginning Plow assembly.
► Check Carton contents prior to beginning Plow assembly.
► Work in an organized area large enough to pull vehicle up to Plow for nal attachment.
► Have your tools ready prior to assembly, it will speed up the assembly time.
IMPORTANT: Before you Start...
1. Always disconnect vehicle battery when working with vehicle-side wiring.
2. Plow assembly requires handling of many heavy parts. Be sure to handle
with care. Use proper tooling, equipment and assistance where indicated.
Required Tools Content Checklist for 2 Cartons:
■ 1/2" Drive Ratchet
■ 3/8" Drive Ratchet
■ 15/16" Deep Socket & Wrench
■ 3/4" Socket & Wrench
■ 5/8" Wrench
■ 9/16" Socket
■ 9/16" Wrench (2)
■ 1/2" Socket & Wrench
■ Pliers or Vice-Grips
■ Wire Cutters
■ Hammer or Mallet
■ 10" or 12" Adjustable Wrench
■ 1-1/8" Open End Wrench
■ Low Temperature Grease
Plow Package #1:
● Trip Frame (1TBP22C)
● Lift Frame Assembly (1TBP38D)
Plow Package #2:
● A-Frame Assembly with Angle Pistons
● Light Kit (set of 2) (1TBP39H)
● Hardware Box #1
● Hardware Box #2
● Truck-Side Harness with Plug Storage Holder
● Blade Markers (set of 2) (1TBP37)
Shipped with Cartons:
● Moldboard complete with Cutting Edge
CAUTION
3 of 25

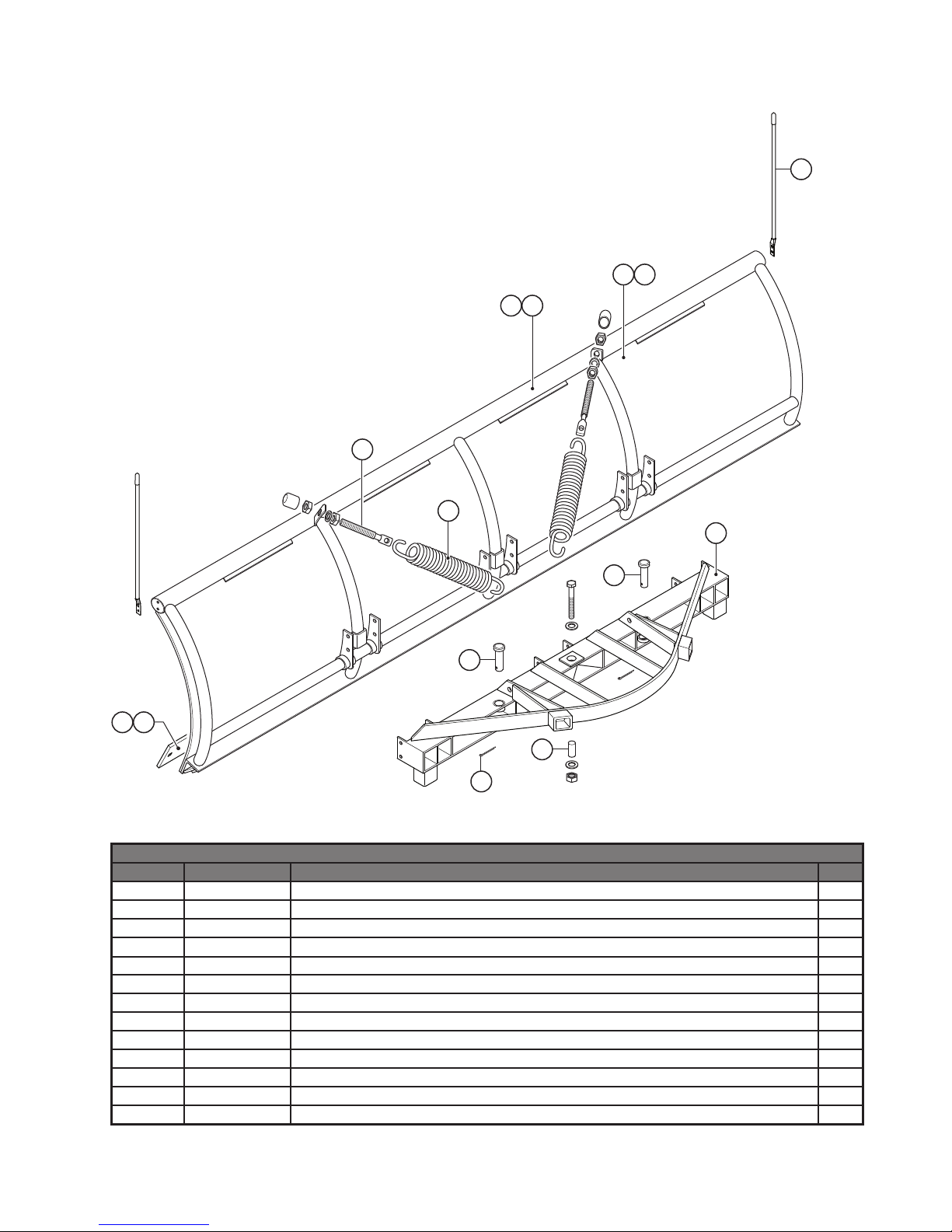

Home-Pro 3000 Illustrated Parts List - Moldboard & Trip Frame
13
7
6
1
9
5
8
10
9
1211
2
3 4
Moldboard/Trip Frame Parts List
Ref # Item # Item Description Qty.
1 1TBP21I 7' HOME-PRO MOLDBOARD 1
2 1TBP21K 7.5' HOME-PRO MOLDBOARD 1
3 1TBP124 HOME-PRO MOLDBOARD SKIN HMW PLASTIC - 7' 1
5 1TBP37 BLADE MARKER 2
6 1TBP34 SPRING EYEBOLT 5/8"-11 X 7 2
7 BUY LOCALLY 3/16" X 2" COTTER PIN 2
8 1TBP22C TRIP FRAME ASSEMBLY (HOME-PRO) 1
9 1TBP23 1" X 4" CLEVIS PIN 2
10 1TBP127 TRIP FRAME PIVOT PIN HOME-PRO 3000 (3-7/8" LONG) 1
11 1TBP49I 7' CUTTING EDGE 1
12 1TBP49K 7-1/2' CUTTING EDGE 1
13 1TBP33 TRIP SPRING 2
4 1TBP124-90HP HOME-PRO MOLDBOARD SKIN HMW PLASTIC - 7.5' 1
Home-Pro 3000 Illustrated Parts List - A-Frame & Harness
4 of 25
1
23
5 6
11
11
14
14
13
4
10
Apply Grease
10
9
15
7
20
21
8
12
17
18
19
28 22
24
25
26
23 30
27
Inside A-Frame
TRUCK SIDEPLOW SIDE
16
Apply Grease
29
Home-Pro 3000 Illustrated Parts List - A-Frame & Harness
8SV-TBP117-B5 A-FRAME BOTTOM JACK COVER 1
1TBP53 HI-AMP BATTERY HARNESS 1
A-Frame/Harness Parts List
Ref # Item # Item Description Qty.
1TBP29C A-FRAME ASSEMBLY COMPLETE 1
21TBP58A A-FRAME COVER, SnoPro 3000 1
31TBP30 5/16" x 24" CHAIN 1
41TBP31 5/16" ANCHOR SHACKLE 1
51TBP100 A-FRAME JACK SWITCH 1
61TBP100A TOGGLE SWITCH BOOT 1
71TBP106 JACK LEG 1
81TBP128 A-FRAME HOSE GROMMET 3
91TBP129 HARNESS (SPIRAL) WRAP, 16" LENGTH 1
1TBP27 10" ANGLE PISTON 2
1TBP73 1" x 3" CLEVIS PIN 2
1UHJA JACK ADAPTER 3000 SERIES (HYD JACK ONLY) 1
13
10
11
12
1TBP98F 90 DEG. BRASS BAR STREET ELBOW 1
14 1TBP98G 90 DEGREE ELBOW 2
15 1UHP UNIVERSAL HARNESS-PLOW SIDE 1
16
17
18
19
1UHT UNIVERSAL HARNESS-TRUCK SIDE 1
1TBP95 3" JACK CYLINDER 1
1TBP96 6" JACK SPRING 1
1TBP111 JACK SPRING GUIDE ROD 1
20 BUY LOCALLY 5/8"-11 x 4-1/2" GRADE 5 HEX BOLT 1
21
22
23
24
25
26
27
28
BUY LOCALLY 5/8"-11 NYLON LOCKNUT 1
1TBP48A LIGHT SWITCH FOR TRUCK PLOW 1
1TBP62 #4 CABLE 90" 1
1TBP136 VEHICLE SIDE CONTROL WEATHER CAP 1
1TBP140 LOCK PIN STORAGE HOLDER & LANYARD 1
1TBP141 HARNESS LOCK PIN (SET OF 5) 1
1TBP54 HI-AMP WEATHER CAP 1
1TBP61A 12V MOTOR SOLENOID 1
18SV-NAFW-B5 A-FRAME ASSEMBLY - FRAME ONLY 1
29
30
5 of 25
6 of 25
Home-Pro 3000 Illustrated Parts List - Lift Frame
W
A
R
N
I
N
G
22
9
20
4
2
1
12 10
11
12
6
7
13
8
8
17
15
14
16
19
18
21
5
3
7 of 25
Home-Pro 3000 Illustrated Parts List - Lift Frame
Lift Frame Parts List
Ref # Item # Item Description Qty.
1TBP38D LIFT FRAME HOME PRO 7' & 7.5' COMPLETE 1
1 8SV-TBP114A-B5 DRIVER'S SIDE LATCH HOOK HOME-PRO 1
2 8SV-TBP115A-B5 PASSENGER'S SIDE LATCH HOOK HOME-PRO 1
3 1TBP107 SNAP LOCK HANDLE (INCLUDED IN 9SV-SLH KIT) 2
4 1TBP33B SNAP LOCK SPRING (INCLUDED IN 9SV-SLH KIT) 2
5 1TBP103 PLASTIC HANDLE FOR SNAP LOCK SP3000 (INCLUDED IN 9SV-SLH KIT) 2
6 1TBP112A LIFT FRAME SIDE PLATE, LH SNO-PRO 3000 (INCLUDED IN 8SV-TBP112-B5 KIT) 1
7 1TBP112B LIFT FRAME SIDE PLATE, RH SNO-PRO 3000 (INCLUDED IN 8SV-TBP112-B5 KIT) 1
8
1TBP39H PLOW LIGHT KIT, DUAL HALOGEN LAMPS W/SWITCH KIT (2 HEAD LAMPS) 1
9 1TBP161 PLOW LIGHT MOUNTING HARDWARE 1
10 1TBP33A-1 TORSION SPRING, LH SNO-PRO 3000 (INCLUDED IN 9SV-TBP33A KIT) 1
11 1TBP33A-2 TORSION SPRING, RH SNO-PRO 3000 (INCLUDED IN 9SV-TBP33A KIT) 1
12 1TBP113 TORSION SPRING BUSHING (INCLUDED IN 9SV-TBP33A KIT) 2
13 1TBP40 LIFT ARM 1
14 1TBP108 1" x 4-1/2" CLEVIS PIN 1
15 1TBP42 3/4" x 4-1/2" CLEVIS PIN 1
16 1TBP43 3/4" x 2-3/4" CLEVIS PIN 1
17 1TBP44A 7-1/2" LIFT PISTON 1
18 1TBP98H 45 DEGREE ELBOW FOR LIFT PISTON 1
19 1TBP109 1" PISTON SPACER 2
20
21
1TBP135 PLUG STORAGE HOLDER 1
1TBP159 SNAP LOCK CROSS BOLT WITH BUSHING AND NUT 2
22 1TBP97 PLASTIC HANDLE COVER (NOT ORDERABLE) 2
Ref #
3,4,5
ORDERABLE AS KITS - NOT SEPARATELY
9SV-SLH SNAP LOCK HANDLE KIT (KIT INCLUDES 2 HANDLES, 2 SPRINGS, 2 HANDLE COVERS) 1
6,7 8SV-TBP112-B5 LIFT FRAME SIDE PLATE KIT, SNO-PRO 3000, (KIT INCLUDES L&R PLATES) 1
10,11,12 9SV-TBP33A TORSION SPRING KIT (SIDE PLATE TORSION SPRINGS & BUSHINGS, SET OF 2) 1
8 of 25
Home-Pro 3000 Illustrated Parts List - Hydraulics
KTI Hydraulics - Aluminum End Head
29
25
7
1
23
6
89 10 11
5
12
32
26
16
14 19
19
17
3
2
13
36
1
33 24
34
23
30
27
37
31
16
23
22
21
20
28
18
42
39
25
44
43
40
41
38
2
35
SPX Hydraulics
4
OLD
STYLE
NEW
STYLE
2
25
OLDER
MODELS ONLY
9 of 25
Home-Pro 3000 Illustrated Parts List - Hydraulics
Hydraulics Parts List
Ref # Item # Item Description Qty.
1 1TBP59APC HYDRAULIC POWER UNIT COMPLETE W/MANIFOLD, VALVES & COILS 1
2 1TBM8 DC MOTOR 12V - DUAL POST 1
3
1TBP59AP1 HYDRAULIC PUMP ASSEMBLY WITHOUT VALVES & COILS, SNO PRO 1
14 1TBM201 3P3W TANDEM CENTER ANGLE VALVE W/10 VOLT COIL KIT
15 1TBM202 3P3W OPEN CENTER LIFT/JACK VALVE W/10 VOLT COIL KIT
16 1TBM203 2P2W NC ZERO LEAK JACK RETRACT VALVE W/10 VOLT COIL KIT
17
27
31
37
1TBM204 2P2W NC ZERO LEAK FLOAT VALVE W/12 VOLT COIL KIT
18 1TBP98A JACK HOSE - 26-1/2"
19 1TBP98B LIFT HOSE - 37.5"
110 1TBP98C RIGHT ANGLE HOSE - 19"
111 1TBP98D LEFT ANGLE HOSE - 28"
112 1TBP98E BLOCK ADAPTER FOR JACK HOSE
SPX Hydraulics
13 1TBM12 PUMP TO MOTOR COUPLING SPX 1
14 1TBM13 PUMP ASSEMBLY - SPX 1
16 1TBM14 PUMP O-RING KIT (NOT ORDERABLE SEPARATELY) 1
17 1TBM16 PUMP MOUNTING BOLT (NOT ORDERABLE SEPARATELY) 2
18 1TBM17 BOLT - SUCTION COVER 5/16" (INCLUDED IN 9SV-FLT FILTER KIT) 1
19 1TBM15 WASHER FLAT (INCLUDED IN 9SV-FLT FILTER KIT) 1
20 1TBM18 SCREW TAPTITE M6 x 12mm (INCLUDED IN 9SV-FLT FILTER KIT) 1
21 1TBM19 PLUMBING ASSEMBLY INLET (INCLUDED IN 9SV-FLT FILTER KIT) 1
22 1TBM20 FILTER (INCLUDED IN 9SV-FLT FILTER KIT) 1
23 1TBM21 COLLECTOR MAGNET (INCLUDED IN 9SV-FLT FILTER KIT) 1
24 1TBM29 SUCTION COVER (INCLUDED IN 9SV-FLT FILTER KIT) 1
25 1TBM23A RESERVOIR - SNO-PRO 3000 W/ MTNG SCREWS (INCLUDED IN 9SV-RES KIT) 1
26 1TBM11 SPX RESERVOIR O-RING (INCLUDED IN 9SV-RES KIT) 1
1TBP63B RESERVOIR CAP - INTERNAL (3/8" BRONZE) (INCLUDED IN 9SV-RES KIT) 1
28 1TBM22 RESERVOIR SCREW (Set of 4) (INCLUDED IN 9SV-RES KIT) 1
1
1
1
29 1TBP63A RESERVOIR CAP - SNO-PRO 3000 EXTERNAL
1
30 1TBM25 FIXED RELIEF VALVE ASSEMBLY - (SPX OLD STYLE - USE 1TBM25A)
1
1TBM25A FIXED RELIEF VALVE - CARTRIDGE STYLE - (SPX NEW STYLE)
1
32 1TBM26 RETURN TUBE
1
33 1TBM27 COMPRESSION NUT (NOT ORDERABLE SEPARATELY)
1
34 1TBM28 COMPRESSION SLEEVE (NOT ORDERABLE SEPARATELY)
1
35 1TBM30 MOTOR BRUSH KIT (NOT ORDERABLE SEPARATELY)
36 1TBM31 END HEAD (NOT ORDERABLE SEPARATELY)
1TBM32 RESERVOIR DRAIN PLUG
1
1
KTI Hydraulics
1
38 1TBM13A PUMP ASSEMBLY - KTI
1
39 1TBM12A MOTOR TO PUMP COUPLING KTI
1
40 1TBM24 3/8" NPT FEMALE TO FEMALE PLASTIC STREET ELBOW
41 1TBM20 FILTER
1
42 1TBM37 FIXED RELIEF VALVE - CARTRIDGE STYLE - KTI
1
43 1TBM11A KTI RESERVOIR O-RING
44 1TBM21 COLLECTOR MAGNET
11TBP59AP2 MANIFOLD BLOCK ASSEMBLY WITH VALVES & COILS, SNO PRO
ORDERABLE AS KITS - NOT SEPARATELY
18 → 24 9SV-FLT HYDRAULIC PUMP FILTER KIT 1
25 → 28 9SV-RES HYDRAULIC POWER UNIT RESERVOIR KIT 1
10 of 25
Home-Pro 3000 Assembly Instructions
Section 1. Moldboard Assembly
A.) Lay Moldboard on its face. Place cardboard under the Top Tube to prevent paint damage.
B.) Bolt the Trip Frame to the Moldboard at the (6) Pivot Brackets. Figure 1.
Figure 1. Bolt Trip Frame to Moldboard
Section 2. Mount Trip Springs
A.) Mount (2) Trip Springs (1TBP33) to Trip
Frame.
B.) Thread (1) 5/8" Jam Nut half-way onto each
Spring Eyebolt. Figure 2.
C.) Slide (1) 5/8" Lock Washer onto each Spring
Eyebolt (1TBP34) and then insert each Eye
bolt into the Spring Brackets on Moldboard.
D.) Thread (1) 5/8" Locknut onto each Eyebolt.
E.) Tighten Locknuts to increase tension on
Springs until there is enough space between
the coils to slide a piece of paper.
F.) Tighten each 5/8" Jam Nut and Lock Washer
against each Moldboard Spring Bracket to
lock the Eyebolts.
G.) Install Protective End Caps to Eyebolts.
Figure 2. Mount Trip Springs
3/8"-16 x 1" Bolts
Moldboard
Trip Frame
3/8"-16 Lock Nuts
Note direction of Hardware when mounting.
Tighten Jam Nuts on Eyebolts until
correct Spring tension is achieved End
Cap
End
Cap
A B
Thread Jam Nut halfway &
add Lock Washer before inserting
through Moldboard Bracket
