SoClean 2 Manuale utente

User Manual

SoClean.com

SoClean 2 Automated PAP Disinfecting System

Guide d’utilisation

Système de désinfection PPC automatique SoClean 2

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 1A000330-11_Rev B-SC1200 Manual_CA_040720.indd 1 4/28/20 1:23 PM4/28/20 1:23 PM

ENGLISH ..........................................................................................................I

FRANÇAIS ...................................................................................................... II

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 2A000330-11_Rev B-SC1200 Manual_CA_040720.indd 2 4/28/20 1:23 PM4/28/20 1:23 PM

ENGLISH

User Manual ISoClean 2 Automated PAP Disinfecting System

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 3A000330-11_Rev B-SC1200 Manual_CA_040720.indd 3 4/28/20 1:23 PM4/28/20 1:23 PM

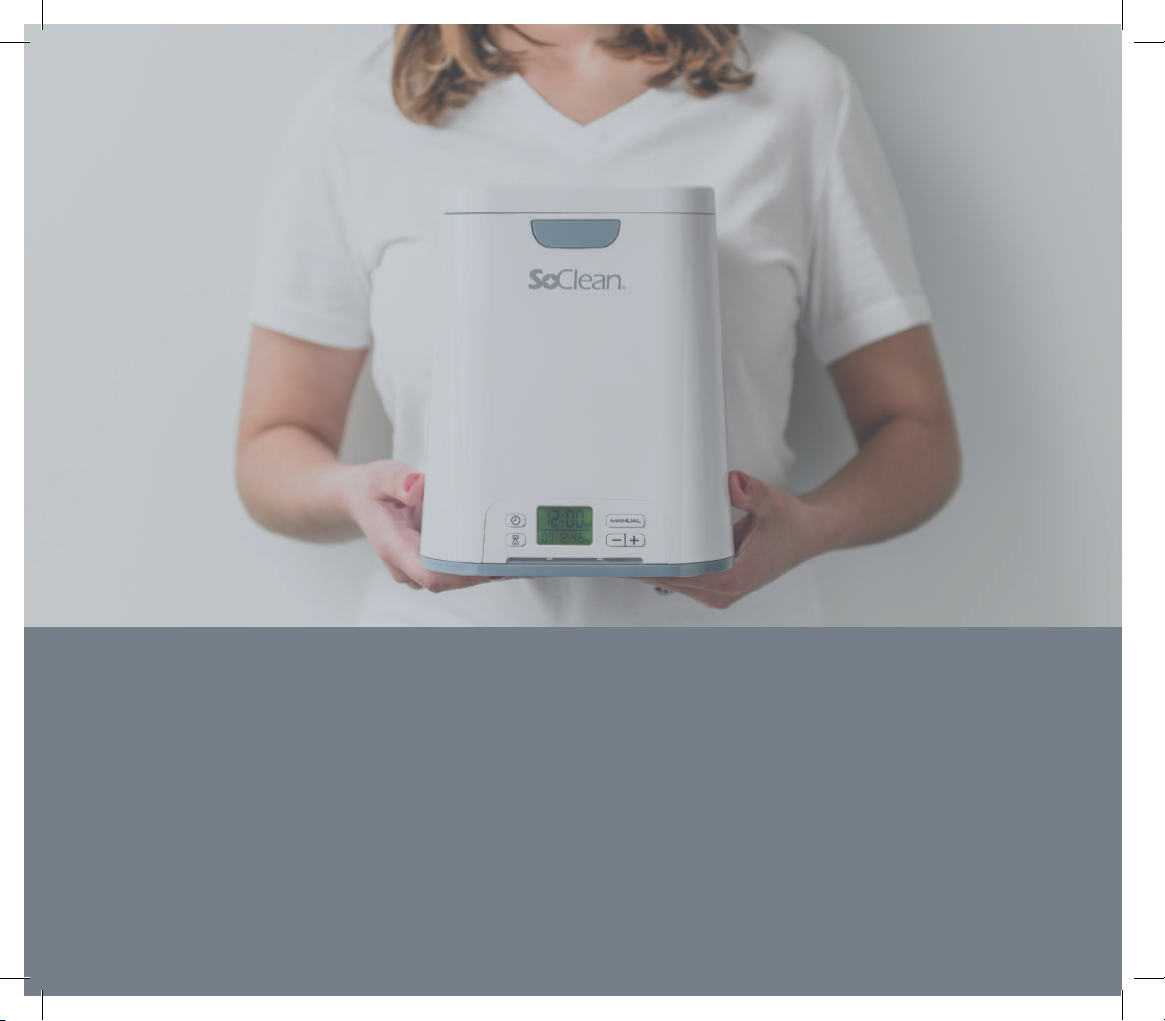

Thank You!

*See Indication of use, Cautions and Specications.

†Data on le.

Thank you for purchasing the

SoClean 2 PAP disinfecting system.*

This manual contains a product overview and key

set-up instructions. Once connected, you’ll ﬁnd that daily

disinfecting of your PAP equipment has never been easier.

The SoClean patented process destroys 99.9% of PAP

germs, bacteria and other pathogens without the need

for water or harsh chemicals.†The SoClean 2 allows you

to use disinfected PAP equipment daily, without the need

to disconnect.

While the SoClean is designed to ﬁt many PAP models,

some models require additional parts or set-up steps.

If you do not currently have these parts, they can be

purchased from SoClean or an authorised reseller.

See SoClean.com for PAP model details.

SoClean is committed to developing innovative and safe

ways to improve the health and well-being of PAP users.

Please feel free to contact us with any questions you

may have at SoClean.com/contact.

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 4A000330-11_Rev B-SC1200 Manual_CA_040720.indd 4 4/28/20 1:23 PM4/28/20 1:23 PM

Thank You!

TABLE OF CONTENTS

INDICATIONS FOR USE, CONTRAINDICATIONS,

SPECIFICATIONS, WARNINGS AND CAUTIONS 2

YOUR HEALTH AND OZONE SAFETY 4

CLASSIFICATION, MANUFACTURER SYMBOLS AND FCC NOTICE 5

INCLUDED WITH YOUR SOCLEAN 2 6

SOCLEAN 2 CONTROL PANEL 10

KEY PAP PARTS 12

CONNECTION STEPS 14

SUPPORTED PAP MACHINES AND ADAPTERS 17

SET LANGUAGE, CLOCK AND CYCLE SCHEDULE 18

USING YOUR SOCLEAN 2 22

CARE AND MAINTENANCE OF YOUR SOCLEAN 2 24

FAQS24

SoClean.com 800-916-4577

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 5A000330-11_Rev B-SC1200 Manual_CA_040720.indd 5 4/28/20 1:23 PM4/28/20 1:23 PM

2 | INDICATIONS FOR USE, CONTRAINDICATIONS, SPECIFICATIONS, WARNINGS AND CAUTIONS2 |

*DISCLAIMER: SoClean does not represent through the use of the terms disinfect, disinfectant or disinfection

herein, or in other documentation, a kill rate of more than 99.9% of germs and bacteria in PAP equipment.

†Data on le.

Speciﬁcations:

INDICATIONS FOR USE, CONTRAINDICATIONS,

SPECIFICATIONS, WARNINGS AND CAUTIONS

Read this User Manual before operating

the equipment.

Use this product only in the manner described in this User

Manual. If the equipment is used in a manner not speciﬁed

by the manufacturer, the safety protection provided by the

equipment may be impaired.

Environmental characteristics:

Operating: 10°C to 38°C (50°F to 100°F),

15% to 70% humidity

Ozone concentration:

When operated in a 11.6 m2room with 2.4

metre-high ceilings, the average ambient ozone

concentration in the room over the operating

cycle is < 0.05 parts per million (PPM).†

Electrical characteristics:

AC adapter input: AC 100~240V, 50/60HZ, 0.5A

AC adapter output: DC 12V, 1.5A max.

Power consumption: 18W max.

Physical characteristics:

Dimensions: 200 x 184 x 225 mm

Weight: 2.5 kg

Cord length: 142 cm

Storage and transport conditions:

-20°C to +55°C (-4°F to 131°F),

15% to 70% humidity

Indications for use: The SoClean 2 is a general Positive

Airway Pressure (PAP) disinfecting device and is intended

to be used in the home. An individual who uses Positive

Airway Pressure (PAP) equipment can use the SoClean 2 to

destroy 99.9% of germs and bacteria and other pathogens

on PAP equipment, or when the user wants the added

beneﬁt of thorough PAP system disinfection.*†

The SoClean 2 attaches to a PAP machine and runs

daily while the mask is inside the SoClean Chamber. The

SoClean 2 does not need to be disconnected before using

your PAP machine.

Contraindications for use: Persons with underlying lung

diseases, such as asthma and chronic obstructive pulmonary

disease (also known as COPD, which includes emphysema

and chronic bronchitis), and those with cardiovascular

disease may be sensitive to ozone and should consult with

their physician before using this product.

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 2A000330-11_Rev B-SC1200 Manual_CA_040720.indd 2 4/28/20 1:23 PM4/28/20 1:23 PM

ENG | 3

WARNING: Do not use a fragrant oil in the water

reservoir or highly fragrant soaps to wash the sleep

equipment when using the SoClean 2.

WARNING: Discontinue use if acne or a rash

develops along the mask contact line and call SoClean

customer care.

WARNING:

Ensure the correct clock time and cycle

start time are set on your SoClean 2 before using

your PAP machine. Pay particular attention to the

AM/PM setting if using the 12-hr mode. Failure to do

so may result in the SoClean 2 device operating at an

unexpected time.

WARNING:

In the event of loss of power to your

home or the SoClean 2, ensure the correct clock time

and daily start time are set on the SoClean 2 before

using your PAP machine. Failure to do so may result

in the SoClean 2 device operating at an unexpected

time.

WARNING:

Do not physically alter the Hose Detect

Switches on your SoClean 2 device. Inspect the

Hose Detect Switches regularly for damage or

inability to move up/down. Failure of the Hose

Detect Switches on your SoClean 2 may result in

the SoClean operating at an unexpected time.

WARNING:

Keep away from water sources including

rain, bathtubs, sinks and pools. To clean, wipe with a

damp cloth. Do not submerge the SoClean 2 device

in liquid or use chemical cleaners.

WARNING:

Keep away from children. Do not place

any living thing inside the Chamber during use.

WARNING:

Do not inhale from the Injection Hose or

the Injection Hose outlet on the back of the device.

WARNING:

Only rest the ﬂexible section of the PAP

Hose, not the rigid connector, in the Hose Detect Slot.

WARNING:

Do not breathe through your PAP mask

if the SoClean 2 is operating a disinfecting cycle.

WARNING:

Do not use in explosive air environments,

near gas vapours or other ﬂammables, etc. Do not

place any ﬂammable or ignitable items on top of the

SoClean 2.

WARNING: Keep the SoClean 2 Lid closed until the

green status light illuminates (approximately two hours

after completion of the disinfecting cycle).

WARNING: Do not remove gasket from the Hose

Detect Switch Slot.

CAUTION: The Lid Gasket is removable. Ensure that

the Lid Gasket is installed properly before operating a

disinfecting cycle.

WARNING: Do not dismantle the SoClean 2.

CAUTION: Do not place Neutralizing Pre-wash

in the SoClean Chamber or PAP reservoir.

Neutralizing Pre-wash is for cleaning your PAP

equipment only.

CAUTION: Please ensure that the black Injection

Hose from the back of the SoClean 2 is connected to

your PAP before operating your SoClean 2 device.

WARNING: If a strong ozone odor is detected when

the SoClean 2 is operating, turn the SoClean 2 off

by disconnecting the AC power adapter and contact

customer care.

WARNING: Do not route your PAP Hose through

both Hose Detect Slots while or after using your

PAP. This may result in the SoClean 2 device

running at an unexpected time.

WARNING: Remove clear outer wrapper and blue

tape from Cartridge Filter.

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 3A000330-11_Rev B-SC1200 Manual_CA_040720.indd 3 4/28/20 1:23 PM4/28/20 1:23 PM

4 |4 | YOUR HEALTH AND OZONE SAFETY/CLASSIFICATION, MANUFACTURER, SYMBOLS AND FCC NOTICE

YOUR HEALTH AND OZONE SAFETY

• Ozone, the triatomic form of oxygen (O3), is known

as activated oxygen.

• Ozone is an effective, invisible disinfectant.

• The SoClean 2 uses ozone to disinfect Positive Airway

Pressure (PAP) equipment; ozone contacts the PAP

equipment only, not the user.

• The SoClean 2 is designed to produce only enough

ozone for effective disinfection of your PAP equipment.

• While breathing large amounts of ozone can irritate

breathing passages of humans, following the

instructions for use ensures that SoClean 2 users

will not breathe in large amounts of ozone.

• Ozone quickly dissipates in the atmosphere. If you

accidentally interrupt the cycle and release ozone by

opening the SoClean Chamber before the end of the

cycle, simply step away from the SoClean 2 to avoid

unintended exposure.

• The smell of ozone is detectable at low concentrations

by some people. The scent of ozone is similar to a

sweet chlorine-like smell.

• If you smell ozone and believe the SoClean 2 device

is not operating correctly, disconnect the power to the

device, step away from the SoClean 2 and contact

SoClean customer care.

• Ozone is a gaseous disinfectant that naturally breaks

down after it is generated. The SoClean is designed

to safely contain ozone within the system and has a

catalyst Cartridge Filter inside the SoClean Chamber to

convert ozone back to oxygen.

WARNING: If a strong ozone odor is detected when

the SoClean 2 is operating, turn the SoClean 2 off

by disconnecting the AC power adapter and contact

SoClean customer care.

WARNING: Discontinue use if acne or a rash

develops along the mask contact line and call

SoClean customer care.

Contraindications for Use: Persons with

underlying lung diseases, such as asthma and chronic

obstructive pulmonary disease (also known as COPD,

which includes emphysema and chronic bronchitis) and

those with cardiovascular disease may be sensitive to

ozone and should consult with their physician before

using this product.

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 4A000330-11_Rev B-SC1200 Manual_CA_040720.indd 4 4/28/20 1:23 PM4/28/20 1:23 PM

ENG | 5

FCC Notice

Please note that changes or modiﬁcations not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 18 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CLASSIFICATION, MANUFACTURER, SYMBOLS & FCC NOTICE

Classiﬁcation

Health Canada Device License Number 100197, Device Classiﬁcation: Class 2

SoClean, Inc., 12 Vose Farm Road, Peterborough, New Hampshire 03458 USA

Waste Electrical and Electronic Equipment (WEEE).

It is the responsibility of the end user to dispose

of this equipment at a designated collection point.

Not made with

natural rubber latex

Symbols

Serial number

Catalogue

number

Consult

manual

Date of

manufacture

Do not use

if package

is damaged.

Manufacturer

JDI Electronics Factory

Sima Industrial Zone, Sima Village, Changping Town,

Dongguan City, Guangdong Province, China 523570

Federal

Communications

Commission

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 5A000330-11_Rev B-SC1200 Manual_CA_040720.indd 5 4/28/20 1:23 PM4/28/20 1:23 PM

6 | INCLUDED WITH YOUR SOCLEAN 2

Number Part name SKU Description

1Removable

Hose Slot Plug PN1214

This allows you to set up the SoClean 2 device on either the right or

left side of your PAP machine. Place this plug in the Hose Slot that

you don’t use.

2SoClean

Chamber N/A Place your mask in here when you wake up. Close the Lid to ensure

that the daily automated disinfecting cycle runs.

3 Lid Gasket PN1215 Ensures a tight seal around the SoClean Chamber when the SoClean

2 Lid is closed. Do not close the Lid without this part in place.

4 SoClean Lid N/A Close the Lid after you place your mask in the SoClean Chamber to

ensure that the cycle occurs.

5 Cartridge Filter PN1207UNI

This Cartridge Filter converts ozone back into normal oxygen.

Remove outer plastic wrapper and blue tape prior to

installation. You can repurchase the Filter along with the Check

Valve as part of the Cartridge Filter Kit.

6Hose Detect

Switch N/A

The Hose Detect Switch detects when the SoClean 2 is conﬁgured

for operation by detecting the presence of the hose in the Hose Slot

when the Lid is closed. If no hose is detected, the SoClean 2 will

not run a cycle. Hose Detect Switch operation can be inspected

by gently pushing down and releasing the grey plastic switch and

hearing an audible click. The switch should move freely down and up

when pressed gently.

7Neutralizing

Pre-wash

PN1101

1.5 oz.

The Neutralizing Pre-wash removes any material or odor that could

react with ozone. Wash your PAP equipment following the PAP

manufacturer’s instructions before connecting the SoClean 2 device,

or when you receive a new mask, hose or reservoir.

INCLUDED WITH YOUR SOCLEAN 2

A000330-11_Rev B-SC1200 Manual_CA_040720.indd 6A000330-11_Rev B-SC1200 Manual_CA_040720.indd 6 4/28/20 1:23 PM4/28/20 1:23 PM

Altri manuali per 2

Indice

Lingue:

Altri manuali SoClean Attrezzature per la pulizia

SoClean

SoClean 2 Manuale utente

SoClean

SoClean SC1400 Manuale utente

Manuali Attrezzature per la pulizia popolari di altre marche

Skov

Skov Farm AirClean Manuale

Nilfisk-Advance

Nilfisk-Advance CA 240 Manuale utente

ORBOT

ORBOT LiO Manuale utente

unGer

unGer OmniClean Manuale utente

CENTREGO

CENTREGO Toucan Eco Bio Carry Manuale utente

BANDELIN

BANDELIN SONOREX TECHNIK RM 110 UH Manuale utente

Sealey

Sealey VMA913 Manuale utente

Aztec

Aztec 520-00 Manuale utente

BÖWE

BÖWE P25 Manuale utente

Tunap

Tunap MF 929 Istruzioni per l'uso e l'installazione

RIDGID

RIDGID K-45AF-7 Manuale utente

Aircraft

Aircraft POWERGLIDE Manuale utente

Suevia

Suevia 130.5011 EASYCLEANER Manuale utente

Streamline

Streamline Filterplus MOBI SK Manuale utente

Thermax

Thermax AF2 Manuale utente

IPC

IPC CT15R Manuale utente

i-MO

i-MO Öko 2000 Manuale utente

unGer

unGer Hydro Power Ultra UNP01 Manuale utente
