IMPORTANT

WARNING!

This product is an accessory of the NETYS RT UPS and it can only be used in conjunction with the NETYS RT range.

• For installation and use of this accessory, please REFER To ThE UPS InSTAllATIon mAnUAl

• Please read the safety instructions carefully in the UPS manual before attempting to activate the product in any way

• The warranty conditions are also set out in the UPS installation manual

• Read this instruction carefully

• All cautions and warnings should be followed

• The incoming mains utility supply must be installed near the equipment and must be easily accessible

• The equipment must be used at a maximum 40 °C ambient temperature

• To avoid the risk of electrical shock DO NOT open the equipment

• The equipment has to be positioned to avoid objects falling or liquids dripping through the openings. This could cause a fire or

eletrical shock

• Do not block any ventilation openings, they prevent the equipment from over-heating

• If the equipment is not used for a long period of time, disconnect the equipment from the power supply to avoid damage from any

voltage peaks or lightning strikes

• An approved power cord greater or equal to H05VV-F, 1.0 mm2 must be used

Option available for NETYS RT 1700 VA, 2200 VA and 3000 VA only.

• The battery charger has to be set up depending on the total number and capacity of the NETYS RT external battery modules

(EBM) to be used

• Suggested set up value: ~10÷15% of the capacity (Ah)

WARNING!

To avoid damaging the batteries, due to a high recharging current, the minimum usable battery capacity is 40 Ah

• To size the battery charger correctly please refer to the NETYS RT external

battery module (EBM) specifications

• In case of specific battery cabinets used instead of the NETYS RT external

battery modules (EBM) , it is necessary to use the suitable connecting cable,

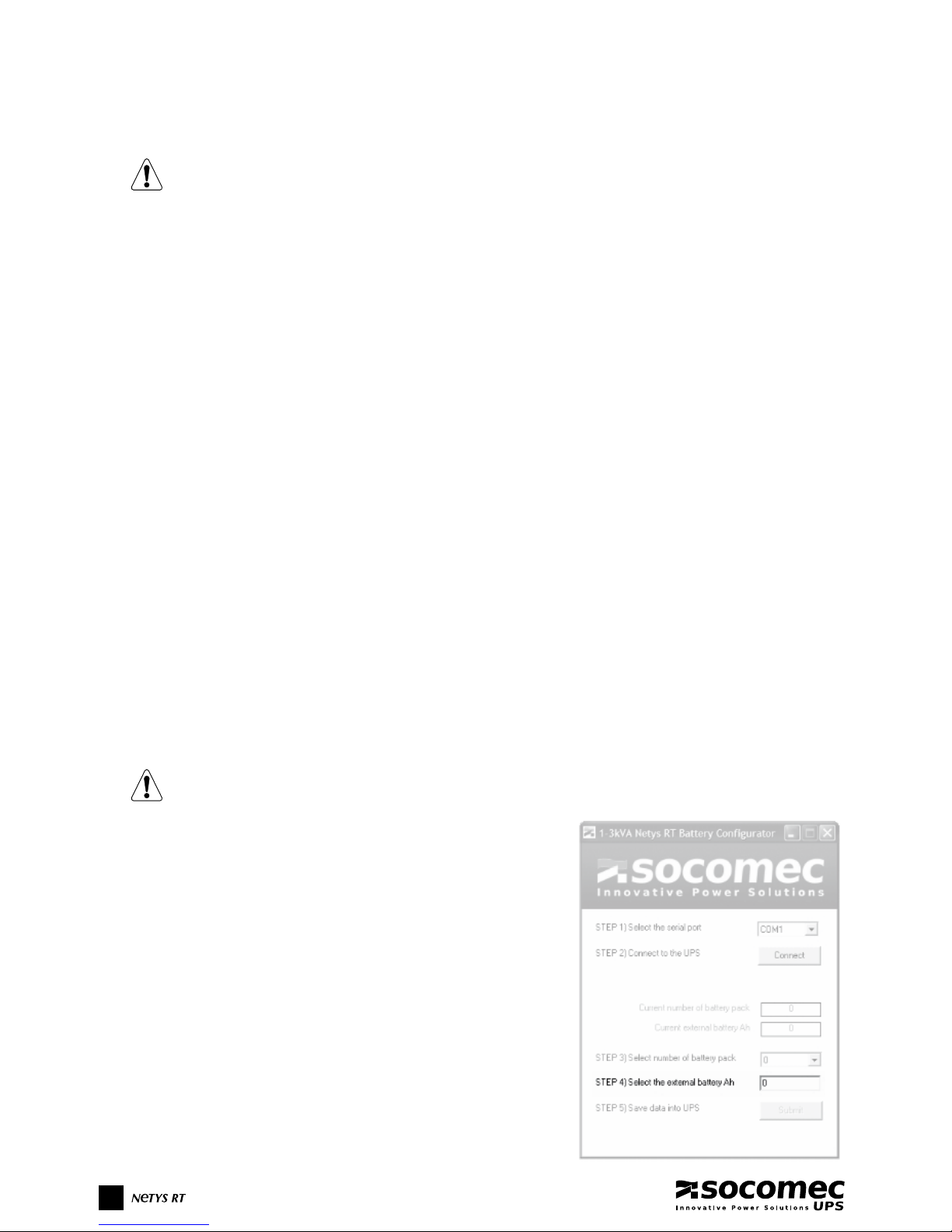

available as an option. To display the correct autonomy value, the number

of Ah has to be set via RT Battery Configurator software “STEP 4) Select the

external battery Ah”.

• Set the switch on the back of the battery extension module to the ON posi-

tion.

exTeRNAl bATTeRy chARgeR.

NRT-OP-bch48V - NRT-OP-bch72V

166 DRWNETRT-GB

- Ref.: IOMNETRTXX03-XX 02

ITALIANOENGLISH

ExTErNAL bATTEry cHArGEr. NrT-OP-bcH48V - NrT-OP-bcH72V

Battery charger Model NRT-OP-BCH48V NRT-OP-BCH72V

Compatible with UPS model NRT-U1700 nRT-U2200 nRT-U3000

Input Single-phase 230 V AC (100-250 V); 50/60 Hz

Input current (max) 5.2 A 7.8 A

Input protection 10 A fuse

Output power Selectable: 220 W or 440 W Selectable: 330 W or 660 W

Output current Selectable: 4 A ±0,4 A or 8 A ±0,4 A

Output protection 20 A fuse

Output voltage 54,6 V DC ±1% 81,9 V DC ±1%

Dimension (WxDxH) 440 x 135 x 88 mm

Weight 3,18 kg 3,28 kg

WARNING!

The input to the battery charger should be connected to mains

or utility supply not to the UPS output.

Battery extension

socket

IN 230 V~

Output current

selector (4 A - 8A)

Status LED

- green: normal

- red: fault

148 DRWNETRT-XX

IN OUT

LOAD 1 LOAD 2

RS232

BREAKER

INPUT

EPO

SURGE PROTECT

LOAD 3

INPUT

40A

48V

COM. SLOT

UPSEBM EBMBattery charger

149 DRWNETRT-XX

4- Ref.: IOMNETRTXX03-XX 02

• This instruction sheet completes the Installation and Operating manuals of the UPS

• The battery charger has to be set up depending on the total number and capacity of the NETYS RT external battery modules

(EBM) to be used

• Suggested set up value: ~10÷15% of the capacity (Ah)

WARNING!

To avoid damaging the batteries, due to a high recharging current, the minimum usable battery capacity is 40 Ah

• To size the battery charger correctly please refer to the NETYS RT external battery module (EBM) specifications

• In case of specific battery cabinets used instead of the NETYS RT external battery modules (EBM), it is necessary to use the suit-

able connecting cable, available as an option

• Technical specifications: please refer to the the Installation and Operating manual - see the specifications of the standard UPS

with the same power except for what follows

UPS model NRT-U7000CLA NRT-U11000CLA

Power (UPS protection) 7000 VA

4900 W

11000 VA

8000 W

Battery recharging current 8 A

Dimensions (LxPxH) 440 x 670.5 x 88.7 mm 440 x 623 x 130.6 mm

Weight 16 kg 20.5 kg

UPS wITh POweRFUll bATTeRy chARgeR.

NRT-U7000clA - NRT-U11000clA

lEVEl 1 lEVEl 2 lEVEl 3

BATTERY SETTING BATT LOW ALARM 20%

SHUTDOWN VOLTAGE SD VOLT:168VDC

DISCHARGE TEST no TEST

30 DAYS

60 DAYS

90 DAYS

BATT CABINET NUM NUM: 0

BATTERY AH BATTERY: ... Ah

- Ref.: IOMNETRTXX03-XX 02

ENGLISH

Parallel redundant operation for business continuity

To achieve the highest level of availability and to power mission critical loads, NETYS RT UPS modules above 3 kVA can be config-

ured for 1:1 redundancy.

Redundant operation (1+1) means: the system incorporates one more UPS module than is needed to protect the load; in the unlikely

event of one module failure, it guarantees sufficient power supply capacity to the load by maintaining online protection.

Parallel technology is based on the principle of load sharing, whereby both units are always kept active.

by-PASS OF cONNecTION FOR UPS IN PARAllel

Connection of BY-PASS for UPS in parallel

CAUTION:

CONNECTOR

192Vdc

BATTERY

BREAKER 300VDC 50A

CAUTION:

CONNECTOR

192Vdc

BATTERY

BREAKER 300VDC 50A

COM. SLOT

EPO PA EL RS232

MINI COM. SLOT

OUTPUT

NLL

INPUT

BREAKER

230Vac

40A

230Vac 50/60Hz 230

CABLE UNDER LO

DO NOT DISCON

192Vdc 21.5A(5KVA)/30A(7KVA)

EXTERNAL BATTERYCONNECTOR

CAUTION:

SW 100

Network

CAUTION:

CONNECTOR

192Vdc

BATTERY

BREAKER 300VDC 50A

CAUTION:

CONNECTOR

192Vdc

BATTERY

BREAKER 300VDC 50A

COM. SLOT

EPO PA EL RS232

MINI COM. SLOT

OUTPUT

NLL

INP

INPUT

BREAKER

230Vac

40A

230Vac 50/60Hz 230Vac

CABLE UNDER LO

DO NOT DISCONN

192Vdc 21.5A(5KVA)/30A(7KVA)

EXTERNAL BATTERYCONNECTOR

CAUTION:

SW 100

Network

NL N

UPS1 BREAKER

230Vac 63A

INPUT OUTPUT

UPS2 BREAKER

230Vac 63A

INPUT OUTPUT

BYPASS BREAKER

230Vac 63A

TO UPS1

PARALLELP LLEL

L N

TO UPS1

230Vac

50/60Hz

TO UPS1 OUTPUT

L N

TO UPS2

230Vac

50/60Hz

TO UPS1 INPUT

TO UPS2 OUTPUT

AC INPUT 230Vac 50/60 Hz

UPS OUTPUT

LINE BREAKER

230Vac 63A

AC INPUT 230Vac 50/60 Hz

104 DRWNETRT-XX

6- Ref.: IOMNETRTXX03-XX 02

2Close switches

Cin, Cout, Din, Dout

3Switch on both UPSs.

Close switch B

4Load supplied by UPS

in parallel/redundant

conguration

1Close the MAINS

switch

Start-up.

by-PASS cONNEcTION OF UPS IN PArALLEL.

AC INPUT 230Vac 50/60Hz

L N

UPS OUTPUT

LINE BREAKER

230Vac 63A

UPS1 BREAKER

230Vac 63A

INPUT OUTPUT

UPS2 BREAKER

230Vac 63A

INPUT OUTPUT

BYPASS BREAKER

230Vac 63A

TO UPS1

L N

TO UPS1

230Vac

50/60Hz

TO UPS1 OUTPUT

L N

TO UPS2

230Vac

50/60Hz

TO UPS1 INPUT

TO UPS2 OUTPUT

AC OUTPUT 230Vac 50/60Hz

TO UPS2 INPUT

PARALLEL

TO UPS2

PARALLEL

L N

155 DRWNETRT-XX

out

Legend

A BY-PASS switch

B UPS OUTPUT Line breaker

Cin UPS1 INPUT switch

Cout UPS1 OUTPUT switch

Din UPS2 INPUT switch

Dout UPS2 OUTPUT switch

154 DRWNETRT-XX

out

UPS1 UPS2

out

UPS1 UPS2

UPS1

LOAD

UPS2

UPS1 UPS2

156 DRWNETRT-XX

151 DRWNETRT-XX

157 DRWNETRT-XX

LOAD

MAINS

LOAD

MAINS

LOAD

MAINS

- Ref.: IOMNETRTXX03-XX 02

ENGLISH

2Close switches

Cin, Cout, Din, Dout

1Load supplied by UPS

in parallel/redundant

conguration

4Load supplied by UPS

in parallel/redundant

conguration

MAINTENANCE BY-PASS mode.

Back to NORMAL mode.

out

UPS1 UPS2

by-PASS cONNEcTION OF UPS IN PArALLEL.

UPS1

LOAD

UPS2

UPS1 UPS2

163 DRWNETRT-XX

151 DRWNETRT-XX

157 DRWNETRT-XX

2Switch of both UPSs

by pressing OFF button.

Close switch A

3 Close switch B.

Open switch A.

Switch on both UPSs

3Open switches

B, Cin, Cout, Din, Dout

4Load supplied through

by-pass. Maintenance

in progress

161 DRWNETRT-XX

162 DRWNETRT-XX

UPS1

UPS1 UPS1

UPS1

UPS2

UPS2 UPS2

UPS2

160 DRWNETRT-XX

164 DRWNETRT-XX

LOAD

MAINS MAINS

MAINS

MAINS MAINS

MAINS

LOAD

MAINS

LOAD

LOAD LOAD

LOAD

out
