Solarcentre V-Light Pro Manuale utente

Please read and follow all instructions to operate.

Save this manual for future reference.

1. Please use the card to measure hole position correctly and drill 3 holes of Φ6mm.

2. Fix 3 expansion plugs and ﬁx the lowest screw into the explansion plug leaving

the screw proud,

3. Oﬀer up the lamper up the lamp ensuring the screw head enters the rear of the lamp.

4. Insert the notch to the lower screw and fasten the whole lamp well.

5. Press the button to select your preferred working mode. (See section 3)

Installation

Notice

Warning

Button⑤

④Notch

①②③

④

1. This is a solar powered lamp, a poor installation location will result in poor

performance from your lamp

2. The lamp will light up automatically at dusk.

3. Please note the lighting time will depend on the weather and the installation.

4. Built-in intelligent circuit with over-charge, over-discharge and over-voltage

protection.

1. The lamp is equipped with an internal replaceable rechargeable lithium battery.

2. If the battery is taken out & put back in or replaced with new ones, please

ensure the solar panel is subject to sunshine or a strong light to activate the lamp.

3.Please do not disassemble the lamp.

4. Please recycle batteries where possible.

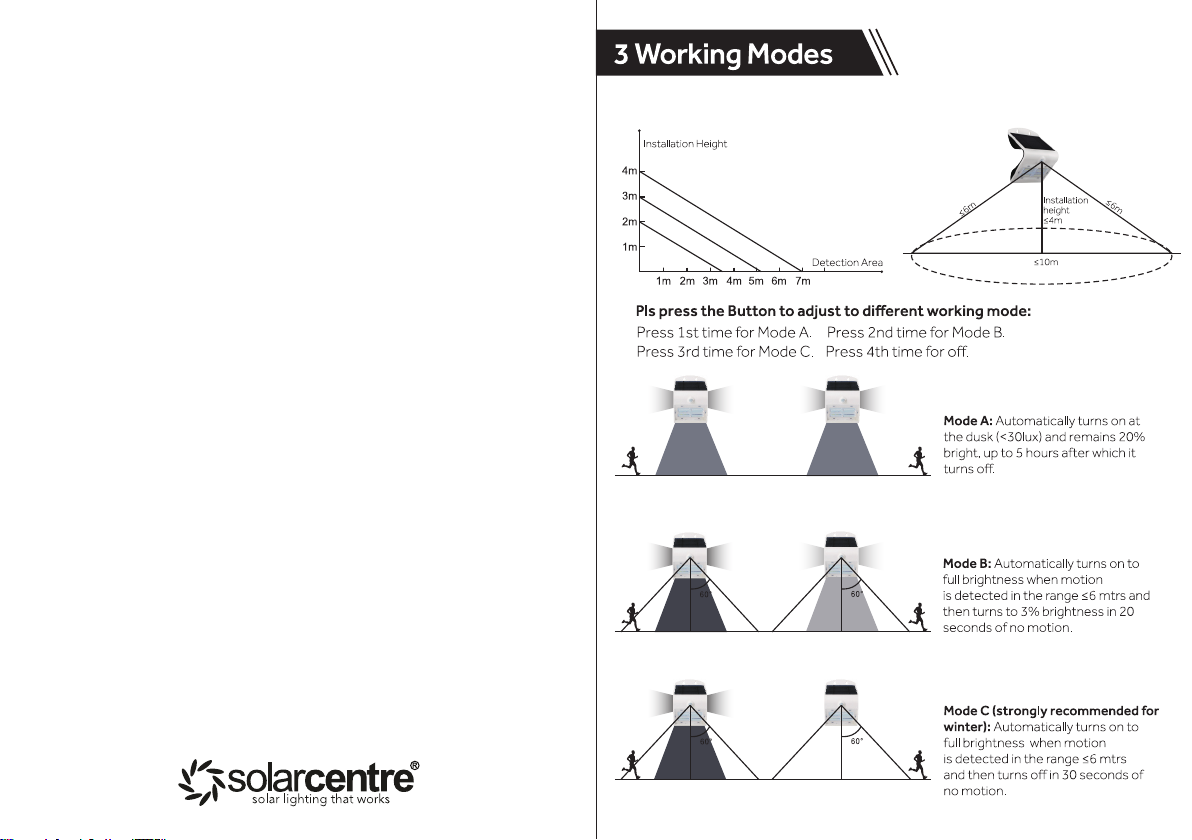

3 Working Modes

Press 1st time for Mode A. Press 2nd time for Mode B.

Press 3rd time for Mode C. Press 4th time for oﬀ.

Pls press the Button to adjust to diﬀerent working mode:

Mode A: Automatically turns on at

the dusk (<30lux) and remains 20%

bright, up to 5 hours after which it

turns oﬀ.

Installation Height

Detection Area ≤10m

Installation

height

≤4m

≤6m

Mode B: Automatically turns on to

full brightness when motion

is detected in the range ≤6 mtrs and

then turns to 3% brightness in 20

seconds of no motion.

Mode C (strongly recommended for

winter): Automatically turns on to

full brightness when motion

is detected in the range ≤6 mtrs

and then turns oﬀ in 30 seconds of

no motion.
