Wall Mounted Mini Split
Heat Pump
Air Conditioner
OPERATING AND INSTALLATION MANUAL
Model: KFHHP-22-ID / KFHHP-22-OD
Thank you for selecting Soleus Air. To ensure proper
operation, please read this manual and keep it for
future reference.
Indoor Unit.
Outdoor Unit.
TABLE OF CONTENTS
OPERATION AND MAINTENANCE…………..………..…………………………………….....1-12
Instructions before Use ……………………………………………………………………………1-2
Description of Air Conditioner Components………………………………………………...………3
Remote Control Operation…………………………………………………………………………4-6
How to Insert Batteries…………………………………………………….…………………………6
User Notices…………………………………………………….………………….…………………7
Care and Maintenance………………………………………………….......……………...….……8-9
Trouble-Shooting…………………………………………………….…...……..…………..…….9-10
Specifications and Technical Data………………………………...…….…....………...……..…….11
INSTALLATION………………………………………………...………..……...………….……12-21
Installation Diagram……………………………………………………………………..………….12
Installation Location………………………………….……………………………..………………13
Installation………………………………...……...……………………………………...………14-20
Test Operation and Check after Installation…………………………………………….………..…21
ELECTRICAL SCHEMATIC DIAGRAM…………………………………...………..…………22-23
Electrical Schematic Diagram (Indoor Unit)…………………………...……………......………….22
Electrical Schematic Diagram (Outdoor Unit)………..……………………….……………………23
WARRANTY…………………………………………………………………………………………24
Thank you for selecting Soleus Air. To ensure proper operation, please read this
manual and keep it for future reference.
Danger Caution. This mark indicates a direction/procedure that
must be followed!
- 1 -
Operation and Maintenance

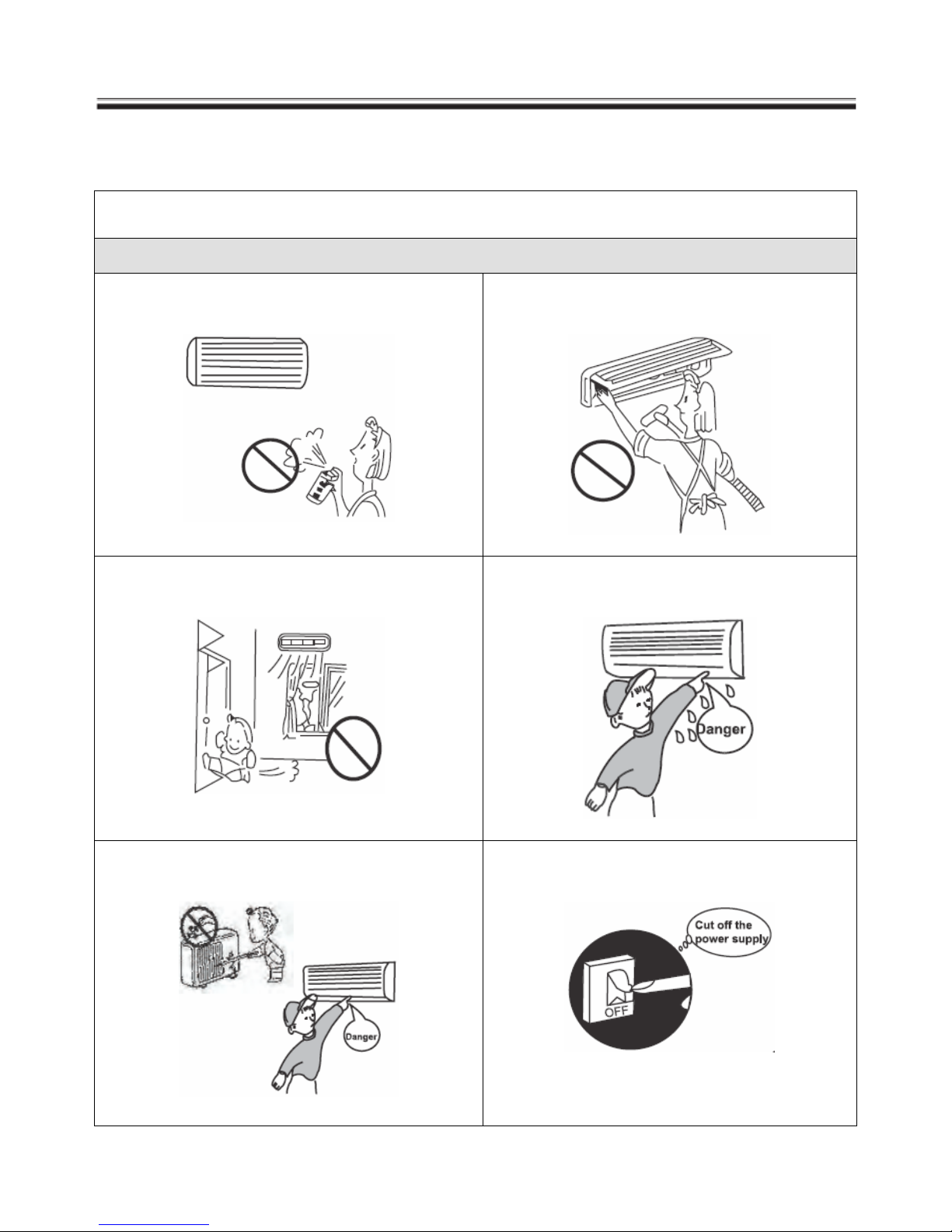

◆Instructions before Use
Carefully read the following instructions before use
Warning
★Do not use flammable liquids on or near this air
conditioner.
★Touching metal parts after removing filter can
cause an electric shock.
★Do not use for long periods of time if the
humidity is high. Condensation may be present.
★Don’t operate the air conditioner with web
hands. It can cause an electric shock.
★Do not insert your hands or any other object into
the air intake or outlets.
★If your air conditioner malfunctions,
discontinue use and call your authorized dealer.
- 2 -

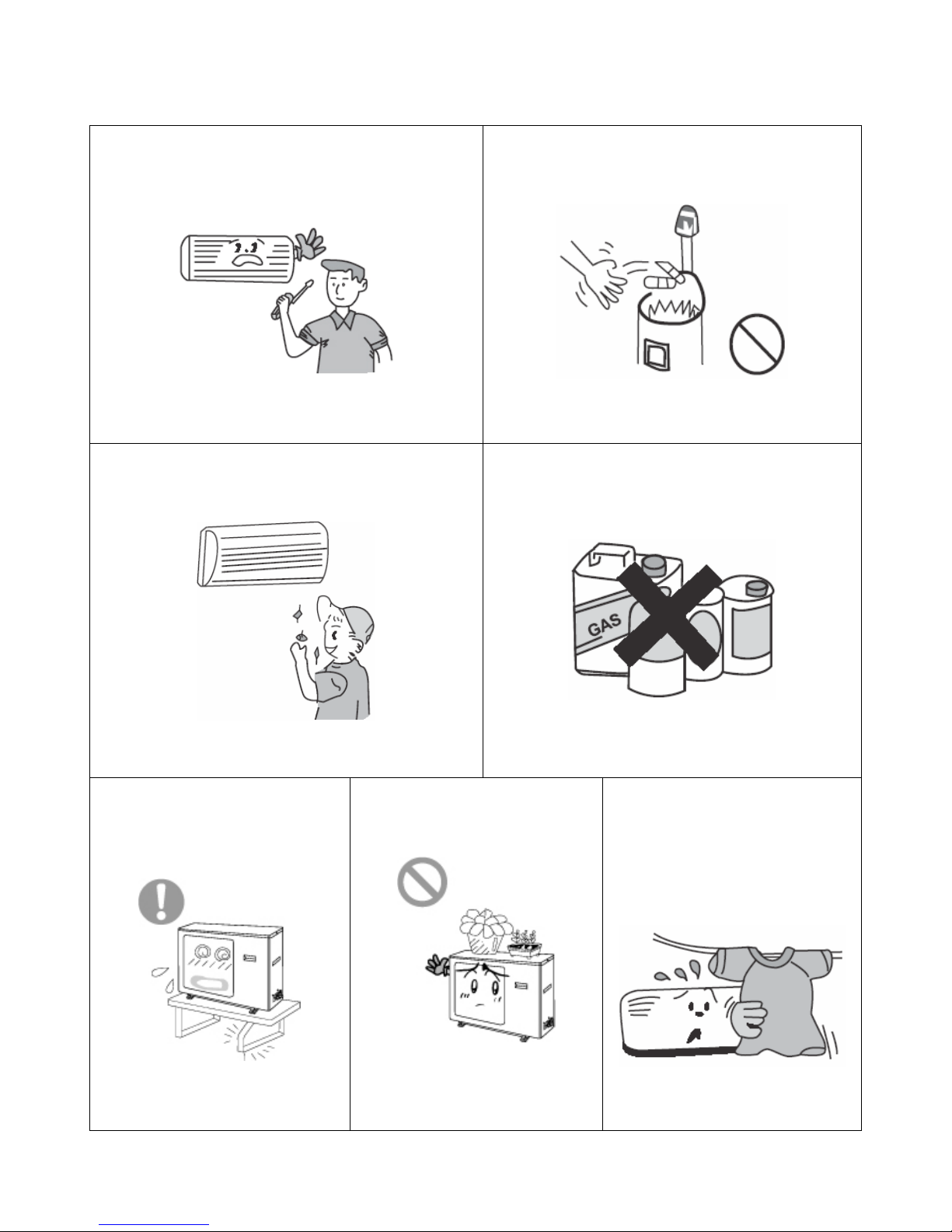

◆Instructions before Use
★Don’t attempt to repair the air conditioner by
yourself. There are no user replaceable parts.
Please contact your authorized dealer.
★Always use new batteries in your remote.
Never mix batteries.
★Be sure to turn the power off when not using the
air conditioner for a long time.
★Never store flammable liquids near your air
conditioner.
★The condensing unit should be
securely mounted to avoid
damage.
★Don’t step on the top of the
outdoor unit.
★Don’t block the air intake or
outlet vents of both the outdoor
and indoor unit. It can decrease
the air conditioning capacity or
cause a malfunction.
- 3 -

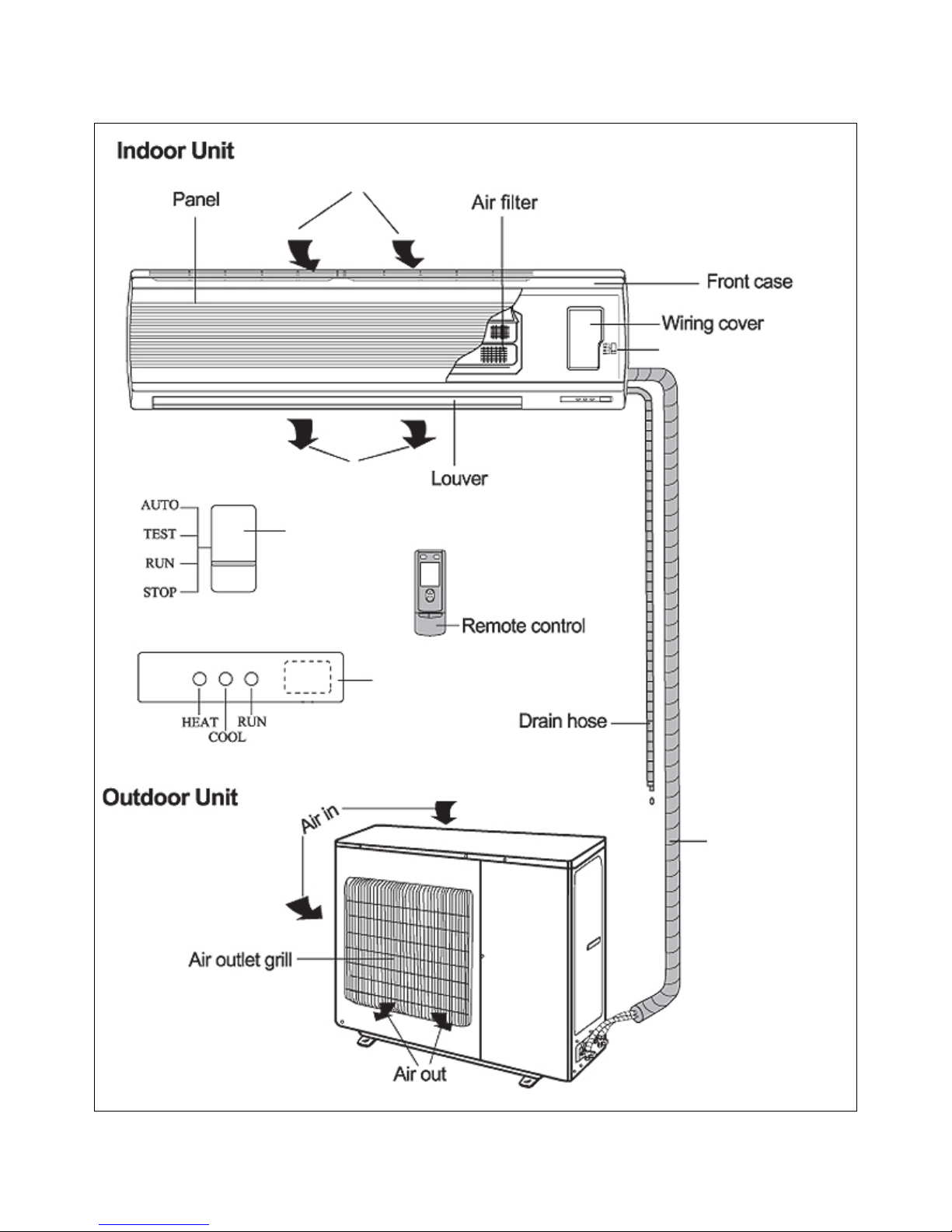

◆Description of Air Conditioner Components
Air intake
Air
outlet
On/Off Switch
Connecting Pipe /
Line set
On/Off Switch
Signal Sensor
- 4 -

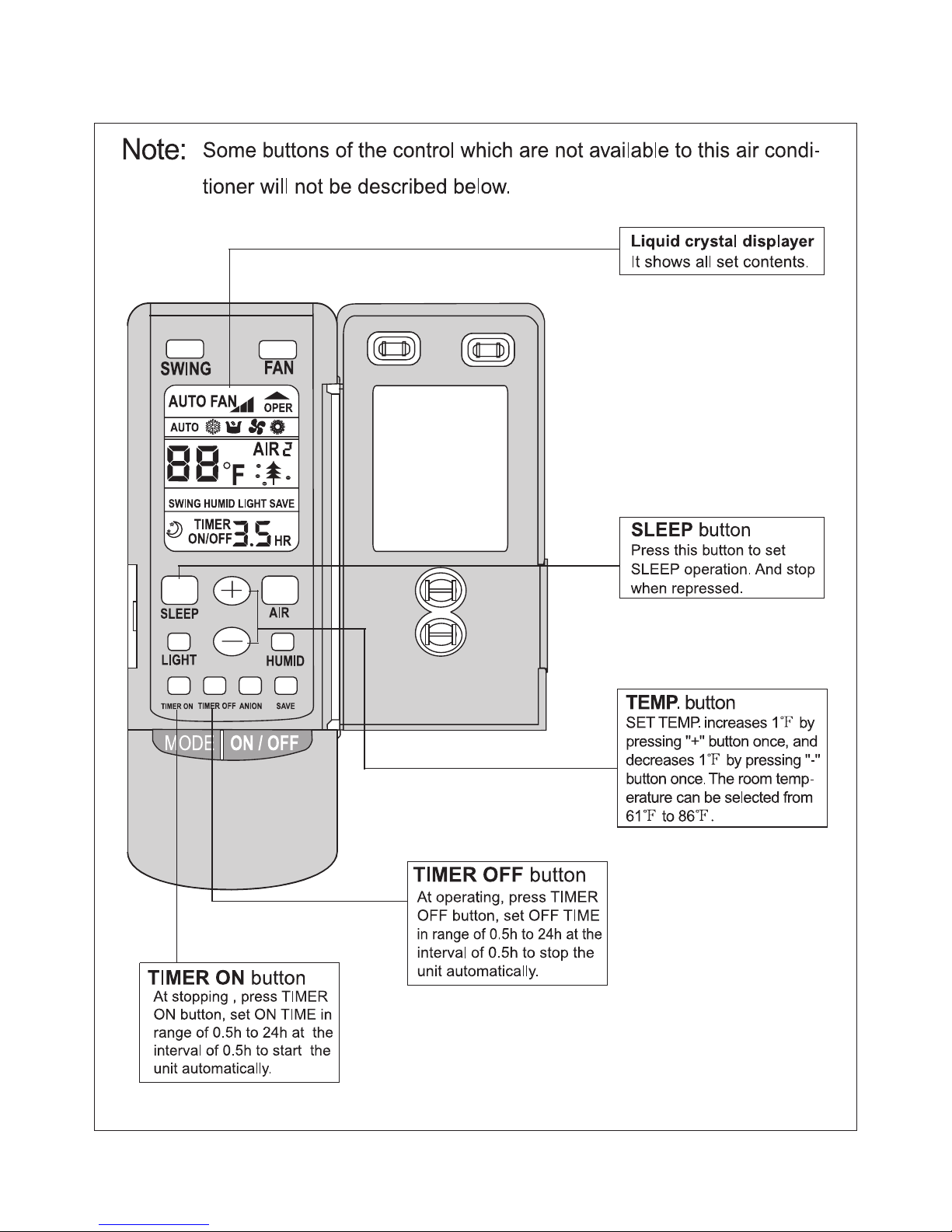

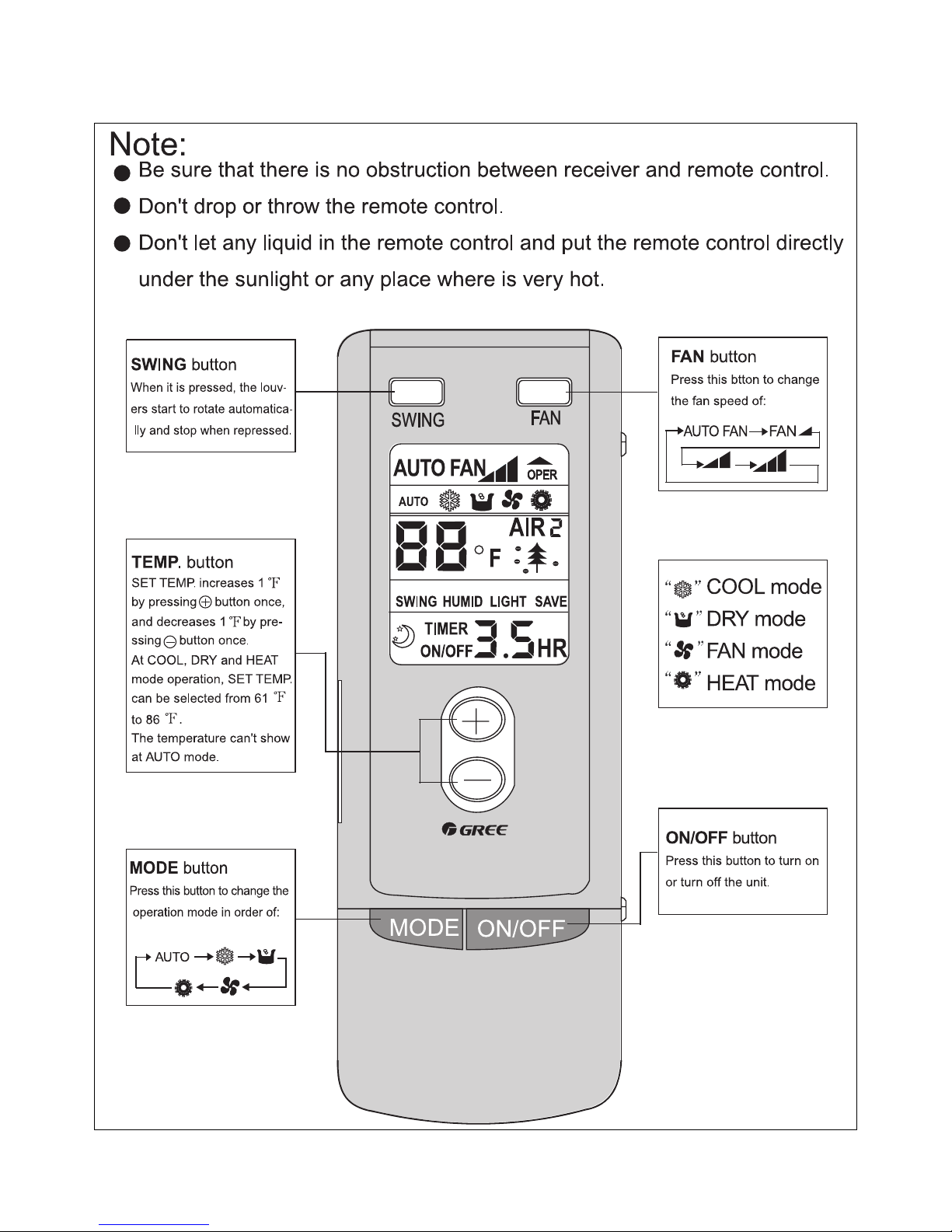

◆Remote Control Operation
- 5 -
◆Remote Control Operation (Continued)
- 6 -
◆Remote Control Operation (Continued)
The General Procedure:
1. Press ON/OFF button to start the unit.
2. Press MODE button to select the suitable operation mode.
3. Press SWING button to swing. It will stop when pressed again.
4. Press FAN button to set desired fan speed.
5. Press +/- button to set desired temperature.
The Selected Procedure:
6. Press SLEEP button to set timer.
7. Press ON/OFF button to set desired temperature.
Note:
In AUTO mode, the unit will automatically adjust its running modes according to the room
temperature.

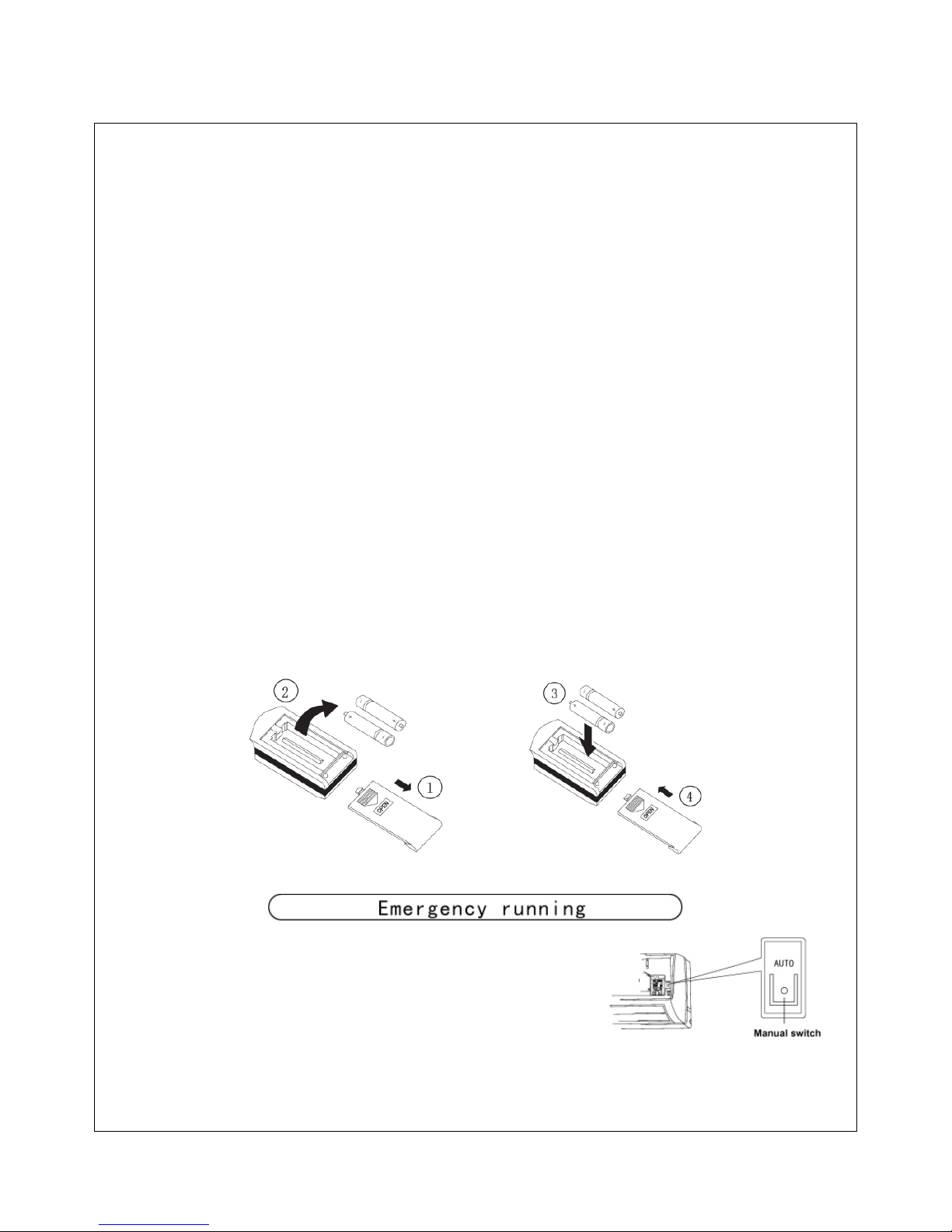

◆How to Insert Batteries
The remote control uses two AAA batteries.
1. Remove the cover from the back of the remote control and insert two new batteries.
2. Re-attach the cover.
Note:
•Don’t mix new and used or different types of batteries.
•Remove batteries when the remote control is not in use for a long time.
•Keep remote at least 3.28 feet from TV’s and other electronic devices.
When the wireless remote control is lost or broken, please use the manual switch,
It will start in AUTO mode, the temperature setting and fan speed cannot
be changed. Please use a ball point pen or similar device to operate switch.
Turn on the unit: By pressing the Manual Switch the unit will start in AUTO automatically.
The microcomputer will adjust to the indoor temperature by selecting (COOL, HEAT, FAN), in order to
achieve a comfortable condition.
•Turn off the unit: When unit is running, press the manual switch STOP button, the unit will stop running.
- 7 -
◆User Notices
★Select the most comfortable temperature.
★The airflow direction can be adjusted.
At operating, adjust the vertical airflow direction
by adjusting the louvers of upward/downward
direction. And then, hold two ends of left and
right louver to adjust the horizontal airflow.
★Don’t leave windows and doors open for a long
time while operating the air conditioner.
It can decrease the air conditioning efficiency.
★Splashing water on the air conditioner can
cause an electric shock and malfunction.
★Don’t use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
- 8 -

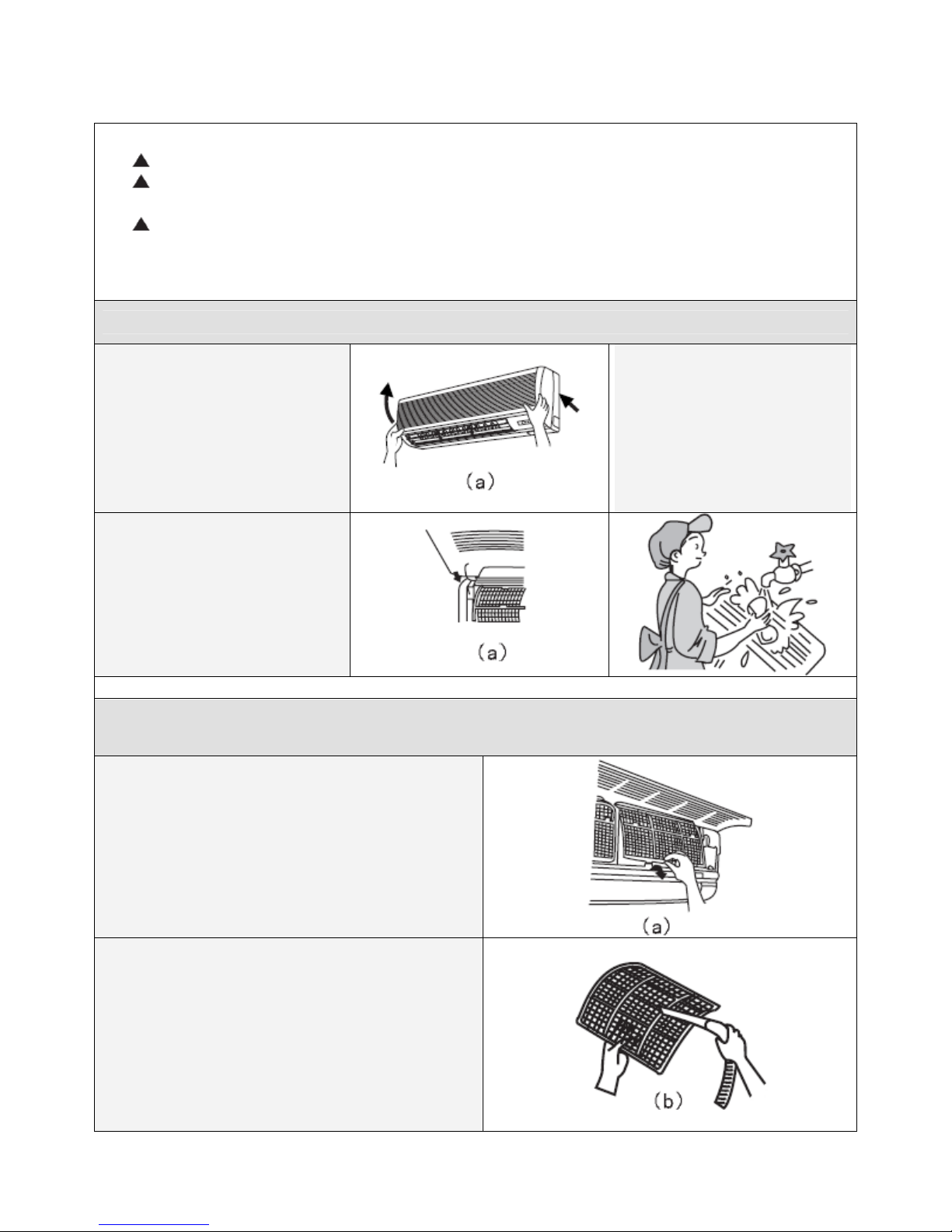

◆Care and Maintenance
CAUTION:
Turn power off and pull out the power cord before cleaning air conditioner.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause
an electric shock.
Volatile Liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units
with a dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Take down the surface panel and clean it (Take it down before cleaning)
1. Pull along the direction of
arrows to take down surface
panel.
2. Washing
Wipe with a cloth slightly
moistened with water or
cleaner then dry it.
Note: Never use water above
113°F to wash the panel, or it
could cause deformation or
discoloration.
3. Install surface panel.
Install the supports (those are on
two ends of surface panel) into
the supporting slots then cover
the surface panel and clasp it.
Cleaning the Air Filters (Recommended once every three months)
The air filters should be cleaned more frequently in dusty conditions.
1. Take down the air filter
Open the surface panel, hold the tab of air filter
and raise it slightly, and then take it out along the
direction of arrows (See the right figure).
2. Cleaning
To clear the dust adhering to the filters, you can
either use a vacuum cleaner, or wash them with
water and dry it in the shade (See the right figure).
Note: Never use water above 113°F to wash the filters, or it
could cause deformation or discoloration. Never parch it by
fire, or it could cause a fire or deformation.
