Soleus Air MAC 7500 Manuale utente
MAC 7500 Owner’s Manual
• Air Conditioner
• Dehumidifier
• Oscillating Fan
Please read this owner’s manual
carefully before operating the unit.
PORTABLE AIR CONDITIONER
POWERED BY
66126113.p65 02-12-21, 15:4417
1
Thank you for purchasing the Mac 7500 portable air-conditioner. This unit is
designed for improving living and working comfort by providing cooling, dehumidifying and
fan functions only with a minimum installation required. With its whisper quite operation and
attractive design, you will enjoy the convenience and comfort that this unit provides for many
years to come.
When operating as an air conditioner, this unit is designed for spot cooling or cooling for a room
no larger than 150 square feet with the standard ceiling height 7-1
/2ft.
INTRODUCTION
ALERT SYMBOLS
The following symbols used in this manual, alert you to potentially dangerous conditions to
users, service personnel or the appliance:
this symbol refers to a hazard or unsafe practice, which can
result in severe personal injury or death.
this symbol refers to a hazard or unsafe practice, which can
result in personal injury or product or property damage.
IMPORTANT SAFEGUARDS
Read these instructions carefully before using this air
conditioner. If you still have any ditticulties or problems, con-
sult your dealer for help.
Never use or store gasoline or other flammable vapor or
liquid near the air conditioner.
This air conditioner has no ventilator for taking in fresh air
from out of doors. You must open doors or windows fre-
quently when you use gas or oil heating appliances in the
same room ,which consume a lot of oxygen from the air.
Otherwise, there is a risk of suffocation in extreme cases.
•
•
•
66126113.p65 02-12-21, 15:441
2
Unplug unit from the electrical outlet when not in use and
before cleaning it.
Do not use an adapter plug extension cord.
Do not use near gas appliances, open flames (fireplaces) or
near the vicinity flammable liquids.
•
•
•
Do not operate this unit if it had a damaged cord or plug or if
it is not warking properly, or has been dropped or damaged
in any manner. Take the unit to the nearest authorized. Ser-
vice Facility for examination, repair or electrical/mechanical
adjustment.
The use of accessories and attachments not recommended
or sold by may cause fire, electric shock or
injury.
To protect against risk of electrical shock, do not immerse
the unit, cord or plug in water or any other liquid.
Do not cut or remove the third (ground) prong from the power
cord.
If the plug gets hot, call a qualified electrician.
Close supervision is required when the unit is used by or near
children.
Do not stick anything into the air outlet of the air conditioner.
Do not use in a room with poor air circulation.
Do not expose the unit to direct sunlight.
Do not use the unit near water.
•
•
•
•
•
•
•
•
•
•
66126113.p65 02-12-21, 15:442
3
PACKAGE CONTAINS:
Mobile Air Conditioner
Air Exhaust Duct
Exhaust Duct Window Kit Adapter
Romote Controller
LITHIUM BATTERY 3V–
Window Kit - 3 Sliding Panels
Window Kit Fastener Screws (4)
User Manual

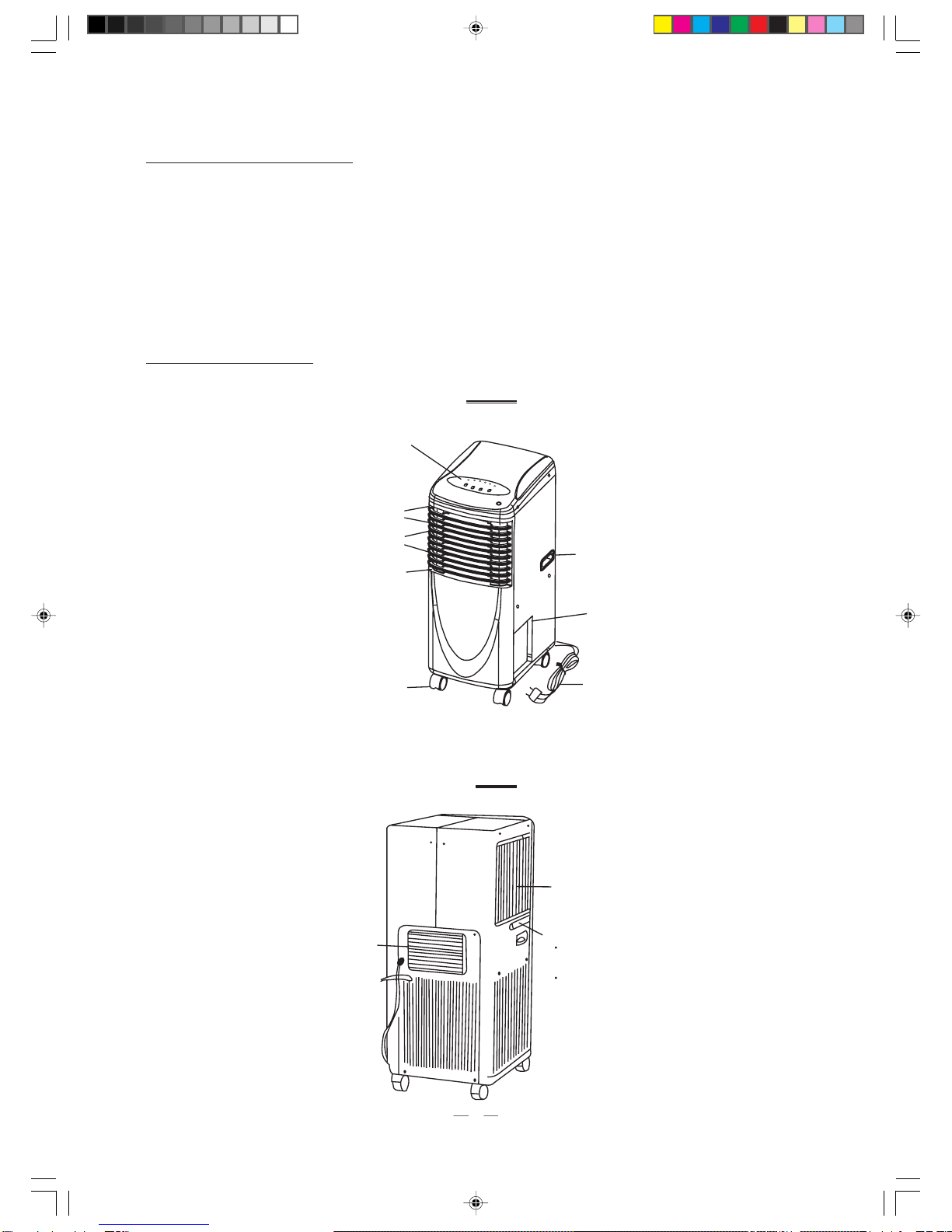

NAMES OF PARTS
FRONT
BACK
hot air outlet grill
lower air inlet grill
upper air
inlet grill
Outlet for Continuous Drainage
Use exclusively for continuous
drainage.
Don't pull out the outlet except
for this application.Otherwise
the drain will leak.
control panel
air flow guider
swing louver
front air outlet grill
castol
handle
water tank
cable(power
cord and plug)
66126113.p65 02-12-21, 15:443
4

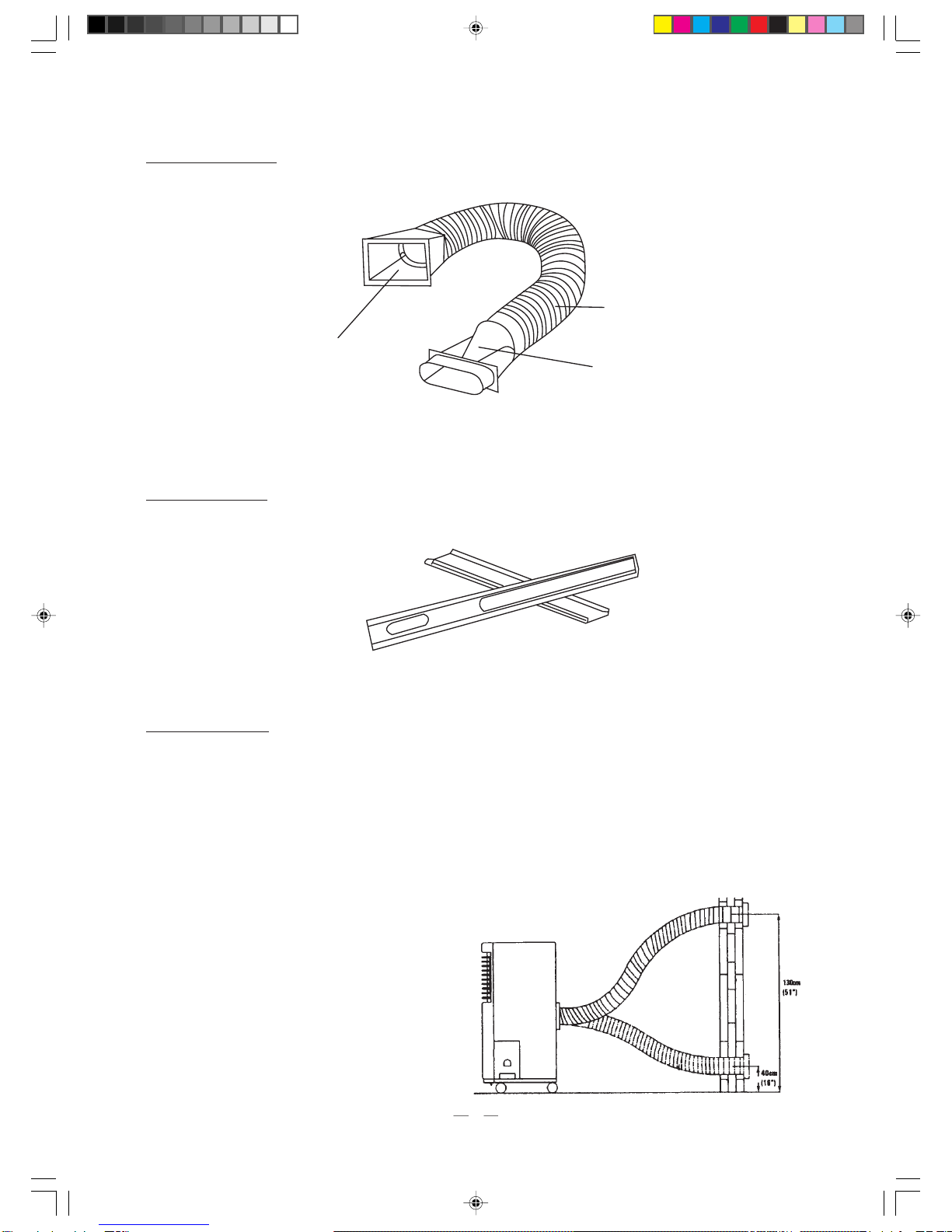

Exhaust Duct
Window Kits
Exhaust Duct
When you use the unit as an air conditioner, the hot exhaust air must be directed out of the
room. The exhaust duct is used to allow the hot air out. DO NOT INSTALL OR USE THE
EXHAUST DUCT WHEN THE UNIT IS OPERATED AS A DEHUMIDIFIER OR FAN.
Slide exhaust connector all the
over the hot Air outlet grill.
Mount the external and of the ex-
haust duct onto a bole of 5 1/4" (132
mm) on the wall for optional wall
hot air outlet installation.
a)
b)
Unit Terminal End
Exhaust Duct
Window Kit Adaptor
66126113.p65 02-12-21, 15:444
5
Or connect the window kit adaptor to the external end of the exhaust duct for a window
or sliding door hot air outlet installation.
c)
NOTE: In order to increase the efficiency, the exhaust duct should be keep as short and
straight as possible. The exhaust hose can be cut shorter by unthreading either end of the
exhaust duct counter clockwise. It is not recommended to increase the manufacturer’s length
of the exhaust hose. This may impede or damage the unit.

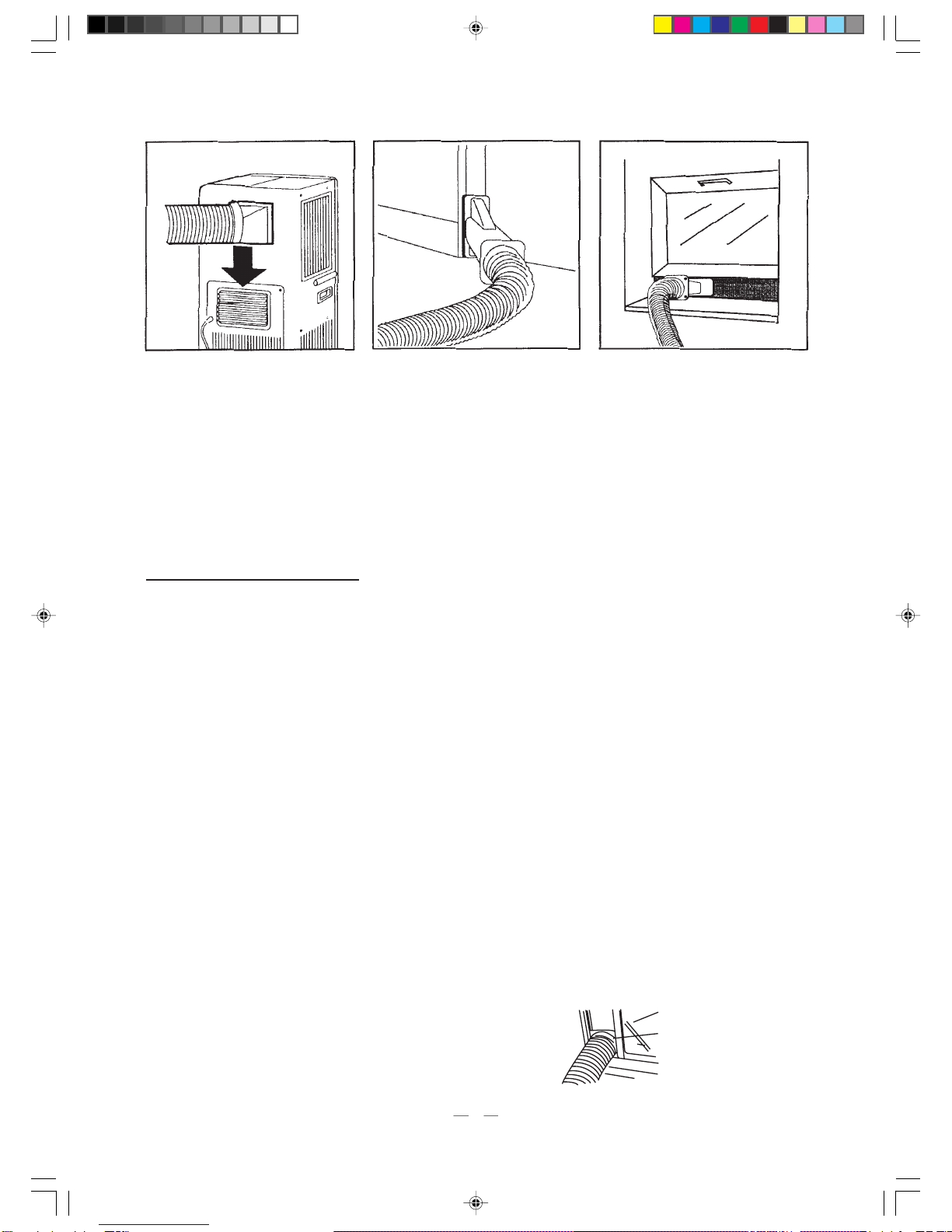

Window Kit Installation
Open window or sliding door for approximately 5 inches (130 mm).
Adjust the length of the window kit to the same length of the window or the sliding door.
Use all three panels if necessary.
Use screws to affix the window kit length.
Place the window kit to the window or sliding door. Close the window or door as far as
it goes.
Mount the window kit extension of the exhaust host onto the window kit.
Use screws on the window kit extension if necessary.
a)
b)
c)
d)
e)
f)
NOTE: When using the window kit on a window or sliding door it will cause the window or
sliding door not to be properly closed and locked. Additional security measurements should be
taken. windows
exhaust air opening
66126113.p65 02-12-21, 15:445
6

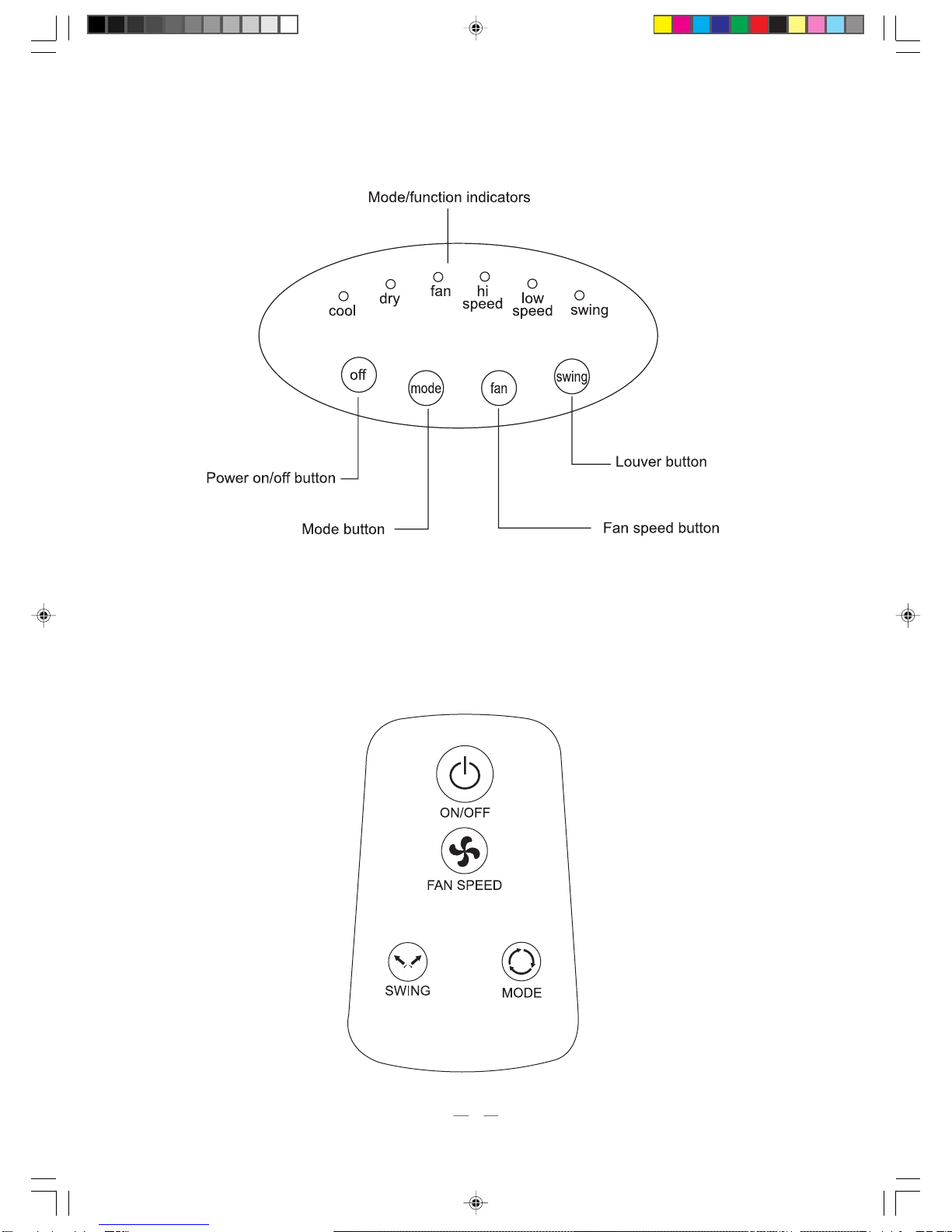

REMOTE CONTROLLER
CONTROL PANEL
66126113.p65 02-12-21, 15:446
7
OPERATION USING CONTROL PANEL
For Manual Mode:
Press the Mode Button
a) Cool - Cooling function on indicator.
b) Dry - Dehumidify function on indicator.
c) Fan - Fan on indicator.
For Cooling Operation:
a) Be sure that the drain tank is properly placed in the unit.
b) Install the exhaust duct properly.
c) Plug the Power Cord to the power outlet.
d) Press the Mode Button until the cool indicator is on.
1)
2)
NOTE: During hot days, the unit will cool off the room most efficiently by setting the fan at the
lowest speed. Reducing the length of the exhaust duct, insulating the exhaust duct and keeping
direct sunlight to a minimurn will also improve the cooling efficiency.
Dehumidifying Operation:
a) Be sure that the drain tank is properly placed in the unit.
b) Plug the Power Cord to the power outlet
c) Turn on the unit by pressing the ON/OFF Button on the control panel.
d) Press the Mode Button until the DRY indicator is on.
3)
NOTE: Do not use the exhaust duct when the unit is running at dehumidisying mode. You must
remove the exhaust duct from the unit. When the unit is running at dehumidifying mode, the fan
speed cannot be adjusted.
Keep the windows and the doors closed to aid the effectiyeness of the unit in removing the
moisture from the room.
66126113.p65 02-12-21, 15:447
8
Fan Operation:
a) Plug the Power Cord to the power outlet.
b) Turn on the unit by pressing the ON/OFF Button on the control panel.
c) Press the Mode Button until ‘FAN’ indicator is on.
d) Select the fan speed by pressing the Fan Speed Button.
4)
NOTE: When the unit is running on fan mode, the exhaust duct is inoperative and is not
required.
OPERATION USING REMOTE CONTROLLER
The remote controller provided with the unit may operate this portable air conditioner. The
remote controller uses one LITHIUM BATTERY 3V–. Install the battery before using the re-
mote controller.
1. Press the On/Off key to turn on the unit.
2. Press Mode Key to:
a) Cool indicator is on = Cooling Function
b) Dry indicator is on = Dehumidify Function
c) Fan indicator is on = Fan Function
3. Fan Speed:
a) Press the Fan Speed key to turn fan speed to high or low.
4. Swing:
a) Press swing key to turn on auto swing function.
Do not dispose of batteries in fire, batteries may
explode or leak.
66126113.p65 02-12-21, 15:448
9
Internal Water Tank
When operating in cooling or dehumidifying mode, the condensate water will drain into
the internal water tank.
Depending on the surrounding humidity
, the unit can continu-
ously operate for 2 to 12 hours before the internal water tank is full. When the internal
water tank gets full, a beep slarm will sound eight times for 15 seconds. The compres-
sor stops running and the fan will continue to run in the set speed for three minutes
before the entire unit automatically shuts off.
When the water tank is full, take out the entire water tank slowly and discard the water
inside the tank, place it back to its original position. You will then be able to turn on the
unit again.
If you want to take out the internal tank before it is full of water, please stop the unit
first. Wait for 3 minutes before taking out the water tank to prevent the condensate
water from discharging into the unit.
1)
CONDENSATE WATER DRAINAGE
NOTE: Do not take out the water tank when the unit is running on either cooling or dehumidi-
fying mode or the alarm will sound and the compressor stops. The mode will automatically
change to FAN mode and the compressor will require approximately 3 minutes to restart to the
cooling/dehumidifying cycle.
66126113.p65 02-12-21, 15:449
