Installation - Manual

HM- Acoustic Housing

Manuel HM acoustic housing 2

Solflex GmbH

Am Feuerstein 282

2392 Wienerwald

Austria

T: +43223820336

E: office@solflex.eu

www.solflex.eu

ATU 65324348

FN 337206t

Always observe all relevant standards and

statutory regulations

Subject to change without prior notice. All business

transactions based on our Terms and Conditions,

available at www.solflex.eu

Manuel HM acoustic housing 3

1Table of contents

2 General information........................................................................................................................ 4

3 Technical data.................................................................................................................................. 4

4 Warranty.......................................................................................................................................... 6

5 Safety............................................................................................................................................... 6

5.1 Intended use............................................................................................................................ 6

5.2 Safety Constructions................................................................................................................ 6

5.2.1 Risks during unloading and transportation ..................................................................... 6

5.2.2 Gefahren durch elektrische Energie................................................................................ 6

5.2.3 Risk of damage to property and the enviroment ............................................................ 6

5.3 Emergency procedures............................................................................................................ 7

5.3.1 Fire fighting...................................................................................................................... 7

6 Product delivery .............................................................................................................................. 7

6.1 Uploading / transport to location of installation .................................................................... 7

7 Installation of unit ........................................................................................................................... 8

7.1 Assembling .............................................................................................................................. 9

8 Maintenance and serive ................................................................................................................ 23

8.1 General .................................................................................................................................. 23

8.2 Silencer .................................................................................................................................. 23

8.3 Grounding.............................................................................................................................. 23

8.4 Test run.................................................................................................................................. 23

8.5 Removal and disposal............................................................................................................ 23

Manuel HM acoustic housing 4

2General information

Solflex Sonasafe Acoustic enclosures are used for various refrigeration, air conditioning and air

conditioning systems Heat pump outdoor equipment produced.

This manual is applicable to the following series of soundproof enclosures:

HM* Serie

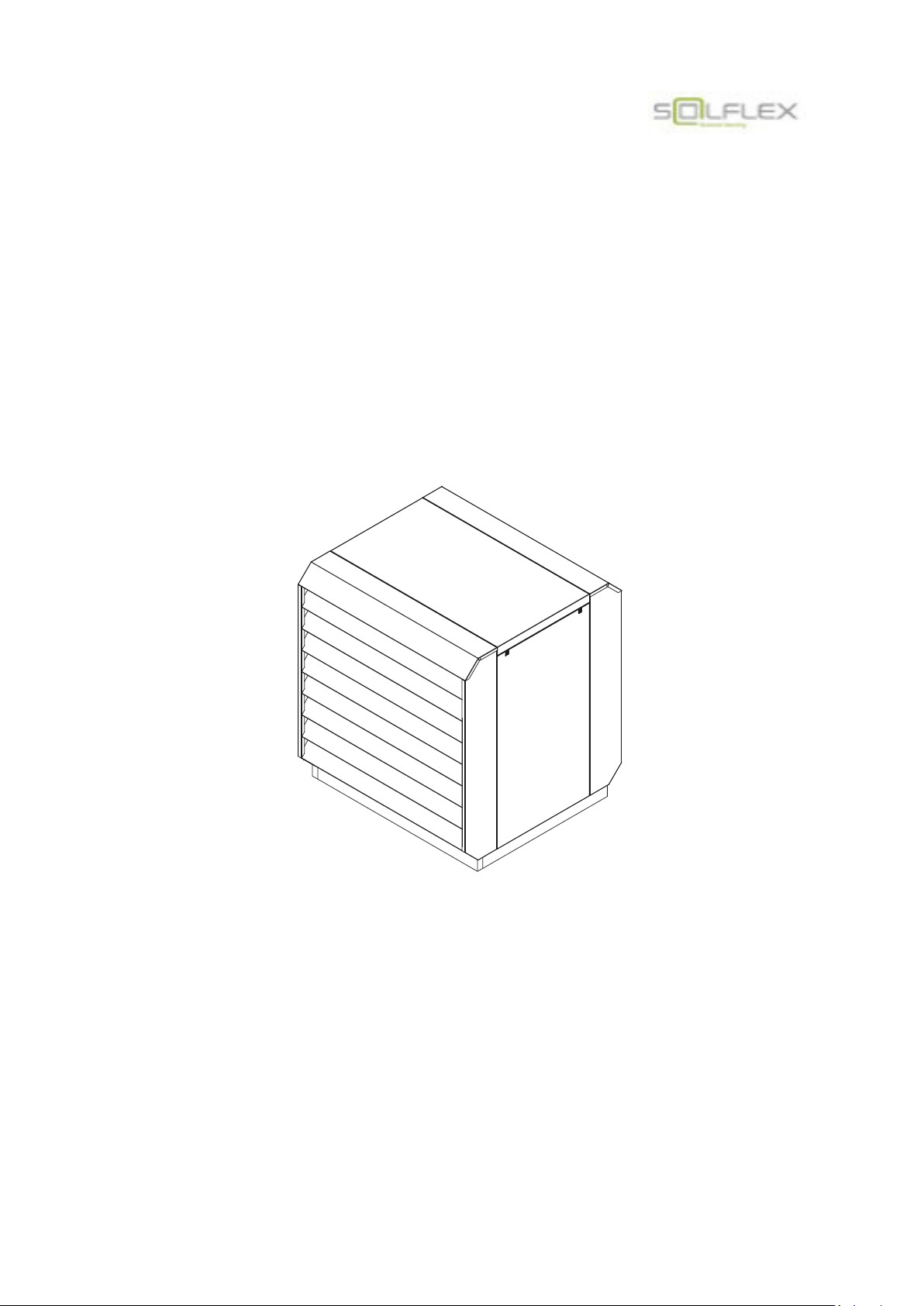

3Technical data

Robust acoustic housing with fully detachable construction. All components of the construction are

made of stainless steel. Precise separation of the airflow between the suction and pressure side via

an air separation section, which is operated by the installation company by means of a Velcro

fastener on the fan side of the external unit. The panels at the top left and right can be used with

screw connections removed from the housing for servicing and maintenance work on the external

device. The entire design is optimized for operation of the heat pump.

Manuel HM acoustic housing 5

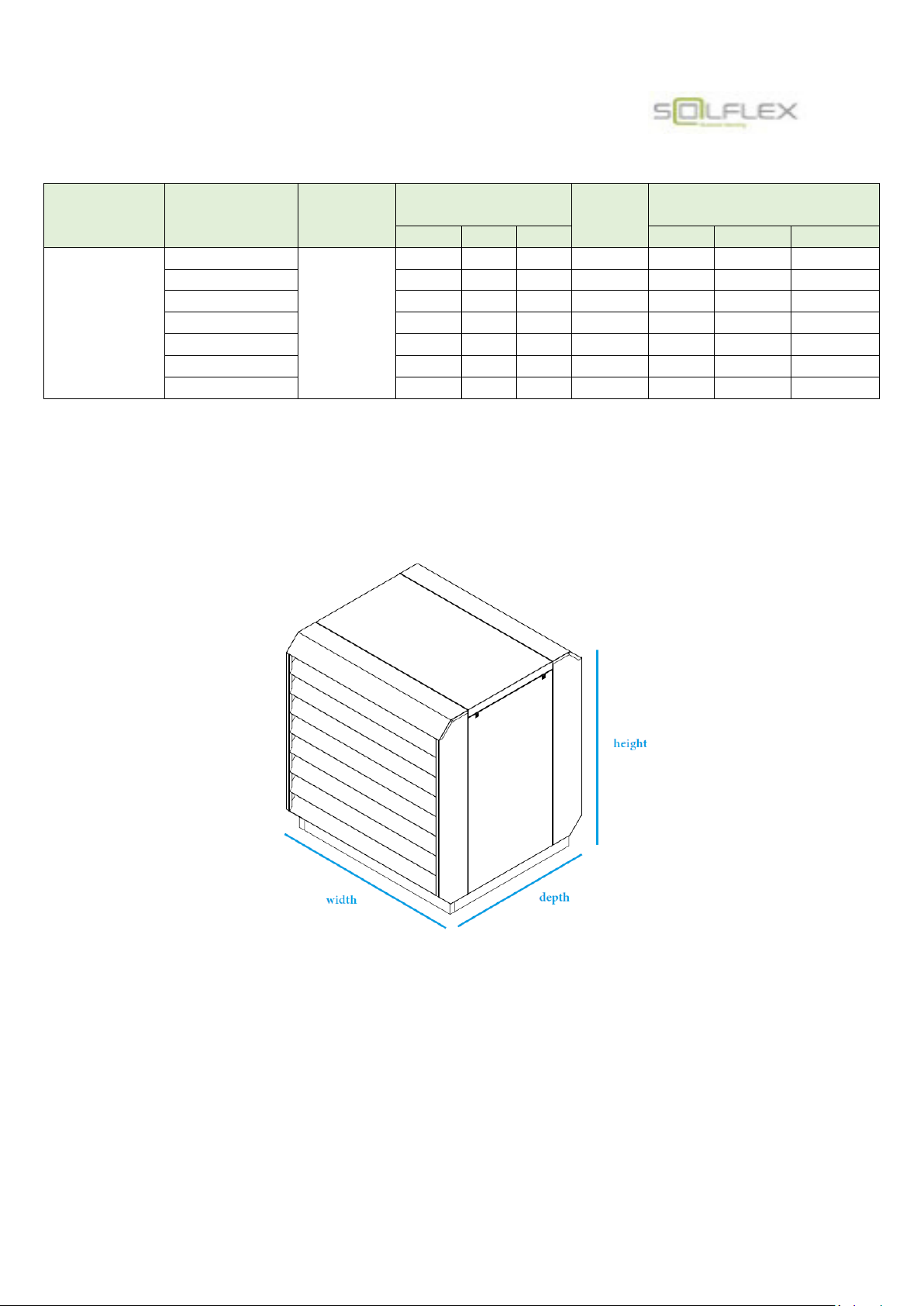

concept SonaSafe type material dimensions [mm] weight

[kg]

Max. device dimension

[mm]

Suction in the

rear, blowout

in the front

HM100NP

galvanized

steel sheet

1060

1200

1250

123

990

1060

650

HM200NP

1420

1200

1250

159

1350

1060

650

HM200NP-l

1420

1400

185

1350

1260

800

HM200NP-XL

1420

1600

1500

209

1350

1460

900

HMY200NP

1740

1200

1250

195

1670

1060

650

HMY200NP-L

1710

1400

227

1670

1060

650

HMY200NP-XL

1740

1600

1500

255

1670

1460

900

Manuel HM acoustic housing 6

4Warranty

24 months from delivery.

5Safety

In the event of improper operation or operation for a purpose other than the intended, there is

however a risk of serious or even fatal injury to persons and a risk of damage to the unit and other

property.

5.1 Intended use

The unit must only be used as acoustic housing for compatible Heat Pump, Air Conditioning and

Refrigeration systems. Any other use is strictly prohibited.

5.2 Safety Constructions

All work about the assembly, installation and commissioning of the unit must be carried out by specially

trained technicians.

It is possible to get injured during the mounting because of the metal execution and processing. Please

wear gloves.

5.2.1 Risks during unloading and transportation

Risk of serious injury from dislodged loads. Do not stand under suspended loads. Risks from electric

power. Risk of electric shock from electrostatic charge of housing: Earth the device.

5.2.2 Gefahren durch elektrische Energie

5.2.3 Risk of damage toproperty and the enviroment

Serious damage to property from dropping loads; please observe the instructions in section "Delivery

of product".

Serious damage to heat exchanger connections, panelling and other mounted components from force

impact during moving of unit elements; always move the unit elements by their base frame.

Risk of damage to components from heavy impact, e.g. when attempting to dislodge a part with a

hammer, etc.: Components that rest on the foundation must only be moved by shifting.

Manuel HM acoustic housing 7

5.3 Emergency procedures

5.3.1 Fire fighting

Strictly adhere to all statutory fire safety regulations. The insulation foam has a fire behaviour

according norm.

6Product delivery

Upon delivery, inspect the product for damage caused during transport and ensure the delivery is

complete. Record any damage or missing parts on the transport documents. Complaints regarding

obvious transport damage or incomplete deliveries cannot be considered if made too late.

On the construction site, protect the unit against dirt, impact and the elements.

6.1 Uploading / transport tolocation ofinstallation

This unit is shipped in parts on a pallet. For unloading, lift the unit by the pallet. Too short forks can

damage the acoustic housing.

Risk of serious injury or damage to property from dropping loads. Observe the safety instructions of

the transport equipment and lifting gear.

Do not climb onto the unit.

Manuel HM acoustic housing 8

7Installation ofunit

At the place of installation, it must be possible to provide impeccable service and maintenance and the

necessary air intake of the built-in air-conditioning, refrigeration and heat pump units.

When planning the installation site, the guidelines for minimum distances around the air-

conditioning, refrigeration and heat pump manufacturer must be respected.

The acoustic louvre, on the suction and exhaust sides has a depth of 200mm and the site must enable

this to remove to have access to the built-in air conditioning, refrigeration and heat pump equipment.

Important NOTE:

Please always use the required safety work gear during installation. Due to the packaging materials

and the production process, personal injury may occur, such as hand injuries.

If the soundproof housing is freely accessible, the necessary measures during assembly should be taken

to local conditions to avoid personal injury.

Aluzinc

“The warranty applies to all buildings exposed to normal atmospheric corrosion factors, in other words

excluding those subject to permanent spraying with fresh water or salt water; in the case of buildings

situated in coastal areas, excluding those exposed to sea spray.”

Manuel HM acoustic housing 9

7.1 Assembling

basic framework profile 1

NR. 101

basic framework profile 2

NR. 102

roof panel

NR. 401

side part

NR. 501

lowest blade

NR. 201

top blade

NR: 203

corner piece 1

NR. 601

corner piece 2

NR. 602

spacer blade

NR. 202

profil

NR. 701

angle section

NR. 801

recircultation blade

NR. 301

separating part 170x124

NR. 902

Manuel HM acoustic housing 10

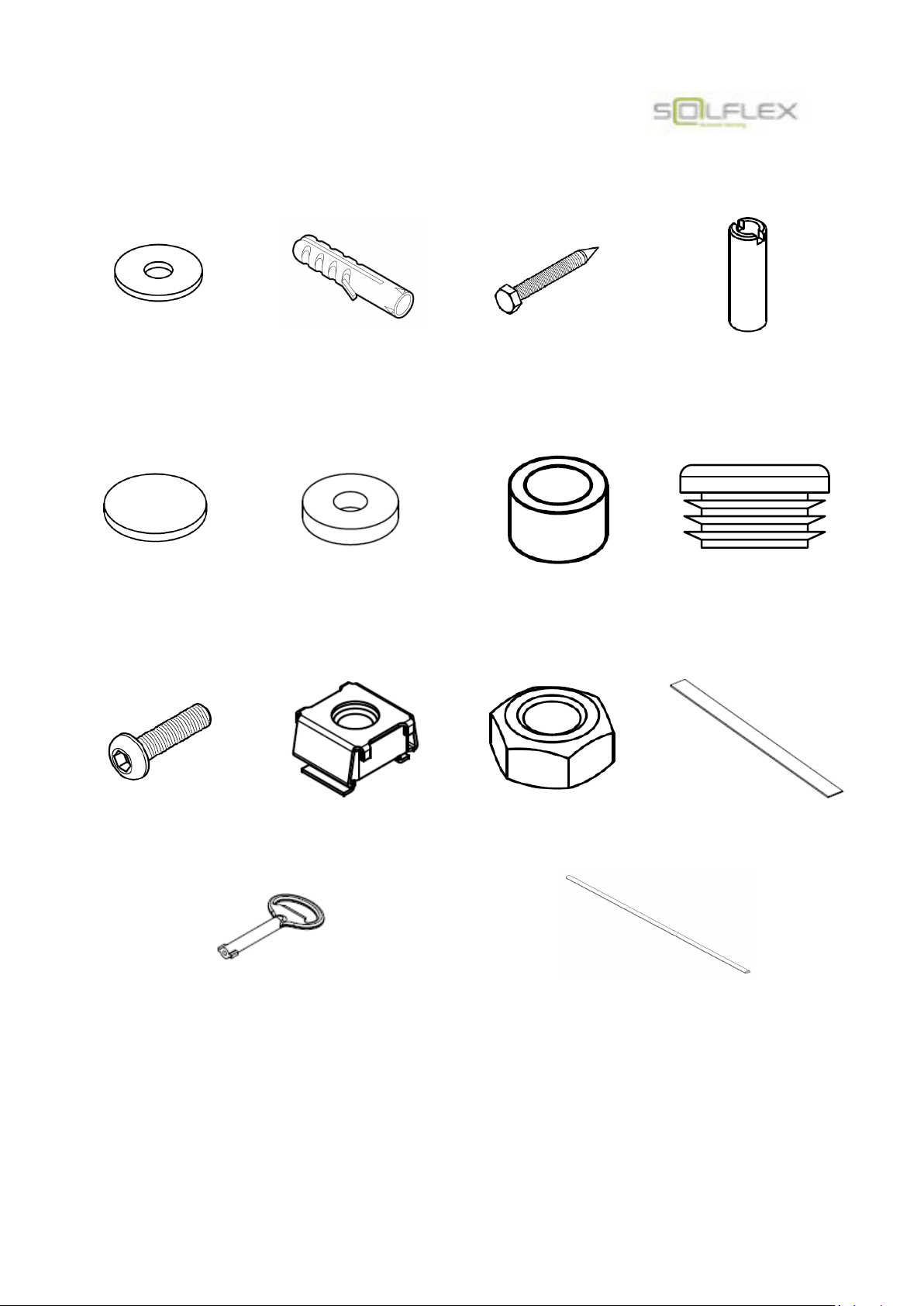

washer 6mm

NR. 901

dowel 8x40

NR. 904

studbolt 6x50

NR. 903

13x

synthetic insert nut 8x25

NR. 906

20x

velcro

NR. 905

plastic ring 5,3x15x3

NR. 908

plastic ring 8,2x12x7,5

NR. 907

synthetic spacer

19 mm

NR. 909

100x

M5x20 zylinder bolt

NR. 910

M5 captive nut

NR. 911

100x

M5 nut

NR. 912

10m

draught strip 20x4 mm

NR. 914

key

NR. 915

16m

rubber D-profil 12x10 mm

NR. 913
