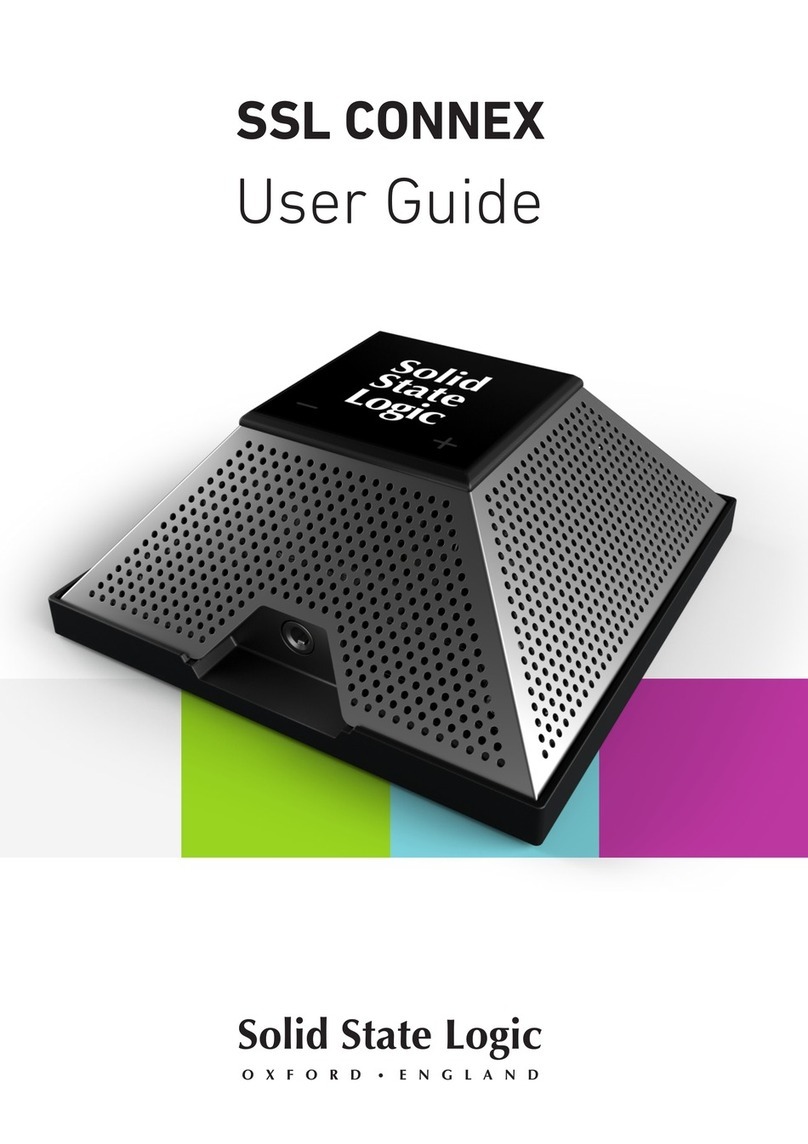

Solid State Logic SSL CONNEX Manuale utente
SSL CONNEX
Quick Start Guide
82BW7E01C
Important
Information Inside
1. SSL CONNEX Unit
2. ¼” Thread Adapter
3. 2 m USB C-C Cable
4. USB A-C Adapter
5. Quick Start & Safety
Guide
SSL CONNEX
Quick Start Guide
82BW7E01C
Important
Information Inside
4
2
3
1
5
In The Box
1
2
3
4
5
• Quad microphone array for recording and
video conferencing applications
• Optimised signal processing modes
• Automatic smart mixer for group calls
• High quality headphone output with mic
loopback option for ambient monitoring
• Touch-sensitive controls to adjust headphone
level and mute the mic
• Push To Talk and Cough Switch modes
• Multichannel outputs for stereo and
immersive recordings
• ¼” threaded base and thread adapter for
flexible mounting options
Features
Setting Up
2
Camera
Tripod (¼”) Mic Stand
4
3
USB Connection
*Visit solidstatelogic.com/support for multichannel Windows drivers
Solo/Group Modes - Ch 1 & 2 : Dual Mono
Vocal/Music Modes - Ch 1 & 2 : Stereo
Ch 3 - 6 : Discrete mics (refer to User Guide)*
User
Guide
Apple OSx 10.14 (Mojave) or
later. Microsoft Windows 10
or later*
Controls
Red = Headphones
muted (vol 0)
• Tap SSL logo to toggle
mic mute
• Red = Mic muted
• Push To Talk
While muted, tap & hold to
unmute mic temporarily
• Cough Switch
While unmuted, tap & hold
to mute mic temporarily
Tap to adjust
headphone volume
*Warning:
Placing headphones near mic while loopback mode is active may cause feedback.
Settings & Audio Modes
• Hold & buttons for 2s to enter setup
• SSL logo pulses when in setup mode
• Audio Mode: Tap SSL logo to change mode.
Logo colour indicates selection:
Solo (directional; e.g. conf. calls, podcasting)
Group (e.g. round table, multiple directions)
Vocal (e.g. recording singing, narration)
Music (e.g. recording loud sources)
• Loopback mode*: Tap / buttons to adjust
level of mic signal fed back to headphone output
(O/Low/Med/High)
• Hold & buttons to exit setup
Results
Solid State Logic Help Centre
hps://www.solidstatelogic.com/support
SSL Connex
Visit the Solid State Logic Help Centre
to check compatibility with your system
and find answers to your questions.
www.solidstatelogic.com/support
Troubleshooting and FAQs
Scan QR code on unit for full product details
www.solidstatelogic.com/SSLConnex
