Solid State Logic ORIGIN Manuale utente

www.solidstatelogic.com

SWITCHED

EXT TB OUT

EXT

to +10dB

GAIN

+48V

48V

MIC

MONITOR

LINE

PRE

L R

1 2 3 4 5 6 7 8 910 11 12 13 14 15 16

+dB

TRIM

+2 to +70dB

[-12 to +55dB]

FLIP

PRE

FLIP

PATH

FROM LF

PAN

MIX

PAN

MIX

L R

SOLO

CUT

SOLO

POST SF PAN

L R L R

LEVEL

POST SF PAN

1 2 3 4

LEVEL

PRE SF

LEVEL

PRE SF

LEVEL

PRE SF

LEVEL

PRE SF

PATH

PAN

FLIP

PRE FLIP

DIRECT OUT

PATH

RETURN L

± 20dB

TRIM

RETURN R dB

L R L R

LEVEL

LEVEL MIX

AFL

1 2 3 4 5 6 7 8 910 11 12 13 14 15 16

1/2

3/4

5/6

7/8

9/10

11/12

13/14

15/16

CUT

FB 1

FB 2

L R L R

to 0dB

INPUT

PATH

MONO LMONO R

MUTE BALANCE

to +3dB

+3dB to

MIX

SOLO

TRIM

BUS 1 SEND OUT

BUS 2 SEND OUT

BUS 3 SEND OUT

BUS 4 SEND OUT

SUBGROUP

1L OUT

SUBGROUP

1R OUT

BUSES 1 - 16

L R

MIX AFL PFL

L R

MIX AFL

L R

MIX AFL

AUX 1 - 4

CUE A B

BUS 15 SEND OUT

BUS 16 SEND OUT

BUSES 1 - 16

LEVEL

L R

AFL

AFL +

CUE AL OUT

CUE AR OUT

to +10dB

LEVEL

AFL +

CUE BL OUT

CUE BR OUT

LEVEL

AFL +

AUX 1 OUT

LEVEL

AFL +

AUX 2 OUT

LEVEL

AFL +

AUX 3 OUT

LEVEL

AFL +

AUX 4 OUT

CUE AL

CUE AR

CUE BL

CUE BR

OSC

SLATE

L R L R

L R

STUDIO

F/B 1

L R

F/B 2

EXT 1L

EXT 1R

EXT 4L

EXT 4R

C/ROOM L

C/ROOM R

CUE AL

CUE AR

CUE BL

CUE BR

to +10dB

LEVEL

L R

AFL

AFL +

F/BACK AL OUT

EXT 1L

EXT 1R

to +10dB

LEVEL

AFL +

to +10dB

LEVEL

AFL +

STUDIO L OUT

STUDIO R OUT

TALKBACK MIC

FRONT PANEL TRIM

(+40 to +65dB)

TALKBACK

MIC

INPUT

LISTEN

MIC

INPUT

SEND

LISTEN TO

TALKBACK

LISTEN

OUT

LISTEN

(Feed To Monitor Section)

TALK

F/BACK AR OUT

F/BACK BL OUT

F/BACK BR OUT

TALK

ALL

to 0dB

TALKBACK

LEVEL

to 0dB

SLATE

LISTEN

LEVEL

to 0dB

BUS COMP

MIX L OUT

MIX R OUT

AFL L

AFL R

PFL

MAIN L OUT

MAIN R OUT

ALT 1

ALT 1L OUT

ALT 1R OUT

ALT 2

ALT 2L OUT

ALT 2R OUT

ALT 3

ALT 3L OUT

ALT 3R OUT

MAIN

CUT L

CUT R

-1

POL

3dB

MONO

LISTEN

POWER

CUT

P/AFL

LISTEN

iJACK

L R

EXT 1

EXT 1L

EXT 1R

EXT 4

EXT 2

EXT 3

EXT 2L

EXT 2R

EXT 3L

EXT 3R

10K

1.5K

to 0dB

LEVEL

CUT

DIM

+dB

MIX

SUM

PFL

0 to -40dB

LEVEL

to 0dB

LEVEL

BALANCE

to 0dB

0dB to

AFL L

AFL R

TRIM

± 20dB

TRIM

± 20dB

to 0dB

LEVEL

Headphone Jacks (under armrest/front buffer)

EXT OSC +dB

440Hz

to +10dB

LEVEL

TRIM

to 0dB

to +10dB

to 0dB

±20dB

OSC

Channel Strip (x32)

Stereo Return (x4)

Stereo Groups (x8)

Oscillator

Communications (Foldback and Studio)

Control Room Monitoring

Stereo Cues

Aux Sends

Mix Bus

Track Buses (x16)

AFL/PFL

IN FRONT

SOLO

LINE

F/B 1 F/B 2

MON

OSC OUT

S/C

VCA

INSERT

-1

FLIP

PATH

0dB

HPF

VCA

S/C

VCA

KEY

INSERT INSERT COMP

to +10dB

BUS SEND 1

BUS SEND 2

BUS SEND 3

BUS SEND 4

BUS SEND 5

BUS SEND 6

BUS SEND 15

BUS SEND 16

C/ROOM L

C/ROOM R

EXT 1L

EXT 1R

EXT 4L

EXT 4R

DRIVE

-10dB

± 20dB

BELL BELL

LF HF

CUT

to 0dB

to +10dB

to 0dB

EXT TB OUT

TONE

SLATE

TONE

SLATE

OSC

SLATE

INSERT

OVERLOAD

(-3dB below

Path Clip)

≥1

LARGE

FADER

SMALL

FADER

CUT

SOLO

CUT

BUS SENDS

VIA DB-25 LINK

OR HALF NORMALLED

PATCH ROW

SUBGROUP

8L OUT

SUBGROUP

8R OUT

LISTEN

FRONT PANEL TRIM

+40 to +65dB

TALKBACK

COMPRESSOR

LISTEN

COMPRESSOR

TALKBACK

LINE

INPUT

LISTEN

LINE

INPUT

FRONT

PANEL

XLR

O R I G I N

Drawn: NF, CJ

Revison: 1.10

Date: 15.10.2019

ORIGIN

Installation Guide

Visit SSL at:

www.solidstatelogic.com

SSL®and Solid State Logic®are ® registered trademarks of Solid State Logic.

ORIGIN™, SuperAnalogue™, VHD™ and PureDrive™ are trademarks of Solid State Logic.

All other product names and trademarks are the property of their respective owners and are hereby acknowledged.

No part of this publication may be reproduced in any form or by any means, whether mechanical or electronic,without the written

permission of Solid State Logic, Oxford, OX5 1RU, England.

As research and development is a continual process, Solid State Logic reserves the right to change the features and

speciﬁcations described herein without notice or obligation.

Solid State Logic cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in

this manual.

PLEASE READ ALL INSTRUCTIONS, PAY SPECIAL HEED TO SAFETY WARNINGS.

E&OE

May 2020

Revision History

Revision V1.0 - January 2020 - Initial Release

Revision V1.1 - February 2020 - First Minor Revision Release

Revision V1.2 - May 2020 - Correction of Leg Fixing Detail

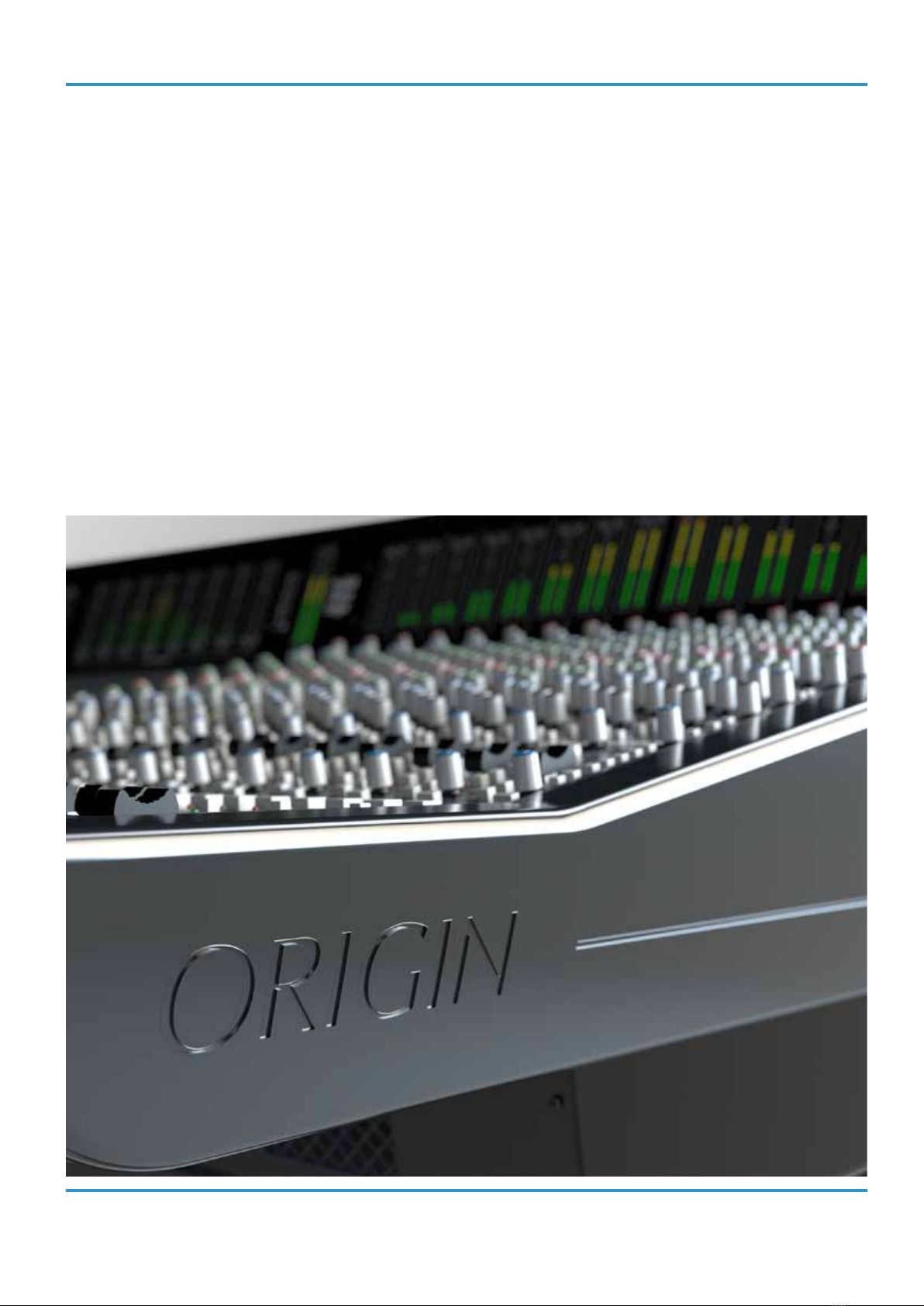

About ORIGIN

ORIGIN takes a fresh look at what a large format console needs to do to work in harmony with a modern DAW-driven production

studio. The functional design looks back at the ‘ORIGIN’ of in-line consoles for signal ﬂow inspiration, but its circuits are at the

cutting edge of SSL’s latest analogue developments. These new analogue designs deliver huge dynamic range and bandwidth yet

still have the characterful, pleasing qualities of space and depth that analogue audio breathes on digital audio.

ORIGIN’s simple signal ﬂow and layout make it easy to understand and use, while powerful features such as channel direct outputs,

a fully balanced electronic architecture and precision bargraph meters make it a perfect partner for the highest quality converters

and DAWs in the most professional production applications.

A unique and innovative modular centre section allows ORIGIN to adapt to different applications and priorities, whether being used

as a purely tracking console with additional boutique analogue additions to the 19” rack centre section, or a very digital/analogue

hybrid approach with screens and controllers easily reached from the centre of the console.

ORIGIN offers engineers and producers the tools required for everything from large-scale tracking to hybrid mix down session.

Taking sustainability, ergonomics, modern gain-staging and communication requirements into consideration, ORIGIN offers a

reassuringly familiar Master Control feature-set with some ahead-of-the-curve functionality.

Contents

ORIGIN Installation Guide

Table of Contents

Safety First! 1

Important Safety Information 1

Deﬁnitions 1

Electrical Safety Warning 1

Safety Earth Connection 2

Mains Supply and Phases 2

Mains Isolation and Over-Current Protection 2

Physical Safety 3

Environmental 3

Regulatory Information 4

CE Certiﬁcation 4

FCC Certiﬁcation 4

Instructions for disposal of WEEE by users in the European Union 4

RoHS Notice 4

California Proposition 65 4

Help and Advice 5

Commissioning and Training 5

Warranty 5

Factory Warranty 5

Extended Warranty 5

Special Tools and Fasteners 5

User Guide 5

ORIGIN Power, Weight and Dimensions 6

General precautions 7

Unpacking 7

Safety Notices 7

IMPORTANT - ORIGIN Frame Structure and Manoeuvering The Console. 7

Dismantling the shipping crate 8

Mounting the console on the legs (if supplied) 9

Fitting/Removing the Sculpted End Trim 11

Installation in rooms with difﬁcult/awkward access. 12

ORIGIN Master Section 13

About the ORIGIN Master Section and centre section rack layout. 13

VERY IMPORTANT INFORMATION 13

Making Connections 17

Origin Rear View - Power and Audio Connectors 17

Audio Connector Details 17

Microphone Inputs 17

Channel DB-25 Connectors 18

Channel DB-25 Pinouts 18

Channel DB-25 Pinouts cont'd 19

LF (Large Fader) Insert Returns 19

Contents

ORIGIN Installation Guide

Channel DB-25 Pinouts cont'd 20

SF (Small Fader) Insert Returns 20

Master Section DB-25 Connectors 21

Master Section DB-25 Pinouts 21

Master Section DB-25 Pinouts Cont'd 22

Master Section DB-25 Pinouts Cont'd 23

Suggested Patchbay Layout 24

Appendix A - Performance Specication 25

Audio Performance 25

PureDrive™ Channel Input Microphone/Line Ampliﬁer 25

Monitor Input Line Input Ampliﬁer 25

Channel Equaliser 26

Overall Channel Signal Chain Speciﬁcations 26

Crosstalk 27

Overall Console Noise 27

Environmental Requirements 27

Appendix B - ORIGIN Block Diagram 28

ORIGIN Installation Guide

Safety And Regulations

Safety First!

Important Safety Information

This section contains deﬁnitions and warnings, and practical information to ensure a safe working environment. Please take time

to read this section before undertaking any installation work.

Before use please also refer to the Safety Guide for ORIGIN, which is included in all new console shipments.

Denitions

‘Maintenance’

All maintenance must be carried out by fully trained personnel.

Note: It is advisable to observe suitable ESD precautions when maintaining electronic assemblies.

‘Non-User Adjustments’

Adjustments or alterations to the equipment may affect the performance such that safety and/or international compliance standards

may no longer be met. Any such adjustments must therefore only be carried out by fully trained personnel.

‘Users’

This equipment is designed for use solely by engineers and competent operators skilled in the use of professional audio equipment.

‘Environment’

This product is a class A product intended to form an integrated component part of a professional audio production environment

wherein it will perform to speciﬁcation providing that it is installed according to professional practice.

Electrical Safety Warning

When installing or servicing any item of SSL equipment with power applied, when cover panels are removed, HAZARDOUS

CONDITIONS CAN EXIST.

These hazards include:

-High voltages

-High energy stored in capacitors

-High currents available from DC power busses

-Hot component surfaces

Any metal jewellery (watches, bracelets, neck-chains and rings) that could inadvertently come into contact with uninsulated

parts should always be removed before reaching inside powered equipment.

Safety And Regulations

2ORIGIN Installation Guide

Safety Earth Connection

Any mains powered item of SSL equipment that is supplied with a 3-core mains lead (whether connectorised or not) must always

have the earth wire connected to the mains supply ground AND PRECAUTIONS SHOULD BE MADE SO THAT THE GROUNDING

IS NOT DEFEATED. This is the safety earth and grounds the exposed metal parts of the racks and enclosures and must not be

removed for any reason.

ALL MAINS CORDS SUPPLIED ARE FITTED WITH AN IEC 60320 C13 TYPE SOCKET. WHEN CONNECTING TO SUPPLY

OUTLETS ALWAYS REFER TO THE RATING LABEL ON THE REAR OF THE CONSOLE AND ENSURE THAT APPROPRIATE SIZED

CONDUCTORS AND PLUGS ARE USED TO SUIT LOCAL ELECTRICAL REQUIREMENTS.

Mains Supply and Phases

To ensure safe operation of this equipment, connect only to an AC power source that contains a protective earthing (PE) conductor.

This equipment is designed for connection to single phase supplies with the neutral conductor at earth potential – category TN

or TT – and is ﬁtted with a protective fuse in the live conductor only. This equipment is not designed for use with live and neutral

connections reversed or where the neutral conductor is not at earth potential (IT supplies). This equipment should not be connected

to a power system that switches open the return (neutral) lead when the return lead also functions as the protective earth (PE).

Mains cables will be coded with either of the following colour schemes:

1 or 2

LIVE: Brown Black

NEUTRAL: Blue White

EARTH: Yellow/Green Green

The ratings label, which details the console power requirements, is located adjacent to the mains inlet connectors on the power

input panel beneath the rear of the console.

DEN Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til stikproppens jord.

FIN Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan.

NOR Apparatet må tilkoples jordet stikkontakt.

SWE Apparaten skall anslutas till jordat uttag.

Mains Isolation and Over-Current Protection

An external disconnect device is required for this equipment which must be installed according to current wiring regulations. A

detachable power cord, as ﬁtted to this equipment, is a suitable disconnect device.

An external over-current protection device is required to protect the wiring to this equipment which must be installed according

to the current wiring regulations. The fusing or breaking-current is deﬁned in the product speciﬁcation. In certain countries this

function is supplied by use of a fused plug.

Some units (speciﬁcally, those ﬁtted with PSU Redundancy) utilise multiple power sources. This is clearly marked on the equipment.

The ﬁnished installation must also be clearly marked to ensure that all sources of power are removed before servicing work begins.

ORIGIN Installation Guide

Safety And Regulations

Physical Safety

The console surface is too heavy for one person to move; ensure sufﬁcient manpower is available when positioning

the console and any associated IO or peripheral equipment.

If the console trim is removed for any reason then there may be sharp edges exposed on the frame metalwork.

Environmental

Evaluation of apparatus based on altitude not exceeding 2000m. There may be some potential safety hazard if the

apparatus is operated at altitude exceeding 2000m.

Evaluation of apparatus based on temperate climate conditions only. There may be some potential safety hazard

if the apparatus is operated in tropical climate conditions.

Tools

Origin issuppliedwitha pairofT-handle ModulePullers(SSLPart #53911152A)and a2mmAllenKeytoaidewith maintenanceofthechannel

strips. Other tools that may be needed for installation are an 8mm Metric (M8) spanner/socket or adjustable spanner to attach the legs.

If there is a need to remove the end trim of the console, a #2 Pozidriv screwdriver will be needed for the front buffer/armrest to end

trim screws.

Safety And Regulations

4ORIGIN Installation Guide

Regulatory Information

CE Certication

ORIGIN is CE compliant. Note that cables supplied with SSL equipment may be ﬁtted with ferrite rings at each

end.

This is to comply with the current regulations and these ferrites should not be removed.

If any of the console metalwork is modiﬁed in any way – particularly the addition of holes for custom switches etc. – this may the

adversely affect the CE certiﬁcation status of the product.

FCC Certication

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Instructions for disposal of WEEE by users in the European Union

The symbol shown here, which is on the product or on its packaging, indicates that this product must not

be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment

by handing it over to a designated collection point for recycling of waste electrical and electronic

equipment. The separate collection and recycling of your waste equipment at the time of disposal will

help to conserve natural resources and ensure that it is recycled in a manner that protects human health

and the environment. For more information about where you can drop off your waste equipment

for recycling, please contact your local city ofﬁce, your household waste disposal service or where you purchased the product.

RoHS Notice

Solid State Logic has conformed and this product has conformed to European Union’s Directive 2011/65/EU on Restrictions of

Hazardous Substances (RoHS) as well as the following sections of California law which refer to RoHS, namely sections 25214.10,

25214.10.2, and 58012, Health and Safety Code; Section 42475.2, Public Resources Code.

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ORIGIN Installation Guide

Safety And Regulations

Help and Advice

Commissioning and Training

Commissioning

• ORIGIN consoles do not include on-site commissioning by an SSL engineer as standard.

• Commissioning can be requested at the time of purchase at additional cost and is usually expected to take one working day.

• You should contact your local SSL ofﬁce or agent at least four weeks prior to delivery to arrange a commissioning date.

Please note: The console must be installed in a clean environment. The presence of dust – particularly cement particles – increases

the chance of long-term damage being caused to the moving faders and other controls. Such damage may cause the warranty

to be rendered invalid.

Training

A range of operational and maintenance training options are available from SSL or one of our authorised representatives.

For further information please contact SSL’s Support Department at: [email protected].

Warranty

Factory Warranty

All new systems include a 13 month warranty which commences on the date of shipment. This warranty includes:

-Technical support – phone, fax and e-mail – via your local distributor or ofﬁce during normal business hours

-Supply of exchange parts*

-Service engineer visits (note that travel and subsistence costs are not covered by the warranty)

* It is not anticipated that a visit from an SSL engineer will be necessary in the majority of cases where a replacement part is

required. Console sub-assemblies are designed to be easily removable to facilitate replacement.

Extended Warranty

The standard warranty period may optionally be extended up to a maximum of 5 years on a ‘Parts supply’ basis.

To order extended warranty please contact your SSL representative or e-mail SSL’s Service department at:support@solidstatelogic.

com.

Special Tools and Fasteners

Each ORIGIN console is supplied with a pair of M4 thread T-Bar module removal tools (SSL Part No. 53911152A) which ﬁx into the

threaded holes that are exposed when the upper and lower channel ﬁxing screws are removed.

Other than this no special tools are required for maintenance. All fasteners are Metric sizes and threads. Most screws used to ﬁx

panels are M3 Hex headed countersunk or cap screws which need a 2 mm hex, or Allen key to remove, or they are Pozidriv #2

headed screws. The feet are ﬁxed with 8 mm (M8) Hex nuts (supplied).

User Guide

The ORIGIN User Guide can be downloaded from the ORIGIN section of the SSL website at : https://www.solidstatelogic.com

Altri manuali per ORIGIN

Indice

Altri manuali Solid State Logic Mixer musicale

Solid State Logic

Solid State Logic BiG SiX Manuale utente

Solid State Logic

Solid State Logic Duality Fuse Istruzioni per il montaggio

Solid State Logic

Solid State Logic C100HDSS Manuale utente

Solid State Logic

Solid State Logic Matrix Manuale utente

Solid State Logic

Solid State Logic Sigma Manuale utente

Solid State Logic

Solid State Logic Matrix2 Delta Manuale utente

Solid State Logic

Solid State Logic X-PANDA 82BXEM01A Manuale utente

Solid State Logic

Solid State Logic AWS 900 Manuale per l'uso e la cura

Solid State Logic

Solid State Logic Live L100 Manuale utente

Solid State Logic

Solid State Logic Duality 82S6DUA20C Manuale utente

Solid State Logic

Solid State Logic SiX Manuale utente

Solid State Logic

Solid State Logic AWS 900+ Manuale utente

Solid State Logic

Solid State Logic C100 HD Range Manuale utente

Solid State Logic

Solid State Logic C200 HD Manuale utente

Solid State Logic

Solid State Logic C300 HD Manuale utente

Solid State Logic

Solid State Logic Sigma Manuale utente

Solid State Logic

Solid State Logic Nucleus2 Manuale utente

Solid State Logic

Solid State Logic C100 HDS Manuale utente

Solid State Logic

Solid State Logic C100 HDS Manuale utente

Solid State Logic

Solid State Logic SL 4000 G Series Manuale utente

Solid State Logic

Solid State Logic AWS V4 Logictivity Manuale utente

Solid State Logic

Solid State Logic Duality SE Manuale utente

Solid State Logic

Solid State Logic AWS 924 Manuale utente

Solid State Logic

Solid State Logic SL 9000 J SERIES Manuale utente

Manuali Mixer musicale popolari di altre marche

Neve

Neve 8816 Manuale utente

Mackie

Mackie Onyx Analogue Mixer Manuale utente

Behringer

Behringer EUROPOWER PMP518M Manuale utente

Peavey

Peavey S-32 Sanctuary Series Manuale utente

Rane

Rane MP 4 Manuale utente

True

True T9 Touchscreen Console Manuale utente

Studiomaster

Studiomaster Air Pro 24 Manuale utente

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Manuale utente

Roland

Roland M-160 Manuale utente

Yamaha

Yamaha MR1642 Manuale utente

Ecler

Ecler MAC40v Manuale utente

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Manuale utente

Veeder-Root

Veeder-Root TLS-350 Series Manuale utente

Alto

Alto APM80.QUAD Manuale utente

Omnitronic

Omnitronic PM-211 Manuale utente

SoundCraft

SoundCraft B400 Manuale utente

Roland

Roland SoundCanvas SC-8820 Manuale utente

CARVIN

CARVIN RX 1200 Manuale utente
