Solid State Logic Network I/O SB 8.8 Guida rapida
NetworkI/OSB8.8&SBi16V2.1UpdatePackageInstallation
Notes
Required for this Upgrade
1
Installation Notes (This Document)
1
SSL Network I/O - Firmware Updater v1.4.0.28096
P72A042424
1
SSL Network I/O - Controller V1.2.1.27818
P923CTLXC
1
Audinate Dante Firmware Update manager v3.10.1.2
N/A
1
Audinate Dante Controller v3.10.2.4
N/A
1
SSL_Stagebox_8In_8Out-2-1-22397.dnt (for SB 8.8)
P924DSBC
1
SSL_Stagebox_16In-2-1-22397.dnt (for SB i16)
P923DSBC
This document contains essential information – please read it carefully before making any
attempt to upgrade the system
NetworkI/OSBV2.1InstallationNotes
Visit SSL at:www.solidstatelogic.com
All rights reserved under International and Pan-American Copyright Conventions
SSL®, Solid State Logic® and Tempest® are ® registered trademarks of Solid State Logic
Dante™ and Audinate™ are trademarks of Audinate Pty Ltd
Windows® is a registered trademark of Microsoft Corporation
All other product names and trademarks are the property of their respective owners and are hereby
acknowledged
No part of this publication may be reproduced in any form or by any means, whether mechanical or
electronic, without the written permission of Solid State Logic, Oxford, OX5 1RU, England
As research and development is a continual process, Solid State Logic reserves the right to change
the features and specifications described herein without notice or obligation.
Solid State Logic cannot be held responsible for any loss or damage arising directly or indirectly from
any error or omission in this manual.
PLEASE READ ALL INSTRUCTIONS, PAY SPECIAL HEED TO SAFETY WARNINGS.
E&OE
Document Revision History
Initial Release
-
25th May 2017
Page1
NetworkI/OSBV2.1InstallationNotes
Introduction
This document describes how to upgrade the firmware on the SSL Network I/O SB 8.8 and SB i16
units.
As part of the update procedure you will be required to update both the Dante firmware on the
Brooklyn 2 module as well as the firmware on the main PCB (using Network I/O Updater). It is
important that both parts of the installation are completed and in the correct order described in this
document.
For changes to take effect the unit must be power cycled after completing the firmware and software
update installation.
InstallationProcedure
Assumptions
The following points are assumed in these installation instructions:
1. Network I/O Controller Software is installed on the computer you are using to perform
the update.
2. Network I/O Updater software is installed on the computer used to perform the updates.
3. Audinate Dante Firmware Update Manager software is installed on the computer used to
perform the updates.
4. Audinate Dante Controller software is installed on the computer used to perform the
update.
5. All units to be updated are powered on and available on your Primary Dante network with
working and “visible” IP addresses. These can be seen using the Dante Controller where the
IP address will be displayed against the device name.
All SSL specific software will be provided in the software update package, Audinate software and
user manuals are available to download for free from the Audinate website the links to which are
provided below.
Audinate Dante Controller
https://www.audinate.com/products/software/dante-controller
Audinate Dante Firmware Update Manager
https://www.audinate.com/products/firmware-update-manager
Page2
NetworkI/OSBV2.1InstallationNotes
FirmwareInstallation
1. Plug a CAT5e/Cat6 network cable from a switch in the Dante Primary Network to the PC
being used to perform the software installation.

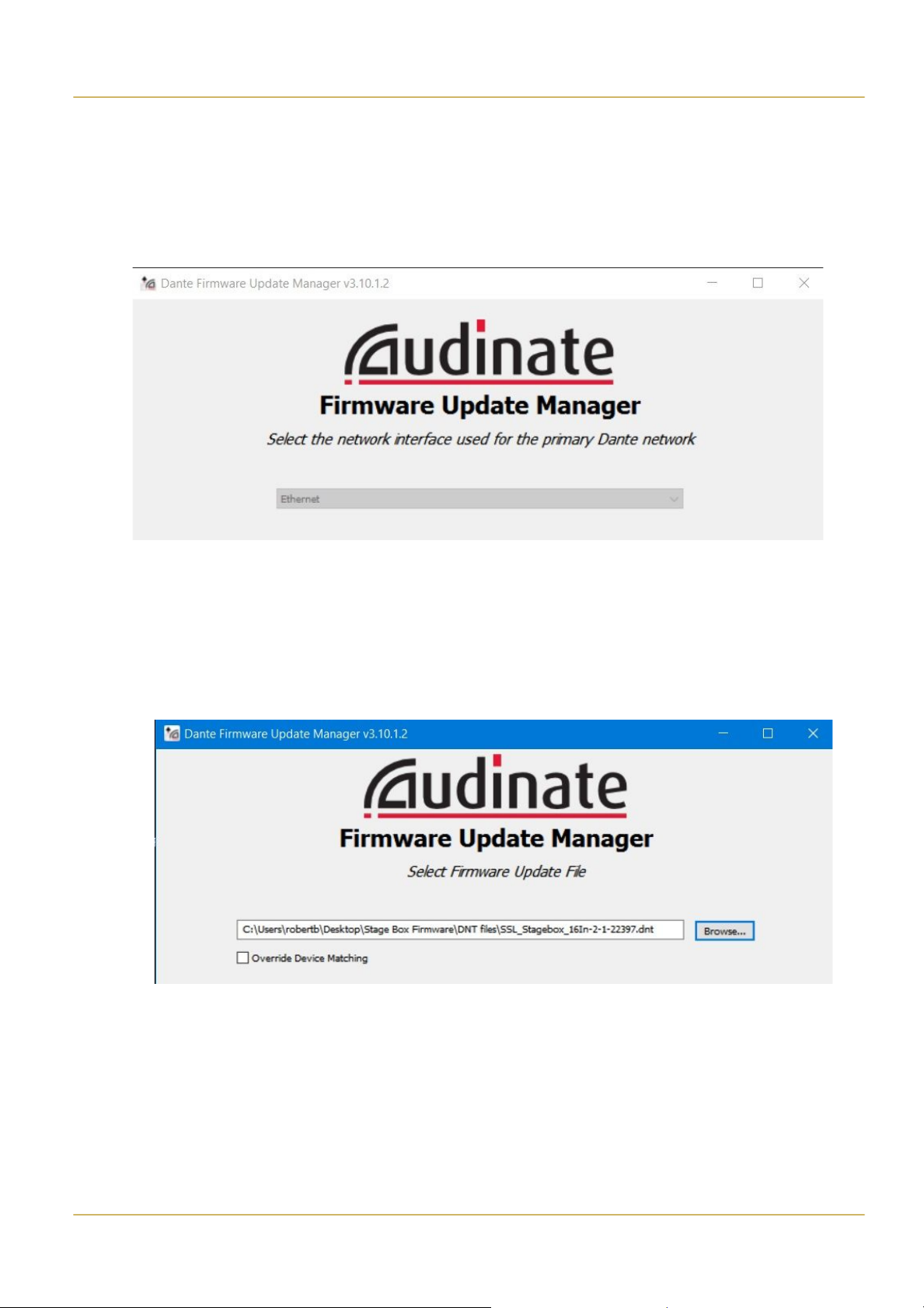

2. Launch Dante Firmware Update Manager application, once launched select the network
interface being used to connect to the Dante network and click next.
3. Select the correct firmware file for your unit using the browse button in the dialogue box:
For the SB8.8 use SSL_Stagebox_8In_8Out-2-1-22397.dnt
For the SB i16 use SSL_Stagebox_16In-2-1-22397.dnt
Leave the Override Device Matching option unchecked, then click next.
Page3
NetworkI/OSBV2.1InstallationNotes

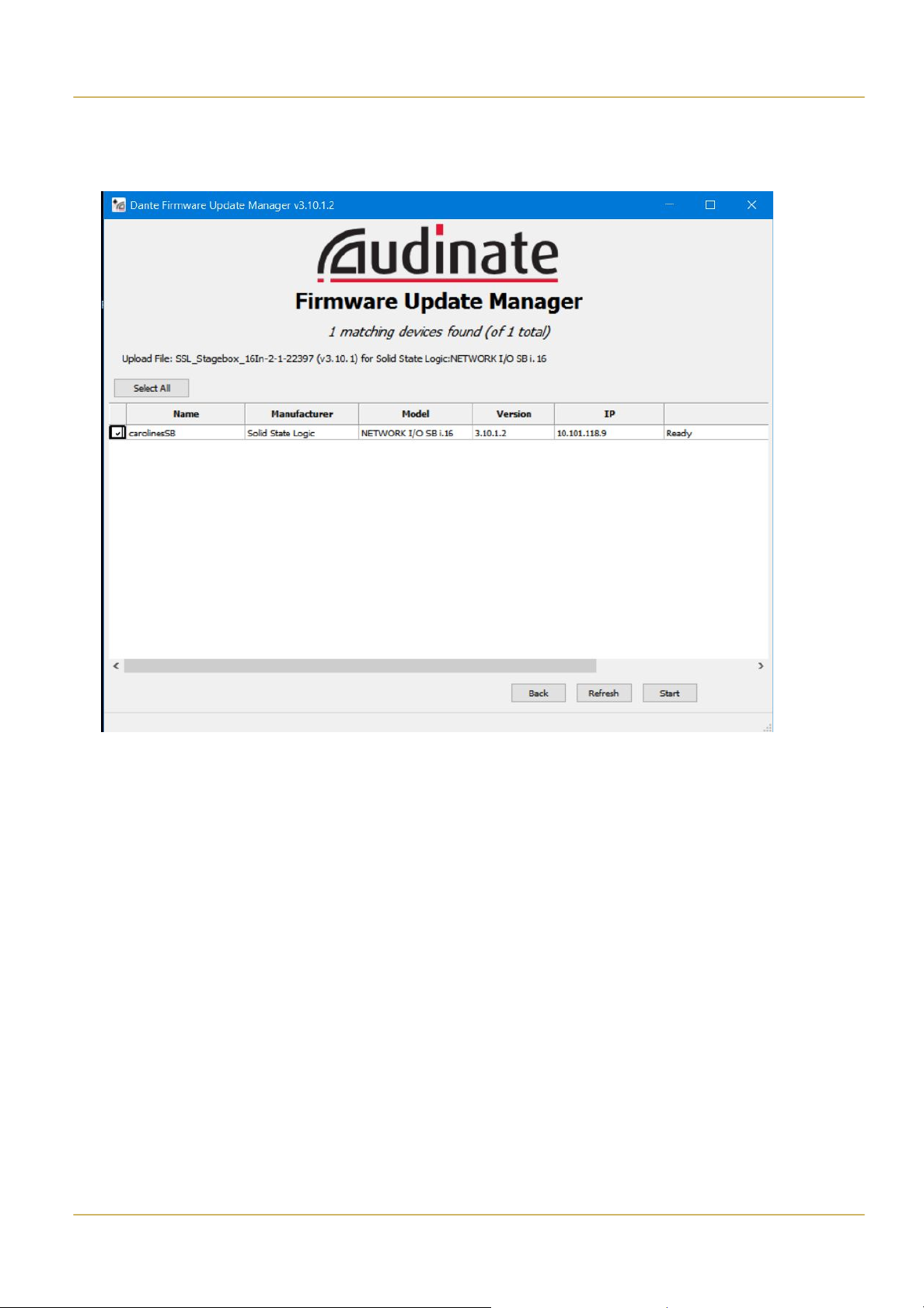

4. Dante Firmware Update Manager will then discover devices on the network that the
firmware file is compatible with. Select the devices you wish to update using the check box
on the left of the device name and click Start.
Page4
NetworkI/OSBV2.1InstallationNotes

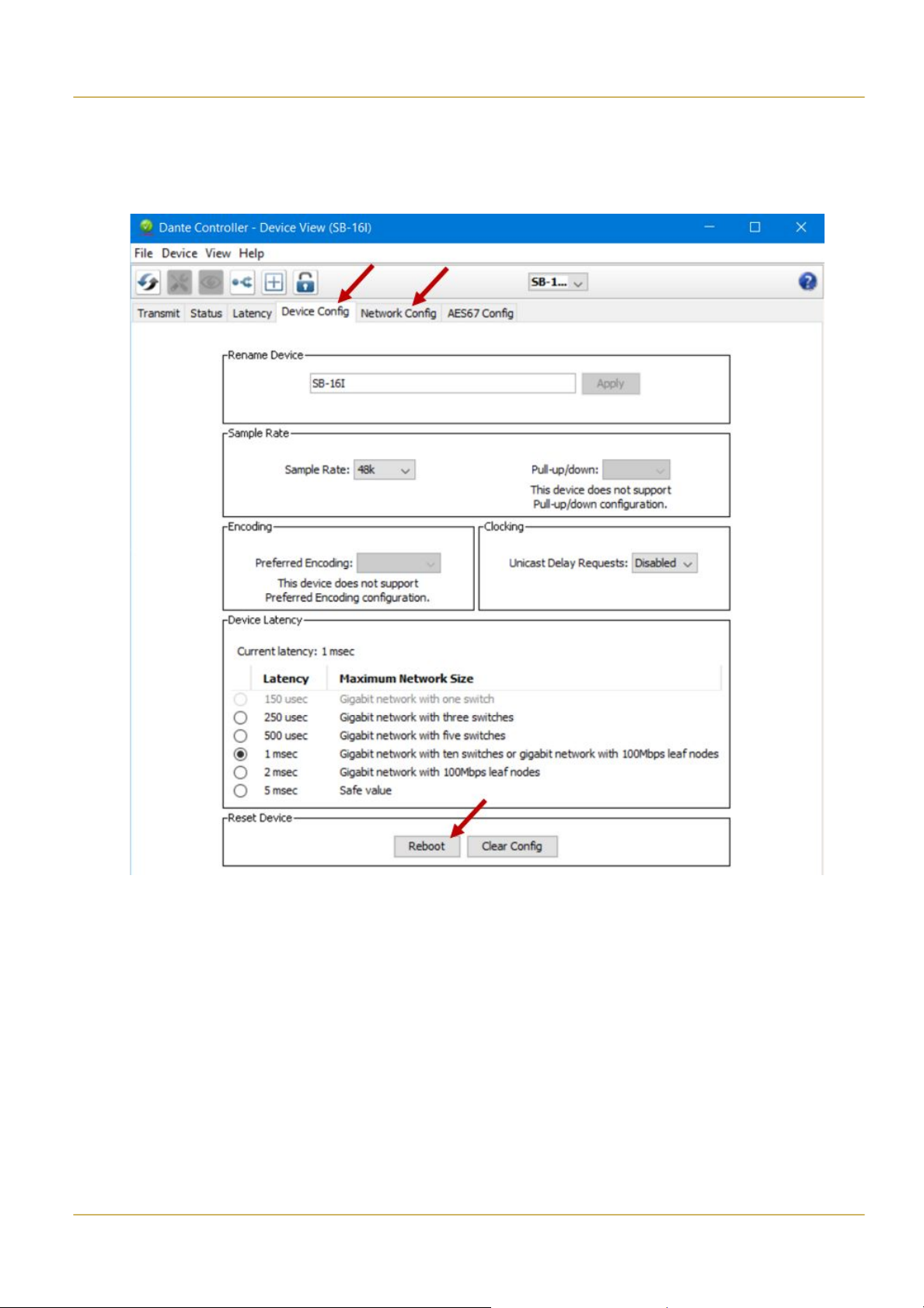

5. Once the update has completed you will be prompted to restart the device, this can be done
using Audinate Dante Controller in the Device or Network Config tabs.
6. The firmware installation can be verified by using Dante Controller Device View on the
Status Tab associated with the device. (Only the software version is shown in the
manufacturer device section for the NET I/O device).
Your Dante Firmware is now updated!
Page5
NetworkI/OSBV2.1InstallationNotes
UpdatingDeviceMainPCBFirmware
Note: The firmware version is automatically included in the network I/O updater application, to
downgrade the Firmware you will need the previous version of the Network I/O updater application.
1. The main PCB firmware updates should be performed after the Audinate Dante firmware
(.dnt file) has been updated.
2. Connect the device to the PC (running Windows 7, 8 or 10) used to perform software update
via the network using a free port in a network switch.
3. Launch the Network I/O updater application in administrator mode (right click on icon and
select run as administrator).

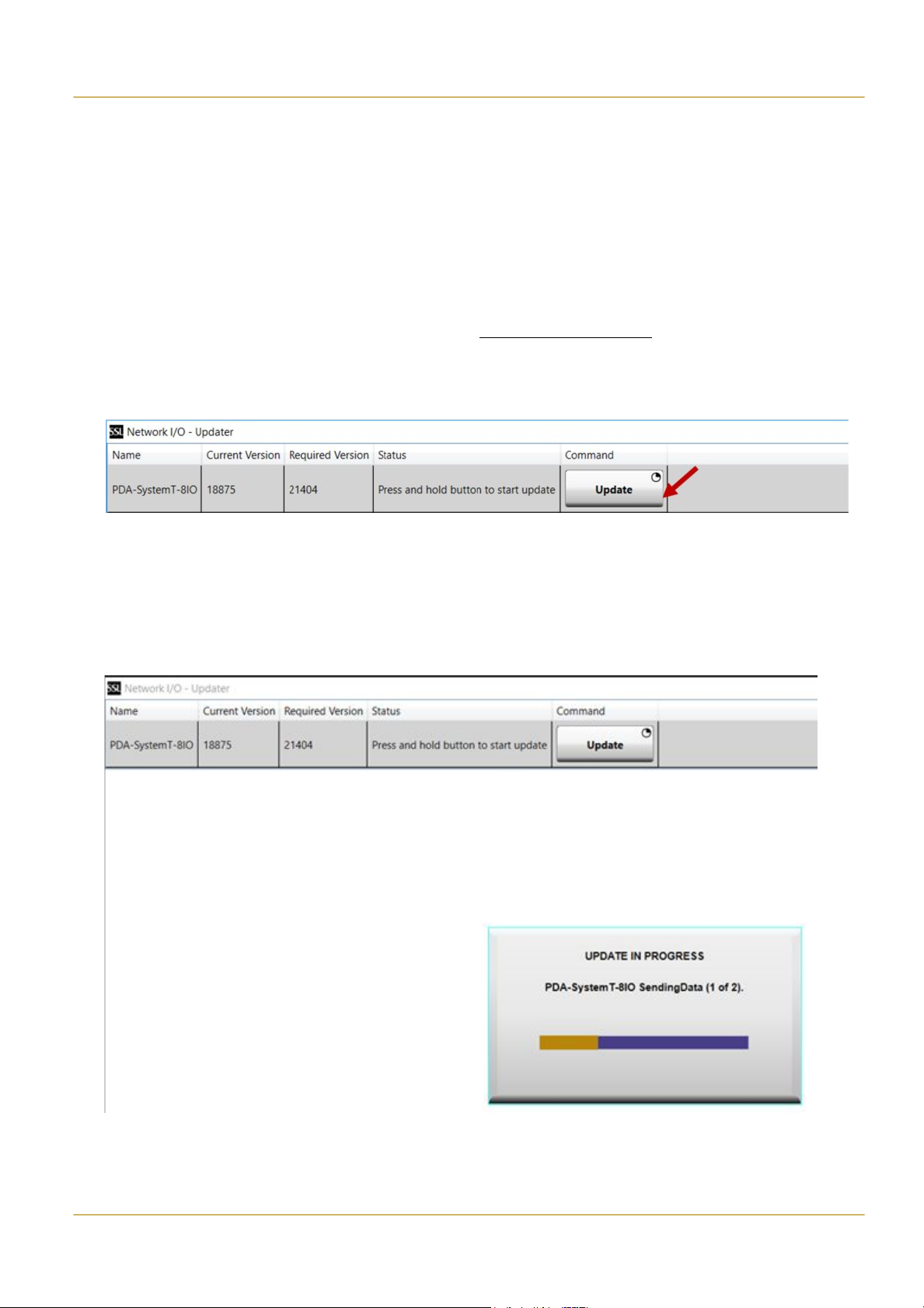

4. Once the programme has launched you will see this screen:
5. This screen shows the current software version on the device and the required version. If
you need to update the device software to the required version press and hold the Update
button until it starts to flash, then the button can then be released.
6. The update progress will be shown via a dialogue box with a progress bar, this update will
take around 10 minutes.
Page6
NetworkI/OSBV2.1InstallationNotes

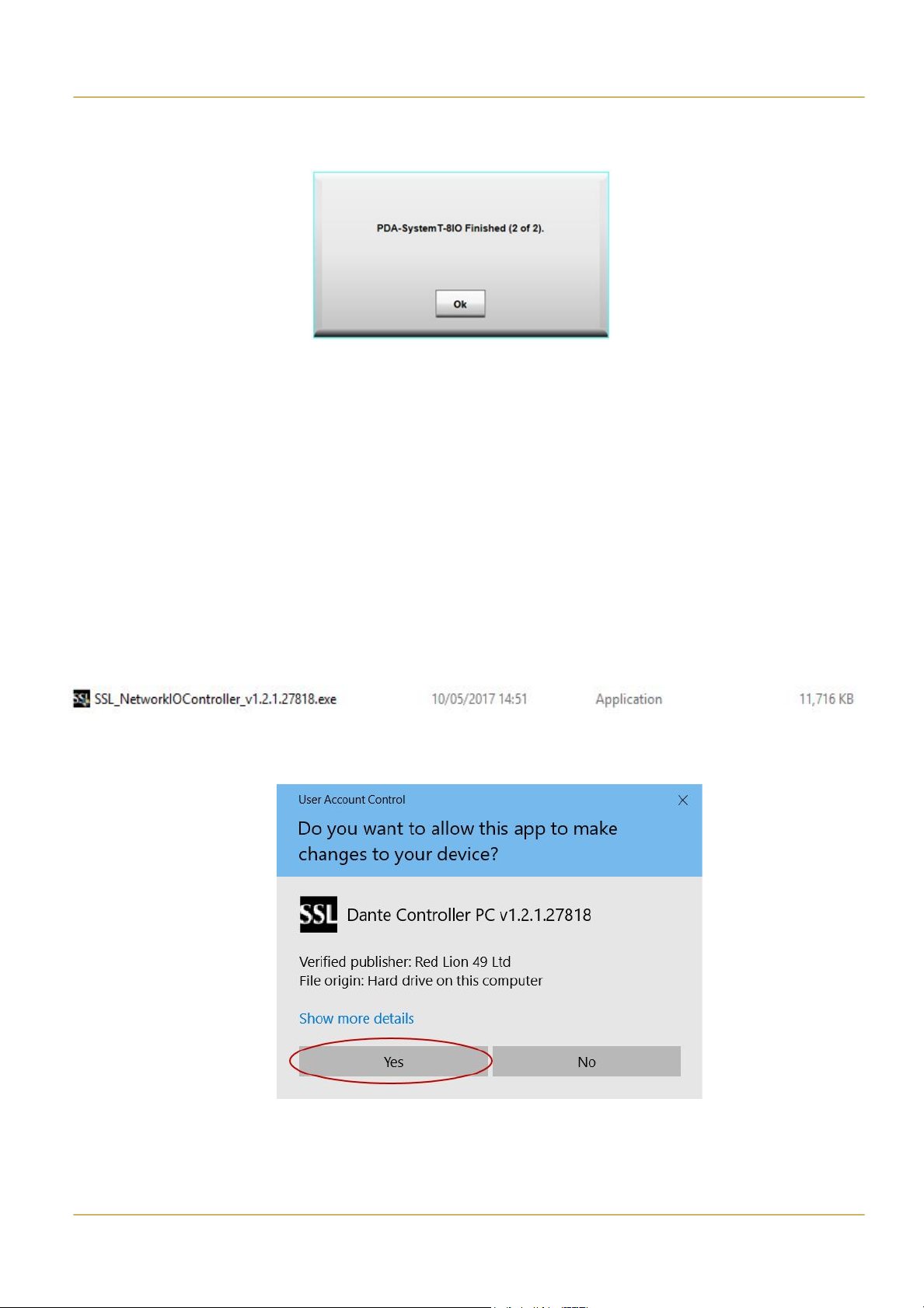

7. Once finished a dialogue box will inform you that the update is completed, click OK.
8. The unit needs a complete power cycle to be fully functional, power cycle the device by
removing and reapplying power.
Your firmware updates are now complete!
InstallingSSLNetworkI/OController
Once the hardware elements of the system have been upgraded it is important to install the latest
version of the SSL Network I/O controller as the older Network I/O controller software is not
compatible with updated hardware. V.1.2.1.27818 is required and will be provided in the software
update package.

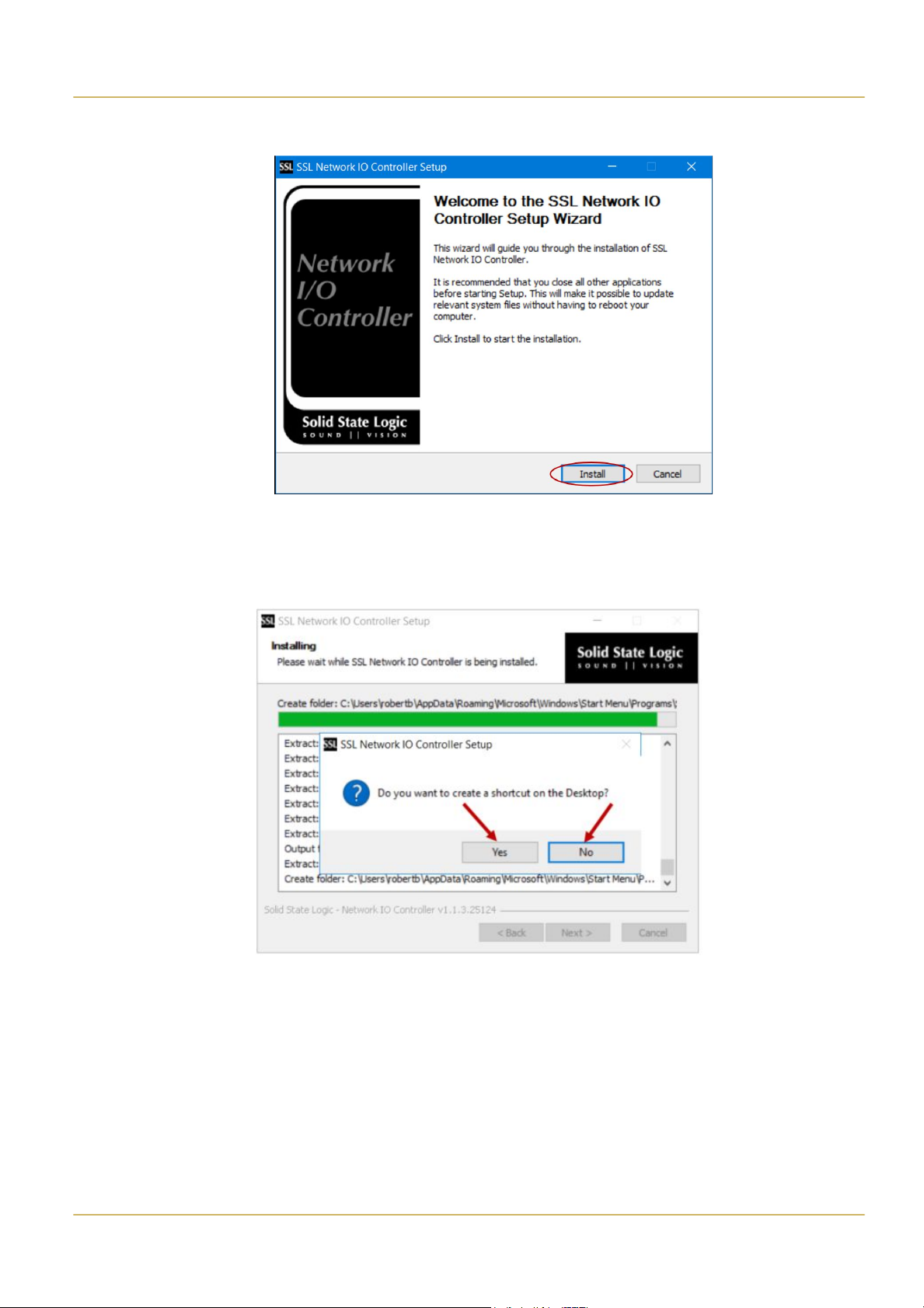

1. Locate the new Network I/O .exe file as shown below and double click.
2. A dialogue box will appear asking if you wish to run the file click the Run button.
Page7
NetworkI/OSBV2.1InstallationNotes
3. Another dialogue box will then appear giving you the choice of install or cancel, click install.
4. The program will then install you will be asked if you wish to make a desktop icon click Yes
or No as to your preference. (The desktop icon can be pinned to the taskbar for easy
location and launching of the program).
Page8
NetworkI/OSBV2.1InstallationNotes

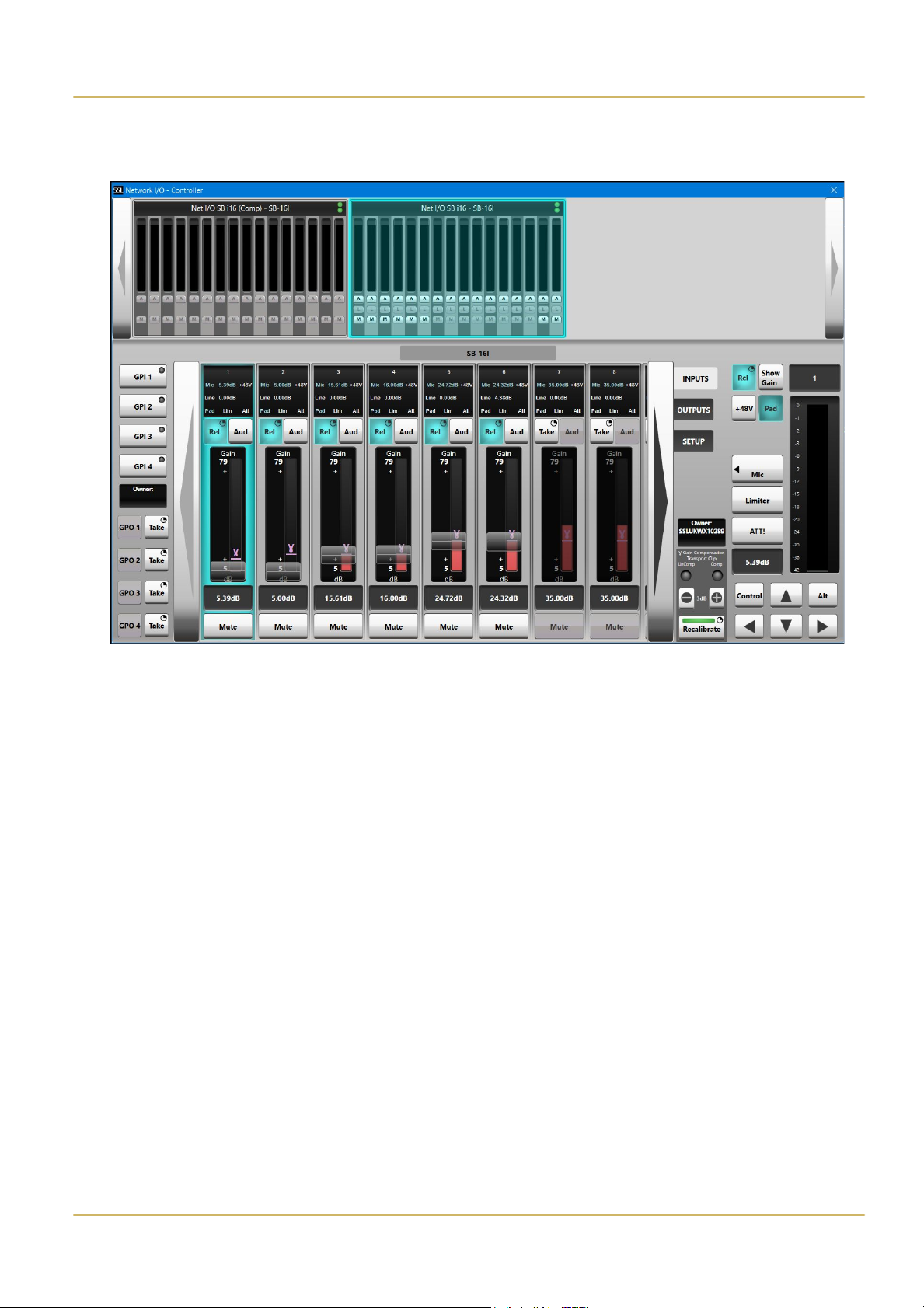

5. You can then launch the program. The photo below shows a screen capture of the program
when first opened.
InstallationProblemsolving
If there are points after or during the installation where network connectivity problems are
observed, a full power cycle of the unit typically reestablishes full connectivity.
If the instructions to power cycle have not been followed and the unit has been soft rebooted from
Dante controller after the updates performed, it has been seen that the device cannot be seen in
Dante controller or the front panel “RUN” Led shows red, indicating a network fault.
The device will still show a green connected light on its rear network interface, but will not be
visible in Dante Controller and will not appear in the SSL Network I/O Updater software.
To resolve this connection issue remove both power cables from the back of the device ensuring
the device has completely powered down, then replug the power cables and allow the device to
come back online. The device should now be seen in both Dante Controller and SSL Network I/O
Updater.
Page9
