SOLIDMATION HPA-2160 Manuale utente
Automation made simple. lwww.solidmation.com
Connection diagram “A”
Electrical Installation:
Electrical installation shall be done by an authorized
electrical technician or a qualified professional.
Push-buttonPower Supply
6-24 VDC
+
LED RGB
Specifications
HPA-2160 allows controlling common anode RGB
LEDs with a single channel.
HPA-2160 complies with electromagnetic emission
standards, thus ensuring no interference with
other devices. The operation of this equipment is
not affected by the interference of other equipment
complying with the electromagnetic emission
standards.
LED controller
HPA-2160: RGB LED controller
Dimmable switch for LED RGB.
Installation manual
The LED Controller equipment from the Home
Automation series is designed to be installed
in any position, over roofs or suitable cabinets
according to their size.
Electrical connection diagram “A” shows an
example of an installation.
In case of failure or defects, please contact
authorized technical support
Technical characteristics
lVoltage: 6-24 VDC
lQuantity of independent channels: 3
lMaximum section of cables for installation: 1.5 mm2
lType of Load: LEDs RGB
lMaximum torque for terminals (screw clamps): 0.5 Nm
Solidmation-MA-HPA-2160_V3-Installation_Manual-00-EN
l• www.solidmation.com | [email protected]om
Power Supply
6-24 VDC
+
lwww.solidmation.com | inf[email protected]om
lwww.solidmation.com | info@solidmation.com

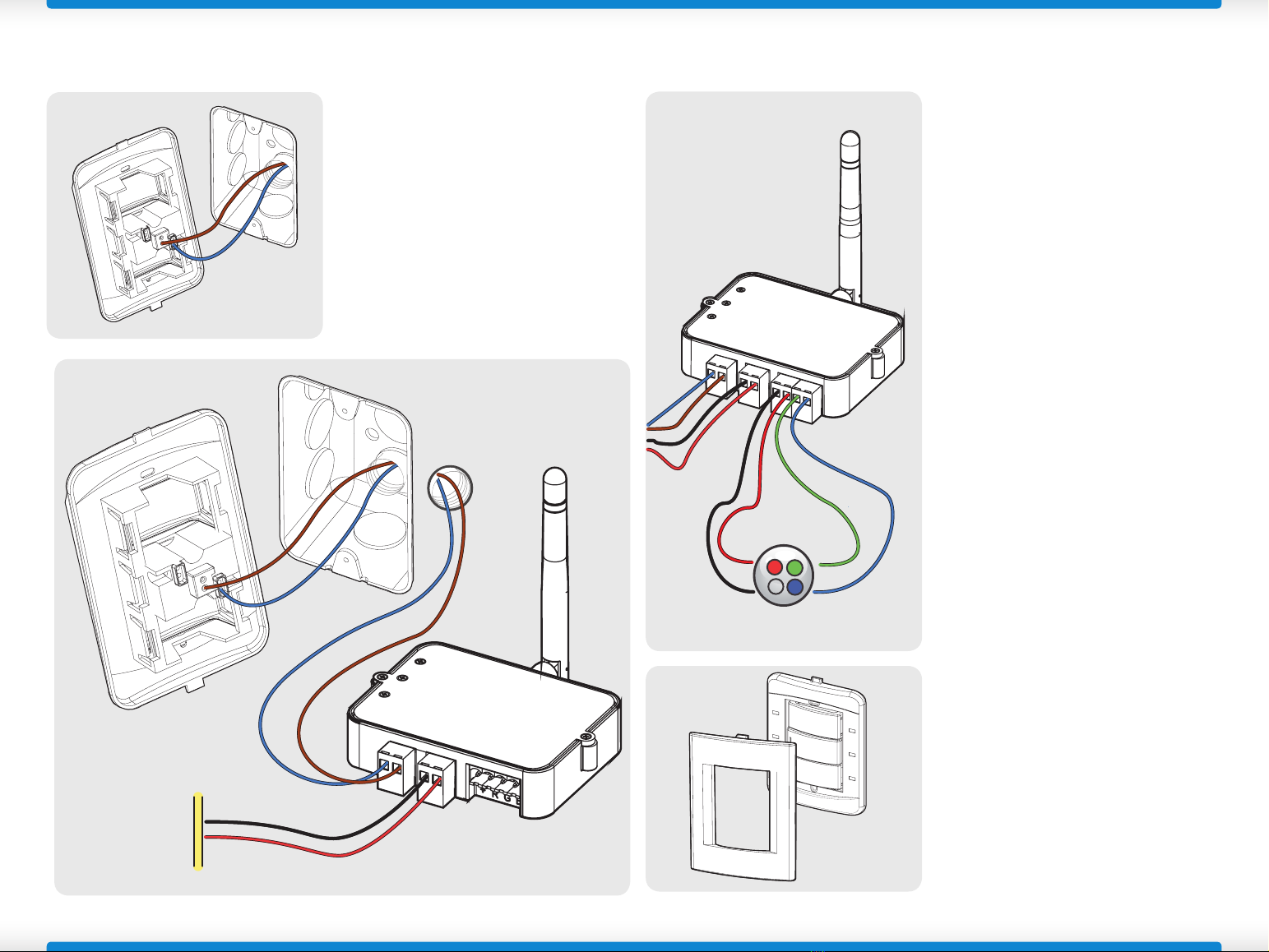

1. Turn off power and dismantle the box where the
push-button will be installed.
2. Dismantle the box containing the push-button
controlling the RGB LED.
Wiring:
3. Connect the RGB LED power supply to the “+” and
“-” terminals of the module.
4. Connect the push-button to the input channel: “C”
and “1” terminals.
5. Connect the LEDs to the output channels “R”
(Red), “G” (Green), “B” (Blue) and “+” that
corresponds to the common anode of the RGB
LEDs
6. Check that connections are done according to
Diagram “A”.
7. Mount the switch frame and cover.
8. Run the Habeetat Planner software and follow the
instructions for proper conguration of your device.
Procedure for proper installation
Congratulations, your equipment is now ready to be
congured using Habeetat Planner software.
Solidmation S.A. | All rights reserved. Subject to changes without prior notice.
