Solos SO-MS002-BK Manuale utente
1
Step1
1
Step2
Insert three of the clamp screws(M) through the L bracket(C)
into the bottom of the spring arm(A) .
Remove the backing from the two rubber pads(N) and attach them
the bottom of the spring arm(A)
Option A-clamp mounting
Monitor Stand-Premium
SO-MS002-BK 75x75
100x100
32’’
MAX 1.5~1.8Kgx2
(3.3~17.6lbsx2)
RATED
Installation Manual
A:Spring arm
(x1)
B: VESA monitor
mount(x2)
C: L bracket
(x1)
D : Desk clamp
(x1)
E : hex key
holder (x1)
L(x2)
H: Grommet
plate(x1)
I:Spacer(x1)
J:lock washer
(x1)
M(x3)
G:Grommet
base plate(x1)
F: Grommet screw
(x2)
K: Hub screw
(x1)
P: 6mm(x1)
N: rubber
pads(x4)
Q:Wrench(x1)O: 4mm(x1)
M4x12(x4)
M-A
M4x16(x4)
M-B
M5x12(x4)
M-C
M5x16(x4)
M-D
D5(x4)
M-E
M-F(x4)

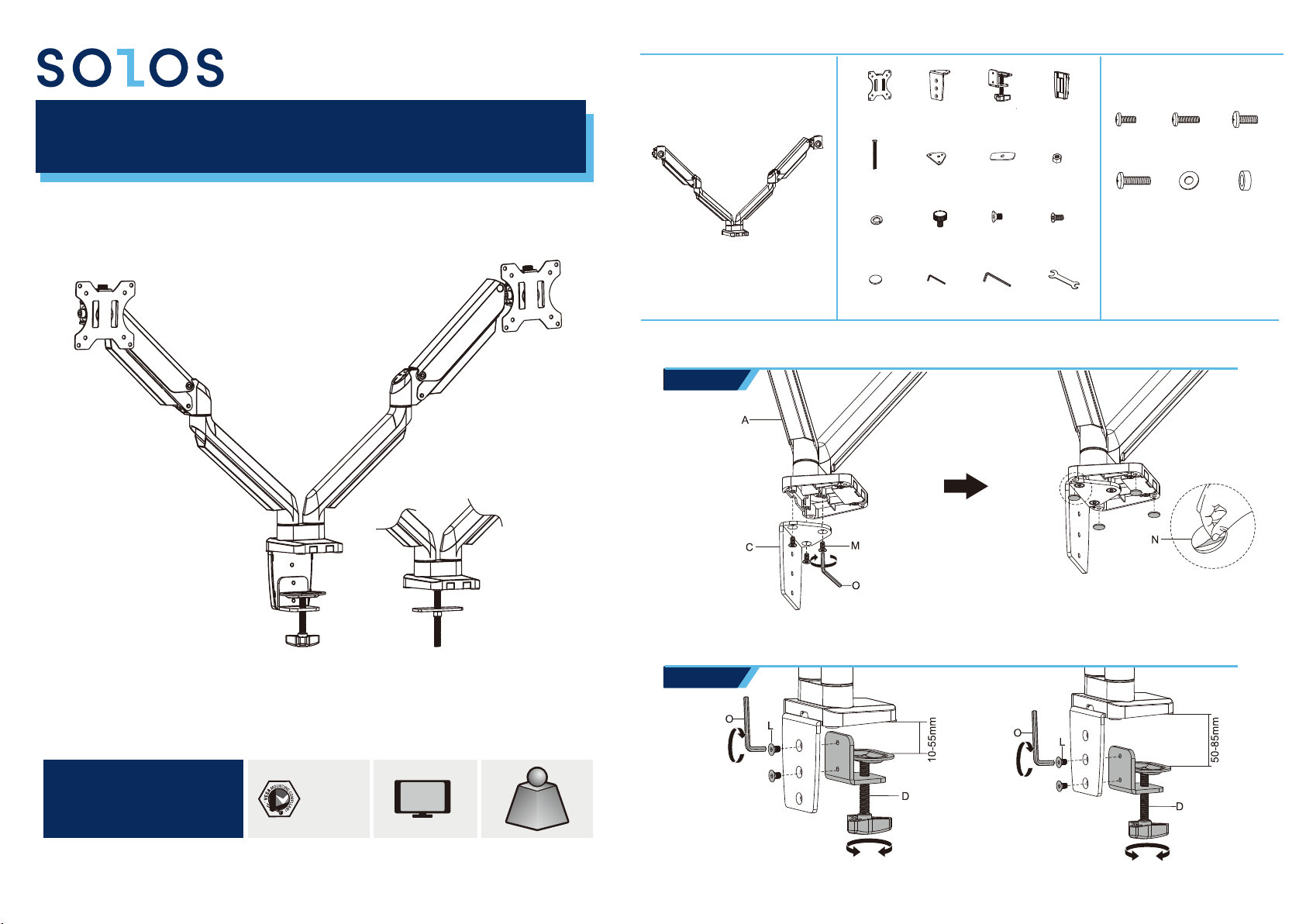

Parts List
Spring Arm Installation
Hex key
Clamp screws
For mounting surface is between 10 and 55mm
(0.4 and 2.2 in)thick,insert two clamp screws(L) to
the upper holes of L bracket(C) to combine it with desk
clamp(D)
For mounting surface is between 50 and 85mm
(1.9 and 3.3 in)thick,insert two clamp screws(L) to
thelower holes of L bracket(C) to combine it with desk
clamp(D)
1
Step1
1
Step2
1
Step1
OptionB
1
OptionA
Step3

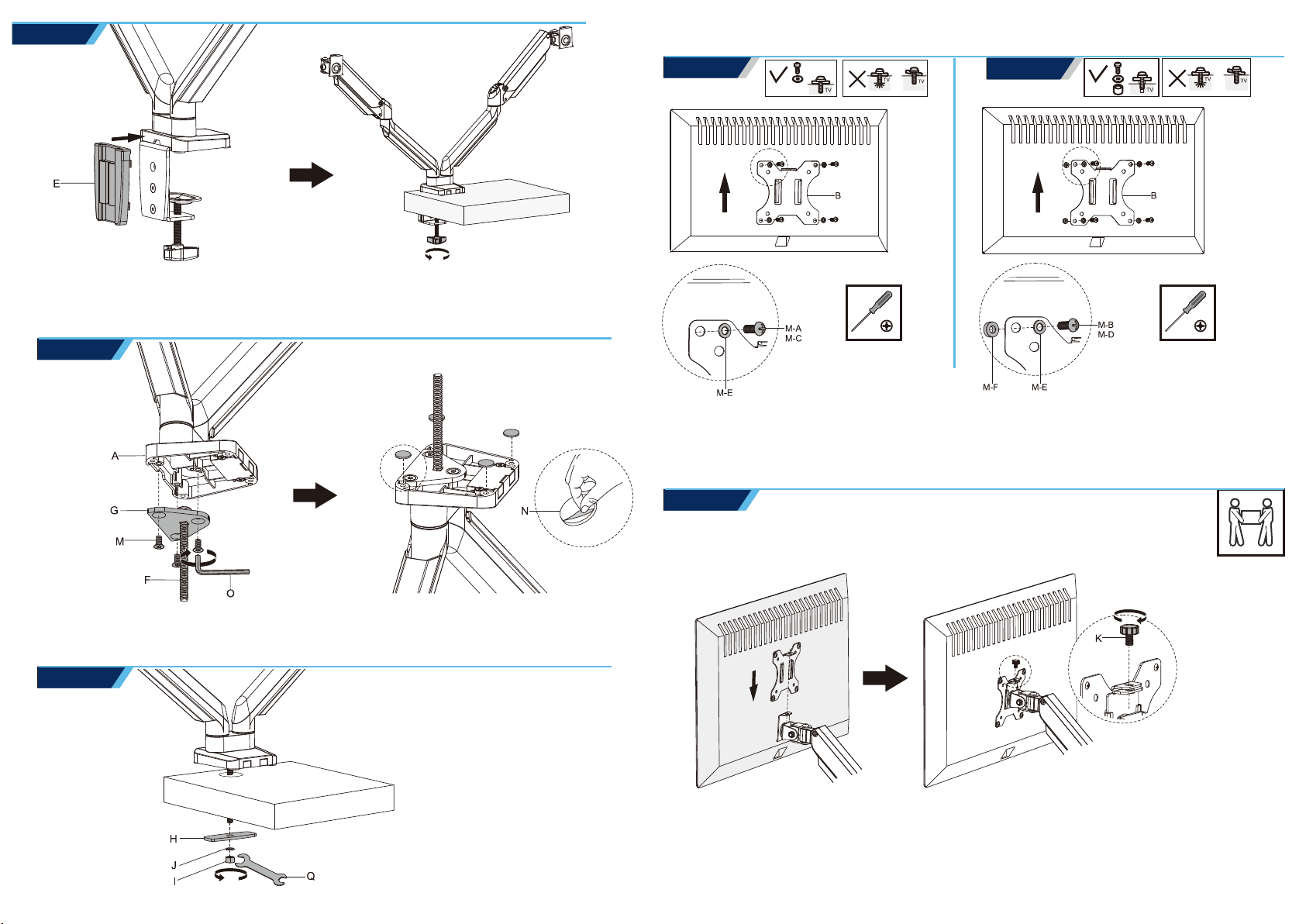

Option B-through hole mounting
Remove the backing from the two rubber pads(N) and
attach them the bottom of the spring arm(A)
Using the wrench(Q) clockwise to
tighten the grommet plate(H),washer (J)
and the nut(I) together
Attaching a monitor is a two-person
job. Do not attempt to complete this
task by yourself.
Insert the hub screw(K) to tighten the combination
VESA Installation
Monitor Installation
Snap the hex key holder(E) onto the L bracket
Insert the grommet screw(F) through the
grommet base plate(H) and using the clamp screws
(M) to attach them to the spring arm(A)
Turn the knob clockwise to tighten the desk clamp.
Use different set of screws according to your monitor size
Step2
Step3
Step4
Slide the cable covers up and remove from the spring arms,after managing all the
cables then slide the covers back on
Use the hex key(P) to tighten or loose the screw after you find the perfct position for your monitors
You can adjust SOLOS Monitor Stand-Premium in the following ways:
Tip:Store the hex keys(O/P) in the hex
key holder(E) for future adjustment
IMPORTANT:
Ensure that you have received all parts according to the parts list prior to installation. If any parts are
missing or faulty, please contact our website for a replacement.
Use with products heavier than the rated weights indicated may result in instability, causing possible injury.
• Mounts must be attached as demonstrated in assembly instructions. Improper installation may result in damage
or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• Make sure that your supporting surface will safely support the combined weight of the equipment and all
attached hardware and components.
• Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away
from children
• This procuct is intended for indoor use only. Using this product outdoors could lead to product failure
and personal injury.
CAUTION
+1 510 651 2205
www.solos-it.com
