SOMFY Cord Lift 32 RTS Manuale utente

Cord Lift 32 RTS

Ref. 5113050A

Installation guide

Notice d’installation

Guida all’installazione

Guía de instalación

Guia de instalação

Οδηγός εγκατάστασης

FRITESPTEL

Por la presente, Somfy declara que el producto cumple con los requisitos básicos y

demás disposiciones de la directiva 1999/5/CE. Podrá encontrar una declaración

de conformidad en la página web www.somfy.com/ce. Aplicable para la UE, Suiza y

Noruega. Fotos no contractuales.

Somfy hereby declares that this product conforms to the essential requirements and

other relevant provisions of Directive 1999/5/CE. A Declaration of Conformity is avai-

lable at www.somfy.com/ce. Usable in EU, CH and NO. Images are not contractually

binding.

Par la présente, Somfy déclare que l’appareil est conforme aux exigences essentielles

et aux autresdispositions pertinentes de la directive 1999/5/CE. Une déclaration de

conformité est mise à disposition à l’adresse internet www.somfy.com/ce. Utilisable en

UE, CH et NO. Images non contractuelles.

Somfy dichiara che il dispositivo è conforme ai requisiti essenziali e alle altre dispo-

sizioni pertinenti della direttiva 1999/5/CE. Una dichiarazione di conformità è disponi-

bile all’indirizzo Internet www.somfy.com/ ce. Utilizzabile in UE, CH e NO. Le immagini

hanno uno scopo puramente indicativo.

Pelo presente documento, a Somfy declara que o aparelho está conforme às exigências

fundamentais e às outras disposições pertinentes da directiva 1999/5/CE. Uma

Declaração de Conformidade encontra-se disponível na Internet, em www.somfy.com/

ce. Utilizável na UE, Suíça e Noruega. Imagens não contratuais.

Με το παρόν έγγραφο, η Somfy δηλώνει ότι η συσκευή συμμορφώνεται με τις ουσιώδεις

απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1999/5/ ΕΕ. Μια δήλωση

συμμόρφωσης διατίθεται στην ιστοσελίδα www.somfy.com/ce. Μπορεί να χρησιμοποιηθεί

στην ΕΕ, την Ελβετία και τη Νορβηγία. Οι εικόνες δεν αποτελούν τμήμα της σύμβασης.

CONTENTS

1. Introduction 2

2. Safety 2

2.1. Safety and responsibility 2

2.2. Specic safety advice 3

3. Installation 3

3.1. Motor preparation 3

3.2. Tube preparation 3

3.3. Motor/tube assembly 3

3.4. Mounting the motorized tube on

the brackets 3

4. Wiring 4

5. Commissioning 4

5.1. Programming the RTS

transmitter 4

5.2. Checking the rotation direction 4

5.3. Adjusting the end limits 4

5.4. Recording the RTS transmitter 5

5.5. Favorite position: MY position /

Recording MY position. 5

6. Operation 5

6.1. Mode selection: Roller or

Tilting mode 5

6.2. Up, Down, My: In roller mode 5

6.3. Up, Down, My: In tilting mode 6

7. Additional setting 6

7.1. Favorite position: MY position 6

7.2. End limit re-adjustement 7

7.3. Adjusting the tilting speed 7

7.4. Modifying the motor rotation

direction 7

7.5. Modifying the wheel rotation

direction 8

7.6. Adding/Deleting RTS transmitter 8

7.7. Erasing the transmitters from

the memory 8

7.8. Erasing the memory of the motor 8

8. Troubleshooting 9

9. Technical data 9

1. INTRODUCTION

The Cord lift 32 RTS is a motor specially dedicated to interior applications.

The Cord lift 32 RTS can motorize roman, pleated and cellular shades.

The Cord lift 32 RTS is a battery operated motor, powered with lithium primary bat-

teries or NiMH batteries with solar pack. The motor can also be powered by a power

supply.

Warning : The Cord lift 32 RTS is compatible only with the «Sunis Indoor WireFree

RTS» sensor.

Warning : The Cord lift 32 RTS cannot be used with sealed double glazing.

2. SAFETY

2.1. Safety and responsibility

• This Somfy product must be installed by a professional motorisation and home

automation installer, for whom these instructions are intended.

• Before installation, check that this product is compatible with the associated equip-

ment and accessories.

• These instructions describe how to install, commission and use this product.

• Moreover, the installer must comply with current standards and legislation in the

country in which the product is being installed, and inform his customers of the ope-

rating and maintenance conditions for the product.

• Any use outside the sphere of application specied by Somfy is not approved. Such

use, or any failure to comply with the instructions given herein will invalidate the war-

ranty, and Somfy refuses to accept liability.

Subject to technical modications.

To avoid damaging the product:

1) Never immerse it in liquid!

2) Avoid impacts!

3) Never drill holes in it!

4) Do not drop it!

2.2. Specic safety advice

In addition to the safety instructions described in this guide, be sure to also

observe the instructions set out in the attached document «Safety instructions

to follow and keep».

Damaged electric products and batteries should not be disposed of with normal

household waste. Make sure to drop them in specially provided containers or

at an authorized organization that will ensure they are recycled.

3. INSTALLATION

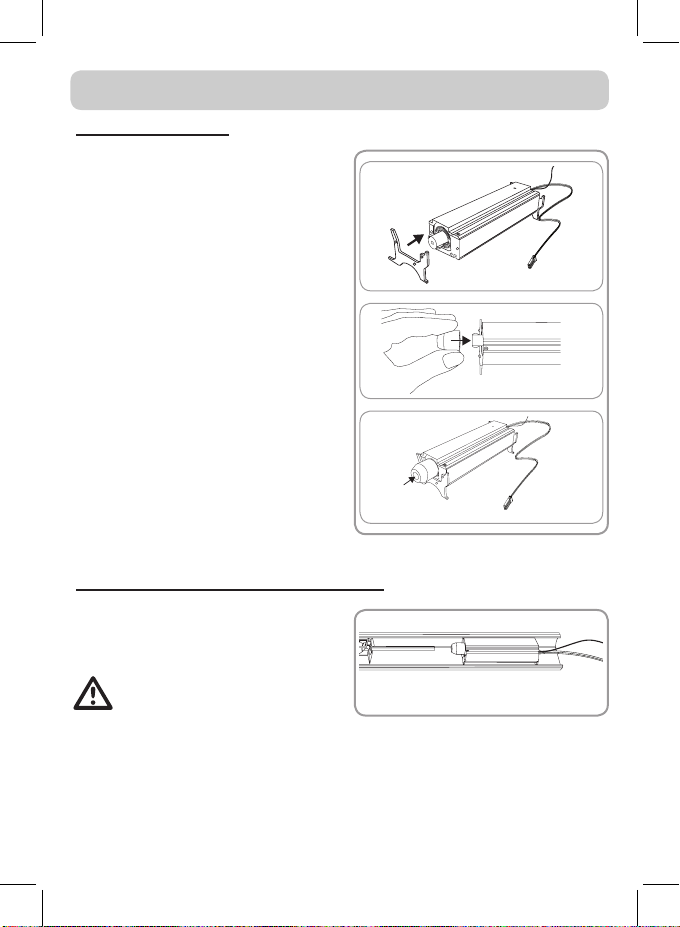

1) If needed, Snap the headrail adapters

on the motor.

2) Snap the proper shaft adapter on the

motor.

3) Press the shaft adapter until the drive

rod anges “snap” into the shaft adapter.

Slide the motor into headrail until the

shaft “snap” into the adapter shaft.

For optimal radio reception, the

antenna should be kept straight

and outside the headrail.

3.1. Motor mounting

3.2. Motor integration inside the headrail

Plug the battery with the motor supply

cable.

Warning: Do not unplug the battery

when the motor works.

4. WIRING

5. COMMISSIONING

5.1. Programming the RTS transmitter

Press the UP and DOWN buttons

simultaneously on the RTS transmitter:

the shade jogs and the control point is

preprogrammed in the motor

Press the RTS transmitter UP button:

a) If the shade raises (a), the rotation

direction is correct: move to the section

entitled 5.3 «Adjusting the end limits».

b) If the shade is lowers (b), the rotation

direction is incorrect: move to the next

step.

b1) Press the RTS transmitter MY

button until the shade jogs: the

rotation direction has been modied.

b2) Press the RTS transmitter UP

button to check the rotation direction.

5.2. Checking the rotation direction

b2b1

The end limits can be set in any order.

1) Press and hold the UP button to move the

shade to the desired position. If necessary

adjust the Up position, using the UP or

DOWN buttons.

2) Press the MY and DOWN buttons

simultaneously and release them once the

shade begins to move.

The up limit is memorized.

3) Press the MY button when the shade

reaches the desired Down position.

If necessary adjust the down position, using

the UP or DOWN buttons.

4) Press the MY and UP buttons

simultaneously and release them when the

shade begins to move.

The Down limit is memorized. The shade

moves up and will stop at its upper limit.

5) To conrm the end limits, press and hold

the MY button until the shade jogs.The end

limits are recorded.

1 2

3 4

5.3. Adjusting the end limits

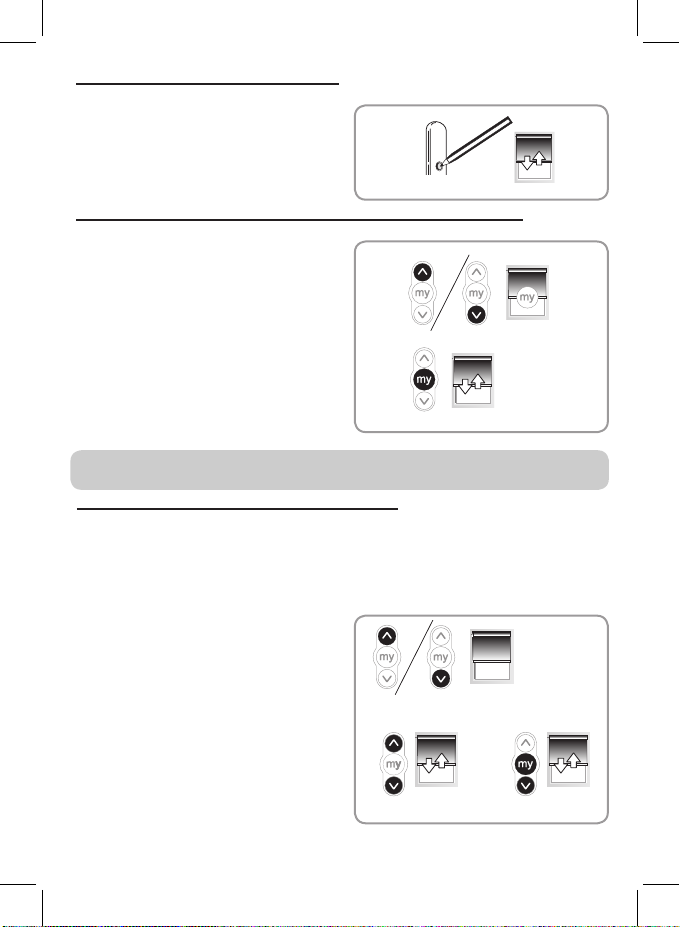

5.4. Recording the RTS transmitter

After recording the end limits:

Briey press the programming button on

the back of the transmitter. The shade jogs.

The transmitter is recorded.

If desired, to set the MY position, move the

shade to the desired position with the UP

or DOWN button then press the MY button

until the shade jogs.

PROG.

5.5. Favorite position: MY position / Recording MY position

6. OPERATION

1) Move the shade away from the end

limits.

2)Simultaneously press the UP and DOWN

buttons until the shade jogs.

3) Press and hold the MY and DOWN

buttons simultaneously until the shade jogs

to change from Roller mode to Tilting mode.

6.1. Mode selection: Roller or Tilting mode

The Cord Lift 32 RTS is designed to work in 2 modes: Tilting mode or Roller mode.

This feature allows the Roll Up 28 RTS to be set according to the type of blind you are

working with.

The Cord Lift 32 RTS is set by default to work in Roller mode.

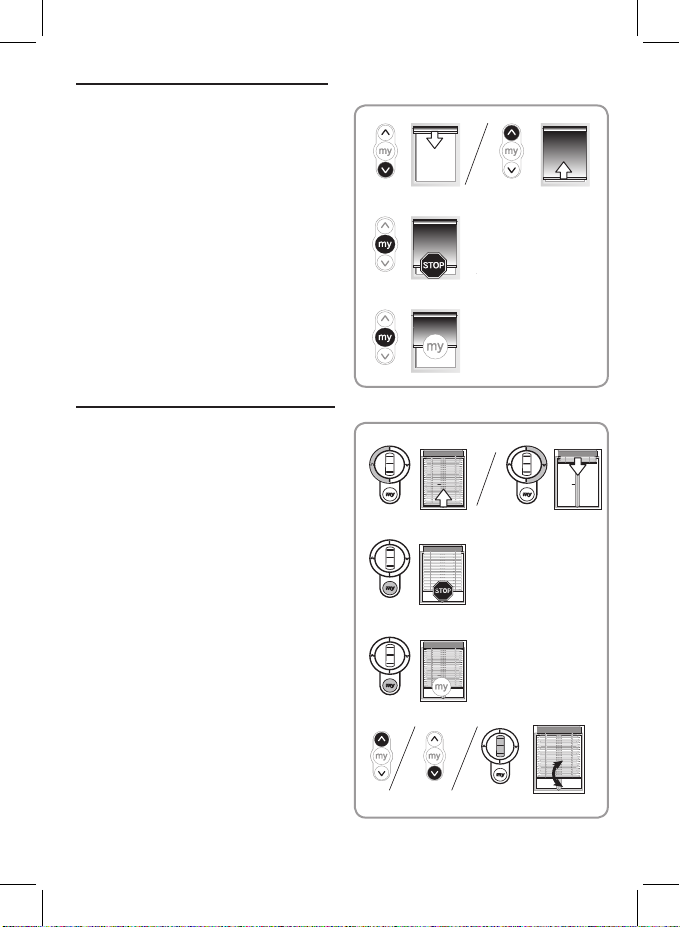

1) To move the shade from a limit to the

other limit, press briey the UP or DOWN

button.

2) To stop the shade, press the MY button.

3) If a MY position is recorded,To move the

shade to this MY position, press briey the

MY button.

6.2. Up, Down, My: In roller mode

1) To move the shade from a limit to the

other limit, briey press (less than 0,5s) the

UP or DOWN button.

2) To stop the shade, press the MY button.

3) If a MY position is recorded,To move the

shade to this MY position, press briey the

MY button.

The shade rst goes to the down end limit,

then to the MY position.

4) To tilt the slats, press and hold the UP

or DOWN button or use the scroll of the

remote control, until the slats reach the

desired position.

6.3. Up, Down, My: In Tilting mode

7. ADDITIONAL SETTING

1) Changing the MY position

To change the MY position, go to the

new desired MY position with the UP and

DOWN buttons then press the MY button

until the shade jogs.

2) Deleting the MY position

To delete the MY position, press the MY

button to move to this position and press

the MY button until the shade jogs.

7.1. Favorite position: MY position

Readjusting the upper end limit

1) Press the UP button, to move the shade

to the upper end limit.

2) Press and hold the UP and DOWN

buttons simultaneously until the shade jogs.

3) Press and hold the UP or DOWN button

to move the shade to the new desired

position.

4) To conrm the new limit press and hold

the MY button until the shade jogs.

Readjusting the lower end limit

1) Press the DOWN button to move the

shade to the lower end limit.

2) Press and hold the UP and DOWN

buttons simultaneously until the shade jogs.

3) Press and hold the UP or DOWN button

to move the shade to the new desired

position.

4) To conrm the new limit press and hold

the MY button until the shade jogs.

1 2

7.2. End limit readjustment
