User Guide

www.somfy.com

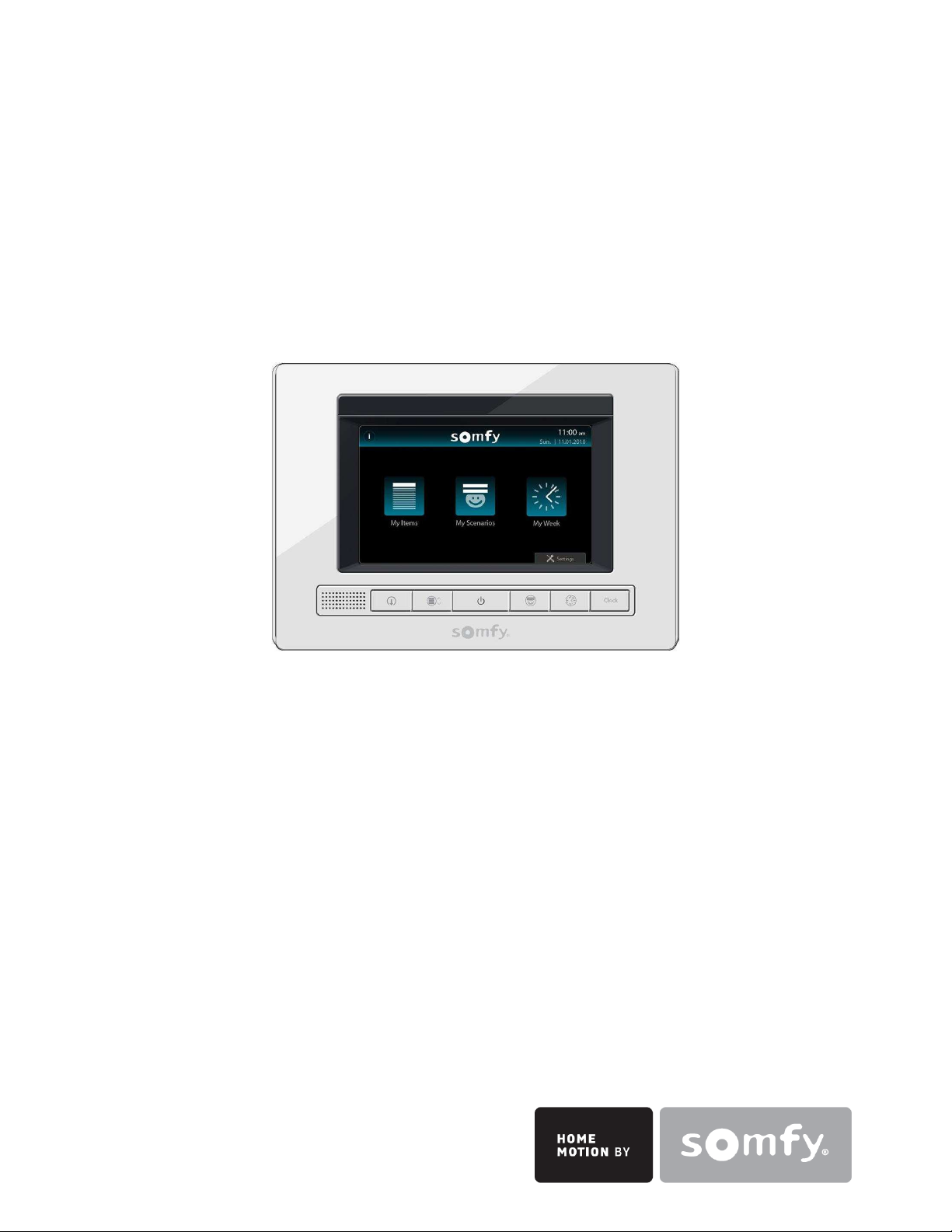

Touch Panel Controller – i700

SAFETY

oThis Somfy Touch Panel Controller – i700 must be installed, serviced, and maintained only

by a qualified installer.

oBefore installation, check that this product is compatible with the associated equipments and

accessories.

oThese instructions describe how to install this product.

oThe installer must comply with current standards and legislation in the country in which the

product is being installed, and inform his customers of the operating and maintenance

conditions for the product.

oAny use outside the sphere of application specified by Somfy is not approved. Such use, or

any failure to comply with the instructions given herein will invalidate the warranty, and Somfy

refuses to accept liability.

TABLE OF CONTENTS

SAFETY........................................................................................................................................... 2

TABLE OF CONTENTS.................................................................................................................. 3

INTRODUCTION............................................................................................................................. 4

Overview ..................................................................................................................................... 4

System Configuration.................................................................................................................. 4

OPERATION ................................................................................................................................... 5

Touch Panel at a Glance............................................................................................................. 5

My Item........................................................................................................................................ 7

My Scenarios............................................................................................................................... 8

My Week ..................................................................................................................................... 9

SETTING....................................................................................................................................... 10

SET My Touch Panel ................................................................................................................ 10

SET My Scenario ...................................................................................................................... 11

SET My Week ........................................................................................................................... 12

SPECIFICATION........................................................................................................................... 13

CARE AND CLEANING INSTRUCTION...................................................................................... 13

APPENDIX .................................................................................................................................... 14

INTRODUCTION

Overview

The Somfy Touch Panel Controller – i700 is a Somfy controller with Microsoft Windows

operating system built in. The speed of the processor and the LAN-enabled architecture allow the

i700 Controller to function as an integrated home gateway. The i700 Controller is equipped with a

FreeScale i.MX31 523 MHz processor, a 7" touchscreen display that provides controlling

capabilities for a home/building automation solution.

Somfy motorized products can be controlled through the Touch Panel Controller which provides

the following functions:

oControl movement of motorized product individually, or as a group.

oSimultaneously control multiple openings from a single button using the scenario function.

oAutomatically control opening through a programmed schedule.

oPerform specific function base on the product nature, such as tilting for venetian blinds,

and sun automation for sensors.

System Configuration

A system diagram of the Somfy Touch Panel Controller – i700 is shown in the following diagram:

OPERATION

NOTE:

The Touch Panel Controller must be set up by your installer for the first time through

custom configuration software.

The setup and configuration of every Touch Panel Controller i700 is unique so the display

may look different than the examples provided in this User’s Manual.

Touch Panel at a Glance

When the Somfy Touch Panel i700 is powered ON, a startup screen is displayed

A. Function icons

B. Setting button

C. Current time and date

D. Technical support icon

E. Shortcut buttons

F. Screen on / off button

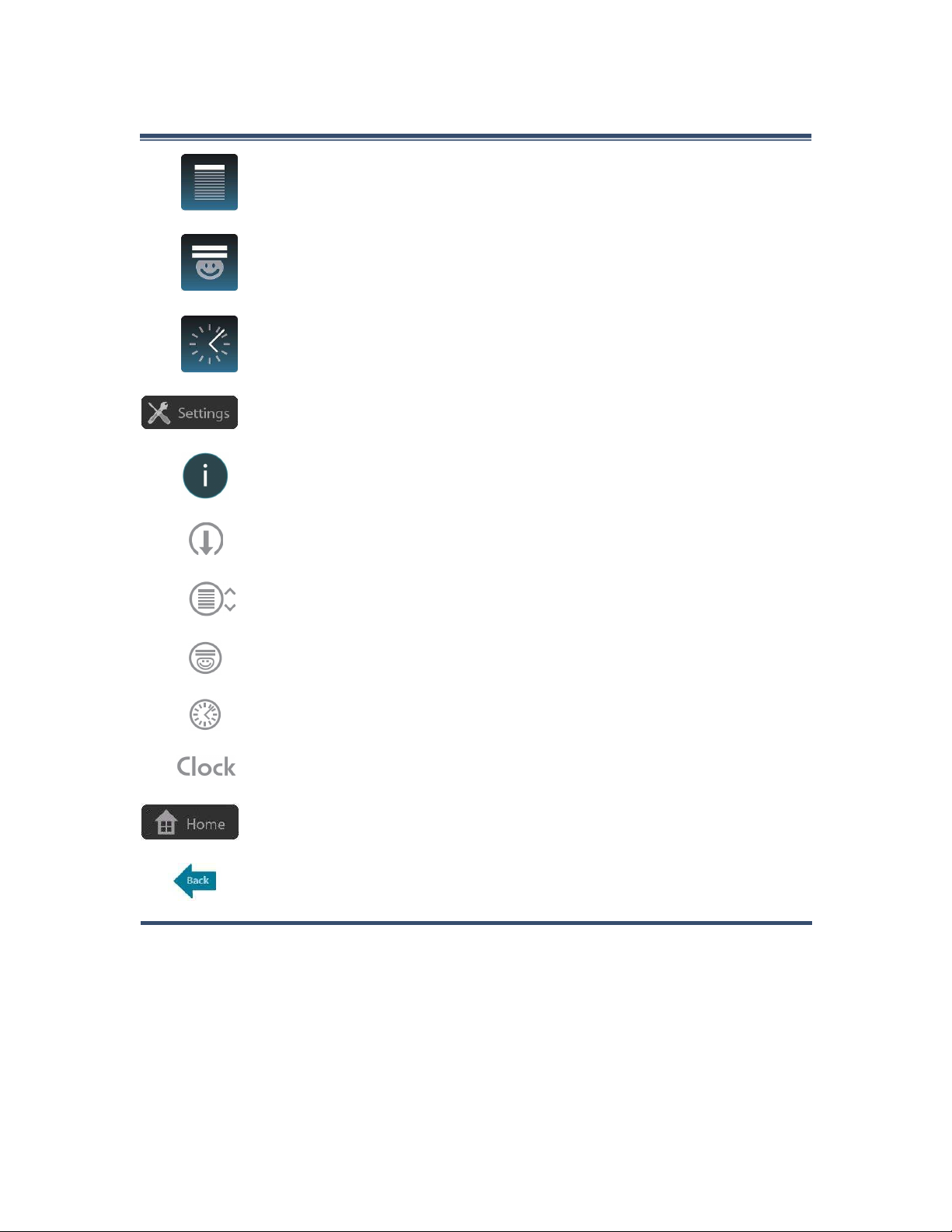

Icon Description

MY ITEMS: Control each item individually, or all the items in a room together.

You can easily locate the items which are categorized by “space” or by “item”.

MY SCENARIOS: Recall the pre-programmed scenario with one touch of the

button. Combination of items can be saved as one scenario to give you the

convenience.

MY WEEK: The timer function which allows you to turn on or off a pre-

programmed daily schedule for a week. It could automatically activate

multiple items according to schedule.

SETTING: Enter setting mode to configure Touch Panel screen setting,

create scenario and form weekly schedule.

INFO: Access information about installer or support hotline.

ALL CLOSE: A shortcut button to let you close all connected openings by

one button.

Shortcut to “MY ITEM”:

Shortcut to “MY WEEK”:

CLOCK: Show the current time.

HOME: Tab anytime to return to the Home screen.

BACK: Tab to go back to previous page.

My Item

You can easily relate screen icons to items and places according to your own premise, and label

them as you wish, eg Amy’s Room.

Tap MY ITEMS to locate an item.

oTap My Space and choose an area, you can control together all items belonging to this

area or tap an item to control it individually.

oTap My Items directly, and then choose an item.

Different function icons will be displayed according to the application. For example, UP and

DOWN control for roller blinds, while OPEN and CLOSE control for curtain. You would also have

the option to tilt the slats angle for Venetian blinds, turn on/off sun automation and dim the lights.

Functions you can perform:

Control the “UP” and “DOWN”

movement of the item

Control the “OPEN” and

“CLOSE” movement of the

item

Bring the item to the favourite

position

Stop the moving item

Control the tilting movement of

the venetian blind

Activate / deactivate sun

automation function

Turn ON / OFF the light

Control the dimming of the light

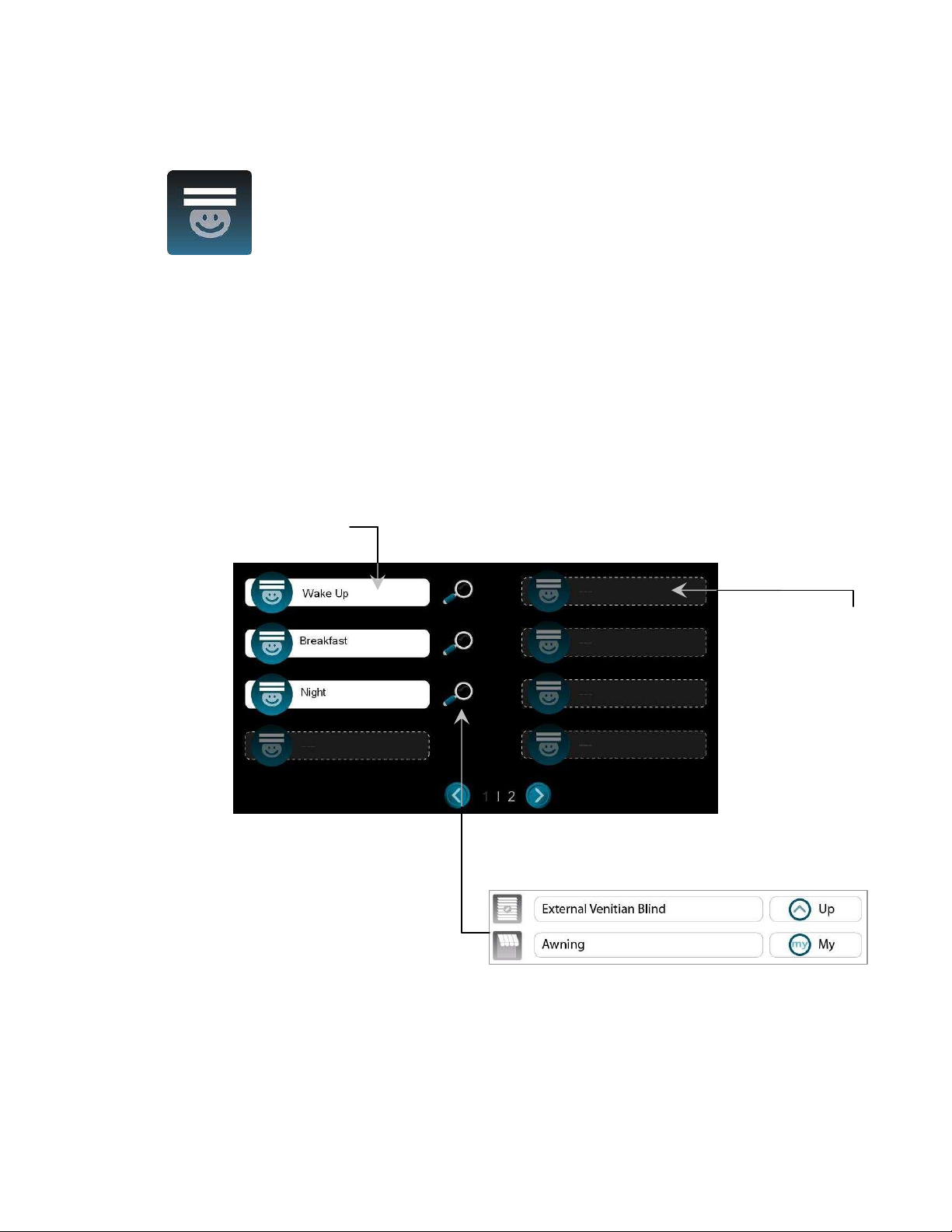

My Scenarios

A scenario allows you to define a special atmosphere for your home by combining the movement

of various products independently of each other. In one scenario, some products will open, others

will clsoe, some will be positioned at the favourite position – My (favorite position must be pre-

defined by installer) and others will not be affected.

For example, to preserve the coolness inside the after-summer afternoons, the blind of the rooms

facing south will bring in favorite position, the shade of the terrace will go down to protect the

furniture from direct sunlight in the living room.

Note: To update a scenario, for instance changing the command of an item, adding or removing

an item from a scenario, please follow the instruction explained in <Set My Scenario> section.

Empty space for

new scenario

Tap to recall a pre-set

scenario immediately

View the pre

set position of

the associated items.

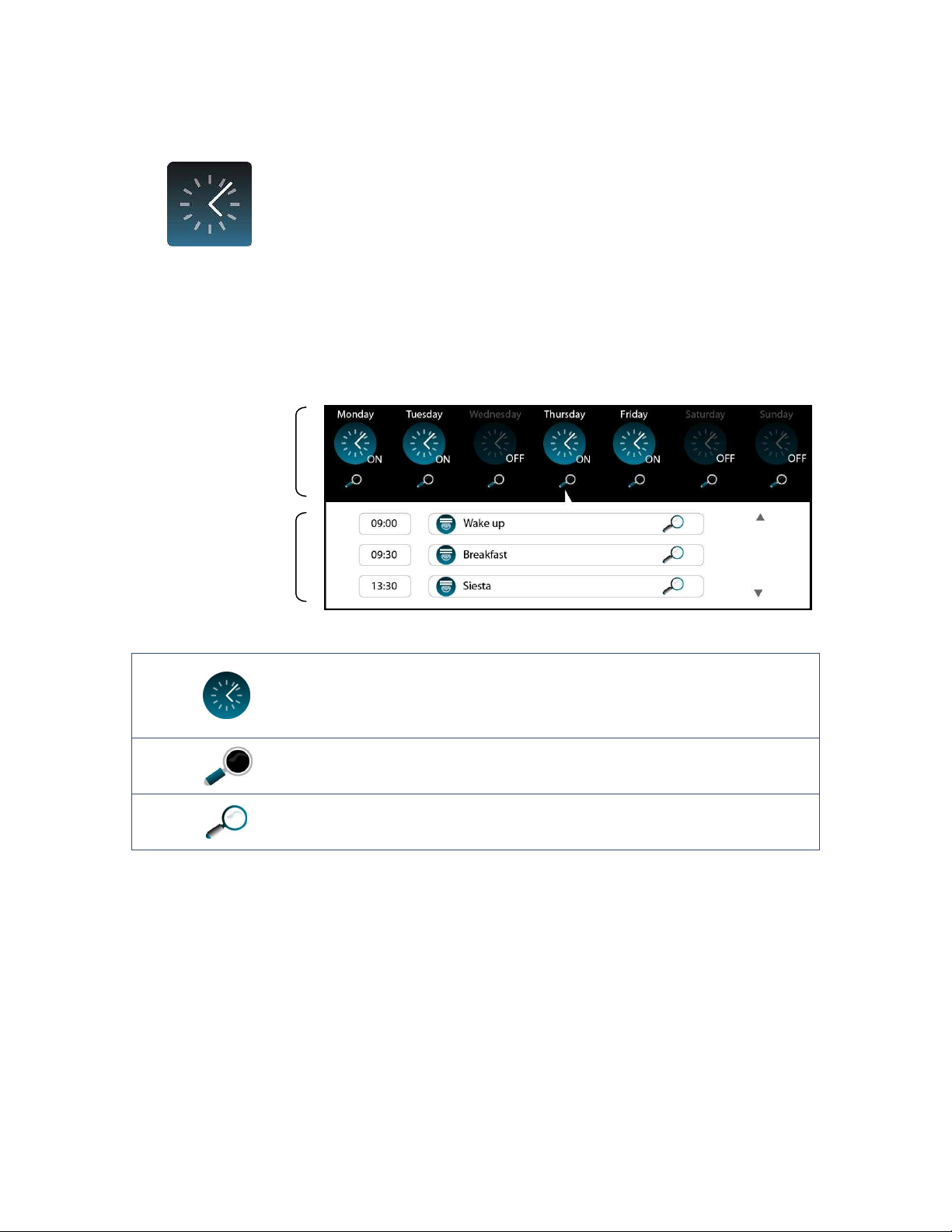

My Week

A schedule is used to activate the movement of various products at a specific time. Schedules

include periodically turning the shades up and down when no one is home to make a house

appear lived in.

Tap the Clock to toggle on/off of a pre-programmed daily schedule.

When the status is ON, the assigned scenario will be automatically

performed by the set time.

View the full day schedule by scenario.

Within the day schedule, you may also view the details of individual

scenario.

In this example, Monday, Tuesday, Thursday and Friday are turned on, meaning the scenarios

assigned for these days will be automatically performed by the set time. By tapping on the zoom

icon for Thursday, it shows 3 scenarios assigned at their specified time.

Wednesday, Saturday and Sunday are set to OFF; there will be no automatic movement on these

days.

Days of the week

and its status.

Daily schedule by

scenario

SETTING

Tap SETTING to configure screen setting, create scenario and form weekly schedule.

You will be asked to enter a password if you have enabled this function. Tap your password and

then tap OK to proceed.

You have three options:

SET My Touch Panel

Tap SET My Touch Panel to configure your screen setting.

Date and Time setting applies to the time

shown at the top of the screen.

Power save sets how long before the

screen turns off. To turn the screen back

on, simply press

located on the front

panel.

Brightness refers to the brightness of the

screen by percentage.

Password, when protection is set to ON, you will be required to enter a password to unlock

the screen setting.

Adjust your setting by tapping next to each field.

Tap to save setting, or to go back to the previous screen without saving.
