SM6230M-O2

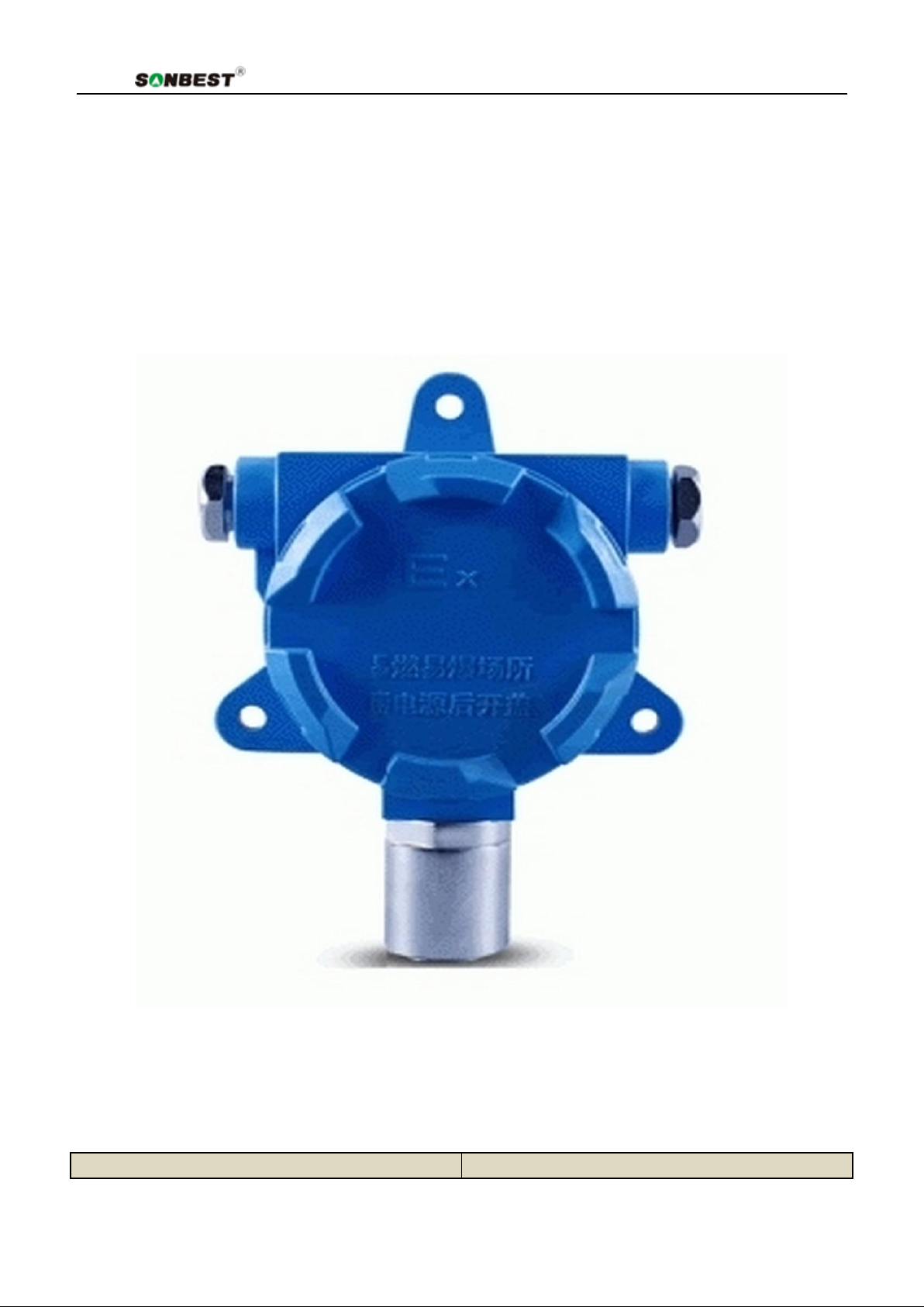

Explosion-proof 4-20mA oxygen current transmitter sensor
User Manual
File Version: V21.3.24
SM6230M-O2 using the standard DC4-20mA current output signal,easy access to PLC，DCS and
other instruments or systems for monitoring oxygen state quantities.The internal use of high-precision
sensing core and related devices to ensure high reliability and excellent long-term stability,can be
customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRSand other output
methods.
Technical Parameters
Technical parameter
Parameter value
SM6230M-O2 Us e r Ma nual http://www.sonbus.com/
Sha nghaiSonbest Industrial Co., Ltd Page2
Brand
SONBEST
O2 range
0~30%
O2 accuracy
±3%
Communication Interface
DC4~20mA
Power
DC12~24V 1A
Running temperature
-40~80°C
Working humidity
5%RH~90%RH
Wiringinstructions
Any incorrect wiring can cause irreversible damage to the product. Please carefully wire the cable as
follows in the case of power failure, and then connect the cable to confirm the correctness and then use it
again.
ID
Core color
Identification
Note
1
Red
V+
Power V+
2
Blue
I+
sensor output
3
BLACK
V-
Power negative
electrode

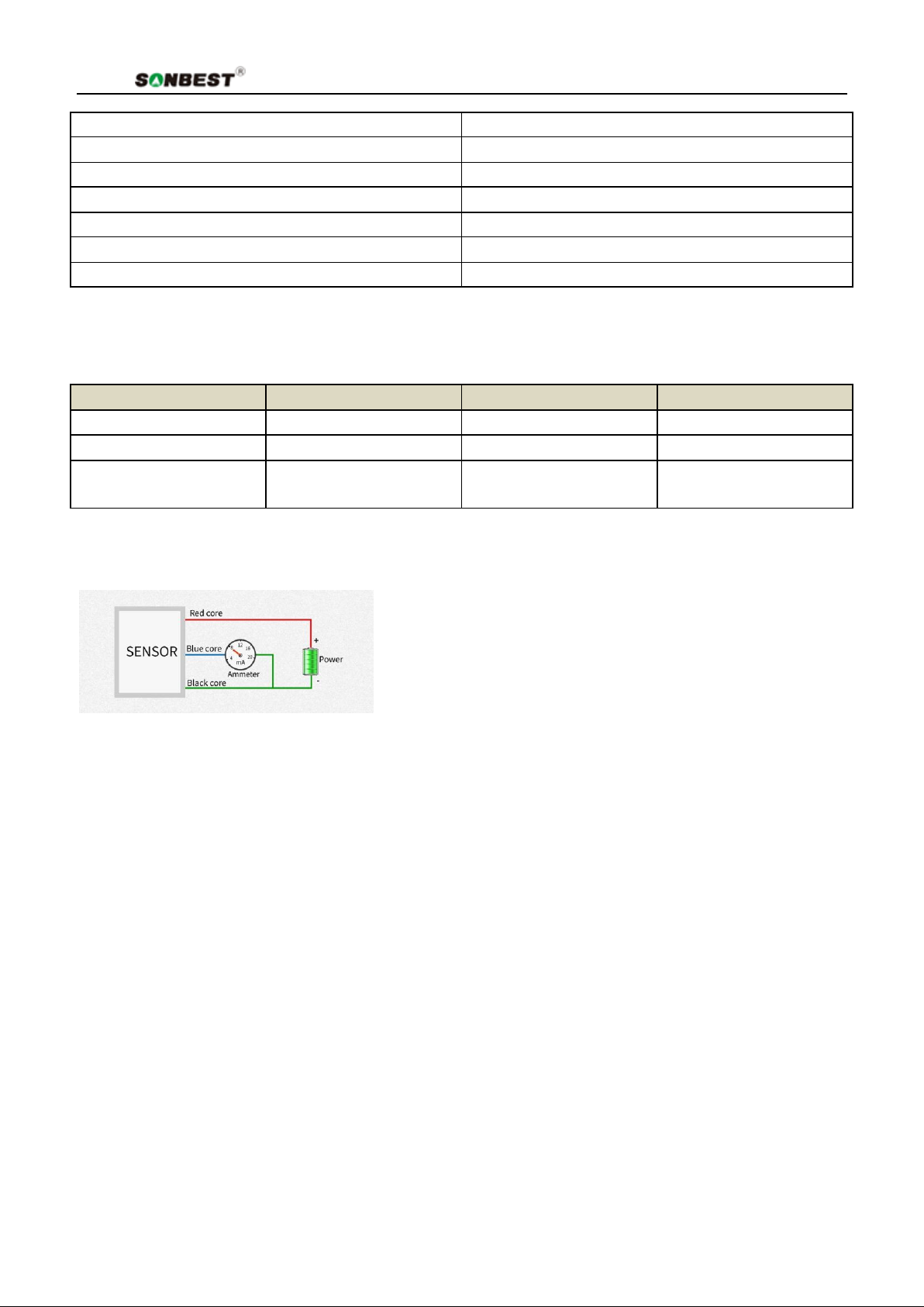

In the case of broken wires, wire the wires as shown in the figure. If the product itself has no leads, the
core color is for reference.
Disclaimer
This document provides all information about the product, does not grant any license to intellectual
property, does not express or imply, and prohibits any other means of granting any intellectual property
rights, such as the statement of sales terms and conditions of this product, other issues. No liability is
assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use
of this product, including the suitability for the specific use of the product, the marketability or the
infringement liability for any patent, copyright or other intellectual property rights, etc. Product
specifications and product descriptions may be modified at any time without notice.
