SonicWALL TZ 150 Wireless Manuale utente

SonicWALL TZ 150 Wireless

Getting Started Guide

SonicWALL TZ 150 Wireless Getting Started Guide Page 1

SonicWALL TZ 150 Wireless Security

Appliance Getting Started Guide

The SonicWALL®TZ 150 Wireless is a total security platform for both

your wired and wireless network, delivering true layered security by

integrating gateway anti-virus, intrusion prevention and content

filtering capabilities for small networks in an easy-to-use, low cost

platform.

This Getting Started Guide provides instructions for basic installation

and configuration of the SonicWALL TZ 150 Wireless. After you

complete this guide, up to 10 computers on your Local Area Network

(LAN) will have secure Internet access.

Note: For complete documentation, refer to the SonicOS Standard

Administrator’s Guide on the SonicWALL Resource CD or at:

<http://www.sonicwall.com/us/support.html>.

Before You Begin

Check Package Contents

• One SonicWALL TZ 150 Wireless security appliance

• One SonicWALL TZ 150 Wireless Getting Started Guide

• One SonicOS Standard Release Notes

• One Ethernet cable

• One 12V, 1.66A power supply

• One SonicWALL Resource CD, which contains product

documentation and software utilities.

Any Items Missing?

If any items are missing from your package, contact:

SonicWALL Support

Web: <http://www.sonicwall.com/us/support.html>

E-mail: [email protected]

Page 2

SonicWALL TZ 150 Wireless Configuration

This Getting Started Guide covers the following procedures.

Procedures 1 through 6 are required for initial configuration of your

SonicWALL TZ 150 Wireless security appliance.

Collect Required Information page 3

Applying Power to the SonicWALL TZ 150 Wireless page 4

Connecting the SonicWALL TZ 150 Wireless page 5

Accessing the Management Interface page 7

Registering Your SonicWALL TZ 150 Wireless page 10

Activating SonicWALL Security Services page 15

Connecting Wireless Clients to the

SonicWALL TZ 150 Wireless page 19

Connecting Computers to Your Appliance page 23

Wall Mounting the SonicWALL TZ 150 Wireless page 26

What You Need to Begin

• A computer to use as a management station for initial

configuration of the SonicWALL TZ 150 Wireless

• An Internet connection

• A Web browser for accessing the SonicWALL TZ 150 Wireless’s

Web-based management interface. The Web browser must

support Java and HTTP uploads. Internet Explorer 6.0 or higher,

Netscape Navigator 9.0 or higher, or Firefox 2.0 or higher are

recommended.

SonicWALL TZ 150 Wireless Getting Started Guide Page 3

Collect Required Information

Internet Service Provider (ISP) Information

Collect the following information about your Internet service:

Note: If you are not using one of the network configurations above,

refer to the SonicOS Standard Administrator’s Guide

If you connect

via

You

probably

use

Please record

Cable modem,

DSL with a router

DHCP You do not need to provide any Internet

connection information.

Home DSL PPPoE User Name:

Password:

Note: Your ISP may require your user

name in the format: name@ISP.com

T1,

Static broadband,

Cable or DSL

with a static IP

Static IP IP Address:

Subnet Mask:

Default Gateway

(Router Address):

Primary DNS:

S e c o n d a r y D N S ( o p t i o n a l ) :

Dial in to a server PPTP Server Address:

User Name:

Password:

Page 4

Other Information

SonicWALL Management Interface

To access the SonicWALL TZ 150 Wireless Web-based

management interface. These are the default settings, which you

can change:

User Name: admin

Password: password

Applying Power to the

SonicWALL TZ 150 Wireless

Plug the power supply into back of the security appliance

and into an appropriate power outlet.

The Power LED on the front panel lights up green when you

plug in the SonicWALL TZ 150 Wireless. The Test LED may

light up and may blink while the appliance performs a series of

diagnostic tests. When the Test light is no longer lit, the security

appliance is ready for configuration.

If the Test LED remains lit after the SonicWALL TZ 150 Wireless

has booted, Restart the security appliance.

For more trouble shooting information, refer to the

SonicOS Standard Administrator’s Guide.

SonicWALL TZ 150 Wireless Getting Started Guide Page 5

Connecting the

SonicWALL TZ 150 Wireless

Connecting the Ethernet Cables

Connect the WAN Cable

1. Connect one end of an Ethernet cable to your Internet

connection, such as a DSL modem or cable modem.

This cable may already be connected between your computer

and your modem. If so, disconnect it from your computer, and

leave it connected to the Internet.

2. Connect the other end of the cable to the WAN port on the back

of your SonicWALL TZ 150 Wireless.

The WAN LEDs on the front panel light up indicating an active

connection.

WAN

Modem or Router

Internet

Page 6

Connect the LAN Cable

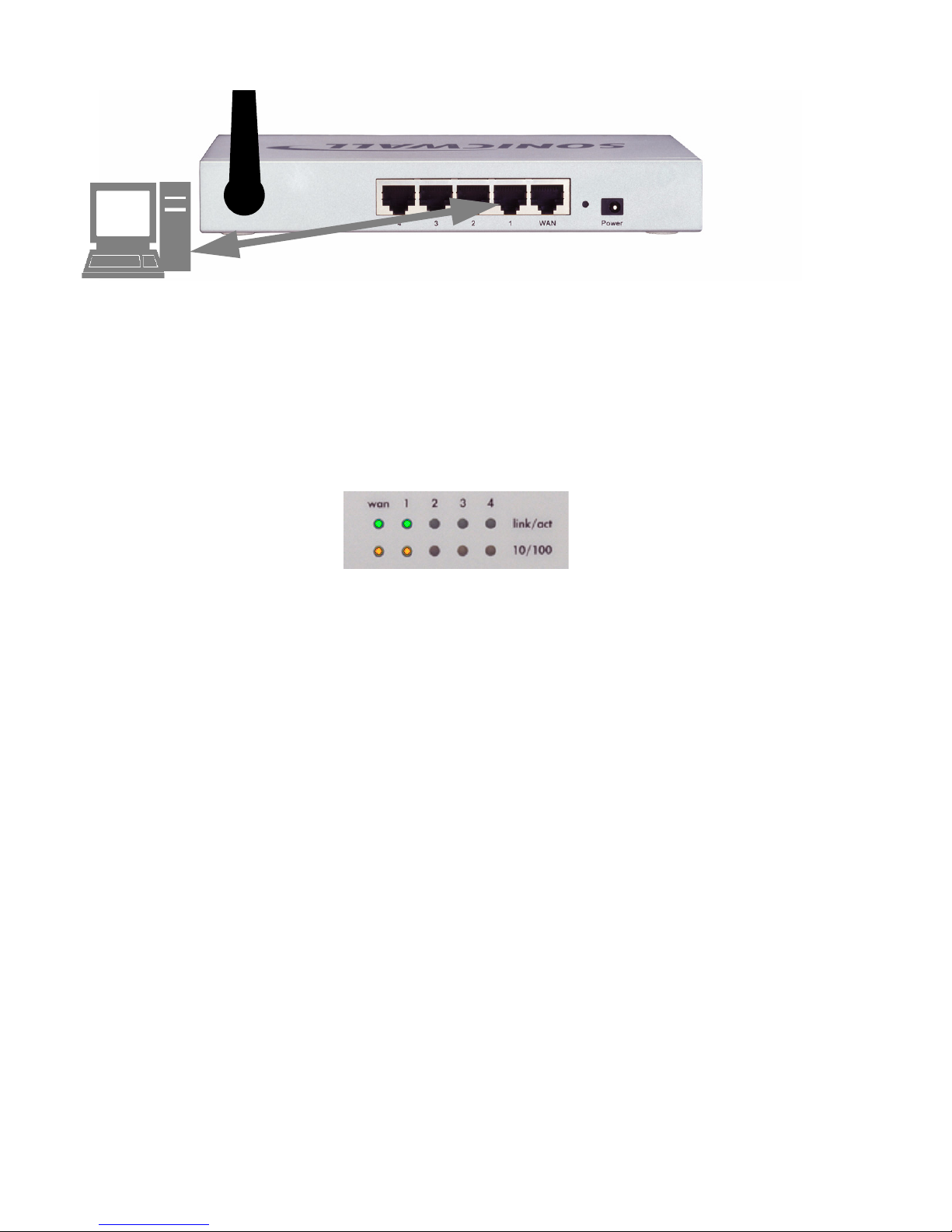

1. Connect one end of another Ethernet cable to the computer you

are going to use to manage the SonicWALL TZ 150 Wireless.

2. Connect the other end of the cable to port # 1on the back of your

SonicWALL TZ 150 Wireless.

The port # 1LEDs on the front panel light up indicating an active

connection.

Management

Station

port 1

SonicWALL TZ 150 Wireless Getting Started Guide Page 7

Accessing the Management Interface

To access the Web-based management interface of the

SonicWALL TZ 150 Wireless:

1. On the computer you have connected to port # 1, Start your Web

browser.

Alert: Turn off pop-up blocking software before accessing the

SonicWALL management interface.

Your Web browser must support Java and HTTP uploads.

Internet Explorer 5.0 or higher or Netscape Navigator 4.7 or

higher are recommended.

2. Enter http://192.168.168.168 in the Location or Address field.

The SonicWALL Setup Wizard launches and guides you through

the configuration and setup of your SonicWALL TZ 150 Wireless.

3. Follow the on-screen prompts to complete the Setup Wizard.

Note: The Setup Wizard will prompt you for a login and a

password. The default login is admin and the default password is

password.

4. Depending on the changes made during your setup

configuration, the SonicWALL may restart.

Page 8

5. Test your connection: After the SonicWALL TZ 150 Wireless

reboots, open a Web browser, and go to

<http://www.sonicwall.com>

If you can view the SonicWALL home page, you have configured

everything correctly.

If you cannot view the SonicWALL home page try a second URL.

If you still cannot view a Web page, log in as “admin” with your

administrative password, and click on the Wizards button in the

top right corner of the management interface to restart the wizard.

SonicWALL TZ 150 Wireless Getting Started Guide Page 9

If the SonicWALL Setup Wizard Does Not Appear

If you cannot connect to the SonicWALL TZ 150 Wireless or the

Setup Wizard does not display, verify the following

configurations:

• Did you correctly enter the SonicWALL TZ 150 Wireless

management IP address in your Web browser?

• Is your computer running pop-up blocking software?

• Are the Local Area Connection settings on your computer set

to obtain an IP address dynamically (DHCP)? see Procedure

7, “Connecting Computers to Your Appliance” on page 23 for

instructions on changing your Local Area Connection

settings.

• Do you have the Ethernet cable connected to your computer

and to port 1on your SonicWALL TZ 150 Wireless?

• Some browsers may not launch the Setup Wizard

automatically. In this case, log into

SonicWALL TZ 150 Wireless using “Admin” as the user

name and “password” as the password. After you log in,

click the Wizards button on the

System > Status page. Select Setup to begin configuring

your SonicWALL TZ 150 Wireless.
